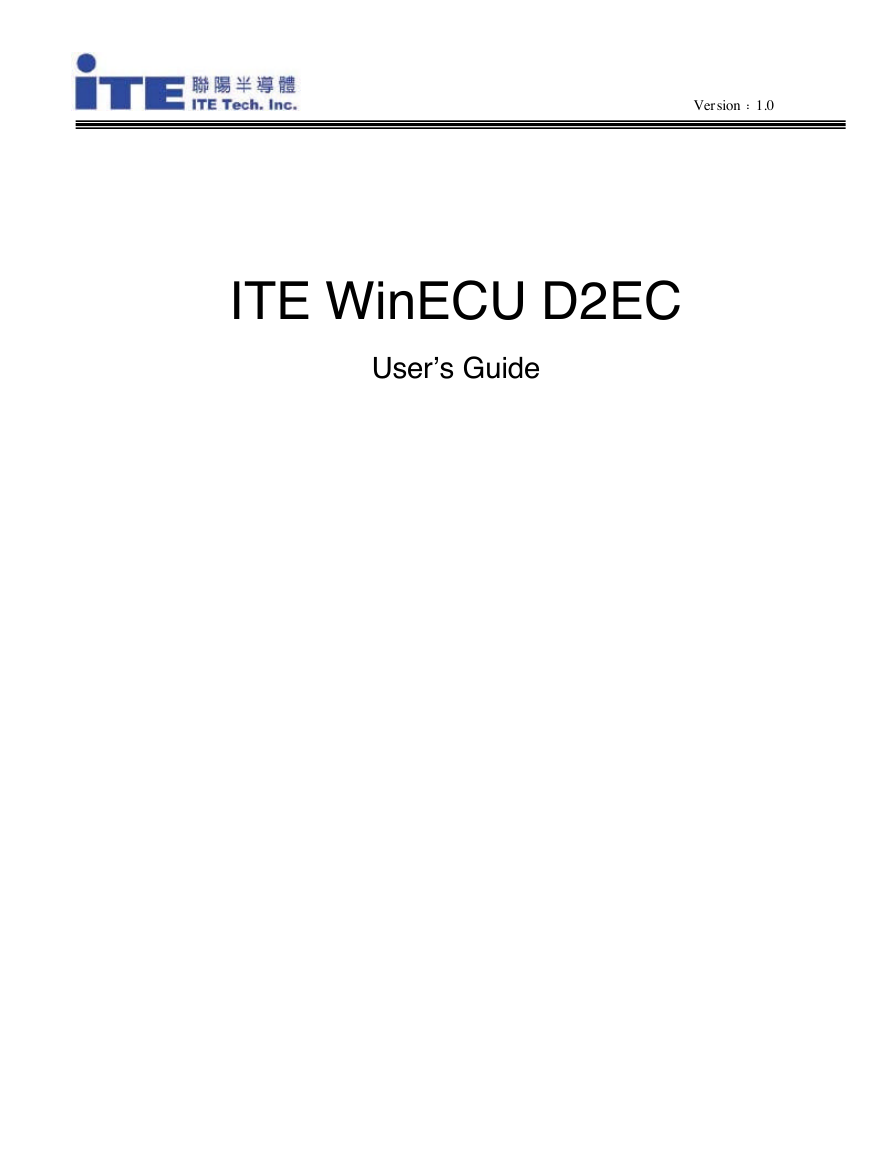

VersionR 1.0 ITE WinECU D2EC User’s Guide

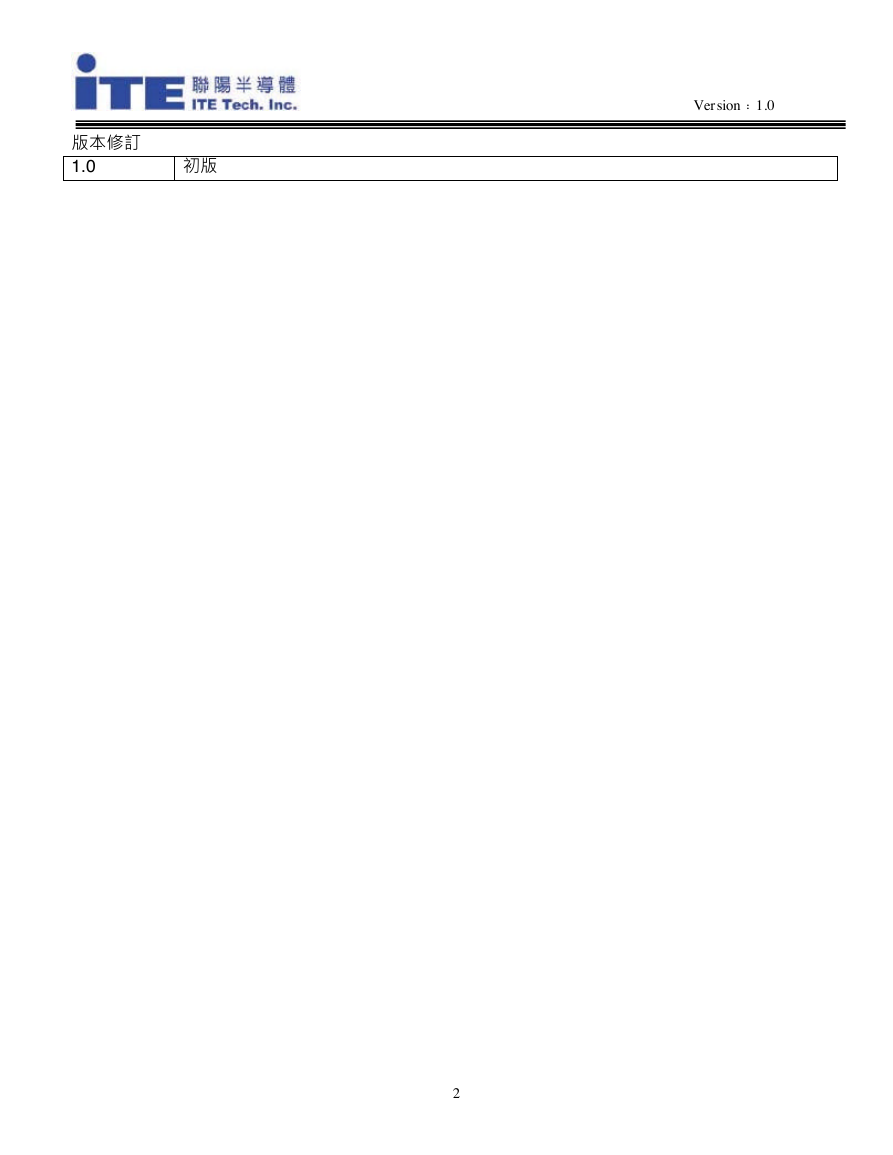

VersionR 1.0 2 q 1.0

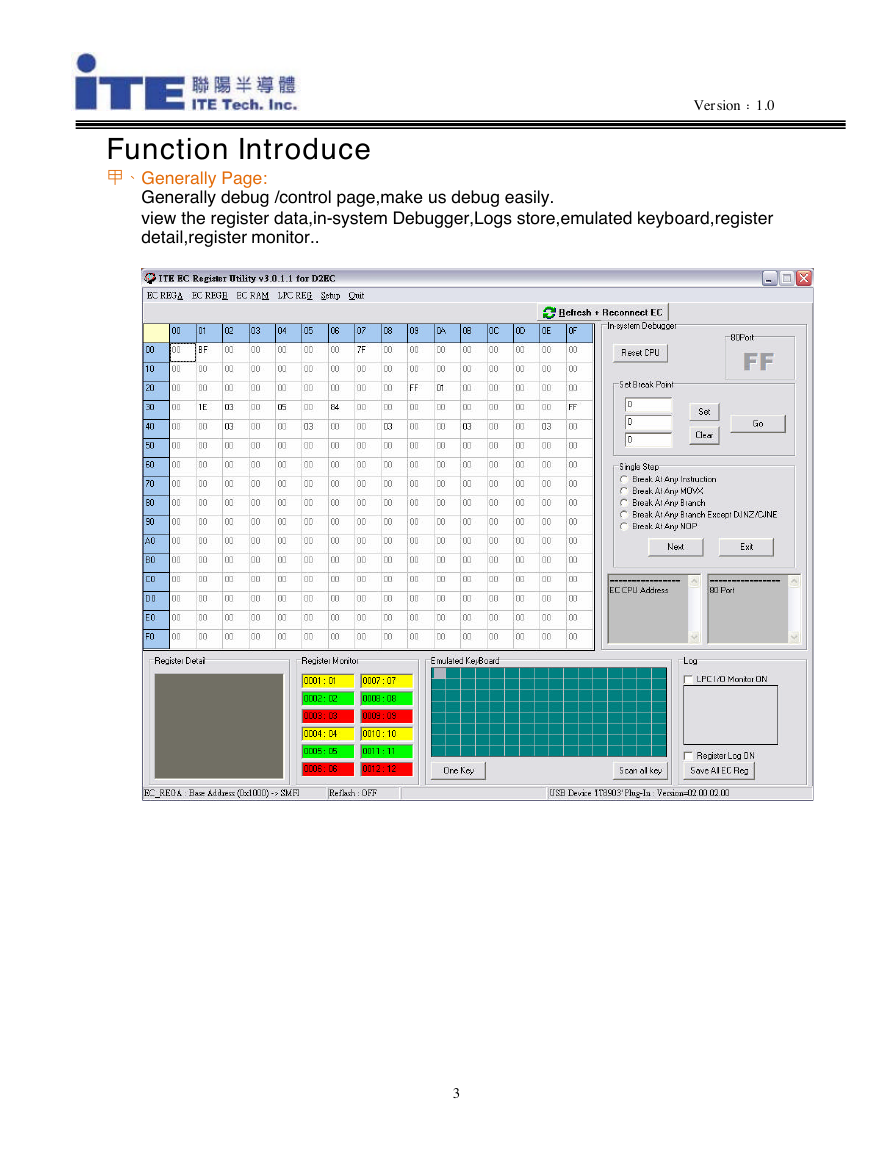

VersionR 1.0 Function Introduce B Generally Page: Generally debug /control page,make us debug easily. view the register data,in-system Debugger,Logs store,emulated keyboard,register detail,register monitor.. 3

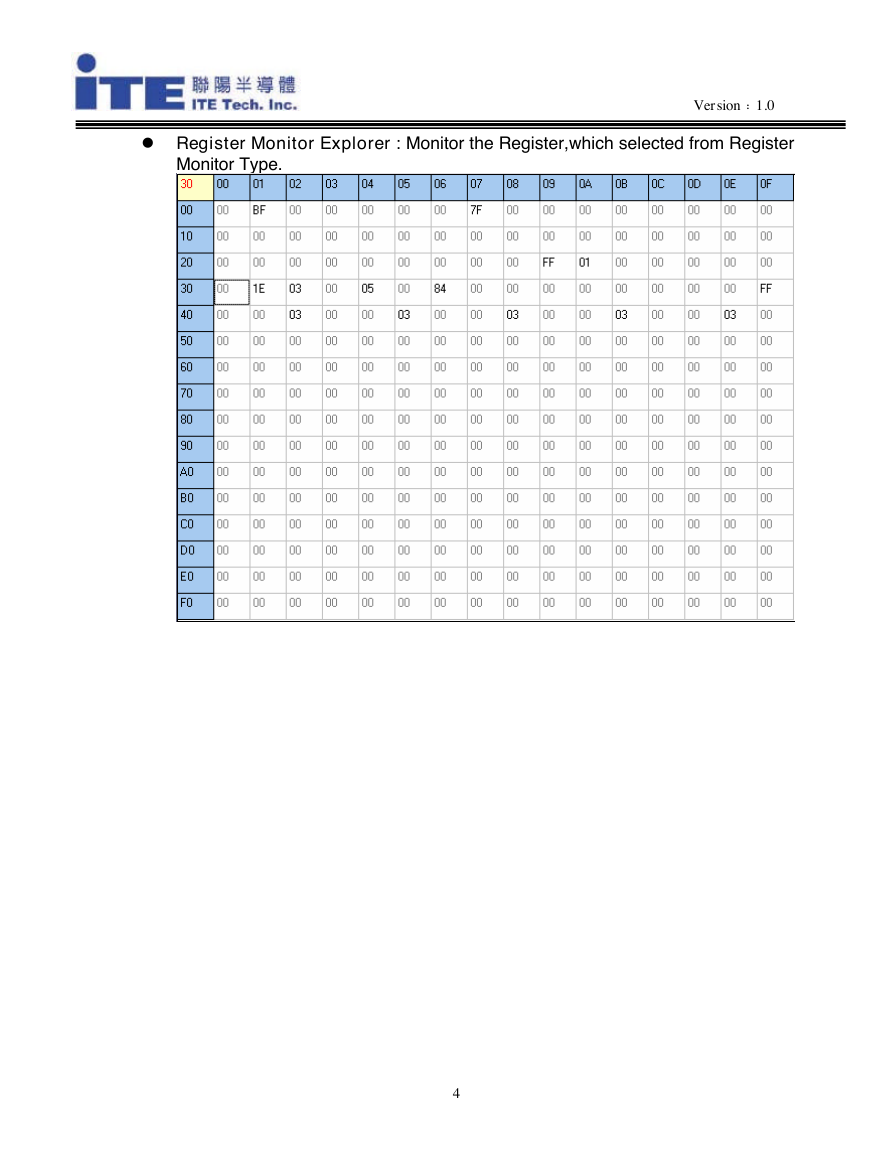

VersionR 1.0 l Register Monitor Explorer : Monitor the Register,which selected from Register Monitor Type. 4

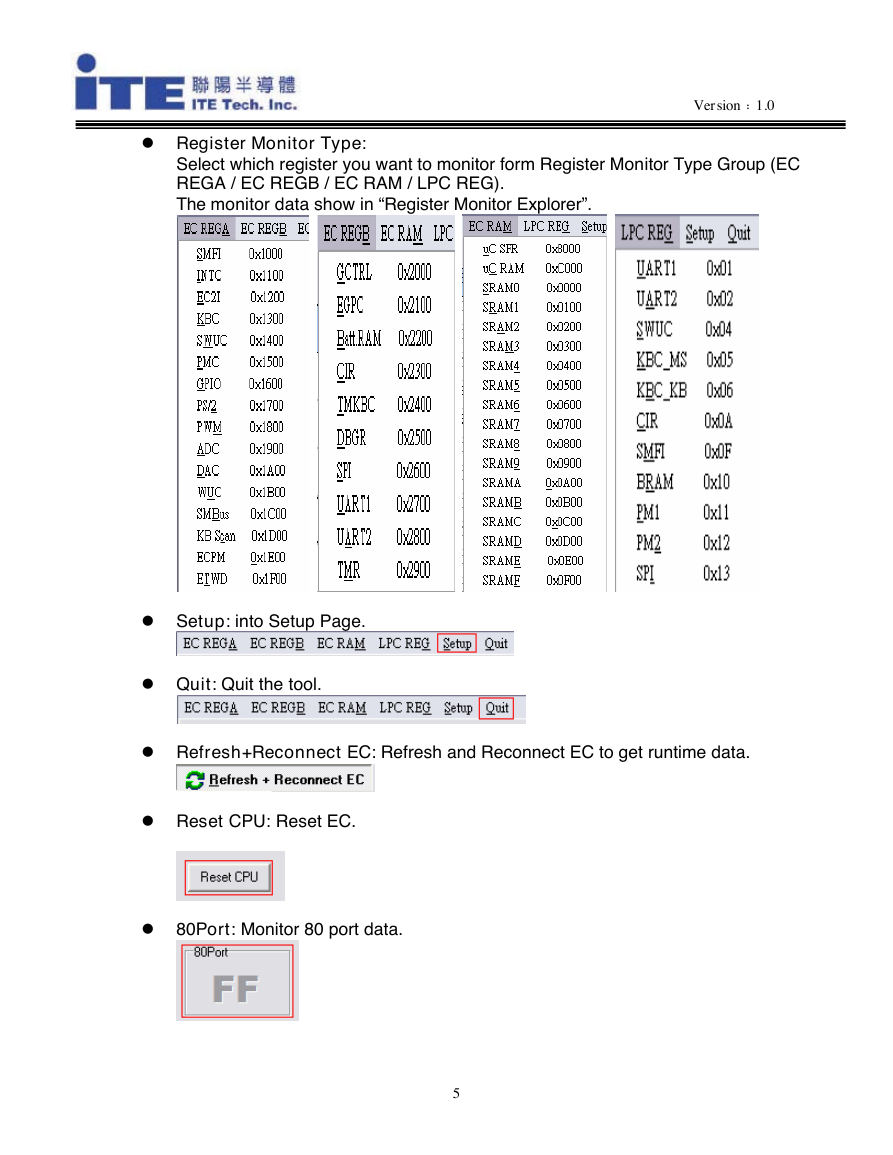

VersionR 1.0 l Register Monitor Type: Select which register you want to monitor form Register Monitor Type Group (EC REGA / EC REGB / EC RAM / LPC REG). The monitor data show in “Register Monitor Explorer”. l Refresh+Reconnect EC: Refresh and Reconnect EC to get runtime data. l Setup: into Setup Page. l Quit: Quit the tool. l Reset CPU: Reset EC. l 80Port: Monitor 80 port data. 5

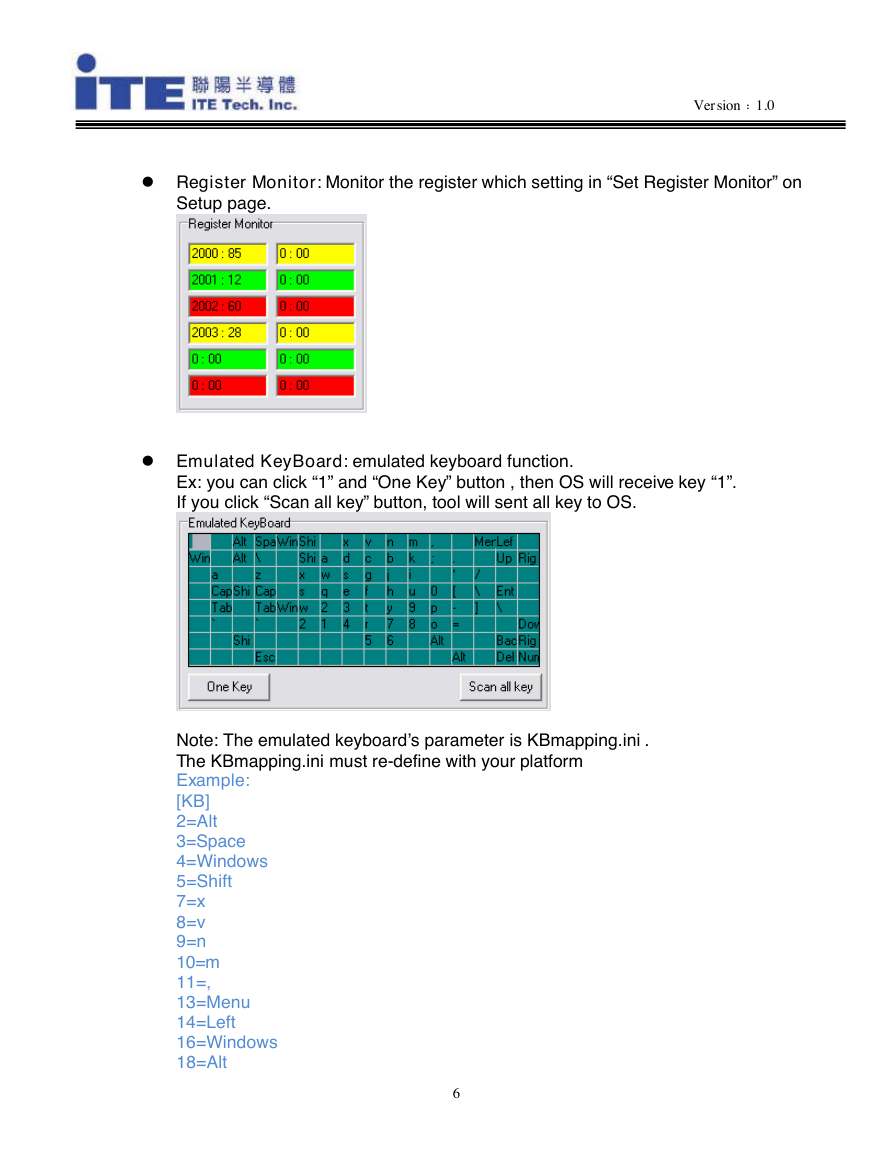

VersionR 1.0 l Register Monitor: Monitor the register which setting in “Set Register Monitor” on Setup page. l Emulated KeyBoard: emulated keyboard function. Ex: you can click “1” and “One Key” button , then OS will receive key “1”. If you click “Scan all key” button, tool will sent all key to OS. Note: The emulated keyboard’s parameter is KBmapping.ini . The KBmapping.ini must re-define with your platform Example: [KB] 2=Alt 3=Space 4=Windows 5=Shift 7=x 8=v 9=n 10=m 11=, 13=Menu 14=Left 16=Windows 18=Alt 6

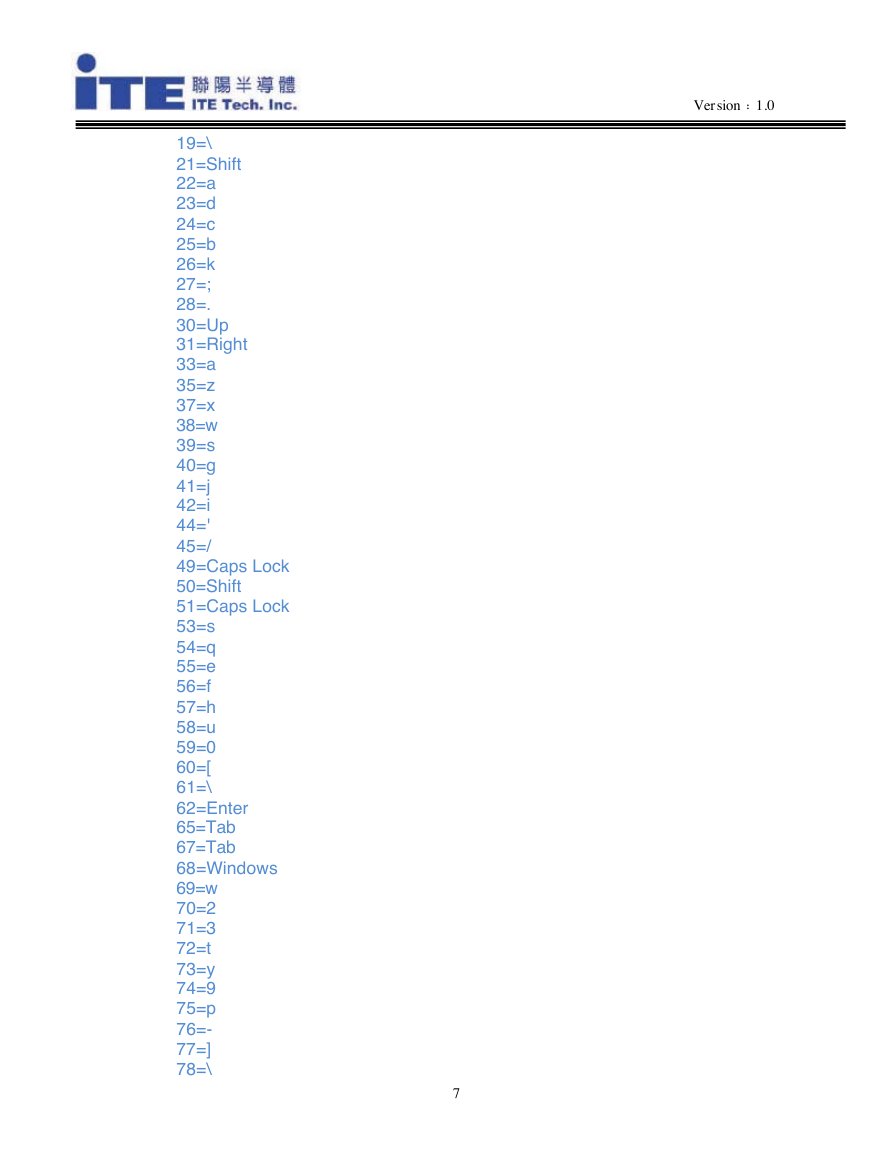

VersionR 1.0 19=\ 21=Shift 22=a 23=d 24=c 25=b 26=k 27=; 28=. 30=Up 31=Right 33=a 35=z 37=x 38=w 39=s 40=g 41=j 42=i 44=' 45=/ 49=Caps Lock 50=Shift 51=Caps Lock 53=s 54=q 55=e 56=f 57=h 58=u 59=0 60=[ 61=\ 62=Enter 65=Tab 67=Tab 68=Windows 69=w 70=2 71=3 72=t 73=y 74=9 75=p 76=- 77=] 78=\ 7

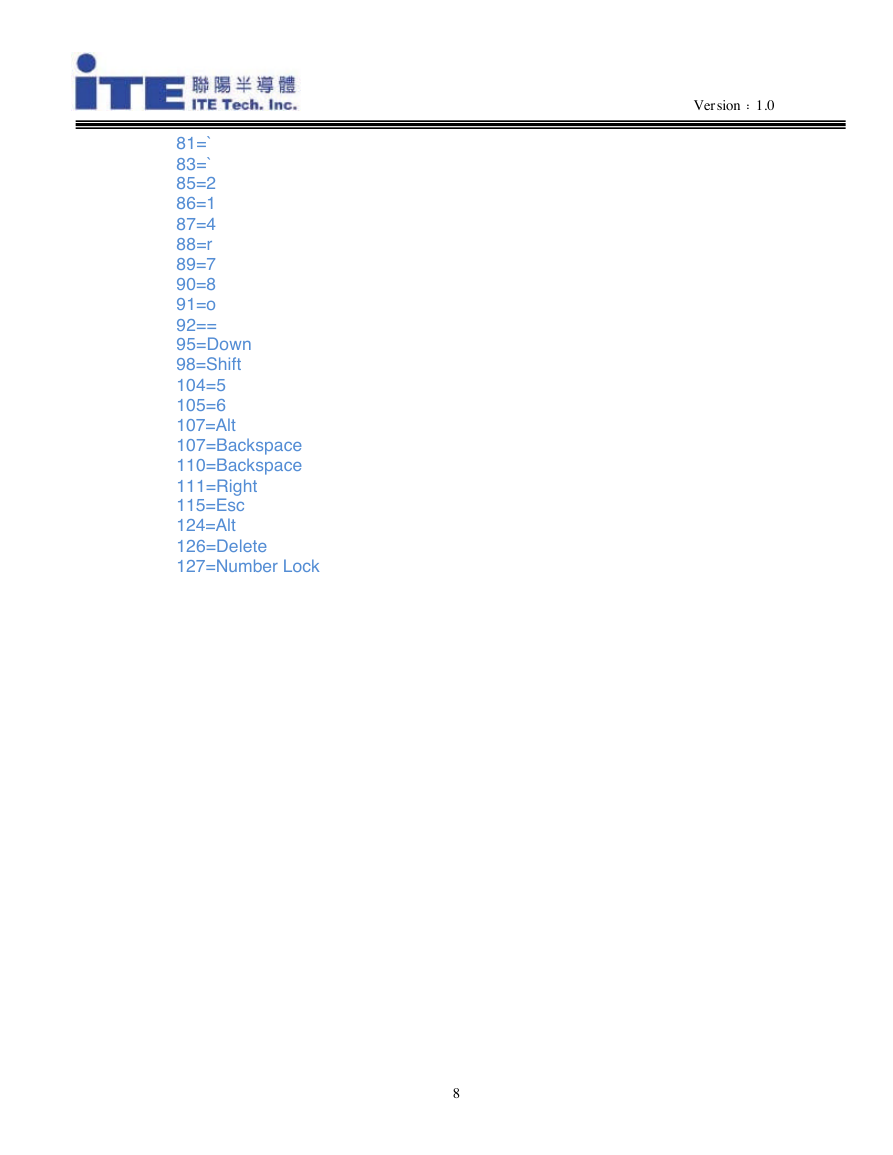

VersionR 1.0 81=` 83=` 85=2 86=1 87=4 88=r 89=7 90=8 91=o 92== 95=Down 98=Shift 104=5 105=6 107=Alt 107=Backspace 110=Backspace 111=Right 115=Esc 124=Alt 126=Delete 127=Number Lock 8
