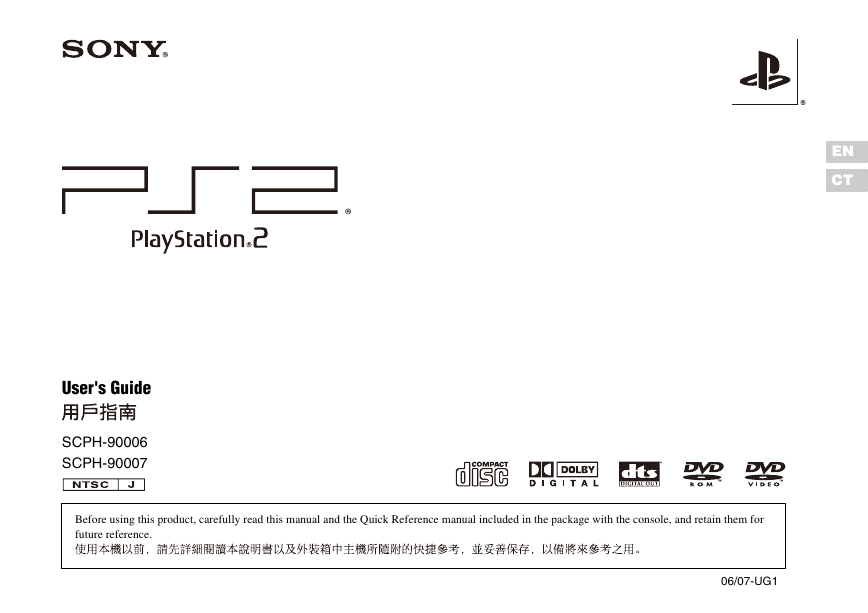

EN CT User's Guide SCPH-90006 SCPH-90007 Before using this product, carefully read this manual and the Quick Reference manual included in the package with the console, and retain them for future reference. 06/07-UG1

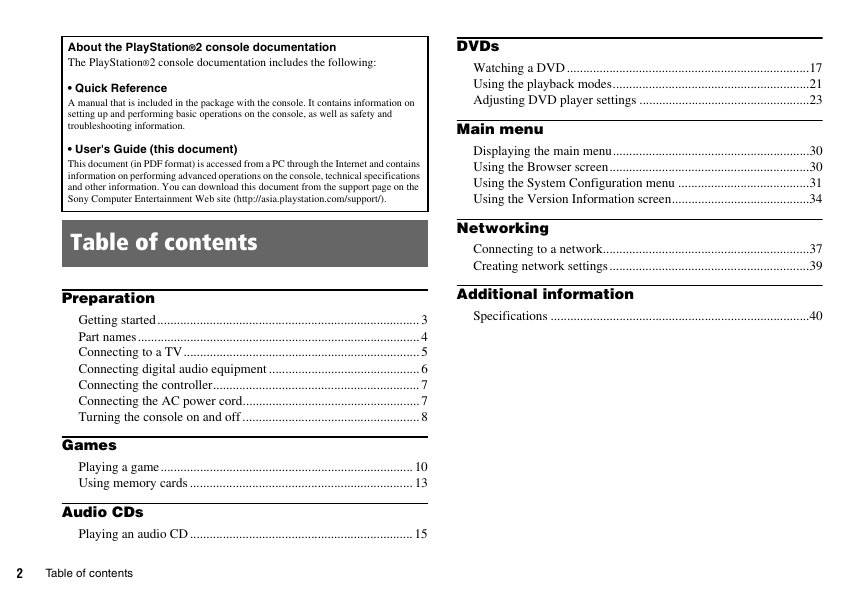

DVDs Watching a DVD ..........................................................................17 Using the playback modes............................................................21 Adjusting DVD player settings ....................................................23 Main menu Displaying the main menu............................................................30 Using the Browser screen.............................................................30 Using the System Configuration menu ........................................31 Using the Version Information screen..........................................34 Networking Connecting to a network...............................................................37 Creating network settings .............................................................39 Additional information Specifications ...............................................................................40 About the PlayStation®2 console documentation The PlayStation®2 console documentation includes the following: Quick Reference A manual that is included in the package with the console. It contains information on setting up and performing basic operations on the console, as well as safety and troubleshooting information. User's Guide (this document) This document (in PDF format) is accessed from a PC through the Internet and contains information on performing advanced operations on the console, technical specifications and other information. You can download this document from the support page on the Sony Computer Entertainment Web site (http://asia.playstation.com/support/). Table of contents Preparation Getting started................................................................................ 3 Part names...................................................................................... 4 Connecting to a TV........................................................................ 5 Connecting digital audio equipment .............................................. 6 Connecting the controller............................................................... 7 Connecting the AC power cord...................................................... 7 Turning the console on and off ...................................................... 8 Games Playing a game............................................................................. 10 Using memory cards .................................................................... 13 Audio CDs Playing an audio CD .................................................................... 15 2 Table of contents

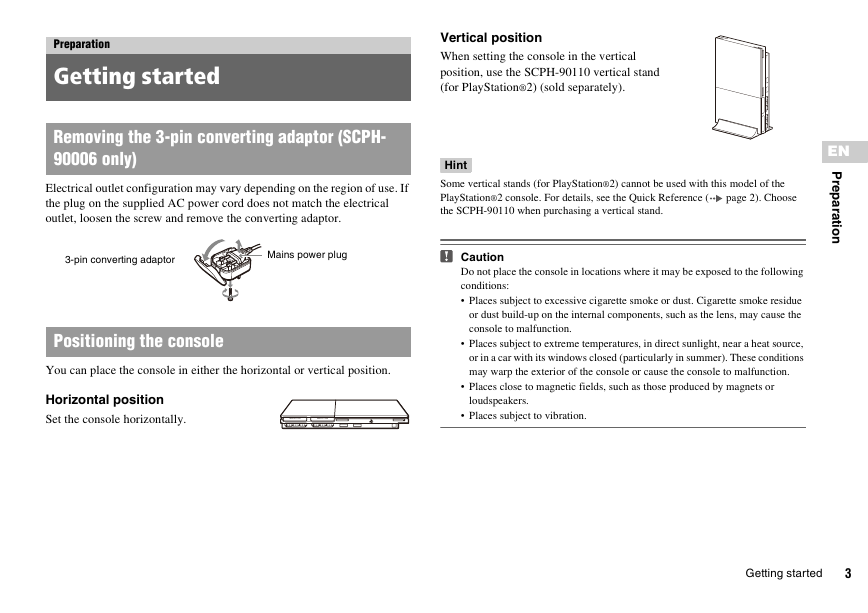

Preparation Getting started Vertical position When setting the console in the vertical position, use the SCPH-90110 vertical stand (for PlayStation®2) (sold separately). Removing the 3-pin converting adaptor (SCPH- 90006 only) Electrical outlet configuration may vary depending on the region of use. If the plug on the supplied AC power cord does not match the electrical outlet, loosen the screw and remove the converting adaptor. 3-pin converting adaptor Mains power plug Positioning the console You can place the console in either the horizontal or vertical position. Horizontal position Set the console horizontally. EN P r e p a r a t i o n Hint Some vertical stands (for PlayStation®2) cannot be used with this model of the PlayStation®2 console. For details, see the Quick Reference ( the SCPH-90110 when purchasing a vertical stand. page 2). Choose Caution Do not place the console in locations where it may be exposed to the following conditions: Places subject to excessive cigarette smoke or dust. Cigarette smoke residue or dust build-up on the internal components, such as the lens, may cause the console to malfunction. Places subject to extreme temperatures, in direct sunlight, near a heat source, or in a car with its windows closed (particularly in summer). These conditions may warp the exterior of the console or cause the console to malfunction. Places close to magnetic fields, such as those produced by magnets or MEMORY CARD MEMORY CARD loudspeakers. Places subject to vibration. Getting started 3

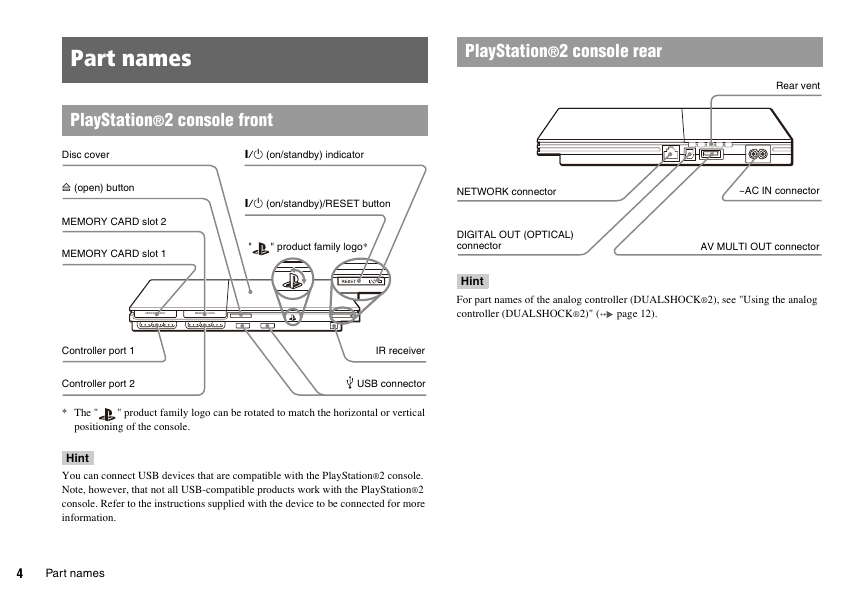

Part names PlayStation®2 console rear Rear vent PlayStation®2 console front Disc cover ]/1 (on/standby) indicator A (open) button MEMORY CARD slot 2 MEMORY CARD slot 1 MEMORY CARD MEMORY CARD Controller port 1 Controller port 2 ]/1 (on/standby)/RESET button NETWORK connector ~AC IN connector " " product family logo* DIGITAL OUT (OPTICAL) connector AV MULTI OUT connector Hint For part names of the analog controller (DUALSHOCK®2), see "Using the analog controller (DUALSHOCK®2)" ( page 12). IR receiver USB connector * The " " product family logo can be rotated to match the horizontal or vertical positioning of the console. Hint You can connect USB devices that are compatible with the PlayStation®2 console. Note, however, that not all USB-compatible products work with the PlayStation®2 console. Refer to the instructions supplied with the device to be connected for more information. 4 Part names

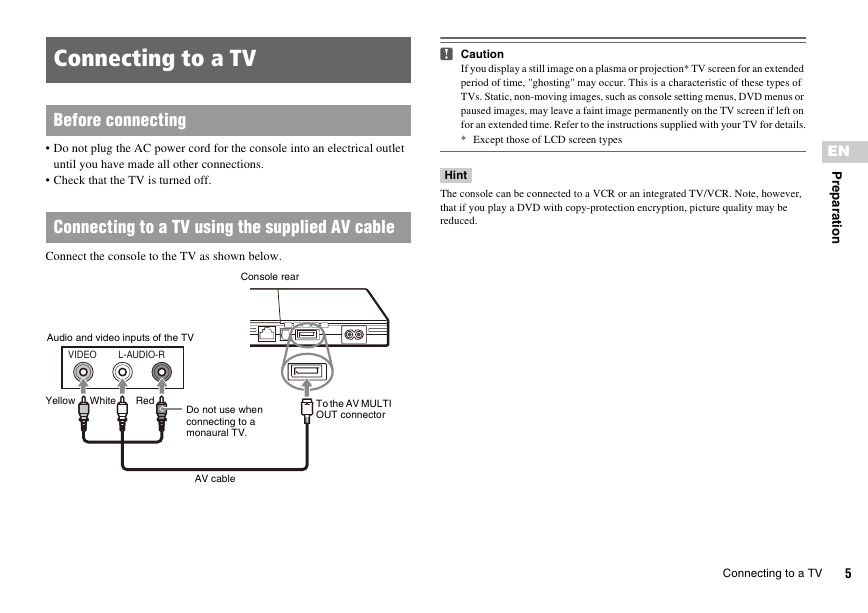

Caution If you display a still image on a plasma or projection* TV screen for an extended period of time, "ghosting" may occur. This is a characteristic of these types of TVs. Static, non-moving images, such as console setting menus, DVD menus or paused images, may leave a faint image permanently on the TV screen if left on for an extended time. Refer to the instructions supplied with your TV for details. * Except those of LCD screen types Hint The console can be connected to a VCR or an integrated TV/VCR. Note, however, that if you play a DVD with copy-protection encryption, picture quality may be reduced. EN P r e p a r a t i o n Connecting to a TV Before connecting Do not plug the AC power cord for the console into an electrical outlet until you have made all other connections. Check that the TV is turned off. Connecting to a TV using the supplied AV cable Connect the console to the TV as shown below. Console rear Audio and video inputs of the TV VIDEO L-AUDIO-R Yellow White Red To the AV MULTI OUT connector Do not use when connecting to a monaural TV. AV cable Connecting to a TV 5

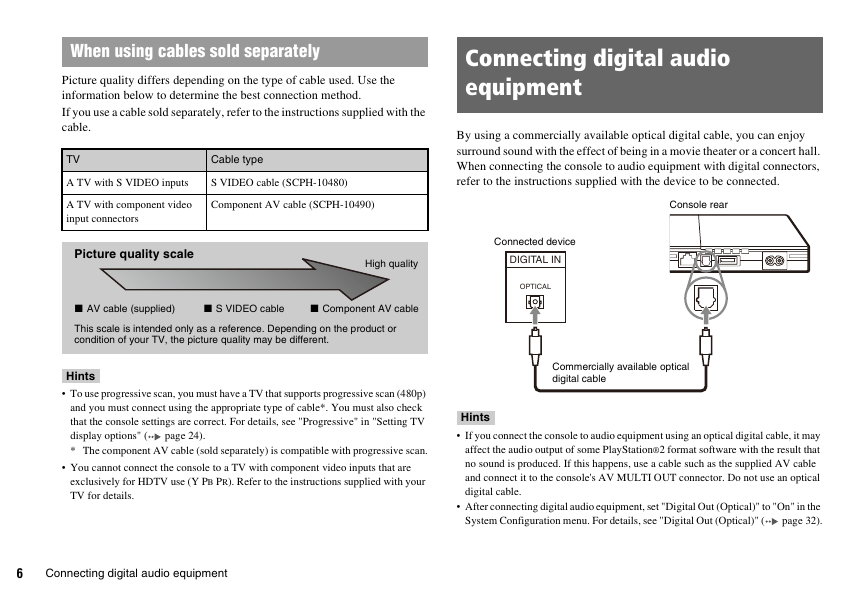

When using cables sold separately Picture quality differs depending on the type of cable used. Use the information below to determine the best connection method. If you use a cable sold separately, refer to the instructions supplied with the cable. TV Cable type A TV with S VIDEO inputs S VIDEO cable (SCPH-10480) A TV with component video input connectors Component AV cable (SCPH-10490) Picture quality scale High quality x AV cable (supplied) x S VIDEO cable x Component AV cable This scale is intended only as a reference. Depending on the product or condition of your TV, the picture quality may be different. Hints To use progressive scan, you must have a TV that supports progressive scan (480p) and you must connect using the appropriate type of cable*. You must also check that the console settings are correct. For details, see "Progressive" in "Setting TV display options" ( * The component AV cable (sold separately) is compatible with progressive scan. page 24). You cannot connect the console to a TV with component video inputs that are exclusively for HDTV use (Y PB PR). Refer to the instructions supplied with your TV for details. Connecting digital audio equipment By using a commercially available optical digital cable, you can enjoy surround sound with the effect of being in a movie theater or a concert hall. When connecting the console to audio equipment with digital connectors, refer to the instructions supplied with the device to be connected. Console rear Connected device DIGITAL IN OPTICAL Commercially available optical digital cable Hints If you connect the console to audio equipment using an optical digital cable, it may affect the audio output of some PlayStation®2 format software with the result that no sound is produced. If this happens, use a cable such as the supplied AV cable and connect it to the console's AV MULTI OUT connector. Do not use an optical digital cable. After connecting digital audio equipment, set "Digital Out (Optical)" to "On" in the page 32). System Configuration menu. For details, see "Digital Out (Optical)" ( 6 Connecting digital audio equipment

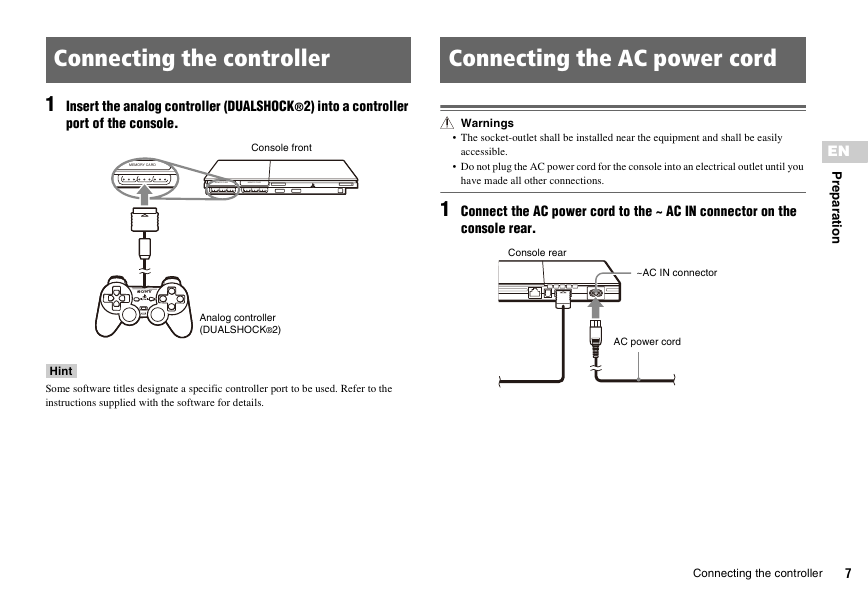

Connecting the controller Connecting the AC power cord 1 Insert the analog controller (DUALSHOCK®2) into a controller port of the console. Warnings Console front MEMORY CARD MEMORY CARD MEMORY CARD The socket-outlet shall be installed near the equipment and shall be easily accessible. Do not plug the AC power cord for the console into an electrical outlet until you have made all other connections. 1 Connect the AC power cord to the ~ AC IN connector on the console rear. EN P r e p a r a t i o n Console rear ~AC IN connector Analog controller (DUALSHOCK®2) AC power cord Hint Some software titles designate a specific controller port to be used. Refer to the instructions supplied with the software for details. Connecting the controller 7

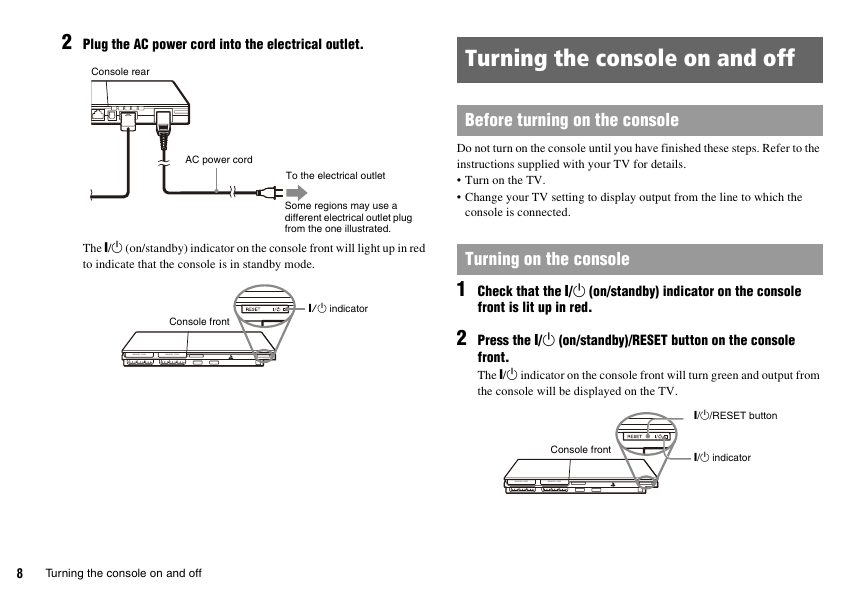

2 Plug the AC power cord into the electrical outlet. Console rear Turning the console on and off AC power cord To the electrical outlet Some regions may use a different electrical outlet plug from the one illustrated. The =/1 (on/standby) indicator on the console front will light up in red to indicate that the console is in standby mode. Console front MEMORY CARD MEMORY CARD ]/1 indicator Before turning on the console Do not turn on the console until you have finished these steps. Refer to the instructions supplied with your TV for details. Turn on the TV. Change your TV setting to display output from the line to which the console is connected. Turning on the console 1 Check that the =/1 (on/standby) indicator on the console front is lit up in red. 2 Press the =/1 (on/standby)/RESET button on the console front. The =/1 indicator on the console front will turn green and output from the console will be displayed on the TV. =/1/RESET button Console front =/1 indicator MEMORY CARD MEMORY CARD 8 Turning the console on and off
