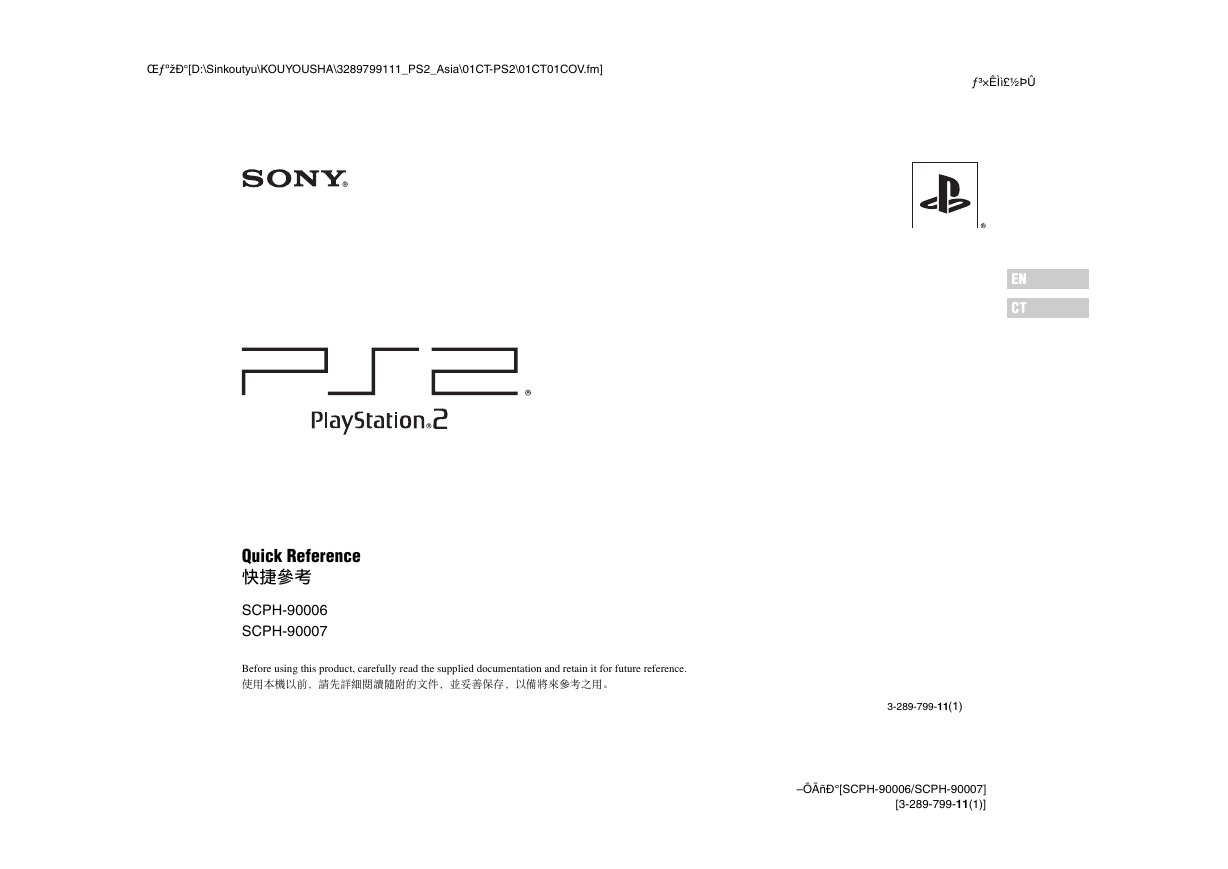

SONY索尼掌上无线-SONY PS2快捷参考(SCPH-90006)说明书.pdf
ŒƒºžÐ°[D:\Sinkoutyu\KOUYOUSHA\3289799111_PS2_Asia\01CT-PS2\01CT01COV.fm]
ƒ³×ÊÌ죽ÞÛ
EN
CT
Quick Reference
快捷參考
SCPH-90006
SCPH-90007
Before using this product, carefully read the supplied documentation and retain it for future reference.
使用本機以前，請先詳細閱讀隨附的文件，並妥善保存，以備將來參考之用。
3-289-799-11(1)
–ÕÃñа[SCPH-90006/SCPH-90007]
[3-289-799-11(1)]
filename[D:\job\sone san_0610470\for_asia_en_071003\3289799111\3289799111_PS2_Asia\01EN-PS2\01EN02WAR.fm]
masterpage:Left

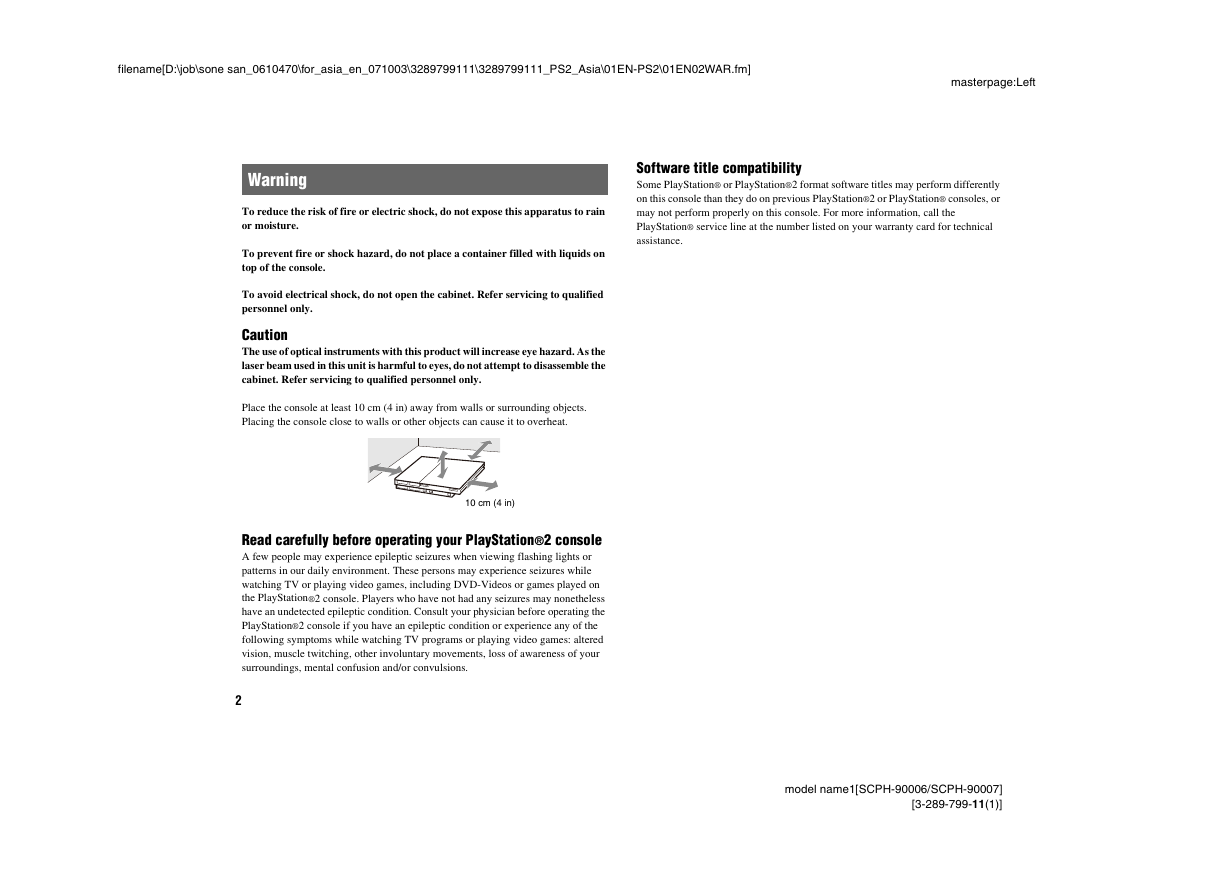

Software title compatibility
Some PlayStation® or PlayStation®2 format software titles may perform differently
on this console than they do on previous PlayStation®2 or PlayStation® consoles, or
may not perform properly on this console. For more information, call the
PlayStation® service line at the number listed on your warranty card for technical
assistance.
Warning
To reduce the risk of fire or electric shock, do not expose this apparatus to rain
or moisture.
To prevent fire or shock hazard, do not place a container filled with liquids on
top of the console.
To avoid electrical shock, do not open the cabinet. Refer servicing to qualified
personnel only.
Caution
The use of optical instruments with this product will increase eye hazard. As the
laser beam used in this unit is harmful to eyes, do not attempt to disassemble the
cabinet. Refer servicing to qualified personnel only.
Place the console at least 10 cm (4 in) away from walls or surrounding objects.
Placing the console close to walls or other objects can cause it to overheat.
10 cm (4 in)
Read carefully before operating your PlayStation®2 console
A few people may experience epileptic seizures when viewing flashing lights or
patterns in our daily environment. These persons may experience seizures while
watching TV or playing video games, including DVD-Videos or games played on
the PlayStation®2 console. Players who have not had any seizures may nonetheless
have an undetected epileptic condition. Consult your physician before operating the
PlayStation®2 console if you have an epileptic condition or experience any of the
following symptoms while watching TV programs or playing video games: altered
vision, muscle twitching, other involuntary movements, loss of awareness of your
surroundings, mental confusion and/or convulsions.
2
model name1[SCPH-90006/SCPH-90007]
[3-289-799-11(1)]
filename[D:\job\sone san_0610470\for_asia_en_071003\3289799111\3289799111_PS2_Asia\01EN-PS2\01EN02WAR.fm]
masterpage:Right

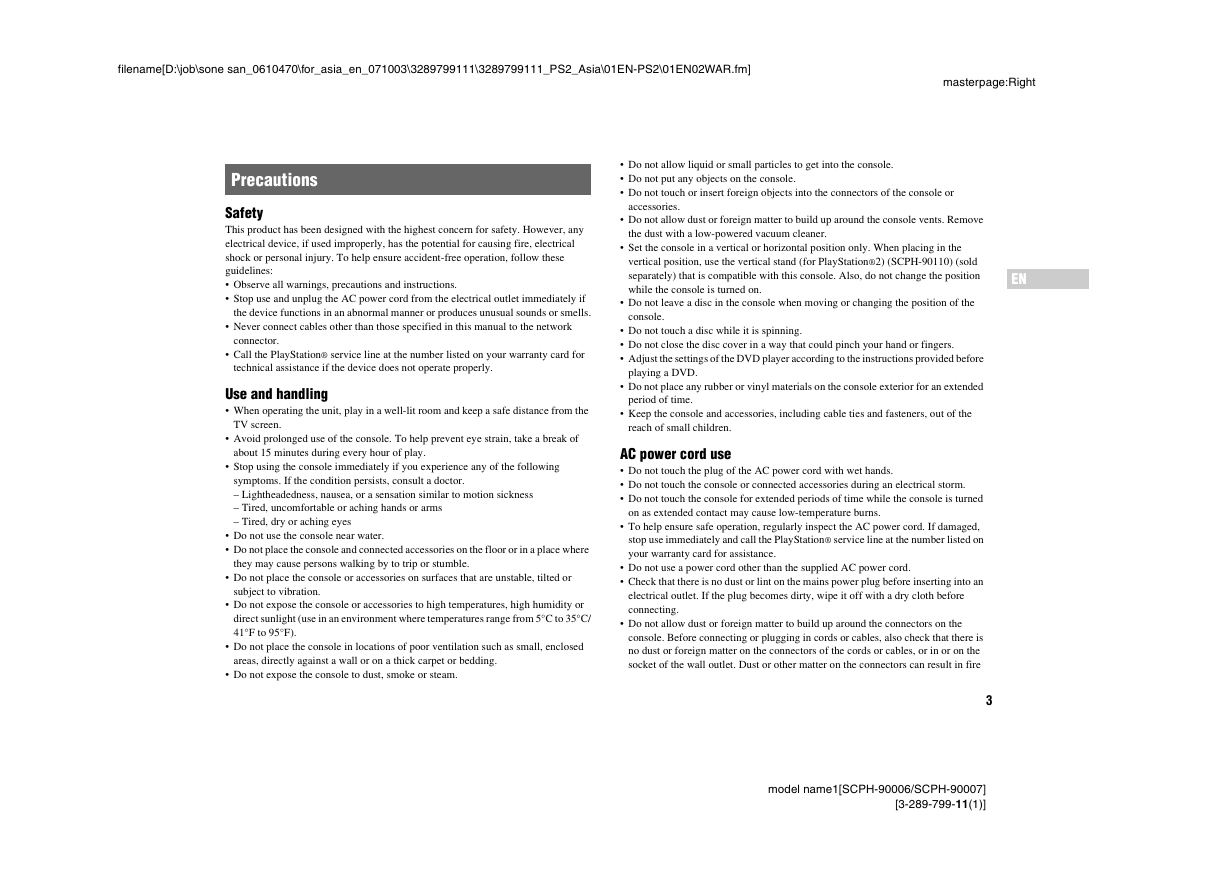

Precautions
Safety
This product has been designed with the highest concern for safety. However, any
electrical device, if used improperly, has the potential for causing fire, electrical
shock or personal injury. To help ensure accident-free operation, follow these
guidelines:
Observe all warnings, precautions and instructions.
Stop use and unplug the AC power cord from the electrical outlet immediately if
the device functions in an abnormal manner or produces unusual sounds or smells.
Never connect cables other than those specified in this manual to the network
connector.
Call the PlayStation® service line at the number listed on your warranty card for
technical assistance if the device does not operate properly.
Use and handling
When operating the unit, play in a well-lit room and keep a safe distance from the
TV screen.
Avoid prolonged use of the console. To help prevent eye strain, take a break of
about 15 minutes during every hour of play.
Stop using the console immediately if you experience any of the following
symptoms. If the condition persists, consult a doctor.
– Lightheadedness, nausea, or a sensation similar to motion sickness
– Tired, uncomfortable or aching hands or arms
– Tired, dry or aching eyes
Do not use the console near water.
Do not place the console and connected accessories on the floor or in a place where
they may cause persons walking by to trip or stumble.
Do not place the console or accessories on surfaces that are unstable, tilted or
subject to vibration.
Do not expose the console or accessories to high temperatures, high humidity or
direct sunlight (use in an environment where temperatures range from 5°C to 35°C/
41°F to 95°F).
Do not place the console in locations of poor ventilation such as small, enclosed
areas, directly against a wall or on a thick carpet or bedding.
Do not expose the console to dust, smoke or steam.
Do not allow liquid or small particles to get into the console.
Do not put any objects on the console.
Do not touch or insert foreign objects into the connectors of the console or
accessories.
Do not allow dust or foreign matter to build up around the console vents. Remove
the dust with a low-powered vacuum cleaner.
Set the console in a vertical or horizontal position only. When placing in the
vertical position, use the vertical stand (for PlayStation®2) (SCPH-90110) (sold
separately) that is compatible with this console. Also, do not change the position
while the console is turned on.
Do not leave a disc in the console when moving or changing the position of the
ENEN
console.
Do not touch a disc while it is spinning.
Do not close the disc cover in a way that could pinch your hand or fingers.
Adjust the settings of the DVD player according to the instructions provided before
playing a DVD.
Do not place any rubber or vinyl materials on the console exterior for an extended
period of time.
Keep the console and accessories, including cable ties and fasteners, out of the
reach of small children.
AC power cord use
Do not touch the plug of the AC power cord with wet hands.
Do not touch the console or connected accessories during an electrical storm.
Do not touch the console for extended periods of time while the console is turned
on as extended contact may cause low-temperature burns.
To help ensure safe operation, regularly inspect the AC power cord. If damaged,
stop use immediately and call the PlayStation® service line at the number listed on
your warranty card for assistance.
Do not use a power cord other than the supplied AC power cord.
Check that there is no dust or lint on the mains power plug before inserting into an
electrical outlet. If the plug becomes dirty, wipe it off with a dry cloth before
connecting.
Do not allow dust or foreign matter to build up around the connectors on the
console. Before connecting or plugging in cords or cables, also check that there is
no dust or foreign matter on the connectors of the cords or cables, or in or on the
socket of the wall outlet. Dust or other matter on the connectors can result in fire
3
model name1[SCPH-90006/SCPH-90007]
[3-289-799-11(1)]
filename[D:\job\sone san_0610470\for_asia_en_071003\3289799111\3289799111_PS2_Asia\01EN-PS2\01EN02WAR.fm]
masterpage:Left
or electrical shock.
Unplug the AC power cord from the electrical outlet before cleaning or moving the
console, or when you do not intend to use the console for an extended period of
time. When disconnecting, grasp the power cord by the plug and pull straight out
of the electrical socket. Never pull by the cord and do not pull out at an angle.
Do not connect the AC power cord to a voltage transformer or inverter.
Notes on safety when using the analog controller
(DUALSHOCK®2)*
Stop using the console immediately if you begin to feel tired or if you experience
discomfort or pain in your hands or arms while operating the analog controller
(DUALSHOCK®2). If the condition persists, consult a doctor.
The vibration function of the analog controller (DUALSHOCK®2) can aggravate
injuries. Do not use the vibration function if you have any ailment or injury to the
bones, joints or muscles of your hands or arms. Note that some PlayStation®2 and
PlayStation® format software titles set the vibration function to "On" by default. In
most cases, the vibration function can be set to "Off" in the options menu of the
software. If you have an ailment or an injury, do not play such titles using the
analog controller (DUALSHOCK®2) unless you have set the vibration function to
"Off".
Avoid prolonged use of the analog controller (DUALSHOCK®2). Take a break at
about 30-minute intervals.
* These notes also apply to other controllers.
Network (except Local Area Networks)
A broadband Internet connection is required to connect to a network.
When you connect your PlayStation®2 console to a network, the Internet service
provider may charge additional usage fees. In some cases, usage charges may be
more than anticipated. For details, refer to the information provided in your service
contract or contact your Internet service provider.
Parents are encouraged to monitor children in online gaming to ensure safe and
responsible Internet usage.
Connecting with an Ethernet cable
Do not connect Ethernet cables or telephone cords of the following types to the
network connector:
Ethernet cables not appropriate for use with a 10Base-T/100Base-TX network
4
Standard residential telephone lines
Any ISDN (digital) compatible phone or data line
PBX phone lines
Other "unknown" types of telephone lines
Disc handling
Do not touch the disc surface when handling a disc; hold it by the edges.
Do not stick paper or tape onto discs and do not write on discs.
Fingerprints, dust, dirt or scratches on the disc can distort the picture or reduce
sound quality. Always handle carefully and make sure discs are clean before use.
Do not leave discs near a heat source, in direct sunlight or in high humidity.
Store discs in their cases when not in use.
Clean discs using a soft cloth, lightly wiping from the center outwards.
Do not use solvents such as benzine, commercially available cleaners not intended
for CDs or anti-static spray intended for vinyl LPs.
Do not use irregularly shaped discs (for example, heart- or star-shaped discs) or
damaged, reshaped or repaired discs.
Never disassemble the console or supplied accessories
Use the PlayStation®2 console and accessories according to the instructions in the
product documentation. No authorization for the analysis or modification of the
console, or the analysis and use of its circuit configurations, is provided. There are
no user serviceable components inside the PlayStation®2 console. Disassembling the
console will void the warranty. Additionally, there is a risk of exposure to laser
radiation as well as to electrical shock hazards.
When connecting the console to a plasma or projection* TV
Do not leave a still image on the TV screen for an extended period of time, as this
may leave a faint image permanently on the screen.
* Except LCD screen types
Note on safety when playing DVDs or CDs
If you set the volume too high, it may harm your hearing or damage the speakers.
Exercise care when setting the volume.
model name1[SCPH-90006/SCPH-90007]
[3-289-799-11(1)]
filename[D:\job\sone san_0610470\for_asia_en_071003\3289799111\3289799111_PS2_Asia\01EN-PS2\01EN02WAR.fm]
masterpage:Right

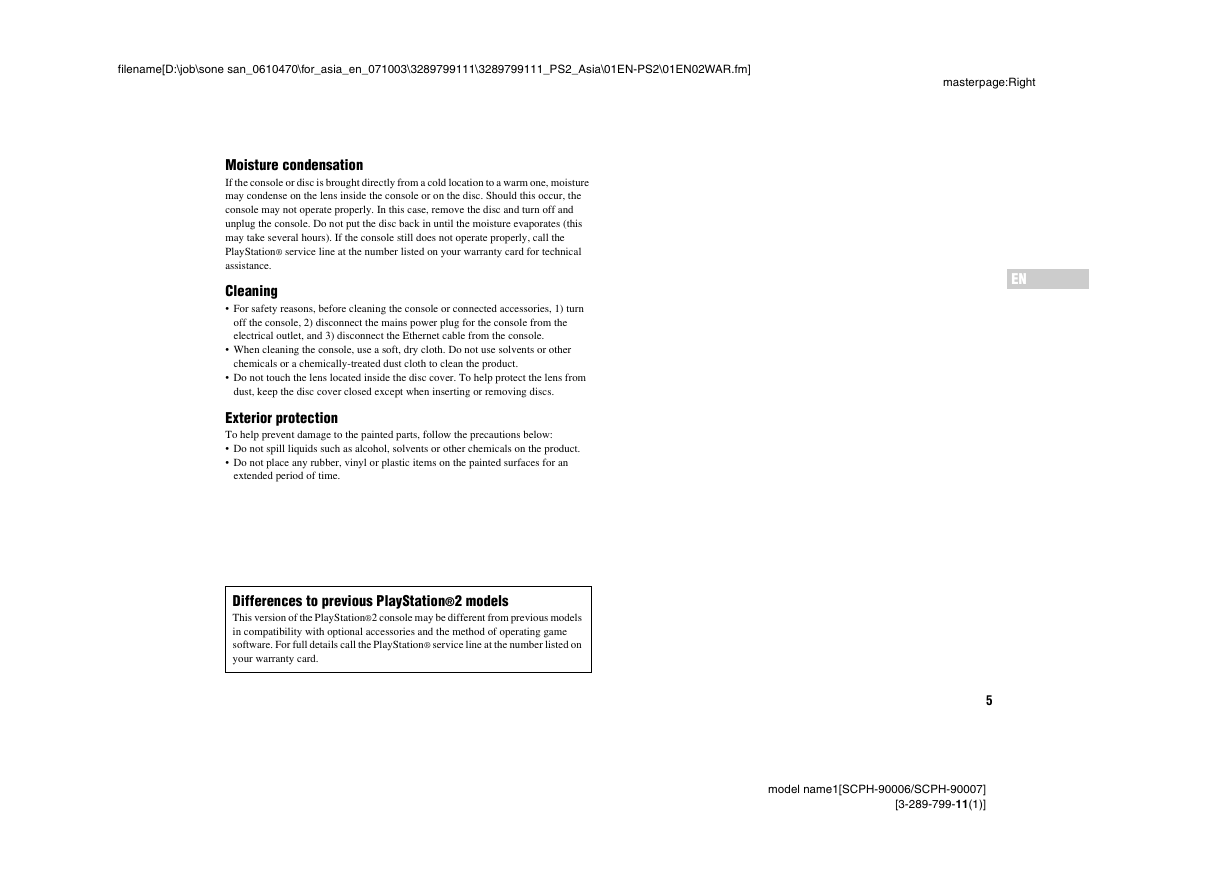

Moisture condensation
If the console or disc is brought directly from a cold location to a warm one, moisture
may condense on the lens inside the console or on the disc. Should this occur, the
console may not operate properly. In this case, remove the disc and turn off and
unplug the console. Do not put the disc back in until the moisture evaporates (this
may take several hours). If the console still does not operate properly, call the
PlayStation® service line at the number listed on your warranty card for technical
assistance.
Cleaning
For safety reasons, before cleaning the console or connected accessories, 1) turn
off the console, 2) disconnect the mains power plug for the console from the
electrical outlet, and 3) disconnect the Ethernet cable from the console.
When cleaning the console, use a soft, dry cloth. Do not use solvents or other
chemicals or a chemically-treated dust cloth to clean the product.
Do not touch the lens located inside the disc cover. To help protect the lens from
dust, keep the disc cover closed except when inserting or removing discs.
Exterior protection
To help prevent damage to the painted parts, follow the precautions below:
Do not spill liquids such as alcohol, solvents or other chemicals on the product.
Do not place any rubber, vinyl or plastic items on the painted surfaces for an
extended period of time.
Differences to previous PlayStation®2 models
This version of the PlayStation®2 console may be different from previous models
in compatibility with optional accessories and the method of operating game
software. For full details call the PlayStation® service line at the number listed on
your warranty card.
ENEN
5
model name1[SCPH-90006/SCPH-90007]
[3-289-799-11(1)]
filename[D:\job\sone san_0610470\for_asia_en_071003\3289799111\3289799111_PS2_Asia\01EN-PS2\01EN02WAR.fm]
masterpage:Left
About the PlayStation®2 console documentation
Checking the package contents
The PlayStation®2 console documentation includes the following:
Quick Reference (this document)
This document contains information on setting up and performing basic operations
on the console, as well as safety and troubleshooting information.
User's Guide (http://asia.playstation.com/support)
This document (in PDF format) is accessed from a PC through the Internet and
contains information on performing advanced operations on the console, technical
specifications and other information.
Check that you have all of the following items. If any items are missing, call the
PlayStation®2 service line at the number listed on your warranty card for assistance.
PlayStation®2 console
Analog controller (DUALSHOCK®2)
AV cable
AC power cord
Quick Reference
...1
...1
...1
...1
...1
6
model name1[SCPH-90006/SCPH-90007]
[3-289-799-11(1)]
filename[D:\job\sone san_0610470\for_asia_en_071003\3289799111\3289799111_PS2_Asia\01EN-PS2\01EN03SET.fm]
masterpage:Right
11
Setting up the PlayStation®2 console
Warning
• Do not plug the AC power cord for the console into an electrical outlet until you have made all other connections.
The socket-outlet shall be installed near the equipment and shall be easily accessible.
EN
Before setting up
Do not place the console in locations subject to excessive cigarette smoke or dust. Cigarette smoke residue or dust build-up on the internal components, such as the lens, may
cause the console to malfunction.
Make sure the TV is turned off before connecting the PlayStation®2 console.
MEMORY CARD
MEMORY CARD
1
Analog controller
(DUALSHOCK®2)
?/1 (on/standby) indicator
Audio and video
inputs of the TV
AV cable
AC power cord
2
4
3
Yellow
White
Red
VIDEO
L
AUDIO
R
To the electrical outlet*
5
When the power cord is plugged into an
electrical outlet, the ?/1 indicator will turn red to
indicate that the console is in standby mode.
* For some regions, the plug for the electrical
outlet will differ from the one illustrated.
When using a cable other than the supplied AV cable, see "When using a cable other than the supplied AV cable" (
page 13).
Hint
You can connect various USB devices to the PlayStation®2 console, but not all are compatible. Refer to the instructions supplied with the USB device for more information.
7
model name1[SCPH-90006/SCPH-90007]
[3-289-799-11(1)]
filename[D:\job\sone san_0610470\for_asia_en_071003\3289799111\3289799111_PS2_Asia\01EN-PS2\01EN03SET.fm]
masterpage:Left
22
Turning the console on and off
TV
1
Turn on the TV and select
the appropriate input
MEMORY CARD
MEMORY CARD
?/1 indicator
2
Press the ?/1 (on/standby)/RESET button
The ?/1 indicator will turn green. The TV will
then display output from the console.
Turning off the console
Press and hold the ?/1/RESET button for at least one second. The ?/1 indicator will turn red to indicate that the console is in standby mode.
Hint
In standby mode, power to the console is not completely turned off. If you will not be using the console for an extended period of time, unplug the power cord from the outlet.
8
model name1[SCPH-90006/SCPH-90007]
[3-289-799-11(1)]
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
