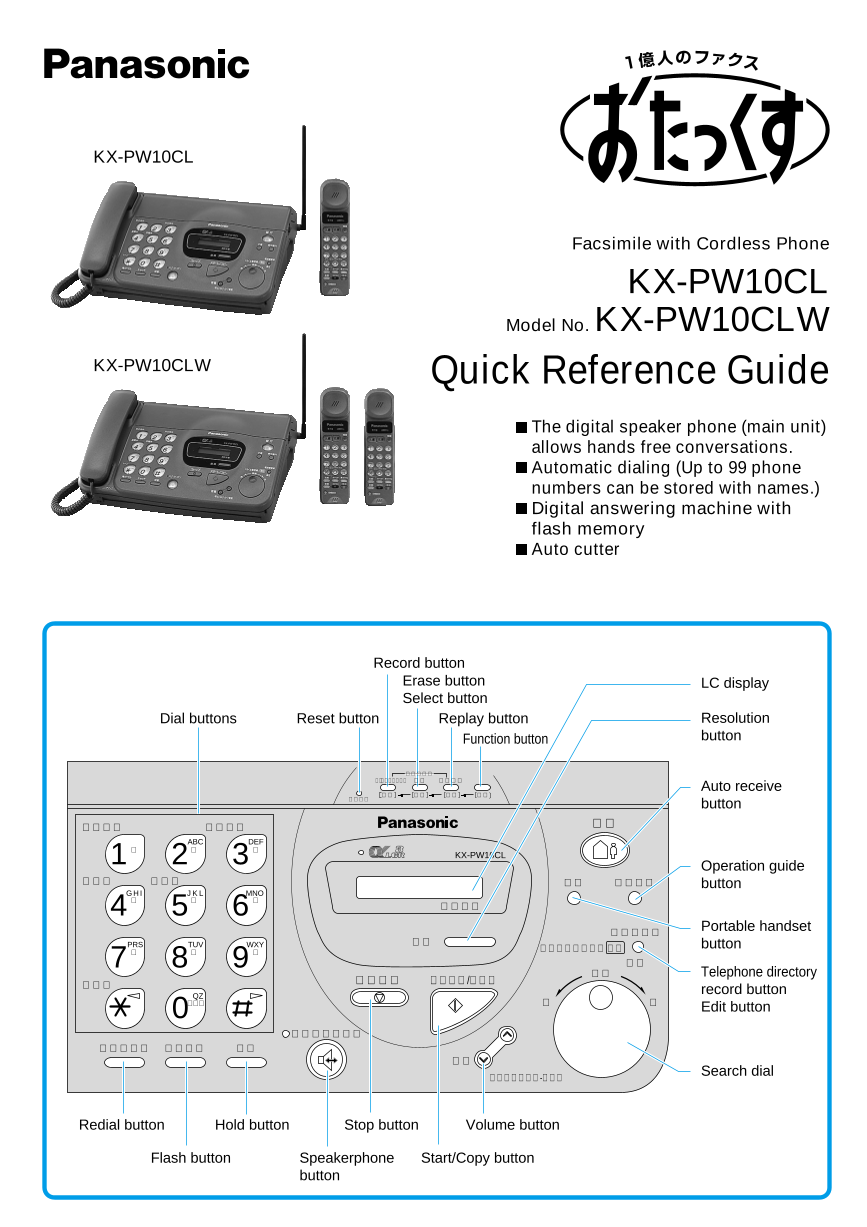

KX-PW10CL Facsimile with Cordless Phone KX-PW10CL Model No. KX-PW10CLW KX-PW10CLW Quick Reference Guide The digital speaker phone (main unit) allows hands free conversations. Automatic dialing (Up to 99 phone numbers can be stored with names.) Digital answering machine with flash memory Auto cutter Record button Erase button LC display Select button Dial buttons Reset button Replay button Resolution Function button button 留守電操作録音（応答／通話）消去聞き直し Auto receive 登録選択項目機能リセット button 前の用件次の用件留守 ABC DEF 1 ア 2 カ 3 サ KX-PW10CL Operation guide 遅聞き早聞き子機操作案内 button G H I J K L MNO 4 タ 5 ナ 6 ハ用件件数電話帳登録 Portable handset PRS TUV WXY 画質くるくる電話帳／項目 button 7 マ 8 ヤ 9 ラ修正検索 Telephone directory トーンストップスタート/コピー record button QZ 0ワヲン前次 Edit button スピーカーホン再ダイヤルキャッチ保留音量呼出／スピーカ-／受話 Search dial Redial button Hold button Stop button Volume button Flash button Speakerphone Start/Copy button button

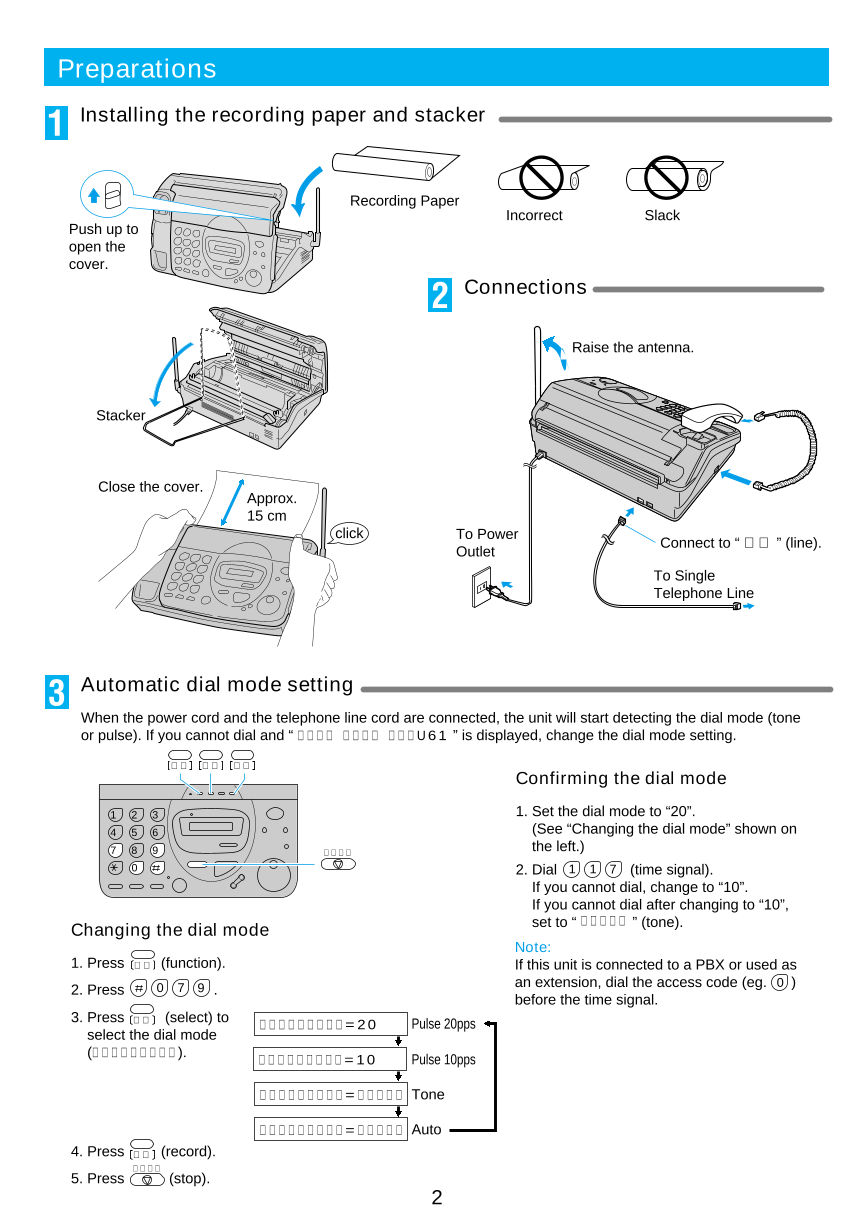

Preparations 1 Installing the recording paper and stacker Recording Paper Incorrect Slack Push up to open the cover. 2 Connections Raise the antenna. Stacker Close the cover. Approx. 15 cm click To Power Connect to “ 回線 ” (line). Outlet To Single Telephone Line 3 Automatic dial mode setting When the power cord and the telephone line cord are connected, the unit will start detecting the dial mode (tone or pulse). If you cannot dial and “ ｶｲｾﾝﾁｪｯｸｴﾗｰ U61 ” is displayed, change the dial mode setting. 登録選択機能 Confirming the dial mode 1 2 3 1. Set the dial mode to “20”. 4 5 6 (See “Changing the dial mode” shown on 7 8 9 ストップ the left.) 0 2. Dial 1 1 7 (time signal). If you cannot dial, change to “10”. If you cannot dial after changing to “10”, Changing the dial mode set to “ ﾌﾟｯｼｭ ” (tone). Note: 1. Press 機能 (function). If this unit is connected to a PBX or used as 2. Press 0 7 9 . an extension, dial the access code (eg. 0 ) before the time signal. 3. Press 選択 (select) to ｶｲｾﾝｼｭﾍﾞﾂ = 20 Pulse 20pps select the dial mode (ｶｲｾﾝｼｭﾍﾞﾂ ). ｶｲｾﾝｼｭﾍﾞﾂ = 10 Pulse 10pps ｶｲｾﾝｼｭﾍﾞﾂ = ﾌﾟｯｼｭ Tone ｶｲｾﾝｼｭﾍﾞﾂ = ｼﾞﾄﾞｳ Auto 4. Press 登録 (record). ストップ 5. Press (stop). 2

Setting the date, time, facsimile telephone number and logo Before using your unit, program the correct date, time, facsimile telephone number and logo. These will be printed on the top of each page transmitted from your unit. 1 Setting the date and time 2 Setting your facsimile telephone number 登録機能登録機能 1 2 3 4 5 6 1 2 3 7 8 9 4 5 6 0 7 8 9 0 ストップストップ (To insert a space) 1. Press 機能 (function). 1. Press 機能 (function). 2. Press 0 0 1 . 2. Press 0 0 4 . 3. Enter the correct year/month/day/ 3. Enter your facsimile telephone number hour/minute by selecting each 2 digits. up to 20 digits. Example: Aug. 10 1997 3:05PM Example: 098-765-4321 Press 9 7 0 8 1 0 1 5 0 5 . Press 0 9 8 7 6 5 4 3 2 1 . 4. Press 登録 (record). ストップ 4. Press 登録 (record). 5. Press (stop). ストップ 5. Press (stop). 3 Setting your logo 登録機能 Character List Number of times 1 2 3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 4 5 6 1 アイウエオアイウエオ 1 7 8 9 0 2 カキクケコ A B C a b c 2 3 サシスセソ D E F d e f 3 ストップ 4 タチツテトツ G H I g h i 4 5 ナニヌネノ J K L j k l 5 1. Press 機能 (function). 6 ハヒフヘホ M N O m n o 6 2. Press 0 0 2 . 7 マミムメモ P R S p r s 7 8 ヤユヨヤユヨ T U V t u v 8 3. Enter your logo up to 30 characters. Refer to the character list. 9 ラリルレロ W X Y w x y 9 4. Press (record). 0 ワヲン｀ ° Q Z q z 0 ( ) , —. : 登録 — ・ストップ 5. Press (stop). Example: Bill : To move the cursor to Press 2 7 times. ﾅﾏｴ = B the left : To move the cursor to Press 4 12 times. ﾅﾏｴ = B i the right Press 5 11 times. ﾅﾏｴ = B i l : To delete one character Press 1 time. ﾅﾏｴ = B i l : To insert a space Press 5 11 times. ﾅﾏｴ = B i l l 3

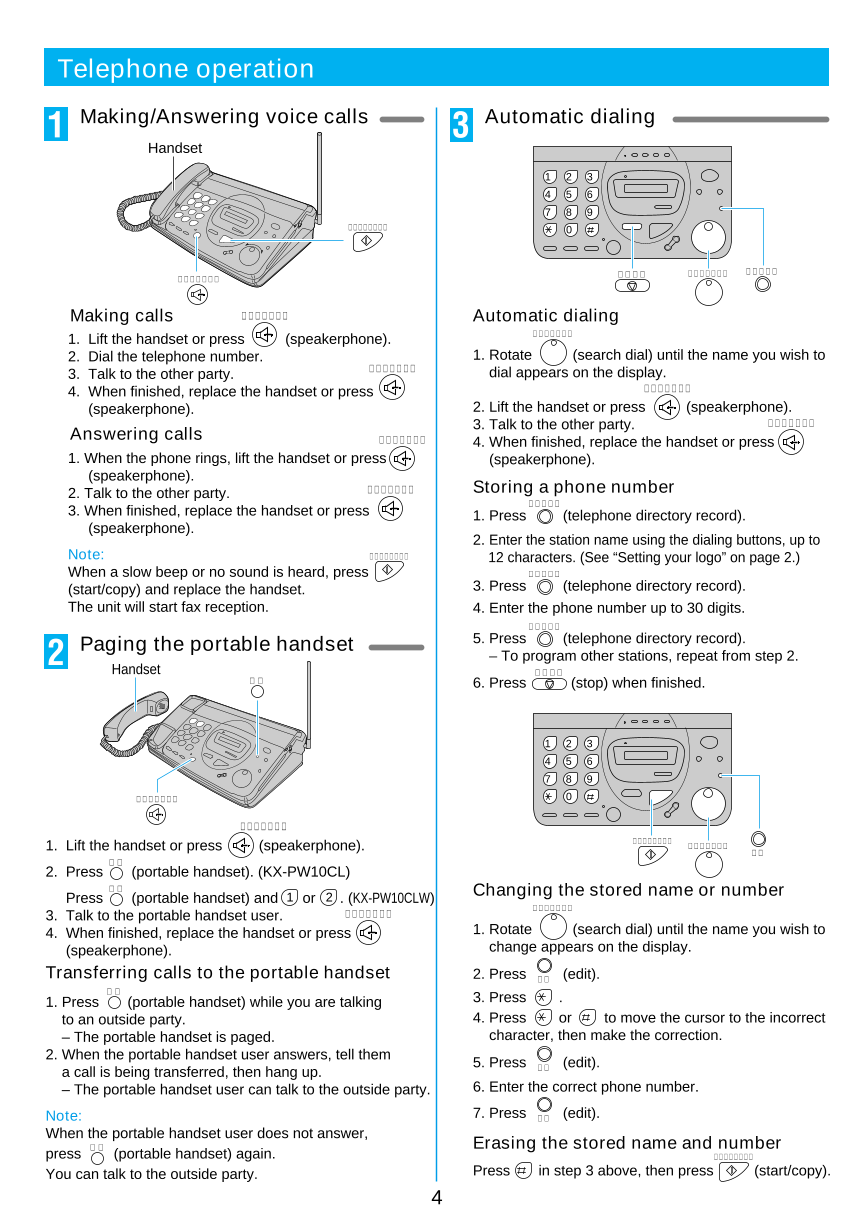

Telephone operation 1 Making/Answering voice calls 3 Automatic dialing Handset 1 2 3 4 5 6 7 8 9 スタート／コピー 0 くるくる電話帳電話帳登録スピーカーホンストップ Making calls スピーカーホン Automatic dialing 1. Lift the handset or press (speakerphone). くるくる電話帳 2. Dial the telephone number. 1. Rotate (search dial) until the name you wish to 3. Talk to the other party. スピーカーホン dial appears on the display. 4. When finished, replace the handset or press スピーカーホン (speakerphone). 2. Lift the handset or press (speakerphone). 3. Talk to the other party. スピーカーホン Answering calls スピーカーホン 4. When finished, replace the handset or press 1. When the phone rings, lift the handset or press (speakerphone). (speakerphone). 2. Talk to the other party. スピーカーホン Storing a phone number 電話帳登録 3. When finished, replace the handset or press 1. Press (telephone directory record). (speakerphone). 2. Enter the station name using the dialing buttons, up to Note: スタート／コピー 12 characters. (See “Setting your logo” on page 2.) When a slow beep or no sound is heard, press 電話帳登録 (start/copy) and replace the handset. 3. Press (telephone directory record). The unit will start fax reception. 4. Enter the phone number up to 30 digits. 電話帳登録 Paging the portable handset 5. Press (telephone directory record). 2 – To program other stations, repeat from step 2. Handset ストップ子機 6. Press (stop) when finished. 1 2 3 4 5 6 7 8 9 スピーカーホン 0 スピーカーホン 1. Lift the handset or press (speakerphone). スタート／コピーくるくる電話帳修正子機 2. Press (portable handset). (KX-PW10CL) 子機 2. Press (portable handset) and 1 or 2 . (KX-PW10CLW) Changing the stored name or number スピーカーホンくるくる電話帳 3. Talk to the portable handset user. 4. When finished, replace the handset or press 1. Rotate (search dial) until the name you wish to (speakerphone). change appears on the display. Transferring calls to the portable handset 2. Press 修正 (edit). 子機 1. Press (portable handset) while you are talking 3. Press . to an outside party. 4. Press or to move the cursor to the incorrect – The portable handset is paged. character, then make the correction. 2. When the portable handset user answers, tell them 5. Press (edit). a call is being transferred, then hang up. 修正 – The portable handset user can talk to the outside party. 6. Enter the correct phone number. Note: 7. Press 修正 (edit). When the portable handset user does not answer, 子機 Erasing the stored name and number press (portable handset) again. スタート／コピー You can talk to the outside party. Press in step 3 above, then press (start/copy). 4

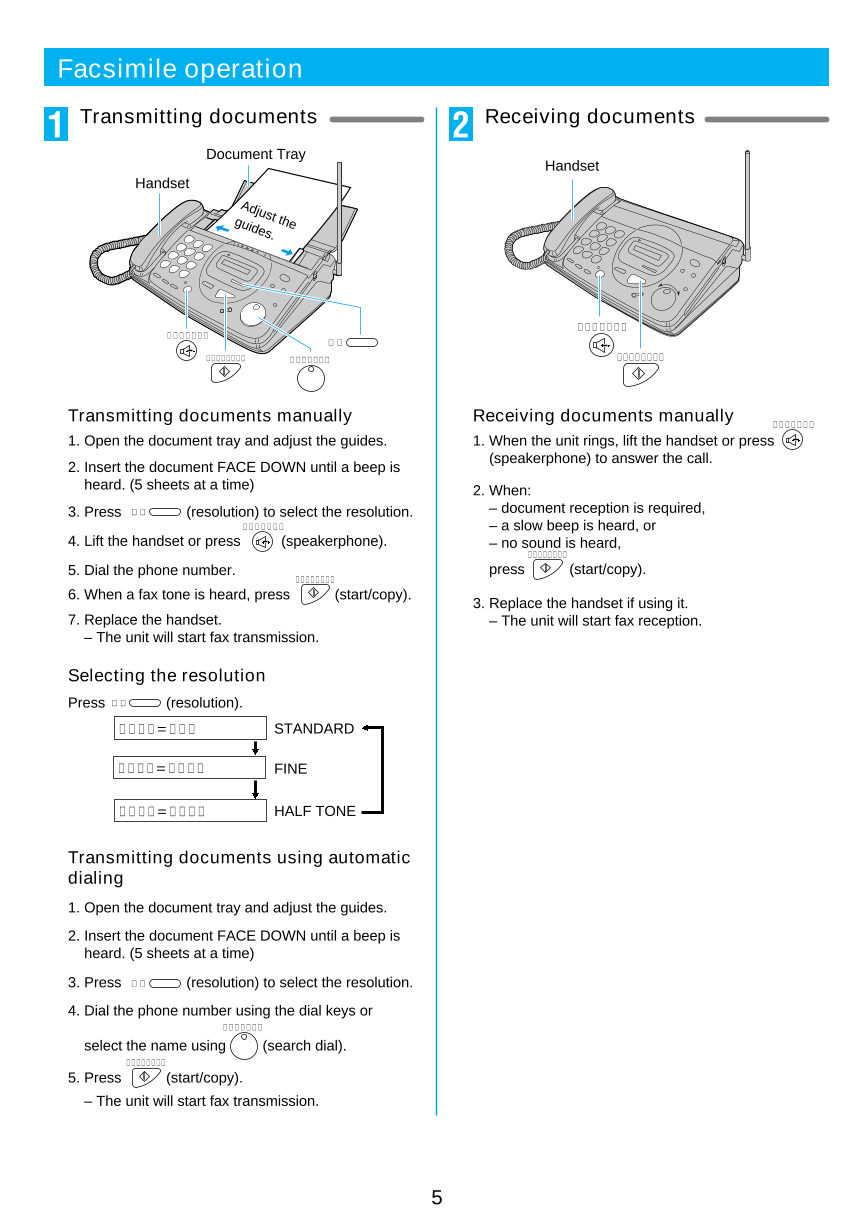

Facsimile operation 1 Transmitting documents 2 Receiving documents Document Tray Handset Handset Adju g s u t i t d h e e s. スピーカーホンスピーカーホン画質スタート／コピーくるくる電話帳スタート／コピー Transmitting documents manually Receiving documents manually スピーカーホン 1. Open the document tray and adjust the guides. 1. When the unit rings, lift the handset or press (speakerphone) to answer the call. 2. Insert the document FACE DOWN until a beep is heard. (5 sheets at a time) 2. When: 3. Press 画質 (resolution) to select the resolution. – document reception is required, スピーカーホン – a slow beep is heard, or 4. Lift the handset or press (speakerphone). – no sound is heard, スタート／コピー 5. Dial the phone number. press (start/copy). スタート／コピー 6. When a fax tone is heard, press (start/copy). 3. Replace the handset if using it. 7. Replace the handset. – The unit will start fax reception. – The unit will start fax transmission. Selecting the resolution Press 画質 (resolution). ｶﾞｼﾂ = ﾌﾂｳ STANDARD ｶﾞｼﾂ = ﾁｲｻｲ FINE ｶﾞｼﾂ = ｼｬｼﾝ HALF TONE Transmitting documents using automatic dialing 1. Open the document tray and adjust the guides. 2. Insert the document FACE DOWN until a beep is heard. (5 sheets at a time) 3. Press 画質 (resolution) to select the resolution. 4. Dial the phone number using the dial keys or くるくる電話帳 select the name using (search dial). スタート／コピー 5. Press (start/copy). – The unit will start fax transmission. 5

Portable handset operation 1. Connection 2. Battery installation 3. Battery charge 1 1 Face down Face up 2 Black Red Insert the connector firmly until it clicks into place. 3 2 充電 Charge the battery for about 10 hours. 4 Making calls 7 Receiving fax documents 1. Press 外線 (outside line). 1. Press 外線 (outside line) when a 2. Dial the phone number. call is received. 外線外線ファクス 3. Talk to the other party. 2. Press (fax) when a slow beep 4. Press 外線 (outside line) or no sound is heard. when finished. The main unit will start fax reception. ファクス 5 Answering calls 8 Automatic dialing Answering outside calls Storing 1. Press 外線 (outside line). 短縮外線 1. Press (store). 2. Press 外線 (outside line) 内線 when finished. 2. Press . Answering intercom calls 3. Press one of the station keys 1. Press 内線 (extension). ( to ). 2. Press 内線 (extension) 短縮 4. Enter the phone number, up to when finished. 16 digits. Answering outside calls 短縮 5. Press (store). transferred from the main unit 1. Press 内線 (extension). Dialing Talk with the main unit user. 1. Press 外線 (outside line). You can talk to the outside 短縮 caller after the main unit user 2. Press (store). hangs up. 3. Press . 2. Press 外線 (outside line) 4. Press one of the station keys when finished. ( to ). 6 Paging the main unit 5. Talk. 1. Press 内線 (extension). (KX-PW10CL) 6. Press 外線 (outside line) Press 内線 (extension) and . when finished. (KX-PW10CLW) 内線 2. Talk. 3. Press 内線 (extension) when finished. 6

Setting the receive mode 留守 This unit has five types of receive modes. Choose the desired mode for your usage. Press (auto receive) to switch the manual receive and auto receive modes. 1 Manual receive mode 2 Auto receive mode 留守留守 (does not light) (lights) 登録選択機能登録選択機能 1 2 3 1 2 3 4 5 6 4 5 6 7 8 9 7 8 9 0 0 ストップストップ Telephone mode (デンワユウセン) Answering machine/Facsimile mode (FAX /ルスデン) When you wish to answer all calls manually. When you want to use the unit to record voice After answering the call, press the start button for fax messages and receive documents. reception. When a call is received, the unit plays your greeting message and records the voice message. Facsimile/Telephone mode (FAXユウセン) If a fax is detected, the unit receives the documents When you wish to answer voice calls but do not want automatically. to be disturbed by fax calls. If no one answers the call, the unit will receive the Facsimile mode (FAXセンヨウ) documents automatically. Or you can answer the call When you want to use the unit solely as a fax machine. and press the start button for fax reception. The unit receives documents automatically. You can not answer voice calls and the answering device will not function. 1. Press 機能 (function). ｷﾉｳﾄｳﾛｸﾓｰﾄﾞ Answering machine mode (ルスデンセンヨウ) When you want to use the unit to record voice 2. Press 1 1 0 . ｻﾞｲﾀｸ = ﾃﾞﾝﾜﾕｳｾﾝ messages only. o r The unit will not receive documents automatically. ｻﾞｲﾀｸ = FAXﾕｳｾﾝ 1. Press 機能 (function). ｷﾉｳﾄｳﾛｸﾓｰﾄﾞ 3. Press 選択 (select) to select the Telephone mode (ﾃﾞﾝﾜﾕｳｾﾝ ) or Facsimile/Telephone mode (FAXﾕｳｾﾝ ). 2. Press 1 2 0 . ﾙｽ = FAX / ﾙｽﾃﾞﾝ o r 4. Press 登録 (record). ﾙｽ = FAXｾﾝﾖｳストップ 5. Press (stop). o r ﾙｽ = ﾙｽﾃﾞﾝｾﾝﾖｳ 3. Press 選択 (select) to select the Facsimile mode (FAX / ﾙｽﾃﾞﾝ ) or Answering machine mode (FAXｾﾝﾖｳ ), Answering machine/Facsimile mode (ﾙｽﾃﾞﾝｾﾝﾖｳ ). 4. Press 登録 (record). ストップ 5. Press (stop). 7

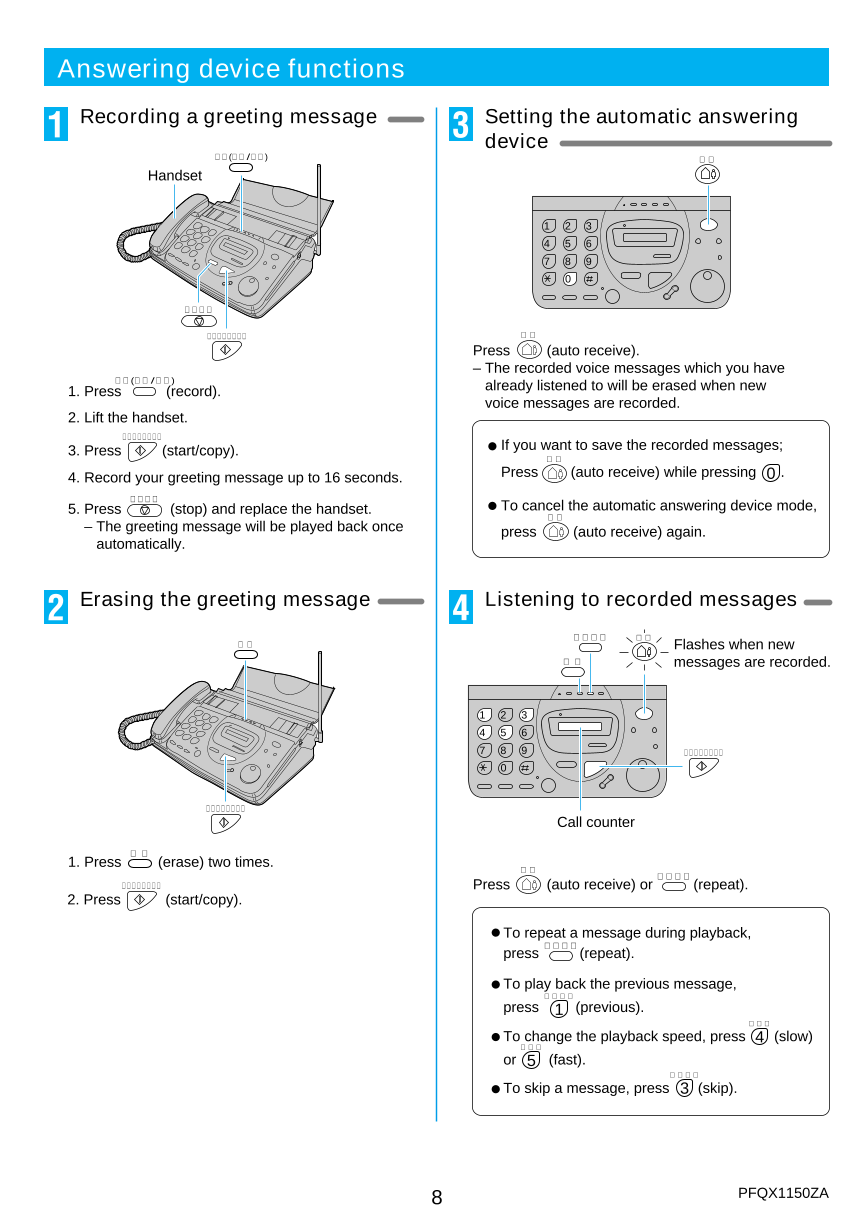

Answering device functions 1 Recording a greeting message 3 Setting the automatic answering device 録音(応答/通話) 留守 Handset 1 2 3 4 5 6 7 8 9 0 ストップスタート／コピー留守 Press (auto receive). – The recorded voice messages which you have 録音(応答/通話) 1. Press (record). already listened to will be erased when new voice messages are recorded. 2. Lift the handset. スタート／コピー 3. Press (start/copy). If you want to save the recorded messages; 留守 4. Record your greeting message up to 16 seconds. Press (auto receive) while pressing 0 . ストップ 5. Press (stop) and replace the handset. To cancel the automatic answering device mode, 留守 – The greeting message will be played back once press (auto receive) again. automatically. 2 Erasing the greeting message 4 Listening to recorded messages 聞き直し留守消去 Flashes when new 消去 messages are recorded. 1 2 3 4 5 6 7 8 9 スタート／コピー 0 スタート／コピー Call counter 消去 1. Press (erase) two times. 留守聞き直しスタート／コピー Press (auto receive) or (repeat). 2. Press (start/copy). To repeat a message during playback, 聞き直し press (repeat). To play back the previous message, 前の用件 press 1 (previous). 遅聞き To change the playback speed, press 4 (slow) 早聞き or 5 (fast). 次の用件 To skip a message, press 3 (skip). 8 PFQX1150ZA
