DIGITAL VIDEO CAMERA User Guide User Guide User Guide User Guide User Guide English Deutsch Français Italiano Español Português Nederlands 中文 82-197-00021 multi-lang cover.indd 1 5/31/2005, 9:55 AM

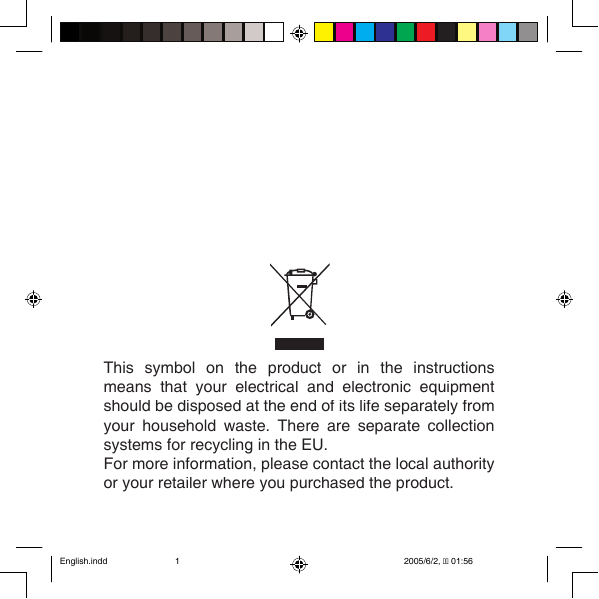

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product. English.indd 1 2005/6/2, �� 01:56

Table of Contents Getting Started Getting to know your Digital Video Camera..................................... 3 Understanding the Control Panel....................................... .......... 5 Power...................................................................................6 Modes...................................................................................7 DV Mode Taking Movies........................................................................10 Video Out............................................................................ 11 DSC Mode Taking Pictures......................................................................12 DVR Mode Recording Voice Messages........................................................ 14 MP3 Mode Listening To MP3 Music............................................................ 16 PLAYBACK Mode Basic Playback.......................................................................18 Advanced Playback................................................................. 20 Main Functions Changing the Resolution Setting.................................................23 Using Self-timer (for DV and DSC modes).......................................24 Using Guide Line/The LCD Screen............................................... 25 Using Hold............................................................................ 26 Volume Adjustment.................................................................26 Advanced Functions Attention Icon...................................................................... 27 Menu.................................................................................. 28 En 2

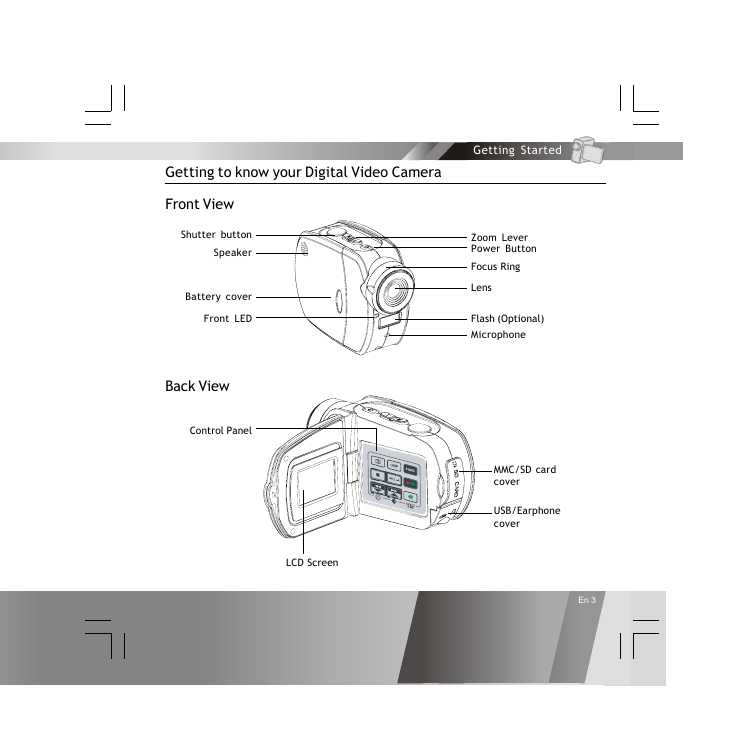

Getting to know your Digital Video Camera Getting Started Front View Shutter button Speaker Battery cover Front LED Back View Control Panel LCD Screen Zoom Lever Power Button Focus Ring Lens Flash (Optional) Microphone MMC/SD card cover USB/Earphone cover En 3

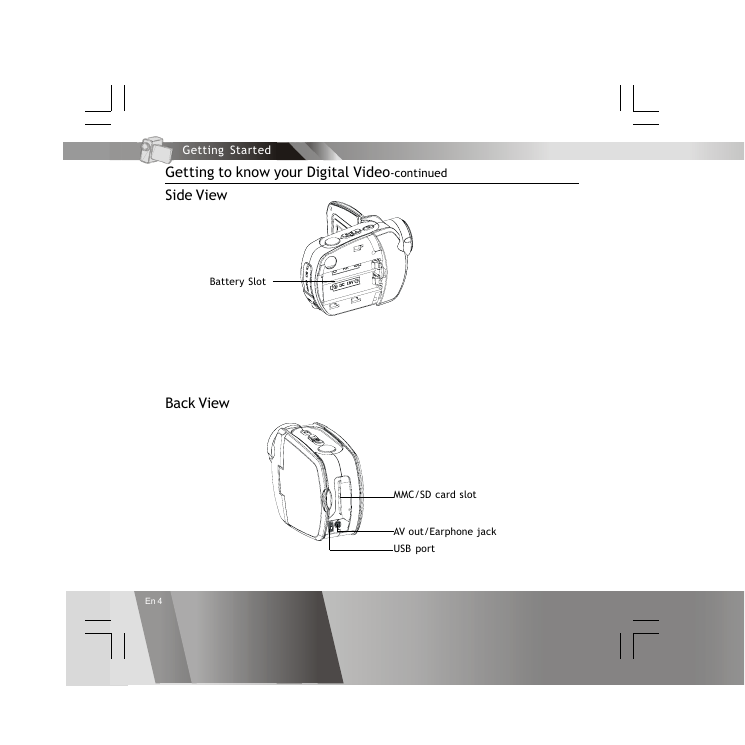

Getting Started Getting to know your Digital Video-continued Side View Battery Slot Back View En 4 MMC/SD card slot AV out/Earphone jack USB port

Understanding the Control Panel Getting Started Display Menu DV/DSC/DVR/MP3 Mode Switch Exit/ Stop Record/ Playback Mode Switch Play/Pause/ Enter Back/Down/Self-timer Volume/Hold(Press 2 Sec.) Next/Up/Resolution En 5

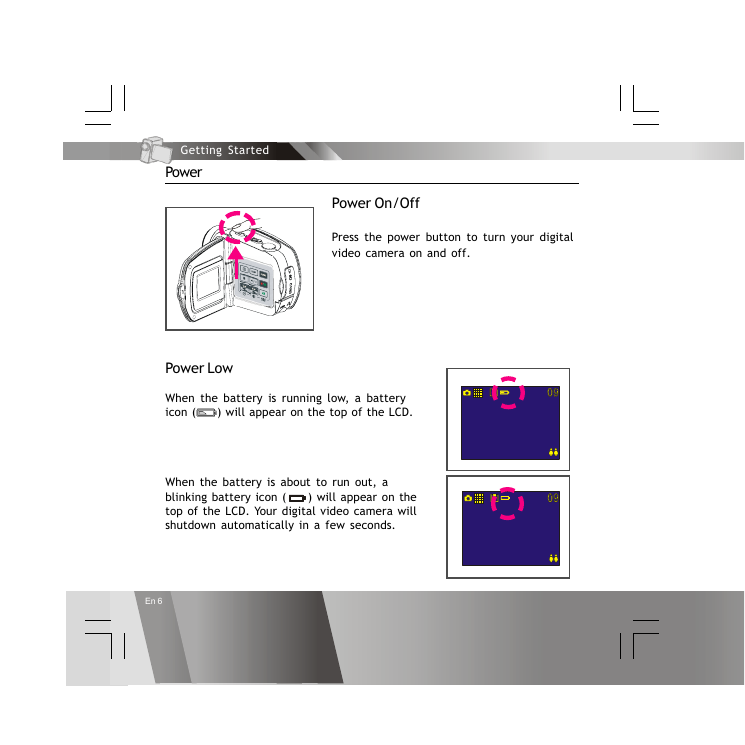

Getting Started Power Power On/Off Press the power button to turn your digital video camera on and off. Power Low When the battery is running low, a battery icon ( ) will appear on the top of the LCD. When the battery is about to run out, a blinking battery icon ( ) will appear on the top of the LCD. Your digital video camera will shutdown automatically in a few seconds. En 6

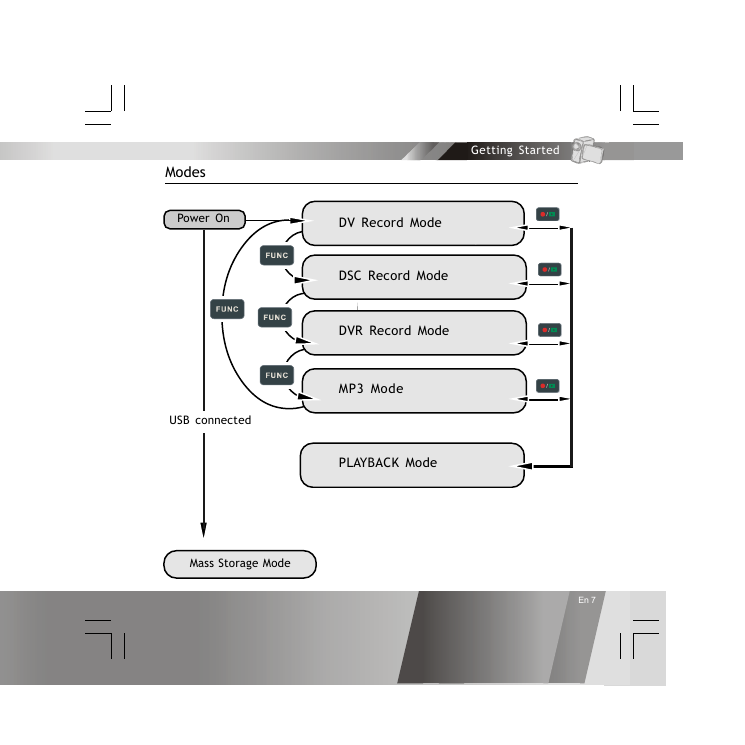

Getting Started Modes Power On USB connected Mass Storage Mode DV Record Mode DSC Record Mode DVR Record Mode MP3 Mode PLAYBACK Mode En 7
