Genius数码相机-P633说明书.pdf

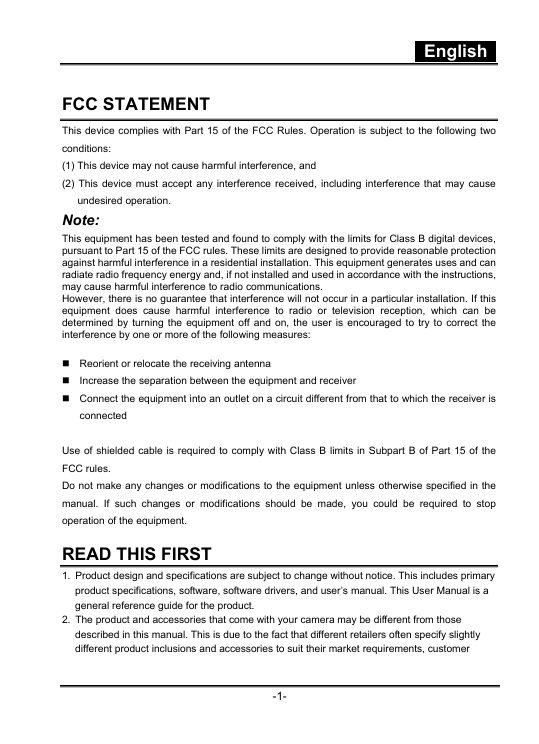

FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operatio
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, inclu
Note:
This equipment has been tested and found to comply with the
However, there is no guarantee that interference will not oc
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different
Use of shielded cable is required to comply with Class B lim
Do not make any changes or modifications to the equipment un
READ THIS FIRST
Product design and specifications are subject to change with
The product and accessories that come with your camera may b
The illustrations in this manual are for the purpose of expl
The manufacturer assumes no liability for any errors or disc
For driver updates, you can check the “Download” section of

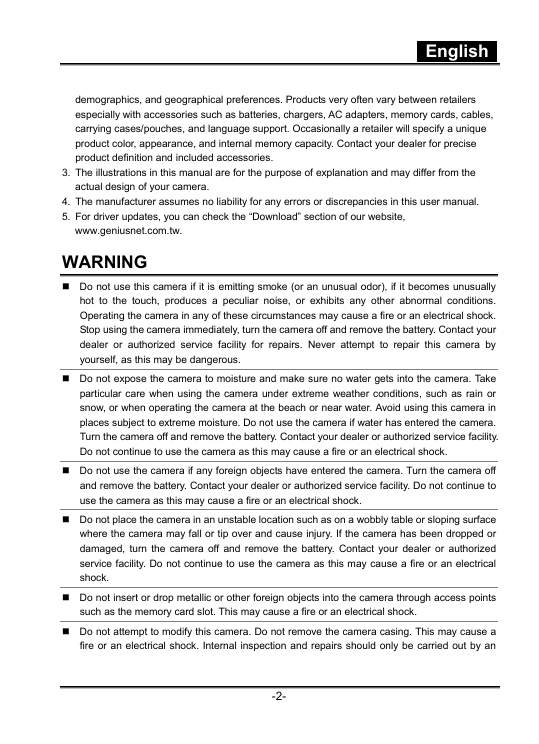

WARNING
Do not use this camera if it is emitting smoke (or an unusua
Do not expose the camera to moisture and make sure no water
Do not use the camera if any foreign objects have entered th
Do not place the camera in an unstable location such as on a
Do not insert or drop metallic or other foreign objects into
Do not attempt to modify this camera. Do not remove the came
Never operate this camera in any way while driving a vehicle

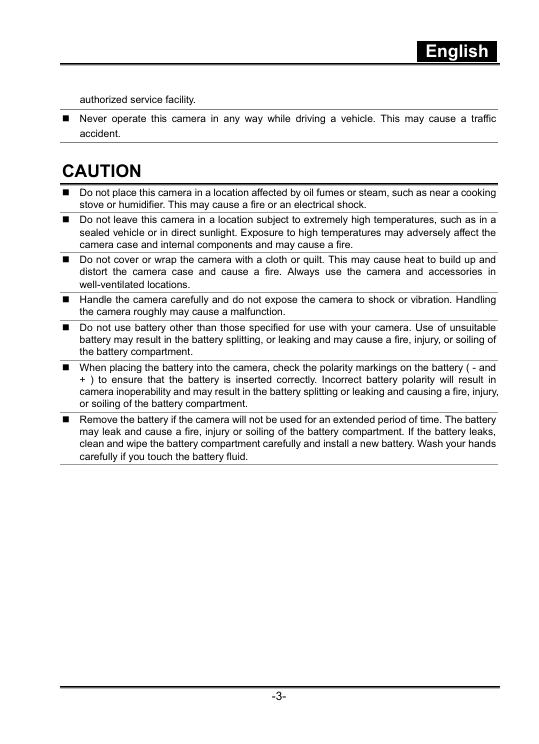

CAUTION
Do not place this camera in a location affected by oil fumes
Do not leave this camera in a location subject to extremely
Do not cover or wrap the camera with a cloth or quilt. This
Handle the camera carefully and do not expose the camera to
Do not use battery other than those specified for use with y
When placing the battery into the camera, check the polarity
Remove the battery if the camera will not be used for an ext
CONTENTS
INTRODUCTION 6-7
Overview
Package contents
GETTING TO KNOW THE
CAMERA 8-15
Front view
Rear view
Mode dial
Viewfinder LED indicators
LCD monitor information
GETTING STARTED 16-22
Attaching the Camera Strap
Inserting and Removing the Battery
Charging the Battery
Inserting and Removing the SD Card
Turning the Power On/Off
Formatting the SD Card
Choosing the Language
Setting the Date and Time
Setting Image Resolution and Quality
PHOTOGRAPHS MODE 22-35
Auto Photography Mode
Using the Optical Zoom
Using the Digital Zoom
Setting the Flash
Setting the Focus
Self-timer/Photographing at Intervals
Exposure Compensation/Backlight Correction
Program (Automatic Exposure) Photography Mode
Shutter Speed Priority
Photography Mode
Aperture Priority Photography Mode
Manual Photography Mode
Setting the Scene Mode
Movie Mode
PLAYBACK MODE 36-45
Playing Back Still Images
Playing Back Video Clips
Playing Back Still Images/Video Clips on a TV
Recording Voice Memos
Thumbnail Display
Zoom Playback
Slideshow Display
Protecting Images
DPOF Settings
Erasing Images
MENU OPTIONS 45-54
Photography Menu (Picture)
Photography Menu (Function)
Photography Menu (AE/AWB)
Playback Menu
Setup Menu (Basic)
Setup Menu (Custom)
TRANSFERRING RECORDED IMAGES/MOVIES TO YOUR COMPUTER 54-56
Step 1: Installing the USB Driver
Step 2: Connecting the Camera to Your Computer

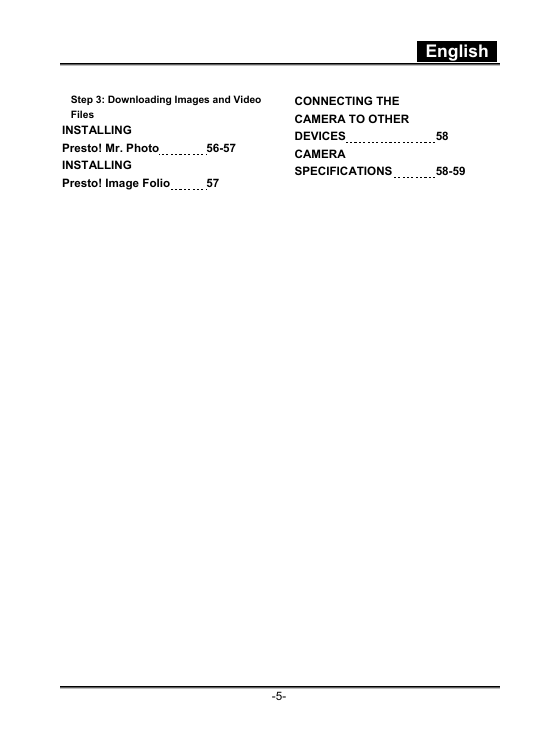

Step 3: Downloading Images and Video Files
INSTALLING
Presto! Mr. Photo 56-57
INSTALLING
Presto! Image Folio 57
CONNECTING THE
CAMERA TO OTHER
DEVICES 58
CAMERA
SPECIFICATIONS 58-59

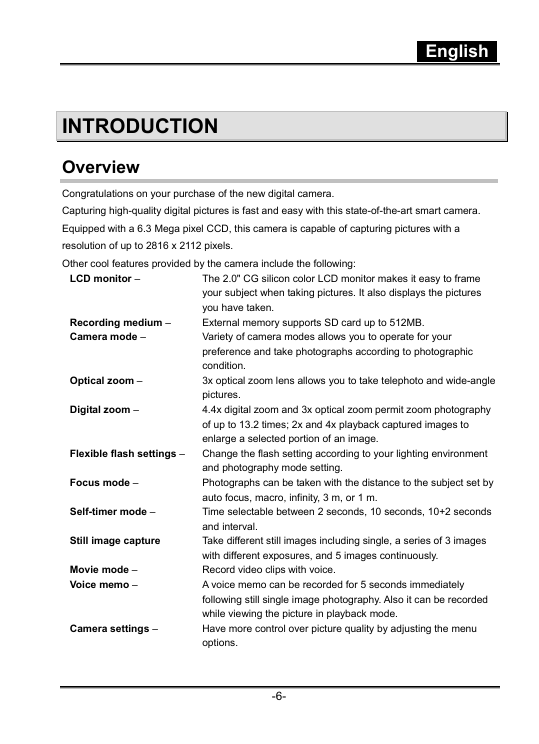

INTRODUCTION
Overview
Congratulations on your purchase of the new digital camera.
Capturing high-quality digital pictures is fast and easy wit
Other cool features provided by the camera include the follo
LCD monitor –
The 2.0" CG silicon color LCD monitor makes it easy to frame
Recording medium –
External memory supports SD card up to 512MB.
Camera mode –
Variety of camera modes allows you to operate for your prefe
Optical zoom –
3x optical zoom lens allows you to take telephoto and wide-a
Digital zoom –
4.4x digital zoom and 3x optical zoom permit zoom photograph
Flexible flash settings –
Change the flash setting according to your lighting environm
Focus mode –
Photographs can be taken with the distance to the subject se
Self-timer mode –
Time selectable between 2 seconds, 10 seconds, 10+2 seconds
Still image capture
Take different still images including single, a series of 3
Movie mode –
Record video clips with voice.
Voice memo –
A voice memo can be recorded for 5 seconds immediately follo
Camera settings –
Have more control over picture quality by adjusting the menu

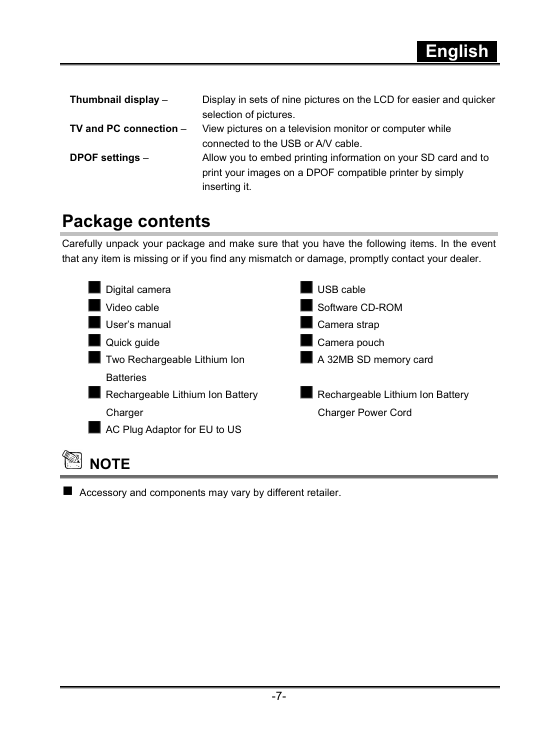

Thumbnail display –
Display in sets of nine pictures on the LCD for easier and q
TV and PC connection –
View pictures on a television monitor or computer while conn
DPOF settings –
Allow you to embed printing information on your SD card and
Package contents
Carefully unpack your package and make sure that you have th
Digital camera
USB cable
Video cable
Software CD-ROM
User’s manual
Camera strap
Quick guide
Camera pouch
Two Rechargeable Lithium Ion Batteries
A 32MB SD memory card
Rechargeable Lithium Ion Battery Charger
Rechargeable Lithium Ion Battery Charger Power Cord
AC Plug Adaptor for EU to US
NOTE
Accessory and components may vary by different retailer.

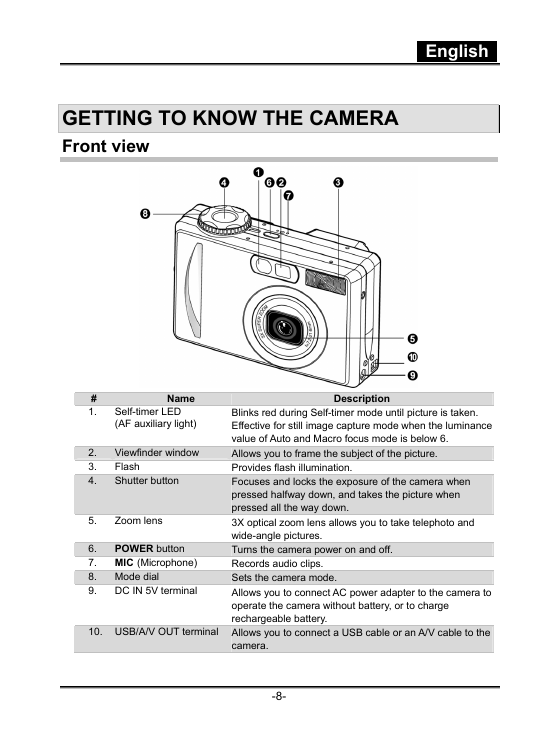

GETTING TO KNOW THE CAMERA
Front view
#
Name
Description
Self-timer LED
(AF auxiliary light)
Blinks red during Self-timer mode until picture is taken.
Effective for still image capture mode when the luminance va
Viewfinder window
Allows you to frame the subject of the picture.
Flash
Provides flash illumination.
Shutter button
Focuses and locks the exposure of the camera when pressed ha
Zoom lens
3X optical zoom lens allows you to take telephoto and wide-a
POWER button
Turns the camera power on and off.
MIC (Microphone)
Records audio clips.
Mode dial
Sets the camera mode.
DC IN 5V terminal
Allows you to connect AC power adapter to the camera to oper
USB/A/V OUT terminal
Allows you to connect a USB cable or an A/V cable to the cam
Rear view
#
Name
Description
Diopter adjustment dial
Provides a more clear image when using the viewfinder.
Viewfinder window
Allows you to frame the subject of the picture.
Viewfinder LED
Displays the camera current state.
(Zoom in) button
Zooms the lens to telephoto position.
(Zoom out) button
Zooms the lens to wide-angle position.
Speaker
Produces camera sounds and plays recorded audio.
MENU button
Toggles OSD menu on and off.
(Display) button
Turns the LCD monitor display and live view on and off.
Strap holder
Camera strap attachment.
Search dial
Selects the next or previous picture in playback mode, or ch
(Erase) button
Allows you to erase the picture.
Tripod socket
Allows tripod mounting.
Battery/SD card cover
Allows access to the battery and insert or remove the memory
LCD monitor
Provides menu information to operate the camera, and preview
SET /Direction button
Allows you to scroll through menus and pictures, and then se
SET /Direction button
#
Name
Description
SET button
Enters the menu page and confirms the chosen setting.
button
Scrolls upwards.
/ (Focus) button
Allows you to choose the appropriate focus setting.
button
Scrolls downwards.
(Self-timer) button
Allows you to toggle the self-timer on and off, selects the
button
Scrolls left.
(Exposure compensation / Backlight correction) button
Allows you to toggle the exposure compensation / backlight c
button
Scrolls right.
(Flash) button
Allows you to choose the appropriate flash setting.
Mode dial
#
Mode
Description
Auto photography
The camera is automatically sets for exposure, etc.
Program (auto exposure)
This permits the shutter speed and aperture to be set automa
Shutter speed priority
Selects this when you want to photograph with shutter speed
Aperture priority
Selects this when you want to photograph with aperture prior
Manual photography
Selects this when you want to manually set the exposure, ape
Portrait
Selects this when you want to photograph a person and blur t
Sports
Selects this when photographing fast-moving subjects.
Night scene
Selects this when photographing evening or night scenes.
Movie
Selects this when recording video clips.
Set-up
Chooses your preferences on the camera’s settings.
PC
Downloads the image to the personal computer.
Playback
Performs image playback, deletion and writing of the print i
Viewfinder LED Indicator
This describes the color and state of the viewfinder LED.
Color
State
During power off
During photography
During playback
During connection to a PC
Green
On
Battery charging in progress.
Auto focusing successful.
(AF is locked)
-
While the camera is connected to a PC.
Flashing
-
Self-timer in operation at a handshake alarm.
-
USB busy
Red
On
-
Writing to SD card in progress
Accessing of SD card in progress. DPOF file is being created
Accessing of SD card in progress.
Flashing
-
Auto focusing failure
-
-
Orange
On
Battery charging error.
Processing image.
Flash charging in progress.
Zoom initialization in progress.
-
Not recognized by the PC, or other status.
Flashing
-
No battery power left.
Camera malfunction.
No battery power left.
No battery power left.
No SD card.
LCD Monitor Icons
Photography mode [] [] [] []
Mode icon
Focus icon
Unsteady hold warning icon
Zoom status
Focus area (When the shutter button is pressed halfway.)
Voice memo
Remaining battery status
Flash icon
Image size
Quality
Capture mode icon
Self-timer icon
Possible number of shots
White balance icon
Metering icon
Backlight correction
Date and time
NOTE
Each press of the button switches one step in the sequence
Photography modes [ P ] [ Tv ] [ Av ] [ M ]
Mode icon
Focus icon
Unsteady hold warning icon
Zoom status
Focus area (When the shutter button is pressed halfway.)
Voice memo
Remaining battery status
Flash icon
Image size
Quality
Capture mode icon
Self-timer icon
Possible number of shots
White balance icon
Metering icon
Exposure compensation
Shutter speed
Aperture
Histogram
Long time exposure mode icon
NOTE
Each press of the button switches one step in the sequence
Photography mode [ ]
Mode icon
Focus icon
Zoom status
Remaining battery status
Image size
Quality
Self-timer icon
Possible recording time/elapsed time
Recording indicator
Playback mode []-Still Picture Playback
Folder number
File number
Voice memo icon
Protect icon
Mode icon
Playback mode []-Video Playback
Folder number
File number
Protect icon
Movie status bar
Total time
Elapsed time
Play mode
Mode icon
GETTING STARTED
Attaching the Camera Strap
Attach the camera strap as shown in the illustration.
Inserting and Removing the Battery
We highly recommend using specified rechargeable lithium-ion
Open the battery/SD Memory Card cover.
Insert the battery in the correct orientation shown.
Tilt the battery lock lever in the direction of the arrow an
Close the battery/SD Memory Card cover.
Removing the Battery
Open the battery/SD card cover and then release the battery
NOTE
Use only the specified battery type (Lithium Ion).
If you are not going to use the battery for an extended peri
Never use different type of battery.
Avoid using battery in extremely cold environments as low te
Charging the Battery
Insert the battery, noting correct polarity (+ and -).
Input Voltage:100-240V/50-60Hz
Output Voltage:4.2V/750mA
2. LED Indicator:
Status
LED Indication
Battery Charge Condition
Battery not installed
Green
OK
Battery installed
Green
Fully charged
Battery installed
Red
Charging
Battery installed/not installed
Off
Battery/charger defective
3. Notice:
A. Before you use a new battery, it should be charged for 3
B. If the green LED is on when power is connected, it indica
C. When the battery is put into the battery charger, the LED
D. If the LED indicator is not on when the power is connecte
If the battery has been charged over 3 hours and the LED ind
If it is necessary to charge a backup battery, the user shou
NOTE
Never use the battery unspecified for the camera.
Do not place the camera in hot temperature. Use it at room t
Inserting and Removing the SD Card (Optional)
Images photographed with this camera will be stored on the S
Inserting the SD card
Slide the battery/SD Memory Card cover in the direction of t
Insert the SD card in the correct orientation shown.
Hold the SD card with its metal contact end surface facing t
If the card cannot be inserted, check the orientation.
Close the battery/SD Memory Card cover.
Removing the SD card
Open the battery/SD card cover, press lightly on the edge of
NOTE
If the camera is powered-on without the card, the “NO CARD”
To prevent valuable data from being accidentally erased from
To save, edit or erase data on an SD Memory Card, you must u
Please format an SD Memory Card by this camera before use.
Turning the Power On/Off
Load the battery and insert an SD card before starting.
Turning the power on
Press the POWER button to turn the power on.
The viewfinder LED lights green and the camera is initiated.
When the power is turned on, the camera will start in the mo
Turning the power off
Press the POWER button to turn the power off.
NOTE
The power is turned off automatically when the camera has no
After the power is turned on, it may take several seconds to
Formatting the SD Card
This erases all of the images and folders that have been rec
Set the mode dial to [].
[Basic] of the set-up menu is displayed.
Select [Format] with the / buttons from [Basic] of the set
Select [Execute] with the / buttons, and press the SET but
To cancel formatting, select [Cancel] and press the SET butt
NOTE
You need to format an SD card before using it in this camera
Formatting the SD card also erases the protected images. All
Formatting is an irreversible action and data cannot be reco
An SD card having any problem cannot be properly formatted.
Choosing the Language
When you first turn the camera on, choose a language for dis
Set the mode dial to [] and press the button
[Custom] of the set-up menu is displayed.
Select [Language] with the / buttons and press the SET but
The Language setting screen will be displayed.
Select the displayed language using the / buttons and press
Setting the Date and Time
The date/time needs to be set if/when:
Camera is turned on for the first time.
Camera is turned on after leaving the camera without the bat
When the date and time information is not displayed on the L
Set the mode dial to [] and press the button.
[Custom] of the set-up menu is displayed.
Select [Date/Time] with the / buttons and press the SET bu
The Date/Time setting screen will be displayed.
Select the item’s field with the / buttons and adjust the
After confirming all settings are correct, press the SET but
The setting will be stored and the screen will return to the
The date and time is set in the order year-month-day-hour-mi
Setting Image Resolution and Quality
Resolution and quality settings determine the pixel size (di
Higher resolution and higher quality images offer the best p
High resolution and quality settings are recommended for pri
To change image resolution or image quality, perform these s
Set the mode dial to one of the photography modes.
Press the MENU button.
[Picture] of the photography menu is displayed.
Select [Size] with the / buttons, and press the SET button
Select the desired setting with the / buttons, and press t
Select [Quality] with the / buttons, and press the SET but
Select the desired setting with the / buttons, and press t
To exit from the photography menu, press the MENU button.
Possible number of shots (Still picture)
The table shows the approximate shots that you can take at e
Image size
Quality
SD Card
32MB
64MB
128MB
256MB
512MB
(6M)
2816 x 2112
(Fine)
11
22
45
91
183
(Standard)
18
38
77
154
311
(Economy)
34
70
142
283
571
TIFF
2
5
10
21
43
(4M)
2272 x 1704
(Fine)
18
37
76
151
305
(Standard)
30
61
124
247
498
(Economy)
59
121
244
487
981
(2M)
1600 x 1200
(Fine)
37
76
153
306
616
(Standard)
59
121
244
487
981
(Economy)
118
242
489
975
1963
(VGA)
640 x 480
(Fine)
145
298
602
1200
2417
(Standard)
210
430
870
1734
3491
(Economy)
379
775
1566
3121
6284
Possible recording time/sec (Video clip)
Image size
Quality
SD Card
32MB
64MB
128MB
256MB
512MB
320x240
(Fine)
01:45
03:34
07:13
14:23
28:59
(Standard)
02:36
05:20
10:46
21:28
43:13
* The data shows the standard testing results. The actual ca
NOTE
The memory card testing results for 512MB are based on Toshi
PHOTOGRAPHY MODE
[] Auto Photography Mode
Auto photography is a typical method of photography. Photogr
Using the Viewfinder
Make sure that the battery is inserted before taking photogr
Press the POWER button to turn the power on.
Set the mode dial to [ ].
Compose your shot in the viewfinder.
Turn the “diopter adjustment dial” until the image appears c
Press the shutter button.
Pressing the shutter button down halfway automatically focus
The focus area frame turns blue and the viewfinder LED light
When the focus or exposure is not suitable, the frame of the
If the photographic preview is set to “ON”, the preview imag
When the voice memo is set to “ON”, [VOICE RECORDING] will b
Press the shutter button one more time during recording, or
NOTE
Voice memo is starting to record at still image capture mode
Using the LCD Monitor
Make sure that the battery is inserted before taking photogr
Press the POWER button to turn the power on.
Set the mode dial to [ ].
By default, the LCD monitor setting is "ON".
Compose the picture in the LCD monitor.
Press the shutter button down halfway (the camera adjusts th
The viewfinder LED indicator lights red while the camera is
LCD Monitor Display (Capture Mode)
The [] Display button can select display format. Whether in
OSD (on-screen-display) full display OSD display OFF
NOTE
The image in the LCD monitor darkens in strong sunlight or b
Using the LCD monitor for an extended period of time will de
Using the Optical Zoom
Zoom photography allows you to take zoom photographs up to 3
Set the mode dial to one of [], [], [], [], [], [], [], [],
If required, turn on the LCD monitor by pressing the [] butt
Compose the picture with the zoom button.
Pressing the [] button zooms in on the subject, and enlarges
Pressing the [] button provides a wider angle picture.
The lens position moves according to the zoom button setting
Press the shutter button down halfway, and then press it dow
Using the Digital Zoom
Using a combination of 3 times optical zoom and 4.4 times di
Set the mode dial to one of [], [], [], [], [], [], [], [],
If required, turn on the LCD monitor by pressing the [] butt
To enable the digital zoom is as follows:
Press the MENU button.
Select [Function] with the or buttons.
Select [Digital Zoom] with the / buttons, and press the SE
Select [ON] with the / buttons again, and press the SET bu
Press the MENU button to exit from the menu screen.
To activate the digital zoom, press the [] button completely
Press the shutter button to capture a “zoomed” image.
NOTE
The digital zoom is cancelled when the [] button is pressed
The zoom setting is automatically cancelled by either turnin
Using the Flash
Set the flash for taking photographs. The flash firing mode
Set the mode dial to one of the photography modes.
The flash setting is limited depending on the selected photo
Toggle the button to select the desired flash mode.
Each press of the button moves the icon one step through th
For the mode of [] :
For the modes of [ P ], [ Tv ], [ Av ] and [ M ]:
Flash Mode
Description
[ Black ] Auto
The flash fires automatically to suit the photographic condi
This is only effective when the camera is set to the [] mode
Red-Eye Reduction
Use this mode to reduce the red-eye phenomenon when you want
When taking photographs, the red-eye phenomenon can be reduc
The flash always fires twice, and the photograph is taken at
When the camera mode is [] and [ P ], the flash will fire to
When the camera mode is [ Tv ], [ Av ] and [ M ], the flash
Forced Flash
In this mode, the flash always fires. Use this mode for phot
Flash Off
Use this mode when taking pictures using indoor lighting, fo
NOTE
On the [] scene mode, the flash mode is fixed to Red-eye Re
On the [ ] scene mode, the flash mode is fixed to [ ] Suppr
On the [] scene mode, the flash mode is fixed to [] Forced F
On the [] focus mode, the flash mode is fixed to [] Suppress
The flash cannot be set in the [] mode and capture mode [Con
Setting the Focus
Photographs can be taken with the distance to the subject se
The settings will be maintained even when the power is turne
Set the mode dial to one of the photography modes.
Toggle the button to select the desired focus mode.
Each press of the button moves the icon one step through th
For the modes of [], [ P ], [ Tv ], [ Av ], [ M ], [] and []
For the modes of [] and []:
The table below will help you choose the appropriate focus m
Flash Mode
Description
[ Black ]
Auto focus
Selects this when you want to leave the settings up to the c
Approximately 80 cm (both Wide and Tele)
[]
Macro
Selects this when you want to takes a close up photography.
Wide (zoom off) : Approximately 9 cm to infinity
Tele (at optical zoom 3x) : Approximately 30 cm to infinity
[]
Infinity
Selects this when you want to take photographs of subjects a
[ 3M ]
Fixed at 3 m
Selects this when you want to take photographs of subjects a
[ 1M ]
Fixed at 1 m
Selects this when you want to take photographs of subjects a
NOTE
When [], [ 3M ] or [ 1M ] is set, the camera takes photograp
Self-timer/Photographing at Intervals
This setting allows photographs to be taken with the self-ti
Set the mode dial to one of the photography modes.
Toggle the [] button to select the setting.
Each press of the [] button moves the icon one step through
For the [] mode and capture mode ([Continuous] and [Auto Exp
Compose the picture, press the shutter button down halfway,
The self-timer LED flashes and the photograph is taken after
The countdown is displayed on the LCD monitor.
To cancel the self-timer during operation, press the SET but
The table below will help you choose the appropriate self-ti
Self-timer mode
Description
10 sec.
The picture is taken about 10 seconds after the shutter butt
2 sec.
The picture is taken about 2 seconds after the shutter butto
10+2 sec.
One picture is taken about 10 seconds after the shutter butt
This is convenient when taking group photographs in successi
Interval
This allows photographs to be taken with settings of a fixed
The photographic interval can be set to 1, 3, 10, or 60 minu
During the interval between one photograph and another, the
NOTE
The self-timer setting is automatically cancelled after a ph
Use of the self-timer setting is effective in preventing th
The number of photographs that can be taken will differ depe
The interval photography is not available for TIFF setting.
Exposure Compensation/Backlight Correction
Photographs can be taken with the overall screen intentional
Set the mode dial to one of [ P ], [ Tv ] or [ Av ] and pres
Each press of the button displays the setting in the order
Set the exposure value with the search dial.
Turn the search dial to the side to decrease the value.
Turn the search dial to the side to increase the value.
The setting range of the exposure compensation is as follows
-2.0, -1.7, -1.3, -1.0, -0.7, -0.3, 0, +0.3, +0.7, +1.0, +1.
Effective Subjects and Set Values
Positive (+) Compensation
* Printed matter comprising black text on whitish paper
* Backlighting
* Bright scenes or strong reflected light such as ski slopes
* When the sky accounts for a large area on the screen
Negative (-) Compensation
* People illuminated by a spotlight, in particular, against
* Printed matter comprising white text on blackish paper
* Weak reflecting bodies such as evergreen trees or darkish
Backlight correction (+1.3, fixed)
* When the background is bright and the subject is dark.
* When subjects (people) have a light source such as the sun
NOTE
The backlight correction setting can be set in the [], [ P ]
[ P ] Program (Automatic Exposure) Photography Mode
The camera automatically sets the shutter speed and the aper
Set the mode dial to [ P ].
Compose the picture, press the shutter button down halfway,
NOTE
Exposure compensation can be set.
[ Tv ] Shutter Speed Priority Photography Mode
In this mode, photographs are taken with the priority given
Set the mode dial to [ Tv ] and press the button.
Set the shutter speed with the search dial.
Turn the search dial to the side (toward faster shutter spe
Turn the search dial to the side (toward slower shutter spe
The setting range is as follows.
1/1500, 1/1250, 1/1000, 1/800, 1/650, 1/500, 1/400, 1/320, 1
The shutter speed and corresponding aperture value are displ
Compose the picture, press the shutter button down halfway,
NOTE
Setting the shutter speed slower than 0.5 second will result
In the flash photography mode, when [] and are set, the fas
In the capture mode [Continuous] and [Auto Exp.], the shutte
[ Av ] Aperture Priority Photography Mode
In this mode, photographs are taken with the priority given
If you set a small aperture (higher F value), you can take p
Set the mode dial to [ Av ] and press the button.
Set the aperture value with the search dial.
Turn the search dial to the side to increase the value.
Turn the search dial to the side to decrease the value.
The setting range is as follows. F6.7/F5.6/F 4.8/F4.0/F3.5/F
The aperture and corresponding shutter speed are displayed o
Compose the picture, press the shutter button down halfway,
NOTE
The aperture value is adjusted automatically depending on th
[ M ] Manual Photography Mode
In this mode, photographs are taken by setting the aperture
Set the mode dial to [ M ].
Select the shutter speed or the aperture with the button.
Set the shutter speed or the aperture value with the search
Compose the picture, press the shutter button down halfway,
NOTE
In the flash photography mode, when [] and are set, the fas
Setting the shutter speed slower than 0.5 second will result
Setting the Scene Mode
This sets the scene setting such as [] portrait, [] sports o
Set the mode dial to one of the scene modes.
When the camera mode is set to the [] or [], [] cannot be se
Compose the picture, press the shutter button down halfway,
The table below will help you choose the appropriate scene m
Scene Mode
Description
[]
Portrait
Selects this when you want to take a photograph that makes t
The flash setting is fixed at which is effective in reduci
[]
Sports
Selects this when you want to photograph fast-moving subject
The flash mode cannot be set.
[]
Night scene
Selects this when you want to photograph people with an even
The flash is fixed at [].
NOTE
The description of each scene serves as a general guide. Set
[] Movie Mode
This mode is for recording video clips. Voice can also be re
Set the mode dial to [].
Compose the picture with the zoom button.
Optical zoom and digital zoom can be set while composing.
Fully pressed the shutter button.
The recording of the video clip will start.
Pressing the shutter button one more time will end the recor
The recording time depends on the storage size and the subje
NOTE
On the [] mode, the LCD monitor cannot be turned off.
When recording video clips, flash photography is not possibl
While the image is being recorded into the SD card, do not o
[] PLAYBACK MODE
Playing Back Still Images
You can play back the still images on an LCD monitor. Insert
Set the mode dial to [].
The last image appears on the screen.
Turn the search dial to move forward or reverse.
Turn to the side: go back to the previous frame.
Turn to the side: advance to the next frame.
The images can also be fed in reverse or fed forward by pres
Image Display Information
You can switch the state of the information display by press
NOTE
Pressing the / buttons during image playback will result i
A [] icon is displayed with the video data. Video clips cann
A [] icon is displayed with images which have an audio memo
Press the SET button to playback the voice memo data.
In the zoom playback, the display is switched between normal
The condition of the information display cannot be switched
Playing Back Video Clips
You can play back video clips recorded on the camera. You ca
Set the mode dial to [].
The last image appears on the screen.
Select the desired video clip with the search dial.
You can also select the desired video clip with the / butt
Press the SET button.
A press of the / buttons during playback allows fast forwa
To stop video playback:
Press the button.
This stops playback and returns to the start of the video cl
To pause video playback
Press the button.
This pauses video playback.
To cancel pause, press the button again.
Button Operations
During playback
During pause
During a Stop
button
Fast forward play
Each press of the button moves the operation one step in th
2x-speed playback
button
Reverse play
Each press of the button moves the operation one step in the
Reverse playback
button
Pause
Canceling pause
The previous image is displayed.
button
Stop (The display returns to the 1st frame playback)
The next image is displayed.
SET
button
Regular forward play
Canceling pause
Regular forward play
NOTE
Video clips cannot be displayed rotated or enlarged.
Turning the search dial during a pause, feeds the video forw
Playing Back Still Images/Video Clips on a TV
You can also playback your images on a TV screen. Before con
Set the mode dial to [].
Connect one end of the A/V cable to the A/V OUT terminal of
Connect the other end to the A/V input socket of the TV set.
Turn the TV and camera on.
Play back the still images / video clips.
The method of operation is the same as playing back still im
NOTE
In the case of the PAL system, images are surrounded by a bl
Refer to section in this manual titled “Video Output” in the
Recording Voice Memos
A maximum of 30 seconds of audio can be recorded like a memo
Set the mode dial to [].
The last image appears on the screen.
Select the image with the search dial.
Press the shutter button.
[VOICE RECORDING] is displayed on the screen and recording s
To stop recording voice memo during recording, press the shu
[VOICE RECORD END] will be displayed and the recording will
A [] icon is displayed with images that have been recorded w
Playing back voice memo
A press of the SET button displays [VOICE PLAYBACK] and play
NOTE
Voice memo is available in the still single image capture mo
Thumbnail Display
This function allows you to view 9 thumbnail images on the L
Set the mode dial to [].
The last image appears on the screen.
Press the button once.
The images are displayed in the thumbnail display.
Images that have been selected with the buttons or the sear
When there are ten or more images, scroll the screen with th
Press the buttons to select the image to be displayed at re
Press the SET button.
The selected image is displayed at its regular size.
NOTE
A [], [], [] icon will be displayed in a thumbnail display.
Zoom Playback
Images that are being play back can be enlarged and displaye
Set the mode dial to [].
Press the buttons to select the image you want to enlarge.
You can also select the image you want to enlarge with the s
Adjust the zoom ratio with the buttons.
Pressing the button enlarges the image.
To return to normal magnification, press the button.
The image is displayed enlarged, and a white frame and green
The white frame indicates the entire image, while the green
Press the buttons to select the area to enlarge.
To return to regular display, toggle the button until the r
NOTE
Pressing the button magnifies the image from 1x —> 2x —> 4x
Pressing the button reduces the image from 4x —> 2x—> 1x.
Slideshow Display
The slideshow function enables you to playback your still im
Set the mode dial to [].
Press the MENU button.
The playback menu is displayed.
Select [Slide Show] with the buttons, and press the SET but
The slideshow starts.
To stop the slide show during playback, press the SET button
The image is displayed on screen when you press the SET butt
NOTE
The Auto Power Off function does not operate during slide sh
All images in the folder are automatically played back.
Protecting Images
Set the data to read-only to prevent images from being erase
Protecting Images
Set the mode dial to [].
Select the image that you want to protect with the search di
Press the MENU button.
The playback menu is displayed.
Select [Protect] with the buttons, and press the SET button
Select [Single] or [All] with the buttons, and press the SE
Select [Set] with the buttons, and press the SET button.
Protect is executed and the camera returns to the play mode.
The protect icon [] is displayed with protected images. When
Canceling the Protection
To cancel protection for only one image, display the image t
Select [Protect] with the buttons from the playback menu, a
Select [Single] or [All] with the buttons, and press the SE
Select [Cancel Protect] with the buttons, and press the SET
The removal of image protection is executed and the camera r
Protecting multiple images simultaneously
Select [Protect] with the buttons from the playback menu, a
Select [Select] with the buttons, and press the SET button.
The images are displayed in the thumbnail display.
Select the image you want to protect with the buttons, and
The protect icon [] is displayed with protected images. Sele
Press the SET button.
Protection and cancellation the protection are executed and
NOTE
Formatting the SD card undoes the protection, and erases all
Even when multiple folders exist in the SD card, the images
DPOF Settings
DPOF is the abbreviation for Digital Print Order Format, whi
Set the mode dial to [].
Select the image that you want to set DPOF with the search d
Press the MENU button.
The playback menu is displayed.
Select [DPOF] with the buttons, and press the SET button.
The DPOF setting screen is displayed.
Select [Single] or [All] with the buttons, and press the SE
Single: Sets DPOF for each individual image.
All: Sets DPOF for all images at once.
Select [Print Num.] with the buttons, and press the SET but
This displays the number of prints setting screen.
Set the number of prints with the buttons, and press the SE
You can set up to 9 prints for each image.
Select [Date] with the buttons, and press the SET button.
The date and time setting screen appears.
Select date to [ON] or [OFF] with the buttons, and press th
ON: The date of the photograph will also be printed.
OFF: The date of the photograph will not be printed.
Select [Print Enable] with the buttons, and press the SET b
Select [Execute] with the buttons, and press the SET button
This creates a file containing the DPOF information, and whe
NOTE
The date that is printed on the photo is the date set on the
Even when multiple folders exist in the SD card, the images
[] Erasing Images
Erasing at Photography Mode (Quick Delete Function)
Quick delete function enables you to erase the image during
Set the mode dial to one of the photography modes.
Press the button.
The last image and quick delete menu appear on the screen.
Press the SET button to erase the image.
To not erase, select [Cancel], and press the SET button.
Erasing at Playback Mode
Erasing single image / Erasing all images
Set the mode dial to [].
The last image will be displayed on the screen.
Select the image you want to erase with the search dial.
Press the button.
The deletion menu will be displayed.
Select [Single] or [All] with the buttons, and press the SE
Single: Erases the selected image or the last image.
All: Erases all of the images on the SD card except for the
Select: Erases a number of selected images.
Select [Execute] with the buttons, and press the SET button
To not erase, select [Cancel], and press the SET button.
NOTE
Even if you take photographs after erasing an image, the fil
Erasing selected images.
This erases a number of selected images.
Set the mode dial to [].
Press the button.
The deletion menu will be displayed.
Select [Select] with the buttons, and press the SET button.
The images are displayed in the thumbnail display.
Select the image you want to erase with the buttons, and pr
The [] icon will be displayed. One more press of the erase b
Press the SET button.
MENU OPTIONS
Photography Menu (Picture)
This menu is for the basic settings to be used when taking p
Set the mode dial to one of the photography modes.
Press the MENU button.
[Picture] of the photography menu is displayed.
Select the desired [Picture] option item with the buttons,
Select the desired setting with the buttons, and press the
To exit from the photography menu, press the MENU button.
Size
This sets the size of the image that will be photographed.
[Still picture]
2816 x 2112: 2816 x 2112 pixel (6M)
2272 x 1704: 2272x1704 pixel (4M)
1600 x 1200: 1600x 1200 pixel (2M)
640 x 480: 640 x 480 pixel (VGA)
[Video clip]
320 x 240 : 320 x 240 pixel
Quality
This sets the quality (compression rate) at which the photog
Fine: Low compression rate
Standard: Normal
Economy: High compression rate
TIFF: No compression rate (the highest image quality and th
NOTE
Economy setting cannot be set in the [] mode.
TIFF setting is selectable only when size setting is set to
Sharpness
This sets the sharpness of the image that will be photograph
Hard: Hard touch
Normal: Normal touch
Soft: Soft touch
NOTE
This setting cannot be set in the [] mode.
Contrast
This sets the difference between the bright and dark portion
Hard: Increases the contrast.
Normal: Set the contrast automatically.
Soft: Decreases the contrast.
Color
This sets the color of the image that will be photographed.
Standard: Standard color
Vivid: Bright color
Sepia: Sepia
Monochrome: Black-and-white
Photography Menu (Function)
Set the mode dial to one of the photography modes.
Press the MENU button, and select the [Function] menu with t
[Function] of the photography menu is displayed.
Select the desired [Function] option item with the buttons,
Select the desired setting with the buttons, and press the
To exit from the photography menu, press the MENU button.
Capture Mode
This sets the recording method at the time of taking picture
( Blank ) Single: Takes one photograph at a time.
() Continuous: Permits continuous photography of 5 pictures
( AEB ) Auto Exp.: Effective when it is difficult to determ
NOTE
In continuous photography, press and hold the shutter button
When the size setting is set to TIFF, the maximum recordable
Voice Memo
A voice memo can be recorded for 30 seconds immediately foll
Refer to section in this manual titled "[] Auto Photography
ON: Enable voice memo.
OFF: Disable voice memo.
NOTE
When voice memo is set to on, the preview setting is also fi
LCD Bright.
Select a brightness level for the LCD monitor.
The LCD becomes brighter with the button and darker with th
Digital Zoom
This sets whether or not to use digital zoom at the time of
ON: Enable digital zoom.
OFF: Disable digital zoom.
Preview
This sets whether or not to display the photographed image o
ON: Displayed when images are being recorded on the SD card
OFF: Does not display.
NOTE
A photographed image is displayed on the LCD monitor for 2 s
When preview is set to off, the voice memo setting is also f
Date Print
The date of recording can be printed directly on the still i
ON: Imprints the date on the still images when taking pictu
OFF: Does not imprint the date on the still images when tak
Interval/Count
This automatically photographs at a fixed interval for the n
It is effective when the [ Intv ] is set with the button.
1 Min.: Photographs at a 1-minute interval.
3 Min.: Photographs at a 3-minute interval.
10 Min.: Photographs at a 10-minute interval.
60 Min.: Photographs at a 60-minute interval.
Number of photographs: Can be set from 2 to 99 times.
Refer to section in this manual titled “Selftimer/ Photograp
NOTE
The number of photographs that can be taken will differ depe
During the interval between one photograph and another, the
Photography Menu (AE/AWB)
Set the mode dial to one of the photography modes.
Press the MENU button, and select the [AE/AWB] menu with the
[AE/AWB] of the photography menu is displayed.
Select the desired [AE/AWB] option item with the buttons, a
Select the desired setting with the buttons, and press the
To exit from the photography menu, press the MENU button.
White Balance
This sets the white balance photographing under a variety of
Auto: Automatic adjustment.
Incandescent: Photography under incandescent lighting.
Fluorescent 1: Photography under a daylight fluorescent tub
Fluorescent 2: Photography under a daylight white fluoresce
Day Light: Outdoor photography.
Cloudy: Photography under a cloudy sky.
Manual: Photography with a Manual WB.
Metering
This sets the metering method for calculating the exposure.
Multi: The entire area of the screen is measured, and the e
Spot: A very small portion of the center of the screen is m
ISO
This sets the sensitivity for taking pictures. When the sens
50: Equivalent to ISO50.
100: Equivalent to ISO100.
200: High-sensitive photography equivalent to ISO200.
Auto: Automatic setting in the range of ISO 50 to 200 (Sele
Manual WB
This manually sets the white balance and stores it. Use of t
Before select [Execute] determine the subject (such as a whi
Cancel: Disable manual white balance.
Execute: Enable manual white balance.
Playback Menu
In the [] mode, set which settings are to be used for playba
Set the mode dial to [].
Press the MENU button.
The playback menu is displayed.
Select the desired option item with the buttons, and press
Select the desired setting with the buttons, and press the
To exit from the playback menu, press the MENU button.
Slide Show
Automatically plays back still images in order one image at
Refer to section in this manual titled “Slideshow Display” f
DPOF
Set the number of prints and date display in DPOF format to
Refer to section in this manual titled “DPOF Settings” for f
Protect
Set the data to read-only to prevent images from being erase
Refer to section in this manual titled “Protecting Images” f
LCD Bright.
Adjust the brightness of the LCD monitor. This function does
Refer to section in this manual titled “LCD Bright.” in Phot
Setup Menu (Basic)
Set your camera’s operating environment. The settings will b
Set the mode dial to [].
[Basic] of the set-up menu is displayed.
Select the desired [Basic] option item with the buttons, an
Select the desired setting with the buttons, and press the
To exit from the set-up menu, change the mode dial setting.
Card Info.
This allows a check of the free capacity of the SD card as w
Fr. No. Reset
This creates a new folder. The photographed images are recor
Cancel: Does not reset the file number.
Execute: Resets the file number and creates a new folder.
Format
This function erases all images and reformats the SD card lo
Protected images are also erased. SD card cannot be formatte
Refer to section in this manual titled “Formatting the SD Ca
Sound
This sets whether or not to mute the playback sound of the r
ON: Does not mute the playback sound of the voice memo and
OFF: Mute the playback sound of the voice memo and voice re
Beep
This sets the camera sound each time you press the camera bu
ON: Sounds the beep tone.
OFF: Does not sound the beep tone.
Auto PoFF
If no operation is performed for a specific period of time,
1 Min.: When the camera has not been operated, it turns the
2 Min.: When the camera has not been operated, it turns the
3 Min.: When the camera has not been operated, it turns the
NOTE
This function does not operate during a slideshow or in the
Setup Menu (Custom)
Set the mode dial to [], and select the [Custom] menu with t
[Custom] of the set-up menu is displayed.
Select the desired [Custom] option item with the buttons, a
Select the desired setting with the buttons, and press the
To exit from the set-up menu, change the mode dial setting.
Date/Time
This sets the date and the time.
Refer to section in this manual titled “Setting the Date and
Sys. Reset
This returns all basic settings to the camera’s default sett
Cancel: Does not return to the default settings.
Execute: Returns to the default settings.
Language
This sets the language that is displayed on the LCD monitor.
Refer to section in this manual titled “Choosing the Languag
Video Output
This sets video output system of the video equipment that yo
NTSC: NTSC system.
PAL: PAL system.
System Info.
This displays the firmware version of the camera.
TRANSFERRING RECORDED IMAGES TO YOUR COMPUTER
You can share recorded images/video clips with your family o
To transfer images/video clips from the camera to your compu
Step 1: Install the USB driver (only for Windows 98)
Step 2: Connecting the camera to your computer
Step 3: Downloading images/video clips
System requirements (Windows)
System requirements (Macintosh)
CPU
Pentium 166 MHz processor or higher
PowerPC G3/G4
OS
Windows 98/98SE/Me/2000/XP
OS 8.6 or later
Memory
64MB RAM
64MB RAM
Free Space on Hard Disk
128MB hard disk space
128MB hard disk space
Required Devices
A CD-ROM drive,
An available USB port
A CD-ROM drive,
An available USB port
Color Monitor
Color monitor (800x600, 24-bit or higher recommended)
Color monitor (800x600, 24-bit or higher recommended)
Step 1: Installing the USB driver on Windows computers
The USB driver on the supplied CD-ROM is exclusively for Win
Insert the CD-ROM packaged with the camera into the CD-ROM d
Click “Install USB Driver”. Follow the onscreen instructions
After the USB driver installation is complete, restart your
Installing the USB driver on Macintosh computers
Mac OS 8.6 users must install a USB driver. For Mac OS 9.0 o
Insert the CD-ROM packaged with the camera into the CD-ROM d
Select and double-click “Digital Camera Driver Installer”.
Select “Install Location” and click “Install”.
Follow the on-screen instructions to complete the installati
Step 2: Connecting the camera to your computer
Set the mode dial to PC mode.
Connect one end of the USB cable to an available USB port on
Connect the other end of the USB cable to the USB connector
From the Windows desktop, double click on “My Computer”.
Look for a new “Removable disk” icon. This “Removable disk”
Double click on the removable disk and locate the DCIM folde
Double click on the DCIM folder to open it to find more fold
Your recorded images and video clips will be inside these fo
Copy & Paste or Drag-N-Drop image and video files to a folde
Mac users: Double-click the “untitled” or “unlabeled” disk d
Step 3: Downloading images/video clips
When the camera is turned on and connected to your computer,
For computers running Windows
Open the “removable disk” by double-clicking on it. Double-c
For computers running Mac OS
Open the “untitled” disk window and the hard disk or the des
NOTE
Memory card users may prefer to use a memory card reader (hi
Video playback application is not included with the package.
Installing Presto! Mr. Photo
Presto! Mr. Photo is an ideal program for creating, sharing,
To install Presto! Mr. Photo:
Insert the CD-ROM that came with the camera into your CD-ROM
The welcome screen appears.
Click “Install MR. PHOTO”.
Follow on-screen instructions to complete the installation.
NOTE
For help on using Mr. Photo usage, refer to the Mr. Photo on
For Windows 2000/XP users, be sure to install and use the Mr
Mr. Photo is not supported on the Mac.
Installing Presto! Image Folio
Image Folio is a comprehensive multimedia image-processing p
You can create new images by using the Image Folio’s powerfu
To install Presto! Image Folio:
Insert the CD-ROM that came with the camera into your CD-ROM
The welcome screen appears.
Click “Install IMAGE FOLIO”.
Follow on-screen instructions to complete the installation.
NOTE
For help on using Image Folio usage, refer to the Image Foli
For Windows 2000/XP users, be sure to install and use the Im
Image Folio is not supported on the Mac.
CONNECTING THE CAMERA TO OTHER DEVICES
CAMERA SPECIFICATIONS
Item
Description
Image sensor
1/1.8” CCD sensor
Total number of pixels: 6.3 mega pixels
Number of effective pixels: 5.95 mega pixels
Image resolution
< Video clip> 320x240
LCD monitor
2.0” low temperature poly silicon LCD
Viewfinder
Real image optical zoom viewfinder
Image quality
Fine/Standard/Economy/TIFF (selectable atv2816x2112 only)
Recording medium
External memory: Bundled 32MB SD card (up to 512MB)
Compression format
JPEG compliant
Image file format
DCF 1.1, EXIF 2.2, AVI, TIFF
Lens
f=7.2 mm - 21.6 mm (equivalent to 35 mm - 105 mm on a 35 mm
F=2.8 - 4.7
Focus range
Approx. 80 cm to infinity (both Wide and Tele)
Approx. 9 cm to infinity (Macro Wide)
Approx. 30 cm to infinity (Macro Tele)
Auto-Focus
TTL method AF
Shutter speed
Long exposure: 8sec - 0.6 sec.
Normal exposure: 1/2 sec.-1/1500 sec.
Digital zoom
4.4x (Capture mode)
2x and 4x (Playback mode)
Metering system
Multi metering, Spot metering
Exposure
Program AE/Shutter speed priority/Aperture priority/ Manual/
Exposure compensation
-2EV - +2EV (in 0.3EV increments)
White balance
Auto / Incandescent / Fluorescent 1 / Fluorescent 2 / Daylig
Flash
Auto/ Red-eye reduction / Suppressed Flash / Forced flash
Flash effective range
0.6 m –3.0 m (Wide / ISO=200)
ISO sensitivity
Equivalent to ISO 50/100/200/Auto (ISO 50-ISO 200)
Self-timer
10 sec./2 sec. / 10+2 sec. /Interval (1, 3, 10, 60 min)
Video output
NTSC/PAL
Interface
DC IN 5V terminal
A/V OUT terminal
USB 1.1
Power supply
Lithium-ion battery (included)
AC power adapter 5V
Dimension (WxDxH)
Approx. 94 x 63 x 35mm (without protruding parts)
Weight
Approx. 180g (without the battery & SD card)
* Design and specifications are subject to change without no
English
FCC STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Note:
This equipment has been tested and found to comply with the limits for Class B digital devices,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna
Connect the equipment into an outlet on a circuit different from that to which the receiver is
Increase the separation between the equipment and receiver
connected
Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of the
FCC rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the
manual. If such changes or modifications should be made, you could be required to stop
operation of the equipment.
READ THIS FIRST
1. Product design and specifications are subject to change without notice. This includes primary
product specifications, software, software drivers, and user’s manual. This User Manual is a
general reference guide for the product.
2. The product and accessories that come with your camera may be different from those
described in this manual. This is due to the fact that different retailers often specify slightly
different product inclusions and accessories to suit their market requirements, customer
-1-
English
demographics, and geographical preferences. Products very often vary between retailers
especially with accessories such as batteries, chargers, AC adapters, memory cards, cables,
carrying cases/pouches, and language support. Occasionally a retailer will specify a unique
product color, appearance, and internal memory capacity. Contact your dealer for precise
product definition and included accessories.
3. The illustrations in this manual are for the purpose of explanation and may differ from the
actual design of your camera.
4. The manufacturer assumes no liability for any errors or discrepancies in this user manual.
5. For driver updates, you can check the “Download” section of our website,
www.geniusnet.com.tw.
WARNING
Do not use this camera if it is emitting smoke (or an unusual odor), if it becomes unusually
hot to the touch, produces a peculiar noise, or exhibits any other abnormal conditions.
Operating the camera in any of these circumstances may cause a fire or an electrical shock.
Stop using the camera immediately, turn the camera off and remove the battery. Contact your
dealer or authorized service facility for repairs. Never attempt to repair this camera by
yourself, as this may be dangerous.
Do not expose the camera to moisture and make sure no water gets into the camera. Take
particular care when using the camera under extreme weather conditions, such as rain or
snow, or when operating the camera at the beach or near water. Avoid using this camera in
places subject to extreme moisture. Do not use the camera if water has entered the camera.
Turn the camera off and remove the battery. Contact your dealer or authorized service facility.
Do not continue to use the camera as this may cause a fire or an electrical shock.
Do not use the camera if any foreign objects have entered the camera. Turn the camera off
and remove the battery. Contact your dealer or authorized service facility. Do not continue to
use the camera as this may cause a fire or an electrical shock.
Do not place the camera in an unstable location such as on a wobbly table or sloping surface
where the camera may fall or tip over and cause injury. If the camera has been dropped or
damaged, turn the camera off and remove the battery. Contact your dealer or authorized
service facility. Do not continue to use the camera as this may cause a fire or an electrical
shock.
Do not insert or drop metallic or other foreign objects into the camera through access points
such as the memory card slot. This may cause a fire or an electrical shock.
Do not attempt to modify this camera. Do not remove the camera casing. This may cause a
fire or an electrical shock. Internal inspection and repairs should only be carried out by an
-2-
authorized service facility.
Never operate this camera in any way while driving a vehicle. This may cause a traffic
English
accident.
CAUTION
Do not place this camera in a location affected by oil fumes or steam, such as near a cooking
stove or humidifier. This may cause a fire or an electrical shock.
Do not leave this camera in a location subject to extremely high temperatures, such as in a
sealed vehicle or in direct sunlight. Exposure to high temperatures may adversely affect the
camera case and internal components and may cause a fire.
Do not cover or wrap the camera with a cloth or quilt. This may cause heat to build up and
distort the camera case and cause a fire. Always use the camera and accessories in
well-ventilated locations.
Handle the camera carefully and do not expose the camera to shock or vibration. Handling
the camera roughly may cause a malfunction.
Do not use battery other than those specified for use with your camera. Use of unsuitable
battery may result in the battery splitting, or leaking and may cause a fire, injury, or soiling of
the battery compartment.
When placing the battery into the camera, check the polarity markings on the battery ( - and
+ ) to ensure that the battery is inserted correctly. Incorrect battery polarity will result in
camera inoperability and may result in the battery splitting or leaking and causing a fire, injury,
or soiling of the battery compartment.
Remove the battery if the camera will not be used for an extended period of time. The battery
may leak and cause a fire, injury or soiling of the battery compartment. If the battery leaks,
clean and wipe the battery compartment carefully and install a new battery. Wash your hands
carefully if you touch the battery fluid.
-3-
English
Photography Mode
Aperture Priority Photography
Mode
Manual Photography Mode
Setting the Scene Mode
Movie Mode
PLAYBACK MODE 36-45
Playing Back Still Images
Playing Back Video Clips
Playing Back Still Images/Video Clips on
a TV
Recording Voice Memos
Thumbnail Display
Zoom Playback
Slideshow Display
Protecting Images
DPOF Settings
Erasing Images
MENU OPTIONS
45-54
Photography Menu (Picture)
Photography Menu (Function)
Photography Menu (AE/AWB)
Playback Menu
Setup Menu (Basic)
Setup Menu (Custom)
TRANSFERRING RECORDED
IMAGES/MOVIES TO YOUR
COMPUTER
54-56
Step 1: Installing the USB Driver
Step 2: Connecting the Camera to Your
Computer
6-7
8-15
CONTENTS
INTRODUCTION
Overview
Package contents
GETTING TO KNOW THE
CAMERA
Front view
Rear view
Mode dial
Viewfinder LED indicators
LCD monitor information
GETTING STARTED
Attaching the Camera Strap
Inserting and Removing the Battery
Charging the Battery
Inserting and Removing the SD Card
Turning the Power On/Off
Formatting the SD Card
Choosing the Language
Setting the Date and Time
Setting Image Resolution and Quality
PHOTOGRAPHS MODE 22-35
Auto Photography Mode
16-22
Using the Optical Zoom
Using the Digital Zoom
Setting the Flash
Setting the Focus
Self-timer/Photographing at Intervals
Exposure Compensation/Backlight
Correction
Program (Automatic Exposure)
Photography Mode
Shutter Speed Priority
-4-
English
Step 3: Downloading Images and Video
Files
INSTALLING
Presto! Mr. Photo
INSTALLING
Presto! Image Folio
56-57
57
CONNECTING THE
CAMERA TO OTHER
DEVICES
CAMERA
SPECIFICATIONS
58
58-59
-5-
English
INTRODUCTION
Overview
Congratulations on your purchase of the new digital camera.
Capturing high-quality digital pictures is fast and easy with this state-of-the-art smart camera.
Equipped with a 6.3 Mega pixel CCD, this camera is capable of capturing pictures with a
resolution of up to 2816 x 2112 pixels.
Other cool features provided by the camera include the following:
LCD monitor –
Recording medium –
Camera mode –
Optical zoom –
Digital zoom –
Flexible flash settings –
Focus mode –
Self-timer mode –
Still image capture
Movie mode –
Voice memo –
Camera settings –
The 2.0" CG silicon color LCD monitor makes it easy to frame
your subject when taking pictures. It also displays the pictures
you have taken.
External memory supports SD card up to 512MB.
Variety of camera modes allows you to operate for your
preference and take photographs according to photographic
condition.
3x optical zoom lens allows you to take telephoto and wide-angle
pictures.
4.4x digital zoom and 3x optical zoom permit zoom photography
of up to 13.2 times; 2x and 4x playback captured images to
enlarge a selected portion of an image.
Change the flash setting according to your lighting environment
and photography mode setting.
Photographs can be taken with the distance to the subject set by
auto focus, macro, infinity, 3 m, or 1 m.
Time selectable between 2 seconds, 10 seconds, 10+2 seconds
and interval.
Take different still images including single, a series of 3 images
with different exposures, and 5 images continuously.
Record video clips with voice.
A voice memo can be recorded for 5 seconds immediately
following still single image photography. Also it can be recorded
while viewing the picture in playback mode.
Have more control over picture quality by adjusting the menu
options.
-6-
English
Thumbnail display –
TV and PC connection –
DPOF settings –
Display in sets of nine pictures on the LCD for easier and quicker
selection of pictures.
View pictures on a television monitor or computer while
connected to the USB or A/V cable.
Allow you to embed printing information on your SD card and to
print your images on a DPOF compatible printer by simply
inserting it.
Package contents
Carefully unpack your package and make sure that you have the following items. In the event
that any item is missing or if you find any mismatch or damage, promptly contact your dealer.
Digital camera
Video cable
User’s manual
Quick guide
Two Rechargeable Lithium Ion
Batteries
Rechargeable Lithium Ion Battery
Charger
AC Plug Adaptor for EU to US
USB cable
Software CD-ROM
Camera strap
Camera pouch
A 32MB SD memory card
Rechargeable Lithium Ion Battery
Charger Power Cord
NOTE
Accessory and components may vary by different retailer.
-7-
English
GETTING TO KNOW THE CAMERA
Front view
Name
Self-timer LED
(AF auxiliary light)
Viewfinder window
Flash
Shutter button
Zoom lens
POWER button
MIC (Microphone)
Mode dial
DC IN 5V terminal
#
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
USB/A/V OUT terminal Allows you to connect a USB cable or an A/V cable to the
Description
Blinks red during Self-timer mode until picture is taken.
Effective for still image capture mode when the luminance
value of Auto and Macro focus mode is below 6.
Allows you to frame the subject of the picture.
Provides flash illumination.
Focuses and locks the exposure of the camera when
pressed halfway down, and takes the picture when
pressed all the way down.
3X optical zoom lens allows you to take telephoto and
wide-angle pictures.
Turns the camera power on and off.
Records audio clips.
Sets the camera mode.
Allows you to connect AC power adapter to the camera to
operate the camera without battery, or to charge
rechargeable battery.
camera.
-8-
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
