卡西欧数码相机-QV-70说明书.pdf
LCD Digital Camera
QV-70
Owner’s Manual
/P
R
Introduction
Congratulations upon your selection of the QV-70 LCD Digital Cam-
era. The QV-70 comes with its own built-in liquid crystal color monitor
that let’s you instantly view the pictures you take.
To get the most out of the QV-70, be sure to carefully read this
manual and follow the instructions contained in it.
D
E
L
O
T
E
C
T
Z
O
O
M
DIS
P
P
O
W
M
O
D
E
+
O
N/O
F
F
E
R
–
REC
PLAY
LCDON/OFF
英
2
Contents
Precautions .......................................................... 5
Unpacking ............................................................. 9
General Guide .................................................... 10
Top and Display .................................................................. 10
Lens .................................................................................... 10
Bottom ................................................................................ 11
Terminals ............................................................................ 11
Power Supply ..................................................... 13
To load batteries ................................................................. 13
Using AC Power ................................................................. 18
Recording Images .............................................. 20
To record an image ............................................................. 20
How to avoid hand movement… ......................................... 22
Fluorescent Lighting ........................................................... 23
Shooting images outdoors .................................................. 23
NORMAL/MACRO Switch .................................................. 24
Exposure Adjustment .......................................................... 25
Changing the Aperture Setting ........................................... 26
Record Mode Displays ........................................................ 27
Using the Self-Timer ........................................................... 31
Playing Back Images ......................................... 32
Displaying Images on the Camera’s LCD ........................... 32
Displaying Images on a TV Screen .................................... 34
Displaying the Memory Page Number ................................ 35
Producing a Multi-Page Display .......................................... 36
Using the Zoom Function .................................................... 40
Using Auto Play .................................................................. 42
Protecting Memory Pages .................................................. 44
Hiding Protected Memory Pages ........................................ 47
Deleting Memory Pages .................................... 48
To delete a single memory page ........................................ 48
To delete all unprotected memory pages ........................... 51
Connecting to Other Devices ............................ 54
The camera terminals ......................................................... 54
Using the Camera with a Connected Device ...... 55
Troubleshooting ................................................. 61
Specifications ..................................................... 68
About the camera’s backlight… ....................... 70
• CASIO COMPUTER CO., LTD. assumes no responsibility for any
damage or loss resulting from the use of this manual.
• CASIO COMPUTER CO., LTD. assumes no responsibility for any
loss or claims by third parties which may arise through the use of
the QV-70.
• CASIO COMPUTER CO., LTD. assumes no responsibility for any
damage or loss caused by deletion of data as a result of malfunc-
tion, repairs, or battery replacement. Be sure to back up all impor-
tant data on other media to protect against its loss.
3
4
Precautions
General Precautions
Be sure to observe the following important precautions whenever us-
ing the QV-70. All references in this manual to “this camera” and “the
camera” refer to the CASIO QV-70 Digital Camera.
• Never try to take pictures or use the built-in display while operating
a motor vehicle or while walking. Doing so creates the danger of
serious accident.
• Never try to open the case of the camera or attempt your own re-
pairs. High-voltage internal components create the risk of electrical
shock when exposed. Always leave maintenance and repair work
up to authorized CASIO service providers.
• Keep the camera away from water and other liquids, and never let it
get wet. Moisture creates the danger of fire and electrical shock.
Never use the camera outdoors in the rain or snow, at the seashore
or beach, in the bathroom, etc.
• Should foreign matter or water ever get into the unit, immediately
turn power off, unplug the AC adaptor from the power outlet, and
contact your dealer or nearest CASIO service provider. Using the
unit under these conditions creates the danger of fire and electrical
shock.
• Should you ever notice smoke or a strange odor coming out of the
unit, immediately turn power off and unplug the AC adaptor from the
power outlet. Using the unit under these conditions creates the dan-
ger of fire and electrical shock. After making sure there is no more
smoke coming from the unit, take it to your nearest CASIO service
provider for repair. Never attempt your own maintenance.
• If the unit’s case should ever become cracked due to dropping it or
otherwise subjecting it to rough treatment, immediately turn power
off, unplug the AC adaptor from the power outlet, and contact your
nearest CASIO service provider.
• Never use the unit inside of an air craft or in any other areas where
its use is prohibited. Doing so can result in an accident.
Precautions
Operating conditions
• This camera is designed for use in temperatures ranging from 0°C
to 40°C (32°F to 104°F).
• Do not use or keep the camera in the following areas.
— In areas subject to direct sunlight
— In areas subject to high humidity or dust
— Near air conditioners, heaters, or other areas subject to tem-
perature extremes
— Inside of a closed vehicle, especially one parked in the sun
— In areas subject to strong vibration
Condensation
• When you bring the camera indoors on a cold day or otherwise ex-
pose it to a sudden change of temperature, there is the possibility
that condensation can form on the exterior or on interior compo-
nents. Condensation can cause malfunction of the camera, so you
should avoid exposing it to conditions that might cause condensa-
tion.
• To keep condensation from forming, place the camera into a plastic
bag before moving it into a location that is much warmer or colder
than your current location. Leave it in the plastic bag until the air
inside the bag has a chance to reach the same temperature as the
new location. If condensation does form, remove the batteries from
the camera and leave the battery compartment cover open for a few
hours.
LCD Digital Camera
• Physical damage and malfunction of this unit can cause the image
data stored in its memory to be deleted. Be sure to always keep
backup copies of data by transferring them to personal computer
memory.
• Never open the battery compartment cover, disconnect the AC
adaptor from the camera or unplug it from the wall socket while the
“WAIT” message is on the LCD. Doing so will not only make storage
of the current image impossible, it can also corrupt other image data
already stored in camera memory.
MEMORY ERROR message
Any of the following can cause data stored in the camera’s memory to
become corrupted.
• Removal of batteries or disconnection of the AC adaptor during a
record or data communication operation
• Disconnection of the connecting cable during data communication
• Continued use while battery power is low
• Other incorrect operation
In each of the above cases, further operation of the camera becomes
impossible and one of the messages shown below eventually ap-
pears to inform you of the problem. See “Messages” on page 67 for
details on what you should do when one of these messages appears.
MEMORY ERROR
MEMORY ERROR
MEMORY ERROR
#1
YES→ ＋
NO →CALL TECH
SUPPORT!
#2
CONSULT
THE OWNER'S
MANUAL!
#3
CONSULT
THE OWNER'S
MANUAL!
Memory Error #1
Memory Error #2
Memory Error #3
See page 67
Contact your dealer or an authorized
CASIO service provider.
5
6
LCD Digital Camera
GUIDELINES LAID DOWN BY FCC RULES FOR USE OF
THIS UNIT IN THE U.S.A. (not applicable to other areas).
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTICE
This equipment has been tested and found to comply with the lim-
its for a Class B peripheral, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency en-
ergy and, if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful inter-
ference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following mea-
sures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
FCC WARNING
Changes or modifications not expressly approved by the party re-
sponsible for compliance could void the user's authority to operate
the equipment.
Properly shielded cables with ferrite core must be used for con-
nection to host computer and/or peripherals in order to meet FCC
emission limits.
THE SPECIAL VIDEO CABLE THAT COMES WITH THE CAMERA ----- THE CAMERA TO A VIDEO IN TERMINAL OF A COMPUTER
THE SPECIAL CONNECTION CABLE THAT COMES WITH QV-Link SOFTWARE ----- THE CAMERA TO A PROPER TERMINAL OF A COMPUTER
7
8
Unpacking
Check to make sure that all of the items shown below are included
with your camera. If something is missing, contact your dealer as
soon as possible.
–
R
E
F
F
W
O
P
N/O
O
+
E
D
O
M
P
DIS
M
O
O
Z
T
C
E
T
O
R
/P
L
E
D
Soft case
Camera
Alkaline batteries (AA-size × 3)
General Guide
Getting Acquainted
The following illustrations show the names of each component, but-
ton and switch on the camera.
Top and Display
/PROTECT
(Timer/Protect)
button
DEL (Delete) button
Viewfinder
Operation indicator
POWER switch
LCD
D
E
L
ZOOM button
DISP (Display) button
/P
R
O
T
E
C
T
Z
O
O
M
DIS
P
P
O
O
N/O
W
E
R
FF
M
O
D
E
+
–
REC
PLAY
LCDON/OFF
MODE button
[+] (Forward)
button
Shutter button
[–] (Reverse)
button
LCD button
Function switch
Manual
Lens
Wrist Strap
+
–
R
E
F
F
W
O
P
N/O
O
E
D
O
M
P
DIS
M
O
O
Z
T
C
E
T
O
R
/P
Special video cable
Lens
Self-timer indicator
Aperture switch
9
10
NORMAL/MACRO switch
L
E
D
Bottom
General Guide
Tripod hole
Battery compartment cover
BRIGHT (brightness) control
• BRIGHT control adjusts the brightness of the image on the LCD.
The brightness is set at the factory to the optimum setting, and nor-
mally does not need adjustment.
Terminals
–
R
E
F
F
W
O
P
N/O
O
+
E
D
O
M
P
DIS
M
Getting Acquainted
Self-timer Indicator and Operation Indicator
• Self-timer Indicator
This indicator flashes when the camera’s self-timer is activated.
• Operation Indicator
This indicator stays lit while power is on. Its color changes as shown
below to indicate various operating conditions.
Color
Green
Orange
Red
Lit
Power on
Flashing
Recording
Exposure warning
Battery warning
Memory full
—
O
O
Z
T
C
E
T
O
R
/P
L
E
D
AC Power terminal
DIGITAL terminal
VIDEO OUT terminal
Terminal panel cover
Opening the Terminal Panel Cover
Important!
• When closing the terminal panel cover, make sure that the plugs on
the inside of the cover align with and enter the terminals.
• Never forcibly pull on or twist the terminal panel cover. Undue force
can damage the cover.
11
12
Connecting the Wrist Strap
Pass the wrist strap through the hole on
the side of the camera as shown in the
illustration.
Important!
• To avoid possible damage caused by
accidently dropping the camera, be
sure to use the wrist strap to secure the
camera to your wrist whenever using it.
Using the Soft Case
Keep the camera in its soft case to pro-
tect it when not in use.
P
O
O
FF
W
E
R
M
O
D
E
+
–
REC
PLAY
LCDON/OFF
MODE
+
–
DISP
ZOOM
POWER
ON/OFF
Getting Acquainted
3. Close the battery compartment cover.
Battery Handling Precautions
Incorrect use or handling of batteries can cause them to leak or burst
and seriously damage your camera. Be sure to note the following
important precautions to avoid problems with batteries.
Caution
• Use only LR6 (AM-3) type alkaline or
FR6 type lithium dry cell batteries
with this camera. Never mix old bat-
teries with new ones. Failure to do so
can result in bursting or leaking of
batteries, creating the danger of fire
or personal injury.
• Always make sure that the positive
[+] and negative [–] ends of the bat-
teries are facing correctly, as noted
by the markings on the camera itself.
Improper loading of batteries can re-
sult in bursting or leaking of batteries,
creating the danger of personal injury
or soiling of objects nearby.
Getting Acquainted
Low Battery Indicator
A low battery indicator (
) appears on the LCD and the operation
indicator flashes orange whenever remaining battery power drops
below a certain level.
The above indications mean that the camera will soon turn off auto-
matically if you continue using it. Replace all three camera batteries
with new ones as soon as possible.
Flash Memory
The camera features flash memory for storage of images. Flash
memory does not require electrical power to store data, so image
data is retained in memory even when you turn camera power off. If
batteries go dead, simply load a set of new batteries or connect the
AC adaptor and you will be able to view images in camera memory.

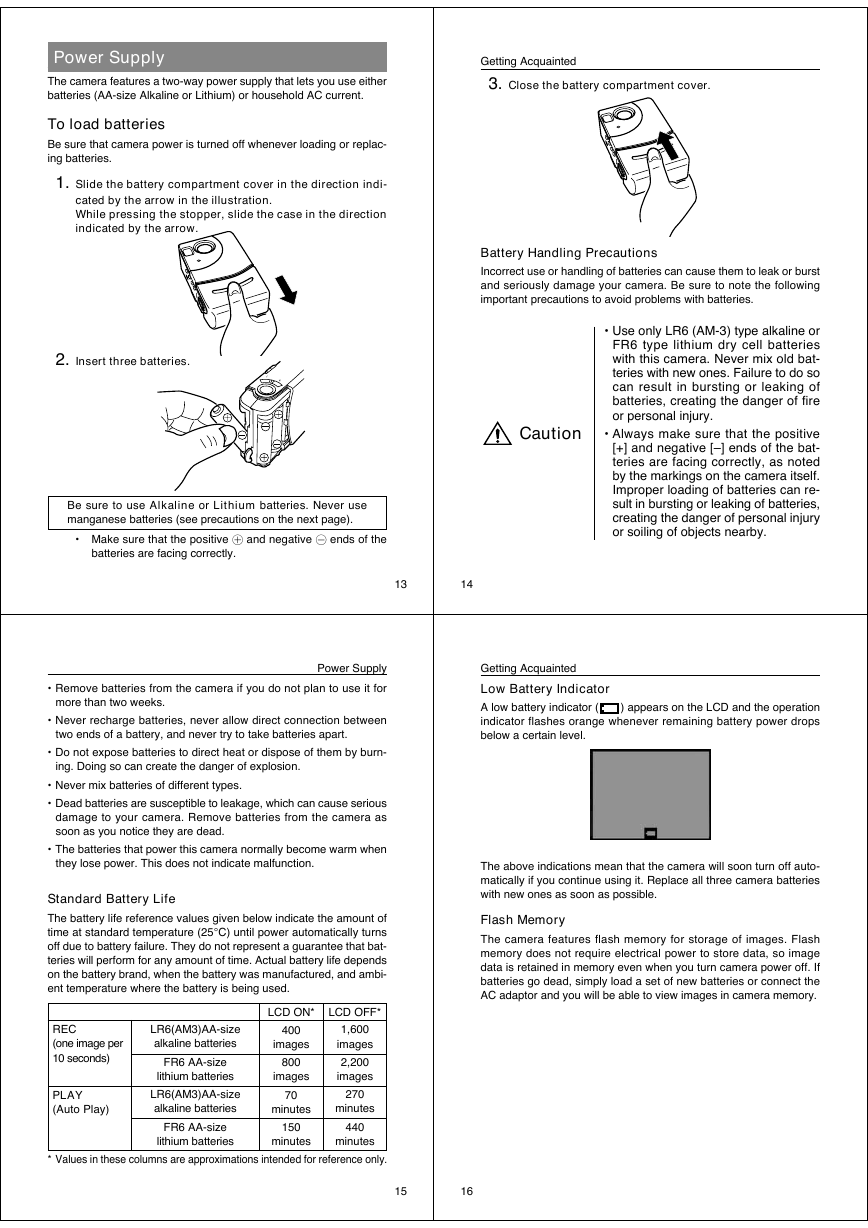

Power Supply
The camera features a two-way power supply that lets you use either
batteries (AA-size Alkaline or Lithium) or household AC current.
To load batteries
Be sure that camera power is turned off whenever loading or replac-
ing batteries.
1. Slide the battery compartment cover in the direction indi-
cated by the arrow in the illustration.
While pressing the stopper, slide the case in the direction
indicated by the arrow.
2. Insert three batteries.
–
+
Be sure to use Alkaline or Lithium batteries. Never use
manganese batteries (see precautions on the next page).
• Make sure that the positive + and negative - ends of the
batteries are facing correctly.
13
14
Power Supply
• Remove batteries from the camera if you do not plan to use it for
more than two weeks.
• Never recharge batteries, never allow direct connection between
two ends of a battery, and never try to take batteries apart.
• Do not expose batteries to direct heat or dispose of them by burn-
ing. Doing so can create the danger of explosion.
• Never mix batteries of different types.
• Dead batteries are susceptible to leakage, which can cause serious
damage to your camera. Remove batteries from the camera as
soon as you notice they are dead.
• The batteries that power this camera normally become warm when
they lose power. This does not indicate malfunction.
Standard Battery Life
The battery life reference values given below indicate the amount of
time at standard temperature (25°C) until power automatically turns
off due to battery failure. They do not represent a guarantee that bat-
teries will perform for any amount of time. Actual battery life depends
on the battery brand, when the battery was manufactured, and ambi-
ent temperature where the battery is being used.
REC
(one image per
10 seconds)
PLAY
(Auto Play)
LR6(AM3)AA-size
alkaline batteries
FR6 AA-size
lithium batteries
LR6(AM3)AA-size
alkaline batteries
FR6 AA-size
lithium batteries
LCD ON*
LCD OFF*
400
images
800
images
70
minutes
150
minutes
1,600
images
2,200
images
270
minutes
440
minutes
* Values in these columns are approximations intended for reference only.
15
16
Power Supply

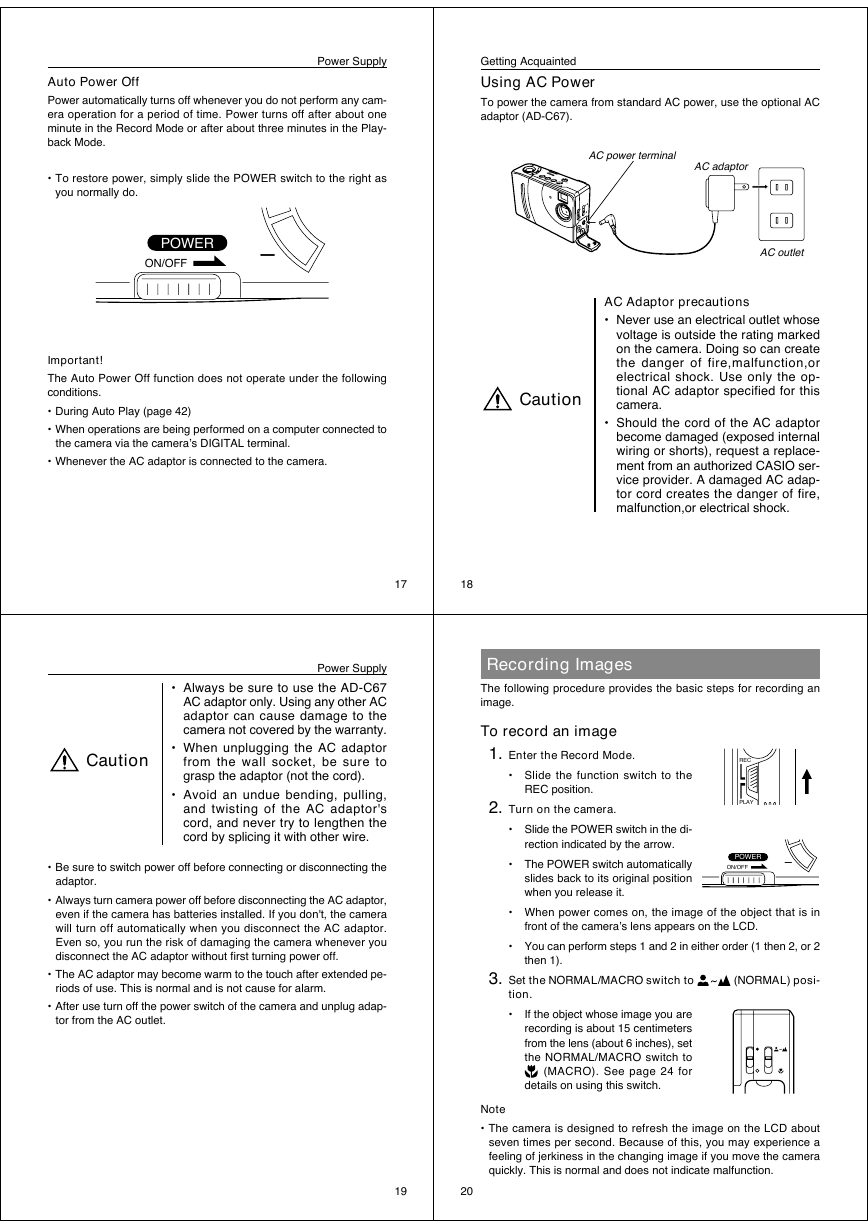

Auto Power Off
Power automatically turns off whenever you do not perform any cam-
era operation for a period of time. Power turns off after about one
minute in the Record Mode or after about three minutes in the Play-
back Mode.
• To restore power, simply slide the POWER switch to the right as
you normally do.
POWER
ON/OFF
–
–
R
E
+
E
D
O
M
P
DIS
M
F
F
W
O
P
N/O
O
O
O
Z
T
C
E
T
O
R
/P
L
E
D
Getting Acquainted
Using AC Power
To power the camera from standard AC power, use the optional AC
adaptor (AD-C67).
AC power terminal
AC adaptor
AC outlet
AC Adaptor precautions
• Never use an electrical outlet whose
voltage is outside the rating marked
on the camera. Doing so can create
the danger of fire,malfunction,or
electrical shock. Use only the op-
tional AC adaptor specified for this
camera.
• Should the cord of the AC adaptor
become damaged (exposed internal
wiring or shorts), request a replace-
ment from an authorized CASIO ser-
vice provider. A damaged AC adap-
tor cord creates the danger of fire,
malfunction,or electrical shock.
Important!
The Auto Power Off function does not operate under the following
conditions.
• During Auto Play (page 42)
• When operations are being performed on a computer connected to
the camera via the camera’s DIGITAL terminal.
• Whenever the AC adaptor is connected to the camera.
Caution
Caution
Power Supply
• Always be sure to use the AD-C67
AC adaptor only. Using any other AC
adaptor can cause damage to the
camera not covered by the warranty.
• When unplugging the AC adaptor
from the wall socket, be sure to
grasp the adaptor (not the cord).
• Avoid an undue bending, pulling,
and twisting of the AC adaptor's
cord, and never try to lengthen the
cord by splicing it with other wire.
• Be sure to switch power off before connecting or disconnecting the
adaptor.
• Always turn camera power off before disconnecting the AC adaptor,
even if the camera has batteries installed. If you don't, the camera
will turn off automatically when you disconnect the AC adaptor.
Even so, you run the risk of damaging the camera whenever you
disconnect the AC adaptor without first turning power off.
• The AC adaptor may become warm to the touch after extended pe-
riods of use. This is normal and is not cause for alarm.
• After use turn off the power switch of the camera and unplug adap-
tor from the AC outlet.
17
18
Recording Images
Operation
The following procedure provides the basic steps for recording an
image.
To record an image
1. Enter the Record Mode.
• Slide the function switch to the
REC position.
2. Turn on the camera.
• Slide the POWER switch in the di-
rection indicated by the arrow.
• The POWER switch automatically
slides back to its original position
when you release it.
REC
PLAY
POWER
ON/OFF
–
• When power comes on, the image of the object that is in
front of the camera’s lens appears on the LCD.
• You can perform steps 1 and 2 in either order (1 then 2, or 2
(NORMAL) posi-
then 1).
3. Set the NORMAL/MACRO switch to
tion.
•
If the object whose image you are
recording is about 15 centimeters
from the lens (about 6 inches), set
the NORMAL/MACRO switch to
(MACRO). See page 24 for
details on using this switch.
Note
• The camera is designed to refresh the image on the LCD about
seven times per second. Because of this, you may experience a
feeling of jerkiness in the changing image if you move the camera
quickly. This is normal and does not indicate malfunction.
19
20
Recording Images
Operation
4. Record the image.
•

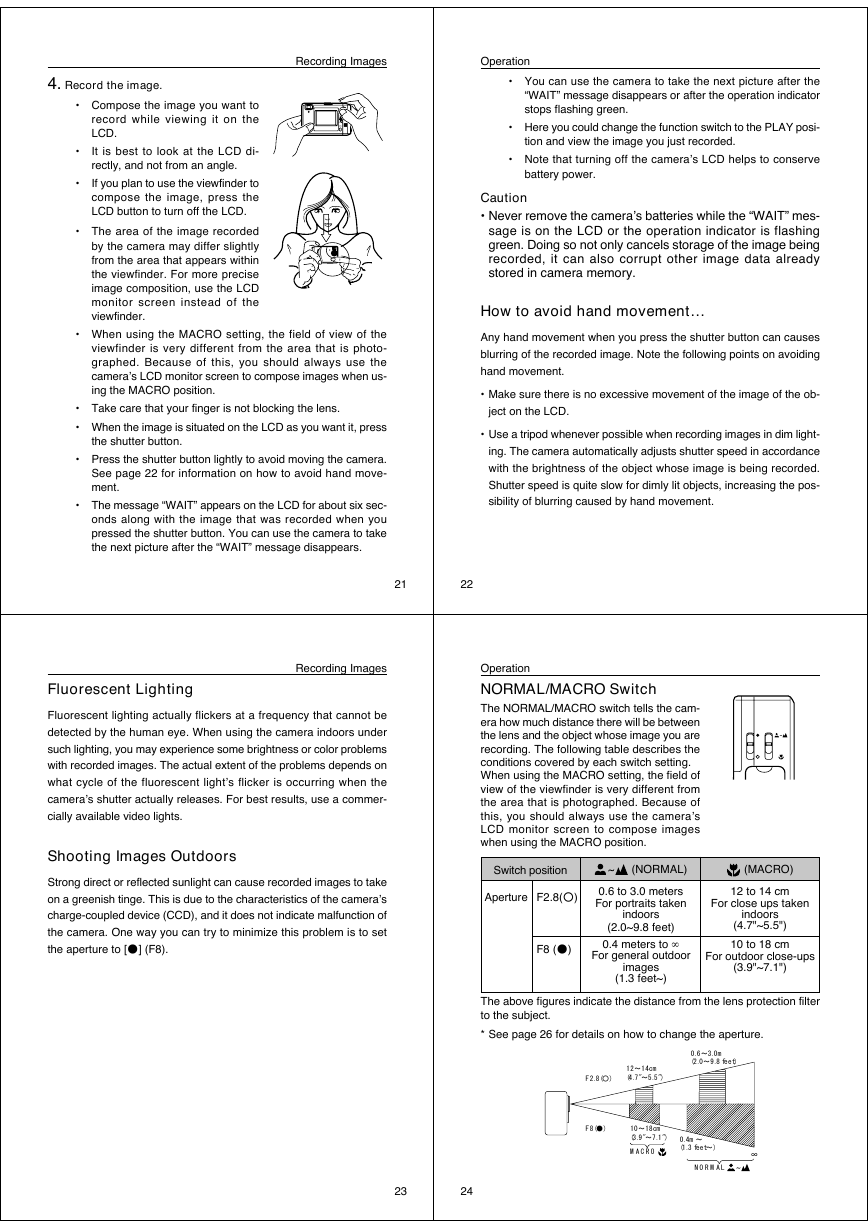

• Compose the image you want to
record while viewing it on the
LCD.
It is best to look at the LCD di-
rectly, and not from an angle.
If you plan to use the viewfinder to
compose the image, press the
LCD button to turn off the LCD.
•
REC
PLAY
LCD
ON/OFF
• The area of the image recorded
by the camera may differ slightly
from the area that appears within
the viewfinder. For more precise
image composition, use the LCD
monitor screen instead of the
viewfinder.
• When using the MACRO setting, the field of view of the
viewfinder is very different from the area that is photo-
graphed. Because of this, you should always use the
camera’s LCD monitor screen to compose images when us-
ing the MACRO position.
• Take care that your finger is not blocking the lens.
• When the image is situated on the LCD as you want it, press
the shutter button.
• Press the shutter button lightly to avoid moving the camera.
See page 22 for information on how to avoid hand move-
ment.
• The message “WAIT” appears on the LCD for about six sec-
onds along with the image that was recorded when you
pressed the shutter button. You can use the camera to take
the next picture after the “WAIT” message disappears.
21
22
Recording Images
Fluorescent Lighting
Fluorescent lighting actually flickers at a frequency that cannot be
detected by the human eye. When using the camera indoors under
such lighting, you may experience some brightness or color problems
with recorded images. The actual extent of the problems depends on
what cycle of the fluorescent light’s flicker is occurring when the
camera’s shutter actually releases. For best results, use a commer-
cially available video lights.
Shooting Images Outdoors
Strong direct or reflected sunlight can cause recorded images to take
on a greenish tinge. This is due to the characteristics of the camera’s
charge-coupled device (CCD), and it does not indicate malfunction of
the camera. One way you can try to minimize this problem is to set
the aperture to [●] (F8).
• You can use the camera to take the next picture after the
“WAIT” message disappears or after the operation indicator
stops flashing green.
• Here you could change the function switch to the PLAY posi-
tion and view the image you just recorded.
• Note that turning off the camera’s LCD helps to conserve
battery power.
Caution
• Never remove the camera’s batteries while the “WAIT” mes-
sage is on the LCD or the operation indicator is flashing
green. Doing so not only cancels storage of the image being
recorded, it can also corrupt other image data already
stored in camera memory.
How to avoid hand movement…
Any hand movement when you press the shutter button can causes
blurring of the recorded image. Note the following points on avoiding
hand movement.
• Make sure there is no excessive movement of the image of the ob-
ject on the LCD.
• Use a tripod whenever possible when recording images in dim light-
ing. The camera automatically adjusts shutter speed in accordance
with the brightness of the object whose image is being recorded.
Shutter speed is quite slow for dimly lit objects, increasing the pos-
sibility of blurring caused by hand movement.
Operation
NORMAL/MACRO Switch
The NORMAL/MACRO switch tells the cam-
era how much distance there will be between
the lens and the object whose image you are
recording. The following table describes the
conditions covered by each switch setting.
When using the MACRO setting, the field of
view of the viewfinder is very different from
the area that is photographed. Because of
this, you should always use the camera’s
LCD monitor screen to compose images
when using the MACRO position.
Switch position
(NORMAL)
(MACRO)
0.6 to 3.0 meters
For portraits taken
12 to 14 cm
For close ups taken
Aperture F2.8(○)
F8 (●)
indoors
(2.0~9.8 feet)
0.4 meters to ∞
images
(1.3 feet~)
indoors
(4.7"~5.5")
10 to 18 cm
(3.9"~7.1")
For general outdoor
For outdoor close-ups
The above figures indicate the distance from the lens protection filter
to the subject.
* See page 26 for details on how to change the aperture.
F2.8(○)
12〜14cm
(4.7"〜5.5")
0.6〜3.0m
(2.0〜9.8 feet)
F8(●)
10〜18cm
(3.9"〜7.1")
MACRO
0.4m〜
(1.3 feet〜)
NORMAL
∞
23
24
Recording Images
Operation

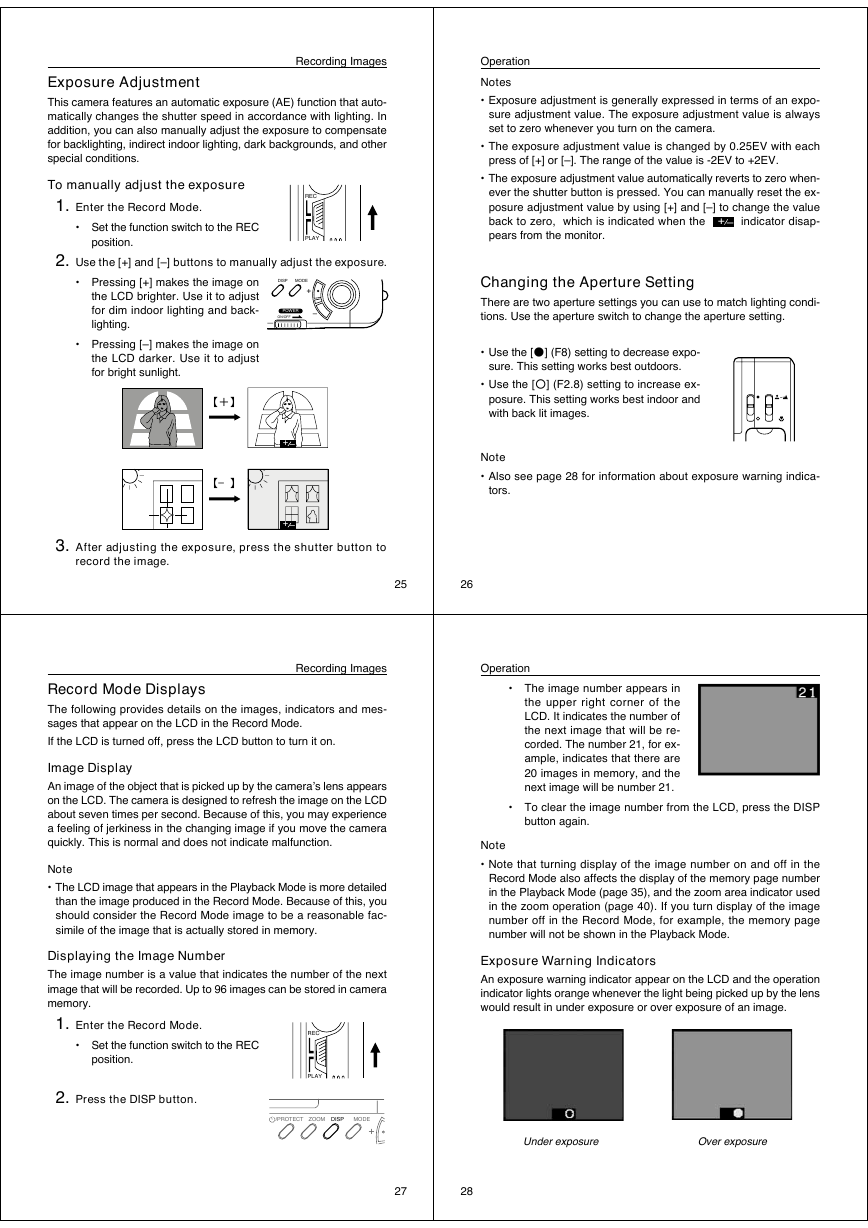

Exposure Adjustment
This camera features an automatic exposure (AE) function that auto-
matically changes the shutter speed in accordance with lighting. In
addition, you can also manually adjust the exposure to compensate
for backlighting, indirect indoor lighting, dark backgrounds, and other
special conditions.
To manually adjust the exposure
1. Enter the Record Mode.
• Set the function switch to the REC
position.
REC
PLAY
2. Use the [+] and [–] buttons to manually adjust the exposure.
• Pressing [+] makes the image on
the LCD brighter. Use it to adjust
for dim indoor lighting and back-
lighting.
• Pressing [–] makes the image on
the LCD darker. Use it to adjust
for bright sunlight.
DISP
MODE
+
POWER
ON/OFF
–
【＋】
【−】
+ –
+ –
Notes
• Exposure adjustment is generally expressed in terms of an expo-
sure adjustment value. The exposure adjustment value is always
set to zero whenever you turn on the camera.
• The exposure adjustment value is changed by 0.25EV with each
press of [+] or [–]. The range of the value is -2EV to +2EV.
• The exposure adjustment value automatically reverts to zero when-
ever the shutter button is pressed. You can manually reset the ex-
posure adjustment value by using [+] and [–] to change the value
back to zero, which is indicated when the + – indicator disap-
pears from the monitor.
Changing the Aperture Setting
There are two aperture settings you can use to match lighting condi-
tions. Use the aperture switch to change the aperture setting.
• Use the [●] (F8) setting to decrease expo-
sure. This setting works best outdoors.
• Use the [○] (F2.8) setting to increase ex-
posure. This setting works best indoor and
with back lit images.
Note
• Also see page 28 for information about exposure warning indica-
tors.
3. After adjusting the exposure, press the shutter button to
record the image.
25
26
Recording Images
Operation
Record Mode Displays
The following provides details on the images, indicators and mes-
sages that appear on the LCD in the Record Mode.
If the LCD is turned off, press the LCD button to turn it on.
Image Display
An image of the object that is picked up by the camera’s lens appears
on the LCD. The camera is designed to refresh the image on the LCD
about seven times per second. Because of this, you may experience
a feeling of jerkiness in the changing image if you move the camera
quickly. This is normal and does not indicate malfunction.
Note
• The LCD image that appears in the Playback Mode is more detailed
than the image produced in the Record Mode. Because of this, you
should consider the Record Mode image to be a reasonable fac-
simile of the image that is actually stored in memory.
Displaying the Image Number
The image number is a value that indicates the number of the next
image that will be recorded. Up to 96 images can be stored in camera
memory.
1. Enter the Record Mode.
REC
• Set the function switch to the REC
position.
2. Press the DISP button.
PLAY
/PROTECT ZOOM DISP
MODE
+
• The image number appears in
the upper right corner of the
LCD. It indicates the number of
the next image that will be re-
corded. The number 21, for ex-
ample, indicates that there are
20 images in memory, and the
next image will be number 21.
• To clear the image number from the LCD, press the DISP
button again.
Note
• Note that turning display of the image number on and off in the
Record Mode also affects the display of the memory page number
in the Playback Mode (page 35), and the zoom area indicator used
in the zoom operation (page 40). If you turn display of the image
number off in the Record Mode, for example, the memory page
number will not be shown in the Playback Mode.
Exposure Warning Indicators
An exposure warning indicator appear on the LCD and the operation
indicator lights orange whenever the light being picked up by the lens
would result in under exposure or over exposure of an image.
Under exposure
Over exposure
27
28
Recording Images
Operation
Use the procedure described on page 26 to change the aperture or
change the lighting of the image so the indicator disappears from the
LCD.
Important!
• The exposure warning indicators also appear when lighting is out-
side the range of the camera. In such a case, changing the aperture
will not clear the indicator from the LCD.
• The manual exposure adjustment procedure (page 25) cannot be
used when an exposure warning indicator is on the LCD. Clear the
warning indicator by changing the aperture switch setting.
• Pressing the [+] or [–] button to adjust exposure while an exposure
warning indicator is on the LCD causes a + – exposure value to
appear. This is an EV value.

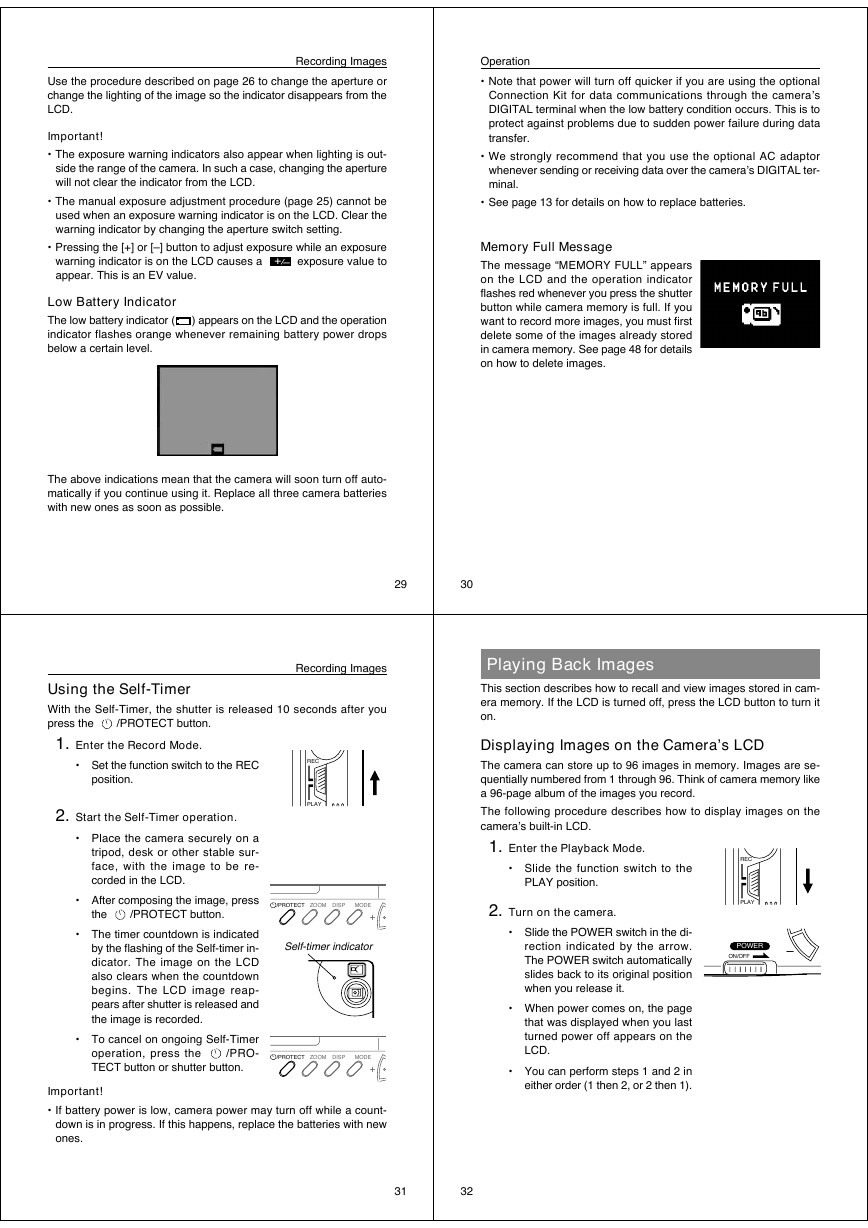

Low Battery Indicator
The low battery indicator (
) appears on the LCD and the operation
indicator flashes orange whenever remaining battery power drops
below a certain level.
• Note that power will turn off quicker if you are using the optional
Connection Kit for data communications through the camera’s
DIGITAL terminal when the low battery condition occurs. This is to
protect against problems due to sudden power failure during data
transfer.
• We strongly recommend that you use the optional AC adaptor
whenever sending or receiving data over the camera’s DIGITAL ter-
minal.
• See page 13 for details on how to replace batteries.
Memory Full Message
The message “MEMORY FULL” appears
on the LCD and the operation indicator
flashes red whenever you press the shutter
button while camera memory is full. If you
want to record more images, you must first
delete some of the images already stored
in camera memory. See page 48 for details
on how to delete images.
The above indications mean that the camera will soon turn off auto-
matically if you continue using it. Replace all three camera batteries
with new ones as soon as possible.
29
30
Recording Images
Using the Self-Timer
With the Self-Timer, the shutter is released 10 seconds after you
/PROTECT button.
press the
1. Enter the Record Mode.
• Set the function switch to the REC
position.
2. Start the Self-Timer operation.
REC
PLAY
• Place the camera securely on a
tripod, desk or other stable sur-
face, with the image to be re-
corded in the LCD.
• After composing the image, press
the
/PROTECT button.
• The timer countdown is indicated
by the flashing of the Self-timer in-
dicator. The image on the LCD
also clears when the countdown
begins. The LCD image reap-
pears after shutter is released and
the image is recorded.
• To cancel on ongoing Self-Timer
/PRO-
operation, press the
TECT button or shutter button.
/PROTECT ZOOM DISP
MODE
+
Self-timer indicator
/PROTECT ZOOM DISP
MODE
+
Important!
• If battery power is low, camera power may turn off while a count-
down is in progress. If this happens, replace the batteries with new
ones.
31
32
Playing Back Images
Operation
This section describes how to recall and view images stored in cam-
era memory. If the LCD is turned off, press the LCD button to turn it
on.
Displaying Images on the Camera’s LCD
The camera can store up to 96 images in memory. Images are se-
quentially numbered from 1 through 96. Think of camera memory like
a 96-page album of the images you record.
The following procedure describes how to display images on the
camera’s built-in LCD.
1. Enter the Playback Mode.
• Slide the function switch to the
PLAY position.
2. Turn on the camera.
REC
PLAY
POWER
ON/OFF
–
• Slide the POWER switch in the di-
rection indicated by the arrow.
The POWER switch automatically
slides back to its original position
when you release it.
• When power comes on, the page
that was displayed when you last
turned power off appears on the
LCD.
• You can perform steps 1 and 2 in
either order (1 then 2, or 2 then 1).
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
