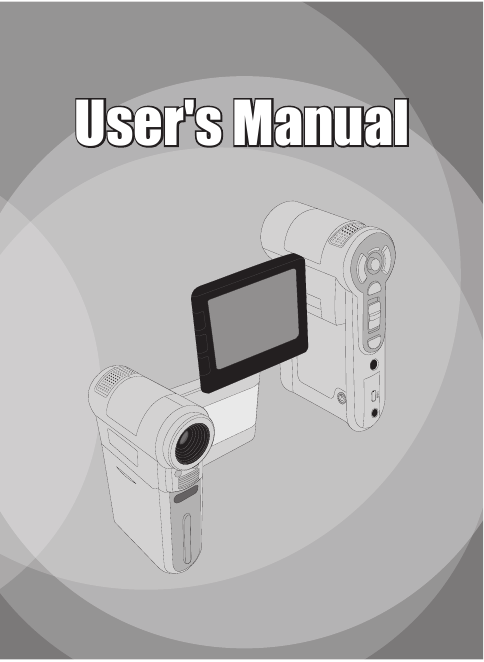

User's Manual User's Manual

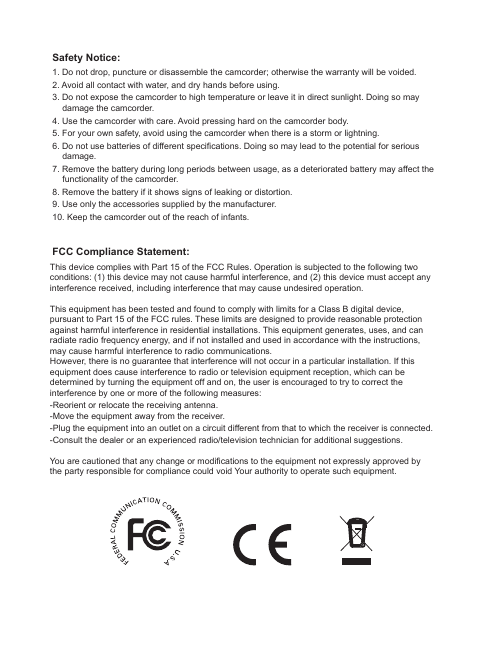

Safety Notice: 1. Do not drop, puncture or disassemble the camcorder; otherwise the warranty will be voided. 2. Avoid all contact with water, and dry hands before using. 3. Do not expose the camcorder to high temperature or leave it in direct sunlight. Doing so may damage the camcorder. 4. Use the camcorder with care. Avoid pressing hard on the camcorder body. 5. For your own safety, avoid using the camcorder when there is a storm or lightning. 6. Do not use batteries of different specifications. Doing so may lead to the potential for serious damage. 7. Remove the battery during long periods between usage, as a deteriorated battery may affect the functionality of the camcorder. 8. Remove the battery if it shows signs of leaking or distortion. 9. Use only the accessories supplied by the manufacturer. 10. Keep the camcorder out of the reach of infants. FCC Compliance Statement: This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television equipment reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Move the equipment away from the receiver. -Plug the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/television technician for additional suggestions. You are cautioned that any change or modifications to the equipment not expressly approved by the party responsible for compliance could void Your authority to operate such equipment.

Getting Started Knowing your camcorder parts Speaker Microphone Lens LED lights Battery cover Flash strobe Strap hook Bottom view Tripod socket SD/MMC card slot (inside the battery cover) Mode button LCD monitor Previous button/ Fast backward button Play/Pause button Next button/ Fast forward button Macro mode switch Flash switch White balance switch Power button OK key/ 4:3/6:9 display switch LED lights switch Status LED (left) / Charging LED (right) Menu button Shutter button Zoom (in/out) button Record button Earphone connector USB connector * AV connector * * inside the cover

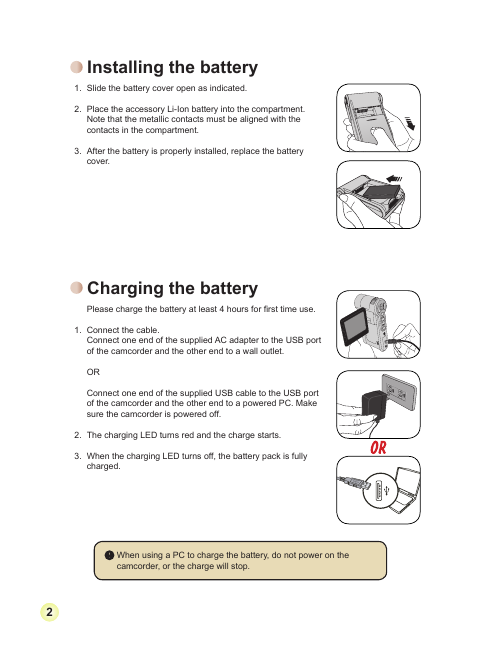

Installing the battery 1. Slide the battery cover open as indicated. 2. Place the accessory Li-Ion battery into the compartment. Note that the metallic contacts must be aligned with the contacts in the compartment. 3. After the battery is properly installed, replace the battery cover. Charging the battery Please charge the battery at least 4 hours for first time use. 1. Connect the cable. Connect one end of the supplied AC adapter to the USB port of the camcorder and the other end to a wall outlet. OR Connect one end of the supplied USB cable to the USB port of the camcorder and the other end to a powered PC. Make sure the camcorder is powered off. 2. The charging LED turns red and the charge starts. 3. When the charging LED turns off, the battery pack is fully charged. When using a PC to charge the battery, do not power on the camcorder, or the charge will stop.

Inserting a memory card (optional) In addition to the built-in flash memory, your camera can store data on a Secure Digital (SD) card or a MultiMedia card (MMC). To insert a memory card, do the followings: (1) Open the battery cover. (2) Gently push the card as indicated until the card reaches the bottom of the slot. To remove the memory card, gently push the card and it will pop up. Then pull the card out of the slot. Turning on/off your camcorder Open the LCD monitor or press and hold down the Power button for 1 second to turn on the camcorder. To turn off the camcorder, press and hold down the Power button for 1 ~ 3 seconds or close the LCD monitor. If the camcorder is not turned on after pressing the Power button, please check: 1. The battery pack is well installed in the camcorder. 2. The battery pack has enough power left. If the camcorder stays inactive for a long period of time, it may automatically shut down due to the Auto-Off setting. 3

Reading LCD indicators Digital Camcorder mode: Mode icon Video resolution Flash mode Selftimer LED lights mode White balance/ Macro mode ( ) Photo resolution Zoom indicator Storage medium* Battery Life 0008 *1 : internal memory ; : memory card. Number of recordings Playback mode: Mode icon Highlight box Image thumbnail File type Current / Total recordings MPEG 0001/0009 Battery Life Storage medium Setting language and time Language: Power-on → Press the Mode button → Enter the Setting mode → Use the Direction buttons to select the Language item and press the OK button to enter → Use the Direction buttons to select a suitable language and press the OK button to confirm. Time: Power-on → Press the Mode button → Enter the Setting mode → Use the Direction buttons to select the Date&Time item and press the OK button to enter → Use the Direction buttons to set the correct date and time, and then press the OK button to confirm. 4

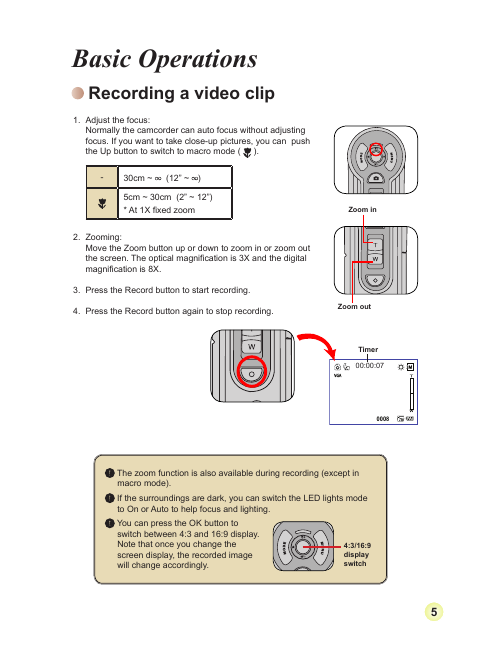

Basic Operations Recording a video clip 1. Adjust the focus: Normally the camcorder can auto focus without adjusting focus. If you want to take close-up pictures, you can push the Up button to switch to macro mode ( ). - 30cm ~ (12” ~ ) 5cm ~ 30cm (2” ~ 12”) * At 1X fixed zoom Zoom in 2. Zooming: Move the Zoom button up or down to zoom in or zoom out the screen. The optical magnification is 3X and the digital magnification is 8X. 3. Press the Record button to start recording. 4. Press the Record button again to stop recording. Zoom out Timer 00:00:07 0008 The zoom function is also available during recording (except in macro mode). If the surroundings are dark, you can switch the LED lights mode to On or Auto to help focus and lighting. You can press the OK button to switch between 4:3 and 16:9 display. Note that once you change the screen display, the recorded image will change accordingly. 4:3/6:9 display switch

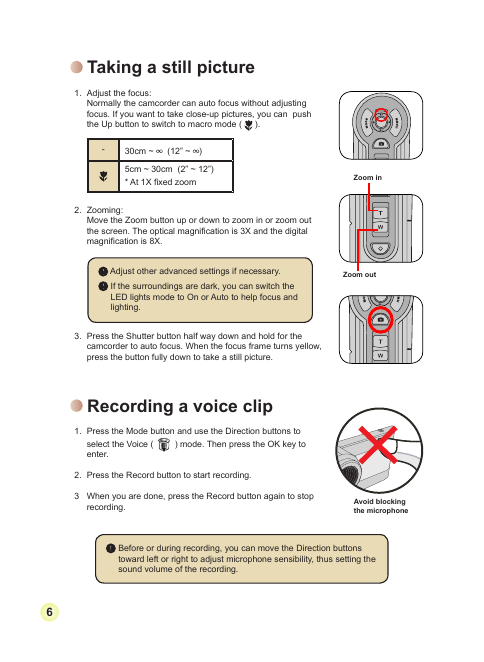

Taking a still picture 1. Adjust the focus: Normally the camcorder can auto focus without adjusting focus. If you want to take close-up pictures, you can push the Up button to switch to macro mode ( ). - 30cm ~ (12” ~ ) 5cm ~ 30cm (2” ~ 12”) * At 1X fixed zoom 2. Zooming: Move the Zoom button up or down to zoom in or zoom out the screen. The optical magnification is 3X and the digital magnification is 8X. Adjust other advanced settings if necessary. If the surroundings are dark, you can switch the LED lights mode to On or Auto to help focus and lighting. Zoom in Zoom out 3. Press the Shutter button half way down and hold for the camcorder to auto focus. When the focus frame turns yellow, press the button fully down to take a still picture. Recording a voice clip 1. Press the Mode button and use the Direction buttons to ) mode. Then press the OK key to select the Voice ( enter. 2. Press the Record button to start recording. 3 When you are done, press the Record button again to stop recording. Avoid blocking the microphone Before or during recording, you can move the Direction buttons toward left or right to adjust microphone sensibility, thus setting the sound volume of the recording. 6
