English

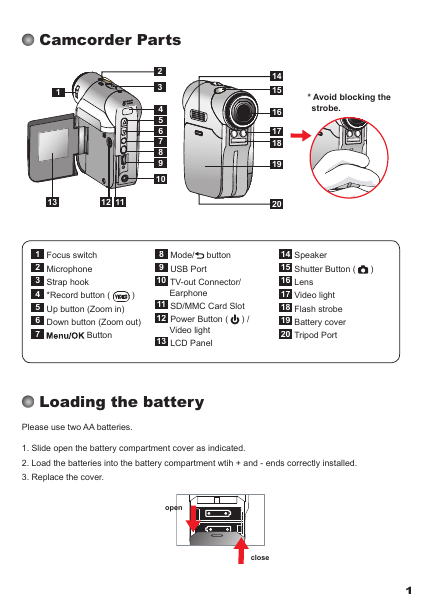

Camcorder Parts 2 3 4 5 6 7 8 9 10 1 13 12 11 1 Focus switch 2 Microphone 3 Strap hook 4 *Record button ( 5 Up button (Zoom in) 6 Down button (Zoom out) 7 Button ) button 8 Mode/ 9 USB Port 10 TV-out Connector/ Earphone 11 SD/MMC Card Slot 12 Power Button ( Video light 13 LCD Panel ) / * Avoid blocking the strobe. 14 15 16 17 18 19 20 ) 14 Speaker 15 Shutter Button ( 16 Lens 17 Video light 18 Flash strobe 19 Battery cover 20 Tripod Port Loading the battery Please use two AA batteries. 1. Slide open the battery compartment cover as indicated. 2. Load the batteries into the battery compartment wtih + and - ends correctly installed. 3. Replace the cover. open close 1

Inserting the SD/MMC card (optional) 1. Lift the SD card cover. 2. Insert the card in the direction of indication until it reaches the end of the slot. 3. When using a SD card, the built-in memory will become inaccessible. 4. To remove the SD card, gently push the card until it pops up. The serial number of the ﬁle name (PICTxxxx) will be counted continuously even you delete all ﬁles on the SD card or insert a new one. If you want to restart the serial number, plese use the camcorder “Format” function to format the card. Turning on the camcorder Open the LCD panel. OR Press and hold down the Power button ( ) for 3 seconds. Turning off the camcorder Close the LCD panel. OR Press and hold down the Power button ( ) for 3 seconds. Press the Power button ( ) shortly will turn the video light on/off. Setting Language Power-on → Press the Mode button → Enter the Setting ( ( ) to select the Language ( ABC ) item → Use the Zoom buttons ( ) mode → Use the Zoom buttons ) to select a suitable language and press the button to conﬁrm. 2

Reading LCD indicators Digital Camcorder mode: Flash mode Focus mode NightShot Smart Zoom Photo resolution Zoom ratio 1.1x SD card inserted Battery life Number of pictures/ﬁles Playback thumbnail mode: Current/total recordings Play mode Highlight box Playback full mode: Play mode Recording time File type Volume Video REC mode: Video light mode Recording time Focus mode NightShot Smart Zoom Video resolution Zoom ratio 1.1x SD card inserted Battery life Recording 3

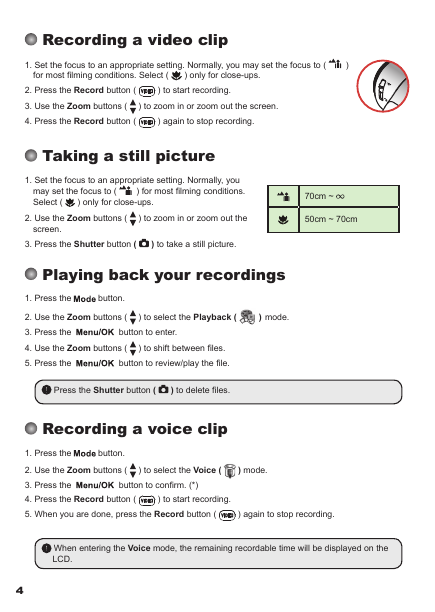

Recording a video clip 1. Set the focus to an appropriate setting. Normally, you may set the focus to ( for most ﬁlming conditions. Select ( ) only for close-ups. ) 2. Press the Record button ( 3. Use the Zoom buttons ( 4. Press the Record button ( ) to start recording. ) to zoom in or zoom out the screen. ) again to stop recording. Taking a still picture 1. Set the focus to an appropriate setting. Normally, you ) for most ﬁlming conditions. may set the focus to ( Select ( ) only for close-ups. 2. Use the Zoom buttons ( screen. ) to zoom in or zoom out the 3. Press the Shutter button ( ) to take a still picture. Playing back your recordings 1. Press the button. 70cm ~ 50cm ~ 70cm ) to select the Playback ( ) mode. 2. Use the Zoom buttons ( 3. Press the 4. Use the Zoom buttons ( 5. Press the button to enter. ) to shift between ﬁles. button to review/play the ﬁle. Press the Shutter button ( ) to delete ﬁles. Recording a voice clip button. 1. Press the 2. Use the Zoom buttons ( 3. Press the 4. Press the Record button ( 5. When you are done, press the Record button ( button to conﬁrm. (*) ) to select the Voice ( ) to start recording. ) mode. ) again to stop recording. When entering the Voice mode, the remaining recordable time will be displayed on the LCD. 4

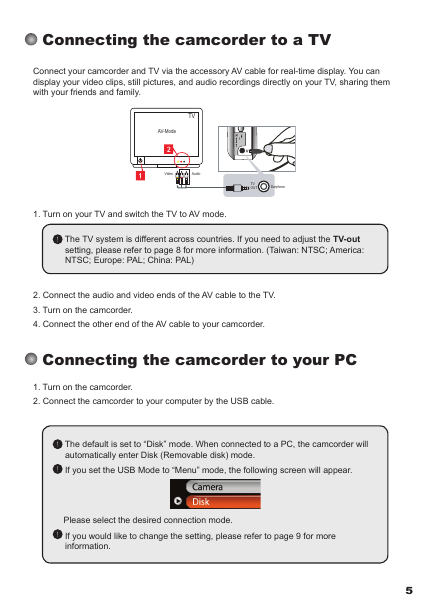

Connecting the camcorder to a TV Connect your camcorder and TV via the accessory AV cable for real-time display. You can display your video clips, still pictures, and audio recordings directly on your TV, sharing them with your friends and family. TV AV-Mode Video Audio TV OUT Earphone 1. Turn on your TV and switch the TV to AV mode. The TV system is different across countries. If you need to adjust the TV-out setting, please refer to page 8 for more information. (Taiwan: NTSC; America: NTSC; Europe: PAL; China: PAL) 2. Connect the audio and video ends of the AV cable to the TV. 3. Turn on the camcorder. 4. Connect the other end of the AV cable to your camcorder. Connecting the camcorder to your PC 1. Turn on the camcorder. 2. Connect the camcorder to your computer by the USB cable. The default is set to “Disk” mode. When connected to a PC, the camcorder will automatically enter Disk (Removable disk) mode. If you set the USB Mode to “Menu” mode, the following screen will appear. Please select the desired connection mode. If you would like to change the setting, please refer to page 9 for more information. 5

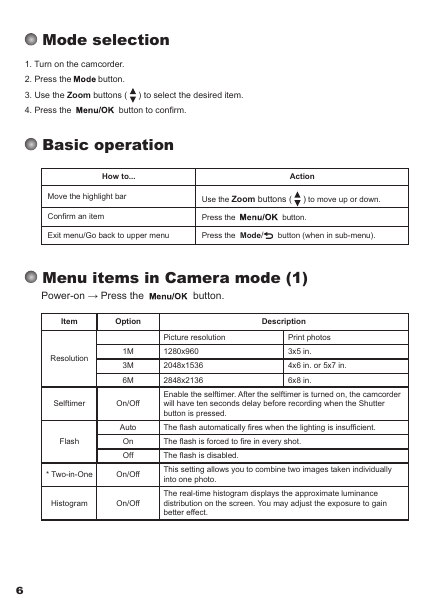

Mode selection 1. Turn on the camcorder. 2. Press the button. 3. Use the Zoom buttons ( 4. Press the ) to select the desired item. button to conﬁrm. Basic operation How to... Move the highlight bar Conﬁrm an item Action Use the Zoom buttons ( ) to move up or down. Press the button. Exit menu/Go back to upper menu Press the Mode/ button (when in sub-menu). Menu items in Camera mode (1) Power-on → Press the button. Item Option Description Resolution 1M 3M 6M Selftimer On/Off Flash Auto On Off * Two-in-One On/Off Histogram On/Off Print photos 3x5 in. 4x6 in. or 5x7 in. 6x8 in. Picture resolution 1280x960 2048x1536 2848x2136 Enable the selftimer. After the selftimer is turned on, the camcorder will have ten seconds delay before recording when the Shutter button is pressed. The ﬂash automatically ﬁres when the lighting is insufﬁcient. The ﬂash is forced to ﬁre in every shot. The ﬂash is disabled. This setting allows you to combine two images taken individually into one photo. The real-time histogram displays the approximate luminance distribution on the screen. You may adjust the exposure to gain better effect. 6

Menu items in Camera mode (2) Description Option Item * Photo- Frame Video Stabilizer Smart Zoom WB Effect Exposure 1 ~ 10 0 VGA QVGA On/Off On/Off Auto Sunny Cloudy Fluorescent Tungsten Normal B&W Classic -2~+2 NightShot On/Off Video Light On/Off This setting allows you to add customized frames to photos. 10 background frames are available on the LCD monitor. The Photo-Frame function is disabled Set the video resolution to VGA (640x480 pixels). Set the video resolution to QVGA (320x240 pixels). Minimize blur caused by hand shake. This setting allows you to get a clearer image during using the zoom buttons. The camcorder automatically adjusts white balance. This setting is suitable for outdoor recording in sunny weather. This setting is suitable for recording in cloudy weather or shady environments. This setting is suitable for indoor recording with ﬂuorescent lamp lighting, or environments with high color temperature. This setting is suitable for indoor recording with incandescent lamp lighting, or environments with low color temperature. Make recordings in natural color. Make recordings in black and white. Make recordings in sepia-toned color. Manually adjust the exposure to gain better effect when the preview image appears too bright or too dark. A positive value indicates the image will be brighter than usual; while a negative value makes the image dimmer. This setting allows you to take a photograph with a dark background. Since the shutter speed will slow down when taking photographs at a dark place, we recommend using a tripod to eliminate blurring from hand shake. The setting allows you to add extra light when the lighting is insufﬁcient during recording video clips The Two-in-One and Photo-frame function will be disabled when the resolution is set to 10M. 7
