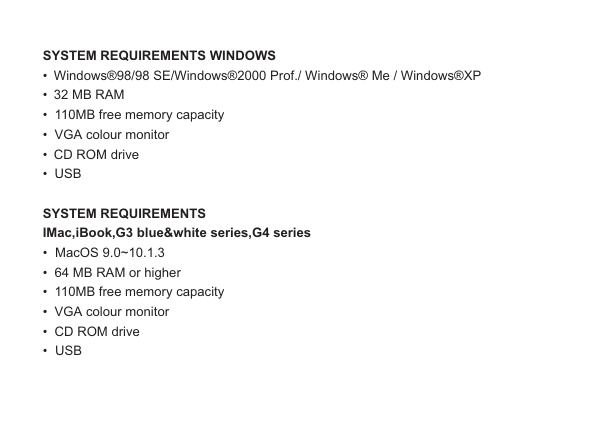

SYSTEM REQUIREMENTS WINDOWS • Windows®98/98 SE/Windows®2000 Prof./ Windows® Me / Windows®XP • 32 MB RAM • 110MB free memory capacity • VGA colour monitor • CD ROM drive • USB SYSTEM REQUIREMENTS IMac,iBook,G3 blue&white series,G4 series • MacOS 9.0~10.1.3 • 64 MB RAM or higher • 110MB free memory capacity • VGA colour monitor • CD ROM drive • USB

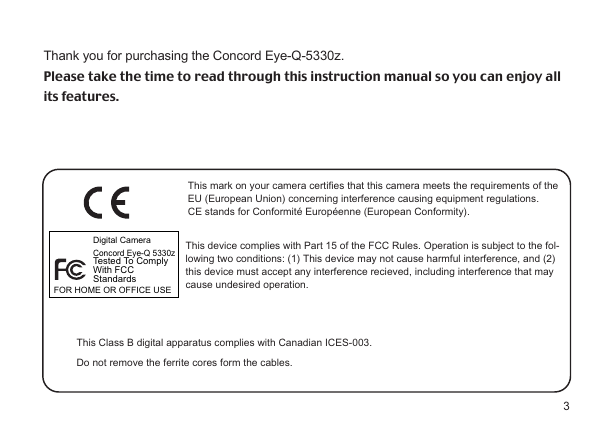

Thank you for purchasing the Concord Eye-Q-5330z. Please take the time to read through this instruction manual so you can enjoy all its features. This mark on your camera certifies that this camera meets the requirements of the EU (European Union) concerning interference causing equipment regulations. CE stands for Conformité Européenne (European Conformity). Digital Camera Concord Eye-Q 5330z Tested To Comply With FCC Standards FOR HOME OR OFFICE USE This device complies with Part 15 of the FCC Rules. Operation is subject to the fol- lowing two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference recieved, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Do not remove the ferrite cores form the cables. 3

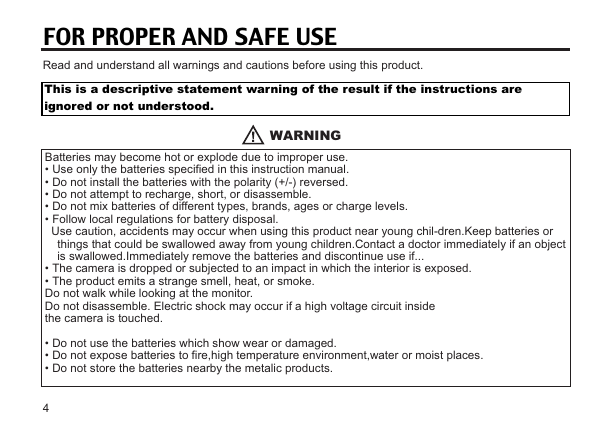

FOR PROPER AND SAFE USE Read and understand all warnings and cautions before using this product. This is a descriptive statement warning of the result if the instructions are ignored or not understood. WARNING Batteries may become hot or explode due to improper use. • Use only the batteries specified in this instruction manual. • Do not install the batteries with the polarity (+/-) reversed. • Do not attempt to recharge, short, or disassemble. • Do not mix batteries of different types, brands, ages or charge levels. • Follow local regulations for battery disposal. Use caution, accidents may occur when using this product near young chil-dren.Keep batteries or things that could be swallowed away from young children.Contact a doctor immediately if an object is swallowed.Immediately remove the batteries and discontinue use if... • The camera is dropped or subjected to an impact in which the interior is exposed. • The product emits a strange smell, heat, or smoke. Do not walk while looking at the monitor. Do not disassemble. Electric shock may occur if a high voltage circuit inside the camera is touched. • Do not use the batteries which show wear or damaged. • Do not expose batteries to fire,high temperature environment,water or moist places. • Do not store the batteries nearby the metalic products. 4

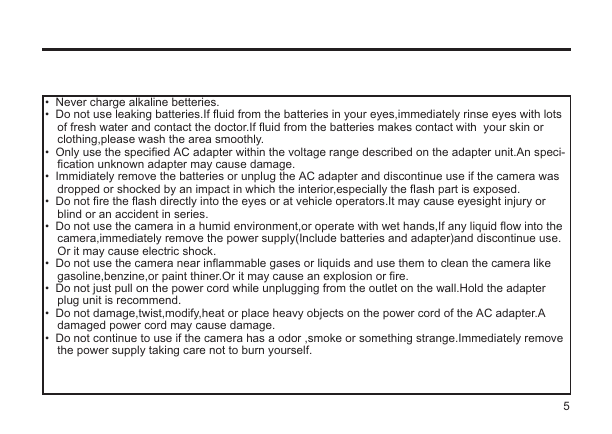

• Never charge alkaline betteries. • Do not use leaking batteries.If fluid from the batteries in your eyes,immediately rinse eyes with lots of fresh water and contact the doctor.If fluid from the batteries makes contact with your skin or clothing,please wash the area smoothly. • Only use the specified AC adapter within the voltage range described on the adapter unit.An speci- fication unknown adapter may cause damage. • Immidiately remove the batteries or unplug the AC adapter and discontinue use if the camera was dropped or shocked by an impact in which the interior,especially the flash part is exposed. • Do not fire the flash directly into the eyes or at vehicle operators.It may cause eyesight injury or blind or an accident in series. • Do not use the camera in a humid environment,or operate with wet hands,If any liquid flow into the camera,immediately remove the power supply(Include batteries and adapter)and discontinue use. Or it may cause electric shock. • Do not use the camera near inflammable gases or liquids and use them to clean the camera like gasoline,benzine,or paint thiner.Or it may cause an explosion or fire. • Do not just pull on the power cord while unplugging from the outlet on the wall.Hold the adapter plug unit is recommend. • Do not damage,twist,modify,heat or place heavy objects on the power cord of the AC adapter.A damaged power cord may cause damage. • Do not continue to use if the camera has a odor ,smoke or something strange.Immediately remove the power supply taking care not to burn yourself. 5

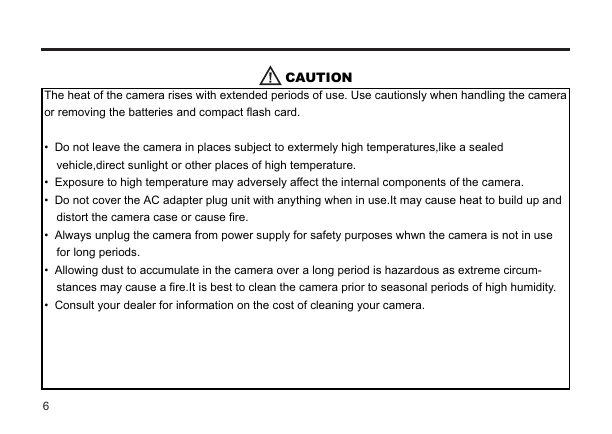

The heat of the camera rises with extended periods of use. Use cautionsly when handling the camera or removing the batteries and compact flash card. CAUTION • Do not leave the camera in places subject to extermely high temperatures,like a sealed vehicle,direct sunlight or other places of high temperature. • Exposure to high temperature may adversely affect the internal components of the camera. • Do not cover the AC adapter plug unit with anything when in use.It may cause heat to build up and distort the camera case or cause fire. • Always unplug the camera from power supply for safety purposes whwn the camera is not in use for long periods. • Allowing dust to accumulate in the camera over a long period is hazardous as extreme circum- stances may cause a fire.It is best to clean the camera prior to seasonal periods of high humidity. • Consult your dealer for information on the cost of cleaning your camera. 6

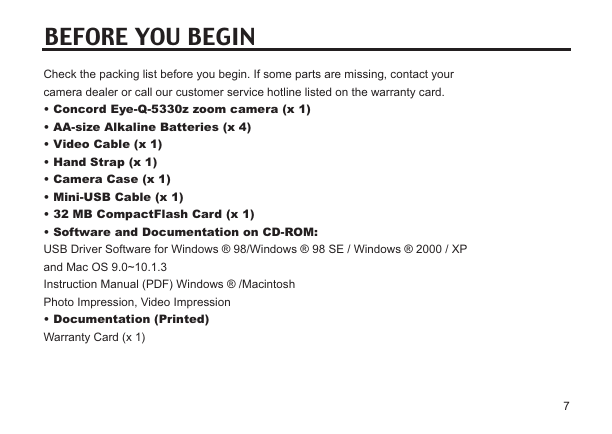

BEFORE YOU BEGIN Check the packing list before you begin. If some parts are missing, contact your camera dealer or call our customer service hotline listed on the warranty card. • Concord Eye-Q-5330z zoom camera (x 1) • AA-size Alkaline Batteries (x 4) • Video Cable (x 1) • Hand Strap (x 1) • Camera Case (x 1) • Mini-USB Cable (x 1) • 32 MB CompactFlash Card (x 1) • Software and Documentation on CD-ROM: USB Driver Software for Windows ® 98/Windows ® 98 SE / Windows ® 2000 / XP and Mac OS 9.0~10.1.3 Instruction Manual (PDF) Windows ® /Macintosh Photo Impression, Video Impression • Documentation (Printed) Warranty Card (x 1) 7

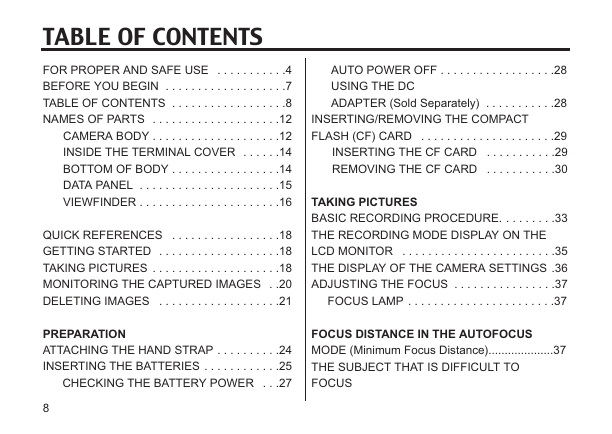

TABLE OF CONTENTS FOR PROPER AND SAFE USE . . . . . . . . . . .4 BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . .7 TABLE OF CONTENTS . . . . . . . . . . . . . . . . . .8 NAMES OF PARTS . . . . . . . . . . . . . . . . . . . .12 CAMERA BODY . . . . . . . . . . . . . . . . . . . .12 INSIDE THE TERMINAL COVER . . . . . .14 BOTTOM OF BODY . . . . . . . . . . . . . . . . .14 DATA PANEL . . . . . . . . . . . . . . . . . . . . . .15 VIEWFINDER . . . . . . . . . . . . . . . . . . . . . .16 QUICK REFERENCES . . . . . . . . . . . . . . . . .18 GETTING STARTED . . . . . . . . . . . . . . . . . . .18 TAKING PICTURES . . . . . . . . . . . . . . . . . . . .18 MONITORING THE CAPTURED IMAGES . .20 DELETING IMAGES . . . . . . . . . . . . . . . . . . .21 AUTO POWER OFF . . . . . . . . . . . . . . . . . .28 USING THE DC ADAPTER (Sold Separately) . . . . . . . . . . .28 INSERTING/REMOVING THE COMPACT FLASH (CF) CARD . . . . . . . . . . . . . . . . . . . . .29 INSERTING THE CF CARD . . . . . . . . . . .29 REMOVING THE CF CARD . . . . . . . . . . .30 TAKING PICTURES BASIC RECORDING PROCEDURE. . . . . . . . .33 THE RECORDING MODE DISPLAY ON THE LCD MONITOR . . . . . . . . . . . . . . . . . . . . . . . .35 THE DISPLAY OF THE CAMERA SETTINGS .36 ADJUSTING THE FOCUS . . . . . . . . . . . . . . . .37 FOCUS LAMP . . . . . . . . . . . . . . . . . . . . . . .37 PREPARATION ATTACHING THE HAND STRAP . . . . . . . . . .24 INSERTING THE BATTERIES . . . . . . . . . . . .25 CHECKING THE BATTERY POWER . . .27 FOCUS DISTANCE IN THE AUTOFOCUS MODE (Minimum Focus Distance)....................37 THE SUBJECT THAT IS DIFFICULT TO FOCUS 8
