CONGRATULATIONS

CAMERA CAMERA OVERVIEW

LCD ICONS

TABLE OF CONTENTS

GETTING GETTING STARTED

Package Contents

Camera Features

Attaching the Wrist Strap

Loading the Batteries

TURNING THE CAMERA ON AND OFF

Checking the Battery Level

SETTING THE LANGUAGE, DATE AND TIME

Setting the Language

Setting the Date

Setting the Time

TURNING THE LCD/ICONS ON AND OFF

INTERNAL MEMORY/INSERTING THE MEMORY CARD

Inserting the Memory Card

Ejecting the Memory Card

SETTING THE CAMERA’S OPERATIONAL MODE

TAKING A PICTURE

Taking a Picture with the Viewfinder

FLASH READY LED

TAKING A PICTURE WITH THE LCD

AUTO-FOCUS LOCK

SETTING THE FLASH

TAKING A PICTURE WITH OPTICAL ZOOM

TAKING A PICTURE WITH DIGITAL ZOOM

Activating/Deactivating Digital Zoom

USING THE MAIN MENU IN CAMERA MODE

CAPTURE MODE OPTIONS

SELF-TIMER

MACRO MODE - CLOSE-UP SHOOTING

CONTINUOUS SHOOTING

IMAGE RESOLUTION

IMAGE QUALITY

WHITE BALANCE

EV COMPENSATION

SCENE SELECTION

TAKING VIDEO AKING VIDEO CLIPS

REVIEWING REVIEWING YOUR YOUR FILES

ENLARGING STORED PICTURES

USING THE REVIEW MENU

DELETING YOUR FILES

Delete One

Delete All

USING THUMBNAIL MODE

RUNNING A SLIDE SHOW

Setting the time interval of the Slide Show

TRANSFERRING FILES FROM THE INTERNAL MEMORY TO THE MEMORY CARD

CUSTOMIZING THE CAMERA SETTINGS

Using the Setup menu

Setup Menu and Features

SETTING THE AUTO OFF TIME

SETTING THE LANGUAGE

SETTING THE DATE

SETTING THE TIME

SETTING THE LCD BRIGHTNESS

FORMATTING THE INTERNAL MEMORY OR THE MEMORY CARD

REST RESTORE THE CAMERA ORE THE CAMERA TO F O FACT ACTOR ORY DEF DEFAUL AULT T SETTINGS

SOFTW SOFTWARE INST ARE INSTALLA ALLATION TION GUIDE

Computer System Requirements

Windows

Macintosh

Installation Requirements

USING THE INSTALLER SPLASH SCREEN

FLOW DIAGRAM FOR SOFTWARE INSTALLATION

IDENTIFYING YOUR OPERATING SYSTEM

INSTALLING THE DRIVER AND DIRECTX 9 ¨C WINDOWS 98/98SE

INSTALLING DIRECTX 9¨C WINDOWS 2000

INSTALLING ARCSOFT PHOTOIMPRESSION ¨C ALL WINDOWS USERS

INSTALLING ADOBE ACROBAT READER 5- ALL WINDOWS USERS (OPTIONAL)

CONNECTING THE CAMERA CONNECTING THE CAMERA TO THE O THE COMPUTER

DOWNLOADING PICTURES AND VIDEO CLIPS ONTO YOUR COMPUTER

FOR WINDOWS USERS

FOR MACINTOSH USERS

USING ARCSOFT PHOTOIMPRESSION

UNPLUGGING YOUR CAMERA FROM THE COMPUTER

TV MODE - VIEWING AND DELETING YOUR FILES ON TV

CONNECTING THE CAMERA TO THE TELEVISION

ERROR MESSAGES ERROR MESSAGES

TROUBLESHOOTING TROUBLESHOOTING

GETTING GETTING HELP

CAMERA CAMERA SPECIFICATIONS

SAFETY SAFETY TIPS TIPS AND AND MAINTENANCE

Cleaning the camera body

Precautions for the camera

Precautions for batteries:

Precautions for SD Memory Cards:

REGULA REGULATOR ORY INFORMATION

www.concord-camera.com

DZ4360 UGuide-E(512883-01) 2003:11:17 5:22 PM Page 1 n E ENGLISH CONGRATULATIONS Congratulations on the purchase of your new camera. Your camera has been carefully engineered and manufactured to give you dependable operation. Read this manual before operating the camera to become more familiar with it. This manual has been written and formatted with depth and detail so that you can easily follow the instructions to maximize the features of your camera. 1

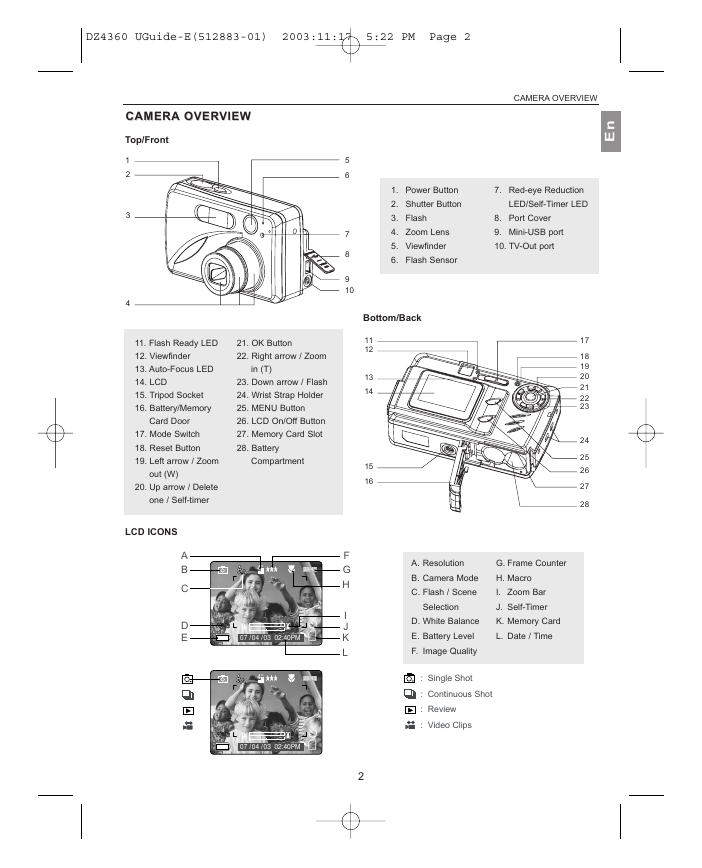

DZ4360 UGuide-E(512883-01) 2003:11:17 5:22 PM Page 2 CAMERA OVEROVERVIEWVIEW CAMERA Top/Front CAMERA OVERVIEW n E 5 6 7 8 9 10 F G H I J K L 1 2 3 4 21. OK Button 22. Right arrow / Zoom in (T) 23. Down arrow / Flash 24. Wrist Strap Holder 25. MENU Button 26. LCD On/Off Button 27. Memory Card Slot 28. Battery Compartment 11. Flash Ready LED 12. Viewfinder 13. Auto-Focus LED 14. LCD 15. Tripod Socket 16. Battery/Memory Card Door 17. Mode Switch 18. Reset Button 19. Left arrow / Zoom out (W) 20. Up arrow / Delete one / Self-timer LCD ICONS A A B C AWB D E AWB 4M A A 28/45 AWB AWB A 07 / 04 / 03 02:40PM 4M A A 28/45 AWB AWB 07 / 04 / 03 02:40PM 1. Power Button 2. Shutter Button 3. Flash 4. Zoom Lens 5. Viewfinder 6. Flash Sensor 7. Red-eye Reduction LED/Self-Timer LED 8. Port Cover 9. Mini-USB port 10. TV-Out port Bottom/Back 17 18 19 20 21 22 23 24 25 26 27 28 G. Frame Counter H. Macro I. Zoom Bar J. Self-Timer K. Memory Card L. Date / Time A A. Resolution B. Camera Mode C. Flash / Scene AWB Selection D. White Balance E. Battery Level F. Image Quality A : Single Shot : Continuous Shot AWB : Review : Video Clips 11 12 13 14 15 16 2

DZ4360 UGuide-E(512883-01) 2003:11:17 5:22 PM Page 3 n E TABLE OF CONTENTS CAMERA OVERVIEW ............................................................................................................................................2 Top/Front ........................................................................................................................................................2 Bottom/Back ....................................................................................................................................................2 LCD Icons........................................................................................................................................................2 GETTING STARTED ..............................................................................................................................................5 Package Contents ..........................................................................................................................................5 Camera Features ............................................................................................................................................5 Attaching the Wrist Strap.................................................................................................................................5 Loading the Batteries ......................................................................................................................................5 Turning the Camera On and Off......................................................................................................................6 Checking the Battery Level ............................................................................................................................6 Setting the Language, Date and Time ............................................................................................................7 Turning the LCD On and Off ..........................................................................................................................8 Internal Memory / Inserting the Memory Card ................................................................................................9 Setting the Camera’s Operational Mode ......................................................................................................10 TAKING A PICTURE ............................................................................................................................................10 Taking a Picture with the Viewfinder ............................................................................................................10 Flash Ready LED ..........................................................................................................................................11 Taking a Picture with the LCD ......................................................................................................................12 Auto-Focus Lock ..........................................................................................................................................12 Setting the Flash ..........................................................................................................................................13 Optical Zoom ................................................................................................................................................14 Digital Zoom ..................................................................................................................................................14 Using the Main Menu in Camera Mode ........................................................................................................17 Capture Mode Options ..................................................................................................................................17 Self Timer ......................................................................................................................................................18 Macro Mode ..................................................................................................................................................18 Continuous Shooting ....................................................................................................................................19 Image Resolution ..........................................................................................................................................19 Image Quality ................................................................................................................................................20 White Balance ..............................................................................................................................................20 EV Compensation ........................................................................................................................................21 Scene Selection ..........................................................................................................................................22 TAKING VIDEO CLIPS ........................................................................................................................................23 REVIEWING YOUR FILES ..................................................................................................................................23 Using Review Mode ......................................................................................................................................23 Reviewing Video Clips ..................................................................................................................................24 Enlarging Stored Pictures..............................................................................................................................24 Using the Main Menu in Review Mode ........................................................................................................25 Deleting Your Files ........................................................................................................................................26 Using Thumbnail Mode ................................................................................................................................27 Running Slide Show ......................................................................................................................................28 Transferring Files from the Internal Memory to a Memory Card ..................................................................29 3

DZ4360 UGuide-E(512883-01) 2003:11:17 5:22 PM Page 4 n E CUSTOMIZING THE CAMERA SETTINGS ........................................................................................................30 Setup Menu and Features ............................................................................................................................32 Setting the Auto Off Time ..............................................................................................................................33 Setting the Language ....................................................................................................................................33 Setting the Date ............................................................................................................................................33 Setting the Time ............................................................................................................................................34 Setting the LCD Brightness ..........................................................................................................................34 Formating Internal Memory or Memory Card................................................................................................35 RESTORE THE CAMERA TO FACTORY DEFAULT SETTINGS ......................................................................36 SOFTWARE INSTALLATION GUIDE ..................................................................................................................37 Computer System Requirements ..................................................................................................................37 Installation Requirements..............................................................................................................................37 Using the Installer Splash Screen ................................................................................................................38 Flow Diagram for Software Installation ........................................................................................................39 Identifying your Operating System ................................................................................................................40 Installing the Driver and DirectX 9 - Windows 98/98SE................................................................................41 Installing DirectX 9 - Windows 2000 ............................................................................................................43 Installing ArcSoft PhotoImpression - all Windows users ..............................................................................44 Installing Adobe Acrobat Reader 5 - all Windows users (optional) ..............................................................46 CONNECTING THE CAMERA TO THE COMPUTER ........................................................................................48 Downloading Pictures and Video Clips onto your Computer ........................................................................48 Using ArcSoft PhotoImpression ....................................................................................................................49 Unplugging your Camera from the Computer ..............................................................................................49 TV MODE ..............................................................................................................................................................50 Connecting the Camera to the Television ....................................................................................................50 Using the TV as a Live Viewfinder ................................................................................................................50 Reviewing Pictures and Video Clips on your TV ..........................................................................................50 ERROR MESSAGES ............................................................................................................................................51 TROUBLESHOOTING..........................................................................................................................................52 GETTING HELP....................................................................................................................................................55 CAMERA SPECIFICATIONS................................................................................................................................56 SAFETY TIPS AND MAINTENANCE ..................................................................................................................58 Cleaning the Camera ....................................................................................................................................58 Safety Tips ....................................................................................................................................................58 Precautions for the Camera ..........................................................................................................................58 Precautions for Batteries ..............................................................................................................................59 Precautions for SD Memory Cards ..............................................................................................................59 REGULATORY INFORMATION............................................................................................................................60 4

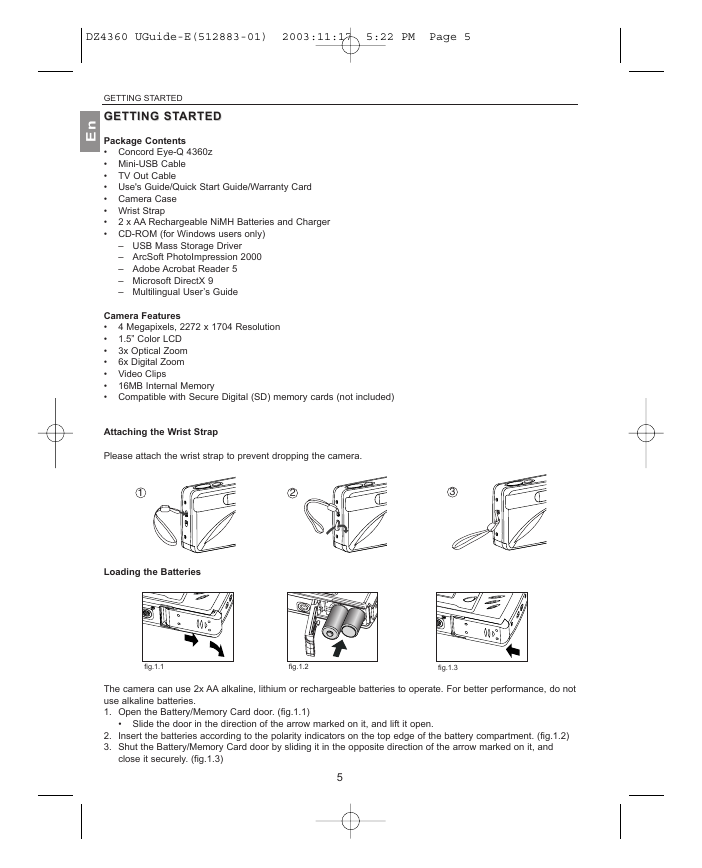

DZ4360 UGuide-E(512883-01) 2003:11:17 5:22 PM Page 5 n E A AWB ⁄ ⁄ A AWB ⁄ ⁄ A AWB ⁄ ⁄ GETTING STARTED GETTING STARTED ARTED GETTING ST Package Contents • Concord Eye-Q 4360z • Mini-USB Cable • TV Out Cable • Use's Guide/Quick Start Guide/Warranty Card • Camera Case • Wrist Strap • • CD-ROM (for Windows users only) 2 x AA Rechargeable NiMH Batteries and Charger – USB Mass Storage Driver – ArcSoft PhotoImpression 2000 – Adobe Acrobat Reader 5 – Microsoft DirectX 9 – Multilingual User’s Guide A A ⁄ ⁄ AWB 4 Megapixels, 2272 x 1704 Resolution 1.5” Color LCD 3x Optical Zoom 6x Digital Zoom Camera Features • • • • • Video Clips • • Compatible with Secure Digital (SD) memory cards (not included) 16MB Internal Memory A AWB ⁄ ⁄ AWB ⁄ ⁄ Attaching the Wrist Strap A AWB ⁄ ⁄ Please attach the wrist strap to prevent dropping the camera. 1 2 3 Loading the Batteries fig.1.1 fig.1.2 A fig.1.3 AWB The camera can use 2x AA alkaline, lithium or rechargeable batteries to operate. For better performance, do not use alkaline batteries. 1. Open the Battery/Memory Card door. (fig.1.1) ⁄ ⁄ • Slide the door in the direction of the arrow marked on it, and lift it open. 2. Insert the batteries according to the polarity indicators on the top edge of the battery compartment. (fig.1.2) 3. Shut the Battery/Memory Card door by sliding it in the opposite direction of the arrow marked on it, and A close it securely. (fig.1.3) AWB ⁄ ⁄ 5 A AWB ⁄ ⁄ A

DZ4360 UGuide-E(512883-01) 2003:11:17 5:22 PM Page 6 A AWB ⁄ ⁄ TURNING THE CAMERA ON AND OFF The Power Button is located on the top of the camera.(fig.1.1) 1. Press the ( ) Power Button to turn the camera on. • The lens cover will open, and the lens will extend out automatically to the wide-angle position. • The LCD will turn on automatically. 2. To turn the camera off, press the ( ) Power Button. fig.1.1 GETTING STARTED n E Note: To extend battery life, the LCD will turn off after 1 minute of inactivity, press the ( ) button, the Shutter Button or the Power Button to reactivate the LCD. The camera will automatically power off after 2 minutes of inactivity, press the Power Button to power the camera back on. Checking the Battery Level There are 5 battery levels that are displayed on the LCD. Batteries are full and ready to use. 3/4 battery capacity remains. 1/2 battery capacity remains. 1/4 battery capacity remains. Batteries are low need to be replaced soon. Batteries are empty, blinking red and need to be replaced. Note: • The camera's battery level indicator may not accurately reflect the state of a rechargeable battery even A the chargeable batteries have been fully recharged. AWB AWB AWB • To extend battery life, the camera will automatically power off after 2 minutes of inactivity. To change this ⁄ ⁄ setting, please refer to p.33. • For better performance, please use NiMH rechargeable batteries. • Remove the batteries from the camera if they will not be used for an extended period of time to prevent corrosion or battery leaks. 6

DZ4360 UGuide-E(512883-01) 2003:11:17 5:22 PM Page 7 n E GETTING STARTED SETTING THE LANGUAGE, DATE AND TIME When the camera is powered on for the first time, the Language, Date and Time menus will appear. Setting the Language 1. Turn the camera on. • The Language Setup screen will appear on the LCD. 2. Press to highlight the language you would like to use. 3. Press to select. 4. The next screen will read “Are You Sure?” press to select No or Yes. 5. Press to confirm the selection. • • If you select No, you will return to the Language select screen. If you select Yes, all menu screens will be displayed in the new language. Each language will set the default setting for date format and TV option. To change these settings, please refer to the Customizing the Camera Settings section on page 33. LANGUAGE OPTION English Français Español Deutsch Italiano RETURN OK SET LANGUAGE OPTION Nederlands RETURN OK SET Language(s) English / Español Français / Deutsch, Italiano / Nederlands Date Format Setting TV Option MM/DD/YYYY DD/MM/YYYY YYYY/MM/DD NTSC PAL PAL Setting the Date 1 ADJUST DATE 1 ADJUST DATE 1 ADJUST DATE 01 ⁄ 01 ⁄ 2003 MM ⁄ DD ⁄ YYYY RETURN OK SET 01 ⁄ 01 ⁄ 2003 MM ⁄ DD ⁄ YYYY RETURN OK SET 01 ⁄ 02 ⁄ 2003 MM ⁄ DD ⁄ YYYY RETURN OK SET 1. Press to change the number in the blinking position until you reach the desired setting. 2. Press to highlight the month, day or year. • The selection will blink when it is highlighted. 3. Repeat steps 1 and 2 until the date is set. 4. Press to set the date. Note: • If the battery is removed or dead for more than 4 minutes, the date will return to its default setting. 7
