VER:2.0EN VER: 2.0EN 0

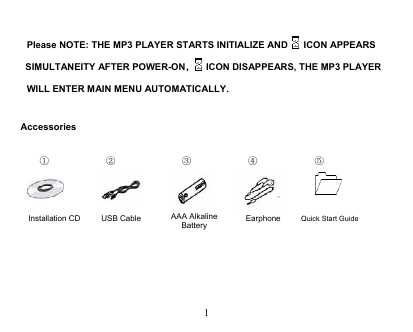

Please NOTE: THE MP3 PLAYER STARTS INITIALIZE AND ICON APPEARS SIMULTANEITY AFTER POWER-ON， ICON DISAPPEARS, THE MP3 PLAYER WILL ENTER MAIN MENU AUTOMATICALLY. Accessories ① ② ③ ④ ⑤ Installation CD USB Cable AAA Alkaline Battery Earphone Quick Start Guide 1

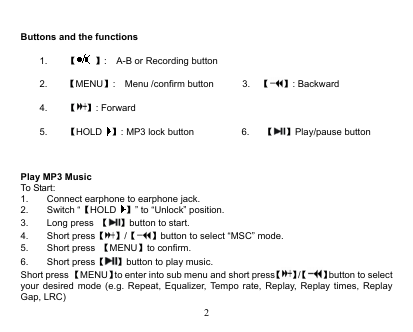

Buttons and the functions 1. 【】: A-B or Recording button 2. 【MENU】: Menu /confirm button 3. 【】: Backward 4. 【】: Forward 5. 【HOLD 】: MP3 lock button 6. 【】Play/pause button Play MP3 Music To Start: 1. 2. 3. 4. 5. 6. Short press 【MENU】to enter into sub menu and short press【】/【】button to select your desired mode (e.g. Repeat, Equalizer, Tempo rate, Replay, Replay times, Replay Gap, LRC) Connect earphone to earphone jack. Switch “【HOLD 】” to “Unlock” position. Long press 【】button to start. Short press【】/【】button to select “MSC” mode. Short press 【MENU】to confirm. Short press【】button to play music. 2

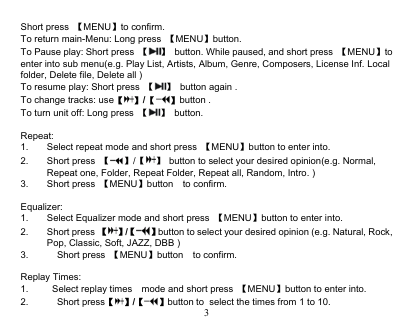

Short press 【MENU】to confirm. To return main-Menu: Long press 【MENU】button. To Pause play: Short press 【】 button. While paused, and short press 【MENU】to enter into sub menu(e.g. Play List, Artists, Album, Genre, Composers, License Inf. Local folder, Delete file, Delete all ) To resume play: Short press 【】 button again . To change tracks: use【】/【】button . To turn unit off: Long press 【】 button. Repeat: 1. 2. Select repeat mode and short press 【MENU】button to enter into. Short press 【】/【】 button to select your desired opinion(e.g. Normal, Repeat one, Folder, Repeat Folder, Repeat all, Random, Intro. ) Short press 【MENU】button to confirm. 3. Equalizer: 1. 2. Select Equalizer mode and short press 【MENU】button to enter into. Short press 【】/【】button to select your desired opinion (e.g. Natural, Rock, Pop, Classic, Soft, JAZZ, DBB ) 3. Short press 【MENU】button to confirm. Replay Times: 1. Select replay times mode and short press 【MENU】button to enter into. 2. Short press【】/【】button to select the times from 1 to 10. 3

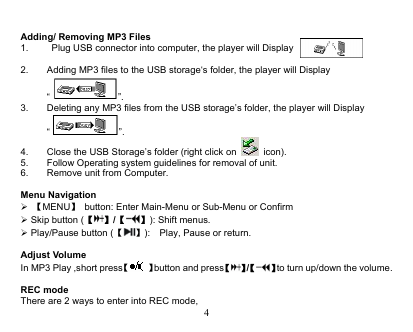

Adding/ Removing MP3 Files 1. 2. Plug USB connector into computer, the player will Display Adding MP3 files to the USB storage‘s folder, the player will Display “ Deleting any MP3 files from the USB storage’s folder, the player will Display ”. 3. “ ”. icon). Close the USB Storage’s folder (right click on Follow Operating system guidelines for removal of unit. Remove unit from Computer. 4. 5. 6. Menu Navigation 【MENU】 button: Enter Main-Menu or Sub-Menu or Confirm Skip button (【】/【】): Shift menus. Play/Pause button (【】): Play, Pause or return. Adjust Volume In MP3 Play ,short press【】button and press【】/【】to turn up/down the volume. REC mode There are 2 ways to enter into REC mode, 4

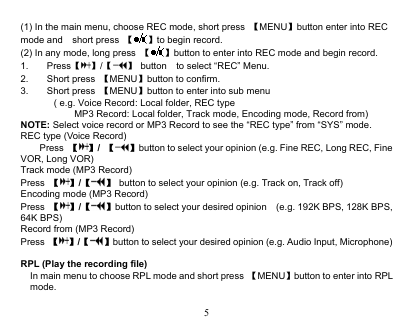

(1) In the main menu, choose REC mode, short press 【MENU】button enter into REC mode and short press 【】to begin record. (2) In any mode, long press 【】button to enter into REC mode and begin record. 1. 2. 3. Press【】/【】 button to select “REC” Menu. Short press 【MENU】button to confirm. Short press 【MENU】button to enter into sub menu ( e.g. Voice Record: Local folder, REC type MP3 Record: Local folder, Track mode, Encoding mode, Record from) NOTE: Select voice record or MP3 Record to see the “REC type” from “SYS” mode. REC type (Voice Record) Press 【】/ 【】button to select your opinion (e.g. Fine REC, Long REC, Fine VOR, Long VOR) Track mode (MP3 Record) Press 【】/【】 button to select your opinion (e.g. Track on, Track off) Encoding mode (MP3 Record) Press 【】/【】button to select your desired opinion (e.g. 192K BPS, 128K BPS, 64K BPS) Record from (MP3 Record) Press 【】/【】button to select your desired opinion (e.g. Audio Input, Microphone) RPL (Play the recording file) In main menu to choose RPL mode and short press 【MENU】button to enter into RPL mode. 5

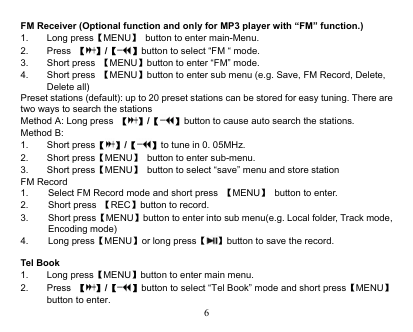

FM Receiver (Optional function and only for MP3 player with “FM” function.) 1. 2. 3. 4. Long press【MENU】 button to enter main-Menu. Press 【】/【】button to select “FM “ mode. Short press 【MENU】button to enter “FM” mode. Short press 【MENU】button to enter sub menu (e.g. Save, FM Record, Delete, Delete all) Short press【】/【】to tune in 0. 05MHz. Short press【MENU】 button to enter sub-menu. Short press【MENU】 button to select “save” menu and store station Preset stations (default): up to 20 preset stations can be stored for easy tuning. There are two ways to search the stations Method A: Long press 【】/【】button to cause auto search the stations. Method B: 1. 2. 3. FM Record 1. 2. 3. Select FM Record mode and short press 【MENU】 button to enter. Short press 【REC】button to record. Short press【MENU】button to enter into sub menu(e.g. Local folder, Track mode, Encoding mode) Long press【MENU】or long press【】button to save the record. 4. Tel Book 1. 2. Long press【MENU】button to enter main menu. Press 【】/【】button to select “Tel Book” mode and short press【MENU】 button to enter. 6

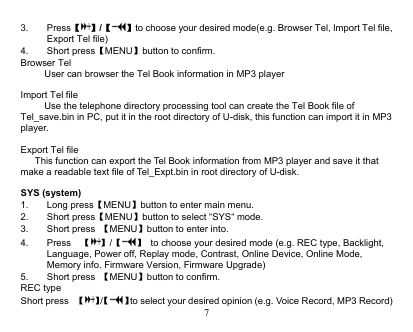

3. Press【】/【】to choose your desired mode(e.g. Browser Tel, Import Tel file, Export Tel file) Short press【MENU】button to confirm. 4. Browser Tel User can browser the Tel Book information in MP3 player Import Tel file Use the telephone directory processing tool can create the Tel Book file of Tel_save.bin in PC, put it in the root directory of U-disk, this function can import it in MP3 player. Export Tel file This function can export the Tel Book information from MP3 player and save it that make a readable text file of Tel_Expt.bin in root directory of U-disk. SYS (system) 1. 2. 3. 4. Long press【MENU】button to enter main menu. Short press【MENU】button to select “SYS“ mode. Short press 【MENU】button to enter into. Press 【】/【】 to choose your desired mode (e.g. REC type, Backlight, Language, Power off, Replay mode, Contrast, Online Device, Online Mode, Memory info. Firmware Version, Firmware Upgrade) Short press 【MENU】button to confirm. 5. REC type Short press 【】/【】to select your desired opinion (e.g. Voice Record, MP3 Record) 7
