Contents

Using the Gateway DC-T23

Warnings and precautions

Getting started

Identifying camera components

Loading the batteries

Inserting and removing the SD/MMC card (Optional)

Attaching the strap (optional)

Using a tripod (optional)

Basic operation

Powering on and off

Setting the Mode switch

Taking still pictures

Recording movies

Viewing your images on the LCD

Viewing pictures and movies

Deleting pictures and movies

Advanced Operations and Settings

Using the MENU button

Configuring settings

Viewing images on your computer

Installing the camera software

Connecting the camera to your computer

Copying pictures and movies to your computer

Viewing pictures and movies on your computer

Using PC Camera or Web Cam

Format settings

Video settings

Troubleshooting

Using the camera

Connecting the camera to your computer

Getting Help

Appendix

Battery life

LED indicator events

Storage capacity

Specifications

Regulatory compliance statements

Notices

Gateway DC-T23 digital camera user'sguide Customizing Troubleshooting

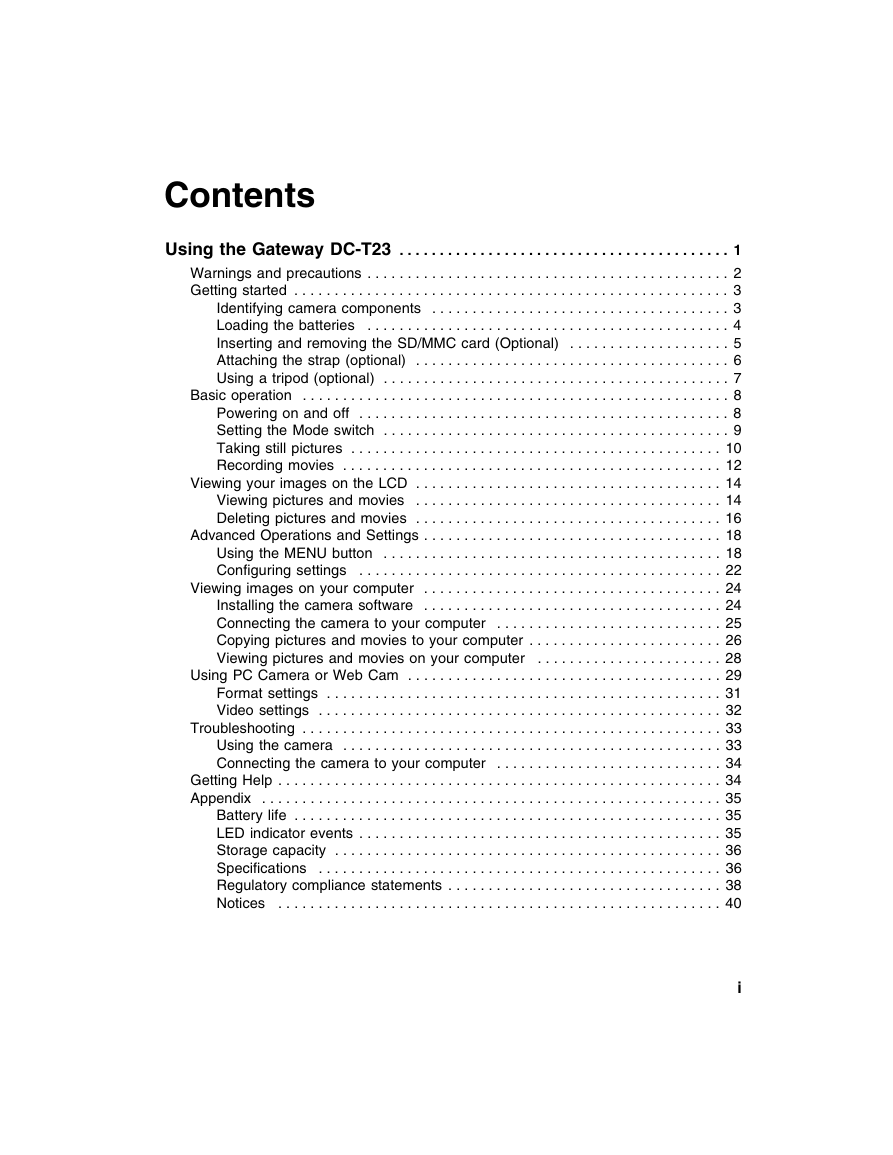

Contents Using the Gateway DC-T23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Warnings and precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Identifying camera components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Loading the batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Inserting and removing the SD/MMC card (Optional) . . . . . . . . . . . . . . . . . . . . 5 Attaching the strap (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Using a tripod (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Basic operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Powering on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Setting the Mode switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Taking still pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Recording movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Viewing your images on the LCD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Viewing pictures and movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Deleting pictures and movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Advanced Operations and Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Using the MENU button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Configuring settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Viewing images on your computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Installing the camera software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Connecting the camera to your computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Copying pictures and movies to your computer . . . . . . . . . . . . . . . . . . . . . . . . 26 Viewing pictures and movies on your computer . . . . . . . . . . . . . . . . . . . . . . . 28 Using PC Camera or Web Cam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Format settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Video settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Using the camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Connecting the camera to your computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Battery life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 LED indicator events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Storage capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Regulatory compliance statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 i

Using the Gateway DC-T23 Thank you for purchasing the Gateway DC-T23 digital camera. Your camera features: ■ Effective sensor resolution of 2 Megapixels ■ 16 MB internal memory ■ Support for SD/MMC (Secure Digital/MultiMedia Card) memory up to 512 MB ■ 4× digital zoom ■ Video mode 1

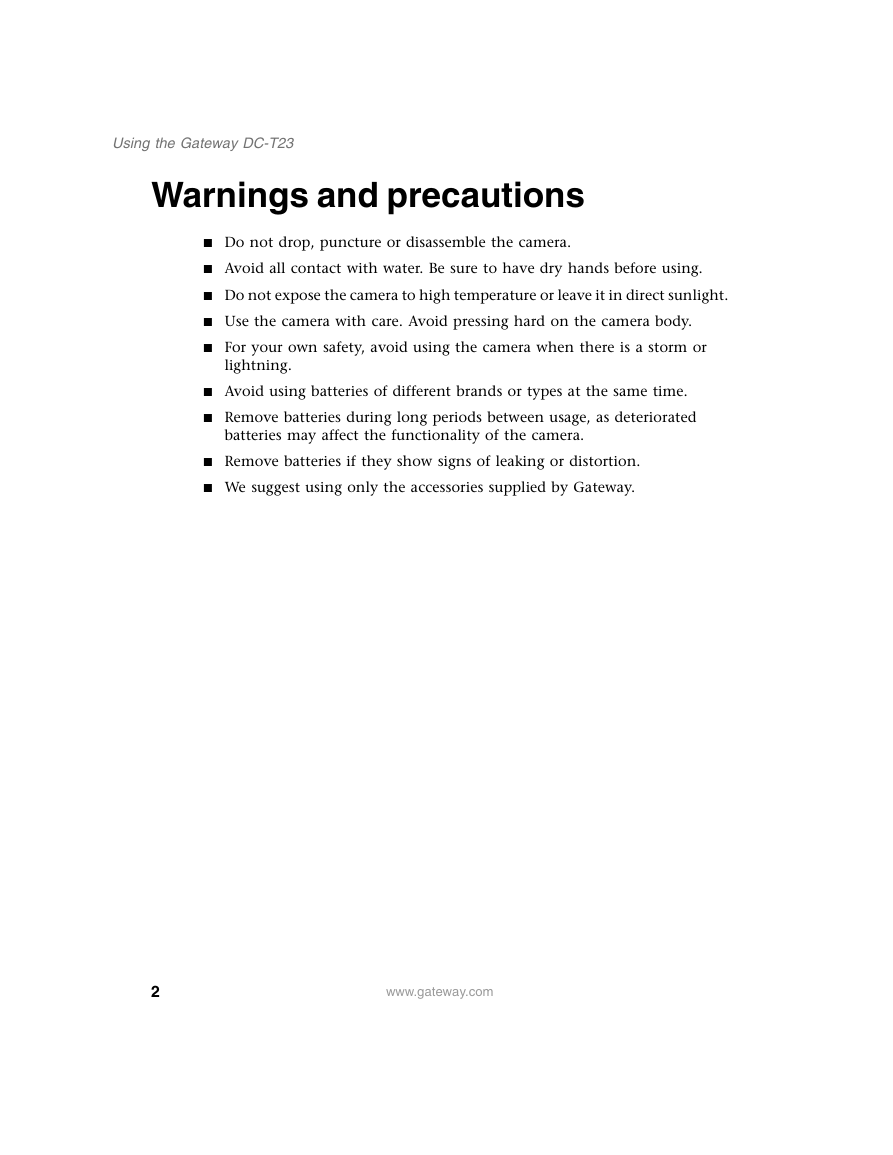

Using the Gateway DC-T23 Warnings and precautions ■ Do not drop, puncture or disassemble the camera. ■ Avoid all contact with water. Be sure to have dry hands before using. ■ Do not expose the camera to high temperature or leave it in direct sunlight. ■ Use the camera with care. Avoid pressing hard on the camera body. ■ For your own safety, avoid using the camera when there is a storm or lightning. ■ Avoid using batteries of different brands or types at the same time. ■ Remove batteries during long periods between usage, as deteriorated batteries may affect the functionality of the camera. ■ Remove batteries if they show signs of leaking or distortion. ■ We suggest using only the accessories supplied by Gateway. 2 www.gateway.com

Getting started Getting started Identifying camera components 1 2 11 12 13 14 3 4 5 6 7 8 9 10 15 16 17 18 19 20 1 Shutter/Quick Exit button 2 Lens cover 3 Power button 4 Mode switch 5 Microphone 6 Flash 7 USB port 8 Focus switch 9 Lens 10 Self-timer LED indicator 11 LCD display 12 Up control button (Zoom in) 13 Down control button (Zoom out) 14 MENU/OK button 15 LED indicator 16 Strap holder 17 Battery/SD/MMC card cover 18 Tripod port 19 SD/MMC card slot 20 Battery section www.gateway.com 3

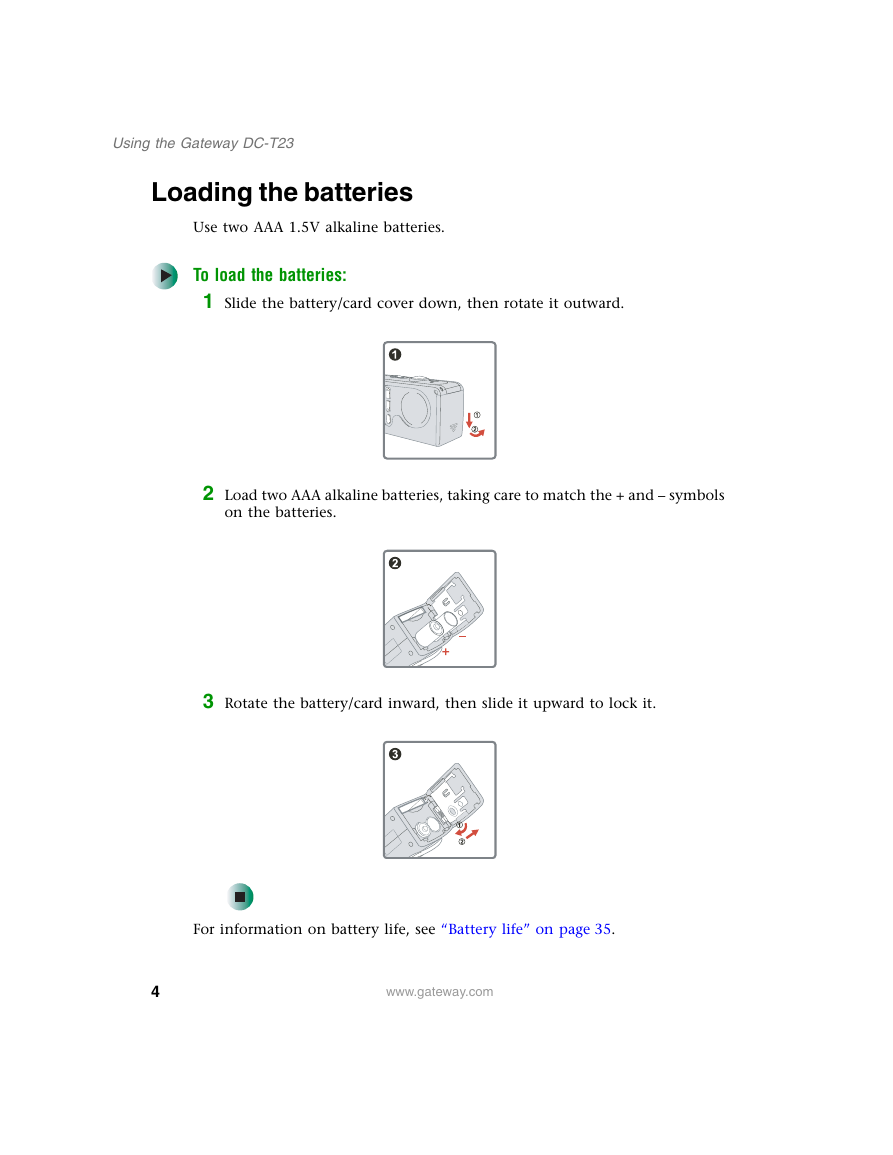

Using the Gateway DC-T23 Loading the batteries Use two AAA 1.5V alkaline batteries. To load the batteries: 1 Slide the battery/card cover down, then rotate it outward. 2 Load two AAA alkaline batteries, taking care to match the + and – symbols on the batteries. 3 Rotate the battery/card inward, then slide it upward to lock it. For information on battery life, see “Battery life” on page 35. 4 www.gateway.com
