Micron DDR3 datasheet.pdf
4Gb: x4, x8, x16 DDR3 SDRAM

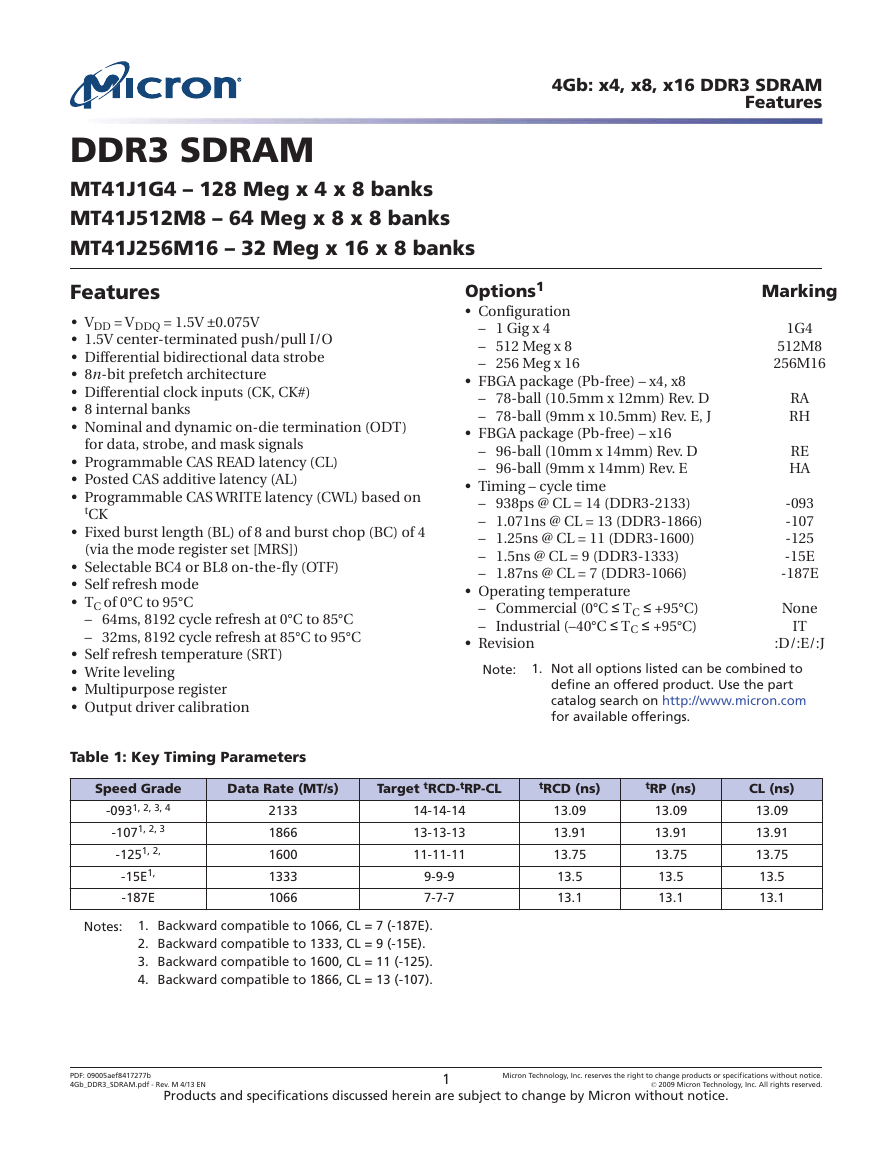

Features
DDR3 SDRAM
MT41J1G4 – 128 Meg x 4 x 8 banks
MT41J512M8 – 64 Meg x 8 x 8 banks
MT41J256M16 – 32 Meg x 16 x 8 banks
Features
• VDD = VDDQ = 1.5V ±0.075V
• 1.5V center-terminated push/pull I/O
• Differential bidirectional data strobe
• 8n-bit prefetch architecture
• Differential clock inputs (CK, CK#)
• 8 internal banks
• Nominal and dynamic on-die termination (ODT)
for data, strobe, and mask signals
• Programmable CAS READ latency (CL)
• Posted CAS additive latency (AL)
• Programmable CAS WRITE latency (CWL) based on
tCK
• Fixed burst length (BL) of 8 and burst chop (BC) of 4
(via the mode register set [MRS])
• Selectable BC4 or BL8 on-the-fly (OTF)
• Self refresh mode
• TC of 0°C to 95°C
– 64ms, 8192 cycle refresh at 0°C to 85°C
– 32ms, 8192 cycle refresh at 85°C to 95°C
• Self refresh temperature (SRT)
• Write leveling
• Multipurpose register
• Output driver calibration
Table 1: Key Timing Parameters
Options1
• Configuration
– 1 Gig x 4
– 512 Meg x 8
– 256 Meg x 16
• FBGA package (Pb-free) – x4, x8
– 78-ball (10.5mm x 12mm) Rev. D
– 78-ball (9mm x 10.5mm) Rev. E, J
• FBGA package (Pb-free) – x16
– 96-ball (10mm x 14mm) Rev. D
– 96-ball (9mm x 14mm) Rev. E
• Timing – cycle time
– 938ps @ CL = 14 (DDR3-2133)
– 1.071ns @ CL = 13 (DDR3-1866)
– 1.25ns @ CL = 11 (DDR3-1600)
– 1.5ns @ CL = 9 (DDR3-1333)
– 1.87ns @ CL = 7 (DDR3-1066)
• Operating temperature
– Commercial (0°C ≤ TC ≤ +95°C)
– Industrial (–40°C ≤ TC ≤ +95°C)
• Revision
Marking
1G4
512M8
256M16
RA
RH
RE
HA
-093
-107
-125
-15E
-187E
None
IT
:D/:E/:J
Note:
1. Not all options listed can be combined to
define an offered product. Use the part
catalog search on http://www.micron.com
for available offerings.
Speed Grade
Data Rate (MT/s)
Target tRCD-tRP-CL
tRCD (ns)
tRP (ns)
-0931, 2, 3, 4
-1071, 2, 3
-1251, 2,
-15E1,
-187E
2133
1866
1600
1333
1066
14-14-14
13-13-13
11-11-11
9-9-9
7-7-7
13.09
13.91
13.75
13.5
13.1
13.09
13.91
13.75
13.5
13.1
CL (ns)
13.09
13.91
13.75
13.5
13.1
Notes:
1. Backward compatible to 1066, CL = 7 (-187E).
2. Backward compatible to 1333, CL = 9 (-15E).
3. Backward compatible to 1600, CL = 11 (-125).
4. Backward compatible to 1866, CL = 13 (-107).
PDF: 09005aef8417277b
4Gb_DDR3_SDRAM.pdf - Rev. M 4/13 EN
Products and specifications discussed herein are subject to change by Micron without notice.
1
Micron Technology, Inc. reserves the right to change products or specifications without notice.
2009 Micron Technology, Inc. All rights reserved.
4Gb: x4, x8, x16 DDR3 SDRAM
Features
Table 2: Addressing
Parameter
Configuration
Refresh count
Row addressing
Bank addressing
Column addressing
Page size
1 Gig x 4
512 Meg x 8
256 Meg x 16
128 Meg x 4 x 8 banks
64 Meg x 8 x 8 banks
32 Meg x 16 x 8 banks
8K
64K (A[15:0])
8 (BA[2:0])
2K (A[11, 9:0])
1KB
8K
64K (A[15:0])
8 (BA[2:0])
1K (A[9:0])
1KB
8K
32K (A[14:0])
8 (BA[2:0])
1K (A[9:0])
2KB

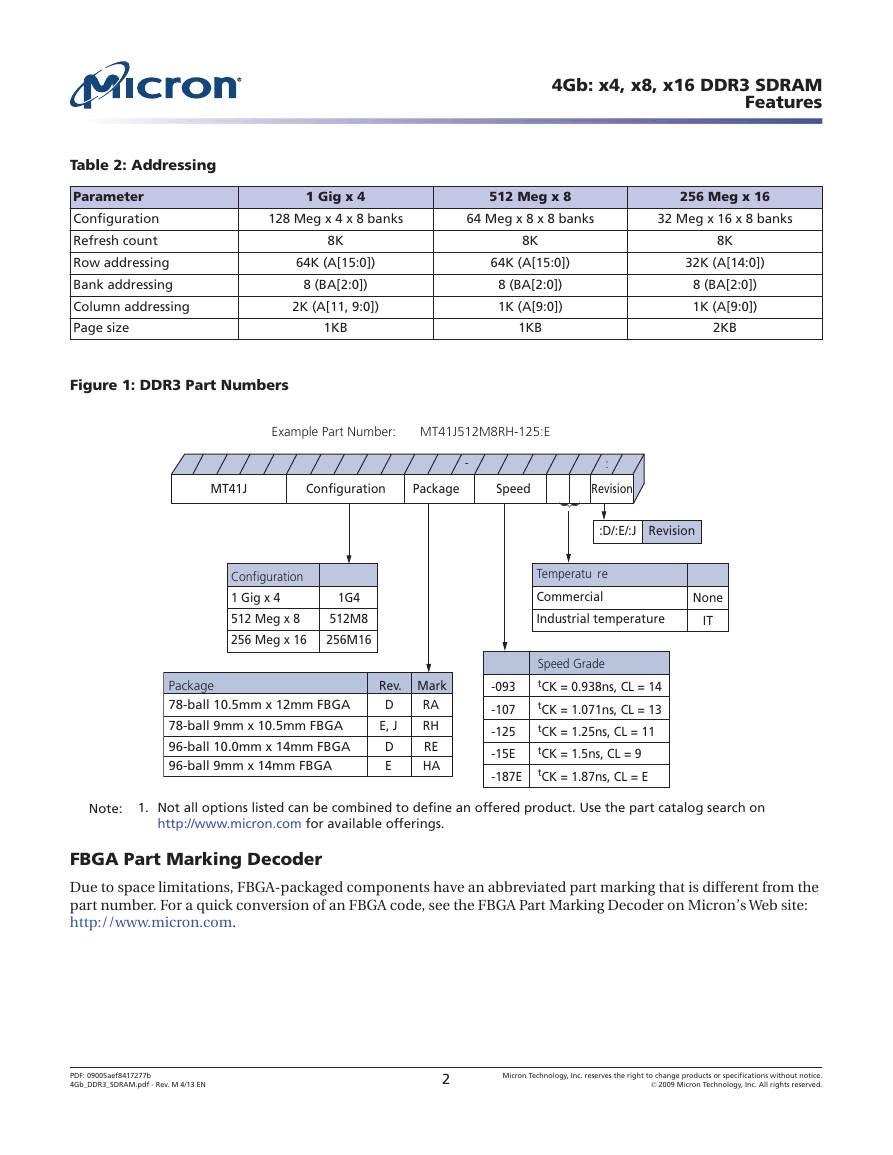

Figure 1: DDR3 Part Numbers
Example Part Number: MT41J512M8RH-125:E
MT41J
Configuration
Package
Speed
Revision
-
:
Configuration
1 Gig x 4
512 Meg x 8
256 Meg x 16
1G4
512M8
256M16
:D/:E/:J
Revision
Temperatu re
Commercial
Industrial temperature
None
IT
Package
78-ball 10.5mm x 12mm FBGA
78-ball 9mm x 10.5mm FBGA
96-ball 10.0mm x 14mm FBGA
96-ball 9mm x 14mm FBGA
Rev.
Mark
D
E, J
D
E
RA
RH
RE
HA
Speed Grade
tCK = 0.938ns, CL = 14
tCK = 1.071ns, CL = 13
tCK = 1.25ns, CL = 11
tCK = 1.5ns, CL = 9
tCK = 1.87ns, CL = E
-093
-107
-125
-15E
-187E
Note:
1. Not all options listed can be combined to define an offered product. Use the part catalog search on
http://www.micron.com for available offerings.
FBGA Part Marking Decoder
Due to space limitations, FBGA-packaged components have an abbreviated part marking that is different from the
part number. For a quick conversion of an FBGA code, see the FBGA Part Marking Decoder on Micron’s Web site:
http://www.micron.com.
PDF: 09005aef8417277b
4Gb_DDR3_SDRAM.pdf - Rev. M 4/13 EN
2
Micron Technology, Inc. reserves the right to change products or specifications without notice.
2009 Micron Technology, Inc. All rights reserved.
4Gb: x4, x8, x16 DDR3 SDRAM
Features

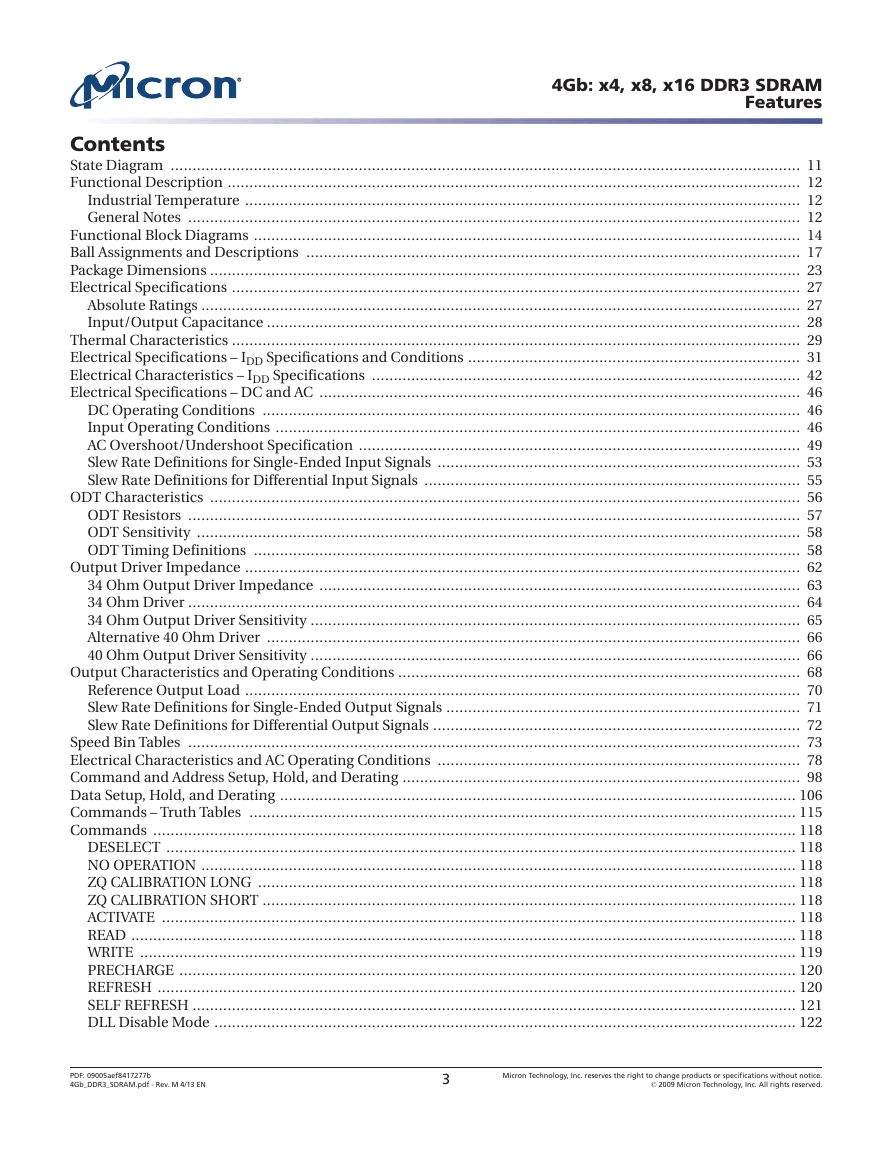

Contents
State Diagram ................................................................................................................................................ 11
Functional Description ................................................................................................................................... 12
Industrial Temperature ............................................................................................................................... 12
General Notes ............................................................................................................................................ 12
Functional Block Diagrams ............................................................................................................................. 14
Ball Assignments and Descriptions ................................................................................................................. 17
Package Dimensions ....................................................................................................................................... 23
Electrical Specifications .................................................................................................................................. 27
Absolute Ratings ......................................................................................................................................... 27
Input/Output Capacitance .......................................................................................................................... 28
Thermal Characteristics .................................................................................................................................. 29
Electrical Specifications – IDD Specifications and Conditions ............................................................................ 31
Electrical Characteristics – IDD Specifications .................................................................................................. 42
Electrical Specifications – DC and AC .............................................................................................................. 46
DC Operating Conditions ........................................................................................................................... 46
Input Operating Conditions ........................................................................................................................ 46
AC Overshoot/Undershoot Specification ..................................................................................................... 49
Slew Rate Definitions for Single-Ended Input Signals ................................................................................... 53
Slew Rate Definitions for Differential Input Signals ...................................................................................... 55
ODT Characteristics ....................................................................................................................................... 56
ODT Resistors ............................................................................................................................................ 57
ODT Sensitivity .......................................................................................................................................... 58
ODT Timing Definitions ............................................................................................................................. 58
Output Driver Impedance ............................................................................................................................... 62
34 Ohm Output Driver Impedance .............................................................................................................. 63
34 Ohm Driver ............................................................................................................................................ 64
34 Ohm Output Driver Sensitivity ................................................................................................................ 65
Alternative 40 Ohm Driver .......................................................................................................................... 66
40 Ohm Output Driver Sensitivity ................................................................................................................ 66
Output Characteristics and Operating Conditions ............................................................................................ 68
Reference Output Load ............................................................................................................................... 70
Slew Rate Definitions for Single-Ended Output Signals ................................................................................. 71
Slew Rate Definitions for Differential Output Signals .................................................................................... 72
Speed Bin Tables ............................................................................................................................................ 73
Electrical Characteristics and AC Operating Conditions ................................................................................... 78
Command and Address Setup, Hold, and Derating ........................................................................................... 98
Data Setup, Hold, and Derating ...................................................................................................................... 106
Commands – Truth Tables ............................................................................................................................. 115
Commands ................................................................................................................................................... 118
DESELECT ................................................................................................................................................ 118
NO OPERATION ........................................................................................................................................ 118
ZQ CALIBRATION LONG ........................................................................................................................... 118
ZQ CALIBRATION SHORT .......................................................................................................................... 118
ACTIVATE ................................................................................................................................................. 118
READ ........................................................................................................................................................ 118
WRITE ...................................................................................................................................................... 119
PRECHARGE ............................................................................................................................................. 120
REFRESH .................................................................................................................................................. 120
SELF REFRESH .......................................................................................................................................... 121
DLL Disable Mode ..................................................................................................................................... 122
PDF: 09005aef8417277b
4Gb_DDR3_SDRAM.pdf - Rev. M 4/13 EN
3
Micron Technology, Inc. reserves the right to change products or specifications without notice.
2009 Micron Technology, Inc. All rights reserved.
4Gb: x4, x8, x16 DDR3 SDRAM
Features
Input Clock Frequency Change ...................................................................................................................... 126
Write Leveling ............................................................................................................................................... 128
Write Leveling Procedure ........................................................................................................................... 130
Write Leveling Mode Exit Procedure ........................................................................................................... 132
Initialization ................................................................................................................................................. 133
Mode Registers .............................................................................................................................................. 135
Mode Register 0 (MR0) ................................................................................................................................... 136
Burst Length ............................................................................................................................................. 136
Burst Type ................................................................................................................................................. 137
DLL RESET ................................................................................................................................................ 138
Write Recovery .......................................................................................................................................... 138
Precharge Power-Down (Precharge PD) ...................................................................................................... 139
CAS Latency (CL) ....................................................................................................................................... 139
Mode Register 1 (MR1) ................................................................................................................................... 140
DLL Enable/DLL Disable ........................................................................................................................... 140
Output Drive Strength ............................................................................................................................... 141
OUTPUT ENABLE/DISABLE ...................................................................................................................... 141
TDQS Enable ............................................................................................................................................. 141
On-Die Termination .................................................................................................................................. 142
WRITE LEVELING ..................................................................................................................................... 142
POSTED CAS ADDITIVE Latency ................................................................................................................ 142
Mode Register 2 (MR2) ................................................................................................................................... 143
CAS Write Latency (CWL) ........................................................................................................................... 144
AUTO SELF REFRESH (ASR) ....................................................................................................................... 144
SELF REFRESH TEMPERATURE (SRT) ........................................................................................................ 145
SRT vs. ASR ............................................................................................................................................... 145
DYNAMIC ODT ......................................................................................................................................... 145
Mode Register 3 (MR3) ................................................................................................................................... 146
MULTIPURPOSE REGISTER (MPR) ............................................................................................................ 146
MPR Functional Description ...................................................................................................................... 147
MPR Register Address Definitions and Bursting Order ................................................................................. 148
MPR Read Predefined Pattern .................................................................................................................... 154
MODE REGISTER SET (MRS) Command ........................................................................................................ 154
ZQ CALIBRATION Operation ......................................................................................................................... 155
ACTIVATE Operation ..................................................................................................................................... 156
READ Operation ............................................................................................................................................ 158
WRITE Operation .......................................................................................................................................... 169
DQ Input Timing ....................................................................................................................................... 177
PRECHARGE Operation ................................................................................................................................. 179
SELF REFRESH Operation .............................................................................................................................. 179
Extended Temperature Usage ........................................................................................................................ 181
Power-Down Mode ........................................................................................................................................ 182
RESET Operation ........................................................................................................................................... 190

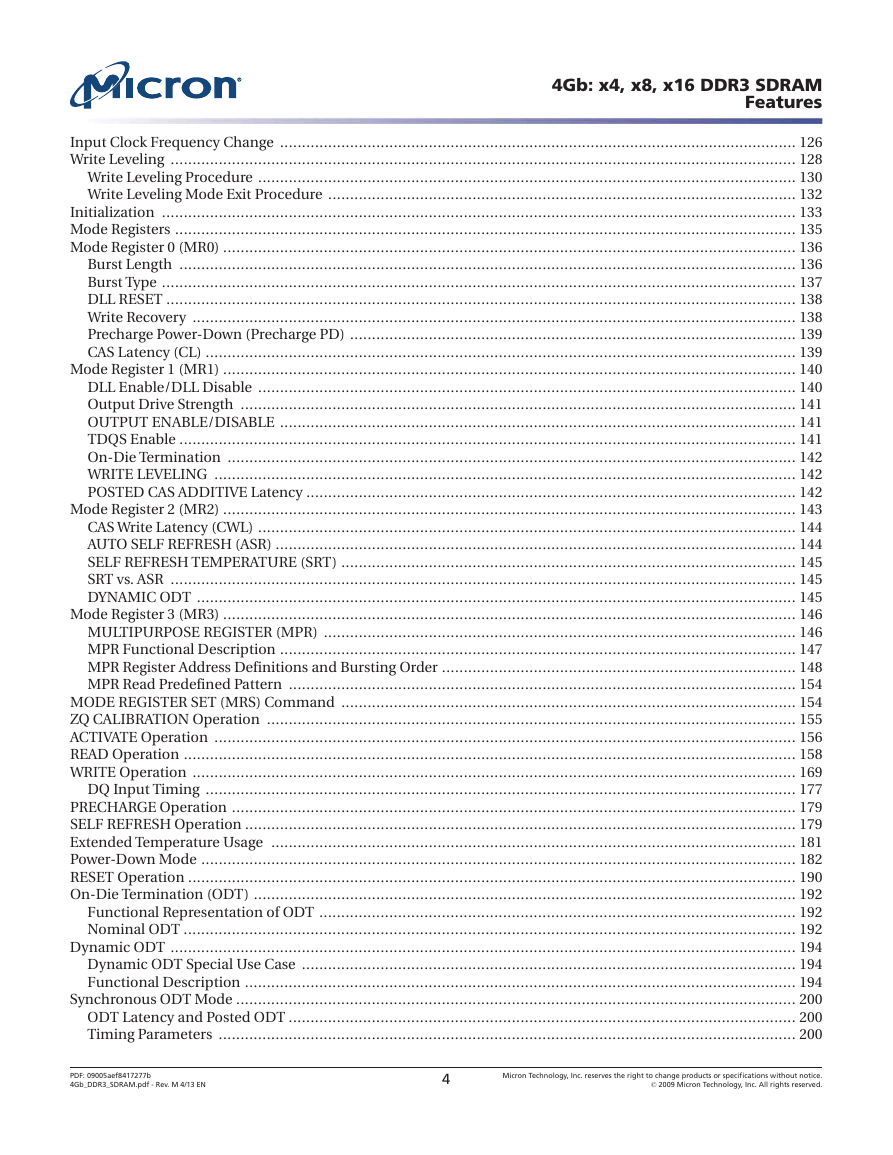

On-Die Termination (ODT) ............................................................................................................................ 192
Functional Representation of ODT ............................................................................................................. 192
Nominal ODT ............................................................................................................................................ 192
Dynamic ODT ............................................................................................................................................... 194
Dynamic ODT Special Use Case ................................................................................................................. 194
Functional Description .............................................................................................................................. 194
Synchronous ODT Mode ................................................................................................................................ 200
ODT Latency and Posted ODT .................................................................................................................... 200
Timing Parameters .................................................................................................................................... 200
PDF: 09005aef8417277b
4Gb_DDR3_SDRAM.pdf - Rev. M 4/13 EN
4
Micron Technology, Inc. reserves the right to change products or specifications without notice.
2009 Micron Technology, Inc. All rights reserved.
4Gb: x4, x8, x16 DDR3 SDRAM
Features

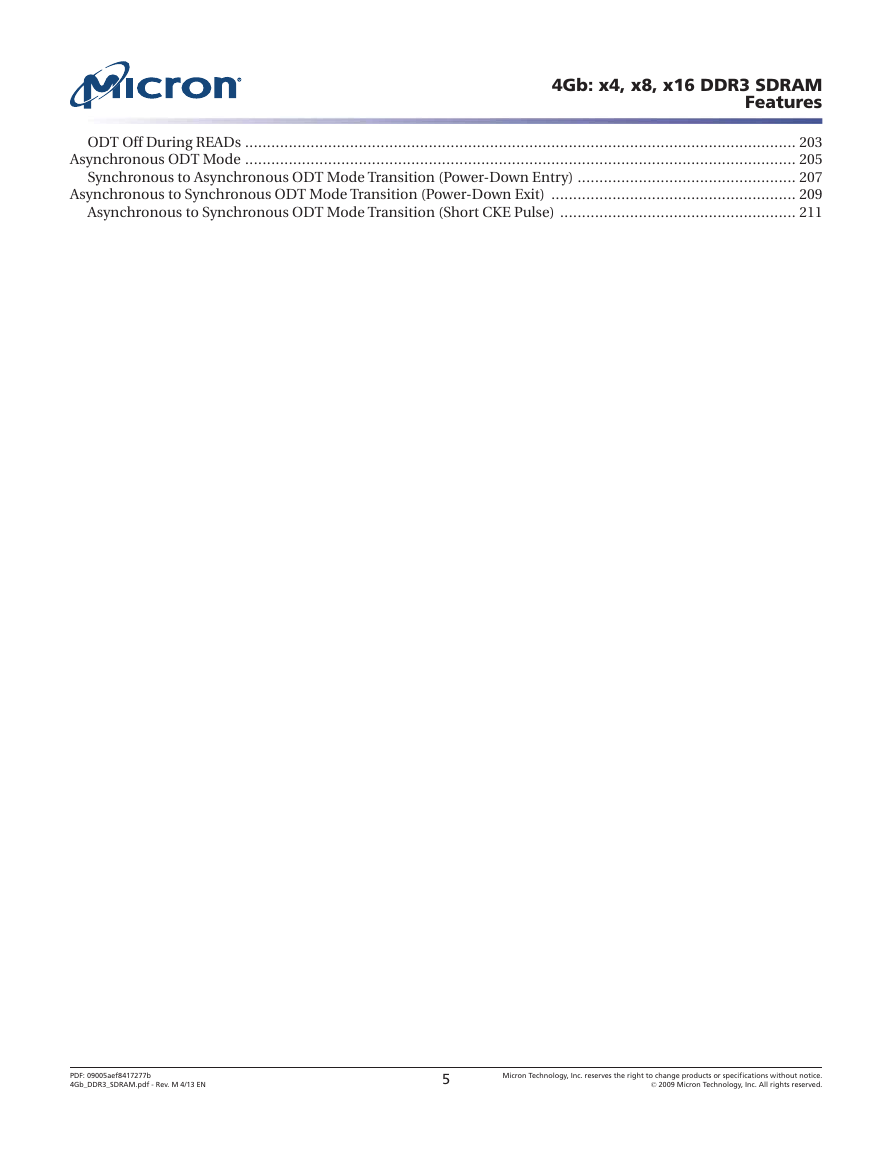

ODT Off During READs .............................................................................................................................. 203
Asynchronous ODT Mode .............................................................................................................................. 205
Synchronous to Asynchronous ODT Mode Transition (Power-Down Entry) .................................................. 207
Asynchronous to Synchronous ODT Mode Transition (Power-Down Exit) ........................................................ 209
Asynchronous to Synchronous ODT Mode Transition (Short CKE Pulse) ...................................................... 211
PDF: 09005aef8417277b
4Gb_DDR3_SDRAM.pdf - Rev. M 4/13 EN
5
Micron Technology, Inc. reserves the right to change products or specifications without notice.
2009 Micron Technology, Inc. All rights reserved.
4Gb: x4, x8, x16 DDR3 SDRAM
Features

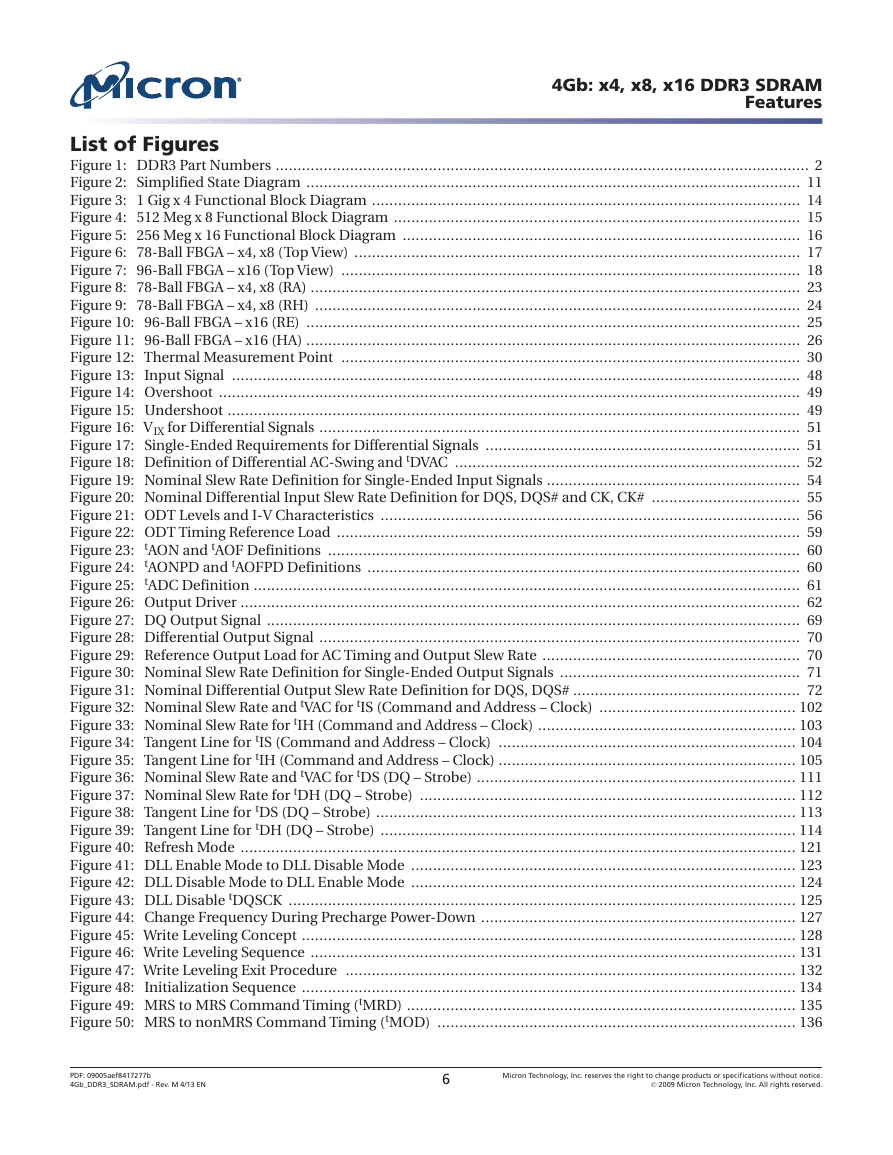

List of Figures
Figure 1: DDR3 Part Numbers .......................................................................................................................... 2
Figure 2: Simplified State Diagram ................................................................................................................. 11
Figure 3: 1 Gig x 4 Functional Block Diagram .................................................................................................. 14
Figure 4: 512 Meg x 8 Functional Block Diagram ............................................................................................. 15
Figure 5: 256 Meg x 16 Functional Block Diagram ........................................................................................... 16
Figure 6: 78-Ball FBGA – x4, x8 (Top View) ...................................................................................................... 17
Figure 7: 96-Ball FBGA – x16 (Top View) ......................................................................................................... 18
Figure 8: 78-Ball FBGA – x4, x8 (RA) ................................................................................................................ 23
Figure 9: 78-Ball FBGA – x4, x8 (RH) ............................................................................................................... 24
Figure 10: 96-Ball FBGA – x16 (RE) ................................................................................................................. 25
Figure 11: 96-Ball FBGA – x16 (HA) ................................................................................................................. 26
Figure 12: Thermal Measurement Point ......................................................................................................... 30
Figure 13: Input Signal .................................................................................................................................. 48
Figure 14: Overshoot ..................................................................................................................................... 49
Figure 15: Undershoot ................................................................................................................................... 49
Figure 16: VIX for Differential Signals .............................................................................................................. 51
Figure 17: Single-Ended Requirements for Differential Signals ........................................................................ 51
Figure 18: Definition of Differential AC-Swing and tDVAC ............................................................................... 52
Figure 19: Nominal Slew Rate Definition for Single-Ended Input Signals .......................................................... 54
Figure 20: Nominal Differential Input Slew Rate Definition for DQS, DQS# and CK, CK# .................................. 55
Figure 21: ODT Levels and I-V Characteristics ................................................................................................ 56
Figure 22: ODT Timing Reference Load .......................................................................................................... 59
Figure 23: tAON and tAOF Definitions ............................................................................................................ 60
Figure 24: tAONPD and tAOFPD Definitions ................................................................................................... 60
Figure 25: tADC Definition ............................................................................................................................. 61
Figure 26: Output Driver ................................................................................................................................ 62
Figure 27: DQ Output Signal .......................................................................................................................... 69
Figure 28: Differential Output Signal .............................................................................................................. 70
Figure 29: Reference Output Load for AC Timing and Output Slew Rate ........................................................... 70
Figure 30: Nominal Slew Rate Definition for Single-Ended Output Signals ....................................................... 71
Figure 31: Nominal Differential Output Slew Rate Definition for DQS, DQS# .................................................... 72
Figure 32: Nominal Slew Rate and tVAC for tIS (Command and Address – Clock) ............................................. 102
Figure 33: Nominal Slew Rate for tIH (Command and Address – Clock) ........................................................... 103
Figure 34: Tangent Line for tIS (Command and Address – Clock) .................................................................... 104
Figure 35: Tangent Line for tIH (Command and Address – Clock) .................................................................... 105
Figure 36: Nominal Slew Rate and tVAC for tDS (DQ – Strobe) ......................................................................... 111
Figure 37: Nominal Slew Rate for tDH (DQ – Strobe) ...................................................................................... 112
Figure 38: Tangent Line for tDS (DQ – Strobe) ................................................................................................ 113
Figure 39: Tangent Line for tDH (DQ – Strobe) ............................................................................................... 114
Figure 40: Refresh Mode ............................................................................................................................... 121
Figure 41: DLL Enable Mode to DLL Disable Mode ........................................................................................ 123
Figure 42: DLL Disable Mode to DLL Enable Mode ........................................................................................ 124
Figure 43: DLL Disable tDQSCK .................................................................................................................... 125
Figure 44: Change Frequency During Precharge Power-Down ........................................................................ 127
Figure 45: Write Leveling Concept ................................................................................................................. 128
Figure 46: Write Leveling Sequence ............................................................................................................... 131
Figure 47: Write Leveling Exit Procedure ....................................................................................................... 132
Figure 48: Initialization Sequence ................................................................................................................. 134
Figure 49: MRS to MRS Command Timing (tMRD) ......................................................................................... 135
Figure 50: MRS to nonMRS Command Timing (tMOD) .................................................................................. 136
PDF: 09005aef8417277b
4Gb_DDR3_SDRAM.pdf - Rev. M 4/13 EN
6
Micron Technology, Inc. reserves the right to change products or specifications without notice.
2009 Micron Technology, Inc. All rights reserved.
4Gb: x4, x8, x16 DDR3 SDRAM
Features
Figure 51: Mode Register 0 (MR0) Definitions ................................................................................................ 137
Figure 52: READ Latency .............................................................................................................................. 139
Figure 53: Mode Register 1 (MR1) Definition ................................................................................................. 140
Figure 54: READ Latency (AL = 5, CL = 6) ....................................................................................................... 143
Figure 55: Mode Register 2 (MR2) Definition ................................................................................................. 144
Figure 56: CAS Write Latency ........................................................................................................................ 144
Figure 57: Mode Register 3 (MR3) Definition ................................................................................................. 146
Figure 58: Multipurpose Register (MPR) Block Diagram ................................................................................. 147
Figure 59: MPR System Read Calibration with BL8: Fixed Burst Order Single Readout ..................................... 150
Figure 60: MPR System Read Calibration with BL8: Fixed Burst Order, Back-to-Back Readout .......................... 151
Figure 61: MPR System Read Calibration with BC4: Lower Nibble, Then Upper Nibble .................................... 152
Figure 62: MPR System Read Calibration with BC4: Upper Nibble, Then Lower Nibble .................................... 153
Figure 63: ZQ CALIBRATION Timing (ZQCL and ZQCS) ................................................................................. 155
Figure 64: Example: Meeting tRRD (MIN) and tRCD (MIN) ............................................................................. 156
Figure 65: Example: tFAW ............................................................................................................................. 157
Figure 66: READ Latency .............................................................................................................................. 158
Figure 67: Consecutive READ Bursts (BL8) .................................................................................................... 160
Figure 68: Consecutive READ Bursts (BC4) .................................................................................................... 160
Figure 69: Nonconsecutive READ Bursts ....................................................................................................... 161
Figure 70: READ (BL8) to WRITE (BL8) .......................................................................................................... 161
Figure 71: READ (BC4) to WRITE (BC4) OTF .................................................................................................. 162
Figure 72: READ to PRECHARGE (BL8) .......................................................................................................... 162
Figure 73: READ to PRECHARGE (BC4) ......................................................................................................... 163
Figure 74: READ to PRECHARGE (AL = 5, CL = 6) ........................................................................................... 163
Figure 75: READ with Auto Precharge (AL = 4, CL = 6) ..................................................................................... 163
Figure 76: Data Output Timing – tDQSQ and Data Valid Window .................................................................... 165
Figure 77: Data Strobe Timing – READs ......................................................................................................... 166
Figure 78: Method for Calculating tLZ and tHZ ............................................................................................... 167
Figure 79: tRPRE Timing ............................................................................................................................... 167
Figure 80: tRPST Timing ............................................................................................................................... 168
Figure 81: tWPRE Timing .............................................................................................................................. 170
Figure 82: tWPST Timing .............................................................................................................................. 170
Figure 83: WRITE Burst ................................................................................................................................ 171
Figure 84: Consecutive WRITE (BL8) to WRITE (BL8) ..................................................................................... 172
Figure 85: Consecutive WRITE (BC4) to WRITE (BC4) via OTF ........................................................................ 172
Figure 86: Nonconsecutive WRITE to WRITE ................................................................................................. 173
Figure 87: WRITE (BL8) to READ (BL8) .......................................................................................................... 173
Figure 88: WRITE to READ (BC4 Mode Register Setting) ................................................................................. 174
Figure 89: WRITE (BC4 OTF) to READ (BC4 OTF) ........................................................................................... 175
Figure 90: WRITE (BL8) to PRECHARGE ........................................................................................................ 176
Figure 91: WRITE (BC4 Mode Register Setting) to PRECHARGE ...................................................................... 176
Figure 92: WRITE (BC4 OTF) to PRECHARGE ................................................................................................ 177
Figure 93: Data Input Timing ........................................................................................................................ 178
Figure 94: Self Refresh Entry/Exit Timing ...................................................................................................... 180
Figure 95: Active Power-Down Entry and Exit ................................................................................................ 184
Figure 96: Precharge Power-Down (Fast-Exit Mode) Entry and Exit ................................................................. 185
Figure 97: Precharge Power-Down (Slow-Exit Mode) Entry and Exit ................................................................ 185
Figure 98: Power-Down Entry After READ or READ with Auto Precharge (RDAP) ............................................. 186
Figure 99: Power-Down Entry After WRITE .................................................................................................... 186
Figure 100: Power-Down Entry After WRITE with Auto Precharge (WRAP) ...................................................... 187
Figure 101: REFRESH to Power-Down Entry .................................................................................................. 187
Figure 102: ACTIVATE to Power-Down Entry ................................................................................................. 188
PDF: 09005aef8417277b
4Gb_DDR3_SDRAM.pdf - Rev. M 4/13 EN
7
Micron Technology, Inc. reserves the right to change products or specifications without notice.
2009 Micron Technology, Inc. All rights reserved.
4Gb: x4, x8, x16 DDR3 SDRAM
Features

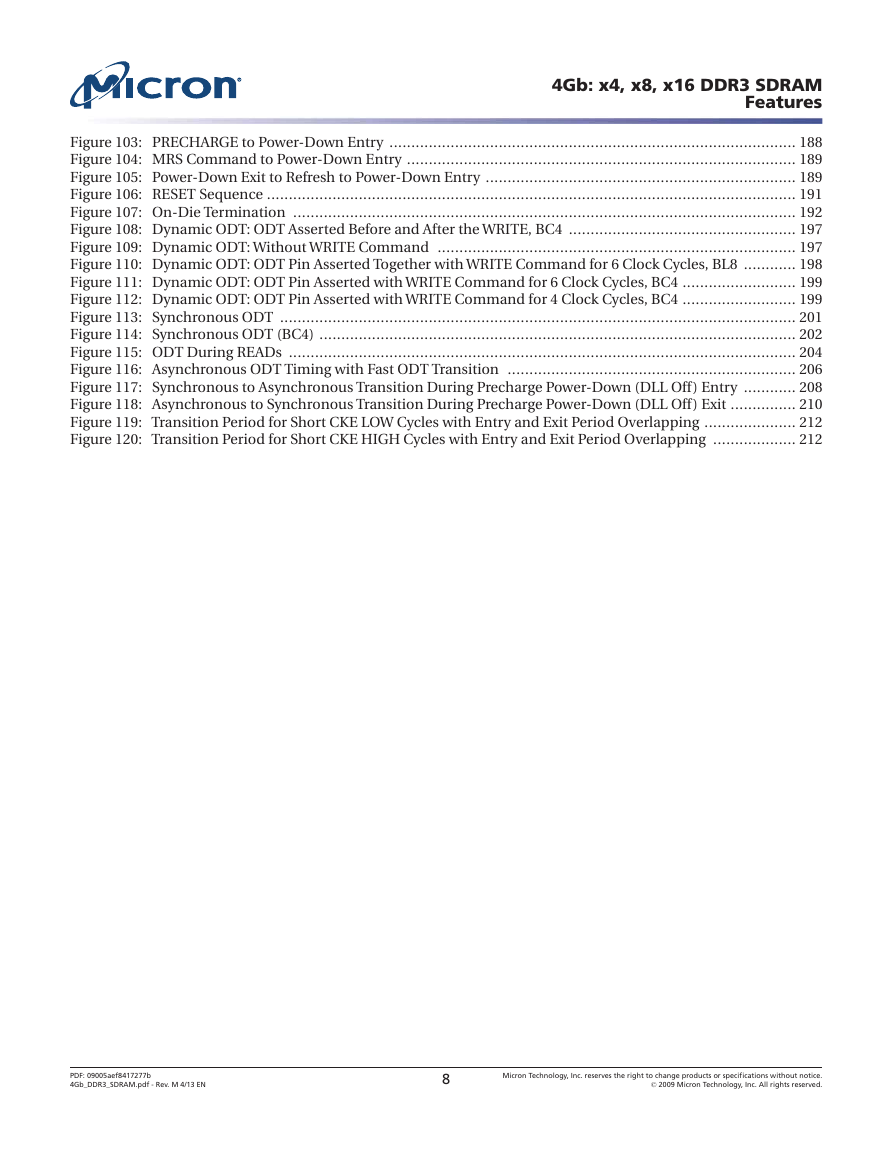

Figure 103: PRECHARGE to Power-Down Entry ............................................................................................. 188
Figure 104: MRS Command to Power-Down Entry ......................................................................................... 189
Figure 105: Power-Down Exit to Refresh to Power-Down Entry ....................................................................... 189
Figure 106: RESET Sequence ......................................................................................................................... 191
Figure 107: On-Die Termination ................................................................................................................... 192
Figure 108: Dynamic ODT: ODT Asserted Before and After the WRITE, BC4 .................................................... 197
Figure 109: Dynamic ODT: Without WRITE Command .................................................................................. 197
Figure 110: Dynamic ODT: ODT Pin Asserted Together with WRITE Command for 6 Clock Cycles, BL8 ............ 198
Figure 111: Dynamic ODT: ODT Pin Asserted with WRITE Command for 6 Clock Cycles, BC4 .......................... 199
Figure 112: Dynamic ODT: ODT Pin Asserted with WRITE Command for 4 Clock Cycles, BC4 .......................... 199
Figure 113: Synchronous ODT ...................................................................................................................... 201
Figure 114: Synchronous ODT (BC4) ............................................................................................................. 202
Figure 115: ODT During READs .................................................................................................................... 204
Figure 116: Asynchronous ODT Timing with Fast ODT Transition .................................................................. 206
Figure 117: Synchronous to Asynchronous Transition During Precharge Power-Down (DLL Off) Entry ............ 208
Figure 118: Asynchronous to Synchronous Transition During Precharge Power-Down (DLL Off) Exit ............... 210
Figure 119: Transition Period for Short CKE LOW Cycles with Entry and Exit Period Overlapping ..................... 212
Figure 120: Transition Period for Short CKE HIGH Cycles with Entry and Exit Period Overlapping ................... 212
PDF: 09005aef8417277b
4Gb_DDR3_SDRAM.pdf - Rev. M 4/13 EN
8
Micron Technology, Inc. reserves the right to change products or specifications without notice.
2009 Micron Technology, Inc. All rights reserved.
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
