DIGITAL VIDEO CAMERA
GR-DVL867
GR-DVL865
GR-DVL767
GR-DVL765
GR-DVL567
GR-DVL367
GR-DVL365
GR-DVL167
GR-DVL160
Please visit our Homepage on the World Wide Web and
answer our Consumer Survey (in English only):
http://www.jvc-victor.co.jp/english/index-e.html
For Accessories:
http://www.jvc-victor.co.jp/english/accessory/
ENGLISH
CONTENTS
6
7 – 14
AUTOMATIC DEMONSTRATION
GETTING STARTED
TAPE
RECORDING & PLAYBACK 15 – 24
TAPE RECORDING ........................ 16 – 20
TAPE PLAYBACK .......................... 21 – 24
MEMORY CARD
RECORDING & PLAYBACK 25 – 36
MEMORY CARD RECORDING ......... 26 – 27
MEMORY CARD PLAYBACK ............ 28 – 29
ADVANCED FEATURES .................... 30 – 36
ADVANCED FEATURES
37 – 66
FOR RECORDING ........................... 38 – 45
USING MENUS FOR
DETAILED ADJUSTMENT .............. 46 – 51
DUBBING ..................................... 52 – 53
USING THE REMOTE CONTROL UNIT ... 54 – 64
SYSTEM CONNECTIONS .................. 65 – 66
REFERENCES
67 – Back Cover
DETAILS ............................................. 68
TROUBLESHOOTING ...................... 69 – 73
USER MAINTENANCE ............................ 74
CAUTIONS .................................... 75 – 77
SPECIFICATIONS ........................... 78 – 79
INDEX ......................................... 80 – 86
TERMS ............................... 87 – Back Cover
The camcorder illustrations
appearing in this instruction
manual are of the
GR-DVL867.
Memory card recording
features are available on
GR-DVL867, GR-DVL865,
GR-DVL767, GR-DVL765,
GR-DVL567, GR-DVL367
and GR-DVL365
INSTRUCTIONS
LYT0909-001B
EN
数码说明书之家—WWW.54GG.COM
2 EN
Dear Customer,
Thank you for purchasing this digital video camera. Before use, please read the safety information and
precautions contained in the following pages to ensure safe use of this product.
Using This Instruction Manual
• All major sections and subsections are listed in the Table Of Contents on the cover page.
• Notes appear after most subsections. Be sure to read these as well.
• Basic and advanced features/operation are separated for easier reference.
It is recommended that you . . .
..... refer to the Index (墌 pgs. 80 – 86) and familiarize yourself with button locations, etc. before use.
..... read thoroughly the Safety Precautions. They contain extremely important information regarding the safe use
of this product.
You are recommended to carefully read the cautions on pages 75 through 77 before use.
SAFETY PRECAUTIONS
WARNING:
TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS
UNIT TO RAIN OR MOISTURE.
CAUTION:
CAUTIONS:
● To prevent shock, do not open the cabinet. No
long period of time, it is recommended that you
disconnect the power cord from AC outlet.
user serviceable parts inside. Refer servicing to
qualified personnel.
● When you are not using the AC Adapter for a
NOTES:
● The rating plate (serial number plate) and safety
caution are on the bottom and/or the back of the
main unit.
● The rating information and safety caution of the
AC Adapter are on its upper and lower sides.
To avoid electric shock or damage to the unit,
first firmly insert the small end of the power
cord into the AC Adapter until it is no longer
wobbly, and then plug the larger end of the
power cord into an AC outlet.
数码说明书之家—WWW.54GG.COM
EN 3

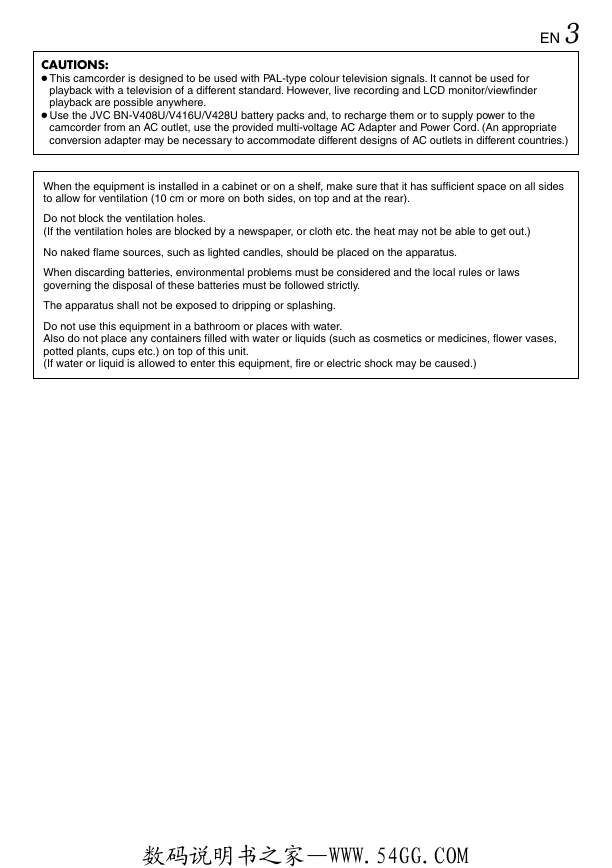

CAUTIONS:
● This camcorder is designed to be used with PAL-type colour television signals. It cannot be used for
playback with a television of a different standard. However, live recording and LCD monitor/viewfinder
playback are possible anywhere.
● Use the JVC BN-V408U/V416U/V428U battery packs and, to recharge them or to supply power to the
camcorder from an AC outlet, use the provided multi-voltage AC Adapter and Power Cord. (An appropriate
conversion adapter may be necessary to accommodate different designs of AC outlets in different countries.)
When the equipment is installed in a cabinet or on a shelf, make sure that it has sufficient space on all sides
to allow for ventilation (10 cm or more on both sides, on top and at the rear).
Do not block the ventilation holes.
(If the ventilation holes are blocked by a newspaper, or cloth etc. the heat may not be able to get out.)
No naked flame sources, such as lighted candles, should be placed on the apparatus.
When discarding batteries, environmental problems must be considered and the local rules or laws
governing the disposal of these batteries must be followed strictly.
The apparatus shall not be exposed to dripping or splashing.
Do not use this equipment in a bathroom or places with water.
Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases,
potted plants, cups etc.) on top of this unit.
(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)
数码说明书之家—WWW.54GG.COM
4 EN
SAFETY PRECAUTIONS
Do not point the lens or the viewfinder directly into the sun. This can cause eye injuries, as well as lead to the
malfunctioning of internal circuitry. There is also a risk of fire or electric shock.
CAUTION!
The following notes concern possible physical damage to the camcorder and to the user.
When carrying, be sure to always securely attach and use the provided shoulder strap. Carrying or holding the
camcorder by the viewfinder and/or the LCD monitor can result in dropping the unit, or in a malfunction.
Take care not to get your finger caught in the cassette holder cover. Do not let children operate the camcorder, as
they are particularly susceptible to this type of injury.
Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the camcorder.
CAUTION!
Connecting cables (Audio/Video, S-Video, etc.) to the camcorder and leaving the unit on top of the TV is not
recommended, as tripping on the cables will cause the camcorder to fall, resulting in damage.
䡲 This camcorder is designed exclusively for the digital video cassette, SD Memory Card and
MultiMediaCard. Only cassettes marked “
” can be used with this unit.
“
” and memory cards* marked “
” or
Before recording an important scene . . .
.... make sure you only use cassettes with the Mini DV mark
.
.... make sure you only use memory cards* with the mark
.... remember that this camcorder is not compatible with other digital video formats.
.... remember that this camcorder is intended for private consumer use only. Any commercial use without
.
or
proper permission is prohibited. (Even if you record an event such as a show, performance or
exhibition for personal enjoyment, it is strongly recommended that you obtain permission beforehand.)
* Memory cards can be used with GR-DVL867/DVL865/DVL767/DVL765/DVL567/DVL367/DVL365 only.
数码说明书之家—WWW.54GG.COM

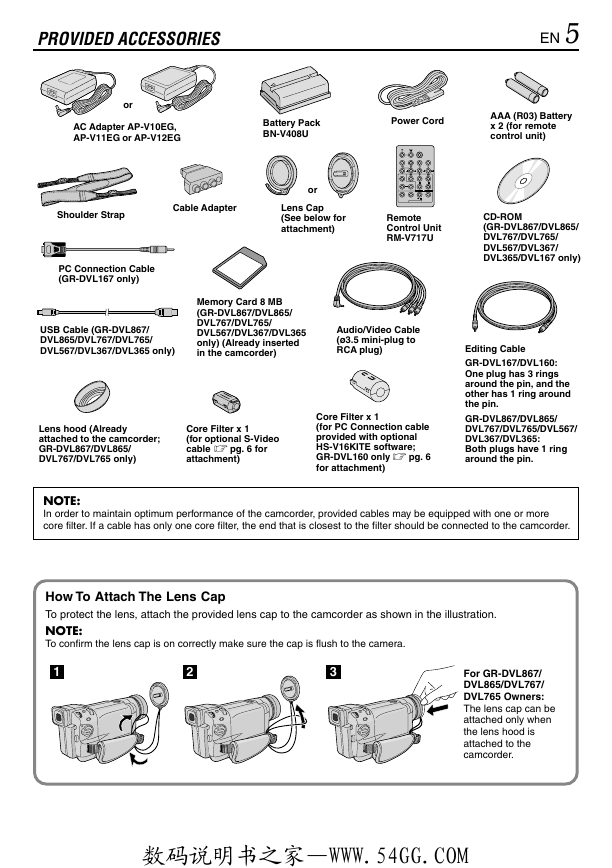

PROVIDED ACCESSORIES
EN 5
or
AC Adapter AP-V10EG,
AP-V11EG or AP-V12EG
Battery Pack
BN-V408U
Power Cord
AAA (R03) Battery
x 2 (for remote
control unit)
Shoulder Strap
Cable Adapter
or
Lens Cap
(See below for
attachment)
PC Connection Cable
(GR-DVL167 only)
Remote
Control Unit
RM-V717U
CD-ROM
(GR-DVL867/DVL865/
DVL767/DVL765/
DVL567/DVL367/
DVL365/DVL167 only)
USB Cable (GR-DVL867/
DVL865/DVL767/DVL765/
DVL567/DVL367/DVL365 only)
Memory Card 8 MB
(GR-DVL867/DVL865/
DVL767/DVL765/
DVL567/DVL367/DVL365
only) (Already inserted
in the camcorder)
Audio/Video Cable
(ø3.5 mini-plug to
RCA plug)
Lens hood (Already
attached to the camcorder;
GR-DVL867/DVL865/
DVL767/DVL765 only)
Core Filter x 1
(for optional S-Video
cable 墌 pg. 6 for
attachment)
Core Filter x 1
(for PC Connection cable
provided with optional
HS-V16KITE software;
GR-DVL160 only 墌 pg. 6
for attachment)
Editing Cable
GR-DVL167/DVL160:
One plug has 3 rings
around the pin, and the
other has 1 ring around
the pin.
GR-DVL867/DVL865/
DVL767/DVL765/DVL567/
DVL367/DVL365:
Both plugs have 1 ring
around the pin.
NOTE:
In order to maintain optimum performance of the camcorder, provided cables may be equipped with one or more
core filter. If a cable has only one core filter, the end that is closest to the filter should be connected to the camcorder.
How To Attach The Lens Cap
To protect the lens, attach the provided lens cap to the camcorder as shown in the illustration.
NOTE:
To confirm the lens cap is on correctly make sure the cap is flush to the camera.
1
2
3
For GR-DVL867/
DVL865/DVL767/
DVL765 Owners:
The lens cap can be
attached only when
the lens hood is
attached to the
camcorder.
数码说明书之家—WWW.54GG.COM
6 EN

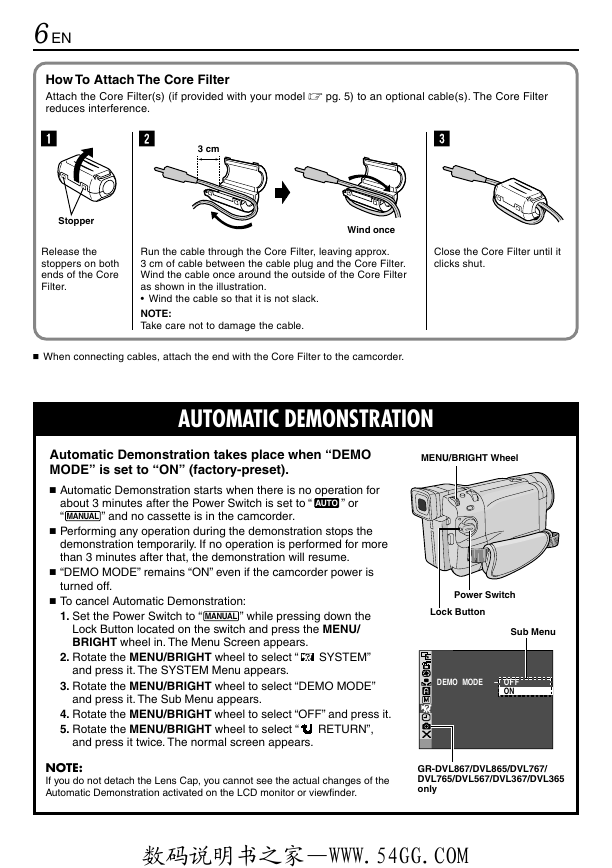

How To Attach The Core Filter
Attach the Core Filter(s) (if provided with your model 墌 pg. 5) to an optional cable(s). The Core Filter
reduces interference.
1
2
3 cm
3
Stopper
Release the
stoppers on both
ends of the Core
Filter.
Wind once
Run the cable through the Core Filter, leaving approx.
3 cm of cable between the cable plug and the Core Filter.
Wind the cable once around the outside of the Core Filter
as shown in the illustration.
• Wind the cable so that it is not slack.
NOTE:
Take care not to damage the cable.
䡲 When connecting cables, attach the end with the Core Filter to the camcorder.
Close the Core Filter until it
clicks shut.
AUTOMATIC DEMONSTRATION
Automatic Demonstration takes place when “DEMO
MODE” is set to “ON” (factory-preset).
䡲 Automatic Demonstration starts when there is no operation for
about 3 minutes after the Power Switch is set to “ AUTO ” or
“ MANUAL ” and no cassette is in the camcorder.
䡲 Performing any operation during the demonstration stops the
demonstration temporarily. If no operation is performed for more
than 3 minutes after that, the demonstration will resume.
䡲 “DEMO MODE” remains “ON” even if the camcorder power is
turned off.
䡲 To cancel Automatic Demonstration:
1. Set the Power Switch to “ MANUAL ” while pressing down the
Lock Button located on the switch and press the MENU/
BRIGHT wheel in. The Menu Screen appears.
2. Rotate the MENU/BRIGHT wheel to select “
and press it. The SYSTEM Menu appears.
SYSTEM”
3. Rotate the MENU/BRIGHT wheel to select “DEMO MODE”
and press it. The Sub Menu appears.
MENU/BRIGHT Wheel
Power Switch
Lock Button
Sub Menu
DEMO
MODE
–
OFF
ON
4. Rotate the MENU/BRIGHT wheel to select “OFF” and press it.
5. Rotate the MENU/BRIGHT wheel to select “
RETURN”,
and press it twice. The normal screen appears.
NOTE:
If you do not detach the Lens Cap, you cannot see the actual changes of the
Automatic Demonstration activated on the LCD monitor or viewfinder.
GR-DVL867/DVL865/DVL767/
DVL765/DVL567/DVL367/DVL365
only
数码说明书之家—WWW.54GG.COM

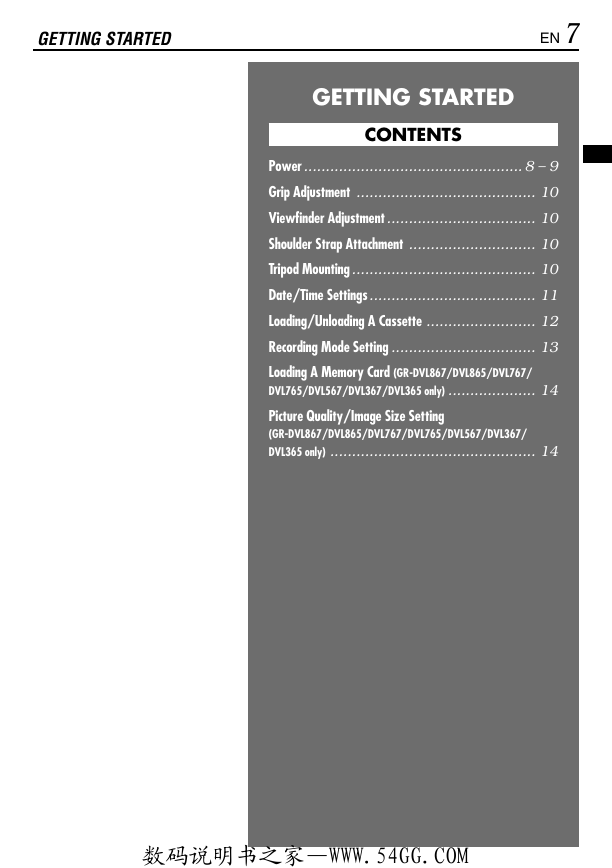

GETTING STARTED
EN 7
GETTING STARTED
CONTENTS
Power .................................................. 8 – 9
Grip Adjustment ......................................... 10
Viewfinder Adjustment .................................. 10
Shoulder Strap Attachment ............................. 10
Tripod Mounting .......................................... 10
Date/Time Settings...................................... 11
Loading/Unloading A Cassette ......................... 12
Recording Mode Setting ................................. 13
Loading A Memory Card (GR-DVL867/DVL865/DVL767/
DVL765/DVL567/DVL367/DVL365 only) .................... 14
Picture Quality/Image Size Setting
(GR-DVL867/DVL865/DVL767/DVL765/DVL567/DVL367/
DVL365 only) ............................................... 14
数码说明书之家—WWW.54GG.COM
8 EN

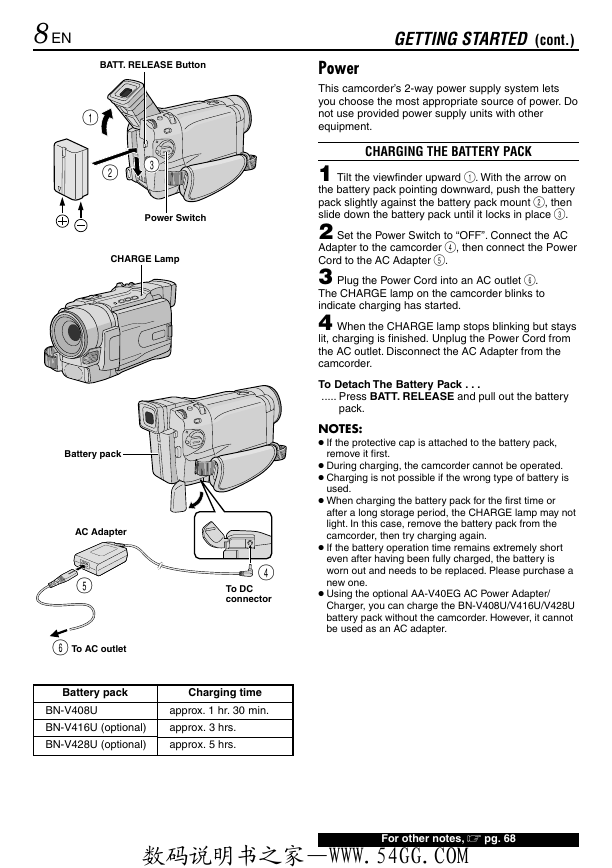

BATT. RELEASE Button
1
32
Power Switch
CHARGE Lamp
Battery pack
AC Adapter
5
6
To AC outlet
4
To DC
connector
Battery pack
Charging time
BN-V408U
BN-V416U (optional)
BN-V428U (optional)
approx. 1 hr. 30 min.
approx. 3 hrs.
approx. 5 hrs.
GETTING STARTED (cont.)
Power
This camcorder’s 2-way power supply system lets
you choose the most appropriate source of power. Do
not use provided power supply units with other
equipment.
CHARGING THE BATTERY PACK
1 Tilt the viewfinder upward 1. With the arrow on
the battery pack pointing downward, push the battery
pack slightly against the battery pack mount 2, then
slide down the battery pack until it locks in place 3.
2 Set the Power Switch to “OFF”. Connect the AC
Adapter to the camcorder 4, then connect the Power
Cord to the AC Adapter 5.
3 Plug the Power Cord into an AC outlet 6.
The CHARGE lamp on the camcorder blinks to
indicate charging has started.
4 When the CHARGE lamp stops blinking but stays
lit, charging is finished. Unplug the Power Cord from
the AC outlet. Disconnect the AC Adapter from the
camcorder.
To Detach The Battery Pack . . .
..... Press BATT. RELEASE and pull out the battery
pack.
NOTES:
● If the protective cap is attached to the battery pack,
● When charging the battery pack for the first time or
after a long storage period, the CHARGE lamp may not
light. In this case, remove the battery pack from the
camcorder, then try charging again.
● If the battery operation time remains extremely short
even after having been fully charged, the battery is
worn out and needs to be replaced. Please purchase a
new one.
● Using the optional AA-V40EG AC Power Adapter/
Charger, you can charge the BN-V408U/V416U/V428U
battery pack without the camcorder. However, it cannot
be used as an AC adapter.
● During charging, the camcorder cannot be operated.
● Charging is not possible if the wrong type of battery is
remove it first.
used.
For other notes, 墌 pg. 68
数码说明书之家—WWW.54GG.COM
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
