3-868-323-12 (1) Video Camera Recorder Operating Instructions Before operating the unit, please read this manual thoroughly, and retain it for future reference. Owner’s Record The model and serial numbers are located on the bottom. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product. Model No. CCD-TRV Model No. AC-L Serial No. Serial No. CCD-TRV87 CCD-TRV87 CCD-TRV67 CCD-TRV17/TRV37/TRV57 ©1999 Sony Corporation

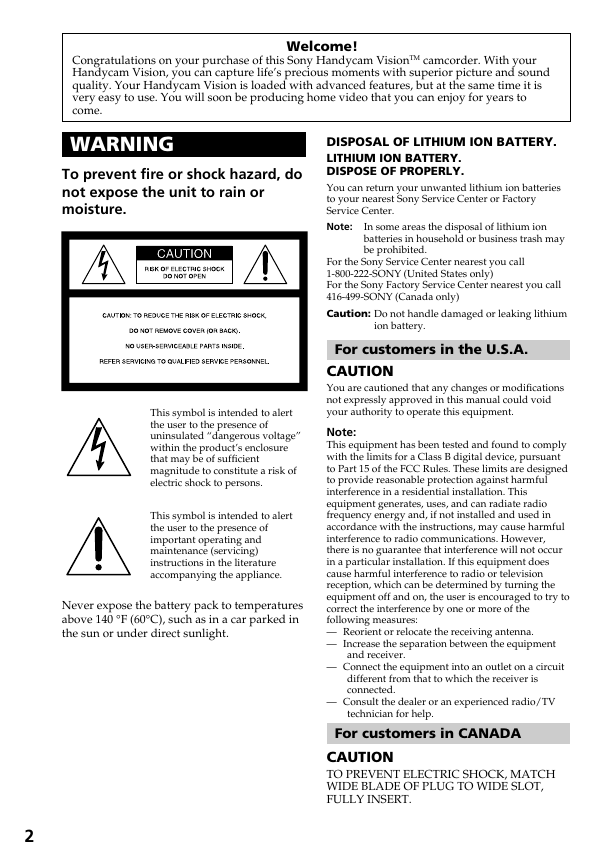

Welcome! Congratulations on your purchase of this Sony Handycam VisionTM camcorder. With your Handycam Vision, you can capture life’s precious moments with superior picture and sound quality. Your Handycam Vision is loaded with advanced features, but at the same time it is very easy to use. You will soon be producing home video that you can enjoy for years to come. WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. Never expose the battery pack to temperatures above 140 °F (60°C), such as in a car parked in the sun or under direct sunlight. DISPOSAL OF LITHIUM ION BATTERY. LITHIUM ION BATTERY. DISPOSE OF PROPERLY. You can return your unwanted lithium ion batteries to your nearest Sony Service Center or Factory Service Center. Note: In some areas the disposal of lithium ion batteries in household or business trash may be prohibited. For the Sony Service Center nearest you call 1-800-222-SONY (United States only) For the Sony Factory Service Center nearest you call 416-499-SONY (Canada only) Caution: Do not handle damaged or leaking lithium ion battery. For customers in the U.S.A. CAUTION You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. For customers in CANADA CAUTION TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. 2

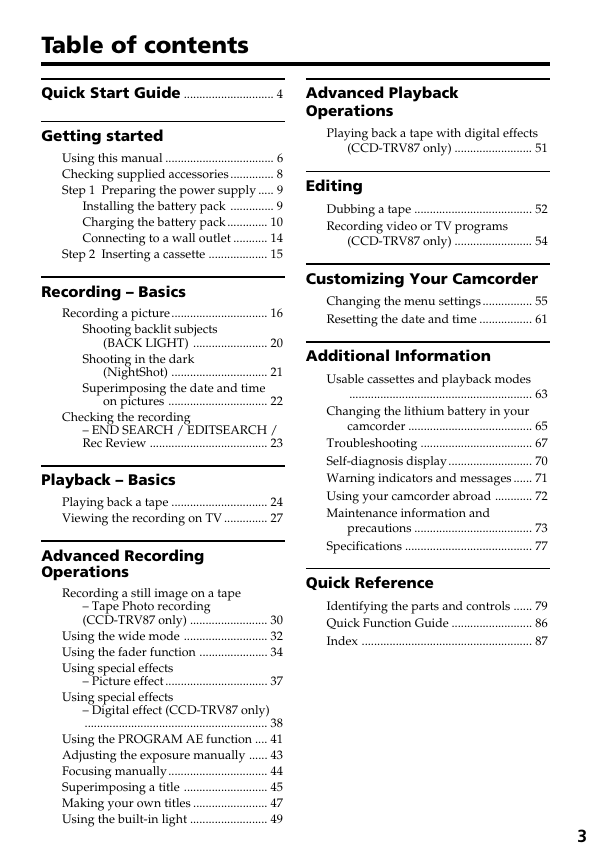

Table of contents Quick Start Guide ............................. 4 Advanced Playback Operations Getting started Using this manual ................................... 6 Checking supplied accessories .............. 8 Step 1 Preparing the power supply ..... 9 Installing the battery pack .............. 9 Charging the battery pack ............. 10 Connecting to a wall outlet ........... 14 Step 2 Inserting a cassette ................... 15 Recording – Basics Recording a picture............................... 16 Shooting backlit subjects (BACK LIGHT) ........................ 20 Shooting in the dark (NightShot) ............................... 21 Superimposing the date and time on pictures ................................ 22 Checking the recording – END SEARCH / EDITSEARCH / Rec Review ...................................... 23 Playback – Basics Playing back a tape ............................... 24 Viewing the recording on TV .............. 27 Advanced Recording Operations Recording a still image on a tape – Tape Photo recording (CCD-TRV87 only) ......................... 30 Using the wide mode ........................... 32 Using the fader function ...................... 34 Using special effects – Picture effect ................................. 37 G e t t i n g s t a r t e d Playing back a tape with digital effects (CCD-TRV87 only) ......................... 51 Editing Dubbing a tape ...................................... 52 Recording video or TV programs (CCD-TRV87 only) ......................... 54 Customizing Your Camcorder Changing the menu settings ................ 55 Resetting the date and time ................. 61 Additional Information Usable cassettes and playback modes ........................................................... 63 Changing the lithium battery in your camcorder ........................................ 65 Troubleshooting .................................... 67 Self-diagnosis display........................... 70 Warning indicators and messages ...... 71 Using your camcorder abroad ............ 72 Maintenance information and precautions ...................................... 73 Specifications ......................................... 77 Quick Reference Identifying the parts and controls ...... 79 Quick Function Guide .......................... 86 Index ....................................................... 87 Using special effects – Digital effect (CCD-TRV87 only) ........................................................... 38 Using the PROGRAM AE function .... 41 Adjusting the exposure manually ...... 43 Focusing manually................................ 44 Superimposing a title ........................... 45 Making your own titles ........................ 47 Using the built-in light ......................... 49 3

Quick Start Guide This chapter introduces you to the basic features of your camcorder. See the page in parentheses “( )” for more information. Connecting the power cord (p. 14) Use the battery pack when using your camcorder outdoors (p. 9). Open the DC IN jack cover. Connect the plug with its v mark facing up. mark 3 Close the cassette compartment by pressing the on the cassette compartment. The cassette compartment automatically goes down. AC power adaptor (supplied) Inserting a cassette (p. 15) 1 Slide EJECT in the direction of the arrow while pressing the small blue button. 2 Insert a cassette into the cassette compartment with its window facing out. E J E C T Q u i c k S t a r t G u d e i 4

Recording a picture (p. 16) 1 Set the POWER switch to CAMERA while pressing the small green button. POWER CAMERA OFF (CHARGE) VTR 2 Open the LCD panel while pressing OPEN. 3 Turn STANDBY to STANDBY. The picture appears on the LCD screen. L O C K S T A NDBY START/STOP 4 Press the red button. Your camcorder starts recording. To stop recording, press the red button again. L O C K S T A NDBY START/STOP Viewfinder When the LCD panel is closed, use the viewfinder placing your eye against its eyecup. The picture in the viewfinder is black and white. Monitoring the playback picture on the LCD screen (p. 24) 1 Set the POWER switch to VTR (CCD-TRV87) or PLAYER (CCD- TRV17/TRV37/ TRV57/TRV67) while pressing the small green button. POWER CAMERA OFF (CHARGE) VTR 2 Press m to rewind the tape. REW 3 Press N to start playback. PLAY Q u i c k S t a r t G u d e i NOTE Do not pick up your camcorder by holding the viewfinder, the LCD panel or the battery pack. 5

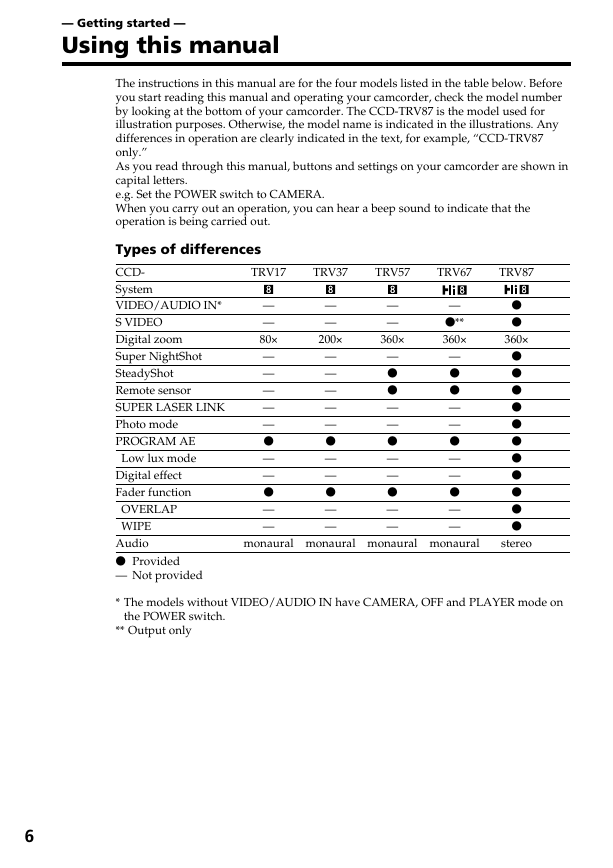

— Getting started — Using this manual The instructions in this manual are for the four models listed in the table below. Before you start reading this manual and operating your camcorder, check the model number by looking at the bottom of your camcorder. The CCD-TRV87 is the model used for illustration purposes. Otherwise, the model name is indicated in the illustrations. Any differences in operation are clearly indicated in the text, for example, “CCD-TRV87 only.” As you read through this manual, buttons and settings on your camcorder are shown in capital letters. e.g. Set the POWER switch to CAMERA. When you carry out an operation, you can hear a beep sound to indicate that the operation is being carried out. TRV17 TRV37 TRV57 TRV67 TRV87 Types of differences CCD- System VIDEO/AUDIO IN* S VIDEO Digital zoom Super NightShot SteadyShot Remote sensor SUPER LASER LINK Photo mode PROGRAM AE Low lux mode Digital effect Fader function OVERLAP WIPE Audio z Provided — Not provided — — 80· — — — — — z — — z — — — — 200· — — — — — z — — z — — — — 360· — z z — — z — — z — — — z** 360· — z z — — z — — z — — z z 360· z z z z z z z z z z z stereo monaural monaural monaural monaural * The models without VIDEO/AUDIO IN have CAMERA, OFF and PLAYER mode on the POWER switch. ** Output only 6

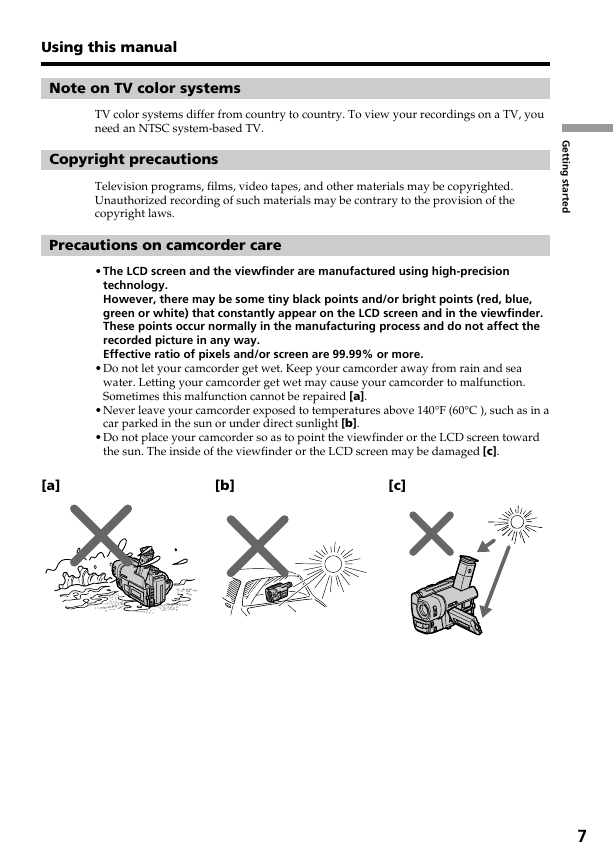

Using this manual Note on TV color systems TV color systems differ from country to country. To view your recordings on a TV, you need an NTSC system-based TV. Copyright precautions Television programs, films, video tapes, and other materials may be copyrighted. Unauthorized recording of such materials may be contrary to the provision of the copyright laws. G e t t i n g s t a r t e d Precautions on camcorder care •The LCD screen and the viewfinder are manufactured using high-precision technology. However, there may be some tiny black points and/or bright points (red, blue, green or white) that constantly appear on the LCD screen and in the viewfinder. These points occur normally in the manufacturing process and do not affect the recorded picture in any way. Effective ratio of pixels and/or screen are 99.99% or more. •Do not let your camcorder get wet. Keep your camcorder away from rain and sea water. Letting your camcorder get wet may cause your camcorder to malfunction. Sometimes this malfunction cannot be repaired [a]. •Never leave your camcorder exposed to temperatures above 140°F (60°C ), such as in a car parked in the sun or under direct sunlight [b]. •Do not place your camcorder so as to point the viewfinder or the LCD screen toward the sun. The inside of the viewfinder or the LCD screen may be damaged [c]. [a] [b] [c] 7

Checking supplied accessories Make sure that the following accessories are supplied with your camcorder. 1 4 2 5 3 7 6 * or 1 Wireless Remote Commander (1) (p. 84) CCD-TRV57/TRV67/TRV87 only 5 Size AA (R6) battery for Remote Commander (2) (p. 84) CCD-TRV57/TRV67/TRV87 only 2 AC-L10A/L10B/L10C AC power adaptor (1), Power cord (1) (p. 10) 6 A/V connecting cable (1) (p. 27) * for stereo model 3 NP-F330 battery pack (1) (p. 9, 10) 7 Shoulder strap (1) (p. 81) 4 CR2025 lithium battery (1) (p. 65) The lithium battery is already installed in your camcorder. Contents of the recording cannot be compensated if recording or playback is not made due to a malfunction of the camcorder, video tape, etc. 8
