COMPACT VHS CAMCORDER GR-SXM86ED GR-SXM85ED GR-SXM76ED GR-SX56ED GR-FXM66ED GR-FX36ED ENGLISH CONTENTS 2 – 3 SAFETY PRECAUTIONS AUTOMATIC DEMONSTRATION 4 4 PROVIDED ACCESSORIES 6 – 13 GETTING STARTED 14 – 29 RECORDING Basic Recording .......................... 14 Basic Features ........................... 16 Zooming, Picture Stabilizer, Quick Review, Video Light, Retake Advanced Features ...................... 18 Snapshot, Night-Scope, Fade/Wipe Effects, Program AE with Special Effects, Digital Effects, Using Menu For Detailed Adjustment, Date/Time Insert, Instant Titles, Animation, Time-Lapse, Exposure Control, Focusing, White Balance Adjustment, Manual White Balance Operation PLAYBACK 30 – 34 Basic Playback ........................... 30 Features .................................. 31 Connections ............................... 32 Using The Cassette Adapter ........... 34 USING THE REMOTE CONTROL UNIT 35 – 43 Playback Zoom .......................... 37 Insert Editing ............................. 38 Audio Dubbing ........................... 39 Random Assemble Editing .............. 40 44 – 45 46 – 47 48 – 51 DETAILS TROUBLESHOOTING INDEX Controls, Connectors And Indicators ......................... 48 Indications ................................ 50 52 – 54 55 CAUTIONS SPECIFICATIONS VHS PAL 625 S-VHS is compatible with GR-SXM86ED/SXM85ED/ SXM76ED/SX56ED only. INSTRUCTIONS LYT0686-001A EN

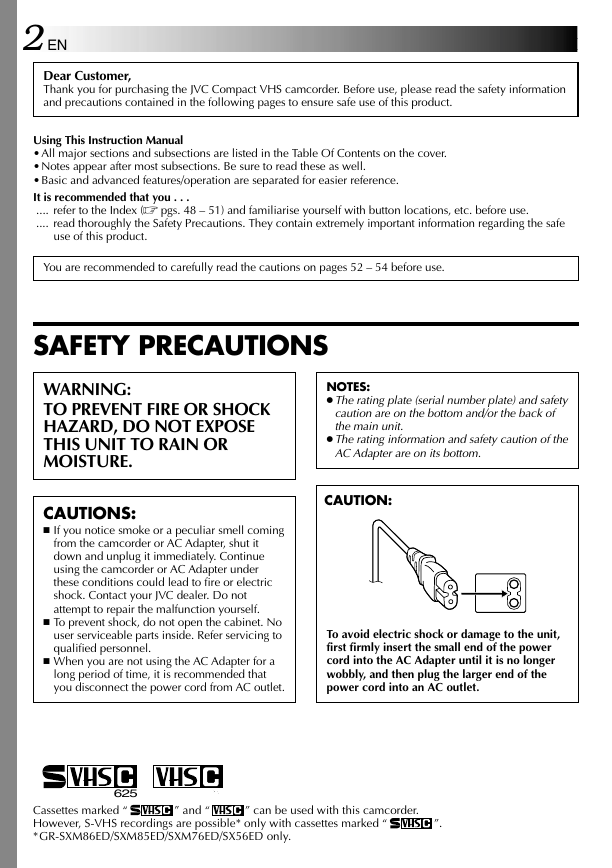

2 EN Dear Customer, Thank you for purchasing the JVC Compact VHS camcorder. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of this product. Using This Instruction Manual •All major sections and subsections are listed in the Table Of Contents on the cover. •Notes appear after most subsections. Be sure to read these as well. •Basic and advanced features/operation are separated for easier reference. It is recommended that you . . . .... refer to the Index (墌 pgs. 48 – 51) and familiarise yourself with button locations, etc. before use. .... read thoroughly the Safety Precautions. They contain extremely important information regarding the safe use of this product. You are recommended to carefully read the cautions on pages 52 – 54 before use. SAFETY PRECAUTIONS WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. NOTES: ●The rating plate (serial number plate) and safety caution are on the bottom and/or the back of the main unit. ●The rating information and safety caution of the AC Adapter are on its bottom. CAUTIONS: 䡲 If you notice smoke or a peculiar smell coming from the camcorder or AC Adapter, shut it down and unplug it immediately. Continue using the camcorder or AC Adapter under these conditions could lead to fire or electric shock. Contact your JVC dealer. Do not attempt to repair the malfunction yourself. 䡲 To prevent shock, do not open the cabinet. No user serviceable parts inside. Refer servicing to qualified personnel. 䡲 When you are not using the AC Adapter for a long period of time, it is recommended that you disconnect the power cord from AC outlet. CAUTION: To avoid electric shock or damage to the unit, first firmly insert the small end of the power cord into the AC Adapter until it is no longer wobbly, and then plug the larger end of the power cord into an AC outlet. 625 Cassettes marked “ However, S-VHS recordings are possible* only with cassettes marked “ *GR-SXM86ED/SXM85ED/SXM76ED/SX56ED only. ” can be used with this camcorder. ” and “ ”.

CAUTIONS: 䡲 This camcorder is designed to be used with PAL-type colour television signals. It cannot be used for playback with a television of a different standard. However, live recording and LCD monitor*/viewfinder playback are possible anywhere. 䡲 Use the JVC BN-V11U/V12U/V20U/V400U battery packs and, to recharge them or to supply power to the camcorder from an AC outlet, use the provided multi-voltage AC Adapter and Power Cord. (An appropriate conversion adapter may be necessary to accommodate different designs of AC outlets in different countries.) *Models equipped with LCD monitor only. EN3 When the equipment is installed in a cabinet or on a shelf, make sure that it has sufficient space on all sides to allow for ventilation (10 cm or more on both sides, on top and at the rear). Do not block the ventilation holes. (If the ventilation holes are blocked by a newspaper, or cloth etc. heat may not be able to get out.) No naked flame sources, such as lighted candles, should be placed on the apparatus. When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly. The apparatus shall not be exposed to dripping or splashing. Do not use this equipment in a bathroom or places with water. Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases, potted plants, cups etc.) on top of this unit. (If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)

4 EN AUTOMATIC DEMONSTRATION Automatic Demonstration takes place when ”DEMO MODE” is set to ”ON” (factory-preset). 䡲 Available when the Power Switch is set to ” ” or ” ”. 䡲 Operating the Power Zoom Lever during the demonstration stops the demonstration temporarily. If the Power Zoom Lever is not moved for more than 1 minute after that, the demonstration will resume. DEMO MODE F O O F N 䡲 “DEMO MODE” remains ”ON” even if the camcorder power is turned off. 䡲 To cancel Automatic Demonstration, set the Power Switch to “ ” and press MENU while the demo is in progress. This takes you directly to the demo mode’s Setting Menu (so you will not have to go through the main Menu Screen). Rotate MENU to select “OFF” and press it. E X I T Setting Menu NOTE: When a tape whose Erase Protection tab is in the position that allows recording is loaded in the camcorder, demonstration is not available. PROVIDED ACCESSORIES •AC Adapter AP-V10ED •Power Cord •Remote Control Unit RM-V716U •Battery Pack BN-V11U •Cassette Adapter C-P7U •Shoulder Strap •Lens Cap •AAA (R03) Battery x 2 (for Remote Control Unit) •AA (R6) Battery (for Cassette Adapter) •Core Filter x 3 (for provided A/V Cable and AC Adapter, GR-FXM66ED/FX36ED only) •Core Filter x 4 (for provided A/V Cable, S-Video Cable and AC Adapter, GR-SXM86ED/SXM85ED/ SXM76ED/SX56ED only) •Editing Cable (ø3.5 mini-plug cable) •A/V (Audio/Video) Cable •S-Video Cable (GR-SXM86ED/SXM85ED/ SXM76ED/SX56ED only)

How To Attach The Core Filter Attach the provided Core Filter to the provided A/V Cable, S-Video Cable and AC Adapter. The Core Filter reduces interference. EN5 1 Stopper 2 5 cm 3 Filter. 1Release the stoppers on both ends of the Core 2Run the cable through the Core Filter, leaving approx. 5 cm of cable between the cable plug and the Core Filter. Wind the cable around the outside of the Core Filter as shown in the illustration. •Wind the cable so that it is not slack. NOTE: Take care not to damage the cable. 3Close the Core Filter until it clicks shut. Connect the end of the cable with the Core Filter to the camcorder. With the provided AC Adapter, attach Core Filters to both ends of the cable as shown below. 5 cm 5 cm How To Attach The Lens Cap To protect the lens, attach the provided lens cap to the camcorder as shown in the illustration. 1 2 3

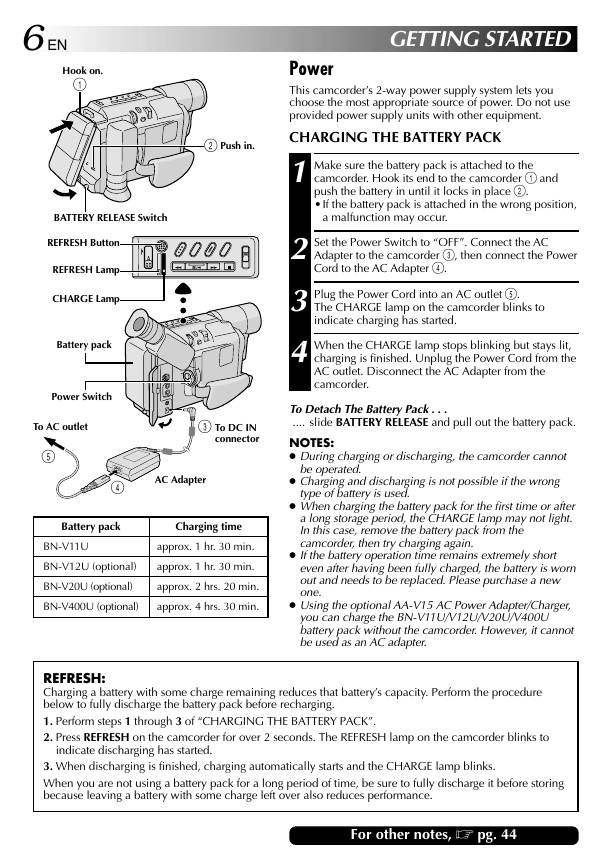

6 EN Hook on. 1 2 Push in. 3 To DC IN connector BATTERY RELEASE Switch REFRESH Button REFRESH Lamp CHARGE Lamp Battery pack Power Switch To AC outlet 5 4 AC Adapter Battery pack Charging time BN-V11U approx. 1 hr. 30 min. BN-V12U (optional) approx. 1 hr. 30 min. BN-V20U (optional) approx. 2 hrs. 20 min. BN-V400U (optional) approx. 4 hrs. 30 min. GETTING STARTED Power This camcorder’s 2-way power supply system lets you choose the most appropriate source of power. Do not use provided power supply units with other equipment. CHARGING THE BATTERY PACK 1 Make sure the battery pack is attached to the camcorder. Hook its end to the camcorder 1 and push the battery in until it locks in place 2. •If the battery pack is attached in the wrong position, a malfunction may occur. Adapter to the camcorder 3, then connect the Power Cord to the AC Adapter 4. 2 Set the Power Switch to “OFF”. Connect the AC 3 Plug the Power Cord into an AC outlet 5. 4 When the CHARGE lamp stops blinking but stays lit, The CHARGE lamp on the camcorder blinks to indicate charging has started. charging is finished. Unplug the Power Cord from the AC outlet. Disconnect the AC Adapter from the camcorder. To Detach The Battery Pack . . . .... slide BATTERY RELEASE and pull out the battery pack. NOTES: ● During charging or discharging, the camcorder cannot be operated. ● Charging and discharging is not possible if the wrong type of battery is used. ● When charging the battery pack for the first time or after a long storage period, the CHARGE lamp may not light. In this case, remove the battery pack from the camcorder, then try charging again. ● If the battery operation time remains extremely short even after having been fully charged, the battery is worn out and needs to be replaced. Please purchase a new one. ● Using the optional AA-V15 AC Power Adapter/Charger, you can charge the BN-V11U/V12U/V20U/V400U battery pack without the camcorder. However, it cannot be used as an AC adapter. REFRESH: Charging a battery with some charge remaining reduces that battery’s capacity. Perform the procedure below to fully discharge the battery pack before recharging. 1. Perform steps 1 through 3 of “CHARGING THE BATTERY PACK”. 2. Press REFRESH on the camcorder for over 2 seconds. The REFRESH lamp on the camcorder blinks to indicate discharging has started. 3. When discharging is finished, charging automatically starts and the CHARGE lamp blinks. When you are not using a battery pack for a long period of time, be sure to fully discharge it before storing because leaving a battery with some charge left over also reduces performance. For other notes, 墌 pg. 44

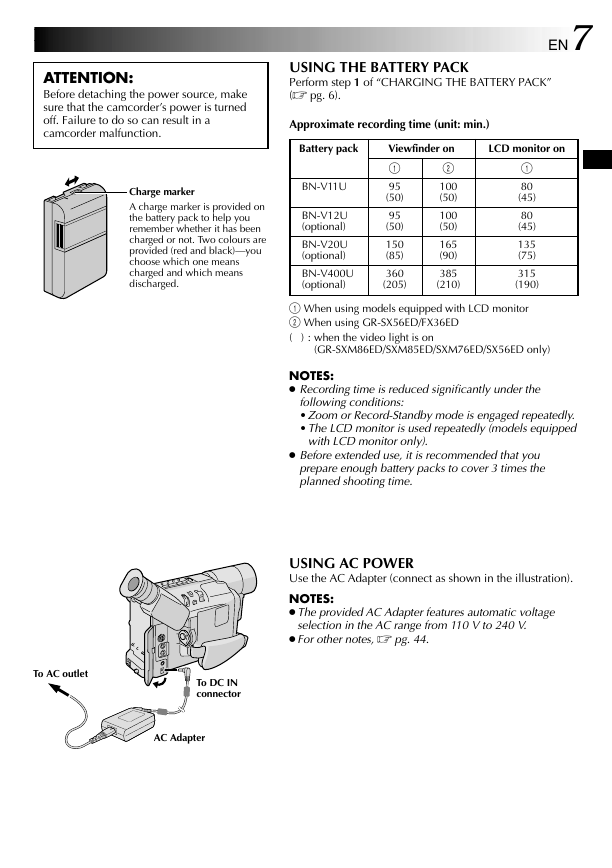

ATTENTION: Before detaching the power source, make sure that the camcorder’s power is turned off. Failure to do so can result in a camcorder malfunction. Charge marker A charge marker is provided on the battery pack to help you remember whether it has been charged or not. Two colours are provided (red and black)—you choose which one means charged and which means discharged. EN7 USING THE BATTERY PACK Perform step 1 of “CHARGING THE BATTERY PACK” (墌 pg. 6). Approximate recording time (unit: min.) Battery pack BN-V11U BN-V12U (optional) BN-V20U (optional) BN-V400U (optional) Viewfinder on 2 1 100 95 (50) (50) 100 95 (50) (50) 165 150 (90) (85) 360 385 (210) (205) LCD monitor on 1 80 (45) 80 (45) 135 (75) 315 (190) 1 When using models equipped with LCD monitor 2 When using GR-SX56ED/FX36ED ( ) : when the video light is on (GR-SXM86ED/SXM85ED/SXM76ED/SX56ED only) NOTES: ● Recording time is reduced significantly under the following conditions: •Zoom or Record-Standby mode is engaged repeatedly. •The LCD monitor is used repeatedly (models equipped with LCD monitor only). ● Before extended use, it is recommended that you prepare enough battery packs to cover 3 times the planned shooting time. USING AC POWER Use the AC Adapter (connect as shown in the illustration). NOTES: ●The provided AC Adapter features automatic voltage selection in the AC range from 110 V to 240 V. ●For other notes, 墌 pg. 44. To AC outlet To DC IN connector AC Adapter

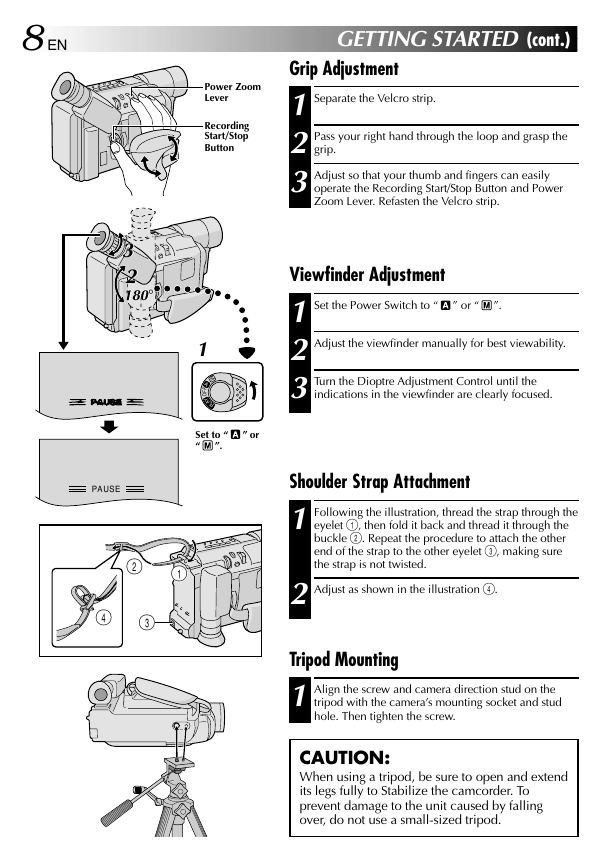

8 EN Power Zoom Lever Recording Start/Stop Button 1 M A F F O Y A PL Set to “ ”. “ ” or 33 22 180°180° PAUSE 2 1 4 3 GETTING STARTED (cont.) Grip Adjustment 1 Separate the Velcro strip. 2 Pass your right hand through the loop and grasp the 3 Adjust so that your thumb and fingers can easily operate the Recording Start/Stop Button and Power Zoom Lever. Refasten the Velcro strip. grip. ” or “ ”. Viewfinder Adjustment 1 Set the Power Switch to “ 2 Adjust the viewfinder manually for best viewability. 3 Turn the Dioptre Adjustment Control until the indications in the viewfinder are clearly focused. Shoulder Strap Attachment 1 Following the illustration, thread the strap through the eyelet 1, then fold it back and thread it through the buckle 2. Repeat the procedure to attach the other end of the strap to the other eyelet 3, making sure the strap is not twisted. 2 Adjust as shown in the illustration 4. Tripod Mounting 1 Align the screw and camera direction stud on the tripod with the camera’s mounting socket and stud hole. Then tighten the screw. CAUTION: When using a tripod, be sure to open and extend its legs fully to Stabilize the camcorder. To prevent damage to the unit caused by falling over, do not use a small-sized tripod.
