松下笔记本电脑-CF-M34说明书.pdf
XP
Personal Computer
OPERATING INSTRUCTIONS
Model No. CF-M34 Series

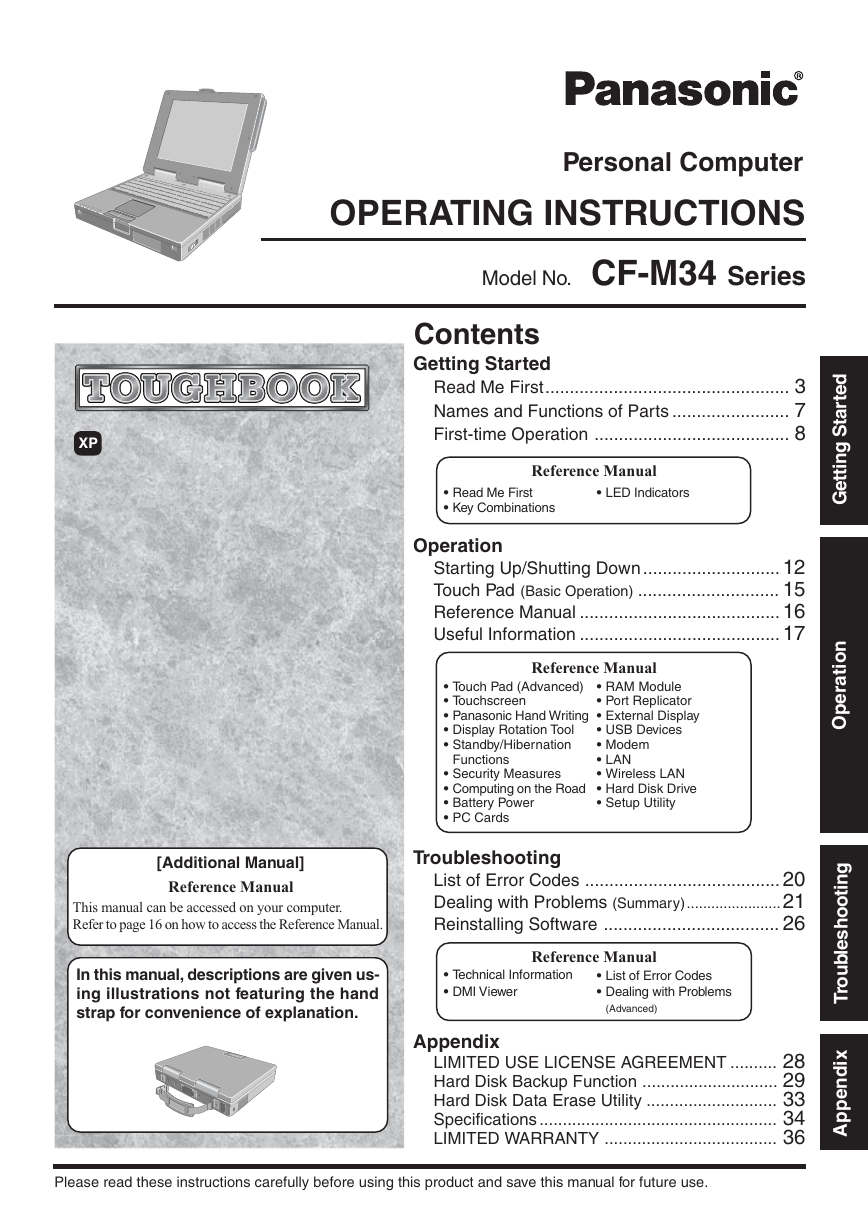

Contents
Getting Started
Read Me First.................................................. 3
Names and Functions of Parts ........................ 7
First-time Operation ........................................ 8
Reference Manual
• Read Me First
Key Combinations
LED Indicators
Operation
Starting Up/Shutting Down ............................ 12
Touch Pad (Basic Operation) ............................. 15
Reference Manual ......................................... 16
Useful Information ......................................... 17
Reference Manual
Touch Pad (Advanced)
Touchscreen
Panasonic Hand Writing
Display Rotation Tool
Standby/Hibernation
Functions
Security Measures
Computing on the Road
Battery Power
PC Cards
RAM Module
Port Replicator
External Display
USB Devices
Modem
LAN
Wireless LAN
Hard Disk Drive
Setup Utility
[Additional Manual]
Reference Manual
This manual can be accessed on your computer.
Refer to page 16 on how to access the Reference Manual.
Troubleshooting
List of Error Codes ........................................ 20
Dealing with Problems (Summary).......................21
Reinstalling Software .................................... 26
In this manual, descriptions are given us-
ing illustrations not featuring the hand
strap for convenience of explanation.
Reference Manual
Technical Information
DMI Viewer
List of Error Codes
Dealing with Problems
(Advanced)
Appendix
LIMITED USE LICENSE AGREEMENT .......... 28
Hard Disk Backup Function ............................. 29
Hard Disk Data Erase Utility ............................ 33
Specifications ................................................... 34
LIMITED WARRANTY ..................................... 36
Please read these instructions carefully before using this product and save this manual for future use.
d
e
t
r
a
t
S
g
n
i
t
t
e
G
n
o
i
t
a
r
e
p
O
g
n
i
t
o
o
h
s
e
l
b
u
o
r
T
i
x
d
n
e
p
p
A
Customer's Record
Dealer's Name
Dealer's Address
Model No.*
Serial No.
or
Code No.
Date of Purchase
* For the Model No., insert the 12 digit number (for example, CF-M34CGFZKM) located on
the bottom of the computer.

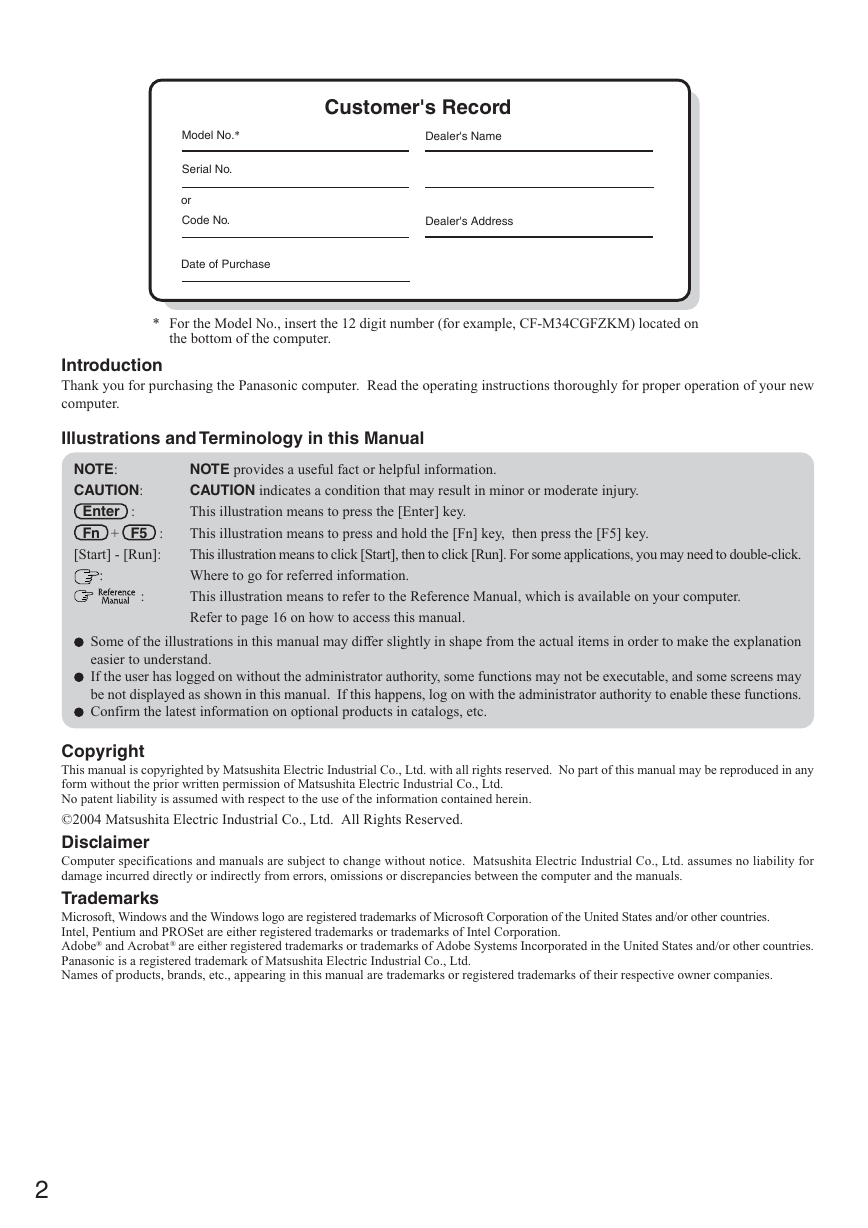

Introduction
Thank you for purchasing the Panasonic computer. Read the operating instructions thoroughly for proper operation of your new
computer.
Illustrations and Terminology in this Manual
NOTE:
CAUTION:
Enter :
Fn + F5 :
[Start] - [Run]:
:
:
NOTE provides a useful fact or helpful information.
CAUTION indicates a condition that may result in minor or moderate injury.
This illustration means to press the [Enter] key.
This illustration means to press and hold the [Fn] key, then press the [F5] key.
This illustration means to click [Start], then to click [Run]. For some applications, you may need to double-click.
Where to go for referred information.
This illustration means to refer to the Reference Manual, which is available on your computer.
Refer to page 16 on how to access this manual.
Some of the illustrations in this manual may differ slightly in shape from the actual items in order to make the explanation
easier to understand.
If the user has logged on without the administrator authority, some functions may not be executable, and some screens may
be not displayed as shown in this manual. If this happens, log on with the administrator authority to enable these functions.
Confirm the latest information on optional products in catalogs, etc.
Copyright
This manual is copyrighted by Matsushita Electric Industrial Co., Ltd. with all rights reserved. No part of this manual may be reproduced in any
form without the prior written permission of Matsushita Electric Industrial Co., Ltd.
No patent liability is assumed with respect to the use of the information contained herein.
©2004 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.
Disclaimer
Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd. assumes no liability for
damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manuals.
Trademarks
Microsoft, Windows and the Windows logo are registered trademarks of Microsoft Corporation of the United States and/or other countries.
Intel, Pentium and PROSet are either registered trademarks or trademarks of Intel Corporation.
Adobe® and Acrobat® are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.
Panasonic is a registered trademark of Matsushita Electric Industrial Co., Ltd.
Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective owner companies.
d
e
t
r
a
t
S
g
n
i
t
t
e
G
2

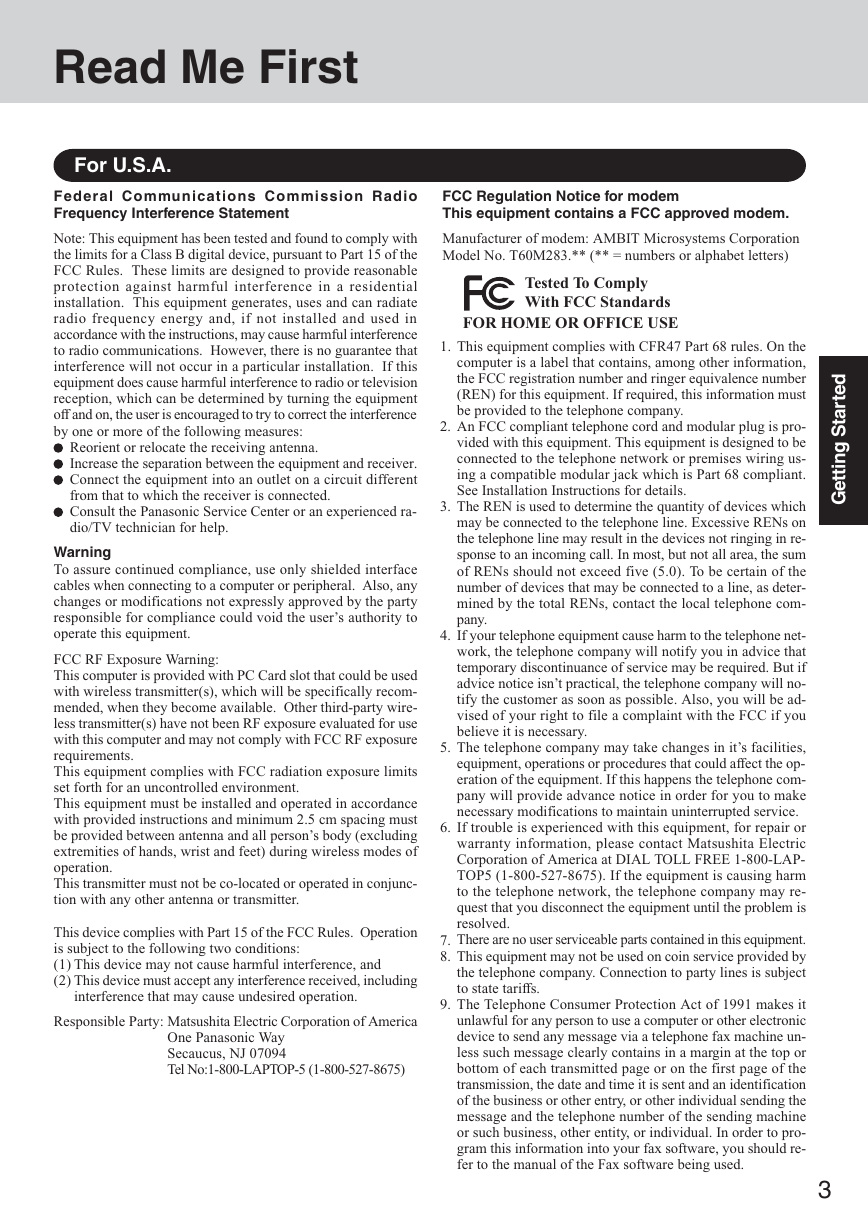

Read Me First
For U.S.A.
Federal Communications Commission Radio
Frequency Interference Statement
FCC Regulation Notice for modem
This equipment contains a FCC approved modem.
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the Panasonic Service Center or an experienced ra-
dio/TV technician for help.
Warning
To assure continued compliance, use only shielded interface
cables when connecting to a computer or peripheral. Also, any
changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate this equipment.
FCC RF Exposure Warning:
This computer is provided with PC Card slot that could be used
with wireless transmitter(s), which will be specifically recom-
mended, when they become available. Other third-party wire-
less transmitter(s) have not been RF exposure evaluated for use
with this computer and may not comply with FCC RF exposure
requirements.
This equipment complies with FCC radiation exposure limits
set forth for an uncontrolled environment.
This equipment must be installed and operated in accordance
with provided instructions and minimum 2.5 cm spacing must
be provided between antenna and all person’s body (excluding
extremities of hands, wrist and feet) during wireless modes of
operation.
This transmitter must not be co-located or operated in conjunc-
tion with any other antenna or transmitter.
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Responsible Party: Matsushita Electric Corporation of America
One Panasonic Way
Secaucus, NJ 07094
Tel No:1-800-LAPTOP-5 (1-800-527-8675)
Manufacturer of modem: AMBIT Microsystems Corporation
Model No. T60M283.** (** = numbers or alphabet letters)
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
1. This equipment complies with CFR47 Part 68 rules. On the
computer is a label that contains, among other information,
the FCC registration number and ringer equivalence number
(REN) for this equipment. If required, this information must
be provided to the telephone company.
2. An FCC compliant telephone cord and modular plug is pro-
vided with this equipment. This equipment is designed to be
connected to the telephone network or premises wiring us-
ing a compatible modular jack which is Part 68 compliant.
See Installation Instructions for details.
3. The REN is used to determine the quantity of devices which
may be connected to the telephone line. Excessive RENs on
the telephone line may result in the devices not ringing in re-
sponse to an incoming call. In most, but not all area, the sum
of RENs should not exceed five (5.0). To be certain of the
number of devices that may be connected to a line, as deter-
mined by the total RENs, contact the local telephone com-
pany.
4. If your telephone equipment cause harm to the telephone net-
work, the telephone company will notify you in advice that
temporary discontinuance of service may be required. But if
advice notice isn’t practical, the telephone company will no-
tify the customer as soon as possible. Also, you will be ad-
vised of your right to file a complaint with the FCC if you
believe it is necessary.
5. The telephone company may take changes in it’s facilities,
equipment, operations or procedures that could affect the op-
eration of the equipment. If this happens the telephone com-
pany will provide advance notice in order for you to make
necessary modifications to maintain uninterrupted service.
6. If trouble is experienced with this equipment, for repair or
warranty information, please contact Matsushita Electric
Corporation of America at DIAL TOLL FREE 1-800-LAP-
TOP5 (1-800-527-8675). If the equipment is causing harm
to the telephone network, the telephone company may re-
quest that you disconnect the equipment until the problem is
resolved.
7. There are no user serviceable parts contained in this equipment.
8. This equipment may not be used on coin service provided by
the telephone company. Connection to party lines is subject
to state tariffs.
9. The Telephone Consumer Protection Act of 1991 makes it
unlawful for any person to use a computer or other electronic
device to send any message via a telephone fax machine un-
less such message clearly contains in a margin at the top or
bottom of each transmitted page or on the first page of the
transmission, the date and time it is sent and an identification
of the business or other entry, or other individual sending the
message and the telephone number of the sending machine
or such business, other entity, or individual. In order to pro-
gram this information into your fax software, you should re-
fer to the manual of the Fax software being used.
d
e
t
r
a
t
S
g
n
i
t
t
e
G
3

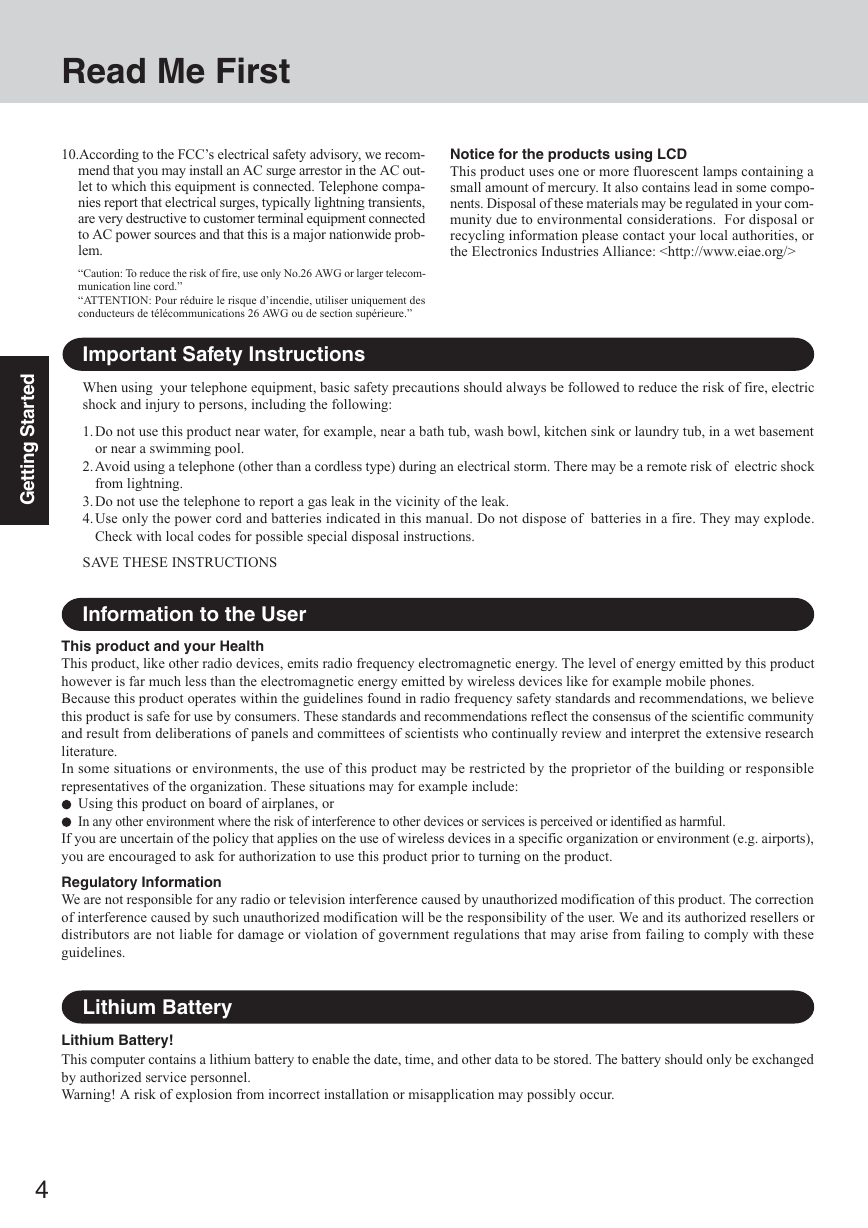

Read Me First
10.According to the FCC’s electrical safety advisory, we recom-
mend that you may install an AC surge arrestor in the AC out-
let to which this equipment is connected. Telephone compa-
nies report that electrical surges, typically lightning transients,
are very destructive to customer terminal equipment connected
to AC power sources and that this is a major nationwide prob-
lem.
“Caution: To reduce the risk of fire, use only No.26 AWG or larger telecom-
munication line cord.”
“ATTENTION: Pour réduire le risque d’incendie, utiliser uniquement des
conducteurs de télécommunications 26 AWG ou de section supérieure.”
Important Safety Instructions
Notice for the products using LCD
This product uses one or more fluorescent lamps containing a
small amount of mercury. It also contains lead in some compo-
nents. Disposal of these materials may be regulated in your com-
munity due to environmental considerations. For disposal or
recycling information please contact your local authorities, or
the Electronics Industries Alliance:

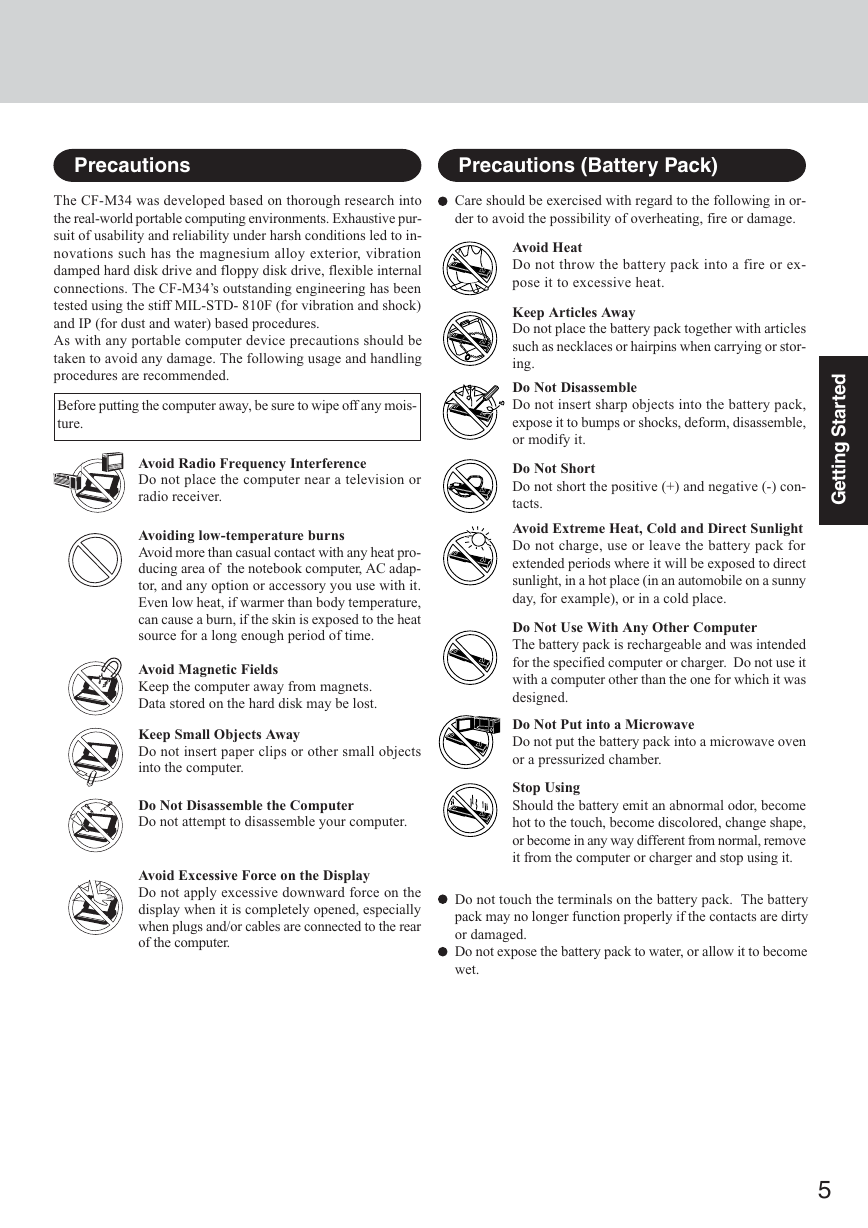

Precautions
Precautions (Battery Pack)
The CF-M34 was developed based on thorough research into
the real-world portable computing environments. Exhaustive pur-
suit of usability and reliability under harsh conditions led to in-
novations such has the magnesium alloy exterior, vibration
damped hard disk drive and floppy disk drive, flexible internal
connections. The CF-M34’s outstanding engineering has been
tested using the stiff MIL-STD- 810F (for vibration and shock)
and IP (for dust and water) based procedures.
As with any portable computer device precautions should be
taken to avoid any damage. The following usage and handling
procedures are recommended.
Before putting the computer away, be sure to wipe off any mois-
ture.
Avoid Radio Frequency Interference
Do not place the computer near a television or
radio receiver.
Avoiding low-temperature burns
Avoid more than casual contact with any heat pro-
ducing area of the notebook computer, AC adap-
tor, and any option or accessory you use with it.
Even low heat, if warmer than body temperature,
can cause a burn, if the skin is exposed to the heat
source for a long enough period of time.
Avoid Magnetic Fields
Keep the computer away from magnets.
Data stored on the hard disk may be lost.
Keep Small Objects Away
Do not insert paper clips or other small objects
into the computer.
Do Not Disassemble the Computer
Do not attempt to disassemble your computer.
Avoid Excessive Force on the Display
Do not apply excessive downward force on the
display when it is completely opened, especially
when plugs and/or cables are connected to the rear
of the computer.
Care should be exercised with regard to the following in or-
der to avoid the possibility of overheating, fire or damage.
Avoid Heat
Do not throw the battery pack into a fire or ex-
pose it to excessive heat.
Keep Articles Away
Do not place the battery pack together with articles
such as necklaces or hairpins when carrying or stor-
ing.
Do Not Disassemble
Do not insert sharp objects into the battery pack,
expose it to bumps or shocks, deform, disassemble,
or modify it.
Do Not Short
Do not short the positive (+) and negative (-) con-
tacts.
Avoid Extreme Heat, Cold and Direct Sunlight
Do not charge, use or leave the battery pack for
extended periods where it will be exposed to direct
sunlight, in a hot place (in an automobile on a sunny
day, for example), or in a cold place.
Do Not Use With Any Other Computer
The battery pack is rechargeable and was intended
for the specified computer or charger. Do not use it
with a computer other than the one for which it was
designed.
Do Not Put into a Microwave
Do not put the battery pack into a microwave oven
or a pressurized chamber.
Stop Using
Should the battery emit an abnormal odor, become
hot to the touch, become discolored, change shape,
or become in any way different from normal, remove
it from the computer or charger and stop using it.
Do not touch the terminals on the battery pack. The battery
pack may no longer function properly if the contacts are dirty
or damaged.
Do not expose the battery pack to water, or allow it to become
wet.
d
e
t
r
a
t
S
g
n
i
t
t
e
G
5
Read Me First

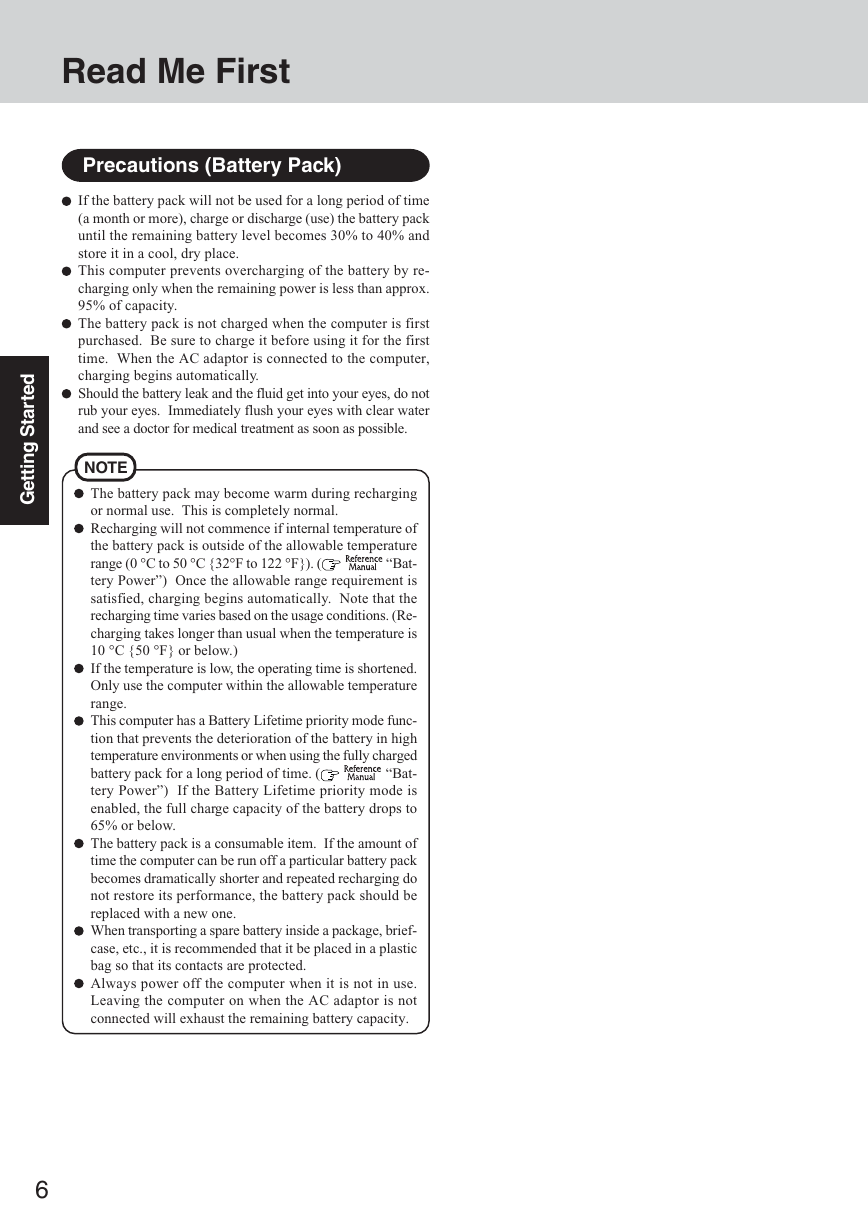

Precautions (Battery Pack)
If the battery pack will not be used for a long period of time
(a month or more), charge or discharge (use) the battery pack
until the remaining battery level becomes 30% to 40% and
store it in a cool, dry place.
This computer prevents overcharging of the battery by re-
charging only when the remaining power is less than approx.
95% of capacity.
The battery pack is not charged when the computer is first
purchased. Be sure to charge it before using it for the first
time. When the AC adaptor is connected to the computer,
charging begins automatically.
Should the battery leak and the fluid get into your eyes, do not
rub your eyes. Immediately flush your eyes with clear water
and see a doctor for medical treatment as soon as possible.
NOTE
The battery pack may become warm during recharging
or normal use. This is completely normal.
Recharging will not commence if internal temperature of
the battery pack is outside of the allowable temperature
range (0 °C to 50 °C {32°F to 122 °F}). (
“Bat-
tery Power”) Once the allowable range requirement is
satisfied, charging begins automatically. Note that the
recharging time varies based on the usage conditions. (Re-
charging takes longer than usual when the temperature is
10 °C {50 °F} or below.)
If the temperature is low, the operating time is shortened.
Only use the computer within the allowable temperature
range.
This computer has a Battery Lifetime priority mode func-
tion that prevents the deterioration of the battery in high
temperature environments or when using the fully charged
battery pack for a long period of time. (
“Bat-
tery Power”) If the Battery Lifetime priority mode is
enabled, the full charge capacity of the battery drops to
65% or below.
The battery pack is a consumable item. If the amount of
time the computer can be run off a particular battery pack
becomes dramatically shorter and repeated recharging do
not restore its performance, the battery pack should be
replaced with a new one.
When transporting a spare battery inside a package, brief-
case, etc., it is recommended that it be placed in a plastic
bag so that its contacts are protected.
Always power off the computer when it is not in use.
Leaving the computer on when the AC adaptor is not
connected will exhaust the remaining battery capacity.
d
e
t
r
a
t
S
g
n
i
t
t
e
G
6

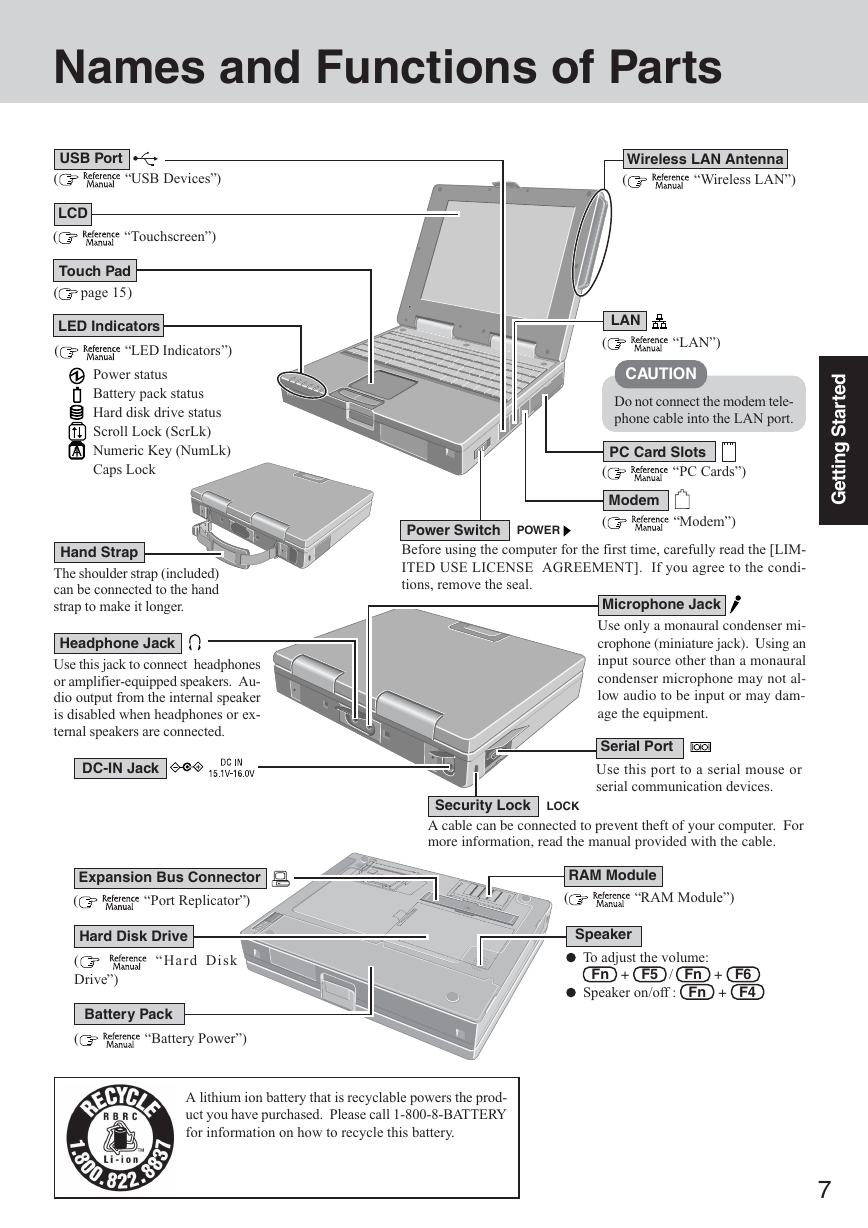

Names and Functions of Parts
USB Port
(
“USB Devices”)
LCD
(
“Touchscreen”)
Touch Pad
page 15)
(
LED Indicators
(
“LED Indicators”)
Power status
Battery pack status
Hard disk drive status
Scroll Lock (ScrLk)
Numeric Key (NumLk)
Caps Lock
Hand Strap
The shoulder strap (included)
can be connected to the hand
strap to make it longer.
Headphone Jack
Use this jack to connect headphones
or amplifier-equipped speakers. Au-
dio output from the internal speaker
is disabled when headphones or ex-
ternal speakers are connected.
DC-IN Jack
Expansion Bus Connector
(
“Port Replicator”)
Hard Disk Drive
(
Drive”)
“Hard Disk
Battery Pack
(
“Battery Power”)
Wireless LAN Antenna
(
“Wireless LAN”)
LAN
(
“LAN”)
CAUTION
Do not connect the modem tele-
phone cable into the LAN port.
PC Card Slots
(
“PC Cards”)
Modem
d
e
t
r
a
t
S
g
n
i
t
t
e
G
POWER
Power Switch
Before using the computer for the first time, carefully read the [LIM-
ITED USE LICENSE AGREEMENT]. If you agree to the condi-
tions, remove the seal.
“Modem”)
(
Microphone Jack
Use only a monaural condenser mi-
crophone (miniature jack). Using an
input source other than a monaural
condenser microphone may not al-
low audio to be input or may dam-
age the equipment.
Serial Port
Use this port to a serial mouse or
serial communication devices.
Security Lock
A cable can be connected to prevent theft of your computer. For
more information, read the manual provided with the cable.
LOCK
RAM Module
(
“RAM Module”)
Speaker
To adjust the volume:
Fn + F5 / Fn + F6
Speaker on/off : Fn + F4
A lithium ion battery that is recyclable powers the prod-
uct you have purchased. Please call 1-800-8-BATTERY
for information on how to recycle this battery.
7

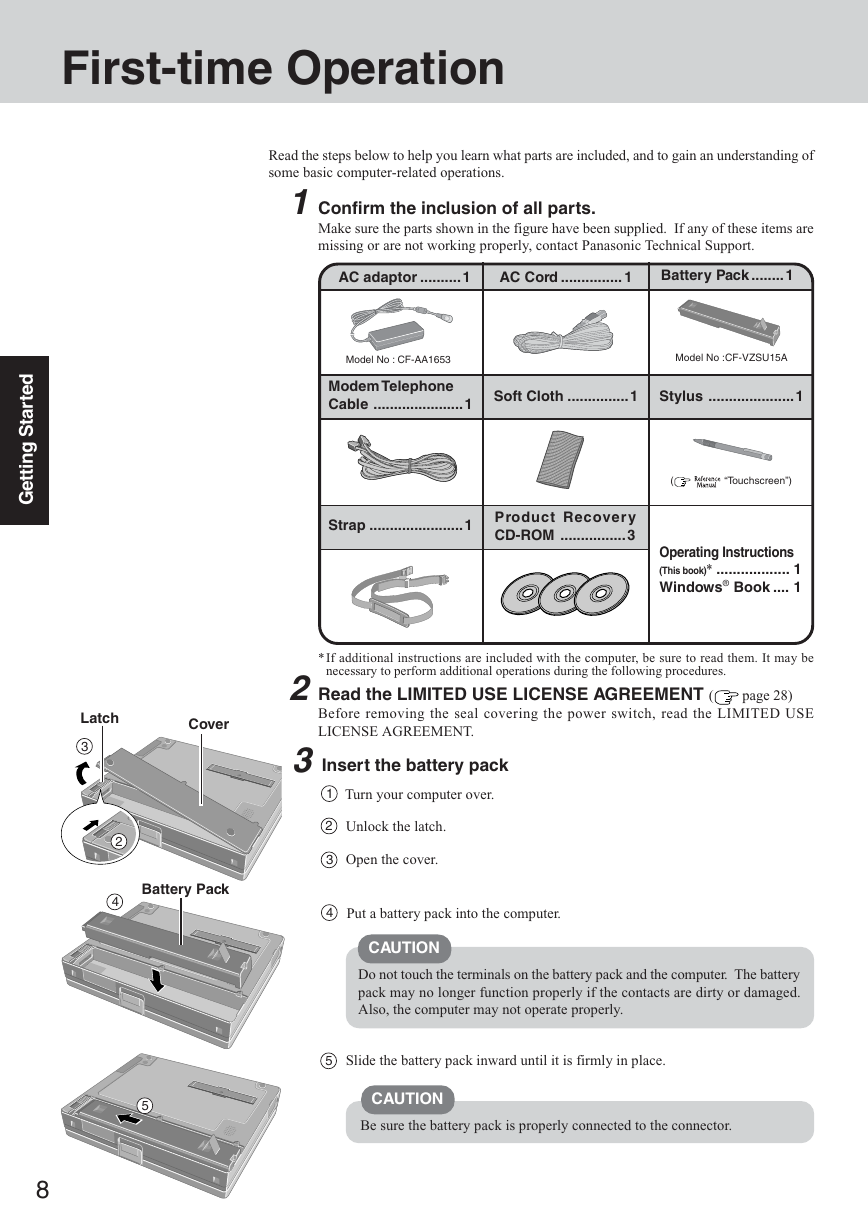

First-time Operation
Read the steps below to help you learn what parts are included, and to gain an understanding of
some basic computer-related operations.
1 Confirm the inclusion of all parts.
Make sure the parts shown in the figure have been supplied. If any of these items are
missing or are not working properly, contact Panasonic Technical Support.
AC adaptor ..........1
AC Cord ............... 1
Battery Pack ........1
Model No : CF-AA1653
Modem Telephone
Cable ......................1
Model No :CF-VZSU15A
Soft Cloth ...............1
Stylus .....................1
Strap .......................1
Product Recovery
CD-ROM ................3
(
“Touchscreen”)
Operating Instructions
(This book)* .................. 1
Windows® Book .... 1
Latch
3
Cover
2
4
Battery Pack
*If additional instructions are included with the computer, be sure to read them. It may be
necessary to perform additional operations during the following procedures.
2 Read the LIMITED USE LICENSE AGREEMENT (
Before removing the seal covering the power switch, read the LIMITED USE
LICENSE AGREEMENT.
page 28)
3 Insert the battery pack
1
Turn your computer over.
2 Unlock the latch.
3 Open the cover.
4 Put a battery pack into the computer.
CAUTION
Do not touch the terminals on the battery pack and the computer. The battery
pack may no longer function properly if the contacts are dirty or damaged.
Also, the computer may not operate properly.
5 Slide the battery pack inward until it is firmly in place.
5
CAUTION
Be sure the battery pack is properly connected to the connector.
d
e
t
r
a
t
S
g
n
i
t
t
e
G
8
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
