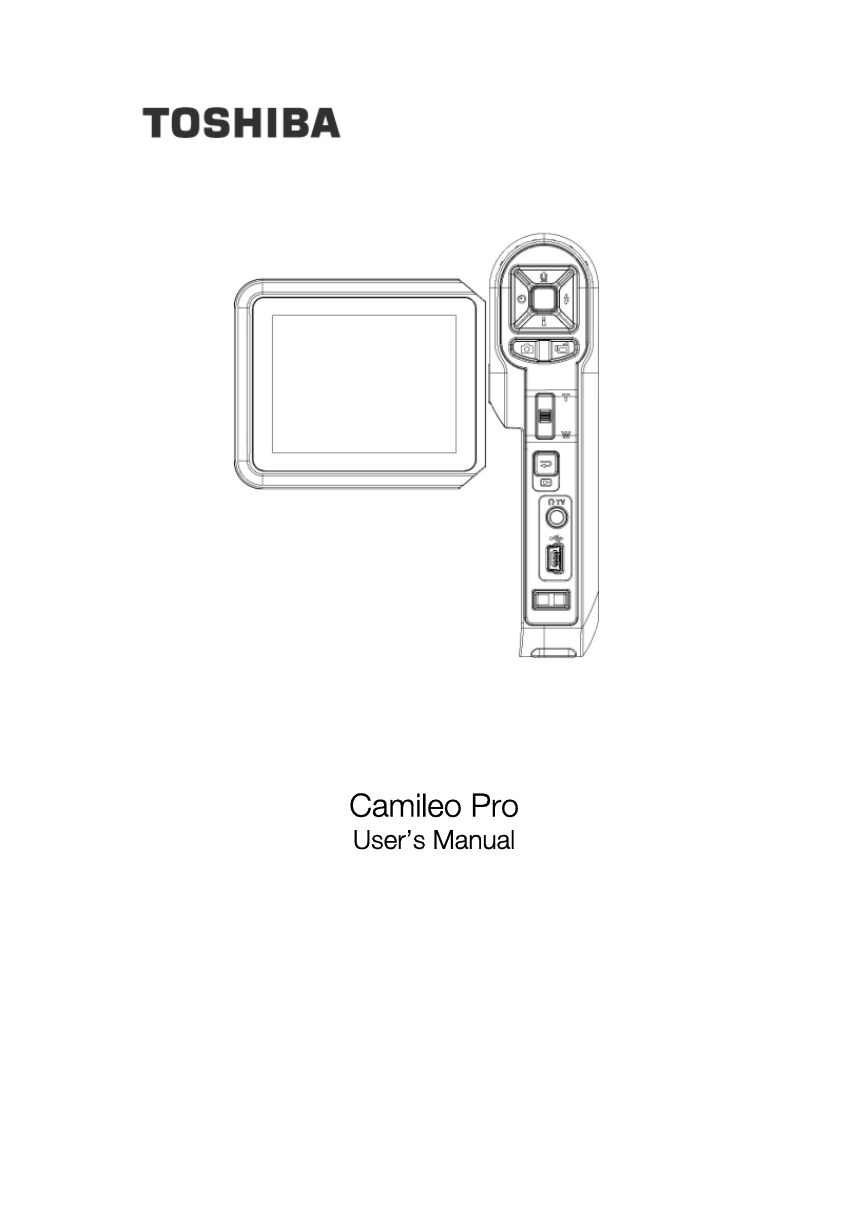

Camileo Pro User’s Manual

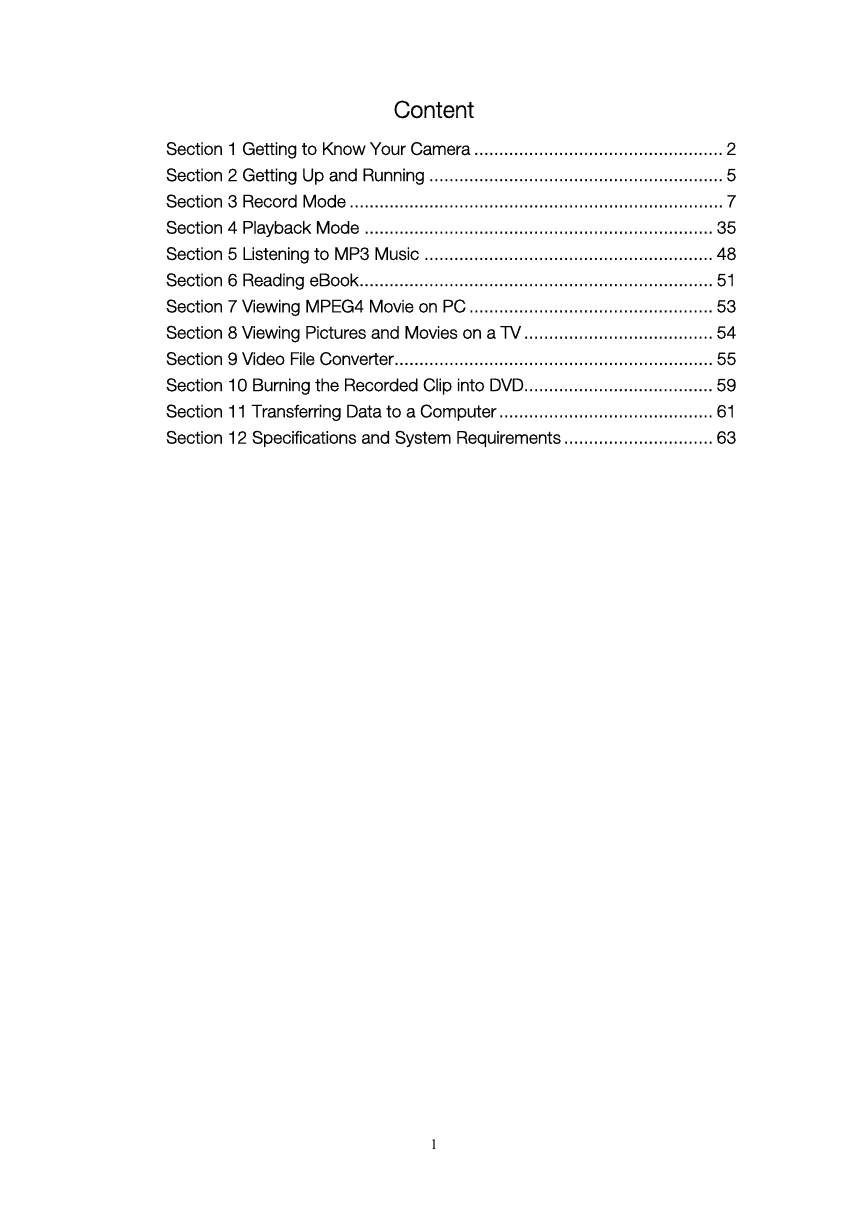

Content Section 1 Getting to Know Your Camera .................................................. 2 Section 2 Getting Up and Running ........................................................... 5 Section 3 Record Mode ........................................................................... 7 Section 4 Playback Mode ...................................................................... 35 Section 5 Listening to MP3 Music .......................................................... 48 Section 6 Reading eBook....................................................................... 51 Section 7 Viewing MPEG4 Movie on PC ................................................. 53 Section 8 Viewing Pictures and Movies on a TV ...................................... 54 Section 9 Video File Converter................................................................ 55 Section 10 Burning the Recorded Clip into DVD...................................... 59 Section 11 Transferring Data to a Computer ........................................... 61 Section 12 Specifications and System Requirements .............................. 63 1

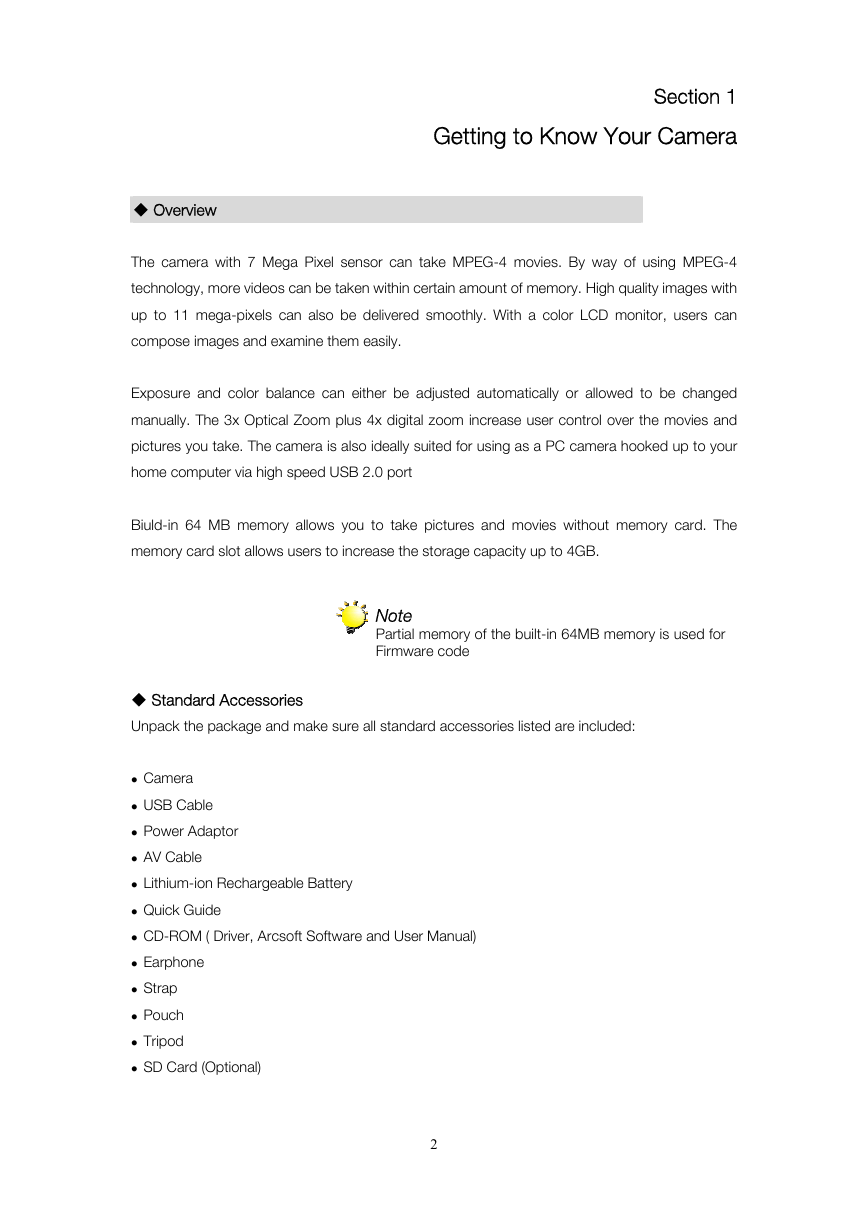

Section 1 Getting to Know Your Camera Overview The camera with 7 Mega Pixel sensor can take MPEG-4 movies. By way of using MPEG-4 technology, more videos can be taken within certain amount of memory. High quality images with up to 11 mega-pixels can also be delivered smoothly. With a color LCD monitor, users can compose images and examine them easily. Exposure and color balance can either be adjusted automatically or allowed to be changed manually. The 3x Optical Zoom plus 4x digital zoom increase user control over the movies and pictures you take. The camera is also ideally suited for using as a PC camera hooked up to your home computer via high speed USB 2.0 port Biuld-in 64 MB memory allows you to take pictures and movies without memory card. The memory card slot allows users to increase the storage capacity up to 4GB. Note Partial memory of the built-in 64MB memory is used for Firmware code Standard Accessories Unpack the package and make sure all standard accessories listed are included: Camera USB Cable Power Adaptor AV Cable Lithium-ion Rechargeable Battery Quick Guide CD-ROM ( Driver, Arcsoft Software and User Manual) Earphone Strap Pouch Tripod SD Card (Optional) 2

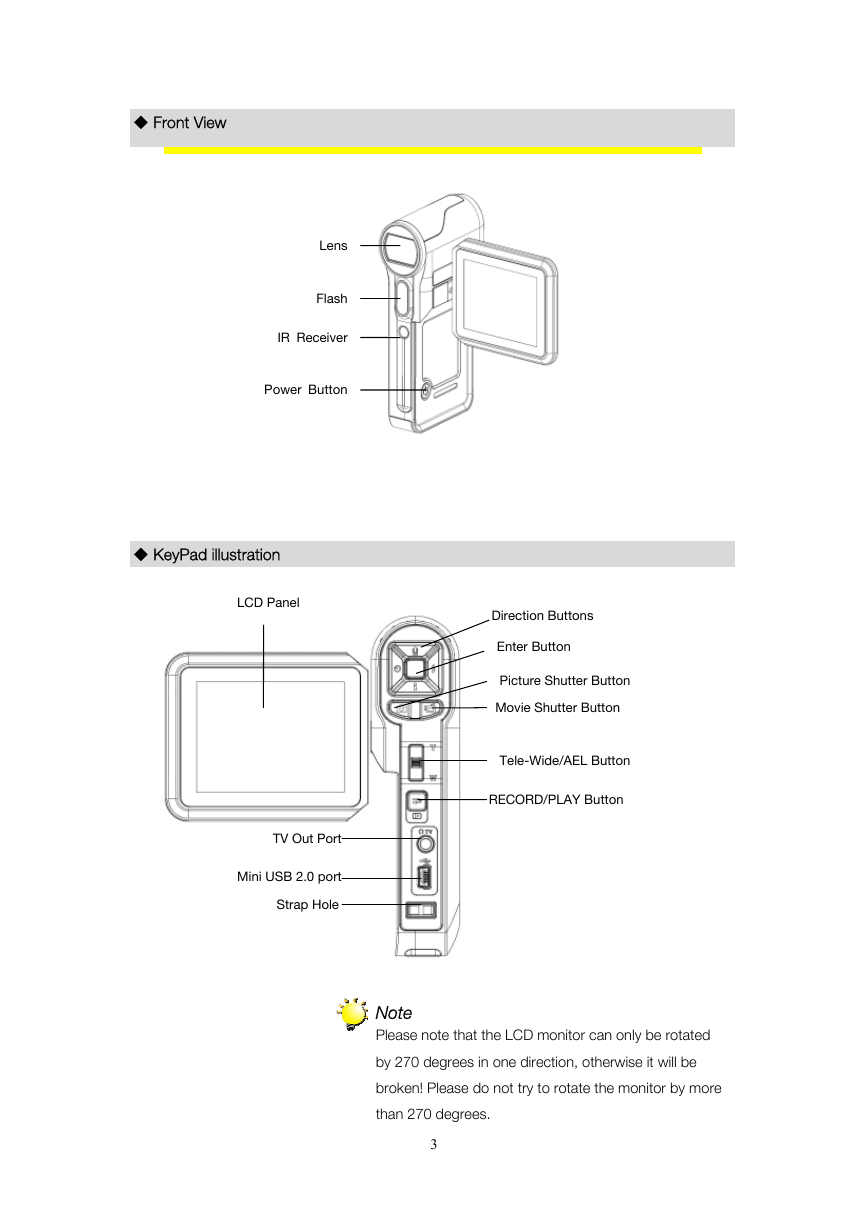

Front View Lens Flash IR Receiver Power Button KeyPad illustration LCD Panel TV Out Port Mini USB 2.0 port Strap Hole Direction Buttons Enter Button Picture Shutter Button Movie Shutter Button Tele-Wide/AEL Button RECORD/PLAY Button Note Please note that the LCD monitor can only be rotated by 270 degrees in one direction, otherwise it will be broken! Please do not try to rotate the monitor by more than 270 degrees. 3

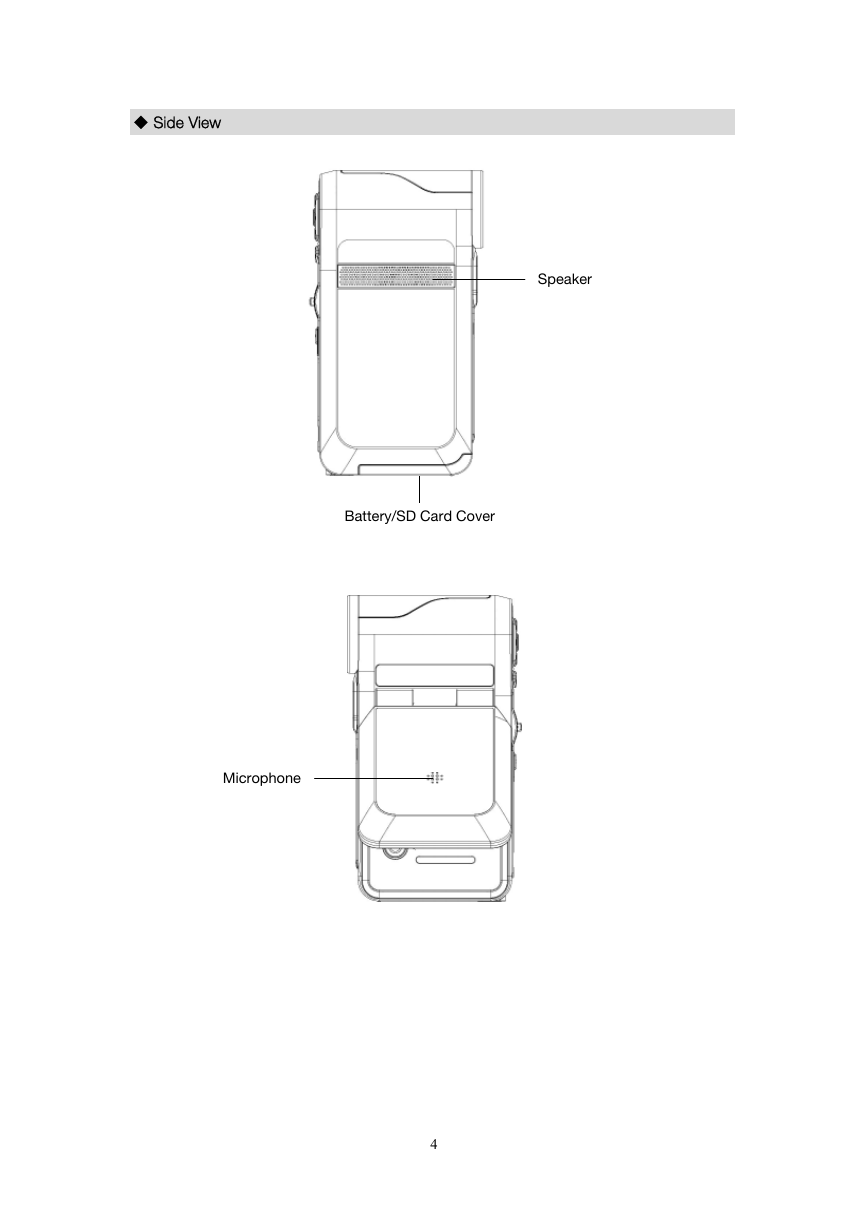

Side View Speaker Battery/SD Card Cover Microphone 4

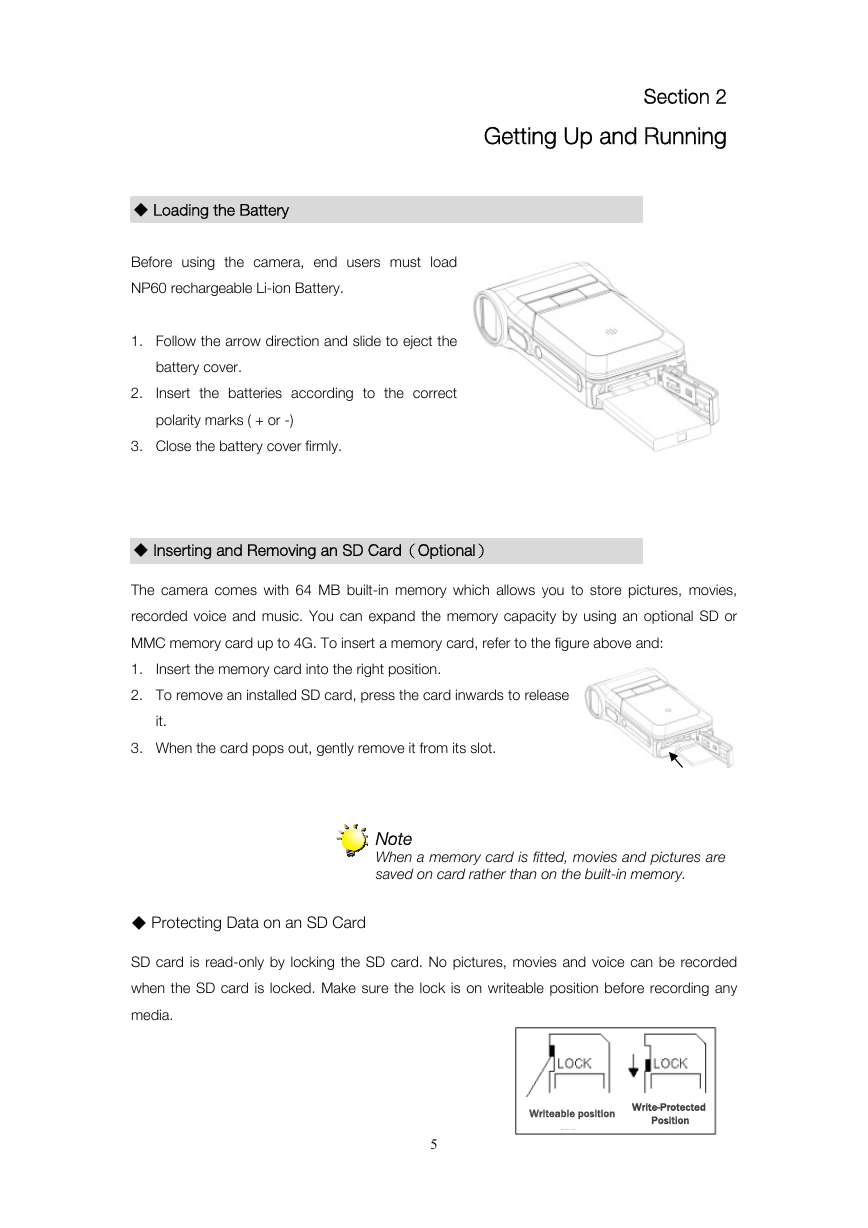

Section 2 Getting Up and Running Loading the Battery Before using the camera, end users must load NP60 rechargeable Li-ion Battery. 1. Follow the arrow direction and slide to eject the battery cover. 2. Insert the batteries according to the correct polarity marks ( + or -) 3. Close the battery cover firmly. Inserting and Removing an SD Card（Optional） The camera comes with 64 MB built-in memory which allows you to store pictures, movies, recorded voice and music. You can expand the memory capacity by using an optional SD or MMC memory card up to 4G. To insert a memory card, refer to the figure above and: 1. 2. To remove an installed SD card, press the card inwards to release Insert the memory card into the right position. it. 3. When the card pops out, gently remove it from its slot. Protecting Data on an SD Card Note When a memory card is fitted, movies and pictures are saved on card rather than on the built-in memory. SD card is read-only by locking the SD card. No pictures, movies and voice can be recorded when the SD card is locked. Make sure the lock is on writeable position before recording any media. Writeable position Writeable position Write-Protected Write-Protected Position Position 5

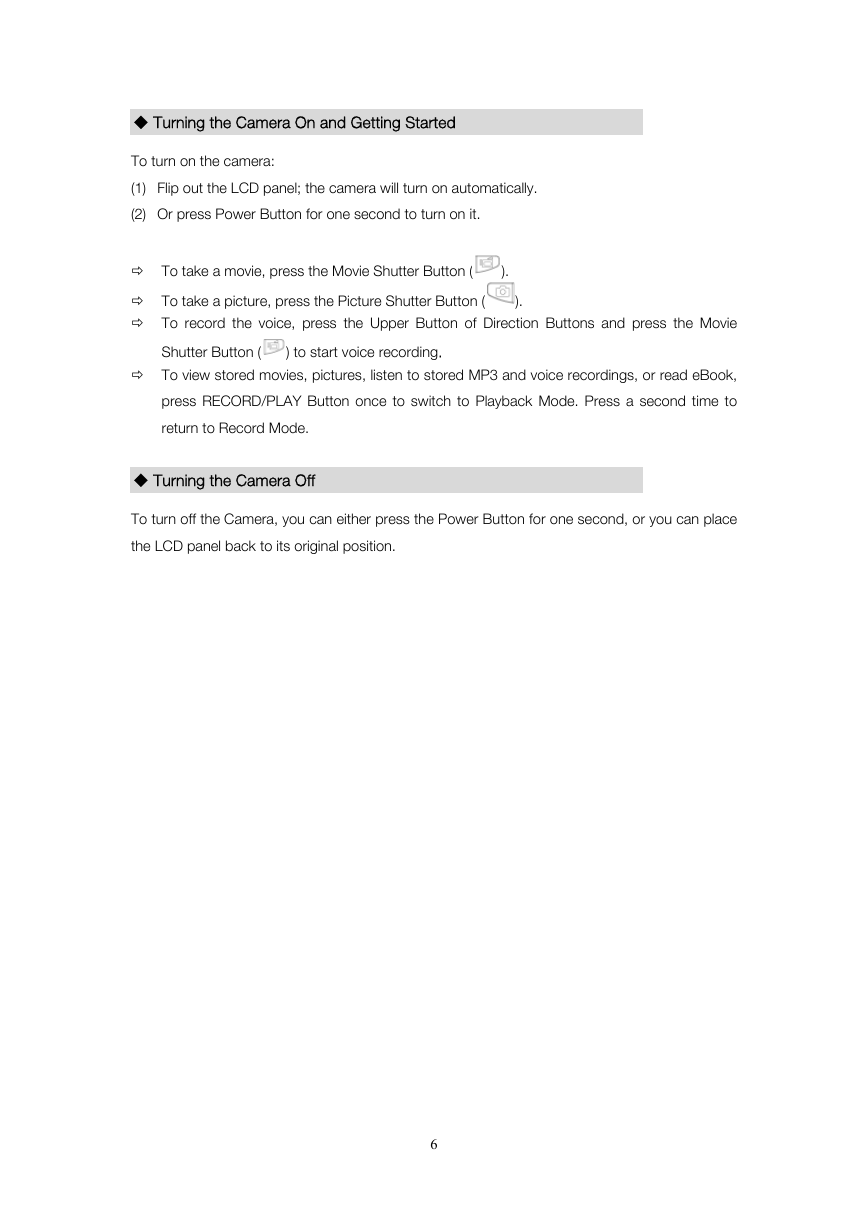

Turning the Camera On and Getting Started To turn on the camera: (1) Flip out the LCD panel; the camera will turn on automatically. (2) Or press Power Button for one second to turn on it. To take a movie, press the Movie Shutter Button ( ). To take a picture, press the Picture Shutter Button ( To record the voice, press the Upper Button of Direction Buttons and press the Movie ). Shutter Button ( ) to start voice recording. To view stored movies, pictures, listen to stored MP3 and voice recordings, or read eBook, press RECORD/PLAY Button once to switch to Playback Mode. Press a second time to return to Record Mode. Turning the Camera Off To turn off the Camera, you can either press the Power Button for one second, or you can place the LCD panel back to its original position. 6

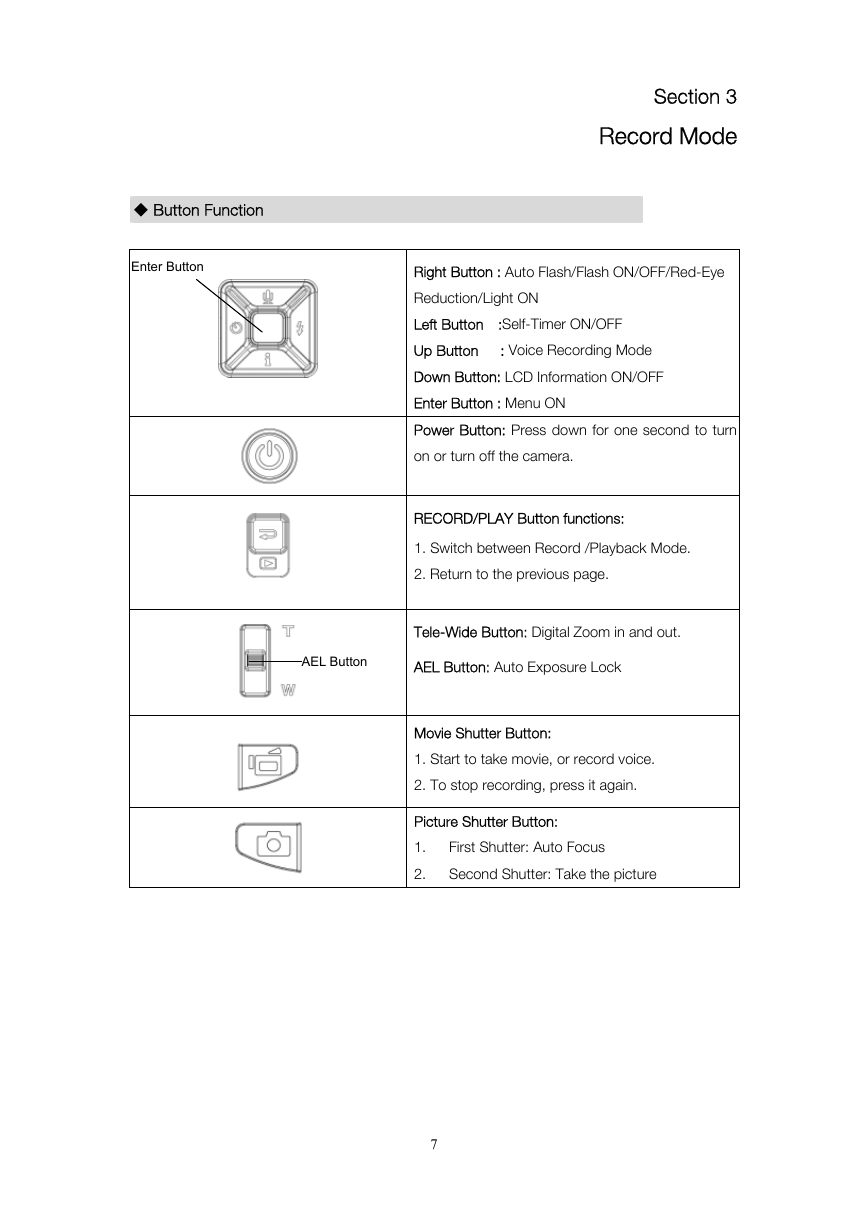

Button Function Enter Button Section 3 Record Mode Right Button : Auto Flash/Flash ON/OFF/Red-Eye Reduction/Light ON Left Button :Self-Timer ON/OFF Up Button : Voice Recording Mode Down Button: LCD Information ON/OFF Enter Button : Menu ON Power Button: Press down for one second to turn on or turn off the camera. RECORD/PLAY Button functions: 1. Switch between Record /Playback Mode. 2. Return to the previous page. Tele-Wide Button: Digital Zoom in and out. AEL Button AEL Button: Auto Exposure Lock Movie Shutter Button: 1. Start to take movie, or record voice. 2. To stop recording, press it again. Picture Shutter Button: 1. 2. First Shutter: Auto Focus Second Shutter: Take the picture 7
