8649 Op Gd

Table of Contents

Introduction

FEATURES FEATURES

BEFORE USE BEFORE USE

Contents of Package

Part Names

Loading the Battery

Fixing the Handle

INSTALLATION INSTALLATION

Installation of the Projector and Screen

Angle Adjustment

Cabling

Power Connection

Example of System Setup

Plug & Play

OPERATIONS OPERATIONS

Power ON

Power OFF

Basic Operation

Setup Menu

Input Menu

Image Menu

Options Menu

No Signal Menu

MAINTENANCE MAINTENANCE

Lamp

Lamp Life

Replacing the Lamp

Resetting the Lamp Timer

Air Filter

Other Maintenance

TROUBLESHOOTING TROUBLESHOOTING

Service Information

OSD Message

Indicators Message

Symptom

ACCESSORIES

TECHNICAL TECHNICAL

Dimension Diagram

Signal Connector Pin Assignment

Example of computer signal

Initial set signals

Connection to the Mouse Control

RS-232C communication

Communications setting

Command data chart

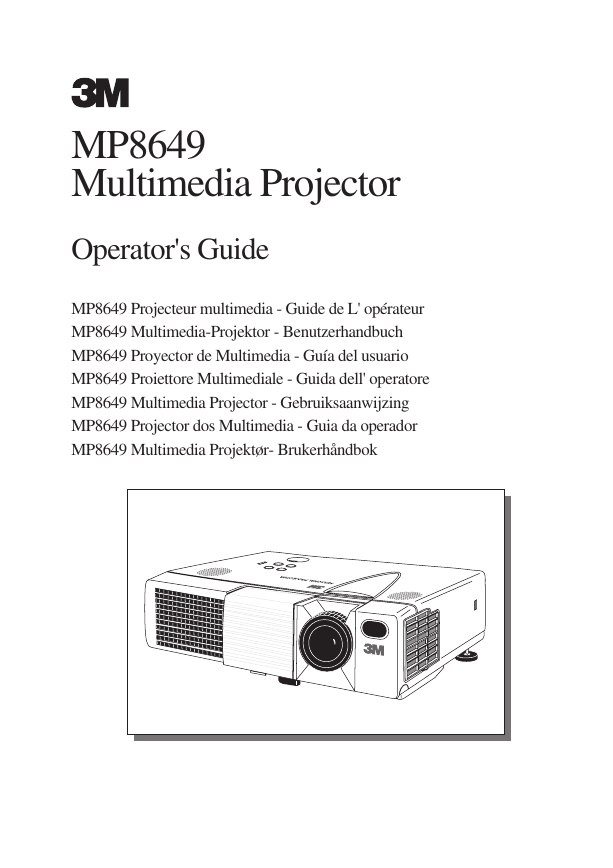

MP8649 Multimedia Projector Operator's Guide MP8649 Projecteur multimedia - Guide de L' opérateur MP8649 Multimedia-Projektor - Benutzerhandbuch MP8649 Proyector de Multimedia - Guía del usuario MP8649 Proiettore Multimediale - Guida dell' operatore MP8649 Multimedia Projector - Gebruiksaanwijzing MP8649 Projector dos Multimedia - Guia da operador MP8649 Multimedia Projektør- Brukerhåndbok

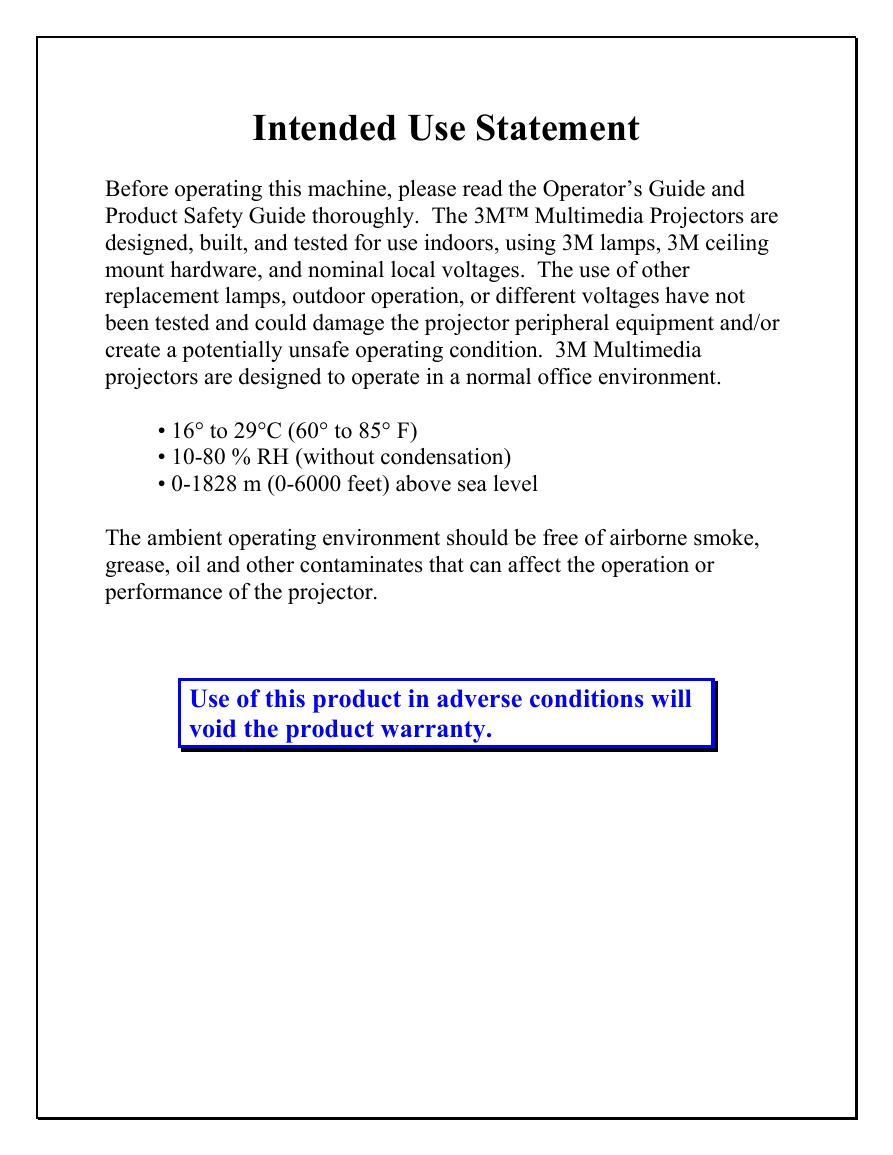

Intended Use Statement Before operating this machine, please read the Operator’s Guide and Product Safety Guide thoroughly. The 3M™ Multimedia Projectors are designed, built, and tested for use indoors, using 3M lamps, 3M ceiling mount hardware, and nominal local voltages. The use of other replacement lamps, outdoor operation, or different voltages have not been tested and could damage the projector peripheral equipment and/or create a potentially unsafe operating condition. 3M Multimedia projectors are designed to operate in a normal office environment. 16° to 29°C (60° to 85° F) 10-80 % RH (without condensation) 0-1828 m (0-6000 feet) above sea level The ambient operating environment should be free of airborne smoke, grease, oil and other contaminates that can affect the operation or performance of the projector. Use of this product in adverse conditions will void the product warranty.

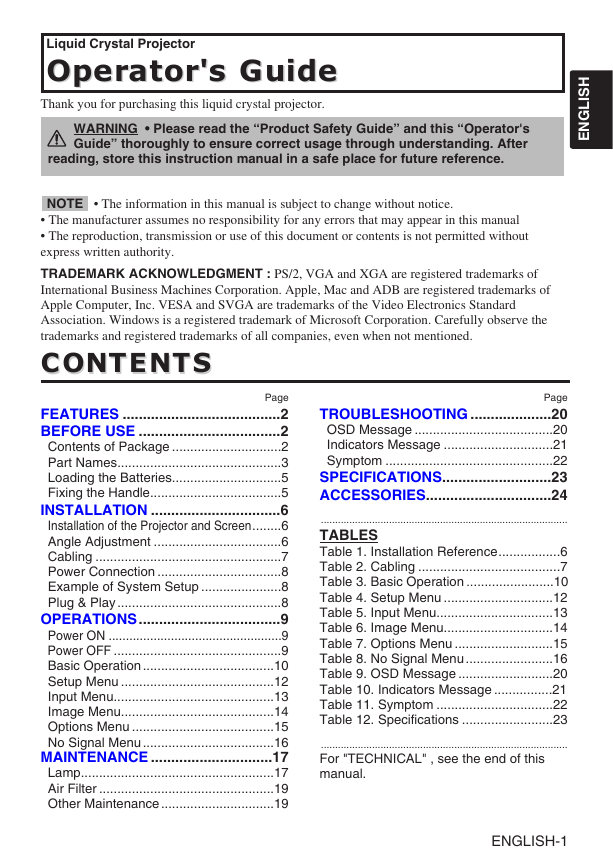

Liquid Crystal Projector Operator's Guide Operator's Guide Thank you for purchasing this liquid crystal projector. WARNING • Please read the “Product Safety Guide” and this “Operator's Guide” thoroughly to ensure correct usage through understanding. After reading, store this instruction manual in a safe place for future reference. • The information in this manual is subject to change without notice. NOTE • The manufacturer assumes no responsibility for any errors that may appear in this manual • The reproduction, transmission or use of this document or contents is not permitted without express written authority. TRADEMARK ACKNOWLEDGMENT : PS/2, VGA and XGA are registered trademarks of International Business Machines Corporation. Apple, Mac and ADB are registered trademarks of Apple Computer, Inc. VESA and SVGA are trademarks of the Video Electronics Standard Association. Windows is a registered trademark of Microsoft Corporation. Carefully observe the trademarks and registered trademarks of all companies, even when not mentioned. I H S L G N E CONTENTS CONTENTS Page FEATURES .......................................2 BEFORE USE ...................................2 Contents of Package ..............................2 Part Names.............................................3 Loading the Batteries..............................5 Fixing the Handle....................................5 INSTALLATION ................................6 Installation of the Projector and Screen........6 Angle Adjustment ...................................6 Cabling ...................................................7 Power Connection ..................................8 Example of System Setup ......................8 Plug & Play .............................................8 OPERATIONS...................................9 Power ON ..................................................9 Power OFF ..............................................9 Basic Operation ....................................10 Setup Menu ..........................................12 Input Menu............................................13 Image Menu..........................................14 Options Menu .......................................15 No Signal Menu ....................................16 MAINTENANCE ..............................17 Lamp.....................................................17 Air Filter ................................................19 Other Maintenance ...............................19 Page TROUBLESHOOTING ....................20 OSD Message ......................................20 Indicators Message ..............................21 Symptom ..............................................22 SPECIFICATIONS...........................23 ACCESSORIES...............................24 ....................................................................................... TABLES Table 1. Installation Reference.................6 Table 2. Cabling .......................................7 Table 3. Basic Operation ........................10 Table 4. Setup Menu ..............................12 Table 5. Input Menu................................13 Table 6. Image Menu..............................14 Table 7. Options Menu ...........................15 Table 8. No Signal Menu ........................16 Table 9. OSD Message ..........................20 Table 10. Indicators Message ................21 Table 11. Symptom ................................22 Table 12. Specifications .........................23 ....................................................................................... For "TECHNICAL" , see the end of this manual. ENGLISH-1

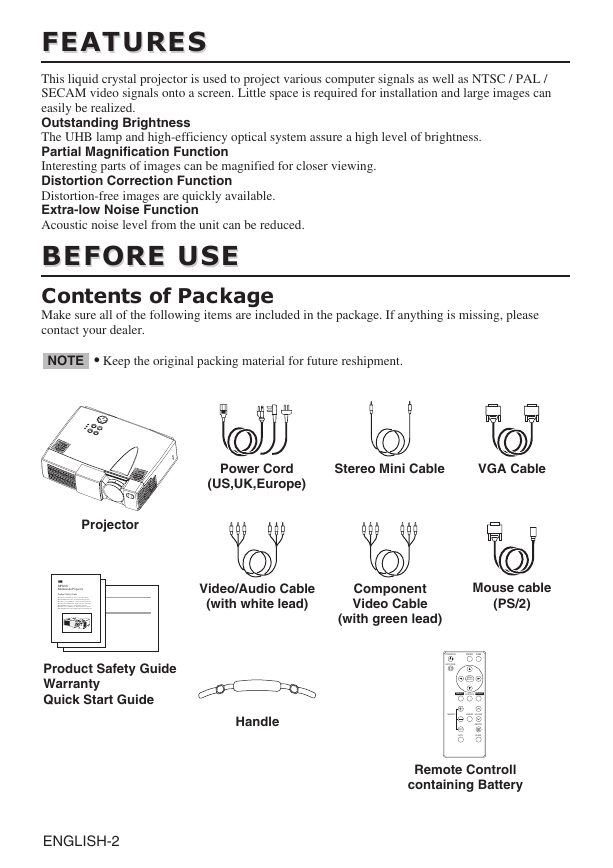

FEATURES FEATURES This liquid crystal projector is used to project various computer signals as well as NTSC / PAL / SECAM video signals onto a screen. Little space is required for installation and large images can easily be realized. Outstanding Brightness The UHB lamp and high-efficiency optical system assure a high level of brightness. Partial Magnification Function Interesting parts of images can be magnified for closer viewing. Distortion Correction Function Distortion-free images are quickly available. Extra-low Noise Function Acoustic noise level from the unit can be reduced. BEFORE USE BEFORE USE Contents of Package Make sure all of the following items are included in the package. If anything is missing, please contact your dealer. NOTE • Keep the original packing material for future reshipment. Power Cord (US,UK,Europe) Stereo Mini Cable VGA Cable Projector MP8649 Multimedia Projector Product Safety Guide MP8649 Projecteur multimedia - Guide de Securite de Produit MP8649 Multimedia-Projektor - Sicherheitsanleitung des Gerats MP8649 Proyector de Multimedia - Guia de Seguridad del Producto MP8649 Proiettore Multimediale - Guida di Sicurezza del Prodotto MP8649 Multimedia Projector - Veiligheidgids op Product MP8649 Projector dos Multimedia - Guia da Seguranca de Produto MP8649 Multimedia Projektør- Bruksanvisning for Produktsakerhets Video/Audio Cable (with white lead) Component Video Cable (with green lead) Mouse cable (PS/2) Product Safety Guide Warranty Quick Start Guide Handle ENGLISH-2 STANDBY/ON VIDEO RGB KEYSTONE MENU SELECT MENU POSITION RESET MAGNIFY FREEZE VOLUME OFF AUTO MUTE BLANK Remote Controll containing Battery

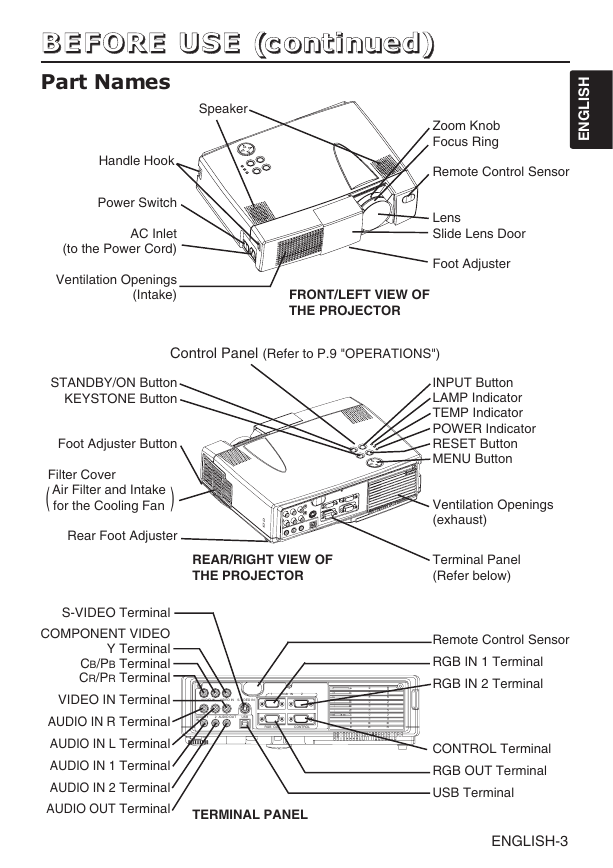

BBBBEEEEFFFFOOOORRRREEEE UUUUSSSSEEEE ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd)))) Part Names Speaker Handle Hook Power Switch AC Inlet (to the Power Cord) Ventilation Openings (Intake) FRONT/LEFT VIEW OF THE PROJECTOR I H S L G N E Zoom Knob Focus Ring Remote Control Sensor Lens Slide Lens Door Foot Adjuster Control Panel (Refer to P.9 "OPERATIONS") STANDBY/ON Button KEYSTONE Button Foot Adjuster Button Filter Cover ( ) Air Filter and Intake for the Cooling Fan Rear Foot Adjuster S-VIDEO Terminal COMPONENT VIDEO Y Terminal CB/PB Terminal CR/PR Terminal VIDEO IN Terminal AUDIO IN R Terminal AUDIO IN L Terminal AUDIO IN 1 Terminal AUDIO IN 2 Terminal AUDIO OUT Terminal INPUT Button LAMP Indicator TEMP Indicator POWER Indicator RESET Button MENU Button Ventilation Openings (exhaust) REAR/RIGHT VIEW OF THE PROJECTOR Terminal Panel (Refer below) AUDIO IN VIDEO IN S-VIDEO IN 1 RGB IN 2 AUDIO IN 1 2 AUDIO OUT USB RGB OUT CONTROL TERMINAL PANEL Remote Control Sensor RGB IN 1 Terminal RGB IN 2 Terminal CONTROL Terminal RGB OUT Terminal USB Terminal ENGLISH-3

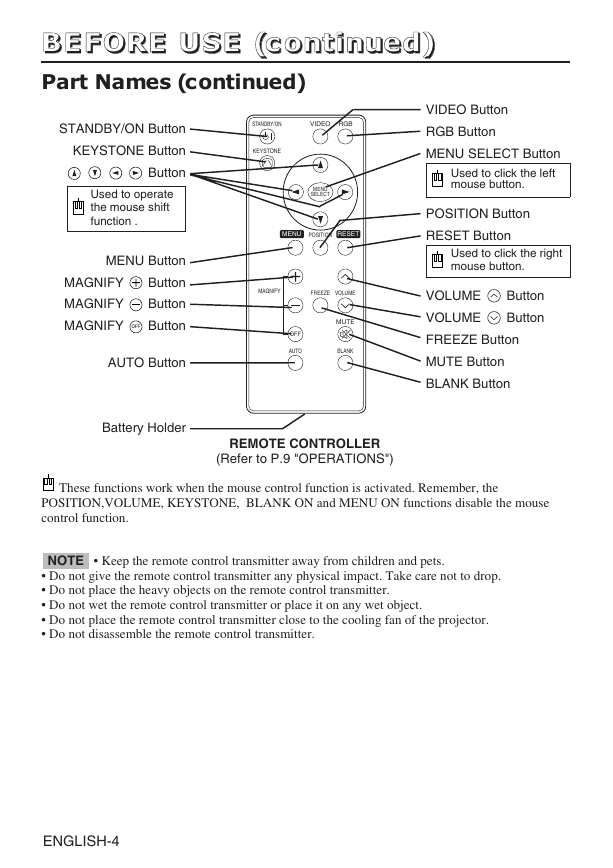

BBBBEEEEFFFFOOOORRRREEEE UUUUSSSSEEEE ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd)))) Part Names (continued) STANDBY/ON Button KEYSTONE Button Button Used to operate the mouse shift function . MENU Button Button Button Button MAGNIFY MAGNIFY MAGNIFY OFF STANDBY/ON VIDEO RGB KEYSTONE MENU SELECT MENU POSITION RESET MAGNIFY FREEZE VOLUME OFF AUTO MUTE BLANK AUTO Button Battery Holder REMOTE CONTROLLER (Refer to P.9 "OPERATIONS") VIDEO Button RGB Button MENU SELECT Button Used to click the left mouse button. POSITION Button RESET Button Used to click the right mouse button. Button Button VOLUME VOLUME FREEZE Button MUTE Button BLANK Button These functions work when the mouse control function is activated. Remember, the POSITION,VOLUME, KEYSTONE, BLANK ON and MENU ON functions disable the mouse control function. • Keep the remote control transmitter away from children and pets. NOTE • Do not give the remote control transmitter any physical impact. Take care not to drop. • Do not place the heavy objects on the remote control transmitter. • Do not wet the remote control transmitter or place it on any wet object. • Do not place the remote control transmitter close to the cooling fan of the projector. • Do not disassemble the remote control transmitter. ENGLISH-4

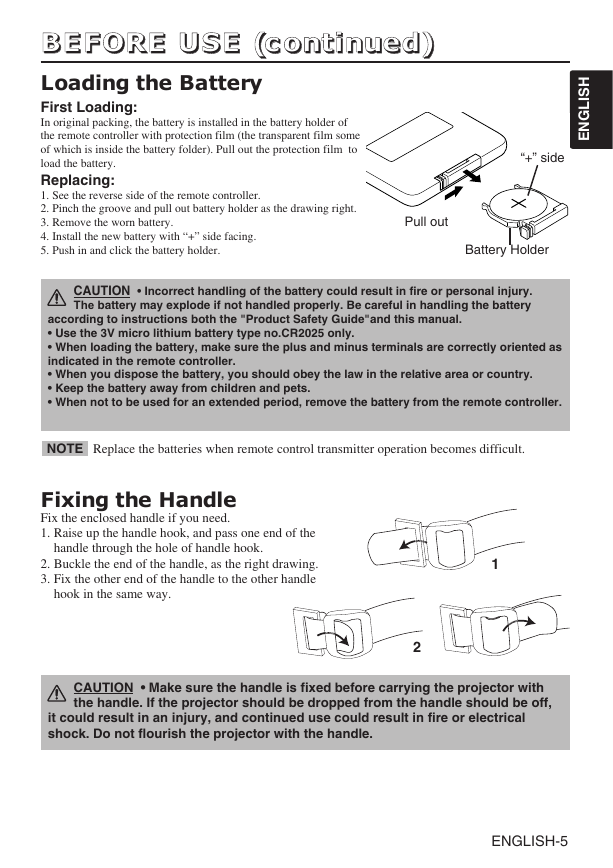

BBBBEEEEFFFFOOOORRRREEEE UUUUSSSSEEEE ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd)))) Loading the Battery First Loading: In original packing, the battery is installed in the battery holder of the remote controller with protection film (the transparent film some of which is inside the battery folder). Pull out the protection film to load the battery. Replacing: 1. See the reverse side of the remote controller. 2. Pinch the groove and pull out battery holder as the drawing right. 3. Remove the worn battery. 4. Install the new battery with “+” side facing. 5. Push in and click the battery holder. Pull out I H S L G N E “+” side Battery Holder CAUTION • Incorrect handling of the battery could result in fire or personal injury. The battery may explode if not handled properly. Be careful in handling the battery according to instructions both the "Product Safety Guide"and this manual. • Use the 3V micro lithium battery type no.CR2025 only. • When loading the battery, make sure the plus and minus terminals are correctly oriented as indicated in the remote controller. • When you dispose the battery, you should obey the law in the relative area or country. • Keep the battery away from children and pets. • When not to be used for an extended period, remove the battery from the remote controller. NOTE Replace the batteries when remote control transmitter operation becomes difficult. Fixing the Handle Fix the enclosed handle if you need. 1. Raise up the handle hook, and pass one end of the handle through the hole of handle hook. 2. Buckle the end of the handle, as the right drawing. 3. Fix the other end of the handle to the other handle hook in the same way. 1 2 CAUTION • Make sure the handle is fixed before carrying the projector with the handle. If the projector should be dropped from the handle should be off, it could result in an injury, and continued use could result in fire or electrical shock. Do not flourish the projector with the handle. ENGLISH-5

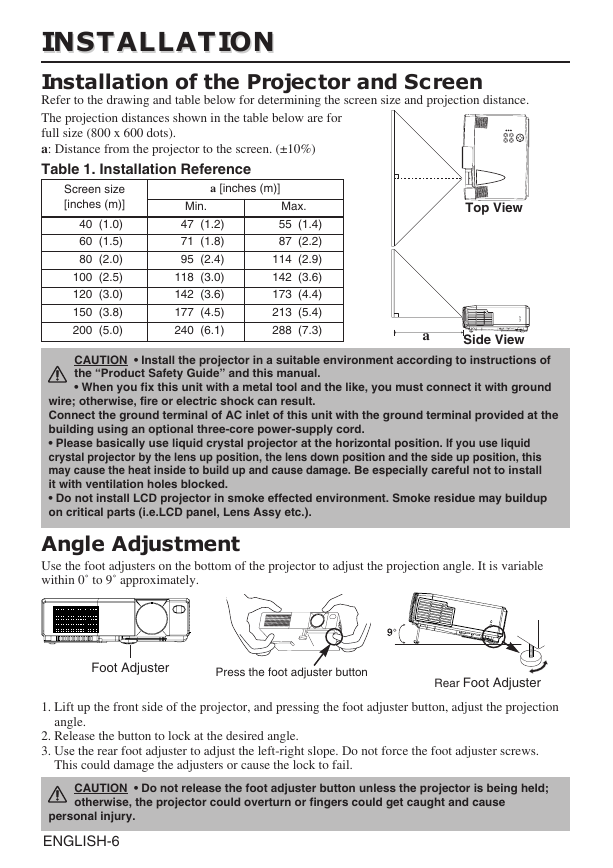

INSTALLATION INSTALLATION Installation of the Projector and Screen Refer to the drawing and table below for determining the screen size and projection distance. The projection distances shown in the table below are for full size (800 x 600 dots). a: Distance from the projector to the screen. (±10%) Table 1. Installation Reference Screen size [inches (m)] 40 (1.0) 60 (1.5) 80 (2.0) 100 (2.5) 120 (3.0) 150 (3.8) 200 (5.0) a [inches (m)] Min. 47 (1.2) 71 (1.8) 95 (2.4) 118 (3.0) 142 (3.6) 177 (4.5) 240 (6.1) Max. 55 (1.4) 87 (2.2) 114 (2.9) 142 (3.6) 173 (4.4) 213 (5.4) 288 (7.3) Top View a Side View CAUTION • Install the projector in a suitable environment according to instructions of the “Product Safety Guide” and this manual. • When you fix this unit with a metal tool and the like, you must connect it with ground wire; otherwise, fire or electric shock can result. Connect the ground terminal of AC inlet of this unit with the ground terminal provided at the building using an optional three-core power-supply cord. • Please basically use liquid crystal projector at the horizontal position. If you use liquid crystal projector by the lens up position, the lens down position and the side up position, this may cause the heat inside to build up and cause damage. Be especially careful not to install it with ventilation holes blocked. • Do not install LCD projector in smoke effected environment. Smoke residue may buildup on critical parts (i.e.LCD panel, Lens Assy etc.). Angle Adjustment Use the foot adjusters on the bottom of the projector to adjust the projection angle. It is variable within 0˚ to 9˚ approximately. Foot Adjuster Press the foot adjuster button Rear Foot Adjuster 1. Lift up the front side of the projector, and pressing the foot adjuster button, adjust the projection angle. 2. Release the button to lock at the desired angle. 3. Use the rear foot adjuster to adjust the left-right slope. Do not force the foot adjuster screws. This could damage the adjusters or cause the lock to fail. CAUTION • Do not release the foot adjuster button unless the projector is being held; otherwise, the projector could overturn or fingers could get caught and cause personal injury. ENGLISH-6
