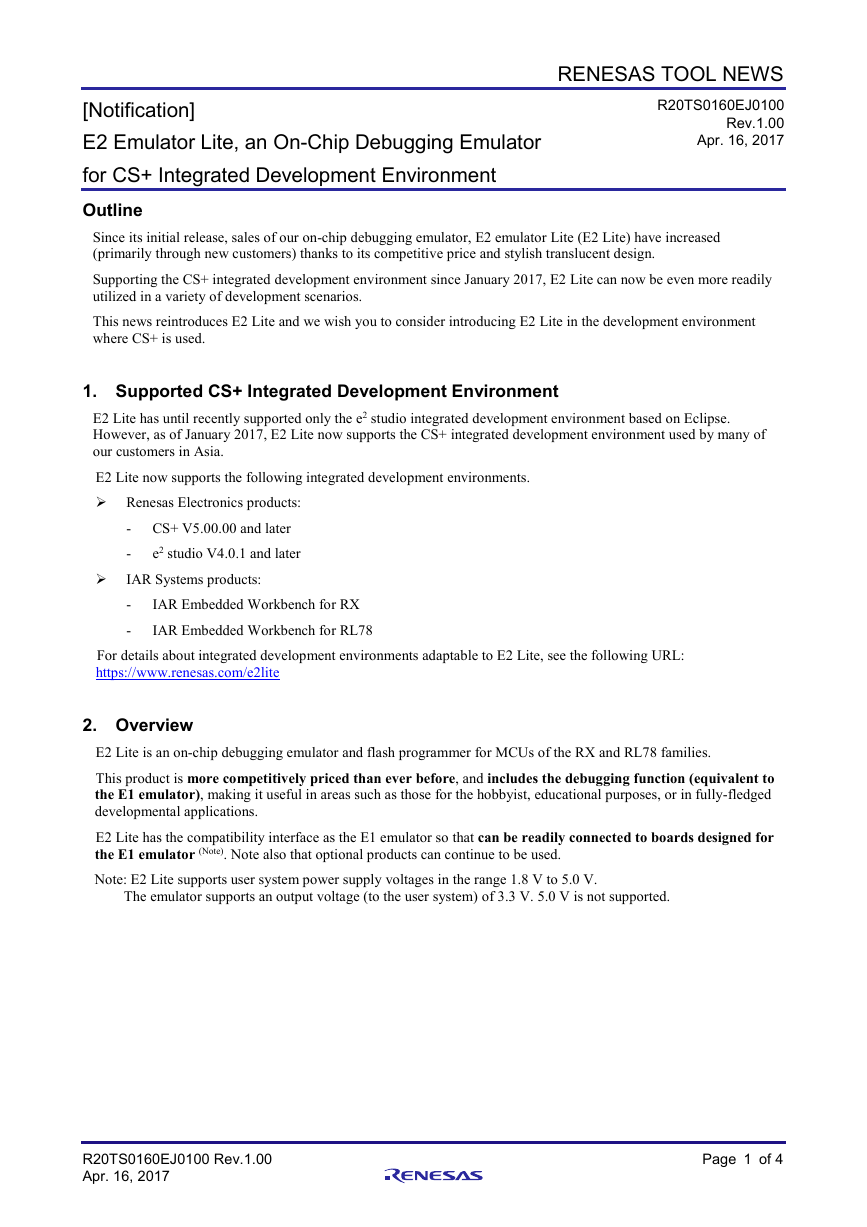

RENESAS TOOL NEWS
R20TS0160EJ0100
Rev.1.00
Apr. 16, 2017
[Notification]
E2 Emulator Lite, an On-Chip Debugging Emulator
for CS+ Integrated Development Environment
Outline
Since its initial release, sales of our on-chip debugging emulator, E2 emulator Lite (E2 Lite) have increased
(primarily through new customers) thanks to its competitive price and stylish translucent design.
Supporting the CS+ integrated development environment since January 2017, E2 Lite can now be even more readily
utilized in a variety of development scenarios.
This news reintroduces E2 Lite and we wish you to consider introducing E2 Lite in the development environment
where CS+ is used.
1. Supported CS+ Integrated Development Environment
E2 Lite has until recently supported only the e2 studio integrated development environment based on Eclipse.
However, as of January 2017, E2 Lite now supports the CS+ integrated development environment used by many of
our customers in Asia.
E2 Lite now supports the following integrated development environments.
Renesas Electronics products:
- CS+ V5.00.00 and later
-
e2 studio V4.0.1 and later
IAR Systems products:
-
-
IAR Embedded Workbench for RX
IAR Embedded Workbench for RL78
For details about integrated development environments adaptable to E2 Lite, see the following URL:
https://www.renesas.com/e2lite
2. Overview
E2 Lite is an on-chip debugging emulator and flash programmer for MCUs of the RX and RL78 families.
This product is more competitively priced than ever before, and includes the debugging function (equivalent to
the E1 emulator), making it useful in areas such as those for the hobbyist, educational purposes, or in fully-fledged
developmental applications.
E2 Lite has the compatibility interface as the E1 emulator so that can be readily connected to boards designed for
the E1 emulator (Note). Note also that optional products can continue to be used.
Note: E2 Lite supports user system power supply voltages in the range 1.8 V to 5.0 V.
The emulator supports an output voltage (to the user system) of 3.3 V. 5.0 V is not supported.
R20TS0160EJ0100 Rev.1.00
Apr. 16, 2017
Page 1 of 4
RENESAS TOOL NEWS

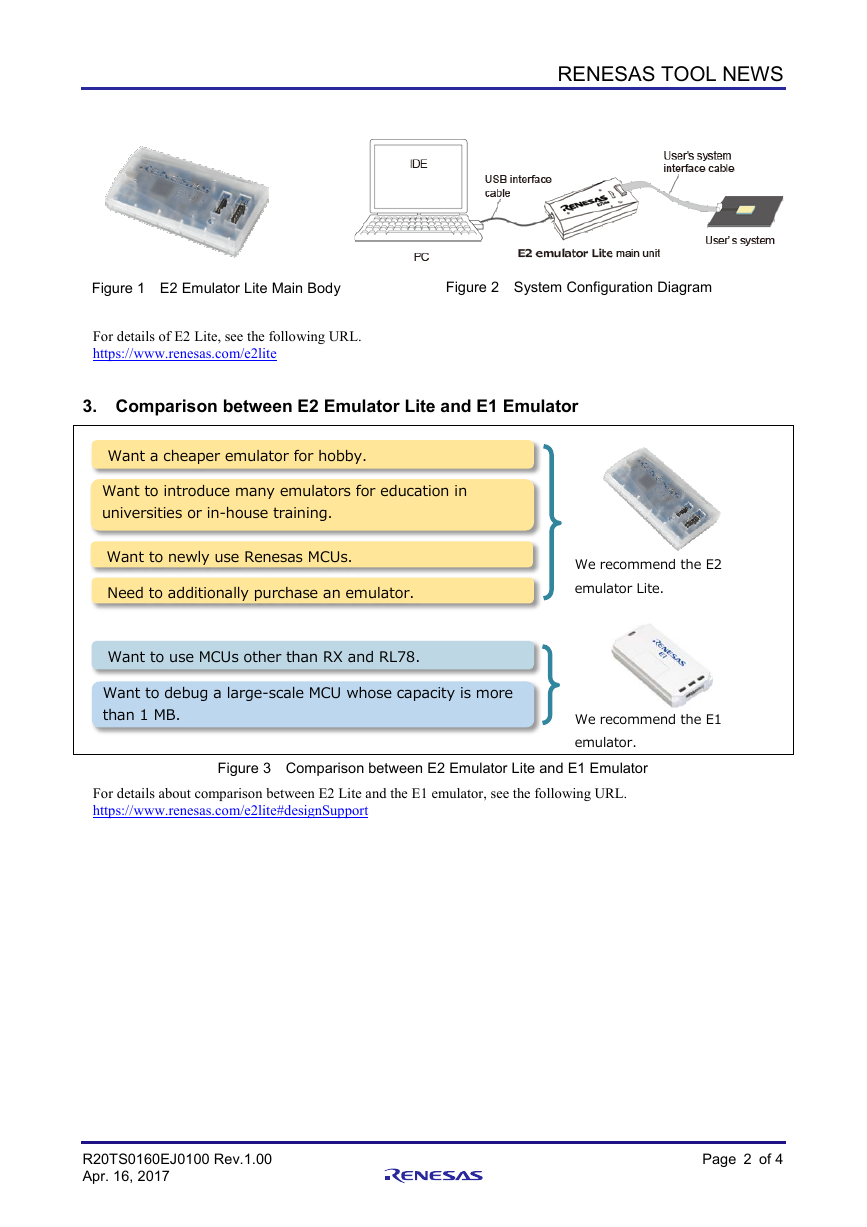

Figure 1 E2 Emulator Lite Main Body
For details of E2 Lite, see the following URL.
https://www.renesas.com/e2lite
Figure 2 System Configuration Diagram
3. Comparison between E2 Emulator Lite and E1 Emulator
We recommend the E2
emulator Lite.
We recommend the E1
emulator.
Want a cheaper emulator for hobby.
Want to introduce many emulators for education in
universities or in‐house training.
Want to newly use Renesas MCUs.
Need to additionally purchase an emulator.
Want to use MCUs other than RX and RL78.
Want to debug a large‐scale MCU whose capacity is more
than 1 MB.
Figure 3 Comparison between E2 Emulator Lite and E1 Emulator
For details about comparison between E2 Lite and the E1 emulator, see the following URL.
https://www.renesas.com/e2lite#designSupport
R20TS0160EJ0100 Rev.1.00
Apr. 16, 2017
Page 2 of 4
RENESAS TOOL NEWS

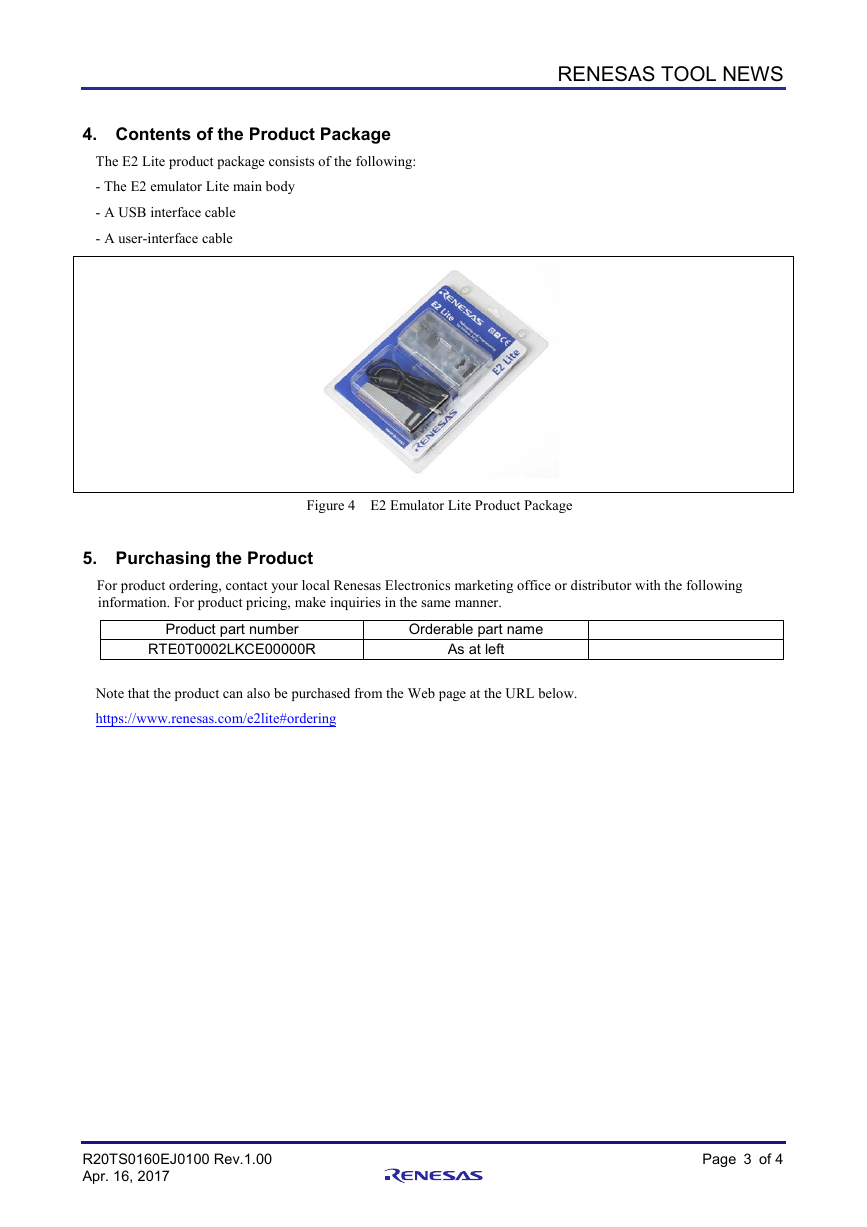

4. Contents of the Product Package
The E2 Lite product package consists of the following:
- The E2 emulator Lite main body
- A USB interface cable
- A user-interface cable
Figure 4 E2 Emulator Lite Product Package
5. Purchasing the Product
For product ordering, contact your local Renesas Electronics marketing office or distributor with the following
information. For product pricing, make inquiries in the same manner.
Product part number
RTE0T0002LKCE00000R
Note that the product can also be purchased from the Web page at the URL below.
https://www.renesas.com/e2lite#ordering
Orderable part name
As at left
R20TS0160EJ0100 Rev.1.00
Apr. 16, 2017
Page 3 of 4
