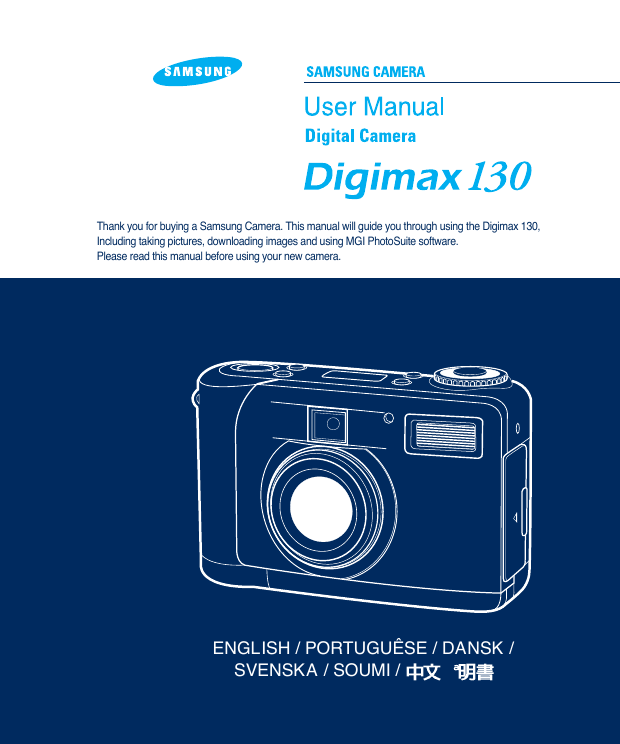

Thank you for buying a Samsung Camera. This manual will guide you through using the Digimax 130, Including taking pictures, downloading images and using MGI PhotoSuite software. Please read this manual before using your new camera. ENGLISH / PORTUGUÊSE / DANSK / SVENSKA / SOUMI / ª

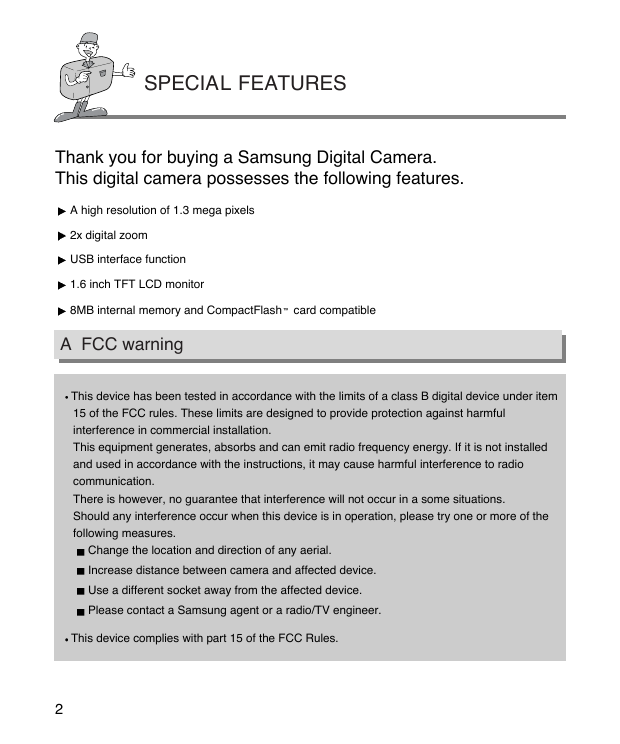

SPECIAL FEATURES Thank you for buying a Samsung Digital Camera. This digital camera possesses the following features. A high resolution of 1.3 mega pixels 2x digital zoom USB interface function 1.6 inch TFT LCD monitor 8MB internal memory and CompactFlash card compatible A FCC warning This device has been tested in accordance with the limits of a class B digital device under item 15 of the FCC rules. These limits are designed to provide protection against harmful interference in commercial installation. This equipment generates, absorbs and can emit radio frequency energy. If it is not installed and used in accordance with the instructions, it may cause harmful interference to radio communication. There is however, no guarantee that interference will not occur in a some situations. Should any interference occur when this device is in operation, please try one or more of the following measures. Change the location and direction of any aerial. Increase distance between camera and affected device. Use a different socket away from the affected device. Please contact a Samsung agent or a radio/TV engineer. This device complies with part 15 of the FCC Rules. 2

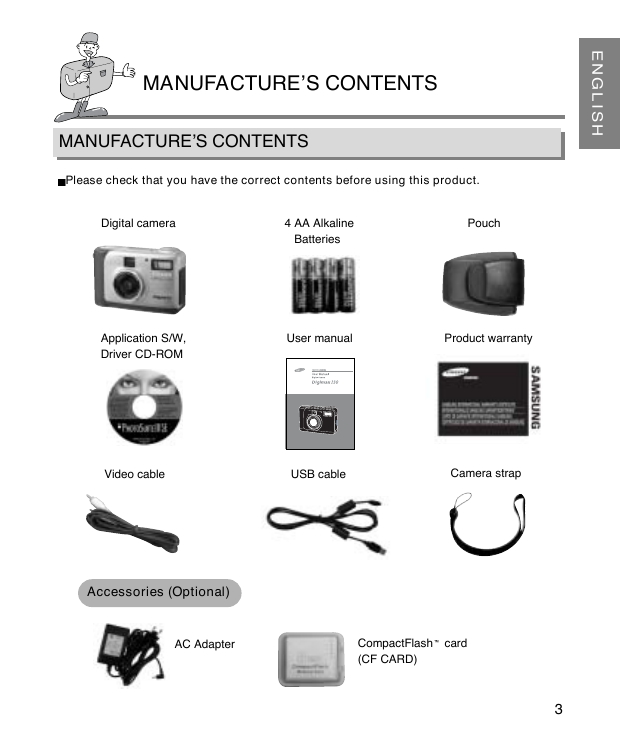

MANUFACTURE’S CONTENTS MANUFACTURE’S CONTENTS Please check that you have the correct contents before using this product. Digital camera 4 AA Alkaline Pouch Batteries E N G L I S H Application S/W, Driver CD-ROM User manual Product warranty Video cable USB cable Camera strap Accessories (Optional) AC Adapter CompactFlash card (CF CARD) 3

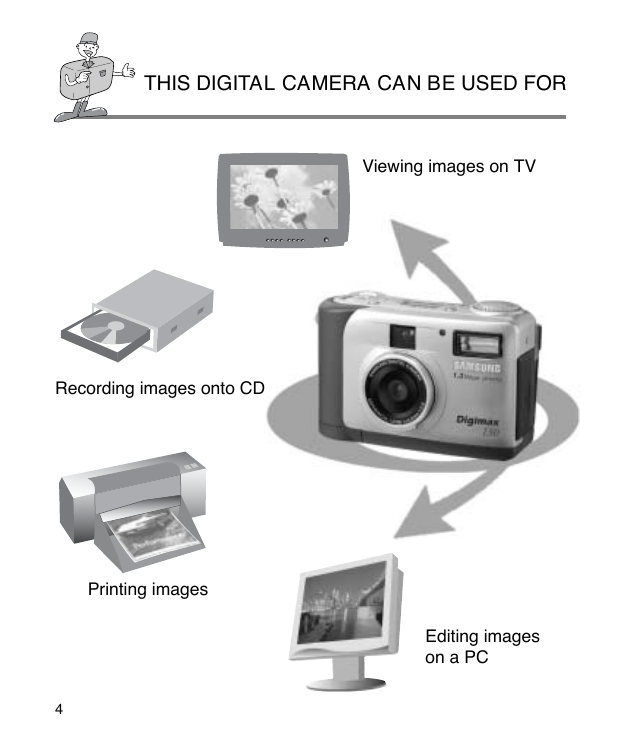

THIS DIGITAL CAMERA CAN BE USED FOR Viewing images on TV Recording images onto CD Printing images 4 Editing images on a PC

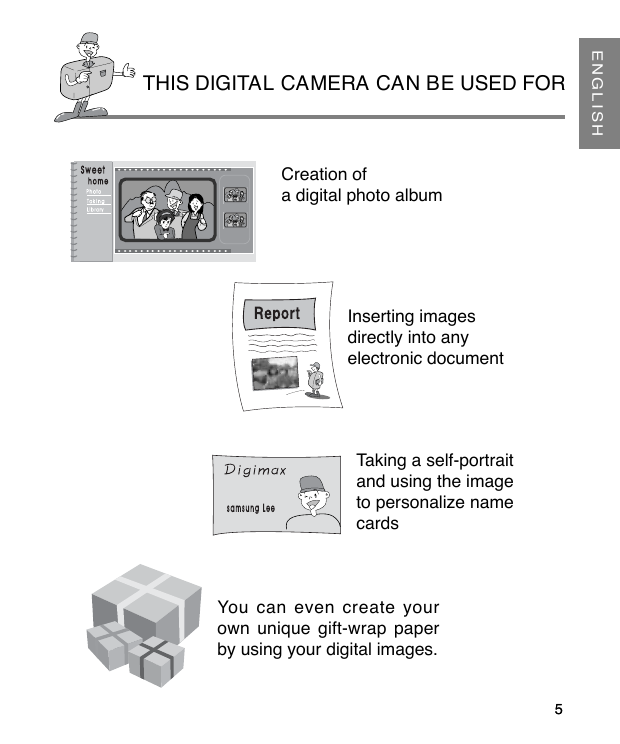

THIS DIGITAL CAMERA CAN BE USED FOR E N G L I S H Creation of a digital photo album Inserting images directly into any electronic document Taking a self-portrait and using the image to personalize name cards You can even create your own unique gift-wrap paper by using your digital images. 55

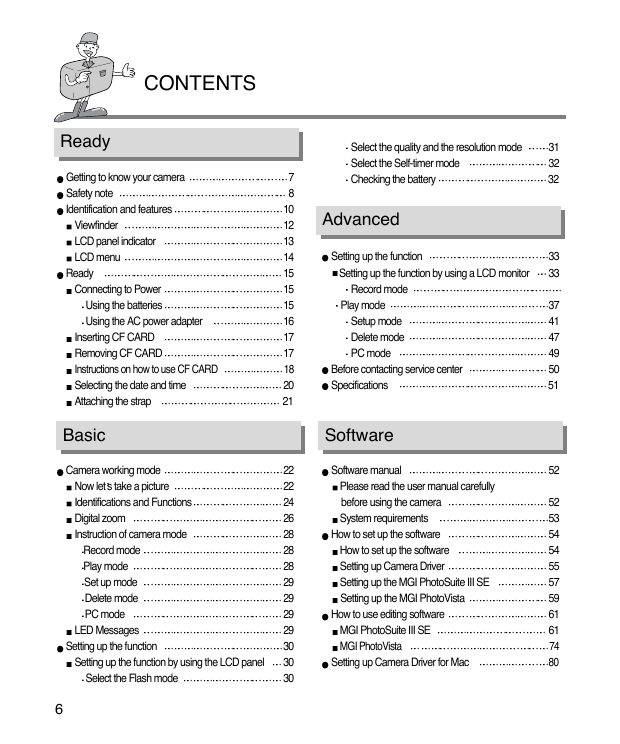

CONTENTS Ready Getting to know your camera Safety note Identification and features Viewfinder LCD panel indicator LCD menu Ready Connecting to Power Using the batteries Using the AC power adapter Inserting CF CARD Removing CF CARD Instructions on how to use CF CARD Selecting the date and time Attaching the strap Basic Camera working mode Now lets take a picture Identifications and Functions Digital zoom Instruction of camera mode Record mode Play mode Set up mode Delete mode PC mode LED Messages Setting up the function Setting up the function by using the LCD panel Select the Flash mode 6 Select the quality and the resolution mode Select the Self-timer mode Checking the battery Advanced Setting up the function Setting up the function by using a LCD monitor Record mode Play mode Setup mode Delete mode PC mode Before contacting service center Specifications Software Software manual Please read the user manual carefully before using the camera System requirements How to set up the software How to set up the software Setting up Camera Driver Setting up the MGI PhotoSuite III SE Setting up the MGI PhotoVista How to use editing software MGI PhotoSuite III SE MGI PhotoVista Setting up Camera Driver for Mac 31 32 32 33 33 37 41 47 49 50 51 52 52 53 54 54 55 57 59 61 61 74 80 7 8 10 12 13 14 15 15 15 16 17 17 18 20 21 22 22 24 26 28 28 28 29 29 29 29 30 30 30

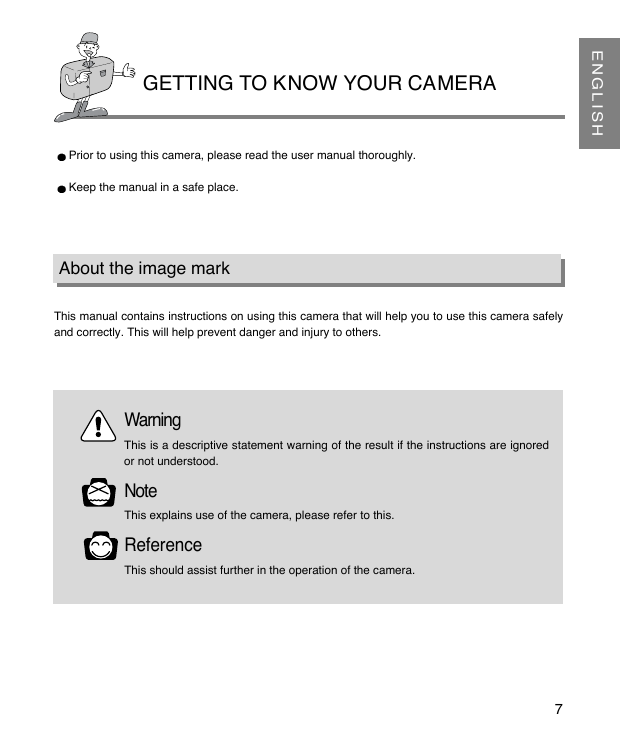

GETTING TO KNOW YOUR CAMERA Prior to using this camera, please read the user manual thoroughly. Keep the manual in a safe place. E N G L I S H About the image mark This manual contains instructions on using this camera that will help you to use this camera safely and correctly. This will help prevent danger and injury to others. Warning This is a descriptive statement warning of the result if the instructions are ignored or not understood. Note This explains use of the camera, please refer to this. Reference This should assist further in the operation of the camera. 7

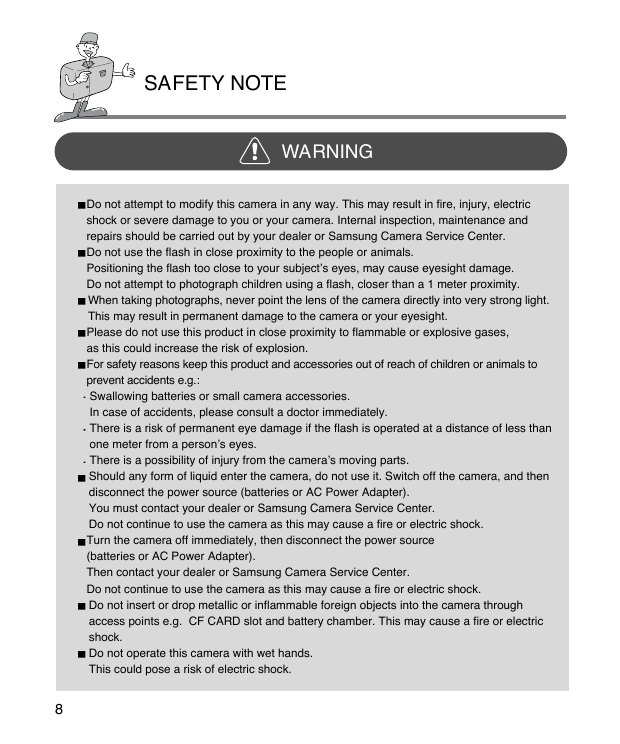

SAFETY NOTE WARNING Do not attempt to modify this camera in any way. This may result in fire, injury, electric shock or severe damage to you or your camera. Internal inspection, maintenance and repairs should be carried out by your dealer or Samsung Camera Service Center. Do not use the flash in close proximity to the people or animals. Positioning the flash too close to your subject’s eyes, may cause eyesight damage. Do not attempt to photograph children using a flash, closer than a 1 meter proximity. When taking photographs, never point the lens of the camera directly into very strong light. This may result in permanent damage to the camera or your eyesight. Please do not use this product in close proximity to flammable or explosive gases, as this could increase the risk of explosion. For safety reasons keep this product and accessories out of reach of children or animals to prevent accidents e.g.: Swallowing batteries or small camera accessories. In case of accidents, please consult a doctor immediately. There is a risk of permanent eye damage if the flash is operated at a distance of less than one meter from a person’s eyes. There is a possibility of injury from the camera’s moving parts. Should any form of liquid enter the camera, do not use it. Switch off the camera, and then disconnect the power source (batteries or AC Power Adapter). You must contact your dealer or Samsung Camera Service Center. Do not continue to use the camera as this may cause a fire or electric shock. Turn the camera off immediately, then disconnect the power source (batteries or AC Power Adapter). Then contact your dealer or Samsung Camera Service Center. Do not continue to use the camera as this may cause a fire or electric shock. Do not insert or drop metallic or inflammable foreign objects into the camera through access points e.g. CF CARD slot and battery chamber. This may cause a fire or electric shock. Do not operate this camera with wet hands. This could pose a risk of electric shock. 8
