owner’s manual EdgE® 605/705 gPS-ENABLEd BIKE COMPUTER MB

© 2009 Garmin Ltd. or its subsidiaries Garmin International, Inc. 1200 East 151st Street, Olathe, Kansas 66062, USA Tel. (913) 397.8200 or (800) 800.1020 Fax (913) 397.8282 Garmin (Europe) Ltd. Liberty House, Hounsdown Business Park, Southampton, Hampshire, SO40 9RB UK Tel. +44 (0) 870.8501241 (outside the UK) 0808 2380000 (within the UK) Fax +44 (0) 870.8501251 Garmin Corporation No. 68, Jangshu 2nd Road, Shijr, Taipei County, Taiwan Tel. 886/2.2642.9199 Fax 886/2.2642.9099 All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded or stored in any storage medium, for any purpose without the express prior written consent of Garmin. Garmin hereby grants permission to download a single copy of this manual onto a hard drive or other electronic storage medium to be viewed and to print one copy of this manual or of any revision hereto, provided that such electronic or printed copy of this manual must contain the complete text of this copyright notice and provided further that any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited. Information in this document is subject to change without notice. Garmin reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes or improvements. Visit the Garmin Web site (www.garmin.com) for current updates and supplemental information concerning the use and operation of this and other Garmin products. Garmin® is a trademark of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. Garmin Training Center®, Auto Pause®, Auto Lap®, Virtual Partner®, Edge®, Garmin Connect™, GSC™10, Dynastream™, ANT™, and ANT+Sport™ are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin. microSD™ is a trademark of The SD Card Association. Windows® is a registered trademark of Microsoft Corporation in the United States and/or other countries. Mac® is a registered trademark of Apple Computer, Inc. Other trademarks and trade names are those of their respective owners. March 2009 Part Number 190-00813-00 Rev. D Printed in Taiwan

Preface Thank you for purchasing the Garmin® Edge® 605/705 bike computer. Warning: Always consult your physician before you begin or modify any exercise program. See the Important Safety and Product Information guide in the product box for product warnings and other important information. Product Registration Help us better support you by completing our online registration today. Go to http://my.garmin.com. Keep the original sales receipt, or a photocopy, in a safe place. Preface Contact Garmin Contact Garmin Product Support if you have any questions while using your Edge. In the USA, go to www.garmin.com/support, or contact Garmin USA by phone at (913) 397-8200 or (800) 800-1020. In the UK, contact Garmin (Europe) Ltd. by phone at 0808 2380000. In Europe, go to www.garmin.com /support and click Contact Support for in-country support information, or contact Garmin (Europe) Ltd. by phone at +44 (0) 870.8501241. Free Garmin Software Go to www.garmin.com/edge to download the Garmin Connect™ Web-based software or the Garmin Training Center® computer software. Use this software to store and analyze your ride data. Edge 605/705 Owner’s Manual

Preface Table of conTenTs Preface.................................. i Product Registration ................ i Contact Garmin ......................... i Free Garmin Software ............. i Getting Started .................... 1 Buttons ..................................... 1 Resetting the Edge .................. 2 Clearing User Data ................... 2 Edge Backlight ......................... 2 Icons.......................................... 3 Step 1: Charge the Battery ...... 3 Step 2: Install the Edge ........... 5 Step 3: Turn on Your Edge ...... 6 Step 4: Acquire Satellite Signals ................................ 7 Step 5: Save Your Home Location (Optional) ............ 7 Step 6: Set Up Sensors (Optional) ............................ 8 Step 7: Set Your Profiles ......... 8 Step 8: Go for a Ride! ............ 10 Step 9: Download Free Software ............................ 10 Step 10: Transfer History to Your Computer ................. 10 Where To ............................11 Follow History ........................ 11 Saved Rides ........................... 11 Options for Saved Rides .... 12 Back To Start .......................... 12 Find Places ............................. 12 Find Favorites .................... 13 Find Addresses .................. 14 Find Points of Interest ........ 14 Stop Navigating...................... 14 Training .............................. 15 Auto Pause® ........................... 15 Auto Lap® ............................... 15 Alerts ....................................... 17 Using Time and distance Alerts ............................ 17 Using Speed Alerts ............. 18 Using Heart Rate Alerts ...... 18 Edge 605/705 Owner’s Manual

Using Cadence Alerts ......... 19 Using Power Alerts ............. 20 Virtual Partner® ...................... 21 Workouts: Simple, Interval, and Advanced ......................... 22 Using Workouts .................. 22 Simple Workouts ................ 22 Interval Workouts ............... 23 Advanced Workouts ........... 25 Courses .................................. 29 Creating Courses ............... 29 Course data Pages ............ 30 Using the Map ................... 32 Marking and Finding Locations .......................... 32 Additional Maps ..................... 34 Satellite Page ......................... 34 Using Accessories ........... 35 Heart Rate Monitor ................. 35 Heart Rate Zones ............... 36 Heart Rate Monitor Battery .......................... 38 Preface GSC 10 .................................... 38 Training with Cadence ........ 41 gSC 10 Battery .................. 41 Power Meter ........................... 42 Power Calibration ............... 42 Power Zones ...................... 42 History ............................... 43 Viewing History ...................... 43 Transferring History to Your Computer .......................... 44 Deleting History ..................... 44 Data Management ............. 45 Loading Files .......................... 45 Step 1: Insert a MicroSd Card (Optional) ............. 45 Step 2: Connect the USB Cable ............................ 45 Step 3: Transfer Files to Your Computer ............. 46 Step 4: Eject and Unplug the USB Cable .............. 46 Deleting Files ......................... 46 Garmin Folders ...................... 47 Edge 605/705 Owner’s Manual

Heart Rate Monitor Battery .......................... 60 gSC 10 Battery .................. 61 Specifications ........................ 62 Edge ................................... 62 Bike Mount ......................... 62 Heart Rate Monitor ............. 63 gSC 10 .............................. 63 Barometric Altimeter ............. 64 Tire Size and Appendix ........................... 60 Optional Accessories ............ 60 Battery Information ................ 60 Circumference .................. 64 Declaration of Conformity ..... 66 Troubleshooting ..................... 67 Index .................................. 69 Preface Transferring Files to Another Edge (705 Only) ............... 47 Settings ............................. 48 Custom Data Fields ............... 48 Edge data Fields ................ 49 System .................................... 54 Map .......................................... 54 Routing ................................... 55 Car/Motorcycle Settings ..... 55 Bicycle and Pedestrian Settings ......................... 55 Profile and Zones ................... 55 User and Bike Profiles ........ 55 Speed Zones ...................... 56 Heart Rate and Power Zones (Edge 705) ......... 56 Display .................................... 56 Units ........................................ 57 Time ......................................... 57 Data Recording ...................... 57 ANT+Sport .............................. 58 Accessories ........................ 58 Receive and Transfer data .............................. 59 v Edge 605/705 Owner’s Manual

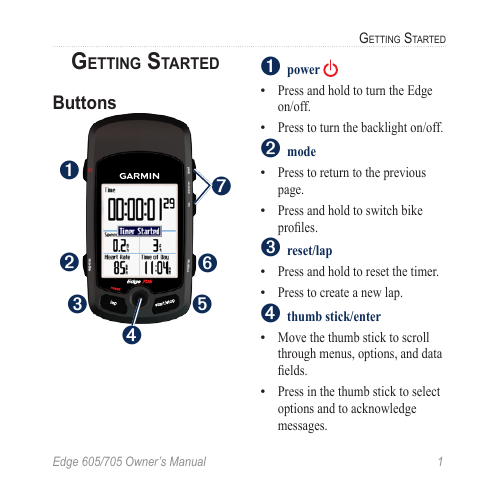

GeTTinG sTarTed Buttons ➊ ➋ ➌ ➍ ➐ ➏ ➎ GettinG Started Press and hold to turn the Edge on/off. Press to turn the backlight on/off. ➊ power • • ➋ mode • Press to return to the previous page. Press and hold to switch bike profiles. Press and hold to reset the timer. Press to create a new lap. ➌ reset/lap • • ➍ thumb stick/enter • Move the thumb stick to scroll through menus, options, and data fields. Press in the thumb stick to select options and to acknowledge messages. • • Edge 605/705 Owner’s Manual

GettinG Started ➎ start/stop Press to start/stop the timer. ➏ menu • • ➐ in/out Press to open the menu page. Press and hold to lock/unlock the Edge buttons. Press to zoom in/out on the map page and the altimeter page. Resetting the Edge If your Edge is locked up/frozen, press mode and reset/lap simultaneously to reset the Edge. This does not erase any of your data or settings. Clearing User Data Caution: This deletes all user-entered information. 1. Turn off the Edge. 2. Press and hold mode and until the message appears. 3. Select Yes to clear all user data. Edge Backlight Press to turn on the backlight. Use the thumb stick to adjust the backlight level. Edge 605/705 Owner’s Manual
