东芝投影机-TLP-T70M说明书.pdf
Before Using
SAFETY PRECAUTIONS
IMPORTANT SAFETY INSTRUCTIONS

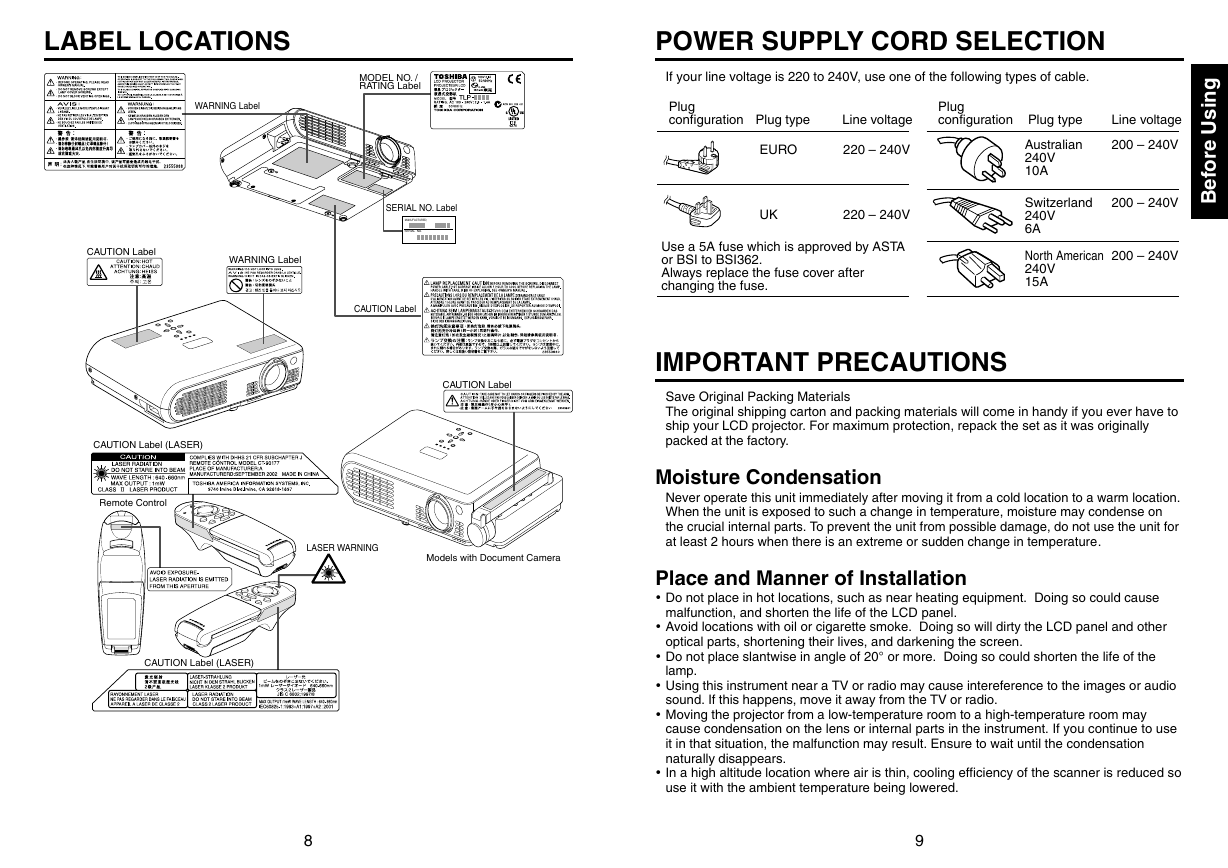

LABEL LOCATIONS
POWER SUPPLY CORD SELECTION
IMPORTANT PRECAUTIONS

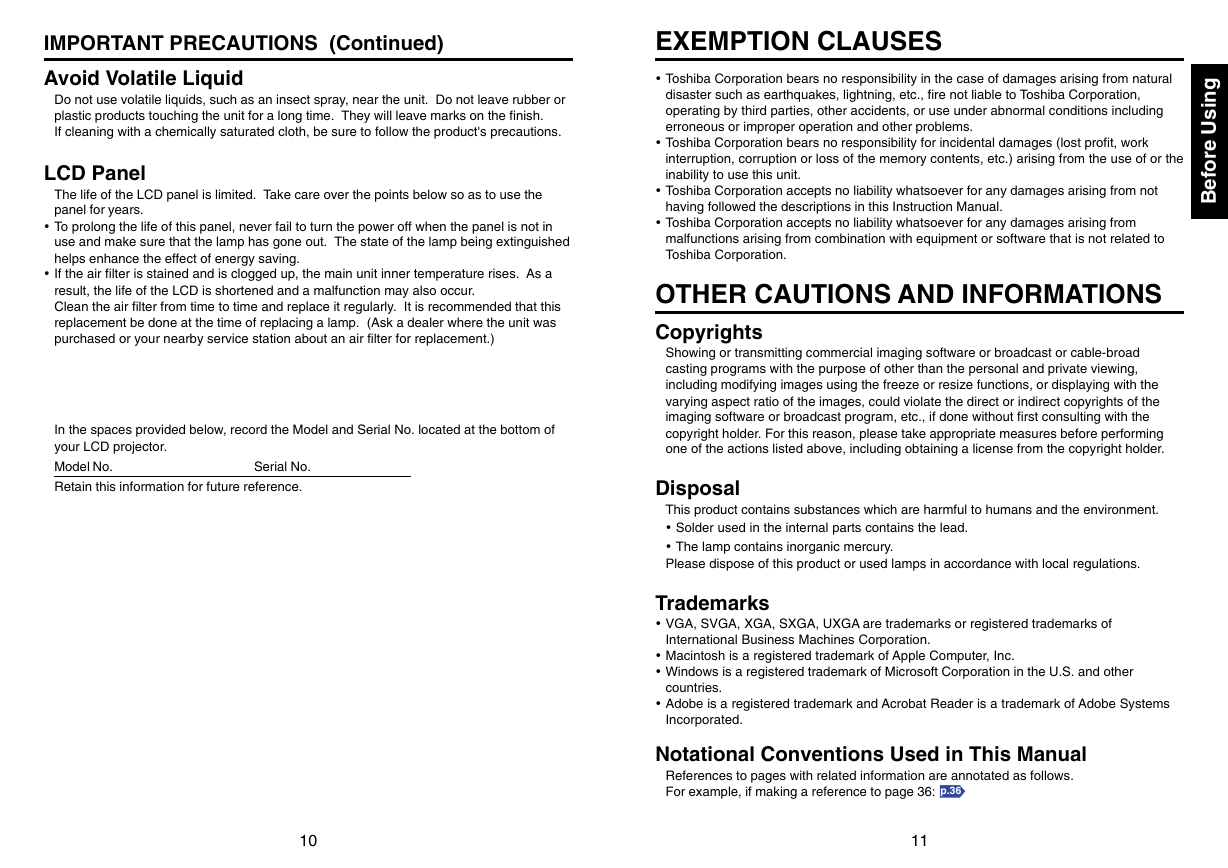

EXEMPTION CLAUSES
OTHER CAUTIONS AND INFORMATIONS

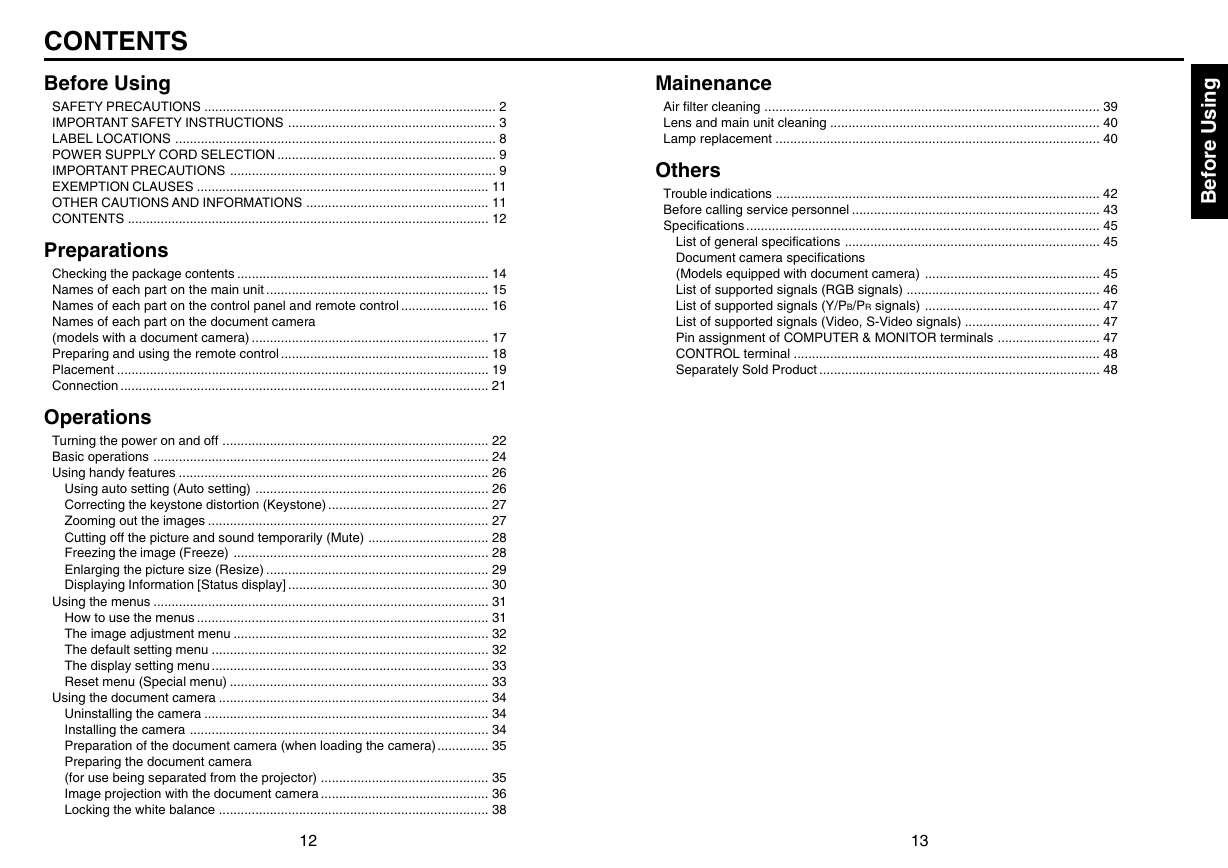

CONTENTS
Preparations

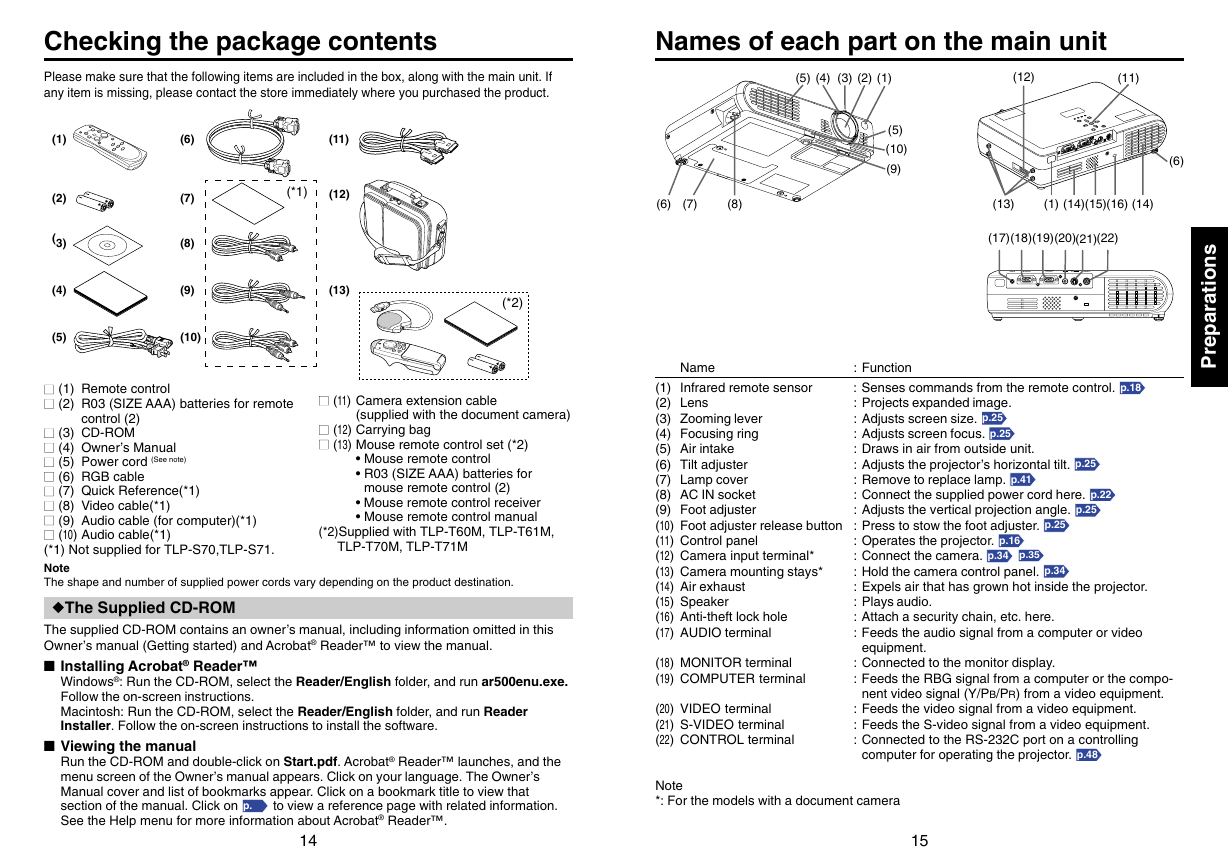

Checking the package contents
Names of each part on the main unit
Names of each part on the control panel and remote control
Names of each part on the document camera
Preparing and using the remote control
Placement
Connection
Operations
Turning the power on and off
Basic operations
Using handy features
Using auto setting (Auto setting)
Correcting the keystone distortion (Keystone)
Zooming out the images
Cutting off the picture and sound temporarily (Mute)
Freezing the image (Freeze)
Enlarging the picture size (Resize)
Displaying Information [Status display]
Using the menus
How to use the menus
The image adjustment menu
The default setting menu
The display setting menu
Reset menu (Special menu)
Using the document camera
Uninstalling the camera
Installing the camera
Preparation of the document camera (when loading the camera)
Preparing the document camera (for use being separated
from the projector)
Image projection with the document camera
Locking the white balance
Maintenance
Air filter cleaning
Lens and main unit cleaning
Lamp replacement
Others
Trouble indications
Before calling service personnel
Specifications
List of general specifications
Document camera specifications
List of supported signals (RGB signals)
List of supported signals (Y/PB/PR signals)
List of supported signals (Video, S-Video signals)
Pin assignment of COMPUTER & MONITOR terminals
CONTROL terminal
Separately Sold Product
OWNER’S MANUAL
3LCD DATA PROJECTOR
TLP-T70M (XGA)
TLP-T71M (XGA / With Document Camera)
TLP-T60M (XGA)
TLP-T61M (XGA / With Document Camera)
TLP-S70 (SVGA)
TLP-S71 (SVGA / With Document Camera)
TLP-S40 (SVGA)
TLP-S41 (SVGA / With Document Camera)
TLP-T70M / T60M / TLP-S70/TLP-S40
g
n
i
s
U
e
r
o
f
e
B
s
n
o
i
t
a
r
a
p
e
r
P
s
n
o
i
t
a
r
e
p
O
e
c
n
a
n
e
t
n
i
a
M
s
r
e
h
t
O
Before Using

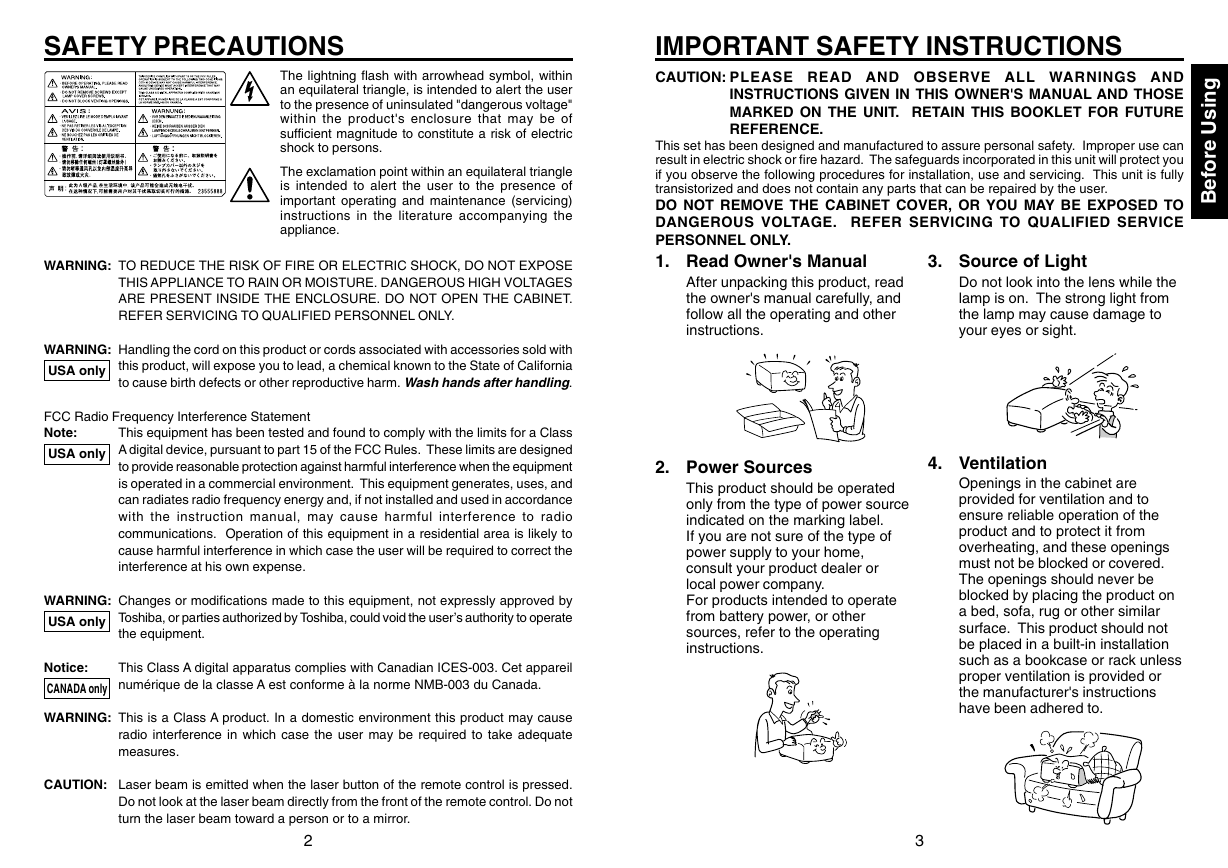

SAFETY PRECAUTIONS
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES
ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET.
REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
WARNING: Handling the cord on this product or cords associated with accessories sold with
this product, will expose you to lead, a chemical known to the State of California
USA only
to cause birth defects or other reproductive harm. Wash hands after handling.
FCC Radio Frequency Interference Statement
Note:
USA only
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiates radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.
WARNING: Changes or modifications made to this equipment, not expressly approved by
Toshiba, or parties authorized by Toshiba, could void the user’s authority to operate
USA only
the equipment.
Notice:
CANADA only
This Class A digital apparatus complies with Canadian ICES-003. Cet appareil
numérique de la classe A est conforme à la norme NMB-003 du Canada.
WARNING: This is a Class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.
CAUTION: Laser beam is emitted when the laser button of the remote control is pressed.
Do not look at the laser beam directly from the front of the remote control. Do not
turn the laser beam toward a person or to a mirror.
g
n
i
s
U
e
r
o
f
e
B
IMPORTANT SAFETY INSTRUCTIONS
CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND
INSTRUCTIONS GIVEN IN THIS OWNER'S MANUAL AND THOSE
MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE
REFERENCE.
This set has been designed and manufactured to assure personal safety. Improper use can
result in electric shock or fire hazard. The safeguards incorporated in this unit will protect you
if you observe the following procedures for installation, use and servicing. This unit is fully
transistorized and does not contain any parts that can be repaired by the user.
DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO
DANGEROUS VOLTAGE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL ONLY.
1. Read Owner's Manual
3. Source of Light
After unpacking this product, read
the owner's manual carefully, and
follow all the operating and other
instructions.
Do not look into the lens while the
lamp is on. The strong light from
the lamp may cause damage to
your eyes or sight.
2. Power Sources
This product should be operated
only from the type of power source
indicated on the marking label.
If you are not sure of the type of
power supply to your home,
consult your product dealer or
local power company.
For products intended to operate
from battery power, or other
sources, refer to the operating
instructions.
4. Ventilation
Openings in the cabinet are
provided for ventilation and to
ensure reliable operation of the
product and to protect it from
overheating, and these openings
must not be blocked or covered.
The openings should never be
blocked by placing the product on
a bed, sofa, rug or other similar
surface. This product should not
be placed in a built-in installation
such as a bookcase or rack unless
proper ventilation is provided or
the manufacturer's instructions
have been adhered to.
2
3
IMPORTANT SAFETY INSTRUCTIONS (Continued)
5. Heat
8. Power-Cord Protection
Power-supply cords should be
routed so that they are not likely to
be walked on or pinched by items
placed upon or against them,
paying particular attention to cords
at plugs, convenience receptacles,
and the point where they exit from
the product.
The product should be situated
away from heat sources such as
radiators, heat registers, stoves, or
other products (including
amplifiers) that produce heat.
11. Object and Liquid Entry
Never push objects of any kind
into this product through openings
as they may touch dangerous
voltage points or short-out parts
that could result in a fire or electric
shock. Never spill liquid of any
kind on the product.
6. Water and Moisture
Do not use this product near water.
- for example, near a bath tub,
wash bowl, kitchen sink, or laundry
tub; in a wet basement; or near a
swimming pool and the like.
9. Overloading
Do not overload wall outlets;
extension cords, or integral
convenience receptacles as this
can result in a risk of fire or
electric shock.
12. Do not place the product
vertically
Do not use the product in the
upright position to project the
pictures at the ceiling, or any other
vertical positions. It may fall down
and dangerous.
g
n
i
s
U
e
r
o
f
e
B
14. Attachments
Do not use attachments not
recommended by the product
manufacturer as they may cause
hazards.
15. Accessories
Do not place this product on an
unstable cart, stand, tripod,
bracket, or table. The product may
fall, causing serious injury to a
child or adult, and serious damage
to the product. Use only with a
cart, stand, tripod, bracket, or table
recommended by the
manufacturer, or sold with the
product. Any mounting of the
product should follow the
manufacturer's instructions, and
should use a mounting accessory
recommended by the
manufacturer. A product and cart
combination should be moved with
care. Quick stops, excessive
force, and uneven surfaces may
cause the product and cart
combination to overturn.
7. Cleaning
Unplug this product from the wall
outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners.
Use a soft cloth for cleaning.
10. Lightning storms
For added protection for this
product during storm, or when it is
left unattended and unused for
long periods of time, unplug it from
the wall outlet. This will prevent
damage to the product due to
lightning and power-line surges.
13. Stack Inhibited
Do not stack other equipment on
this product or do not place this
product on the other equipment.
Top and bottom plates of this
product develops heat and may
give some undesirable damage to
other unit.
S3125A
4
5

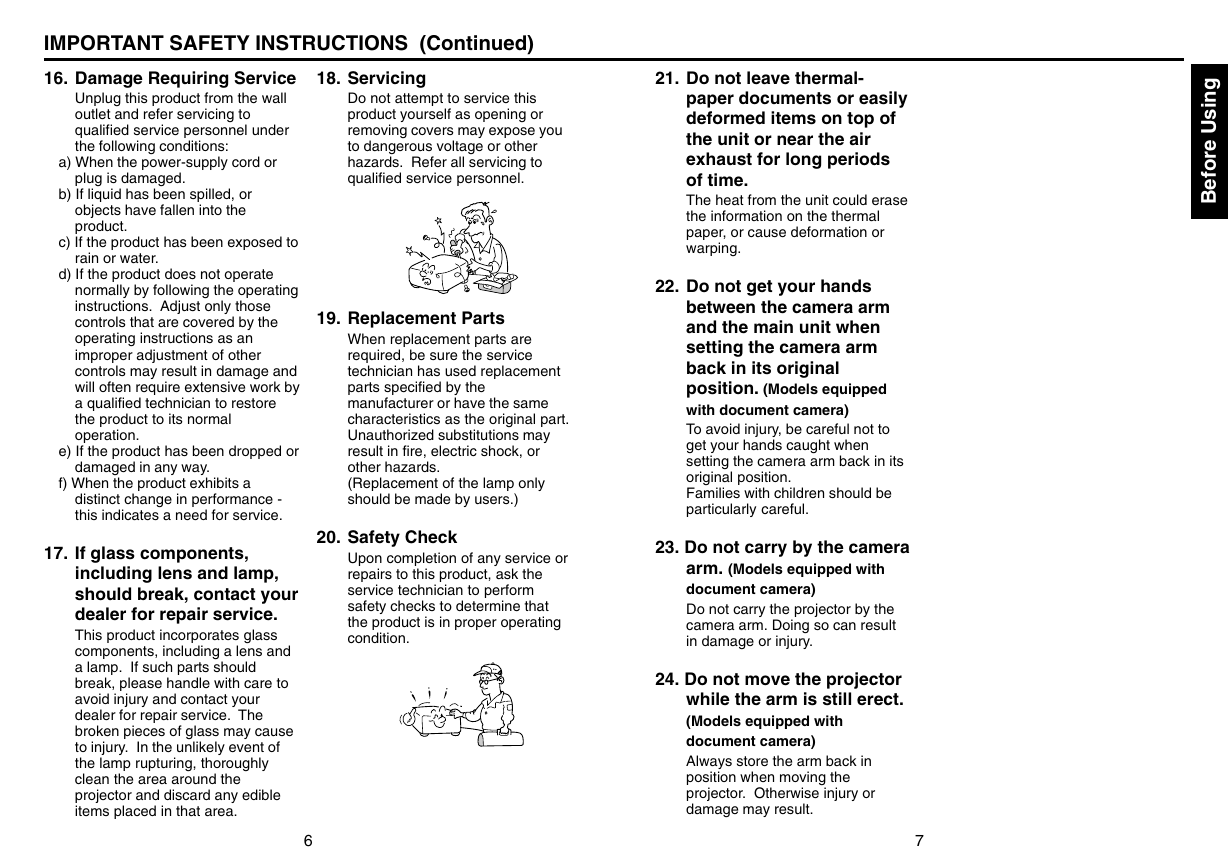

IMPORTANT SAFETY INSTRUCTIONS (Continued)
16. Damage Requiring Service
Unplug this product from the wall
outlet and refer servicing to
qualified service personnel under
the following conditions:
18. Servicing
Do not attempt to service this
product yourself as opening or
removing covers may expose you
to dangerous voltage or other
hazards. Refer all servicing to
qualified service personnel.
a) When the power-supply cord or
plug is damaged.
b) If liquid has been spilled, or
objects have fallen into the
product.
c) If the product has been exposed to
rain or water.
d) If the product does not operate
19. Replacement Parts
When replacement parts are
required, be sure the service
technician has used replacement
parts specified by the
manufacturer or have the same
characteristics as the original part.
Unauthorized substitutions may
result in fire, electric shock, or
other hazards.
(Replacement of the lamp only
should be made by users.)
20. Safety Check
Upon completion of any service or
repairs to this product, ask the
service technician to perform
safety checks to determine that
the product is in proper operating
condition.
normally by following the operating
instructions. Adjust only those
controls that are covered by the
operating instructions as an
improper adjustment of other
controls may result in damage and
will often require extensive work by
a qualified technician to restore
the product to its normal
operation.
e) If the product has been dropped or
damaged in any way.
f) When the product exhibits a
distinct change in performance -
this indicates a need for service.
17. If glass components,
including lens and lamp,
should break, contact your
dealer for repair service.
This product incorporates glass
components, including a lens and
a lamp. If such parts should
break, please handle with care to
avoid injury and contact your
dealer for repair service. The
broken pieces of glass may cause
to injury. In the unlikely event of
the lamp rupturing, thoroughly
clean the area around the
projector and discard any edible
items placed in that area.
g
n
i
s
U
e
r
o
f
e
B
21. Do not leave thermal-
paper documents or easily
deformed items on top of
the unit or near the air
exhaust for long periods
of time.
The heat from the unit could erase
the information on the thermal
paper, or cause deformation or
warping.
22. Do not get your hands
between the camera arm
and the main unit when
setting the camera arm
back in its original
position. (Models equipped
with document camera)
To avoid injury, be careful not to
get your hands caught when
setting the camera arm back in its
original position.
Families with children should be
particularly careful.
23. Do not carry by the camera
arm. (Models equipped with
document camera)
Do not carry the projector by the
camera arm. Doing so can result
in damage or injury.
24. Do not move the projector
while the arm is still erect.
(Models equipped with
document camera)
Always store the arm back in
position when moving the
projector. Otherwise injury or
damage may result.
6
7
LABEL LOCATIONS
WARNING Label
MODEL NO. /
RATING Label
CAUTION Label
WARNING Label
SERIAL NO. Label
MANUFACTURED;
SERIAL NO.
CAUTION Label
CAUTION Label
CAUTION Label (LASER)
Remote Control
P L A Y
IN P U T
CAUTION Label (LASER)
LASER WARNING
Models with Document Camera
POWER SUPPLY CORD SELECTION
If your line voltage is 220 to 240V, use one of the following types of cable.
Plug
configuration Plug type
Line voltage
Plug
configuration Plug type
EURO
220 – 240V
UK
220 – 240V
Use a 5A fuse which is approved by ASTA
or BSI to BSI362.
Always replace the fuse cover after
changing the fuse.
Australian
240V
10A
Switzerland
240V
6A
North American
240V
15A
g
n
i
s
U
e
r
o
f
e
B
Line voltage
200 – 240V
200 – 240V
200 – 240V
IMPORTANT PRECAUTIONS
Save Original Packing Materials
The original shipping carton and packing materials will come in handy if you ever have to
ship your LCD projector. For maximum protection, repack the set as it was originally
packed at the factory.
Moisture Condensation
Never operate this unit immediately after moving it from a cold location to a warm location.
When the unit is exposed to such a change in temperature, moisture may condense on
the crucial internal parts. To prevent the unit from possible damage, do not use the unit for
at least 2 hours when there is an extreme or sudden change in temperature.
malfunction, and shorten the life of the LCD panel.
optical parts, shortening their lives, and darkening the screen.
Place and Manner of Installation
• Do not place in hot locations, such as near heating equipment. Doing so could cause
• Avoid locations with oil or cigarette smoke. Doing so will dirty the LCD panel and other
• Do not place slantwise in angle of 20° or more. Doing so could shorten the life of the
• Using this instrument near a TV or radio may cause intereference to the images or audio
• Moving the projector from a low-temperature room to a high-temperature room may
sound. If this happens, move it away from the TV or radio.
lamp.
cause condensation on the lens or internal parts in the instrument. If you continue to use
it in that situation, the malfunction may result. Ensure to wait until the condensation
naturally disappears.
• In a high altitude location where air is thin, cooling efficiency of the scanner is reduced so
use it with the ambient temperature being lowered.
8
9
IMPORTANT PRECAUTIONS (Continued)
Avoid Volatile Liquid
Do not use volatile liquids, such as an insect spray, near the unit. Do not leave rubber or
plastic products touching the unit for a long time. They will leave marks on the finish.
If cleaning with a chemically saturated cloth, be sure to follow the product's precautions.
LCD Panel
The life of the LCD panel is limited. Take care over the points below so as to use the
panel for years.
• To prolong the life of this panel, never fail to turn the power off when the panel is not in
use and make sure that the lamp has gone out. The state of the lamp being extinguished
helps enhance the effect of energy saving.
• If the air filter is stained and is clogged up, the main unit inner temperature rises. As a
result, the life of the LCD is shortened and a malfunction may also occur.
Clean the air filter from time to time and replace it regularly. It is recommended that this
replacement be done at the time of replacing a lamp. (Ask a dealer where the unit was
purchased or your nearby service station about an air filter for replacement.)
In the spaces provided below, record the Model and Serial No. located at the bottom of
your LCD projector.
Model No.
Retain this information for future reference.
Serial No.
EXEMPTION CLAUSES
• Toshiba Corporation bears no responsibility in the case of damages arising from natural
disaster such as earthquakes, lightning, etc., fire not liable to Toshiba Corporation,
operating by third parties, other accidents, or use under abnormal conditions including
erroneous or improper operation and other problems.
• Toshiba Corporation bears no responsibility for incidental damages (lost profit, work
interruption, corruption or loss of the memory contents, etc.) arising from the use of or the
inability to use this unit.
• Toshiba Corporation accepts no liability whatsoever for any damages arising from not
having followed the descriptions in this Instruction Manual.
• Toshiba Corporation accepts no liability whatsoever for any damages arising from
malfunctions arising from combination with equipment or software that is not related to
Toshiba Corporation.
g
n
i
s
U
e
r
o
f
e
B
OTHER CAUTIONS AND INFORMATIONS
Copyrights
Showing or transmitting commercial imaging software or broadcast or cable-broad
casting programs with the purpose of other than the personal and private viewing,
including modifying images using the freeze or resize functions, or displaying with the
varying aspect ratio of the images, could violate the direct or indirect copyrights of the
imaging software or broadcast program, etc., if done without first consulting with the
copyright holder. For this reason, please take appropriate measures before performing
one of the actions listed above, including obtaining a license from the copyright holder.
Disposal
This product contains substances which are harmful to humans and the environment.
• Solder used in the internal parts contains the lead.
• The lamp contains inorganic mercury.
Please dispose of this product or used lamps in accordance with local regulations.
Trademarks
• VGA, SVGA, XGA, SXGA, UXGA are trademarks or registered trademarks of
International Business Machines Corporation.
• Macintosh is a registered trademark of Apple Computer, Inc.
• Windows is a registered trademark of Microsoft Corporation in the U.S. and other
countries.
• Adobe is a registered trademark and Acrobat Reader is a trademark of Adobe Systems
Incorporated.
Notational Conventions Used in This Manual
References to pages with related information are annotated as follows.
For example, if making a reference to page 36: p.36
10
11
Mainenance
Air filter cleaning ............................................................................................ 39
Lens and main unit cleaning .......................................................................... 40
Lamp replacement ......................................................................................... 40
Others
Trouble indications ......................................................................................... 42
Before calling service personnel .................................................................... 43
Specifications ................................................................................................. 45
List of general specifications ...................................................................... 45
Document camera specifications
(Models equipped with document camera) ................................................ 45
List of supported signals (RGB signals) ..................................................... 46
List of supported signals (Y/PB/PR signals) ................................................ 47
List of supported signals (Video, S-Video signals) ..................................... 47
Pin assignment of COMPUTER & MONITOR terminals ............................ 47
CONTROL terminal .................................................................................... 48
Separately Sold Product ............................................................................. 48
g
n
i
s
U
e
r
o
f
e
B
CONTENTS
Before Using
SAFETY PRECAUTIONS ................................................................................ 2
IMPORTANT SAFETY INSTRUCTIONS ......................................................... 3
LABEL LOCATIONS ........................................................................................ 8
POWER SUPPLY CORD SELECTION ............................................................ 9
IMPORTANT PRECAUTIONS ......................................................................... 9
EXEMPTION CLAUSES ................................................................................ 11
OTHER CAUTIONS AND INFORMATIONS .................................................. 11
CONTENTS ................................................................................................... 12
Preparations
Checking the package contents ..................................................................... 14
Names of each part on the main unit ............................................................. 15
Names of each part on the control panel and remote control ........................ 16
Names of each part on the document camera
(models with a document camera) ................................................................. 17
Preparing and using the remote control ......................................................... 18
Placement ...................................................................................................... 19
Connection ..................................................................................................... 21
Operations
Turning the power on and off ......................................................................... 22
Basic operations ............................................................................................ 24
Using handy features ..................................................................................... 26
Using auto setting (Auto setting) ................................................................ 26
Correcting the keystone distortion (Keystone) ............................................ 27
Zooming out the images ............................................................................. 27
Cutting off the picture and sound temporarily (Mute) ................................. 28
Freezing the image (Freeze) ...................................................................... 28
Enlarging the picture size (Resize) ............................................................. 29
Displaying Information [Status display] ....................................................... 30
Using the menus ............................................................................................ 31
How to use the menus ................................................................................ 31
The image adjustment menu ...................................................................... 32
The default setting menu ............................................................................ 32
The display setting menu ............................................................................ 33
Reset menu (Special menu) ....................................................................... 33
Using the document camera .......................................................................... 34
Uninstalling the camera .............................................................................. 34
Installing the camera .................................................................................. 34
Preparation of the document camera (when loading the camera).............. 35
Preparing the document camera
(for use being separated from the projector) .............................................. 35
Image projection with the document camera .............................................. 36
Locking the white balance .......................................................................... 38
12
13
Preparations
Checking the package contents
Please make sure that the following items are included in the box, along with the main unit. If
any item is missing, please contact the store immediately where you purchased the product.
Names of each part on the main unit
(5) (4)
(3)
(2)
(1)
(12)
(11)
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(*1)
(12)
(13)
R
E
S
A
L
R
E
T
N
E
/
U
N
E
M
R-C
K
LIC
L.-
O
V
E
D
O
J M
P
P
O
T
S
(5)
(10)
(9)
(6)
(7)
(8)
(13)
(1)
(6)
(14)
(14)
(15)
(16)
(17)
(18)
(19)
(20)
(21)(22)
(*2)
AY
L
P
T
U
P
IN
AUDIO
MONITOR
COMPUTER-
( Y/PB/PR )
VIDEO
VIDEO
S-VIDEO
CONTROL
s
n
o
i
t
a
r
a
p
e
r
P
I (1) Remote control
I (2) R03 (SIZE AAA) batteries for remote
I (11) Camera extension cable
(supplied with the document camera)
mouse remote control (2)
• Mouse remote control
• R03 (SIZE AAA) batteries for
I (12) Carrying bag
I (13) Mouse remote control set (*2)
control (2)
I (3) CD-ROM
I (4) Owner’s Manual
I (5) Power cord (See note)
I (6) RGB cable
I (7) Quick Reference(*1)
I (8) Video cable(*1)
I (9) Audio cable (for computer)(*1)
I (10) Audio cable(*1)
(*1) Not supplied for TLP-S70,TLP-S71.
Note
The shape and number of supplied power cords vary depending on the product destination.
NThe Supplied CD-ROM
The supplied CD-ROM contains an owner’s manual, including information omitted in this
Owner’s manual (Getting started) and Acrobat® Reader™ to view the manual.
I Installing Acrobat® Reader™
• Mouse remote control receiver
• Mouse remote control manual
(*2)Supplied with TLP-T60M, TLP-T61M,
TLP-T70M, TLP-T71M
Windows®: Run the CD-ROM, select the Reader/English folder, and run ar500enu.exe.
Follow the on-screen instructions.
Macintosh: Run the CD-ROM, select the Reader/English folder, and run Reader
Installer. Follow the on-screen instructions to install the software.
I Viewing the manual
Run the CD-ROM and double-click on Start.pdf. Acrobat® Reader™ launches, and the
menu screen of the Owner’s manual appears. Click on your language. The Owner’s
Manual cover and list of bookmarks appear. Click on a bookmark title to view that
section of the manual. Click on p.
See the Help menu for more information about Acrobat® Reader™.
to view a reference page with related information.
Name
Infrared remote sensor
: Function
: Senses commands from the remote control. p.18
: Projects expanded image.
: Adjusts screen size. p.25
: Adjusts screen focus. p.25
: Draws in air from outside unit.
: Adjusts the projector’s horizontal tilt. p.25
: Remove to replace lamp. p.41
: Connect the supplied power cord here. p.22
: Adjusts the vertical projection angle. p.25
(1)
(2) Lens
(3) Zooming lever
(4) Focusing ring
(5) Air intake
(6) Tilt adjuster
(7) Lamp cover
(8) AC IN socket
(9) Foot adjuster
(10) Foot adjuster release button : Press to stow the foot adjuster. p.25
(11) Control panel
(12) Camera input terminal*
(13) Camera mounting stays*
(14) Air exhaust
(15) Speaker
(16) Anti-theft lock hole
(17) AUDIO terminal
: Operates the projector. p.16
: Connect the camera. p.34 p.35
: Hold the camera control panel. p.34
: Expels air that has grown hot inside the projector.
: Plays audio.
: Attach a security chain, etc. here.
: Feeds the audio signal from a computer or video
(18) MONITOR terminal
(19) COMPUTER terminal
(20) VIDEO terminal
(21) S-VIDEO terminal
(22) CONTROL terminal
equipment.
: Connected to the monitor display.
: Feeds the RBG signal from a computer or the compo-
nent video signal (Y/PB/PR) from a video equipment.
: Feeds the video signal from a video equipment.
: Feeds the S-video signal from a video equipment.
: Connected to the RS-232C port on a controlling
computer for operating the projector. p.48
Note
*: For the models with a document camera
14
15
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
