Before Using
SAFETY PRECAUTIONS
IMPORTANT SAFETY INSTRUCTIONS
POWER SUPPLY INFORMATION
IMPORTANT PRECAUTIONS
EXEMPTION CLAUSES
OTHER INFORMATION
REMOTE CONTROL BATTERIES
CONTENTS
Preparations
Checking the package contents
Names of each part on the main unit
Names of each part on the control panel and remote control
Label location
Names of the terminals on the rear panel
Preparing and using the remote control
Operating a computer using the remote control
Placement
Connection
Operations
Turning the power on and off
Basic operations
Using handy features
Using auto setting (For computer input only)
Correcting the keystone distortion
Resizing image
Cutting off the picture and sound temporarily (Mute)
Changing picture mode
Changing screen size
Freezing the image (Freeze)
Setting the password
Using the menus 1
Setup using the Setting display
The image adjustment menu
The display setting menu
The default setting menu
Displaying Information (Status display)
Network /USB memory
Before connecting via a network
How to use the USB terminal
Using the menus 2
Setup using the Setting display (2)
Setting up the Network Projector/Network Utility
Computer settings
The control setting menu
Setting slideshow options
Checking the projector status
Status display
Using the Network Projector
Installing the applications
Using the Network Utility
Displaying a computer’s screen via the projector
Displaying a JPEG image saved on a computer via the projector
Displaying a video file saved on a computer via the projector
Displaying computer’s screens via projectors using the Multiscreen function
Easy Connect utility
Operating the projector
Projecting images stored in a USB memory device
Playing a slide show from a thumbnail list
How to use the JPEG Conversion Tool
Launching the JPEG Conversion Tool
Converting an image file
Converting files created with Microsoft® PowerPoint®
Making a presentation with converted JPEG files
Creating a screen capture and converting it into a JPEG file
Setting up the projector using a Web browser
Maintenance
About lamp
Lamp replacement
Air filter cleaning
Lens and main unit cleaning
Others
Trouble indications
Troubleshooting
Specifications
TLP-X200 (XGA)
TLP-WX200 (WXGA)

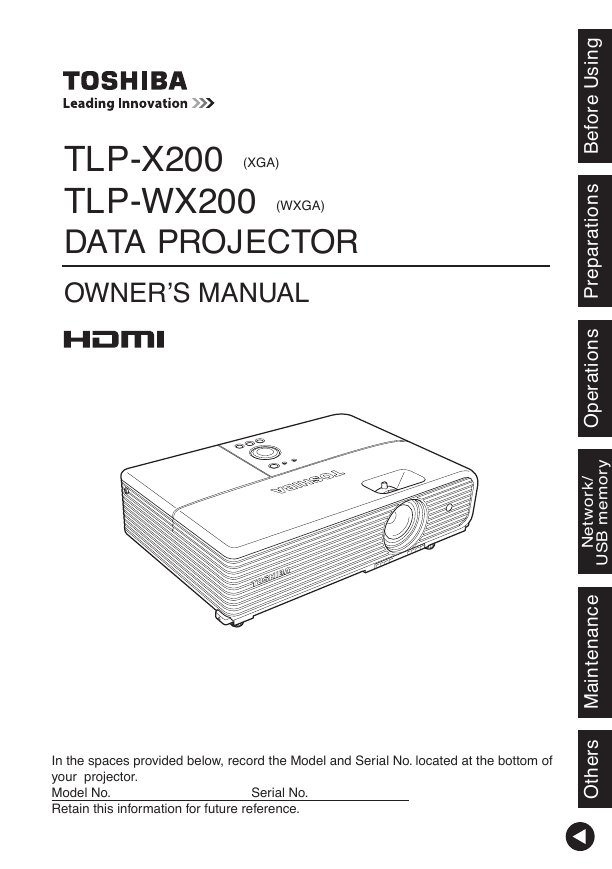

DATA PROJECTOR
OWNER’S MANUAL
g
n
i
s
U
e
r
o
f
e
B
s
n
o
i
t
a
r
a
p
e
r
P
s
n
o
i
t
a
r
e
p
O
/
k
r
o
w
t
e
N
y
r
o
m
e
m
B
S
U
e
c
n
a
n
e
t
n
a
M
i
s
r
e
h
t
O
In the spaces provided below, record the Model and Serial No. located at the bottom of
your projector.
Model No.
Retain this information for future reference.
Serial No.
g
n
i
s
U
e
r
o
f
e
B
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/TV technician for help.
RESPONSIBLE PARTY: TOSHIBA AMERICA INFORMATION SYSTEMS, INC.
9740 Irvine Blvd., Irvine, CA 9618-1697 U.S.A
Phone: (949) 58-000
CAUTION:
USA only
Notice:
CANADA only
Changes or modifications made to this equipment, not expressly approved by
Toshiba, or parties authorized by Toshiba, could void the user’s authority to
operate the equipment.
This Class B digital apparatus complies with Canadian ICES-00. Cet appareil
numérique de la classe B est conforme à la norme NMB-00 du Canada.

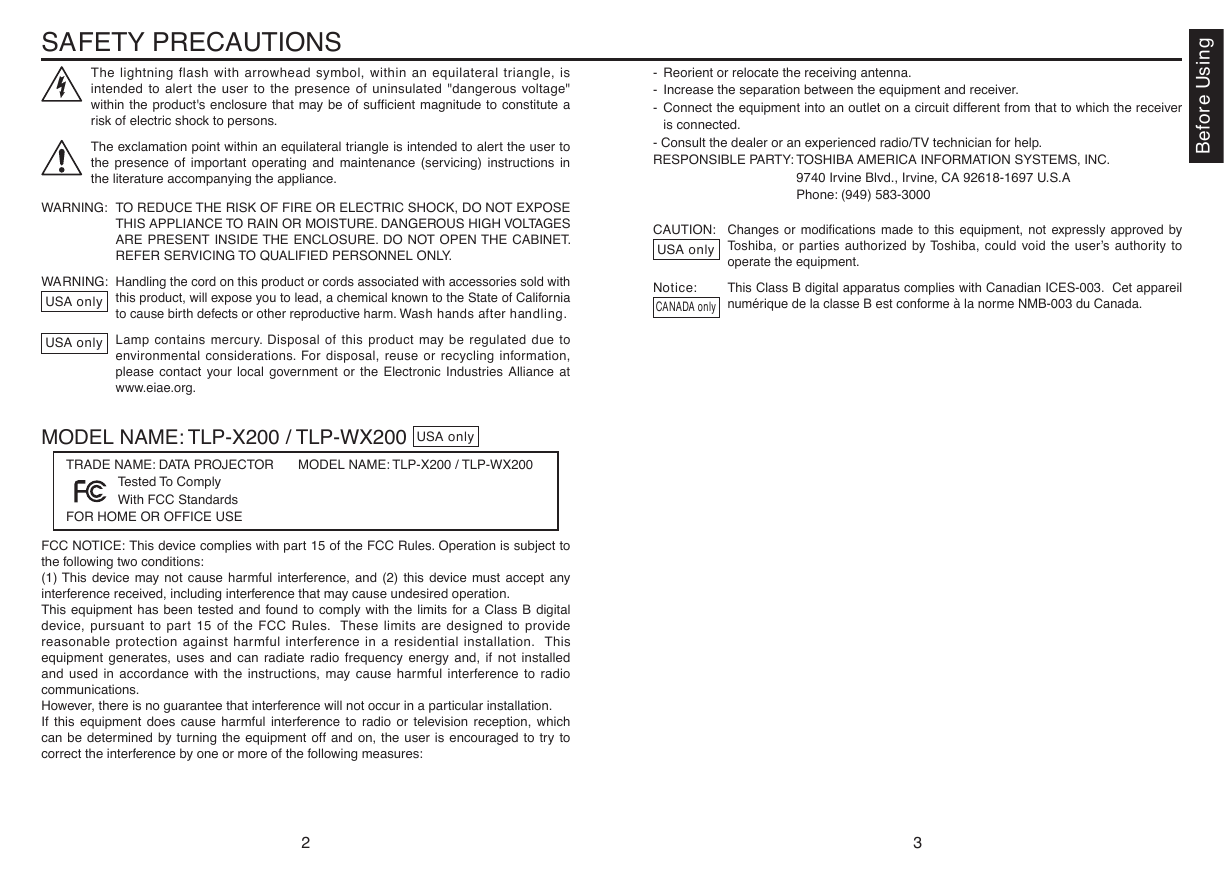

SAFETY PRECAUTIONS
Before Using
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES
ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET.
REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
WARNING:
USA only
Handling the cord on this product or cords associated with accessories sold with
this product, will expose you to lead, a chemical known to the State of California
to cause birth defects or other reproductive harm. Wash hands after handling.
USA only Lamp contains mercury. Disposal of this product may be regulated due to
environmental considerations. For disposal, reuse or recycling information,
please contact your local government or the Electronic Industries Alliance at
www.eiae.org.
MODEL NAME: TLP-X00 / TLP-WX00 USA only
TRADE NAME: DATA PROJECTOR MODEL NAME: TLP-X00 / TLP-WX00
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
FCC NOTICE: This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference, and () this device must accept any
interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:

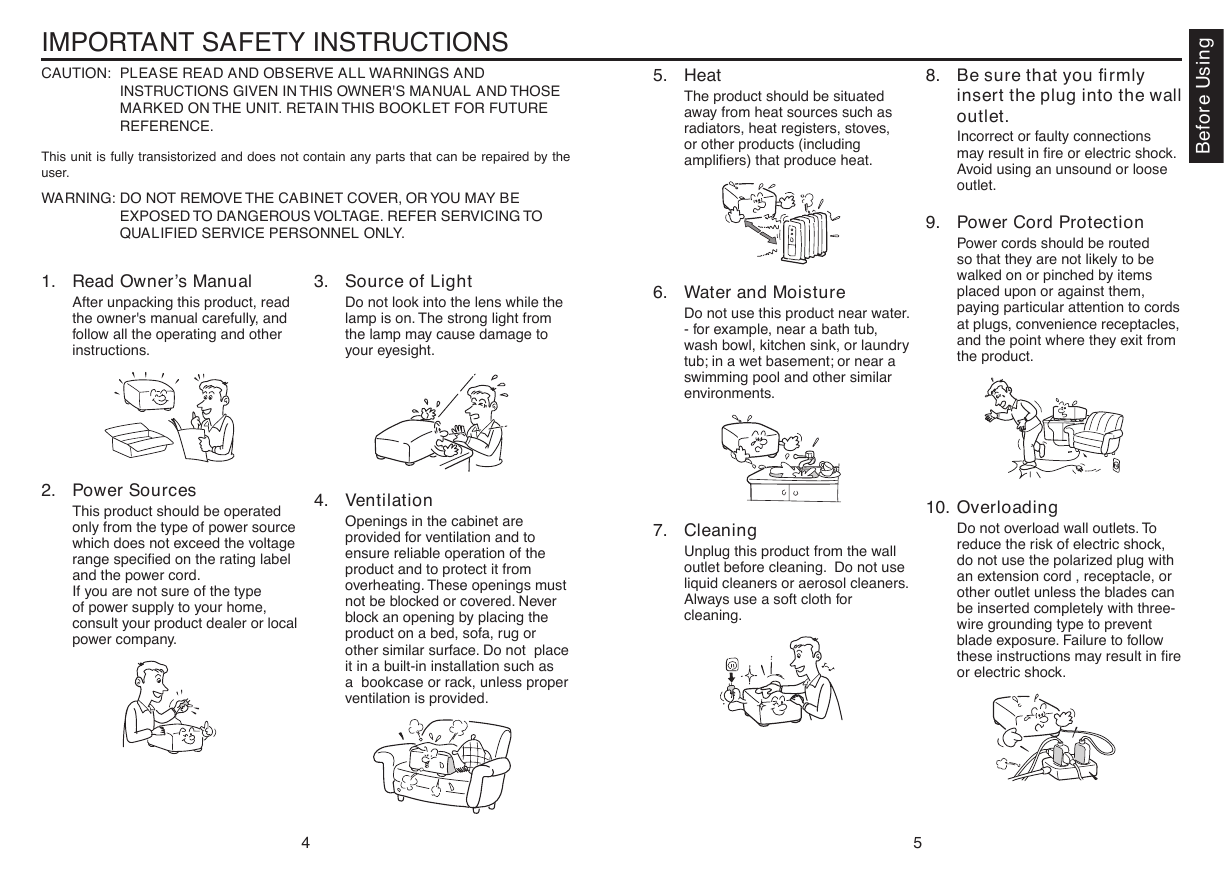

IMPORTANT SAFETY INSTRUCTIONS
CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND
INSTRUCTIONS GIVEN IN THIS OWNER'S MANUAL AND THOSE
MARKED ON THE UNIT. RETAIN THIS BOOKLET FOR FUTURE
REFERENCE.
This unit is fully transistorized and does not contain any parts that can be repaired by the
user.
WARNING: DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE
EXPOSED TO DANGEROUS VOLTAGE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL ONLY.
1. Read Owner’s Manual
3. Source of Light
After unpacking this product, read
the owner's manual carefully, and
follow all the operating and other
instructions.
Do not look into the lens while the
lamp is on. The strong light from
the lamp may cause damage to
your eyesight.
5. Heat
The product should be situated
away from heat sources such as
radiators, heat registers, stoves,
or other products (including
amplifiers) that produce heat.
6. Water and Moisture
Do not use this product near water.
- for example, near a bath tub,
wash bowl, kitchen sink, or laundry
tub; in a wet basement; or near a
swimming pool and other similar
environments.
g
n
i
s
U
e
r
o
f
e
B
8. Be sure that you firmly
insert the plug into the wall
outlet.
Incorrect or faulty connections
may result in fire or electric shock.
Avoid using an unsound or loose
outlet.
9. Power Cord Protection
Power cords should be routed
so that they are not likely to be
walked on or pinched by items
placed upon or against them,
paying particular attention to cords
at plugs, convenience receptacles,
and the point where they exit from
the product.
2. Power Sources
This product should be operated
only from the type of power source
which does not exceed the voltage
range specified on the rating label
and the power cord.
If you are not sure of the type
of power supply to your home,
consult your product dealer or local
power company.
4. Ventilation
Openings in the cabinet are
provided for ventilation and to
ensure reliable operation of the
product and to protect it from
overheating. These openings must
not be blocked or covered. Never
block an opening by placing the
product on a bed, sofa, rug or
other similar surface. Do not place
it in a built-in installation such as
a bookcase or rack, unless proper
ventilation is provided.
7. Cleaning
Unplug this product from the wall
outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners.
Always use a soft cloth for
cleaning.
10. Overloading
Do not overload wall outlets. To
reduce the risk of electric shock,
do not use the polarized plug with
an extension cord , receptacle, or
other outlet unless the blades can
be inserted completely with three-
wire grounding type to prevent
blade exposure. Failure to follow
these instructions may result in fire
or electric shock.
4
5

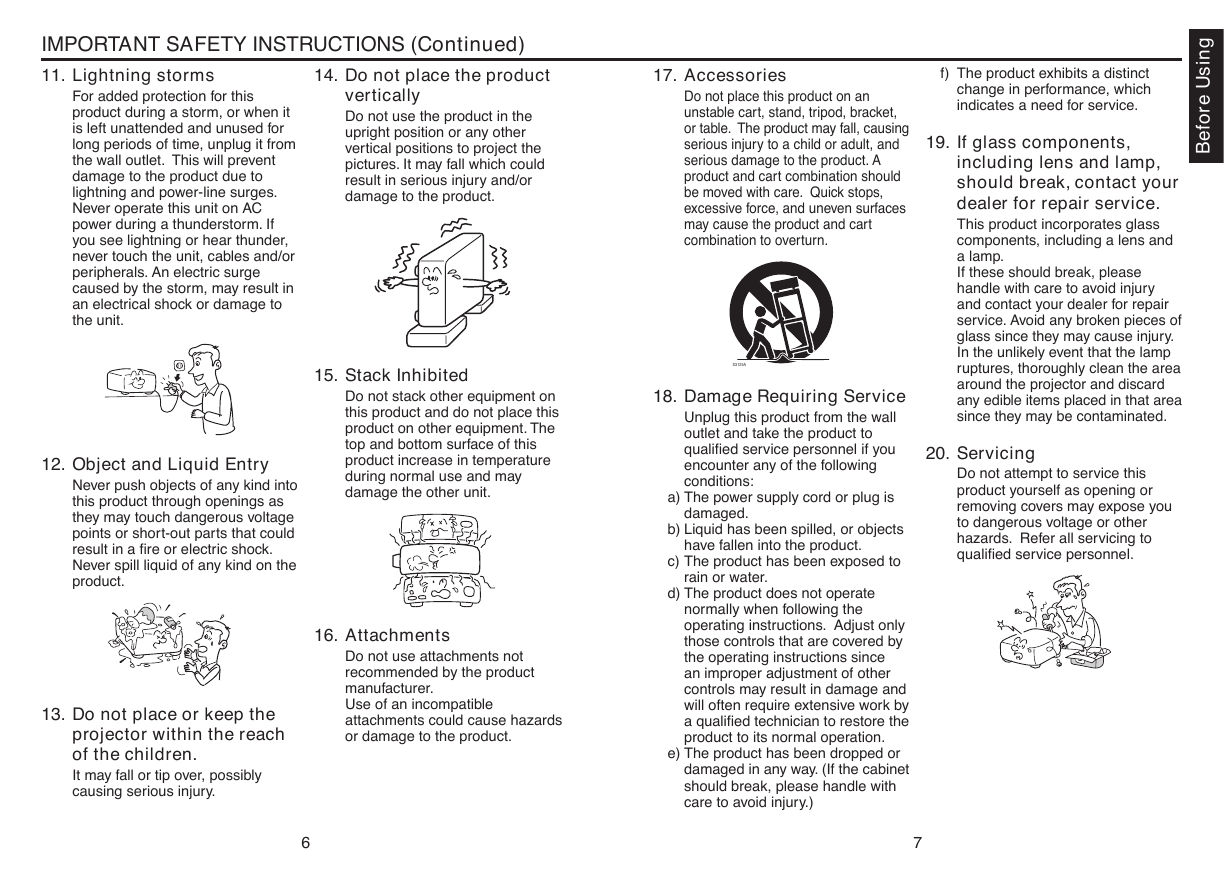

IMPORTANT SAFETY INSTRUCTIONS (Continued)
11. Lightning storms
14. Do not place the product
vertically
Do not use the product in the
upright position or any other
vertical positions to project the
pictures. It may fall which could
result in serious injury and/or
damage to the product.
For added protection for this
product during a storm, or when it
is left unattended and unused for
long periods of time, unplug it from
the wall outlet. This will prevent
damage to the product due to
lightning and power-line surges.
Never operate this unit on AC
power during a thunderstorm. If
you see lightning or hear thunder,
never touch the unit, cables and/or
peripherals. An electric surge
caused by the storm, may result in
an electrical shock or damage to
the unit.
12. Object and Liquid Entry
Never push objects of any kind into
this product through openings as
they may touch dangerous voltage
points or short-out parts that could
result in a fire or electric shock.
Never spill liquid of any kind on the
product.
13. Do not place or keep the
projector within the reach
of the children.
It may fall or tip over, possibly
causing serious injury.
15. Stack Inhibited
Do not stack other equipment on
this product and do not place this
product on other equipment. The
top and bottom surface of this
product increase in temperature
during normal use and may
damage the other unit.
16. Attachments
Do not use attachments not
recommended by the product
manufacturer.
Use of an incompatible
attachments could cause hazards
or damage to the product.
g
n
i
s
U
e
r
o
f
e
B
f) The product exhibits a distinct
change in performance, which
indicates a need for service.
19. If glass components,
including lens and lamp,
should break, contact your
dealer for repair service.
This product incorporates glass
components, including a lens and
a lamp.
If these should break, please
handle with care to avoid injury
and contact your dealer for repair
service. Avoid any broken pieces of
glass since they may cause injury.
In the unlikely event that the lamp
ruptures, thoroughly clean the area
around the projector and discard
any edible items placed in that area
since they may be contaminated.
20. Servicing
Do not attempt to service this
product yourself as opening or
removing covers may expose you
to dangerous voltage or other
hazards. Refer all servicing to
qualified service personnel.
17. Accessories
Do not place this product on an
unstable cart, stand, tripod, bracket,
or table. The product may fall, causing
serious injury to a child or adult, and
serious damage to the product. A
product and cart combination should
be moved with care. Quick stops,
excessive force, and uneven surfaces
may cause the product and cart
combination to overturn.
S15A
18. Damage Requiring Service
Unplug this product from the wall
outlet and take the product to
qualified service personnel if you
encounter any of the following
conditions:
a) The power supply cord or plug is
damaged.
b) Liquid has been spilled, or objects
have fallen into the product.
c) The product has been exposed to
rain or water.
d) The product does not operate
normally when following the
operating instructions. Adjust only
those controls that are covered by
the operating instructions since
an improper adjustment of other
controls may result in damage and
will often require extensive work by
a qualified technician to restore the
product to its normal operation.
e) The product has been dropped or
damaged in any way. (If the cabinet
should break, please handle with
care to avoid injury.)
6
7

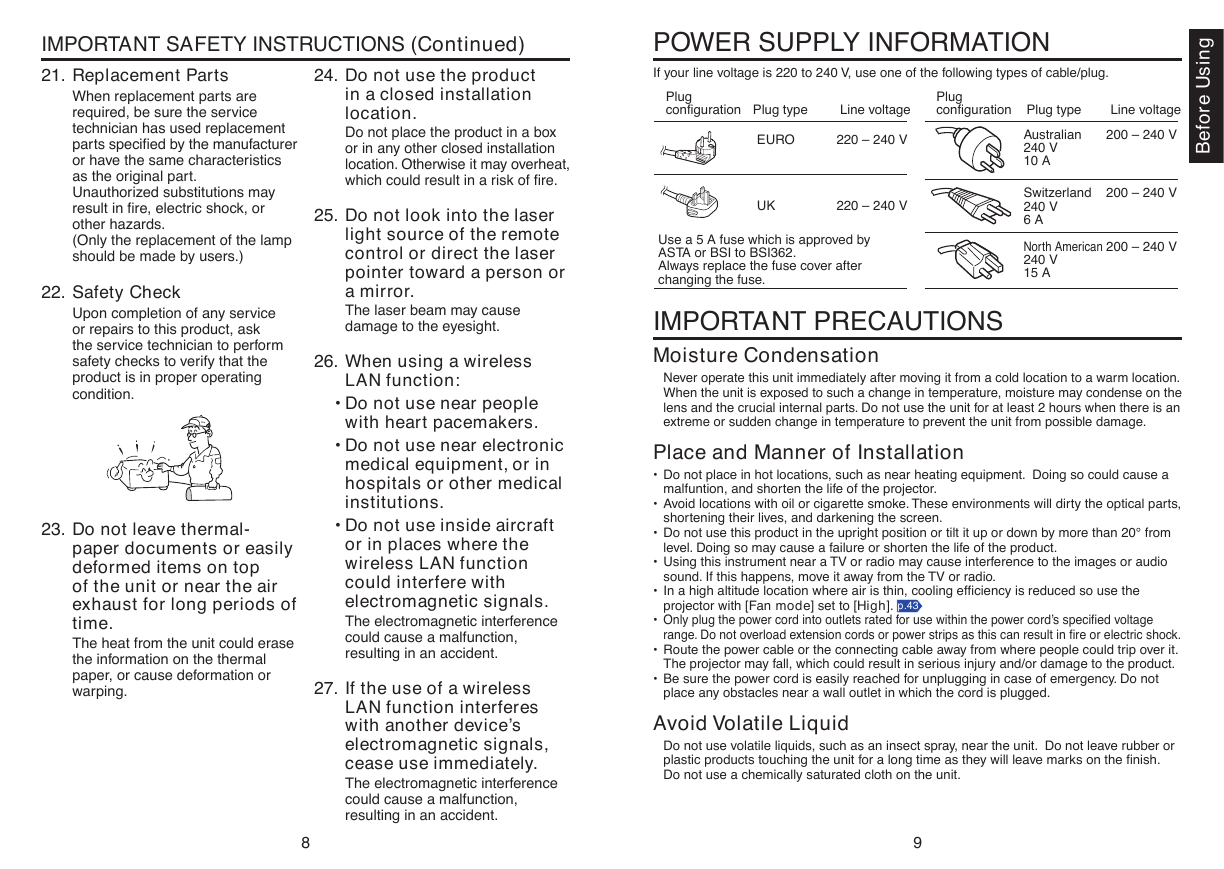

IMPORTANT SAFETY INSTRUCTIONS (Continued)
21. Replacement Parts
When replacement parts are
required, be sure the service
technician has used replacement
parts specified by the manufacturer
or have the same characteristics
as the original part.
Unauthorized substitutions may
result in fire, electric shock, or
other hazards.
(Only the replacement of the lamp
should be made by users.)
22. Safety Check
Upon completion of any service
or repairs to this product, ask
the service technician to perform
safety checks to verify that the
product is in proper operating
condition.
23. Do not leave thermal-
paper documents or easily
deformed items on top
of the unit or near the air
exhaust for long periods of
time.
The heat from the unit could erase
the information on the thermal
paper, or cause deformation or
warping.
24. Do not use the product
in a closed installation
location.
Do not place the product in a box
or in any other closed installation
location. Otherwise it may overheat,
which could result in a risk of fire.
25. Do not look into the laser
light source of the remote
control or direct the laser
pointer toward a person or
a mirror.
The laser beam may cause
damage to the eyesight.
26. When using a wireless
LAN function:
• Do not use near people
with heart pacemakers.
• Do not use near electronic
medical equipment, or in
hospitals or other medical
institutions.
• Do not use inside aircraft
or in places where the
wireless LAN function
could interfere with
electromagnetic signals.
The electromagnetic interference
could cause a malfunction,
resulting in an accident.
27. If the use of a wireless
LAN function interferes
with another device’s
electromagnetic signals,
cease use immediately.
The electromagnetic interference
could cause a malfunction,
resulting in an accident.
POWER SUPPLY INFORMATION
If your line voltage is 0 to 40 V, use one of the following types of cable/plug.
Plug
configuration Plug type
Line voltage
Plug
configuration Plug type
EURO
0 – 40 V
UK
0 – 40 V
Use a 5 A fuse which is approved by
ASTA or BSI to BSI6.
Always replace the fuse cover after
changing the fuse.
Australian
40 V
10 A
Switzerland
40 V
6 A
North American
40 V
15 A
Line voltage
00 – 40 V
00 – 40 V
00 – 40 V
g
n
i
s
U
e
r
o
f
e
B
•
•
IMPORTANT PRECAUTIONS
Moisture Condensation
Never operate this unit immediately after moving it from a cold location to a warm location.
When the unit is exposed to such a change in temperature, moisture may condense on the
lens and the crucial internal parts. Do not use the unit for at least hours when there is an
extreme or sudden change in temperature to prevent the unit from possible damage.
Place and Manner of Installation
•
Do not place in hot locations, such as near heating equipment. Doing so could cause a
malfuntion, and shorten the life of the projector.
Avoid locations with oil or cigarette smoke. These environments will dirty the optical parts,
shortening their lives, and darkening the screen.
Do not use this product in the upright position or tilt it up or down by more than 0° from
level. Doing so may cause a failure or shorten the life of the product.
Using this instrument near a TV or radio may cause interference to the images or audio
sound. If this happens, move it away from the TV or radio.
In a high altitude location where air is thin, cooling efficiency is reduced so use the
projector with [Fan mode] set to [High]. p.43
Only plug the power cord into outlets rated for use within the power cord’s specified voltage
range. Do not overload extension cords or power strips as this can result in fire or electric shock.
Route the power cable or the connecting cable away from where people could trip over it.
The projector may fall, which could result in serious injury and/or damage to the product.
Be sure the power cord is easily reached for unplugging in case of emergency. Do not
place any obstacles near a wall outlet in which the cord is plugged.
Avoid Volatile Liquid
Do not use volatile liquids, such as an insect spray, near the unit. Do not leave rubber or
plastic products touching the unit for a long time as they will leave marks on the finish.
Do not use a chemically saturated cloth on the unit.
•
•
•
•
•
8
9
IMPORTANT PRECAUTIONS (Continued)
LCD Panel
•
If the air filter is stained or clogged, the main unit inner temperature rises. As a result, the
life of the LCD is shortened and a malfunction may also occur.
Clean the air filter from time to time and replace it regularly. It is recommended that you
replace the filter at the time you replace the lamp. (Ask a dealer where the unit was
purchased or your nearby service station about an air filter for replacement.)
EXEMPTION CLAUSES
•
•
•
•
•
Toshiba Corporation bears no responsibility in the case of damages arising from natural
disaster such as earthquakes, lightning, etc., fire not liable to Toshiba Corporation, acts
by third parties, other accidents, or use under abnormal conditions including erroneous or
improper operation and other problems.
Toshiba Corporation bears no responsibility for incidental damages (lost profit, work
interruption, corruption or loss of the memory contents, etc.) arising from the use of or the
inability to use this unit.
Toshiba Corporation accepts no liability whatsoever for any damages arising from not
having followed the descriptions in this Owner’s Manual.
Toshiba Corporation accepts no liability whatsoever for any damages arising from
malfunctions arising from combination with equipment or software that is not related to
Toshiba Corporation.
Toshiba bears no responsibility for information being intercepted or leaked due to the use
of a wireless LAN, or any damages therefore.
OTHER INFORMATION
Copyrights
Showing or transmitting commercial imaging software or broadcast or cable-broad casting
programs with the purpose of other than the personal and private viewing, including
modifying images using the freeze or resize functions, or displaying with the varying
aspect ratio of the images, could violate the direct or indirect copyrights of the imaging
software or broadcast program, etc., if done without first consulting with the copyright
holder. For this reason, please take appropriate measures including obtaining a license
from the copyright holder, before performing one of the actions listed above.
Disposal
This product contains substances which are harmful to humans and the environment.
•
Please dispose of this product or used lamps in accordance with local regulations.
Following information is only for EU-member states:
The use of the symbol indicates that this product may not be treated as
household waste. By ensuring this product is disposed of correctly, you will
help prevent potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling of
this product. For more detailed information about recycling of this product,
please contact your local city office, your household waste disposal service or
the shop where you purchased the product.
The lamp contains mercury.
10
g
n
i
s
U
e
r
o
f
e
B
•
•
•
•
OTHER INFORMATION (Continued)
Trademarks
VGA, SVGA, XGA, SXGA, UXGA and WXGA are trademarks or registered trademarks of
•
International Business Machines Corporation.
Macintosh is a registered trademark of Apple Computer, Inc.
Microsoft, Windows and Windows Vista are registered trademarks or trademarks of Microsoft
Corporation in the U.S. and other countries.
Adobe and Acrobat Reader are registered trademarks of Adobe Systems Incorporated.
Contains technology by Ingenient Technologies, Inc.
Copyright © 2000-2006 Ingenient Technologies, Inc. All rights reserved.
All other brand and product names are trademarks or registered trademarks of their
respective companies.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI licensing LLC.
Notational Conventions Used in This Manual
References to pages with related information are annotated as follows.
•
For example, if making a reference to page 36: p.36
The illustrations in this document are for reference purposes only and may not reflect
your package exactly.
•
•
•
REMOTE CONTROL BATTERIES
Warning
Never throw batteries into a fire.
•
Using the batteries improperly may cause them to explode or leak and may result in serious injury.
If battery-leaking fluid contacts skin, wash the fluid off immediately with clean water and consult
a doctor. If the fluid spills on an instrument, avoid contact and wipe it off using tissue paper. Then
dispose of the used tissue paper as flammable garbage after moistening the tissue with water.
Notes
Be sure to use AAA (LR03) size batteries.
•
Dispose of batteries in a designated disposal area.
•
Attention should be drawn to the environmental aspects of battery disposal.
•
Do not mix different battery types or combine used batteries with new ones.
•
If the remote control does not operate correctly, or if the operating range becomes
•
reduced, replace both batteries with new ones.
If the batteries are dead or if you will not be using the remote control for a long time,
remove the batteries to prevent battery acid from leaking into the battery compartment.
Following information is only for EU-member states:
[Disposal of batteries and/or accumulators]
The crossed out wheeled dust bin symbol indicates that batteries and/or
accumulators must be collected and disposed of separately from household waste.
If the battery or accumulator contains more than the specified values of lead
(Pb), mercury (Hg), and/or cadmium (Cd) defined in the Battery Directive
(2006/66/EC), then the chemical symbols for lead (Pb), mercury (Hg) and/or
cadmium (Cd) will appear below the crossed out wheeled dust bin symbol.
By participating in separate collection of batteries, you will help to assure
the proper disposal of products and batteries and thus help to prevent
potential negative consequences for the environment and human health.
For more detailed information about the collection and recycling
programmes available in your country, please contact your local city office
or the shop where you purchased the product.
11
•
•
CONTENTS
Before Using
SAFETY PRECAUTIONS ............................................................................. 2
IMPORTANT SAFETY INSTRUCTIONS ....................................................... 4
POWER SUPPLY INFORMATION ................................................................ 9
IMPORTANT PRECAUTIONS ....................................................................... 9
EXEMPTION CLAUSES ............................................................................. 10
OTHER INFORMATION .............................................................................. 10
REMOTE CONTROL BATTERIES .............................................................. 11
CONTENTS ................................................................................................ 12
Preparations
Checking the package contents .................................................................. 14
Names of each part on the main unit .......................................................... 15
Names of each part on the control panel and remote control ..................... 16
Label location .............................................................................................. 17
Names of the terminals on the rear panel ................................................... 18
Preparing and using the remote control ...................................................... 19
Operating a computer using the remote control .......................................... 20
Placement ................................................................................................... 21
Connection .................................................................................................. 24
Operations
Turning the power on and off ....................................................................... 26
Basic operations .......................................................................................... 28
Using handy features .................................................................................. 31
Using auto setting (For computer input only) ........................................... 31
Correcting the keystone distortion ........................................................... 31
Resizing image ........................................................................................ 32
Cutting off the picture and sound temporarily (Mute) ............................... 33
Changing picture mode ............................................................................ 33
Changing screen size .............................................................................. 33
Freezing the image (Freeze) .................................................................... 34
Setting the password ............................................................................... 34
Using the menus 1 ...................................................................................... 36
Setup using the Setting display ................................................................ 36
The image adjustment menu ................................................................... 37
The display setting menu ......................................................................... 39
The default setting menu ......................................................................... 42
Displaying Information (Status display) .................................................... 45
g
n
i
s
U
e
r
o
f
e
B
Network /USB memory
Before connecting via a network ................................................................. 46
How to use the USB terminal ...................................................................... 48
Using the menus 2 ...................................................................................... 50
Setup using the Setting display (2) .......................................................... 50
Setting up the Network Projector/Network Utility ..................................... 51
Computer settings .................................................................................... 56
The control setting menu ......................................................................... 57
Setting slideshow options ........................................................................ 58
Checking the projector status ...................................................................... 60
Status display ........................................................................................... 60
Using the Network Projector ....................................................................... 61
Installing the applications ............................................................................ 62
Using the Network Utility ............................................................................. 64
Displaying a computer’s screen via the projector ..................................... 64
Displaying a JPEG image saved on a computer via the projector ........... 66
Displaying a video file saved on a computer via the projector ................. 67
Displaying computer’s screens via projectors using the Multiscreen function ... 70
Easy Connect utility ................................................................................. 75
Operating the projector ............................................................................ 79
Projecting images stored in a USB memory device .................................... 80
Playing a slide show from a thumbnail list ............................................... 80
How to use the JPEG Conversion Tool........................................................ 83
Launching the JPEG Conversion Tool ..................................................... 83
Converting an image file .......................................................................... 83
Converting files created with Microsoft® PowerPoint® .............................. 84
Making a presentation with converted JPEG files.................................... 85
Creating a screen capture and converting it into a JPEG file .................. 86
Setting up the projector using a Web browser ............................................. 87
Maintenance
About lamp .................................................................................................. 90
Lamp replacement ...................................................................................... 91
Air filter cleaning .......................................................................................... 94
Lens and main unit cleaning ....................................................................... 95
Others
Trouble indications ....................................................................................... 96
Troubleshooting ........................................................................................... 97
Specifications .............................................................................................. 99
12
13
Preparations

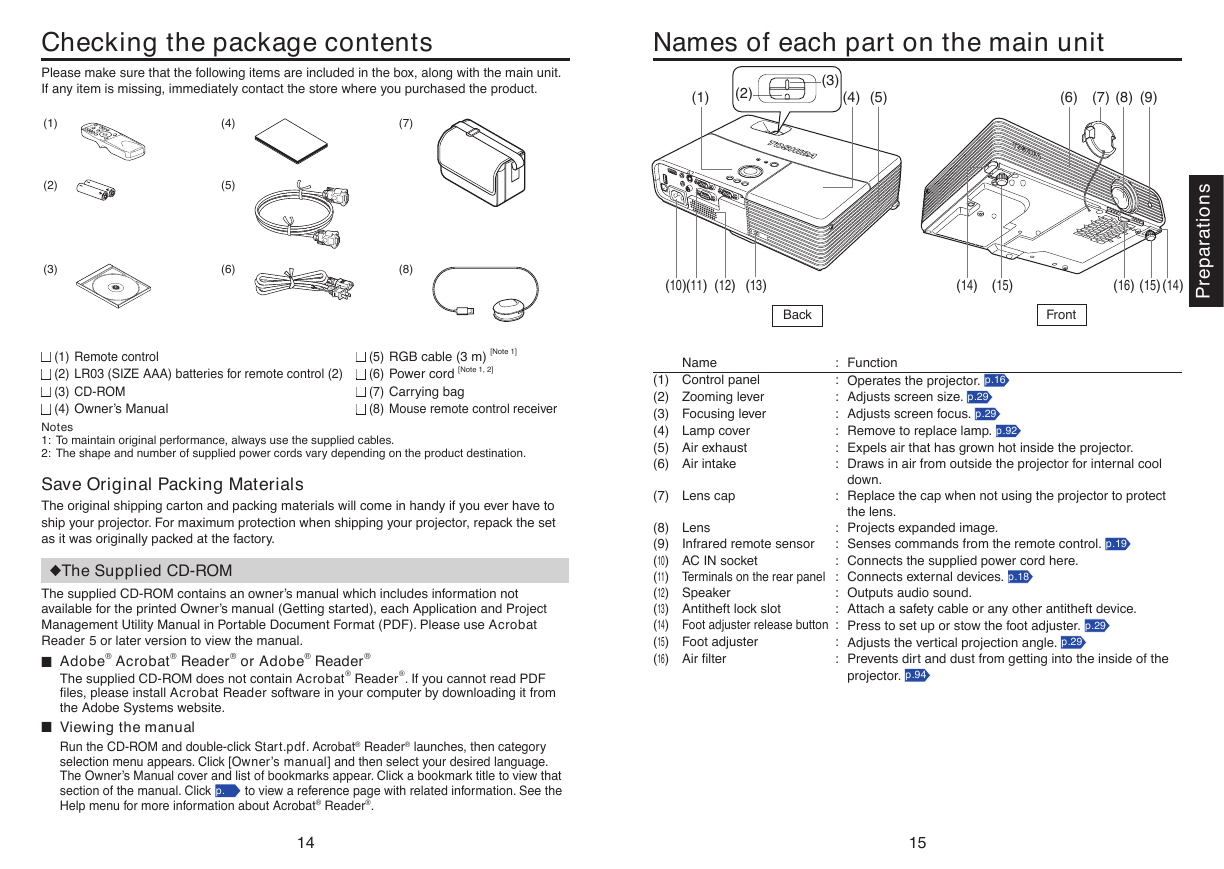

Checking the package contents
Please make sure that the following items are included in the box, along with the main unit.
If any item is missing, immediately contact the store where you purchased the product.
Names of each part on the main unit
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(1) Remote control
() LR0 (SIZE AAA) batteries for remote control ()
() CD-ROM
(4) Owner’s Manual
Notes
1: To maintain original performance, always use the supplied cables.
: The shape and number of supplied power cords vary depending on the product destination.
(5) RGB cable ( m) [Note 1]
(6) Power cord [Note 1, ]
(7) Carrying bag
(8) Mouse remote control receiver
Save Original Packing Materials
The original shipping carton and packing materials will come in handy if you ever have to
ship your projector. For maximum protection when shipping your projector, repack the set
as it was originally packed at the factory.
The Supplied CD-ROM
The supplied CD-ROM contains an owner’s manual which includes information not
available for the printed Owner’s manual (Getting started), each Application and Project
Management Utility Manual in Portable Document Format (PDF). Please use Acrobat
Reader 5 or later version to view the manual.
Adobe® Acrobat® Reader® or Adobe® Reader®
The supplied CD-ROM does not contain Acrobat® Reader®. If you cannot read PDF
files, please install Acrobat Reader software in your computer by downloading it from
the Adobe Systems website.
Viewing the manual
Run the CD-ROM and double-click Start.pdf. Acrobat® Reader® launches, then category
selection menu appears. Click [Owner’s manual] and then select your desired language.
The Owner’s Manual cover and list of bookmarks appear. Click a bookmark title to view that
section of the manual. Click p.
to view a reference page with related information. See the
Help menu for more information about Acrobat® Reader®.
s
n
o
i
t
a
r
a
p
e
r
P
(10)(11) (12)
(13)
(14)
(15)
(16)
(15)
(14)
Back
Front
Name
(1) Control panel
() Zooming lever
() Focusing lever
(4) Lamp cover
(5) Air exhaust
(6) Air intake
: Function
: Operates the projector. p.16
: Adjusts screen size. p.29
: Adjusts screen focus. p.29
: Remove to replace lamp. p.92
: Expels air that has grown hot inside the projector.
: Draws in air from outside the projector for internal cool
down.
(7) Lens cap
: Replace the cap when not using the projector to protect
the lens.
Infrared remote sensor
(8) Lens
(9)
(10) AC IN socket
(11) Terminals on the rear panel
(1) Speaker
(1) Antitheft lock slot
(14) Foot adjuster release button : Press to set up or stow the foot adjuster. p.29
(15) Foot adjuster
(16) Air filter
: Projects expanded image.
: Senses commands from the remote control. p.19
: Connects the supplied power cord here.
: Connects external devices. p.18
: Outputs audio sound.
: Attach a safety cable or any other antitheft device.
: Adjusts the vertical projection angle. p.29
: Prevents dirt and dust from getting into the inside of the
projector. p.94
14
15
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
