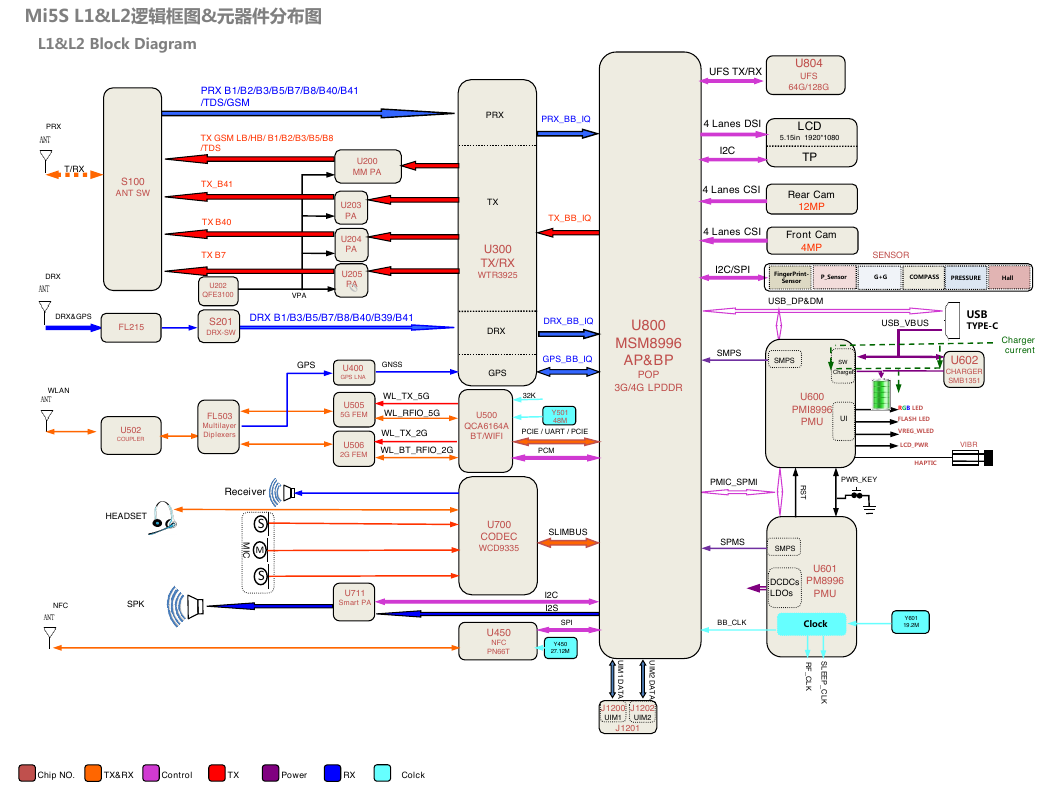

Mi5S L1&L2逻辑框图&元器件分布图 L1&L2 Block Diagram PRX T/RX S100 ANT SW DRX DRX&GPS FL215 WLAN PRX B1/B2/B3/B5/B7/B8/B40/B41 /TDS/GSM TX GSM LB/HB/ B1/B2/B3/B5/B8 /TDS TX_B41 TX B40 TX B7 U202 QFE3100 S201 DRX-SW U200 MM PA U203 PA U204 PA U205 PA 0 VPA DRX B1/B3/B5/B7/B8/B40/B39/B41 GPS U400 GPS LNA GNSS PRX PRX_BB_IQ TX U300 TX/RX WTR3925 DRX GPS TX_BB_IQ DRX_BB_IQ GPS_BB_IQ U505 5G FEM U506 2G FEM WL_TX_5G WL_RFIO_5G WL_TX_2G 32K U500 QCA6164A BT/WIFI Y501 48M PCIE / UART / PCIE WL_BT_RFIO_2G PCM UFS TX/RX U804 UFS 64G/128G 4 Lanes DSI LCD 5.15in 1920*1080 I2C TP 4 Lanes CSI 4 Lanes CSI Rear Cam 12MP Front Cam 4MP SENSOR U800 MSM8996 AP&BP POP 3G/4G LPDDR I2C/SPI FingerPrint- Sensor P_Sensor G+G COMPASS PRESSURE Hall USB_DP&DM USB_VBUS USB TYPE-C SMPS SMPS SW Charger U600 PMI8996 PMU UI U602 CHARGER SMB1351 RGB LED FLASH LED VREG_WLED LCD_PWR VIBR HAPTIC U502 COUPLER FL503 Multilayer Diplexers HEADSET Receiver S M C I M S NFC SPK U711 Smart PA Chip NO. TX&RX Control TX Power RX Colck U700 CODEC WCD9335 SLIMBUS I2C I2S SPI Y450 27.12M U450 NFC PN66T PMIC_SPMI PWR_KEY R S T SPMS SMPS U601 PM8996 PMU DCDCs LDOs BB_CLK Clock Y601 19.2M I U M 1 D A T A I U M 2 D A T A J1200 J1202 UIM1 UIM2 J1201 R F _ C L K S L E E P _ C L K Chargercurrent

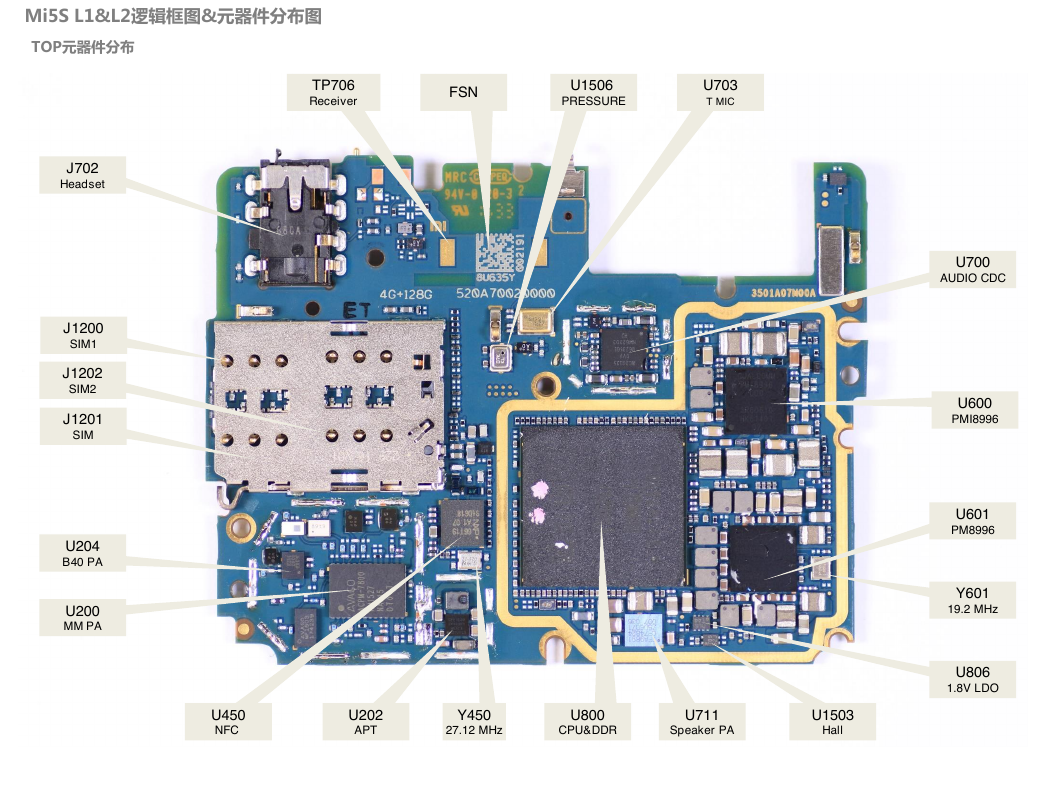

Mi5S L1&L2逻辑框图&元器件分布图 TOP元器件分布 TP706 Receiver FSN U1506 PRESSURE U703 T MIC J702 Headset J1200 SIM1 J1202 SIM2 J1201 SIM U204 B40 PA U200 MM PA U700 AUDIO CDC U600 PMI8996 U601 PM8996 Y601 19.2 MHz U806 1.8V LDO U450 NFC U202 APT Y450 27.12 MHz U800 CPU&DDR U711 Speaker PA U1503 Hall 

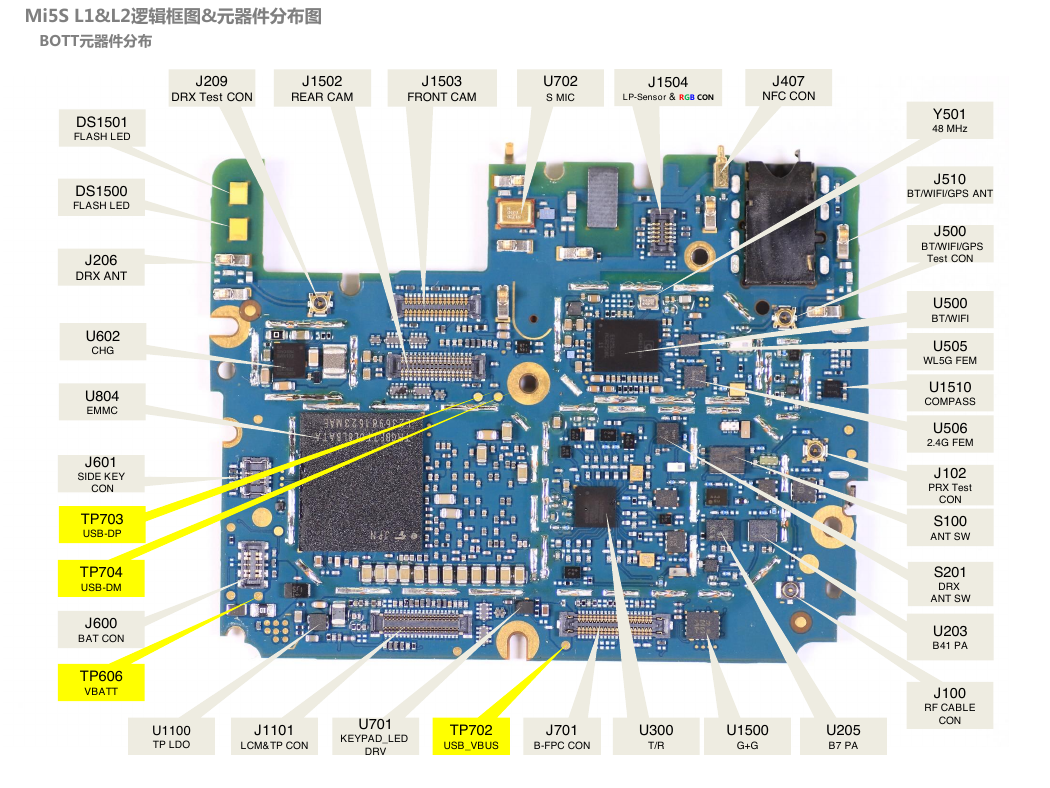

Mi5S L1&L2逻辑框图&元器件分布图 BOTT元器件分布 J209 J1502 J1503 DRX Test CON REAR CAM FRONT CAM U702 S MIC J1504 LP-Sensor & RGB CON J407 NFC CON DS1501 FLASH LED DS1500 FLASH LED J206 DRX ANT U602 CHG U804 EMMC J601 SIDE KEY CON TP703 USB-DP TP704 USB-DM J600 BAT CON TP606 VBATT U1100 TP LDO J1101 LCM&TP CON U701 KEYPAD_LED DRV TP702 USB_VBUS J701 B-FPC CON U300 T/R U1500 G+G U205 B7 PA Y501 48 MHz J510 BT/WIFI/GPS ANT J500 BT/WIFI/GPS Test CON U500 BT/WIFI U505 WL5G FEM U1510 COMPASS U506 2.4G FEM J102 PRX Test CON S100 ANT SW S201 DRX ANT SW U203 B41 PA J100 RF CABLE CON 

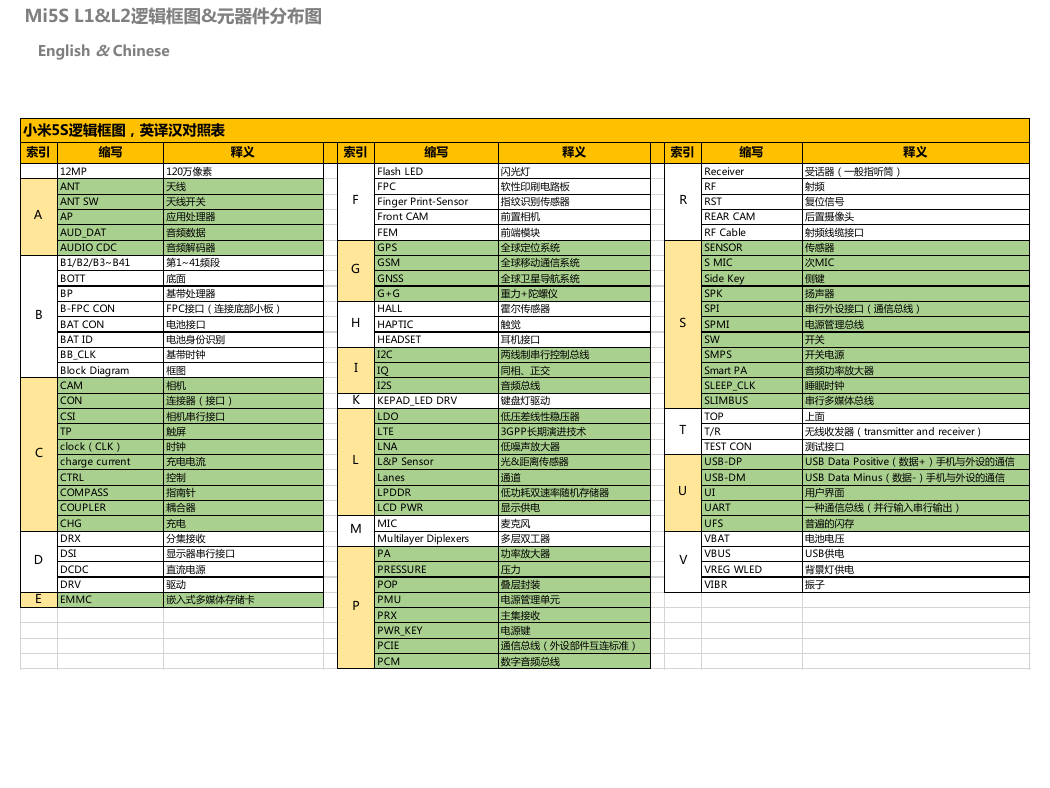

Mi5S L1&L2逻辑框图&元器件分布图 English &Chinese 索引缩写释义索引缩写释义索引缩写释义12MP120万像素Flash LED闪光灯Receiver受话器（一般指听筒）ANT天线FPC软性印刷电路板RF射频ANT SW天线开关Finger Print-Sensor指纹识别传感器RST复位信号AP应用处理器Front CAM前置相机REAR CAM后置摄像头AUD_DAT音频数据FEM前端模块RF Cable射频线缆接口AUDIO CDC音频解码器GPS全球定位系统SENSOR传感器B1/B2/B3~B41第1~41频段GSM全球移动通信系统S MIC次MICBOTT底面GNSS全球卫星导航系统Side Key侧键BP基带处理器G+G重力+陀螺仪SPK扬声器B-FPC CONFPC接口（连接底部小板）HALL霍尔传感器SPI串行外设接口（通信总线）BAT CON电池接口HAPTIC触觉SPMI电源管理总线BAT ID电池身份识别HEADSET耳机接口SW开关BB_CLK基带时钟I2C两线制串行控制总线SMPS开关电源Block Diagram框图IQ同相、正交Smart PA音频功率放大器CAM相机I2S音频总线SLEEP_CLK睡眠时钟CON连接器（接口）KKEPAD_LED DRV键盘灯驱动SLIMBUS串行多媒体总线CSI相机串行接口LDO低压差线性稳压器TOP上面TP触屏LTE3GPP长期演进技术T/R无线收发器（transmitter and receiver）clock（CLK）时钟LNA低噪声放大器TEST CON测试接口charge current充电电流L&P Sensor光&距离传感器USB-DPUSB Data Positive（数据+）手机与外设的通信CTRL控制Lanes通道USB-DMUSB Data Minus（数据-）手机与外设的通信COMPASS指南针LPDDR低功耗双速率随机存储器UI用户界面COUPLER耦合器LCD PWR显示供电UART一种通信总线（并行输入串行输出）CHG充电MIC麦克风UFS普遍的闪存DRX分集接收Multilayer Diplexers多层双工器VBAT电池电压DSI显示器串行接口PA功率放大器VBUSUSB供电DCDC直流电源PRESSURE压力VREG WLED背景灯供电DRV驱动POP叠层封装VIBR振子EEMMC嵌入式多媒体存储卡PMU电源管理单元PRX主集接收PWR_KEY电源键PCIE通信总线（外设部件互连标准）PCM数字音频总线小米5S逻辑框图，英译汉对照表VPDCLMTSRUHBAIGF
