Preface

Introducing the Mainboard

Introduction

Checklist

Standard Items

Features

Choosing a Computer Case

Mainboard Components

Installing the Mainboard

Safety Precautions

Quick Guide

Installing the Mainboard in a Case

Checking Jumper Settings

Setting Jumpers

Checking Jumper Settings

Jumper Settings

Connecting Case Components

The Panel Connectors

Installing Hardware

Installing the Processor

Before installing the Processor

CPU Installation Procedure

Installing Memory Modules

Installing a Hard Disk Drive/CD-ROM

About IDE Devices

About UltraDMA

Installing a Hard Disk Drive

Installing a CD-ROM/DVD Drive

Installing a Floppy Diskette Drive

Installing Add-on Cards

Connecting Optional Devices

USB1/USB2: Front panel USB ports

WOL1: Wake On LAN

WOM1: Wake On Modem

SIR1: Serial infrared port

Connecting I/O Devices

External Connector Color Coding

Using BIOS

About the Setup Utility

The Standard Configuration

Entering the Setup Utility

BIOS Navigation Keys

Using BIOS

Standard CMOS Features

Date and Time

IDE Pri Master/Slave and IDE Sec Master/Slave

Floppy Drive A and Floppy Drive B

Advanced Setup Page

Quick Boot

1st Boot Device/ 2nd Boot Device/ 3rd Boot Device

Try Other Boot Device

S.M.A.R.T. for Hard Disks

BootUp NumLock

Floppy Drive Swap

Floppy Drive Seek

PS/2 Mouse Support

Password Check

Boot to OS/2 > 64MB

L1/L2 Cache

System BIOS Cacheable

SDRAM Timing by SPD

SDRAM Frequency

SDRAM CAS# Latency

SDRAM Bank Interleave

AGP Comp. Driving

Manual AGP Comp. Driving

AGP Mode

AGP Aperture Size

Auto Detect DIMM/PCI Clock

CLK Spread Spectrum

Power Management Setup Page

ACPI Aware O/S

Power Management

Video Power Down Mode

Hard Disk Power Down Mode

Standby Time Out (Minute)

Suspend Time Out (Minute)

PowerOn by LAN/Ring

PowerOn by Onchip LAN

PowerOn by KCB Wake up key/Wake up password

PowerOn by RTC Alarm/Date/Hour/Minute/Second

PCI/Plug and Play Setup Page

Plug and Play Aware O/S

Primary Graphics Adapter

Allocate IRQ for PCI VGA

Load Optimal Settings

Load Best Performance Settings

Features Setup Page

OnBoard FDC

OnBoard Serial Port A/B

OnBoard Parallel Port

Use this item to enable or disable the onboard LPT1 parallel port, and to assign a port address. The Auto setting will detect and available address.

Parallel Port Mode

Parallel Port IRQ

Parallel Port DMA

OnBoard Game Port

OnBoard MIDI Port

MIDI Port IRQ

OnBoard IDE

OnBoard AC’97 Audio

OnBoard MC’97 Modem

USB Controller

USB Device Legacy Support

CPU PnP Setup Page

CPU BRAND/Type/Core Voltage/Ratio/Frequency

CPU Speed

Hardware Monitor Page

CPU/System Temperature

FANs & Voltage Measurements

Change Password

Exit

Using the Mainboard Software

About the Software CD-ROM

Auto-installing under Windows 98/ME/2000/XP

Setup Tab

Application Tab

Read Me Tab

Running Setup

Manual Installation

Utility Software Reference

AWARD Flash Memory Utility

WinFlash Utility

PC-CILLIN 2002

MediaRing Talk – Telephony Software

Super Voice – Fax/Modem Software

CD Ghost

Recovery Genius

Language Genius

PageABC

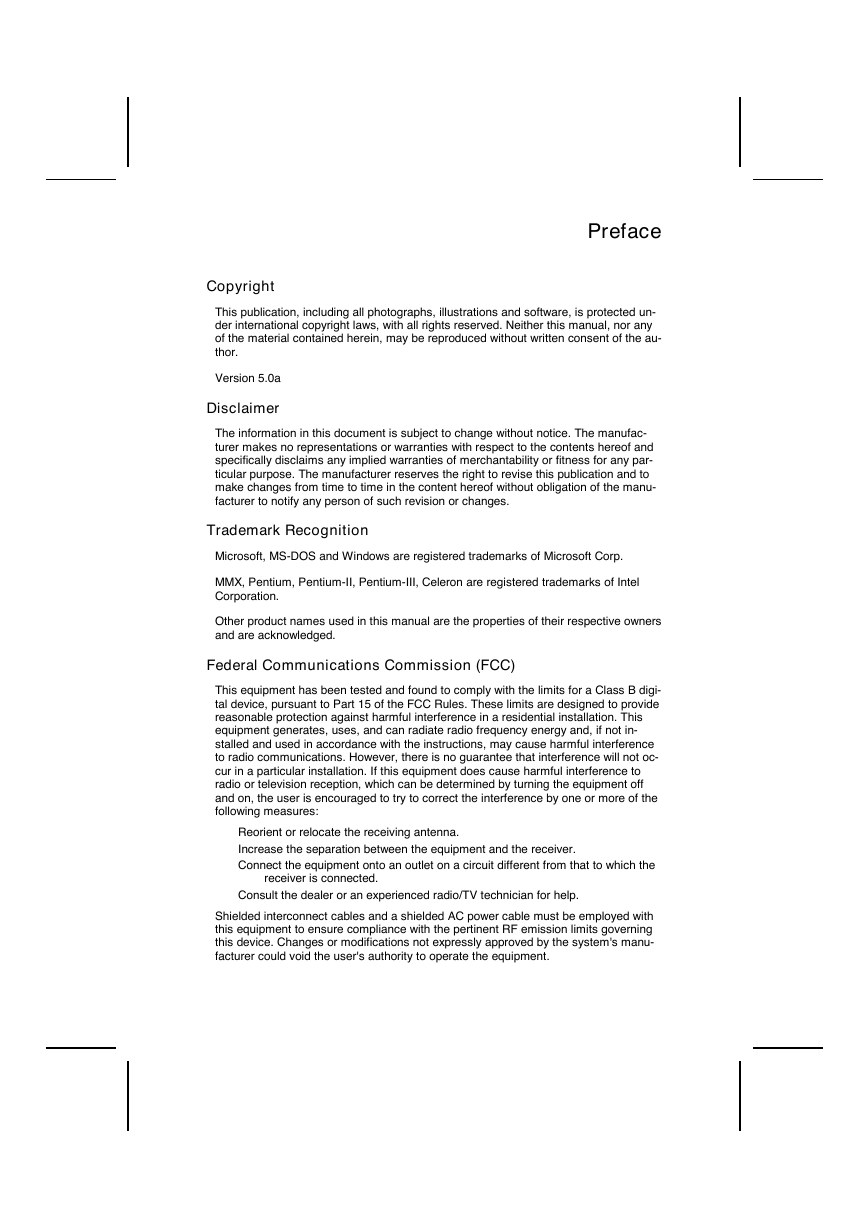

Preface Copyright This publication, including all photographs, illustrations and software, is protected un- der international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the au- thor. Version 5.0a Disclaimer The information in this document is subject to change without notice. The manufac- turer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any par- ticular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manu- facturer to notify any person of such revision or changes. Trademark Recognition Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp. MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel Corporation. Other product names used in this manual are the properties of their respective owners and are acknowledged. Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class B digi- tal device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not in- stalled and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not oc- cur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and the receiver. Connect the equipment onto an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Shielded interconnect cables and a shielded AC power cable must be employed with this equipment to ensure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system's manu- facturer could void the user's authority to operate the equipment.

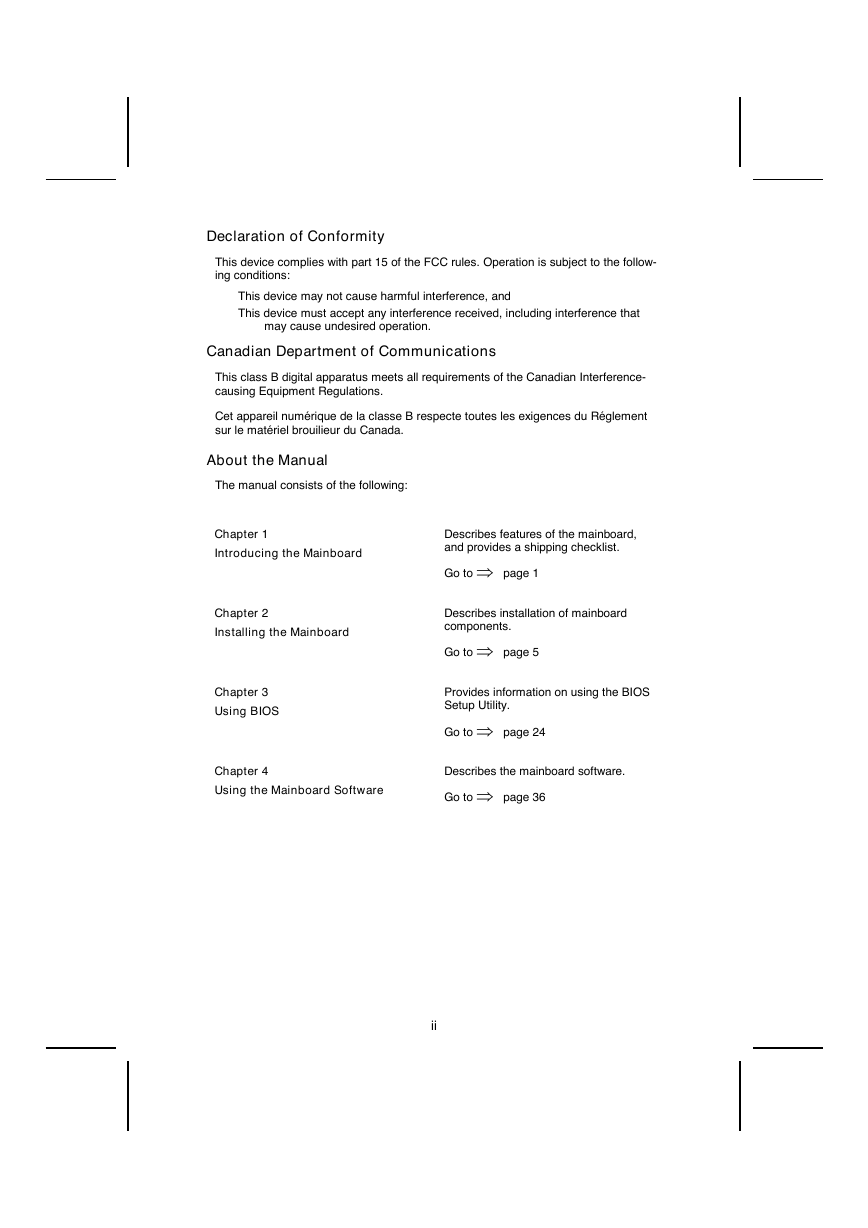

Declaration of Conformity This device complies with part 15 of the FCC rules. Operation is subject to the follow- ing conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. Canadian Department of Communications This class B digital apparatus meets all requirements of the Canadian Interference- causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur le matériel brouilieur du Canada. About the Manual The manual consists of the following: Chapter 1 Introducing the Mainboard Chapter 2 Installing the Mainboard Chapter 3 Using BIOS Chapter 4 Using the Mainboard Software Describes features of the mainboard, and provides a shipping checklist. Go to ⇒ page 1 Describes installation of mainboard components. Go to ⇒ page 5 Provides information on using the BIOS Setup Utility. Go to ⇒ page 24 Describes the mainboard software. Go to ⇒ page 36 ii

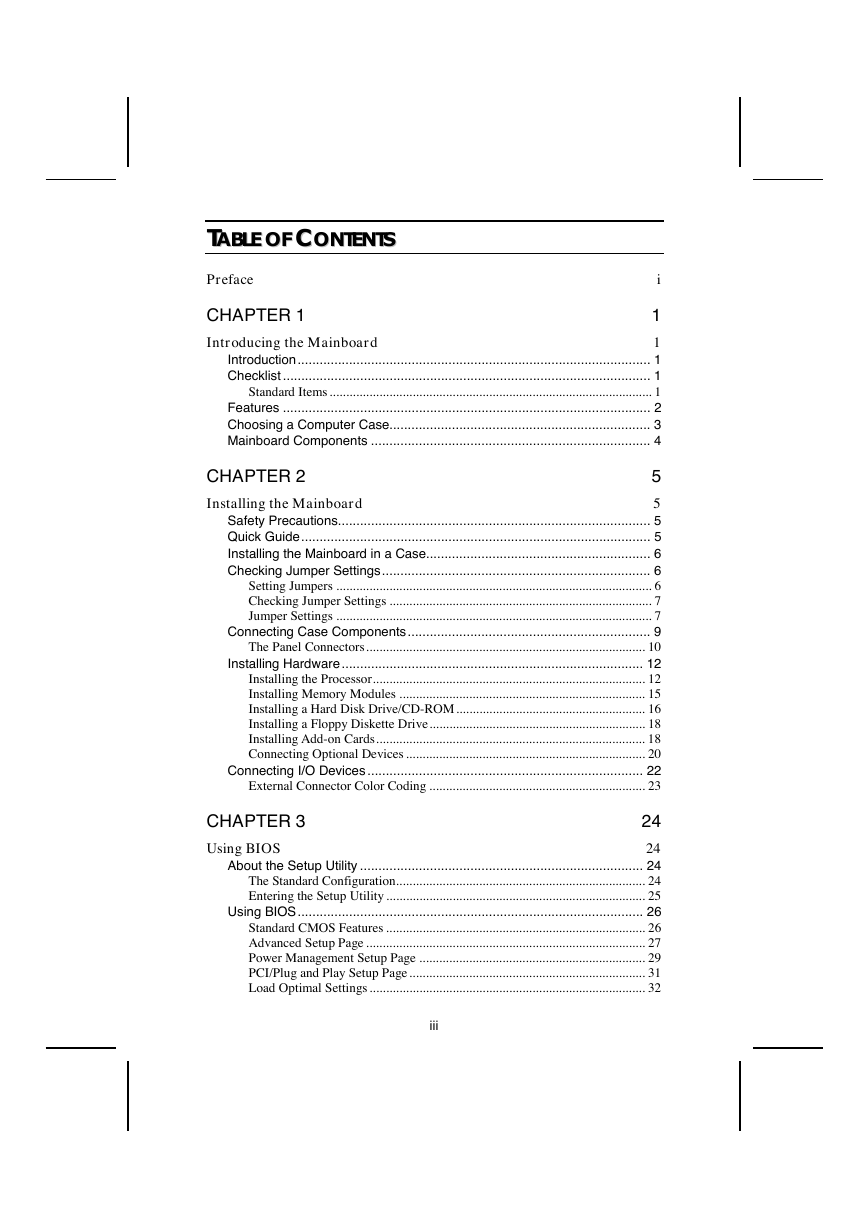

TTAABBLLEE OOFF CCOONNTTEENNTTSS Preface CHAPTER 1 Introducing the Mainboard CHAPTER 2 Installing the Mainboard i 1 1 Introduction................................................................................................ 1 Checklist .................................................................................................... 1 Standard Items................................................................................................. 1 Features .................................................................................................... 2 Choosing a Computer Case....................................................................... 3 Mainboard Components ............................................................................ 4 5 5 Safety Precautions..................................................................................... 5 Quick Guide............................................................................................... 5 Installing the Mainboard in a Case............................................................. 6 Checking Jumper Settings......................................................................... 6 Setting Jumpers ............................................................................................... 6 Checking Jumper Settings ............................................................................... 7 Jumper Settings ............................................................................................... 7 Connecting Case Components.................................................................. 9 The Panel Connectors.................................................................................... 10 Installing Hardware.................................................................................. 12 Installing the Processor.................................................................................. 12 Installing Memory Modules .......................................................................... 15 Installing a Hard Disk Drive/CD-ROM......................................................... 16 Installing a Floppy Diskette Drive................................................................. 18 Installing Add-on Cards................................................................................. 18 Connecting Optional Devices........................................................................ 20 Connecting I/O Devices ........................................................................... 22 External Connector Color Coding ................................................................. 23 24 24 About the Setup Utility ............................................................................. 24 The Standard Configuration........................................................................... 24 Entering the Setup Utility.............................................................................. 25 Using BIOS.............................................................................................. 26 Standard CMOS Features .............................................................................. 26 Advanced Setup Page .................................................................................... 27 Power Management Setup Page .................................................................... 29 PCI/Plug and Play Setup Page....................................................................... 31 Load Optimal Settings................................................................................... 32 CHAPTER 3 Using BIOS iii

Load Best Performance Settings.................................................................... 32 Features Setup Page....................................................................................... 32 CPU PnP Setup Page ..................................................................................... 34 Hardware Monitor Page................................................................................. 34 Change Password........................................................................................... 35 Exit ................................................................................................................ 35 CHAPTER 4 Using the Mainboard Software ~ ! |wqC ~ ! |wqC About the Software CD-ROM.....................................~ ! |wqC Auto-installing under Windows 98..............................~ ! |wqC Running Setup ............................................................. ~ ! |wqC Manual Installation.....................................................~ ! |wqC Utility Software Reference .........................................~ ! |wqC iv

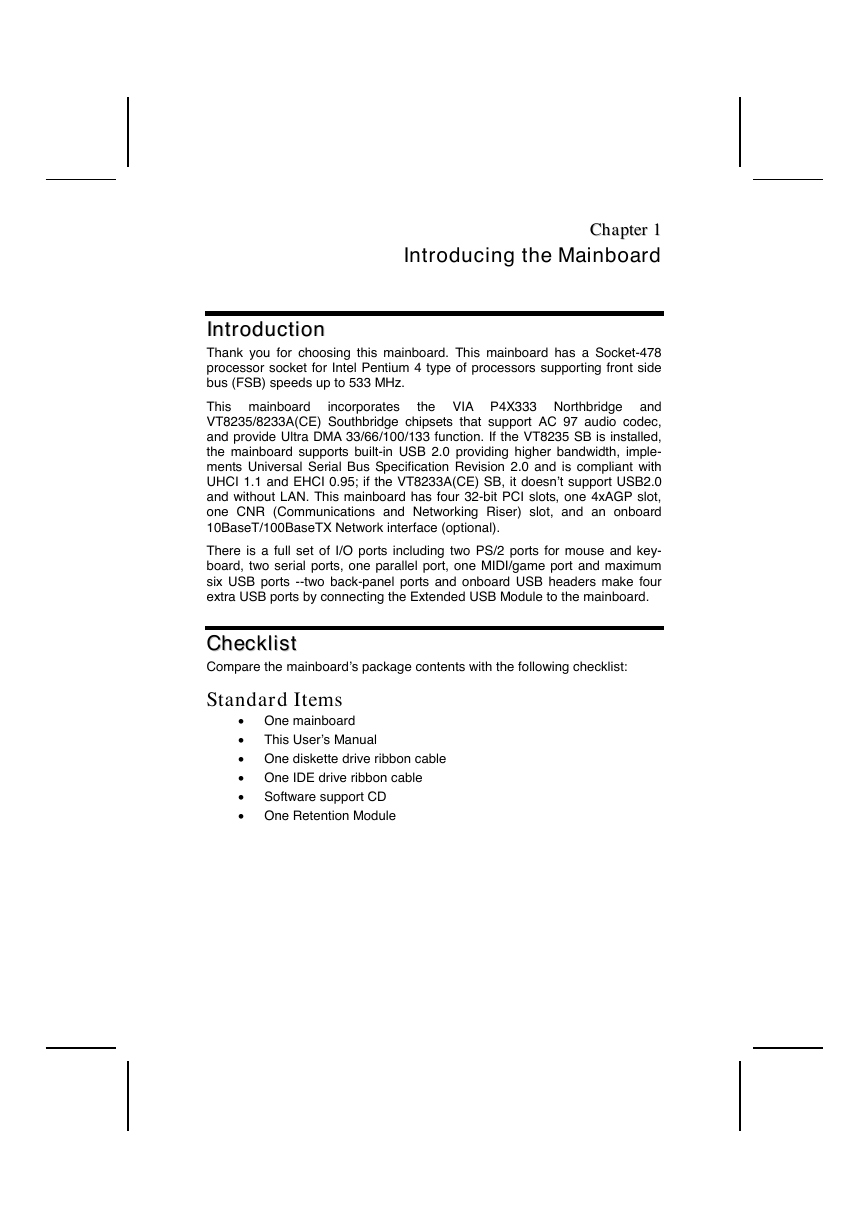

CChhaapptteerr 11 Introducing the Mainboard IInnttrroodduuccttiioonn Thank you for choosing this mainboard. This mainboard has a Socket-478 processor socket for Intel Pentium 4 type of processors supporting front side bus (FSB) speeds up to 533 MHz. the VIA P4X333 Northbridge and This mainboard incorporates VT8235/8233A(CE) Southbridge chipsets that support AC 97 audio codec, and provide Ultra DMA 33/66/100/133 function. If the VT8235 SB is installed, the mainboard supports built-in USB 2.0 providing higher bandwidth, imple- ments Universal Serial Bus Specification Revision 2.0 and is compliant with UHCI 1.1 and EHCI 0.95; if the VT8233A(CE) SB, it doesn’t support USB2.0 and without LAN. This mainboard has four 32-bit PCI slots, one 4xAGP slot, one CNR (Communications and Networking Riser) slot, and an onboard 10BaseT/100BaseTX Network interface (optional). There is a full set of I/O ports including two PS/2 ports for mouse and key- board, two serial ports, one parallel port, one MIDI/game port and maximum six USB ports --two back-panel ports and onboard USB headers make four extra USB ports by connecting the Extended USB Module to the mainboard. CChheecckklliisstt Compare the mainboard’s package contents with the following checklist: Standard Items • One mainboard • • One diskette drive ribbon cable • One IDE drive ribbon cable • Software support CD • One Retention Module This User’s Manual

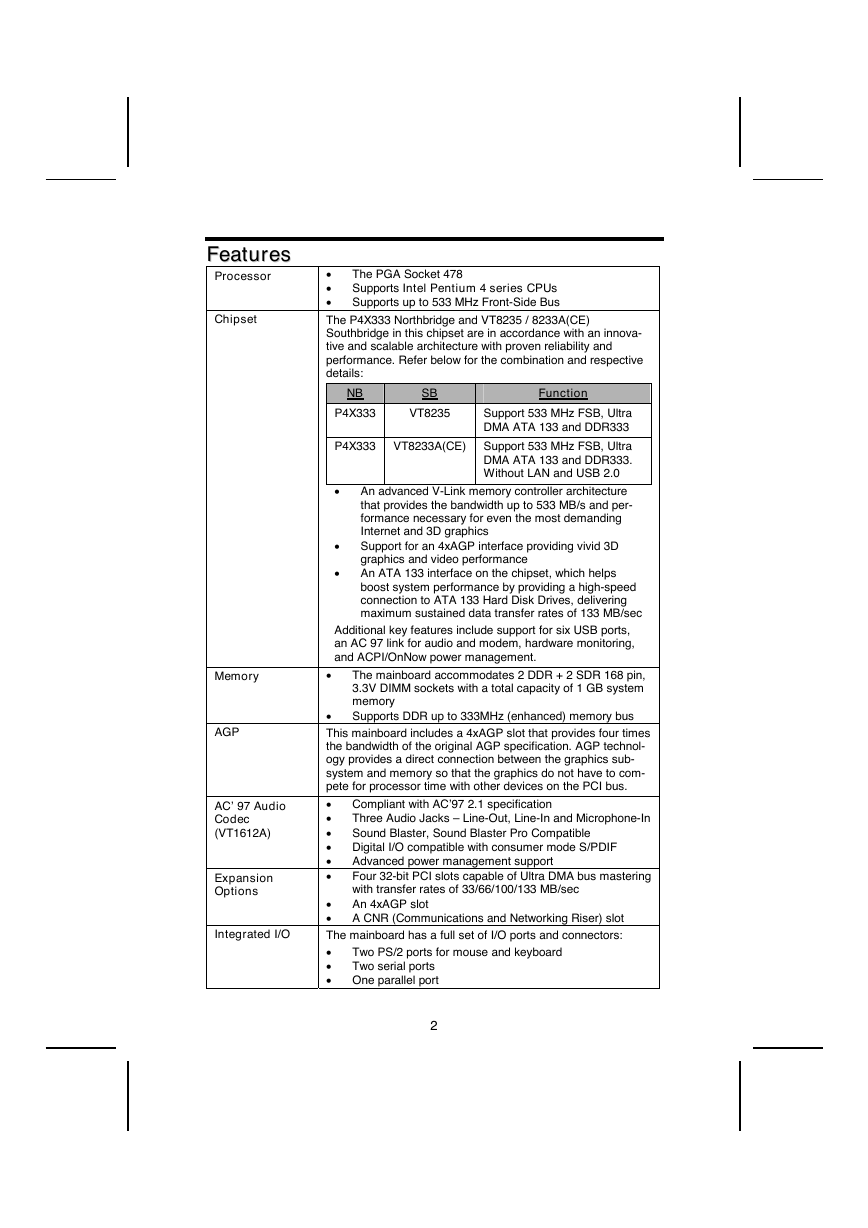

FFeeaattuurreess Processor Chipset Memory AGP AC’ 97 Audio Codec (VT1612A) Expansion Options Integrated I/O The PGA Socket 478 Supports Intel Pentium 4 series CPUs Supports up to 533 MHz Front-Side Bus • • • The P4X333 Northbridge and VT8235 / 8233A(CE) Southbridge in this chipset are in accordance with an innova- tive and scalable architecture with proven reliability and performance. Refer below for the combination and respective details: NB Function SB P4X333 P4X333 VT8235 VT8233A(CE) Support 533 MHz FSB, Ultra DMA ATA 133 and DDR333 Support 533 MHz FSB, Ultra DMA ATA 133 and DDR333. Without LAN and USB 2.0 An advanced V-Link memory controller architecture that provides the bandwidth up to 533 MB/s and per- formance necessary for even the most demanding Internet and 3D graphics Support for an 4xAGP interface providing vivid 3D graphics and video performance An ATA 133 interface on the chipset, which helps boost system performance by providing a high-speed connection to ATA 133 Hard Disk Drives, delivering maximum sustained data transfer rates of 133 MB/sec • • • • Additional key features include support for six USB ports, an AC 97 link for audio and modem, hardware monitoring, and ACPI/OnNow power management. The mainboard accommodates 2 DDR + 2 SDR 168 pin, 3.3V DIMM sockets with a total capacity of 1 GB system memory Supports DDR up to 333MHz (enhanced) memory bus • This mainboard includes a 4xAGP slot that provides four times the bandwidth of the original AGP specification. AGP technol- ogy provides a direct connection between the graphics sub- system and memory so that the graphics do not have to com- pete for processor time with other devices on the PCI bus. • • • • • • Compliant with AC’97 2.1 specification Three Audio Jacks – Line-Out, Line-In and Microphone-In Sound Blaster, Sound Blaster Pro Compatible Digital I/O compatible with consumer mode S/PDIF Advanced power management support Four 32-bit PCI slots capable of Ultra DMA bus mastering with transfer rates of 33/66/100/133 MB/sec An 4xAGP slot • A CNR (Communications and Networking Riser) slot • The mainboard has a full set of I/O ports and connectors: Two PS/2 ports for mouse and keyboard • Two serial ports • • One parallel port 2

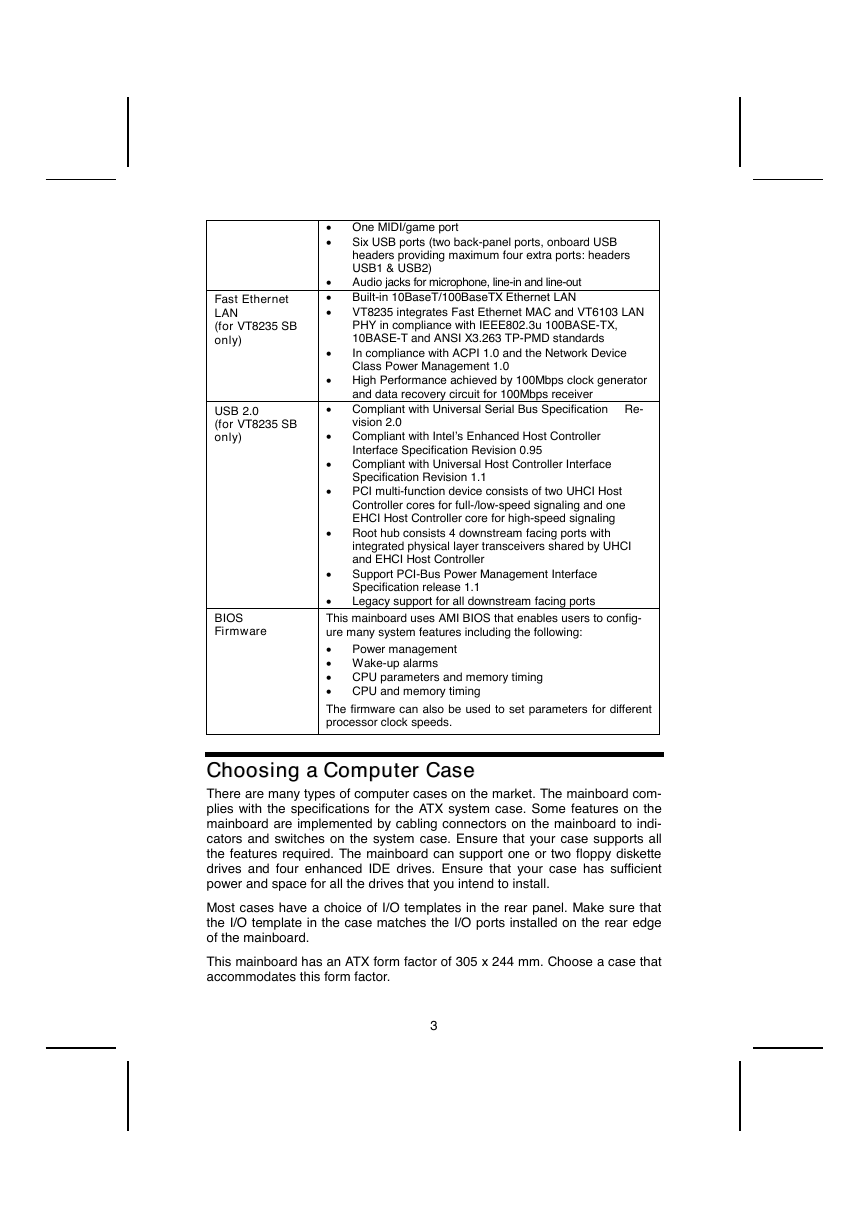

Fast Ethernet LAN (for VT8235 SB only) USB 2.0 (for VT8235 SB only) BIOS Firmware • One MIDI/game port • Six USB ports (two back-panel ports, onboard USB headers providing maximum four extra ports: headers USB1 & USB2) Audio jacks for microphone, line-in and line-out Built-in 10BaseT/100BaseTX Ethernet LAN VT8235 integrates Fast Ethernet MAC and VT6103 LAN PHY in compliance with IEEE802.3u 100BASE-TX, 10BASE-T and ANSI X3.263 TP-PMD standards In compliance with ACPI 1.0 and the Network Device Class Power Management 1.0 High Performance achieved by 100Mbps clock generator and data recovery circuit for 100Mbps receiver Compliant with Universal Serial Bus Specification Re- vision 2.0 Compliant with Intel’s Enhanced Host Controller Interface Specification Revision 0.95 Compliant with Universal Host Controller Interface Specification Revision 1.1 PCI multi-function device consists of two UHCI Host Controller cores for full-/low-speed signaling and one EHCI Host Controller core for high-speed signaling Root hub consists 4 downstream facing ports with integrated physical layer transceivers shared by UHCI and EHCI Host Controller Support PCI-Bus Power Management Interface Specification release 1.1 Legacy support for all downstream facing ports • • • • • • • • • • • Power management • This mainboard uses AMI BIOS that enables users to config- ure many system features including the following: • • Wake-up alarms • • The firmware can also be used to set parameters for different processor clock speeds. CPU parameters and memory timing CPU and memory timing CChhoooossiinngg aa CCoommppuutteerr CCaassee There are many types of computer cases on the market. The mainboard com- plies with the specifications for the ATX system case. Some features on the mainboard are implemented by cabling connectors on the mainboard to indi- cators and switches on the system case. Ensure that your case supports all the features required. The mainboard can support one or two floppy diskette drives and four enhanced IDE drives. Ensure that your case has sufficient power and space for all the drives that you intend to install. Most cases have a choice of I/O templates in the rear panel. Make sure that the I/O template in the case matches the I/O ports installed on the rear edge of the mainboard. This mainboard has an ATX form factor of 305 x 244 mm. Choose a case that accommodates this form factor. 3

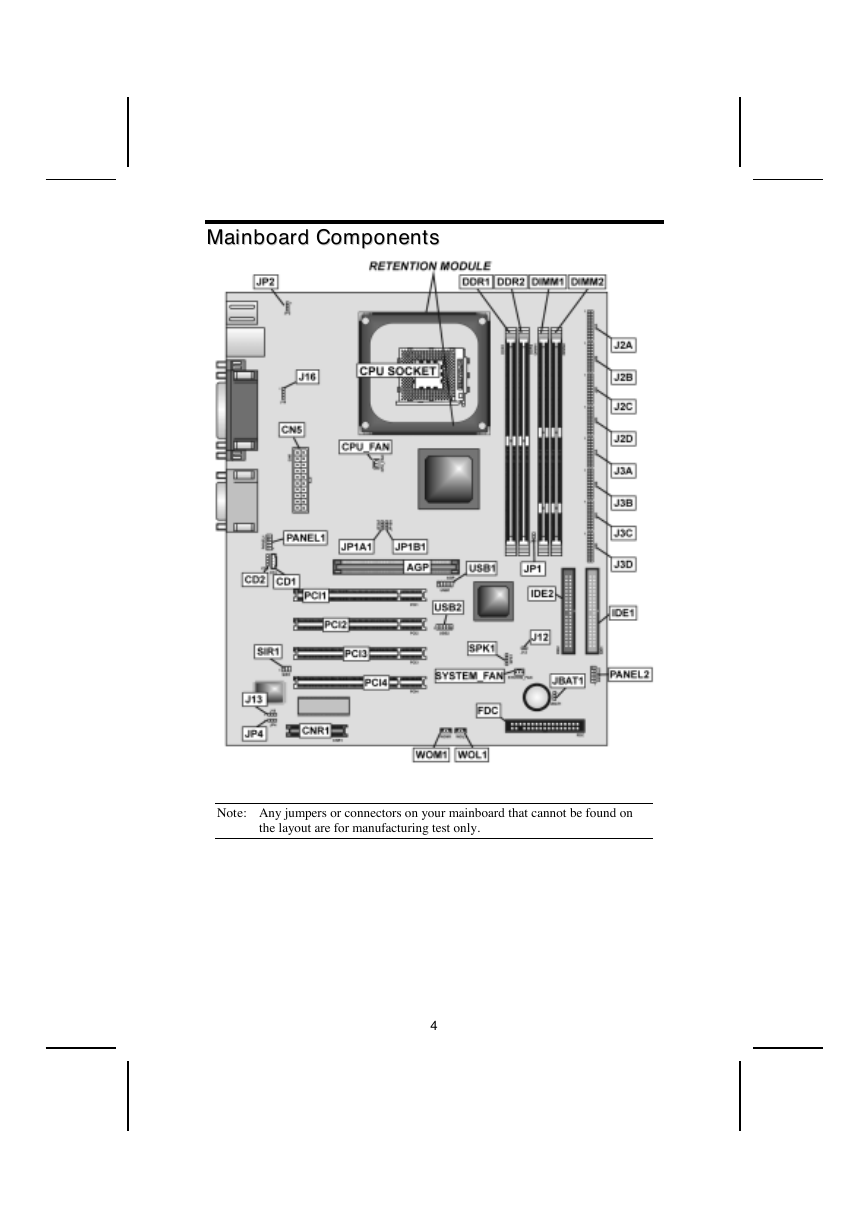

MMaaiinnbbooaarrdd CCoommppoonneennttss Note: Any jumpers or connectors on your mainboard that cannot be found on the layout are for manufacturing test only. 4
