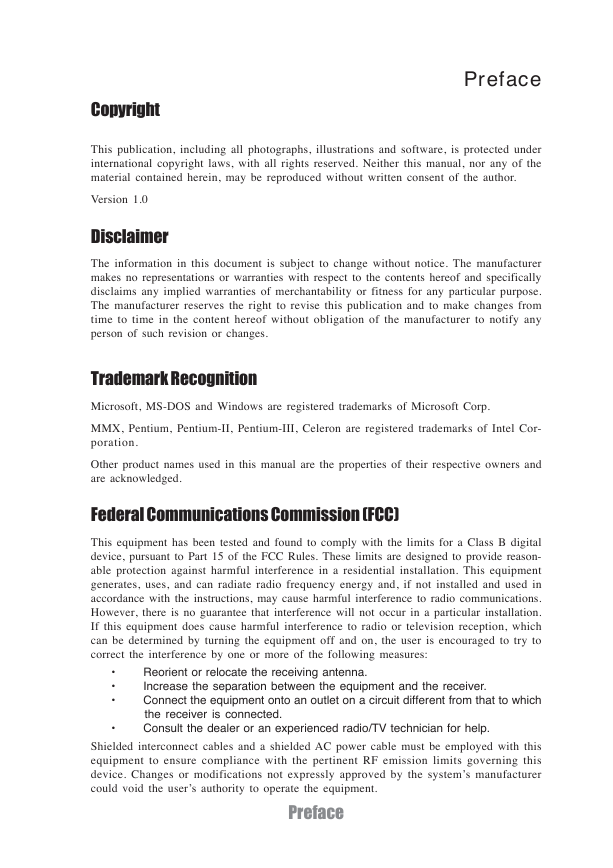

Copyright Preface This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. Version 1.0 Disclaimer The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes. Trademark Recognition Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp. MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel Cor- poration. Other product names used in this manual are the properties of their respective owners and are acknowledged. Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason- able protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. Increase the separation between the equipment and the receiver. Connect the equipment onto an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Shielded interconnect cables and a shielded AC power cable must be employed with this equipment to ensure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system’s manufacturer could void the user’s authority to operate the equipment. Preface

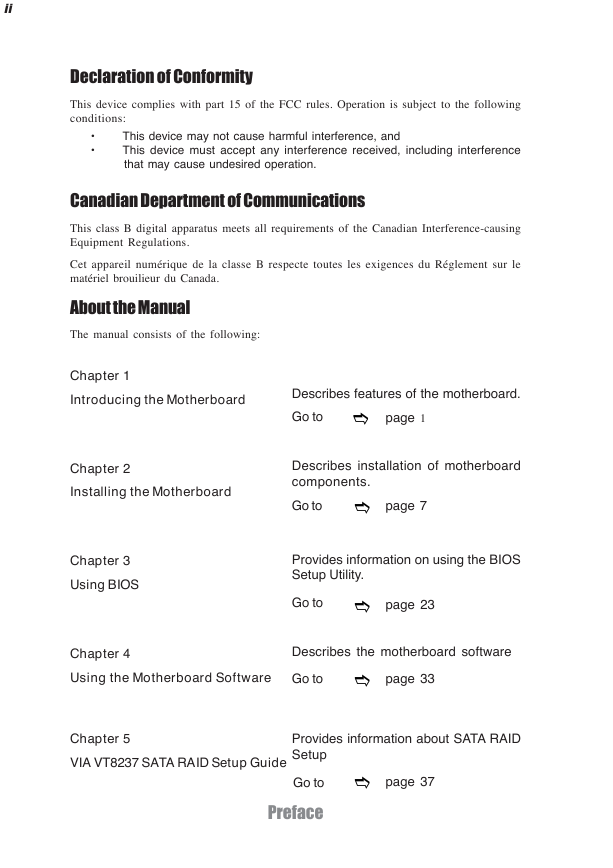

ii Declaration of Conformity This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. Canadian Department of Communications This class B digital apparatus meets all requirements of the Canadian Interference-causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur le matériel brouilieur du Canada. About the Manual The manual consists of the following: Chapter 1 Introducing the Motherboard Chapter 2 Installing the Motherboard Chapter 3 Using BIOS Chapter 4 Using the Motherboard Software Describes features of the motherboard. Go to ! page 1 Describes installation of motherboard components. Go to ! page 7 Provides information on using the BIOS Setup Utility. Go to ! page 23 Describes the motherboard software Go to ! page 33 Chapter 5 VIA VT8237 SATA RAID Setup Guide Provides information about SATA RAID Setup Go to ! page 37 Preface

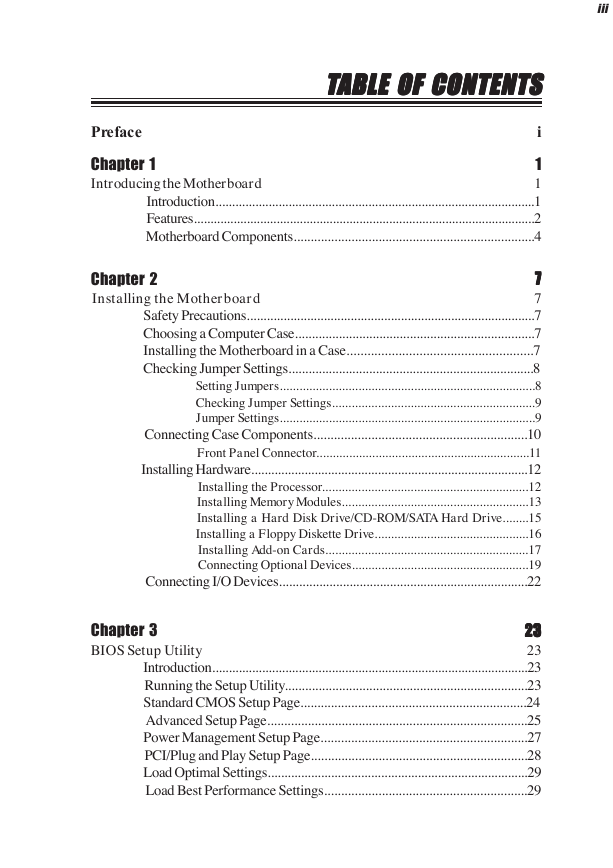

iii Preface Chapter 1 Introducing the Motherboard TTTTTABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS ABLE OF CONTENTS i 1 1 Introduction................................................................................................1 Features.......................................................................................................2 Motherboard Components.......................................................................4 7 7 7 7 7 Chapter 2 Installing the Motherboard 7 Safety Precautions......................................................................................7 Choosing a Computer Case.......................................................................7 Installing the Motherboard in a Case......................................................7 Checking Jumper Settings.........................................................................8 Setting Jumpers..............................................................................8 Checking Jumper Settings..............................................................9 Jumper Settings..............................................................................9 Connecting Case Components...............................................................10 Front Panel Connector.................................................................11 Installing Hardware...................................................................................12 Installing the Processor...............................................................12 Installing Memory Modules.........................................................13 Installing a Hard Disk Drive/CD-ROM/SATA Hard Drive........15 Installing a Floppy Diskette Drive...............................................16 Installing Add-on Cards..............................................................17 Connecting Optional Devices......................................................19 Connecting I/O Devices..........................................................................22 Chapter 3 BIOS Setup Utility 23 23 23 23 23 23 Introduction...............................................................................................23 Running the Setup Utility........................................................................23 Standard CMOS Setup Page...................................................................24 Advanced Setup Page.............................................................................25 Power Management Setup Page.............................................................27 PCI/Plug and Play Setup Page................................................................28 Load Optimal Settings..............................................................................29 Load Best Performance Settings............................................................29

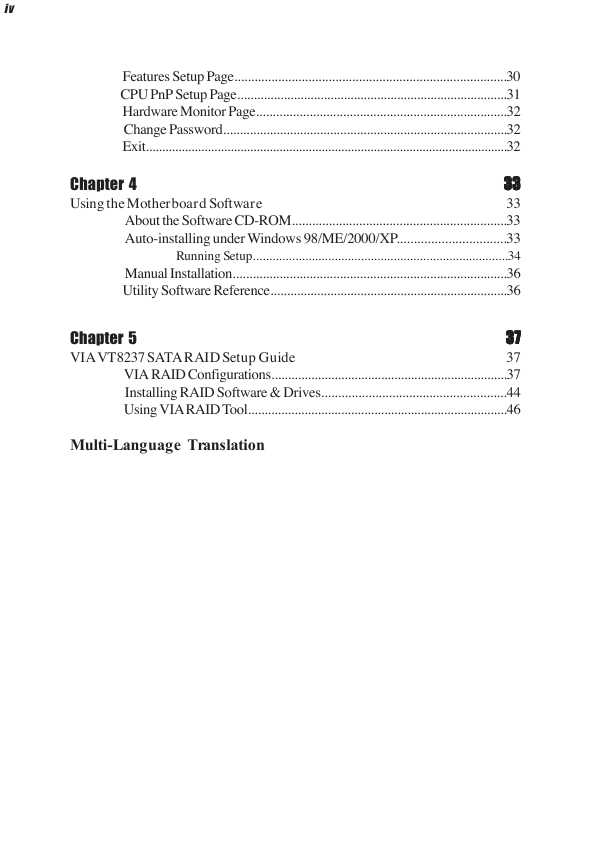

iv Features Setup Page.................................................................................30 CPU PnP Setup Page.................................................................................31 Hardware Monitor Page...........................................................................32 Change Password.....................................................................................32 Exit...............................................................................................................32 Chapter 4 Using the Motherboard Software 33 33 33 33 33 33 About the Software CD-ROM................................................................33 Auto-installing under Windows 98/ME/2000/XP................................33 Running Setup..............................................................................34 Manual Installation..................................................................................36 Utility Software Reference.......................................................................36 Chapter 5 VIA VT8237 SATA RAID Setup Guide 37 37 37 37 37 37 VIA RAID Configurations.......................................................................37 Installing RAID Software & Drives.......................................................44 Using VIA RAID Tool..............................................................................46 Multi-Language Translation

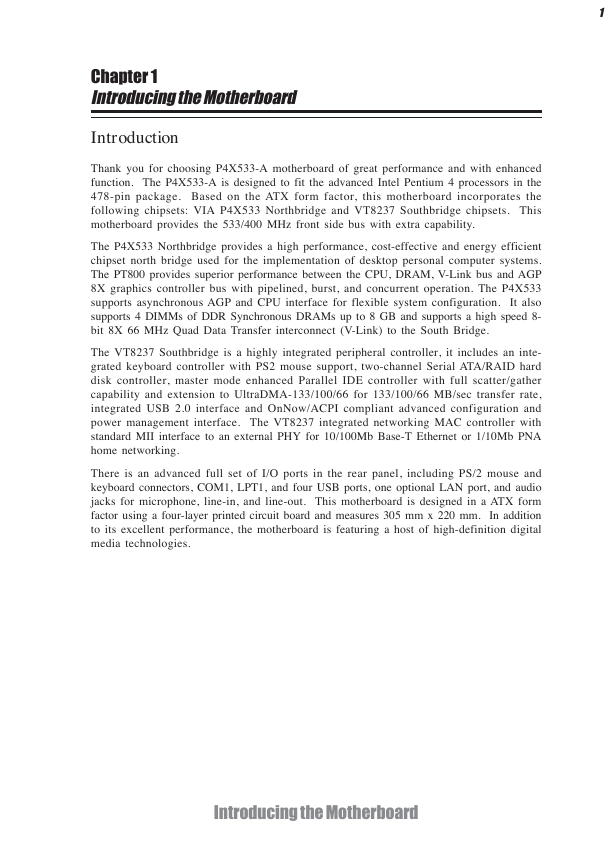

1 Chapter 1 Introducing the Motherboard Introduction Thank you for choosing P4X533-A motherboard of great performance and with enhanced function. The P4X533-A is designed to fit the advanced Intel Pentium 4 processors in the 478-pin package. Based on the ATX form factor, this motherboard incorporates the following chipsets: VIA P4X533 Northbridge and VT8237 Southbridge chipsets. This motherboard provides the 533/400 MHz front side bus with extra capability. The P4X533 Northbridge provides a high performance, cost-effective and energy efficient chipset north bridge used for the implementation of desktop personal computer systems. The PT800 provides superior performance between the CPU, DRAM, V-Link bus and AGP 8X graphics controller bus with pipelined, burst, and concurrent operation. The P4X533 supports asynchronous AGP and CPU interface for flexible system configuration. It also supports 4 DIMMs of DDR Synchronous DRAMs up to 8 GB and supports a high speed 8- bit 8X 66 MHz Quad Data Transfer interconnect (V-Link) to the South Bridge. The VT8237 Southbridge is a highly integrated peripheral controller, it includes an inte- grated keyboard controller with PS2 mouse support, two-channel Serial ATA/RAID hard disk controller, master mode enhanced Parallel IDE controller with full scatter/gather capability and extension to UltraDMA-133/100/66 for 133/100/66 MB/sec transfer rate, integrated USB 2.0 interface and OnNow/ACPI compliant advanced configuration and power management interface. The VT8237 integrated networking MAC controller with standard MII interface to an external PHY for 10/100Mb Base-T Ethernet or 1/10Mb PNA home networking. There is an advanced full set of I/O ports in the rear panel, including PS/2 mouse and keyboard connectors, COM1, LPT1, and four USB ports, one optional LAN port, and audio jacks for microphone, line-in, and line-out. This motherboard is designed in a ATX form factor using a four-layer printed circuit board and measures 305 mm x 220 mm. In addition to its excellent performance, the motherboard is featuring a host of high-definition digital media technologies. Introducing the Motherboard

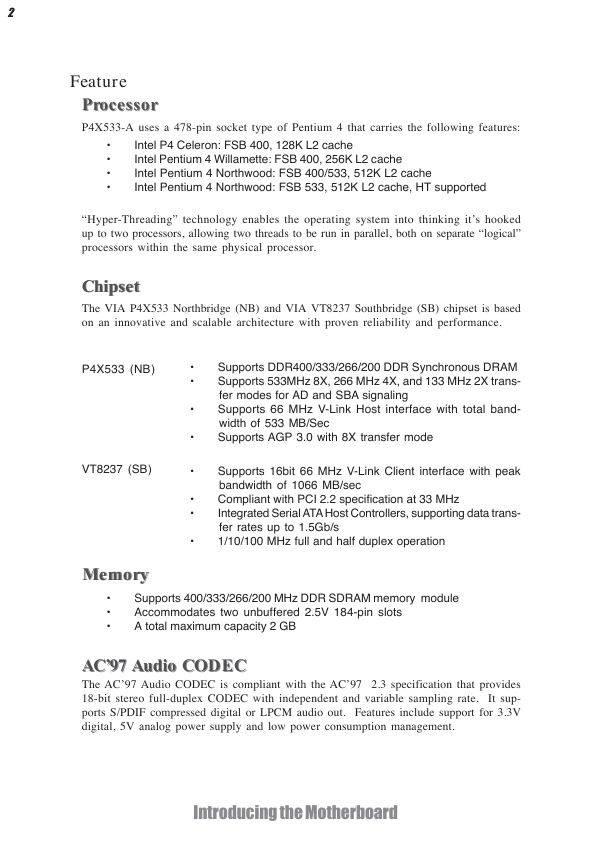

2 Feature Processor Processor P4X533-A uses a 478-pin socket type of Pentium 4 that carries the following features: • Intel P4 Celeron: FSB 400, 128K L2 cache Intel Pentium 4 Willamette: FSB 400, 256K L2 cache Intel Pentium 4 Northwood: FSB 400/533, 512K L2 cache Intel Pentium 4 Northwood: FSB 533, 512K L2 cache, HT supported “Hyper-Threading” technology enables the operating system into thinking it’s hooked up to two processors, allowing two threads to be run in parallel, both on separate “logical” processors within the same physical processor. Chipset Chipset The VIA P4X533 Northbridge (NB) and VIA VT8237 Southbridge (SB) chipset is based on an innovative and scalable architecture with proven reliability and performance. P4X533 (NB) VT8237 (SB) Memory Memory Supports DDR400/333/266/200 DDR Synchronous DRAM Supports 533MHz 8X, 266 MHz 4X, and 133 MHz 2X trans- fer modes for AD and SBA signaling Supports 66 MHz V-Link Host interface with total band- width of 533 MB/Sec Supports AGP 3.0 with 8X transfer mode Supports 16bit 66 MHz V-Link Client interface with peak bandwidth of 1066 MB/sec Compliant with PCI 2.2 specification at 33 MHz Integrated Serial ATA Host Controllers, supporting data trans- fer rates up to 1.5Gb/s 1/10/100 MHz full and half duplex operation Supports 400/333/266/200 MHz DDR SDRAM memory module Accommodates two unbuffered 2.5V 184-pin slots A total maximum capacity 2 GB AC’97 Audio CODEC AC’97 Audio CODEC The AC’97 Audio CODEC is compliant with the AC’97 2.3 specification that provides 18-bit stereo full-duplex CODEC with independent and variable sampling rate. It sup- ports S/PDIF compressed digital or LPCM audio out. Features include support for 3.3V digital, 5V analog power supply and low power consumption management. Introducing the Motherboard

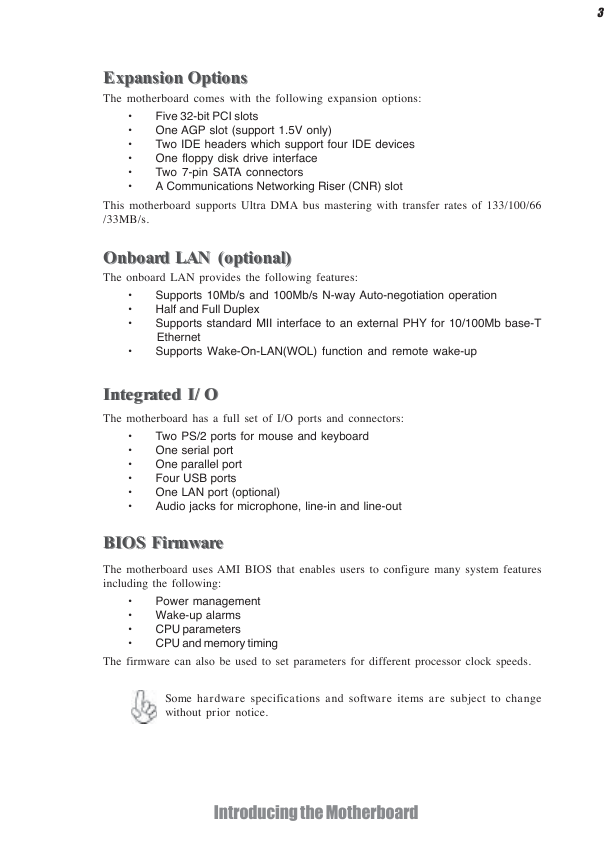

3 Expansion Options Expansion Options The motherboard comes with the following expansion options: Five 32-bit PCI slots One AGP slot (support 1.5V only) Two IDE headers which support four IDE devices One floppy disk drive interface Two 7-pin SATA connectors A Communications Networking Riser (CNR) slot This motherboard supports Ultra DMA bus mastering with transfer rates of 133/100/66 /33MB/s. Onboard LAN (optional) Onboard LAN (optional) The onboard LAN provides the following features: Supports 10Mb/s and 100Mb/s N-way Auto-negotiation operation Half and Full Duplex Supports standard MII interface to an external PHY for 10/100Mb base-T Ethernet Supports Wake-On-LAN(WOL) function and remote wake-up Integrated I/O Integrated I/O The motherboard has a full set of I/O ports and connectors: Two PS/2 ports for mouse and keyboard One serial port One parallel port Four USB ports One LAN port (optional) Audio jacks for microphone, line-in and line-out BIOS Firmware BIOS Firmware The motherboard uses AMI BIOS that enables users to configure many system features including the following: Power management Wake-up alarms CPU parameters CPU and memory timing The firmware can also be used to set parameters for different processor clock speeds. Some hardware specifications and software items are subject to change without prior notice. Introducing the Motherboard

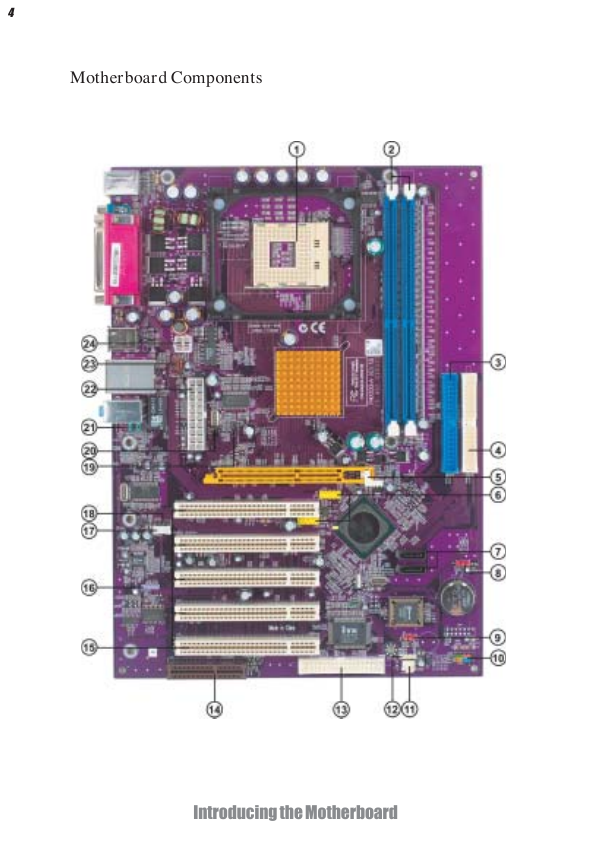

4 Motherboard Components Introducing the Motherboard
