High Definition Camcorder User’s Manual

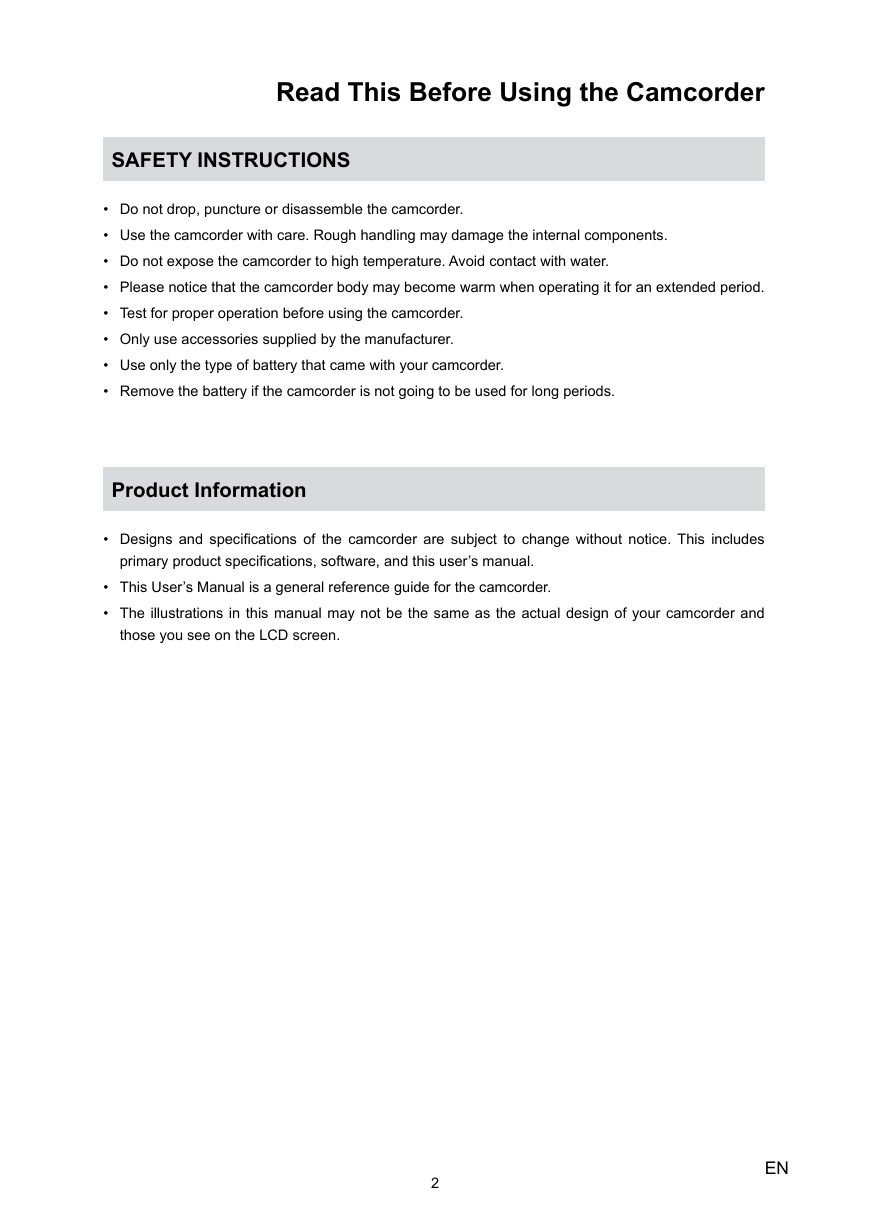

Read This Before Using the Camcorder SAFETY INSTRUCTIONS • • • • • • • • Do not drop, puncture or disassemble the camcorder. Use the camcorder with care. Rough handling may damage the internal components. Do not expose the camcorder to high temperature. Avoid contact with water. Please notice that the camcorder body may become warm when operating it for an extended period. Test for proper operation before using the camcorder. Only use accessories supplied by the manufacturer. Use only the type of battery that came with your camcorder. Remove the battery if the camcorder is not going to be used for long periods. Product Information • • • Designs and specifications of the camcorder are subject to change without notice. This includes primary product specifications, software, and this user’s manual. This User’s Manual is a general reference guide for the camcorder. The illustrations in this manual may not be the same as the actual design of your camcorder and those you see on the LCD screen. 2 EN

Contents Read This Before Using the Camcorder .............................................. 2 Section 1 Getting to Know Your Camcorder ..................................... 4 Section 2 Getting Started .................................................................... 7 Section 3 Enjoying the Record Mode ................................................ 9 Section 4 Enjoying the Playback Mode ........................................... 21 Section 5 Setting Your Camcorder ................................................. 26 Section 6 Viewing Photos and Videos on TV .................................. 29 Section 7 Viewing Video & Photo on PC ......................................... 30 Section 8 Uploading Files to Internet .............................................. 31 Section 9 Specifications and System Requirements ..................... 34 Section 10 Troubleshooting ............................................................... 36

Section 1 Getting to Know Your Camcorder Overview The camcorder equipped a 5 Mega Pixel sensor that can take H.264 format videos. The H.264 technology allows for extanded video recording with less memory. High quality images up to 16 mega-pixels can also be delivered smoothly. With a color LCD monitor, you can view and examine the videos and photos easily. The camcorder features 7.6 cm LCD (3’’ LCD) touch panel which is an ideal platform for you to operate your camcorder. The menu options are accessible with your finger. With the touch panel, you can select the options directly and quickly. The camcorder also features video recording at an HD resolution of 1920x1080. You can also connect it to an HDTV via an HDMI cable, and easily playback the recorded high-definition videos on the wide screen HDTV. Moreover, the camcorder has an advanced uploading feature. With the exclusive built-in Internet Direct application, you can upload the videos captured by the camcorder to the web site more effortlessly . ISO sensitivity and color balance can either be adjusted automatically or changed manually. A 120x digital zoom helps you to control over the videos and photos you take. The varied effect options, such as Time Lapse, Slow Motion and different Scene, make recording more fun. The built-in memory allows you to take photos and to record videos without a memory card. The memory card slot allows users to increase the storage capacity. Note • • Partial memory of the built-in memory is used for the camcorder’s Firmware code software. Install the bundled software application on the CD, ArcSoft MediaImpression, for viewing the videos correctly on a PC. and Standard Accessories Unpack the package and make sure all standard accessories listed are included: • • • • • • • • • • Camcorder USB Cable AV Cable HDMI Cable Adaptor Lithium-ion Rechargeable Battery Quick Guide CD-ROM (Software, User’s Manual) Pouch Lens Cover Set (Lens cover and Strap) 4 EN

Tele/Wide Button Photo Button LCD Touch Panel Front View Stereo Microphone Flash Lens Rear View Self-timer LED Playback LED Indicator AV Out HDMI Out USB Connector Record LED Indicator Record Button 5 EN

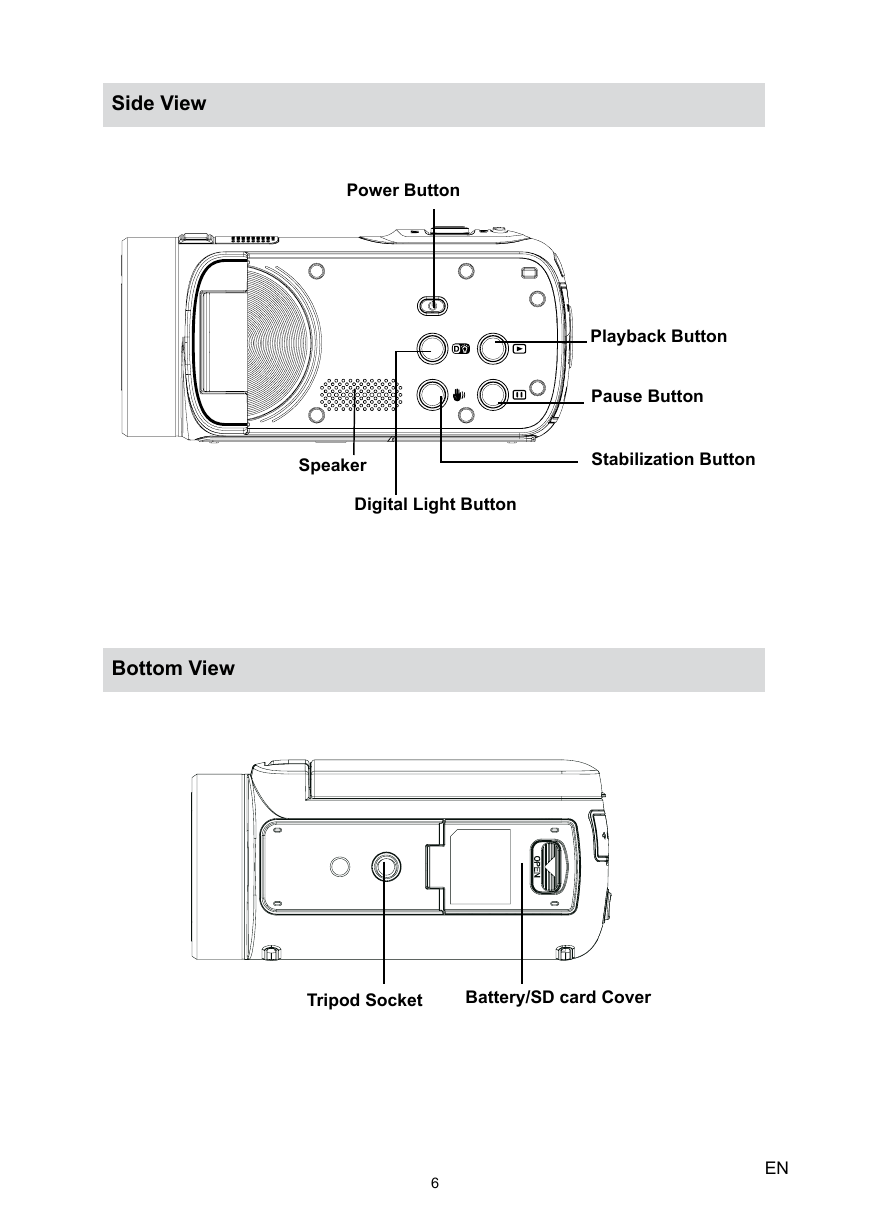

Side View Power Button Playback Button Pause Button Stabilization Button Speaker Digital Light Button Bottom View Tripod Socket Battery/SD card Cover 6 EN

Section 2 Getting Started Loading the Battery Before using the camcorder, you must load the Lithium-ion rechargeable battery come within the package. 1. 2. Insert the battery according to the correct polarity marks ( + or -). Close the battery cover firmly. Charging the Battery Please charge the battery for at least 8 hours prior to its first use. Afterwards, it will take approximately 4 or 5 hours to fully charge the battery by AC adapter. The camcorder must be turned OFF. The blinking light confirms the camcorder is currently charging, and the light becomes constant after the charging is completed. In AC charging Mode, the light will turn itself off automatically after 3~5 minutes. (Actual charging time may vary. It depends on the battery conditions.) Inserting and Removing an SD Card (Optional) The camcorder comes with an internal memory that allows you to store photos and videos. You can expand the memory capacity by using an optional SD memory card. 1. 2. To inset a memory card, please refer to the figure on the right side. To remove the memory card, please press the card and it will pop up. Then pull the card out of the slot. Note • • When a memory card is fitted, videos/photos are saved to the card rather than the built-in memory. Protecting Data on an SD Card: SD Card is read-only when it is locked. No photos or videos can be recorded when the SD card is locked. Make sure the lock is on the writeable position before recording any media. Writeable position Write-Protected Position 7 EN

Turning On/Off Your Camcorder • • Open the LCD monitor or press and hold down the [Power Button] for 1 second to turn on the camcorder. To turn off the camcorder, press and hold down the monitor. [Power Button] for 1 second or close the LCD Configuring the Initial Date and Time Setup • The time setting screen appears to allow you to setup date and time: Operation Display Screen 1. 2. 3. 4. Touch Year, Month, Day, Hour, Minute, and AM/PM to set. Adjust the numeric value by touching Touch the [OK] icon to validate the setting. Touch the Exit icon ) to exit. / ( Getting Started • • • • Press [Record Button] to record video. To stop recording, press it again. Press [Pause Button] to pause recording. To continue the recording, press it To record video: To pause recording: again. To take a photo during video recording: When recording video, press [Photo Button] to capture the image. The Picture in Video (PIV) icon ( To take a Then, press it fully down to take photo. photo: Press [Photo Button] halfway down until the focusing frame turns from white to green. ) appears on the LCD monitor. Focusing Frame: White Focusing Frame: Green • To view stored videos and photos: Press [Playback Button] or touch the Playback mode. on the screen to switch to 8 EN
