GZ-MC200US.book Page 1 Tuesday, September 7, 2004 9:56 PM
MasterPage: Cover

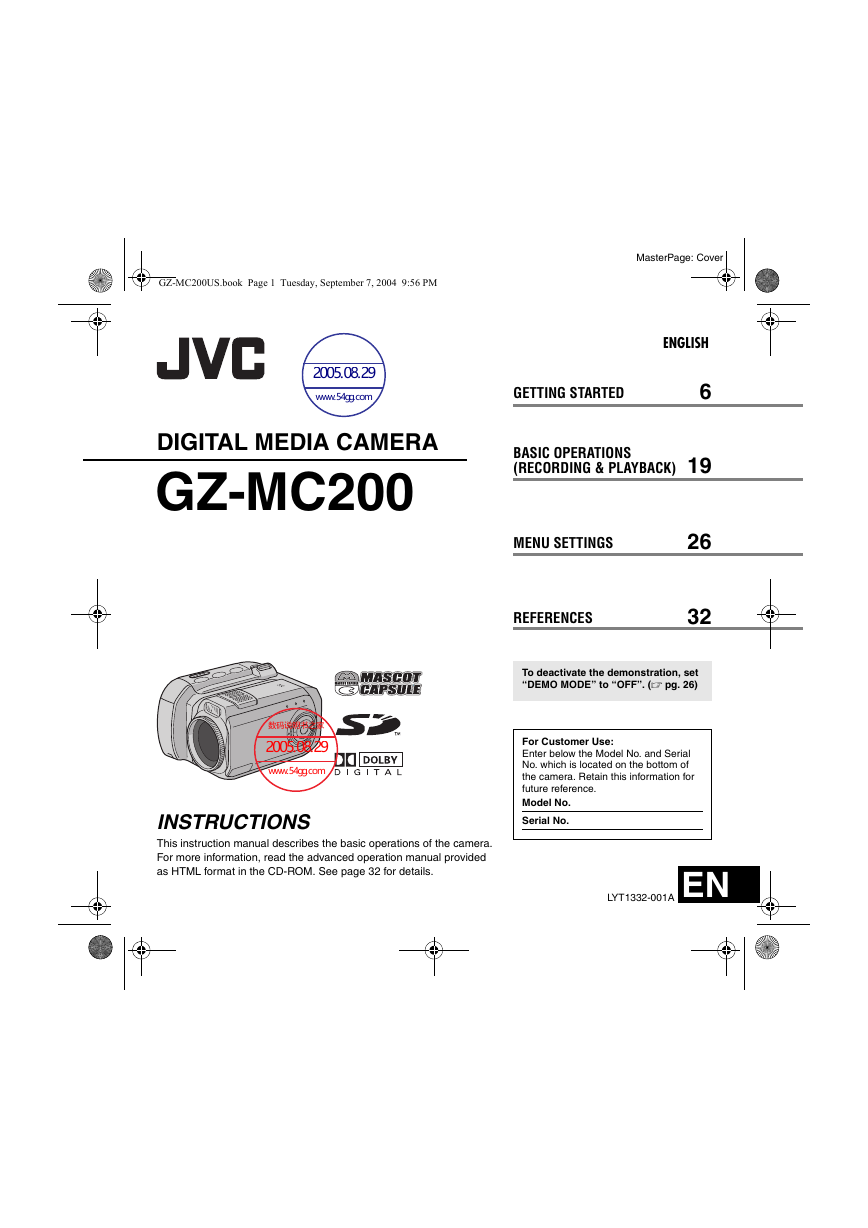

DIGITAL MEDIA CAMERA
GZ-MC200
INSTRUCTIONS
This instruction manual describes the basic operations of the camera.
For more information, read the advanced operation manual provided
as HTML format in the CD-ROM. See page 32 for details.
GETTING STARTED
ENGLISH
6
BASIC OPERATIONS
(RECORDING & PLAYBACK) 19
MENU SETTINGS
REFERENCES
26
32
To deactivate the demonstration, set
“DEMO MODE” to “OFF”. (墌 pg. 26)
For Customer Use:
Enter below the Model No. and Serial
No. which is located on the bottom of
the camera. Retain this information for
future reference.
Model No.
Serial No.
LYT1332-001A EN
GZ-MC200US.book Page 2 Tuesday, September 7, 2004 9:56 PM
2 EN

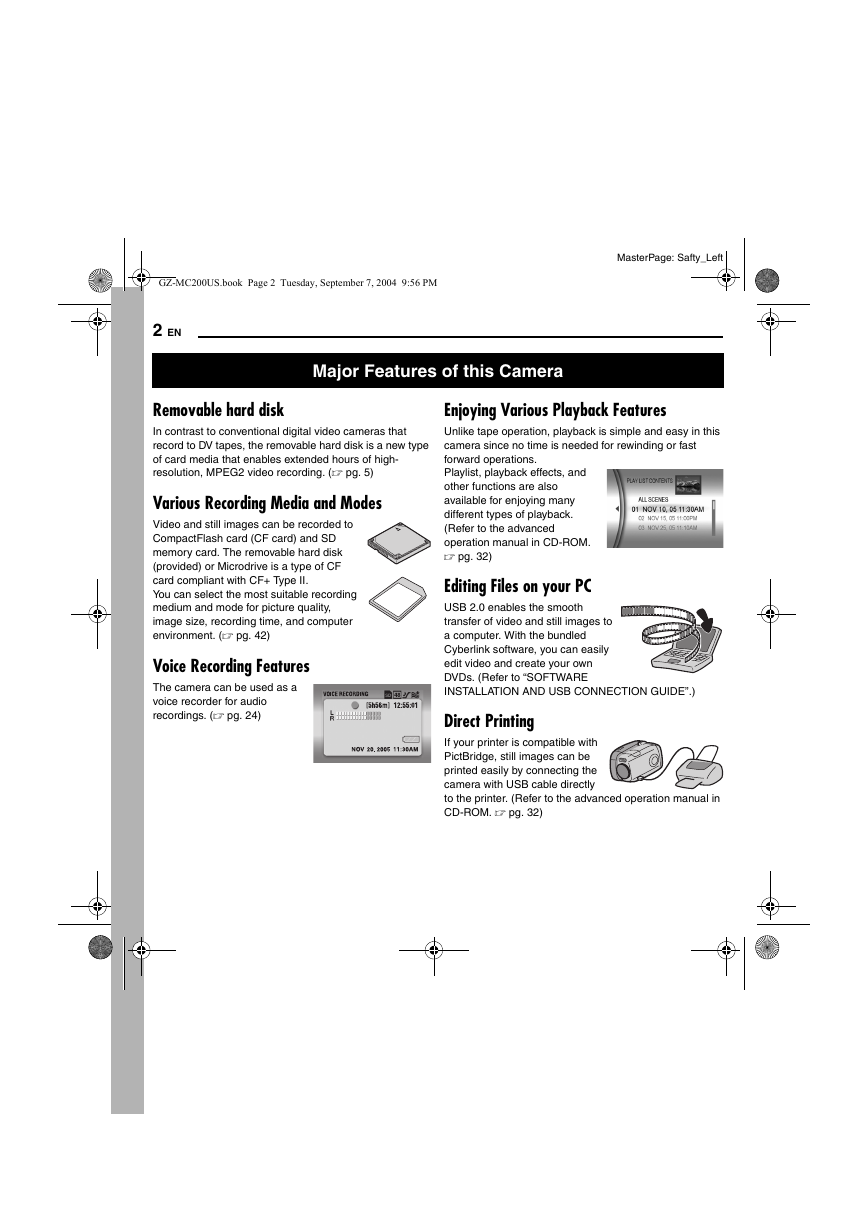

Major Features of this Camera
MasterPage: Safty_Left
Removable hard disk
In contrast to conventional digital video cameras that
record to DV tapes, the removable hard disk is a new type
of card media that enables extended hours of high-
resolution, MPEG2 video recording. (墌 pg. 5)
Various Recording Media and Modes
Video and still images can be recorded to
CompactFlash card (CF card) and SD
memory card. The removable hard disk
(provided) or Microdrive is a type of CF
card compliant with CF+ Type II.
You can select the most suitable recording
medium and mode for picture quality,
image size, recording time, and computer
environment. (墌 pg. 42)
Voice Recording Features
The camera can be used as a
voice recorder for audio
recordings. (墌 pg. 24)
Enjoying Various Playback Features
Unlike tape operation, playback is simple and easy in this
camera since no time is needed for rewinding or fast
forward operations.
Playlist, playback effects, and
other functions are also
available for enjoying many
different types of playback.
(Refer to the advanced
operation manual in CD-ROM.
墌 pg. 32)
Editing Files on your PC
USB 2.0 enables the smooth
transfer of video and still images to
a computer. With the bundled
Cyberlink software, you can easily
edit video and create your own
DVDs. (Refer to “SOFTWARE
INSTALLATION AND USB CONNECTION GUIDE”.)
Direct Printing
If your printer is compatible with
PictBridge, still images can be
printed easily by connecting the
camera with USB cable directly
to the printer. (Refer to the advanced operation manual in
CD-ROM. 墌 pg. 32)
MasterPage: Safty_Right
EN 3
NOTES:
● The rating plate (serial number plate) and safety caution
are on the bottom and/or the back of the main unit.
● The rating information and safety caution of the AC
adapter are on its upper and lower sides.
This product has a fluorescent lamp that contains a small
amount of mercury. Disposal of these materials may be
regulated in your community due to environmental
considerations.
For disposal or recycling information please contact your
local authorities, or the Electronics Industries Alliance:
When the equipment is installed in a cabinet or on a shelf,
make sure that it has sufficient space on all sides to allow
for ventilation (10 cm (3-15/16") or more on both sides, on
top and at the rear).
Do not block the ventilation holes.
(If the ventilation holes are blocked by a newspaper, or
cloth etc. the heat may not be able to get out.)
No naked flame sources, such as lighted candles, should
be placed on the apparatus.
When discarding batteries, environmental problems must
be considered and the local rules or laws governing the
disposal of these batteries must be followed strictly.
The apparatus shall not be exposed to dripping or
splashing.
Do not use this equipment in a bathroom or places with
water.
Also do not place any containers filled with water or liquids
(such as cosmetics or medicines, flower vases, potted
plants, cups etc.) on top of this unit.
(If water or liquid is allowed to enter this equipment, fire or
electric shock may be caused.)
GZ-MC200US.book Page 3 Tuesday, September 7, 2004 9:56 PM

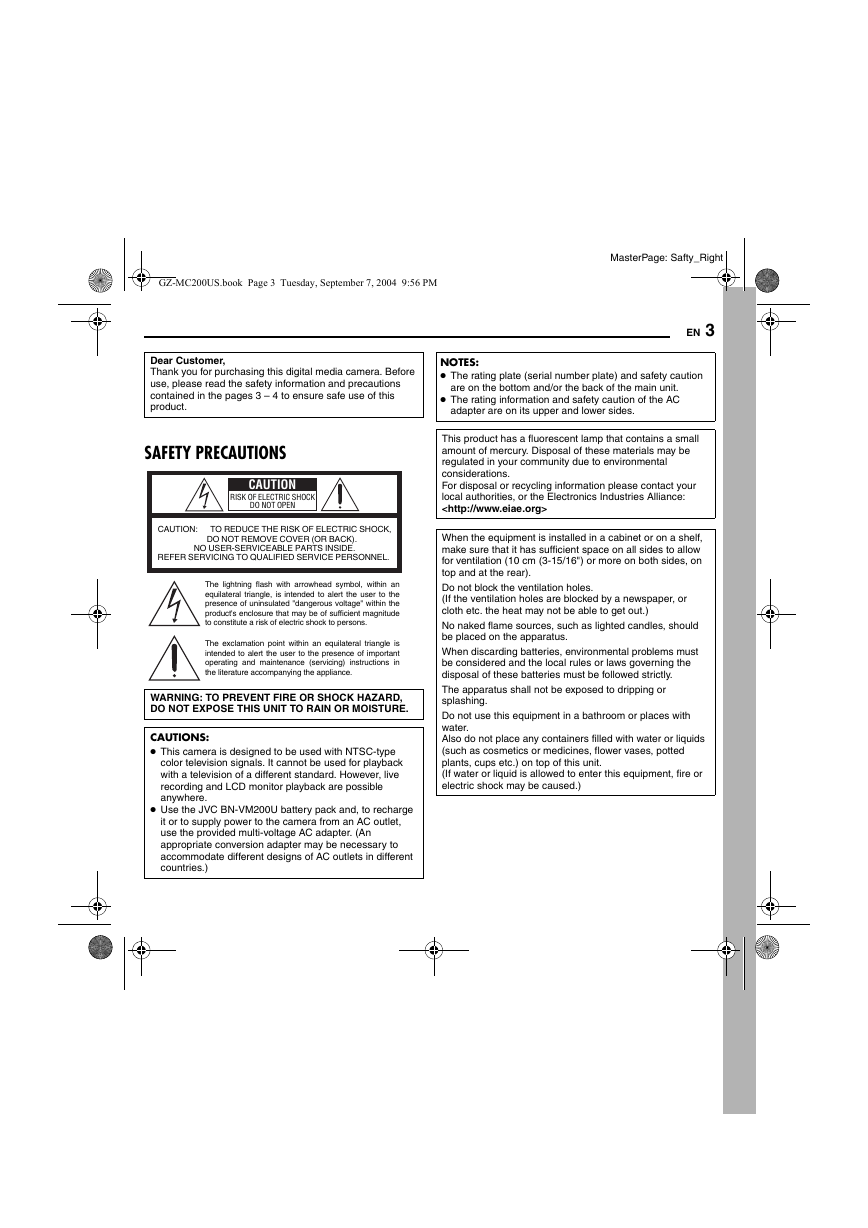

Dear Customer,
Thank you for purchasing this digital media camera. Before
use, please read the safety information and precautions
contained in the pages 3 – 4 to ensure safe use of this
product.
SAFETY PRECAUTIONS
CAUTION
DO NOT OPEN
RISK OF ELECTRIC SHOCK
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
CAUTIONS:
● This camera is designed to be used with NTSC-type
color television signals. It cannot be used for playback
with a television of a different standard. However, live
recording and LCD monitor playback are possible
anywhere.
● Use the JVC BN-VM200U battery pack and, to recharge
it or to supply power to the camera from an AC outlet,
use the provided multi-voltage AC adapter. (An
appropriate conversion adapter may be necessary to
accommodate different designs of AC outlets in different
countries.)
MasterPage: Safty_Left
12. Refer all servicing to qualified service personnel. Servicing
is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
Before Using this Camera
This camera is designed exclusively for CompactFlash
Card (CF card) and SD Memory Card.
The removable hard disk (provided) or Microdrive is a
type of CF card compliant with CF+ Type II.
This camera records video in MPEG2 format compliant
with SD-VIDEO format.
Remember that this camera is not compatible with other
digital video formats.
Remember that this camera is intended for private
consumer use only.
Any commercial use without proper permission is prohibited.
(Even if you record an event such as a show, performance or
exhibition for personal enjoyment, it is strongly recommended
that you obtain permission beforehand.)
Before recording important video, be sure to make a trial
recording.
Play back your trial recording to make sure the video and
audio have been recorded properly.
Also read “Cautions” on pages 37 to 39.
GZ-MC200US.book Page 4 Tuesday, September 7, 2004 9:56 PM
4 EN
Do not point the lens directly into the sun. This can cause
eye injuries, as well as lead to the malfunctioning of internal
circuitry. There is also a risk of fire or electric shock.
CAUTION!
The following notes concern possible physical damage to
the camera and to the user.
Carrying or holding the camera by the LCD monitor can
result in dropping the unit, or in a malfunction.
Do not use a tripod on unsteady or unlevel surfaces. It could
tip over, causing serious damage to the camera.
CAUTION!
Connecting cables (Audio/Video, S-Video, etc.) to the
camera and leaving it on top of the TV is not recommended,
as tripping on the cables will cause the camera to fall,
resulting in damage.

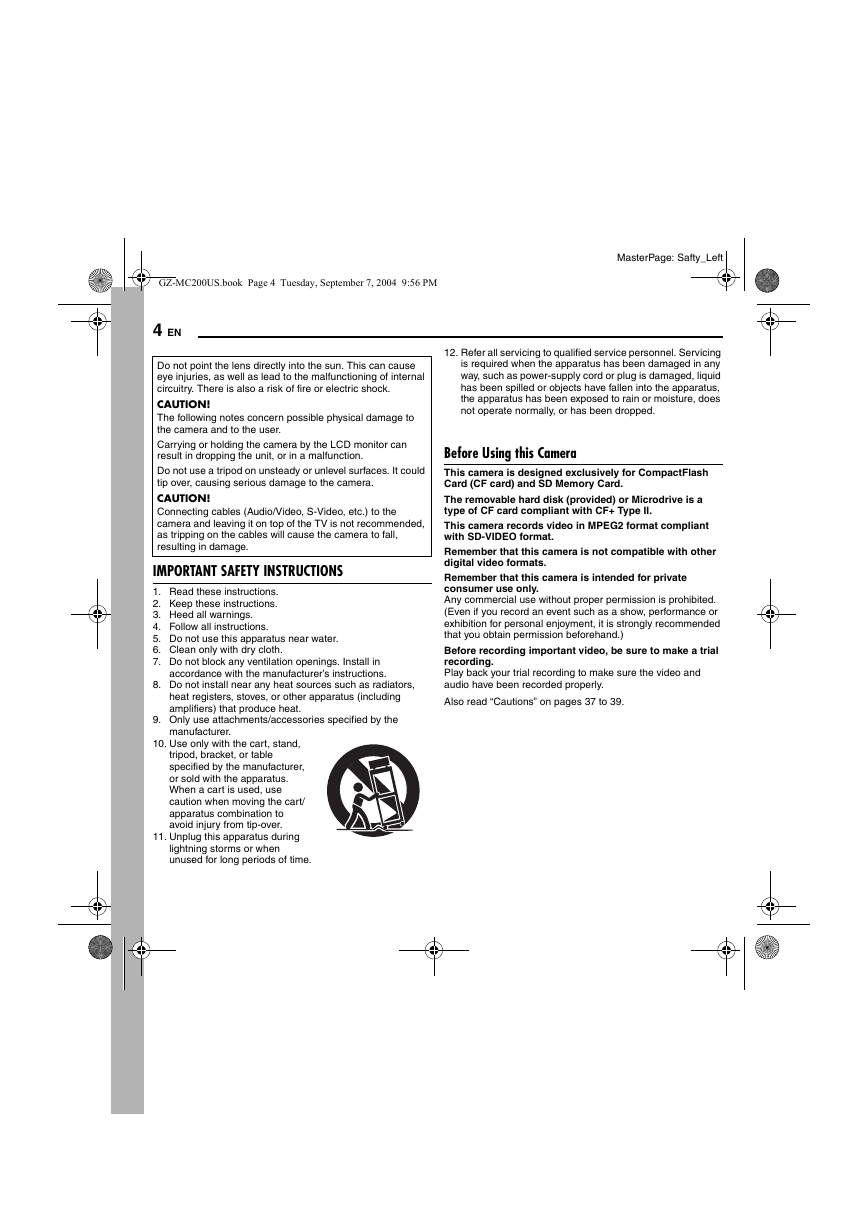

IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Only use attachments/accessories specified by the
manufacturer.
10. Use only with the cart, stand,
tripod, bracket, or table
specified by the manufacturer,
or sold with the apparatus.
When a cart is used, use
caution when moving the cart/
apparatus combination to
avoid injury from tip-over.
11. Unplug this apparatus during
lightning storms or when
unused for long periods of time.
GZ-MC200US_02Safety.fm Page 5 Tuesday, September 14, 2004 9:57 AM
MasterPage: Safty_Right
EN 5
● Manufactured under licence from Dolby Laboratories.
“Dolby” and double-D symbol are trademarks of Dolby
Laboratories.
● Microdrive® is a registered trademark of Hitachi Global
Storage Technologies, Inc. in the United States and/or other
countries.
●
MascotCapsule is registered trademark of HI
CORPORATION in Japan.
Copyright © 2001 HI CORPORATION. All rights reserved.
● Other product and company names included in this
instruction manual are trademarks and/or registered
trademarks of their respective holders.
Removable Hard Disk
The removable hard disk is a precision electronic device.
Be careful when handling it.
Cautions for external jolt or stress
● After removing the disk from the camera, store it by

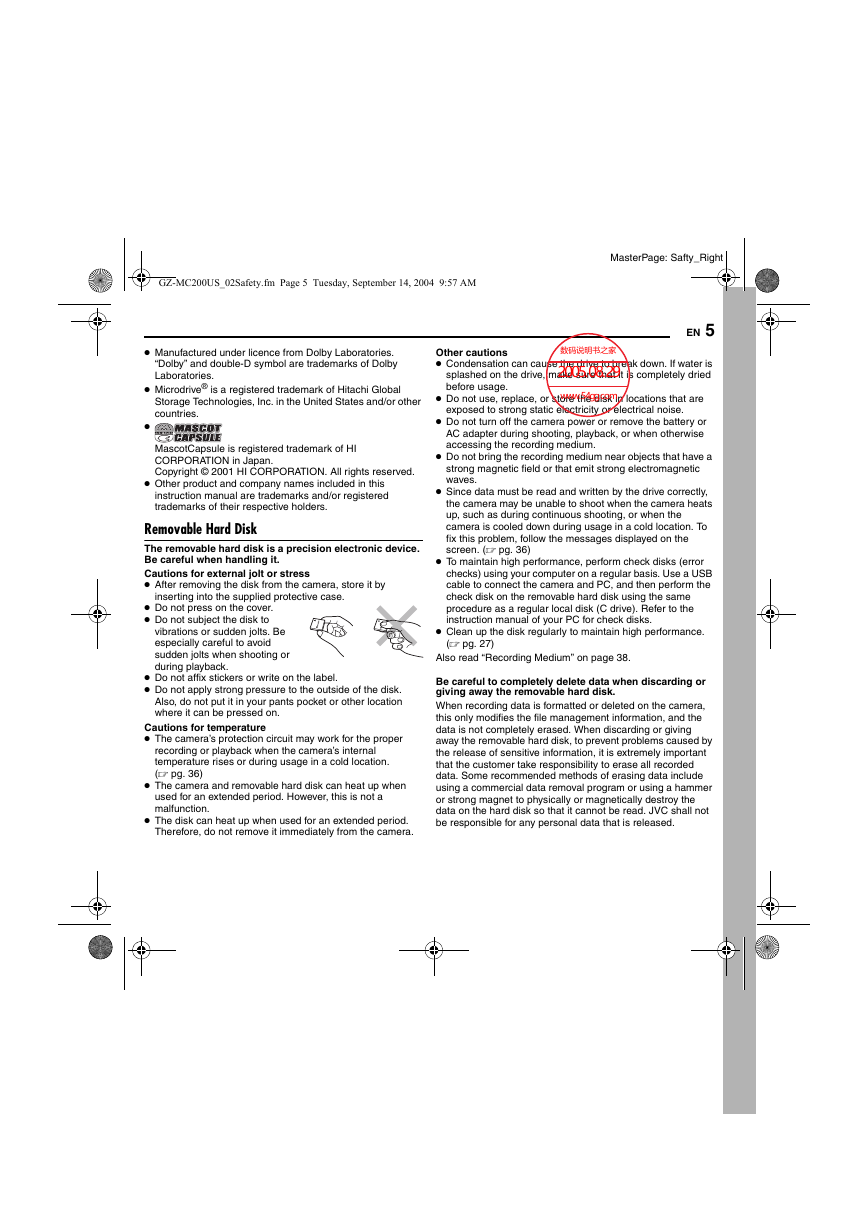

inserting into the supplied protective case.
● Do not press on the cover.
● Do not subject the disk to
vibrations or sudden jolts. Be
especially careful to avoid
sudden jolts when shooting or
during playback.
● Do not affix stickers or write on the label.
● Do not apply strong pressure to the outside of the disk.
Also, do not put it in your pants pocket or other location
where it can be pressed on.
Cautions for temperature
● The camera’s protection circuit may work for the proper
recording or playback when the camera’s internal
temperature rises or during usage in a cold location.
(墌 pg. 36)
● The camera and removable hard disk can heat up when
used for an extended period. However, this is not a
malfunction.
● The disk can heat up when used for an extended period.
Therefore, do not remove it immediately from the camera.
Other cautions
● Condensation can cause the drive to break down. If water is
splashed on the drive, make sure that it is completely dried
before usage.
● Do not use, replace, or store the disk in locations that are
exposed to strong static electricity or electrical noise.
● Do not turn off the camera power or remove the battery or
AC adapter during shooting, playback, or when otherwise
accessing the recording medium.
● Do not bring the recording medium near objects that have a
strong magnetic field or that emit strong electromagnetic
waves.
● Since data must be read and written by the drive correctly,
the camera may be unable to shoot when the camera heats
up, such as during continuous shooting, or when the
camera is cooled down during usage in a cold location. To
fix this problem, follow the messages displayed on the
screen. (墌 pg. 36)
● To maintain high performance, perform check disks (error
checks) using your computer on a regular basis. Use a USB
cable to connect the camera and PC, and then perform the
check disk on the removable hard disk using the same
procedure as a regular local disk (C drive). Refer to the
instruction manual of your PC for check disks.
● Clean up the disk regularly to maintain high performance.
(墌 pg. 27)
Also read “Recording Medium” on page 38.
Be careful to completely delete data when discarding or
giving away the removable hard disk.
When recording data is formatted or deleted on the camera,
this only modifies the file management information, and the
data is not completely erased. When discarding or giving
away the removable hard disk, to prevent problems caused by
the release of sensitive information, it is extremely important
that the customer take responsibility to erase all recorded
data. Some recommended methods of erasing data include
using a commercial data removal program or using a hammer
or strong magnet to physically or magnetically destroy the
data on the hard disk so that it cannot be read. JVC shall not
be responsible for any personal data that is released.
GZ-MC200US.book Page 6 Tuesday, September 7, 2004 9:56 PM
MasterPage: Heading0_Left
6 EN

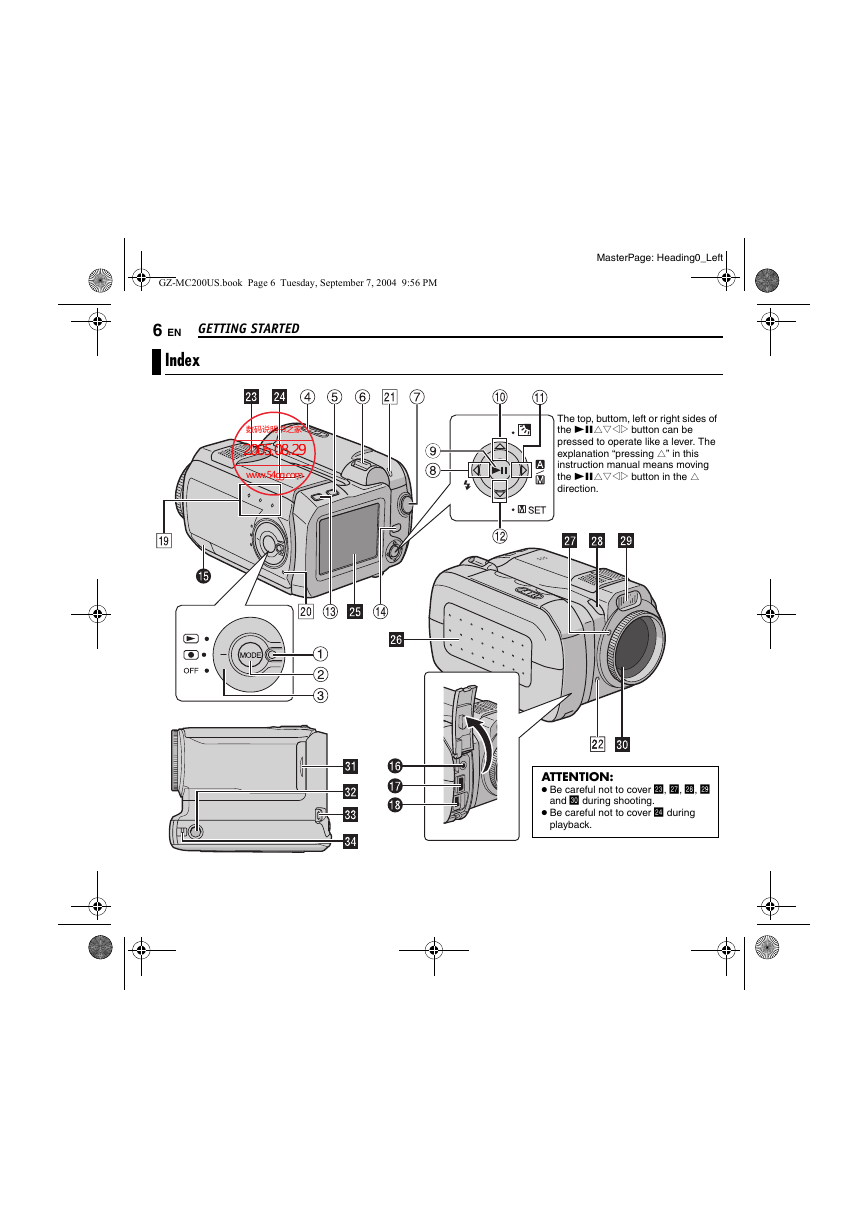

GETTING STARTED
Index
The top, buttom, left or right sides of
the 49rtwe button can be
pressed to operate like a lever. The
explanation “pressing r” in this
instruction manual means moving
the 49rtwe button in the r
direction.
ATTENTION:
● Be careful not to cover W, a, b, c
playback.
and d during shooting.
● Be careful not to cover X during
GZ-MC200US_03Start.fm Page 7 Friday, September 10, 2004 11:45 AM
MasterPage: Start_Right

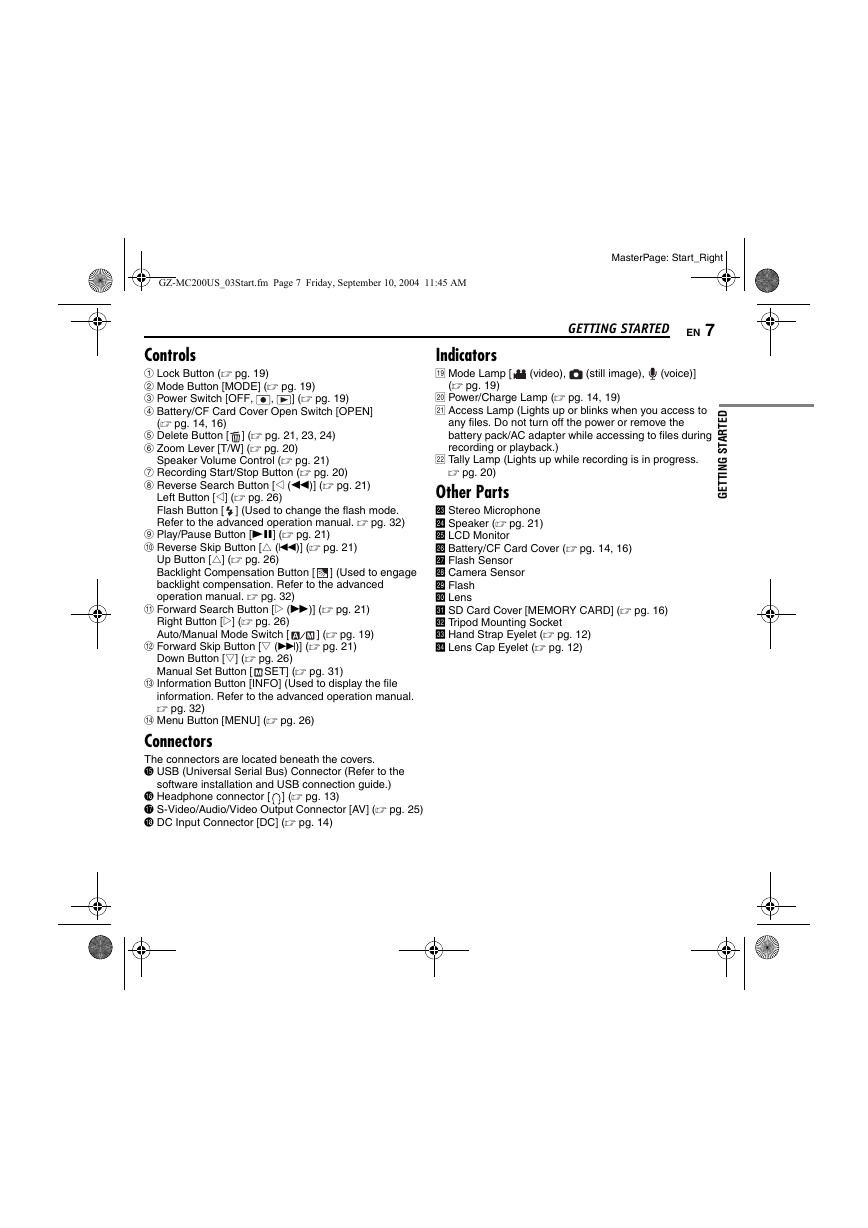

GETTING STARTED
EN 7
(video),
(still image),
(voice)]
Indicators
S Mode Lamp [
(墌 pg. 19)
T Power/Charge Lamp (墌 pg. 14, 19)
U Access Lamp (Lights up or blinks when you access to
any files. Do not turn off the power or remove the
battery pack/AC adapter while accessing to files during
recording or playback.)
V Tally Lamp (Lights up while recording is in progress.
墌 pg. 20)
D
E
T
R
A
T
S
G
N
I
T
T
E
G
Other Parts
W Stereo Microphone
X Speaker (墌 pg. 21)
Y LCD Monitor
Z Battery/CF Card Cover (墌 pg. 14, 16)
a Flash Sensor
b Camera Sensor
c Flash
d Lens
e SD Card Cover [MEMORY CARD] (墌 pg. 16)
f Tripod Mounting Socket
g Hand Strap Eyelet (墌 pg. 12)
h Lens Cap Eyelet (墌 pg. 12)
Controls
A Lock Button (墌 pg. 19)
B Mode Button [MODE] (墌 pg. 19)
C Power Switch [OFF,
D Battery/CF Card Cover Open Switch [OPEN]
] (墌 pg. 19)
,
(墌 pg. 14, 16)
E Delete Button [
F Zoom Lever [T/W] (墌 pg. 20)
] (墌 pg. 21, 23, 24)
Speaker Volume Control (墌 pg. 21)
G Recording Start/Stop Button (墌 pg. 20)
H Reverse Search Button [w (3)] (墌 pg. 21)
Left Button [w] (墌 pg. 26)
Flash Button [
] (Used to change the flash mode.
Refer to the advanced operation manual. 墌 pg. 32)
I Play/Pause Button [49] (墌 pg. 21)
J Reverse Skip Button [r (2)] (墌 pg. 21)
Up Button [r] (墌 pg. 26)
Backlight Compensation Button [
backlight compensation. Refer to the advanced
operation manual. 墌 pg. 32)
] (Used to engage
K Forward Search Button [e (5)] (墌 pg. 21)
Right Button [e] (墌 pg. 26)
Auto/Manual Mode Switch [
] (墌 pg. 19)
L Forward Skip Button [t (6)] (墌 pg. 21)
Down Button [t] (墌 pg. 26)
Manual Set Button [ SET] (墌 pg. 31)
M Information Button [INFO] (Used to display the file
information. Refer to the advanced operation manual.
墌 pg. 32)
N Menu Button [MENU] (墌 pg. 26)
Connectors
The connectors are located beneath the covers.
O USB (Universal Serial Bus) Connector (Refer to the
software installation and USB connection guide.)
P Headphone connector [
Q S-Video/Audio/Video Output Connector [AV] (墌 pg. 25)
R DC Input Connector [DC] (墌 pg. 14)
] (墌 pg. 13)
GZ-MC200US.book Page 8 Tuesday, September 7, 2004 9:56 PM
GETTING STARTED
8 EN

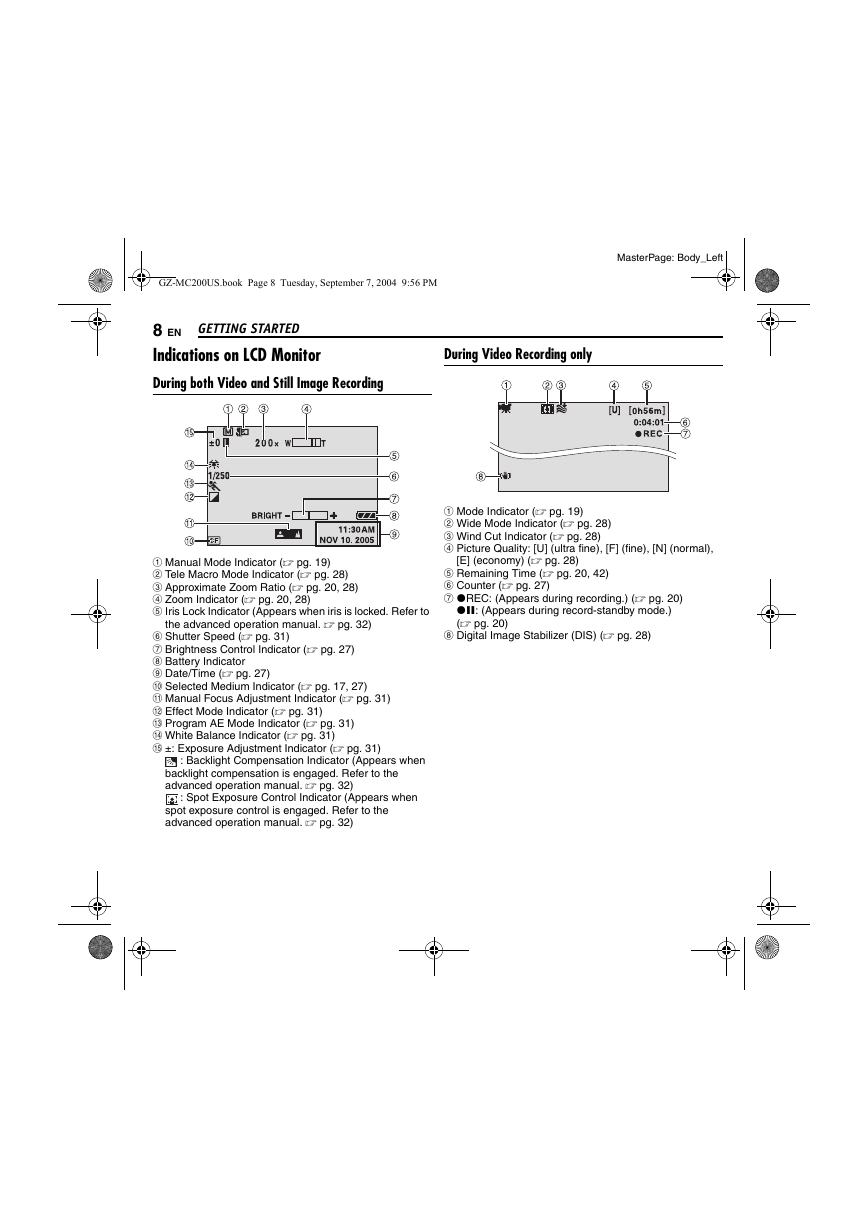

Indications on LCD Monitor
During both Video and Still Image Recording
During Video Recording only
MasterPage: Body_Left
A Mode Indicator (墌 pg. 19)
B Wide Mode Indicator (墌 pg. 28)
C Wind Cut Indicator (墌 pg. 28)
D Picture Quality: [U] (ultra fine), [F] (fine), [N] (normal),
[E] (economy) (墌 pg. 28)
E Remaining Time (墌 pg. 20, 42)
F Counter (墌 pg. 27)
G 7REC: (Appears during recording.) (墌 pg. 20)
79: (Appears during record-standby mode.)
(墌 pg. 20)
H Digital Image Stabilizer (DIS) (墌 pg. 28)
A Manual Mode Indicator (墌 pg. 19)
B Tele Macro Mode Indicator (墌 pg. 28)
C Approximate Zoom Ratio (墌 pg. 20, 28)
D Zoom Indicator (墌 pg. 20, 28)
E Iris Lock Indicator (Appears when iris is locked. Refer to
the advanced operation manual. 墌 pg. 32)
F Shutter Speed (墌 pg. 31)
G Brightness Control Indicator (墌 pg. 27)
H Battery Indicator
I Date/Time (墌 pg. 27)
J Selected Medium Indicator (墌 pg. 17, 27)
K Manual Focus Adjustment Indicator (墌 pg. 31)
L Effect Mode Indicator (墌 pg. 31)
M Program AE Mode Indicator (墌 pg. 31)
N White Balance Indicator (墌 pg. 31)
O ±: Exposure Adjustment Indicator (墌 pg. 31)
: Backlight Compensation Indicator (Appears when
backlight compensation is engaged. Refer to the
advanced operation manual. 墌 pg. 32)
: Spot Exposure Control Indicator (Appears when
spot exposure control is engaged. Refer to the
advanced operation manual. 墌 pg. 32)
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
