DIGITAL CAMCORDER GR-DVF10 Please visit our CyberCam Homepage on the World Wide Web and answer our Consumer Survey (in English only): http://www.jvc-victor.co.jp/index-e.html INSTRUCTIONS CONTENTS PROVIDED ACCESSORIES ABOUT DV GETTING STARTED 4 5 6 – 13 Power............................................. 6 Clock (Lithium) Battery Insertion/Removal ... 8 Date/Time Settings ............................. 9 Loading/Unloading A Cassette .............. 10 Recording Mode Setting ...................... 11 Grip Adjustment ............................... 12 Viewfinder Adjustment ....................... 12 Shoulder Strap Attachment .................. 13 Tripod Mounting ............................... 13 14 – 37 Basic Recording ................................ 14 Advanced Features ............................ 21 38 – 43 Basic Playback ................................. 38 Advanced Features ............................ 40 Connections .................................... 42 44 RECORDING PLAYBACK TAPE DUBBING USING THE REMOTE CONTROL UNIT TROUBLESHOOTING USER MAINTENANCE INDEX 45 – 57 Random Assemble Editing .................... 50 For More Accurate Editing .................... 54 Audio Dubbing ................................. 56 58 – 62 63 64 – 68 Controls, Connectors And Indicators ........ 64 Indications ...................................... 66 Terms ........................................... 68 69 – 70 71 CAUTIONS SPECIFICATIONS LYT0246-001A

2 EN Dear Customer, Thank you for purchasing this digital camcorder. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of this product. Using This Instruction Manual • All major sections and subsections are listed in the Table Of Contents (墌 cover page). • Notes appear after most subsections. Be sure to read these as well. • Basic and advanced features/operation are separated for easier reference. It is recommended that you . . . .... refer to the Index (墌 pgs. 64 – 68) and familiarize yourself with button locations, etc. before use. .... read thoroughly the Safety Precautions. They contain extremely important information regarding the safe use of this product. You are recommended to carefully read the cautions on pages 69 and 70 before use. SAFETY PRECAUTIONS IMPORTANT Connection to the mains supply in the United Kingdom. DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer. BE SURE to replace the fuse only with an identical approved type, as originally fitted, and to replace the fuse cover. If nontheless the mains plug is cut off ensure to remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the mains supply. If this product is not supplied fitted with a mains plug then follow the instructions given below: DO NOT make any connection to the Larger Terminal coded E or Green. The wires in the mains lead are coloured in accordance with the following code: Blue to N (Neutral) or Black Brown to L (Live) or Red If these colours do not correspond with the terminal identifications of your plug, connect as follows: Blue wire to terminal coded N (Neutral) or coloured black. Brown wire to terminal coded L (Live) or coloured Red. If in doubt — consult a competent electrician. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. Warning on lithium cell battery (for clock operation and remote control unit) The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not recharge, disassemble, heat above 100°C or incinerate. Replace the battery with Maxell, Panasonic (Matsushita Electric), Sanyo or Sony CR2025; use of another battery may present a risk of fire or explosion. 䡲 Dispose of used battery promptly. 䡲 Keep away from children. 䡲 Do not disassemble and do not dispose of in fire. CAUTIONS: 䡲 To prevent shock, do not open the cabinet. No user serviceable parts inside. Refer servicing to qualified personnel. 䡲 When you are not using the AC Power Adapter/Charger for a long period of time, it is recommended that you disconnect the power cord from AC outlet.

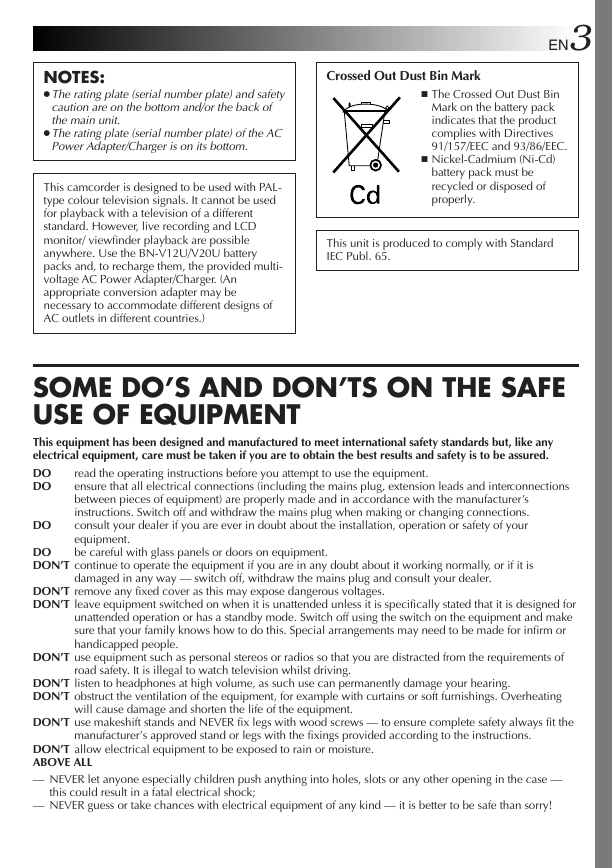

EN3 Crossed Out Dust Bin Mark 䡲 The Crossed Out Dust Bin Mark on the battery pack indicates that the product complies with Directives 91/157/EEC and 93/86/EEC. 䡲 Nickel-Cadmium (Ni-Cd) battery pack must be recycled or disposed of properly. This unit is produced to comply with Standard IEC Publ. 65. NOTES: ●The rating plate (serial number plate) and safety caution are on the bottom and/or the back of the main unit. ●The rating plate (serial number plate) of the AC Power Adapter/Charger is on its bottom. This camcorder is designed to be used with PAL- type colour television signals. It cannot be used for playback with a television of a different standard. However, live recording and LCD monitor/ viewfinder playback are possible anywhere. Use the BN-V12U/V20U battery packs and, to recharge them, the provided multi- voltage AC Power Adapter/Charger. (An appropriate conversion adapter may be necessary to accommodate different designs of AC outlets in different countries.) SOME DO’S AND DON’TS ON THE SAFE USE OF EQUIPMENT This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured. DO DO read the operating instructions before you attempt to use the equipment. ensure that all electrical connections (including the mains plug, extension leads and interconnections between pieces of equipment) are properly made and in accordance with the manufacturer’s instructions. Switch off and withdraw the mains plug when making or changing connections. consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment. be careful with glass panels or doors on equipment. DO DON’T continue to operate the equipment if you are in any doubt about it working normally, or if it is DO damaged in any way — switch off, withdraw the mains plug and consult your dealer. DON’T remove any fixed cover as this may expose dangerous voltages. DON’T leave equipment switched on when it is unattended unless it is specifically stated that it is designed for unattended operation or has a standby mode. Switch off using the switch on the equipment and make sure that your family knows how to do this. Special arrangements may need to be made for infirm or handicapped people. DON’T use equipment such as personal stereos or radios so that you are distracted from the requirements of road safety. It is illegal to watch television whilst driving. DON’T listen to headphones at high volume, as such use can permanently damage your hearing. DON’T obstruct the ventilation of the equipment, for example with curtains or soft furnishings. Overheating will cause damage and shorten the life of the equipment. DON’T use makeshift stands and NEVER fix legs with wood screws — to ensure complete safety always fit the manufacturer’s approved stand or legs with the fixings provided according to the instructions. DON’T allow electrical equipment to be exposed to rain or moisture. ABOVE ALL — NEVER let anyone especially children push anything into holes, slots or any other opening in the case — this could result in a fatal electrical shock; — NEVER guess or take chances with electrical equipment of any kind — it is better to be safe than sorry!

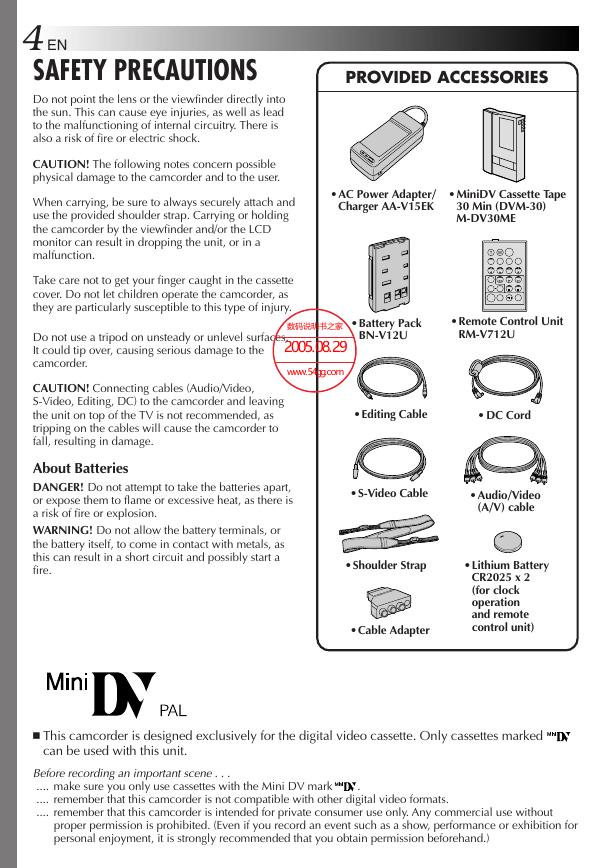

4 EN SAFETY PRECAUTIONS Do not point the lens or the viewfinder directly into the sun. This can cause eye injuries, as well as lead to the malfunctioning of internal circuitry. There is also a risk of fire or electric shock. CAUTION! The following notes concern possible physical damage to the camcorder and to the user. When carrying, be sure to always securely attach and use the provided shoulder strap. Carrying or holding the camcorder by the viewfinder and/or the LCD monitor can result in dropping the unit, or in a malfunction. Take care not to get your finger caught in the cassette cover. Do not let children operate the camcorder, as they are particularly susceptible to this type of injury. Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the camcorder. CAUTION! Connecting cables (Audio/Video, S-Video, Editing, DC) to the camcorder and leaving the unit on top of the TV is not recommended, as tripping on the cables will cause the camcorder to fall, resulting in damage. About Batteries DANGER! Do not attempt to take the batteries apart, or expose them to flame or excessive heat, as there is a risk of fire or explosion. WARNING! Do not allow the battery terminals, or the battery itself, to come in contact with metals, as this can result in a short circuit and possibly start a fire. PROVIDED ACCESSORIES •AC Power Adapter/ Charger AA-V15EK •MiniDV Cassette Tape 30 Min (DVM-30) M-DV30ME T W •Battery Pack BN-V12U •Remote Control Unit RM-V712U •Editing Cable • DC Cord •S-Video Cable •Audio/Video (A/V) cable •Shoulder Strap •Cable Adapter •Lithium Battery CR2025 x 2 (for clock operation and remote control unit) 䡲 This camcorder is designed exclusively for the digital video cassette. Only cassettes marked can be used with this unit. Before recording an important scene . . . .... make sure you only use cassettes with the Mini DV mark .... remember that this camcorder is not compatible with other digital video formats. .... remember that this camcorder is intended for private consumer use only. Any commercial use without . proper permission is prohibited. (Even if you record an event such as a show, performance or exhibition for personal enjoyment, it is strongly recommended that you obtain permission beforehand.)

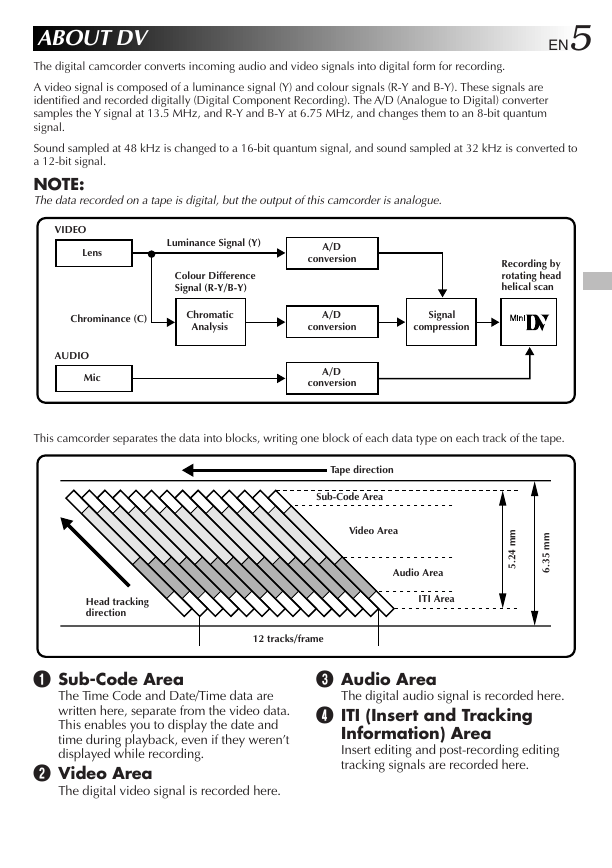

ABOUT DV The digital camcorder converts incoming audio and video signals into digital form for recording. EN5 A video signal is composed of a luminance signal (Y) and colour signals (R-Y and B-Y). These signals are identified and recorded digitally (Digital Component Recording). The A/D (Analogue to Digital) converter samples the Y signal at 13.5 MHz, and R-Y and B-Y at 6.75 MHz, and changes them to an 8-bit quantum signal. Sound sampled at 48 kHz is changed to a 16-bit quantum signal, and sound sampled at 32 kHz is converted to a 12-bit signal. NOTE: The data recorded on a tape is digital, but the output of this camcorder is analogue. VIDEO Lens Luminance Signal (Y) Colour Difference Signal (R-Y/B-Y) A/D conversion Recording by rotating head helical scan Chrominance (C) Chromatic Analysis A/D conversion Signal compression AUDIO Mic A/D conversion This camcorder separates the data into blocks, writing one block of each data type on each track of the tape. Tape direction Sub-Code Area Video Area Head tracking direction 12 tracks/frame Audio Area ITI Area m m 4 2 . 5 m m 5 3 . 6 1 Sub-Code Area The Time Code and Date/Time data are written here, separate from the video data. This enables you to display the date and time during playback, even if they weren’t displayed while recording. 2 Video Area The digital video signal is recorded here. 3 Audio Area The digital audio signal is recorded here. 4 ITI (Insert and Tracking Information) Area Insert editing and post-recording editing tracking signals are recorded here.

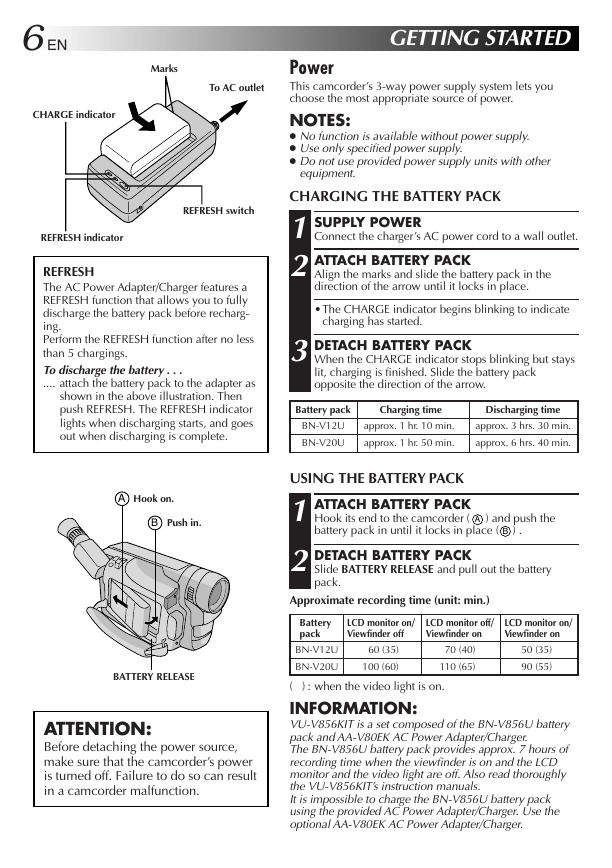

6 EN CHARGE indicator Marks To AC outlet REFRESH switch REFRESH indicator REFRESH The AC Power Adapter/Charger features a REFRESH function that allows you to fully discharge the battery pack before recharg- ing. Perform the REFRESH function after no less than 5 chargings. To discharge the battery . . . .... attach the battery pack to the adapter as shown in the above illustration. Then push REFRESH. The REFRESH indicator lights when discharging starts, and goes out when discharging is complete. A Hook on. B Push in. BATTERY RELEASE ATTENTION: Before detaching the power source, make sure that the camcorder’s power is turned off. Failure to do so can result in a camcorder malfunction. GETTING STARTED Power This camcorder’s 3-way power supply system lets you choose the most appropriate source of power. NOTES: ● No function is available without power supply. ● Use only specified power supply. ● Do not use provided power supply units with other equipment. CHARGING THE BATTERY PACK Connect the charger’s AC power cord to a wall outlet. 1SUPPLY POWER 2ATTACH BATTERY PACK Align the marks and slide the battery pack in the direction of the arrow until it locks in place. •The CHARGE indicator begins blinking to indicate charging has started. 3DETACH BATTERY PACK When the CHARGE indicator stops blinking but stays lit, charging is finished. Slide the battery pack opposite the direction of the arrow. Battery pack BN-V12U BN-V20U Charging time Discharging time approx. 1 hr. 10 min. approx. 1 hr. 50 min. approx. 3 hrs. 30 min. approx. 6 hrs. 40 min. USING THE BATTERY PACK Hook its end to the camcorder ( A ) and push the battery pack in until it locks in place ( B ) . 1ATTACH BATTERY PACK 2DETACH BATTERY PACK Slide BATTERY RELEASE and pull out the battery pack. Approximate recording time (unit: min.) 50 (35) 90 (55) LCD monitor off/ Viewfinder on LCD monitor on/ Viewfinder on 70 (40) 110 (65) LCD monitor on/ Viewfinder off 60 (35) 100 (60) Battery pack BN-V12U BN-V20U ( ) : when the video light is on. INFORMATION: VU-V856KIT is a set composed of the BN-V856U battery pack and AA-V80EK AC Power Adapter/Charger. The BN-V856U battery pack provides approx. 7 hours of recording time when the viewfinder is on and the LCD monitor and the video light are off. Also read thoroughly the VU-V856KIT’s instruction manuals. It is impossible to charge the BN-V856U battery pack using the provided AC Power Adapter/Charger. Use the optional AA-V80EK AC Power Adapter/Charger.

EN7 Charge marker Charge Marker A charge marker is provided on the battery pack to help you remember whether it has been charged or not. Two colours are provided (red and black)—you choose which one means charged and which means discharged. NOTES: ● The recording time per charge is affected by such factors as the time spent in Record-Standby mode and the frequency of zooming. It is safer to have spare battery packs. ● Charging times noted on page 6 are for fully discharged battery pack, and discharging times are for fully charged battery pack. your camcorder. ● Charging and discharging times vary according to the ambient temperature and the status of the battery pack. ● Remember to set the charge marker after charging a battery pack or after detaching a discharged one from ● Perform the REFRESH function after no less than 5 chargings. ● While the AC Power Adapter/Charger’s power cord is disconnected from the AC outlet, it is possible to discharge the battery by pressing the REFRESH switch. During that time, the AC Power Adapter/Charger does not charge the battery. When disharging is complete, detach the battery from the AC Power Adapter/Charger to store it. ● High temperatures can damage the battery pack, so use only where good ventilation is available. Do not allow it to discharge in container, such as a bag. ● If you stop recharging or discharging part way through, make sure to remove the battery pack before unplugging the adapter’s AC cord. ● Remove the battery pack from the adapter immediately after discharging. ● To avoid interference with reception, do not use the AC Power Adapter/Charger near a radio. ● Make sure you unplug the DC cord before charging or discharging the battery pack. ● The CHARGE indicator may not light properly with a brand new battery pack, or with one that has been stored for an extended period. In this case, remove and reattach the battery pack and recharge it. The CHARGE indicator should blink during recharging. If not, contact your nearest JVC dealer. To DC IN jack To AC outlet DC OUT terminal DC Cord AC Power Adapter/Charger AA-V15EK To car’s cigarette lighter socket Car Battery Charger/Adapter BH-V3E (optional) USING AC POWER Use the AC Power Adapter/Charger (connect as shown in the illustration on left). NOTES: ● The provided AC Power Adapter/Charger features automatic voltage selection in the AC range from 110 V to 240 V. ● When using the DC cord, make sure you connect the end of the cord with the core filter to the camcorder. The core filter reduces interference. USING A CAR BATTERY Use the optional Car Battery Charger/Adapter (connect as shown in the illustration on left). NOTES: ● When using the car battery, leave the engine idling. ● The optional Car Battery Charger/Adapter (BH-V3E) can also be used to charge the battery pack (other than BN-V20U/V856U). ● When using the optional Car Battery Charger/ Adapter, refer to the respective instruction booklet.

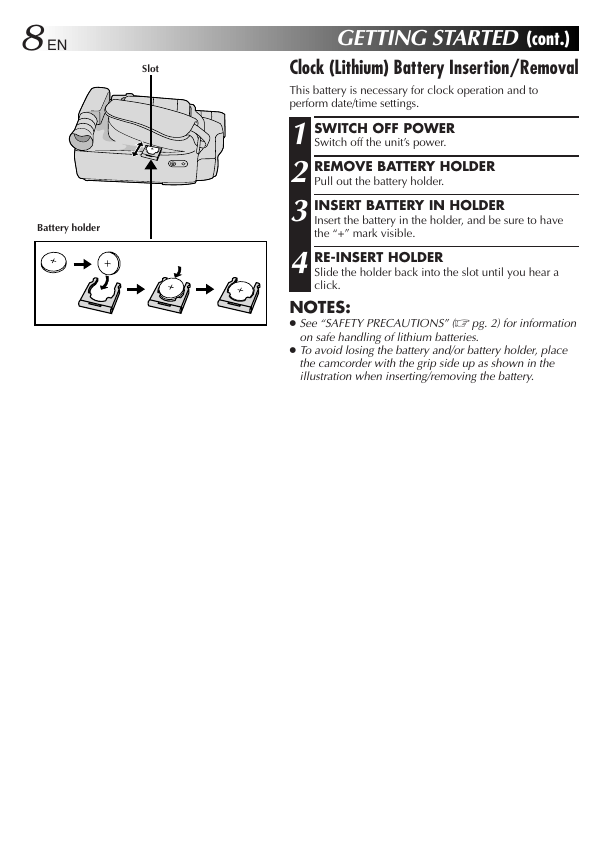

8 EN Slot GETTING STARTED (cont.) Clock (Lithium) Battery Insertion/Removal This battery is necessary for clock operation and to perform date/time settings. Battery holder Pull out the battery holder. Switch off the unit’s power. 1SWITCH OFF POWER 2REMOVE BATTERY HOLDER 3INSERT BATTERY IN HOLDER 4RE-INSERT HOLDER Slide the holder back into the slot until you hear a click. NOTES: ● See “SAFETY PRECAUTIONS” (墌 pg. 2) for information Insert the battery in the holder, and be sure to have the “+” mark visible. on safe handling of lithium batteries. ● To avoid losing the battery and/or battery holder, place the camcorder with the grip side up as shown in the illustration when inserting/removing the battery.
