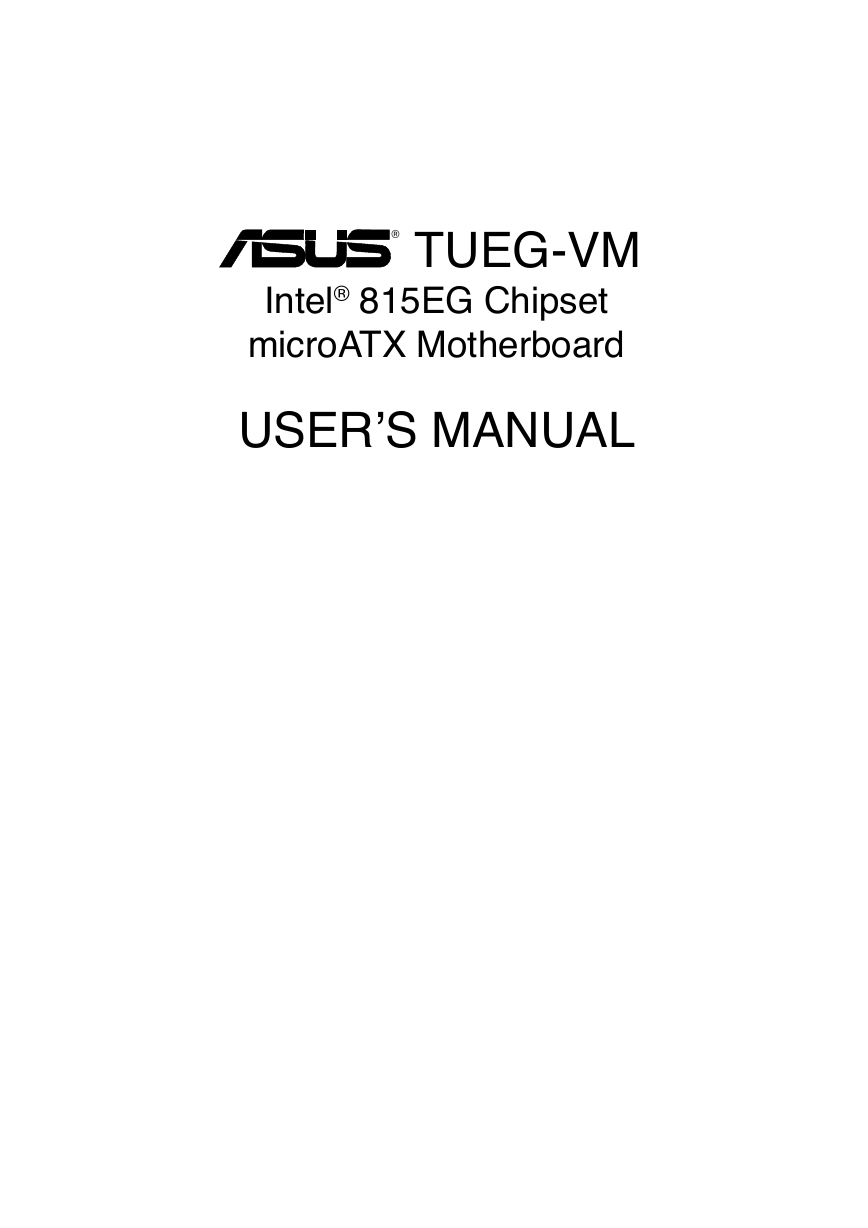

® TUEG-VM Intel® 815EG Chipset microATX Motherboard USER’S MANUAL

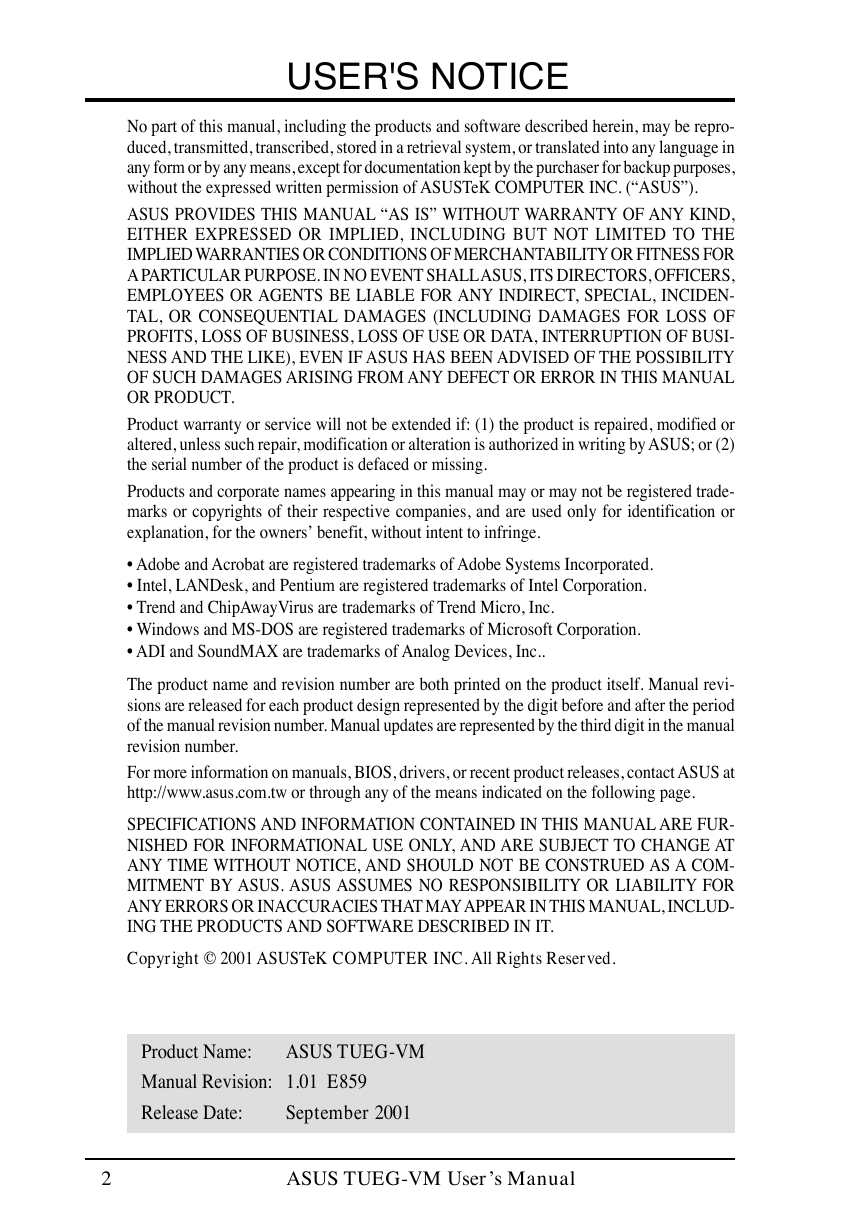

USER'S NOTICE No part of this manual, including the products and software described herein, may be repro- duced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except for documentation kept by the purchaser for backup purposes, without the expressed written permission of ASUSTeK COMPUTER INC. (“ASUS”). ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDEN- TAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSI- NESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification or alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. Products and corporate names appearing in this manual may or may not be registered trade- marks or copyrights of their respective companies, and are used only for identification or explanation, for the owners’ benefit, without intent to infringe. • Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated. • Intel, LANDesk, and Pentium are registered trademarks of Intel Corporation. • Trend and ChipAwayVirus are trademarks of Trend Micro, Inc. • Windows and MS-DOS are registered trademarks of Microsoft Corporation. • ADI and SoundMAX are trademarks of Analog Devices, Inc.. The product name and revision number are both printed on the product itself. Manual revi- sions are released for each product design represented by the digit before and after the period of the manual revision number. Manual updates are represented by the third digit in the manual revision number. For more information on manuals, BIOS, drivers, or recent product releases, contact ASUS at http://www.asus.com.tw or through any of the means indicated on the following page. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FUR- NISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COM- MITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUD- ING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Copyright © 2001 ASUSTeK COMPUTER INC. All Rights Reserved. ASUS TUEG-VM Product Name: Manual Revision: 1.01 E859 Release Date: September 2001 2 ASUS TUEG-VM User’s Manual

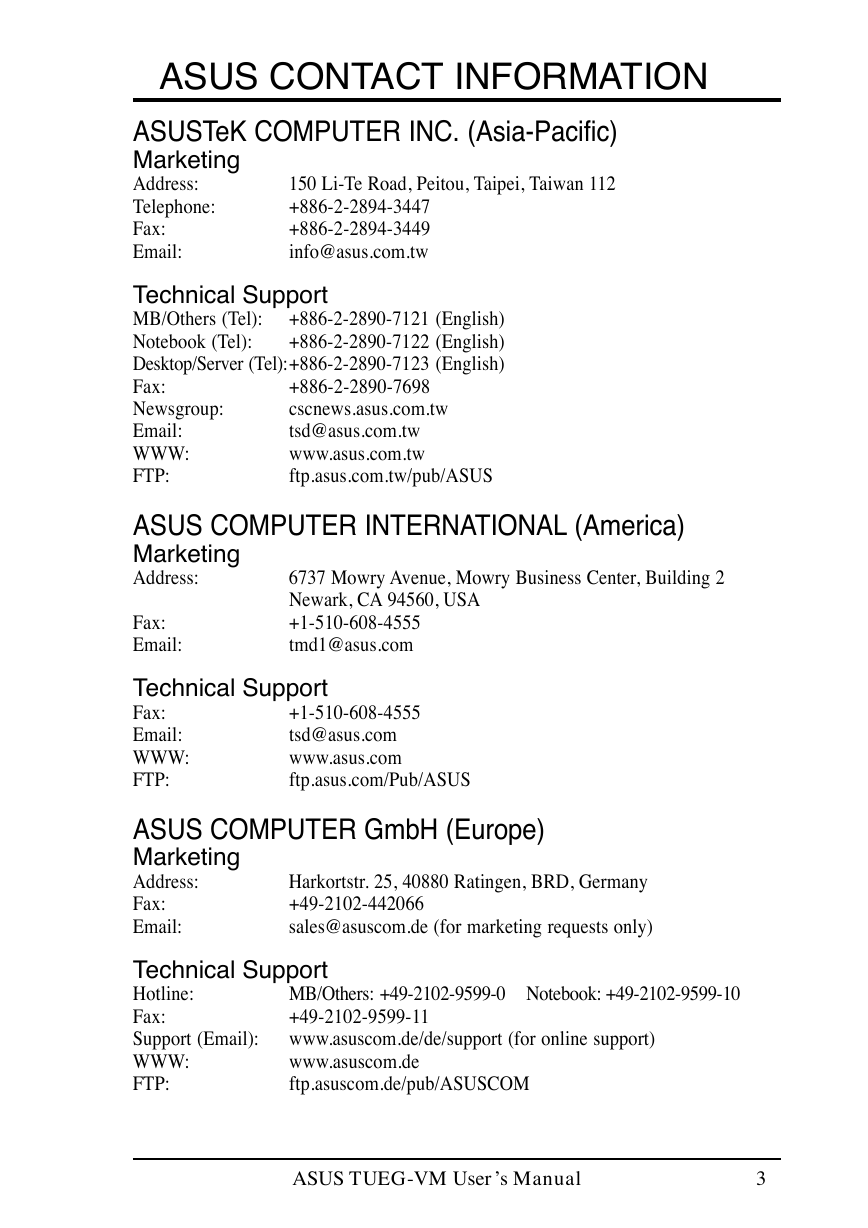

ASUS CONTACT INFORMATION ASUSTeK COMPUTER INC. (Asia-Pacific) Marketing Address: Telephone: Fax: Email: 150 Li-Te Road, Peitou, Taipei, Taiwan 112 +886-2-2894-3447 +886-2-2894-3449 info@asus.com.tw Technical Support MB/Others (Tel): +886-2-2890-7121 (English) Notebook (Tel): +886-2-2890-7122 (English) Desktop/Server (Tel):+886-2-2890-7123 (English) Fax: Newsgroup: Email: WWW: FTP: +886-2-2890-7698 cscnews.asus.com.tw tsd@asus.com.tw www.asus.com.tw ftp.asus.com.tw/pub/ASUS ASUS COMPUTER INTERNATIONAL (America) Marketing Address: 6737 Mowry Avenue, Mowry Business Center, Building 2 Newark, CA 94560, USA +1-510-608-4555 tmd1@asus.com Fax: Email: Technical Support Fax: Email: WWW: FTP: +1-510-608-4555 tsd@asus.com www.asus.com ftp.asus.com/Pub/ASUS ASUS COMPUTER GmbH (Europe) Marketing Address: Fax: Email: Harkortstr. 25, 40880 Ratingen, BRD, Germany +49-2102-442066 sales@asuscom.de (for marketing requests only) Technical Support Hotline: Fax: Support (Email): WWW: FTP: MB/Others: +49-2102-9599-0 Notebook: +49-2102-9599-10 +49-2102-9599-11 www.asuscom.de/de/support (for online support) www.asuscom.de ftp.asuscom.de/pub/ASUSCOM ASUS TUEG-VM User’s Manual 3

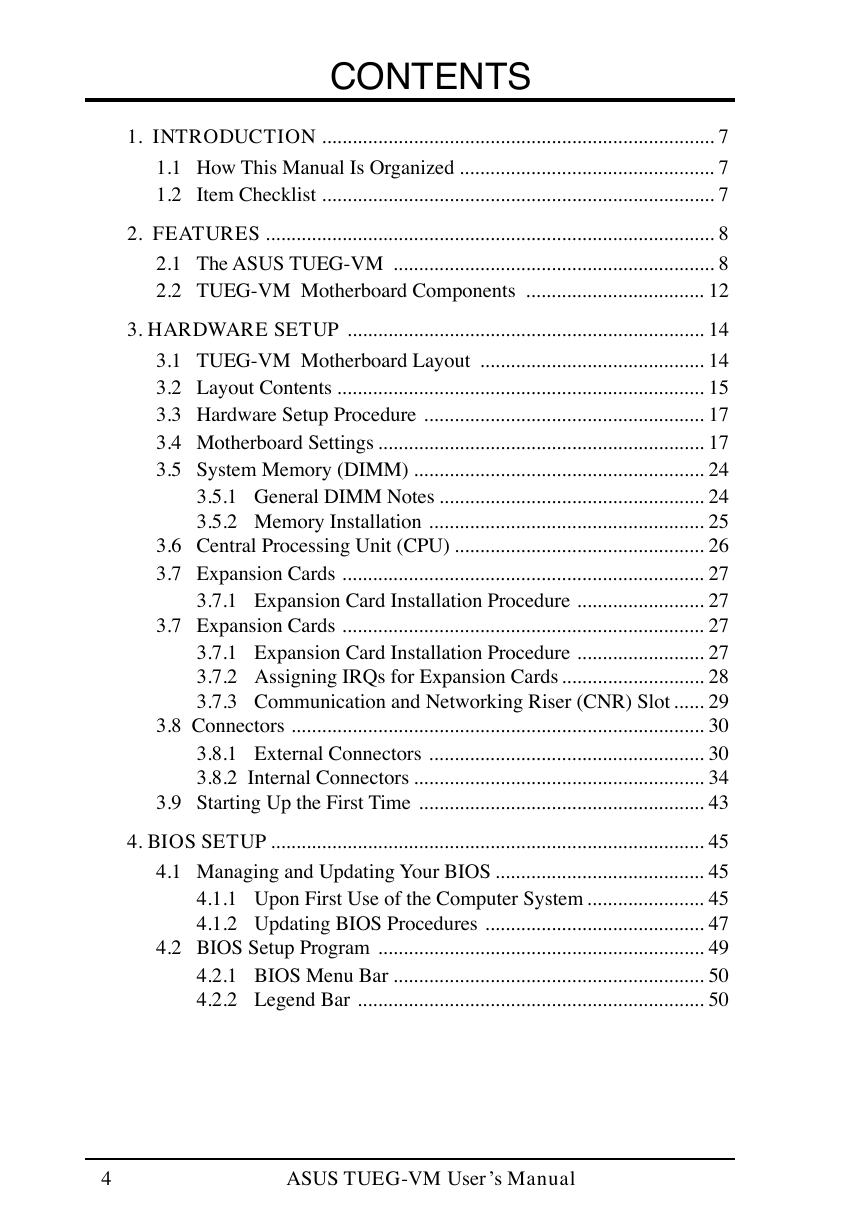

CONTENTS 1. INTRODUCTION ............................................................................. 7 1.1 How This Manual Is Organized .................................................. 7 1.2 Item Checklist ............................................................................. 7 2. FEATURES ........................................................................................ 8 2.1 The ASUS TUEG-VM ............................................................... 8 2.2 TUEG-VM Motherboard Components ................................... 12 3. HARDWARE SETUP ...................................................................... 14 3.1 TUEG-VM Motherboard Layout ............................................ 14 3.2 Layout Contents ........................................................................ 15 3.3 Hardware Setup Procedure ....................................................... 17 3.4 Motherboard Settings ................................................................ 17 3.5 System Memory (DIMM) ......................................................... 24 3.5.1 General DIMM Notes .................................................... 24 3.5.2 Memory Installation ...................................................... 25 3.6 Central Processing Unit (CPU) ................................................. 26 3.7 Expansion Cards ....................................................................... 27 3.7.1 Expansion Card Installation Procedure ......................... 27 3.7 Expansion Cards ....................................................................... 27 3.7.1 Expansion Card Installation Procedure ......................... 27 3.7.2 Assigning IRQs for Expansion Cards ............................ 28 3.7.3 Communication and Networking Riser (CNR) Slot ...... 29 3.8 Connectors ................................................................................. 30 3.8.1 External Connectors ...................................................... 30 3.8.2 Internal Connectors ......................................................... 34 3.9 Starting Up the First Time ........................................................ 43 4. BIOS SETUP ..................................................................................... 45 4.1 Managing and Updating Your BIOS ......................................... 45 4.1.1 Upon First Use of the Computer System ....................... 45 4.1.2 Updating BIOS Procedures ........................................... 47 4.2 BIOS Setup Program ................................................................ 49 4.2.1 BIOS Menu Bar ............................................................. 50 4.2.2 Legend Bar .................................................................... 50 4 ASUS TUEG-VM User’s Manual

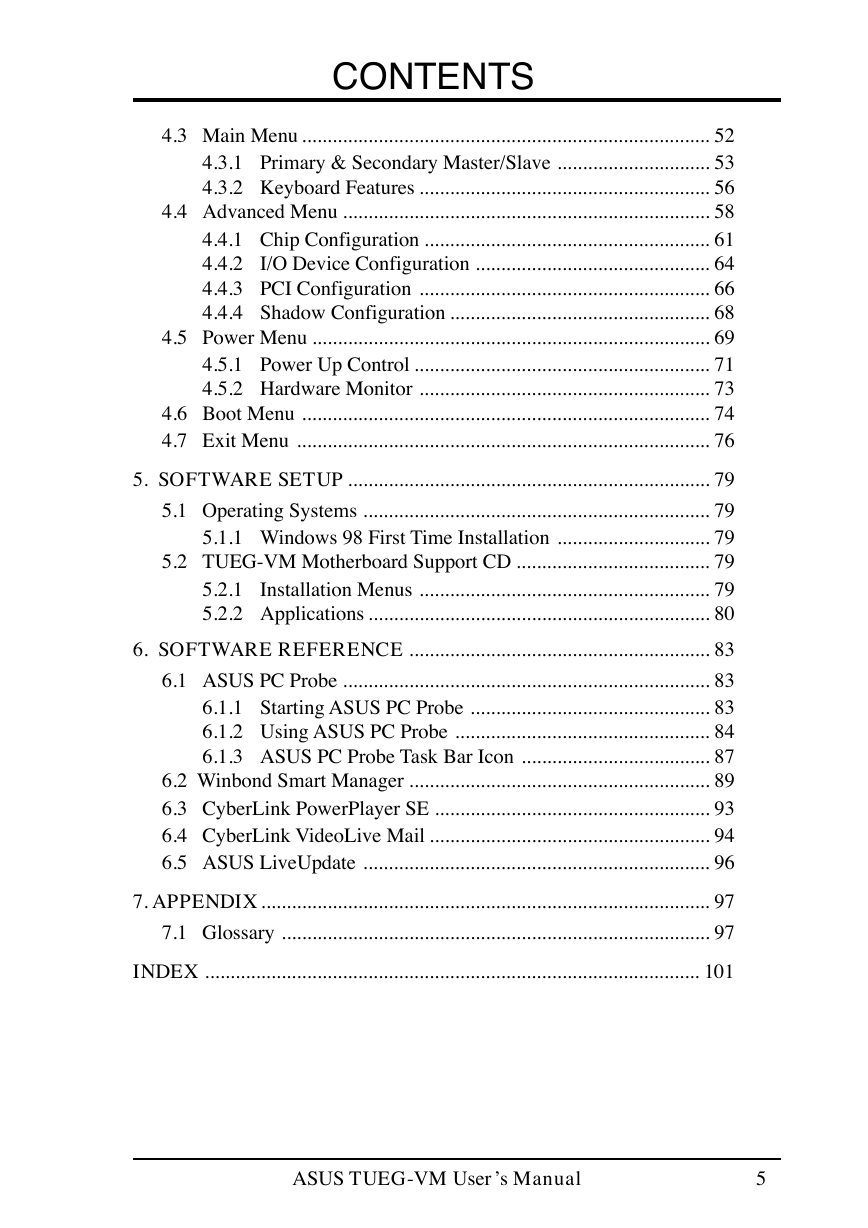

CONTENTS 4.3 Main Menu ................................................................................ 52 4.3.1 Primary & Secondary Master/Slave .............................. 53 4.3.2 Keyboard Features ......................................................... 56 4.4 Advanced Menu ........................................................................ 58 4.4.1 Chip Configuration ........................................................ 61 4.4.2 I/O Device Configuration .............................................. 64 4.4.3 PCI Configuration ......................................................... 66 4.4.4 Shadow Configuration ................................................... 68 4.5 Power Menu .............................................................................. 69 4.5.1 Power Up Control .......................................................... 71 4.5.2 Hardware Monitor ......................................................... 73 4.6 Boot Menu ................................................................................ 74 4.7 Exit Menu ................................................................................. 76 5. SOFTWARE SETUP ....................................................................... 79 5.1 Operating Systems .................................................................... 79 5.1.1 Windows 98 First Time Installation .............................. 79 5.2 TUEG-VM Motherboard Support CD ...................................... 79 5.2.1 Installation Menus ......................................................... 79 5.2.2 Applications ................................................................... 80 6. SOFTWARE REFERENCE ........................................................... 83 6.1 ASUS PC Probe ........................................................................ 83 6.1.1 Starting ASUS PC Probe ............................................... 83 6.1.2 Using ASUS PC Probe .................................................. 84 6.1.3 ASUS PC Probe Task Bar Icon ..................................... 87 6.2 Winbond Smart Manager ........................................................... 89 6.3 CyberLink PowerPlayer SE ...................................................... 93 6.4 CyberLink VideoLive Mail ....................................................... 94 6.5 ASUS LiveUpdate .................................................................... 96 7. APPENDIX ........................................................................................ 97 7.1 Glossary .................................................................................... 97 INDEX ................................................................................................. 101 ASUS TUEG-VM User’s Manual 5

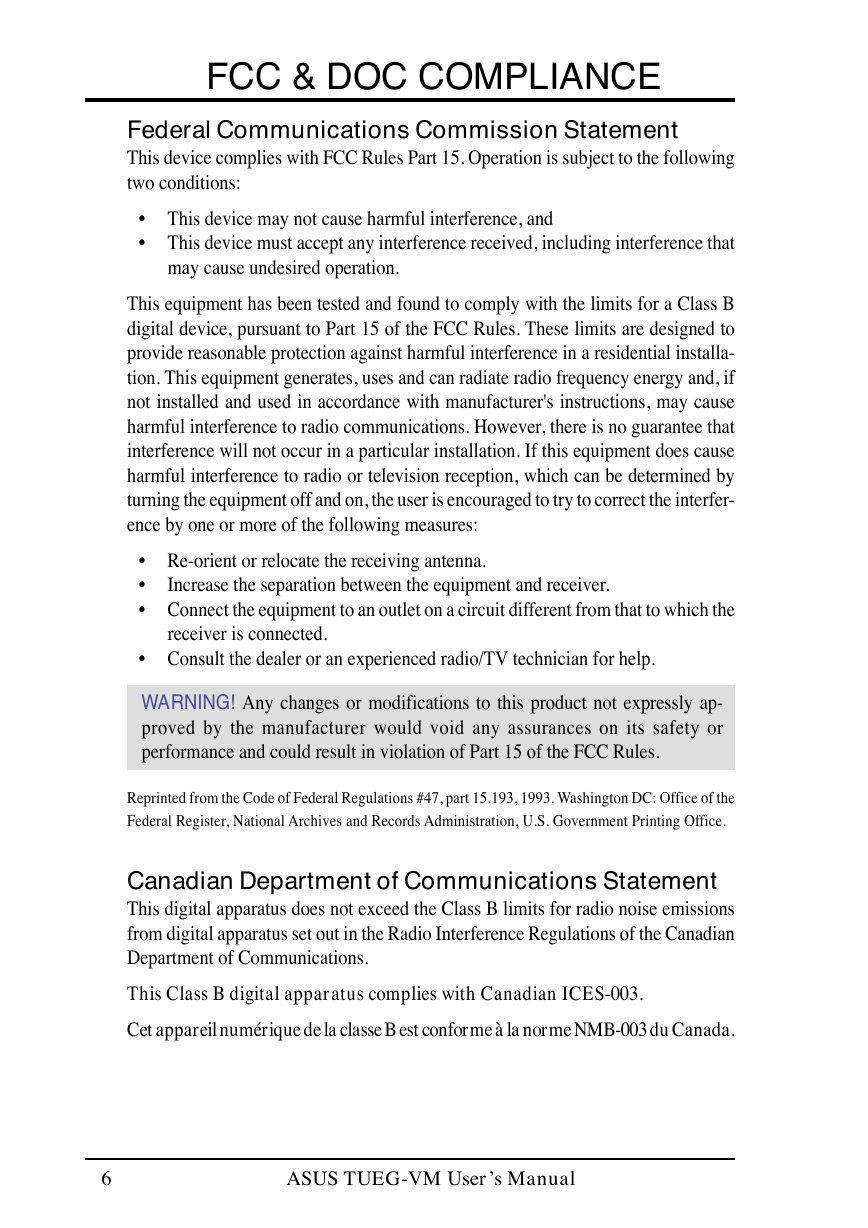

FCC & DOC COMPLIANCE Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interfer- ence by one or more of the following measures: • Re-orient or relocate the receiving antenna. • • Connect the equipment to an outlet on a circuit different from that to which the Increase the separation between the equipment and receiver. receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. WARNING! Any changes or modifications to this product not expressly ap- proved by the manufacturer would void any assurances on its safety or performance and could result in violation of Part 15 of the FCC Rules. Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washington DC: Office of the Federal Register, National Archives and Records Administration, U.S. Government Printing Office. Canadian Department of Communications Statement This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. 6 ASUS TUEG-VM User’s Manual

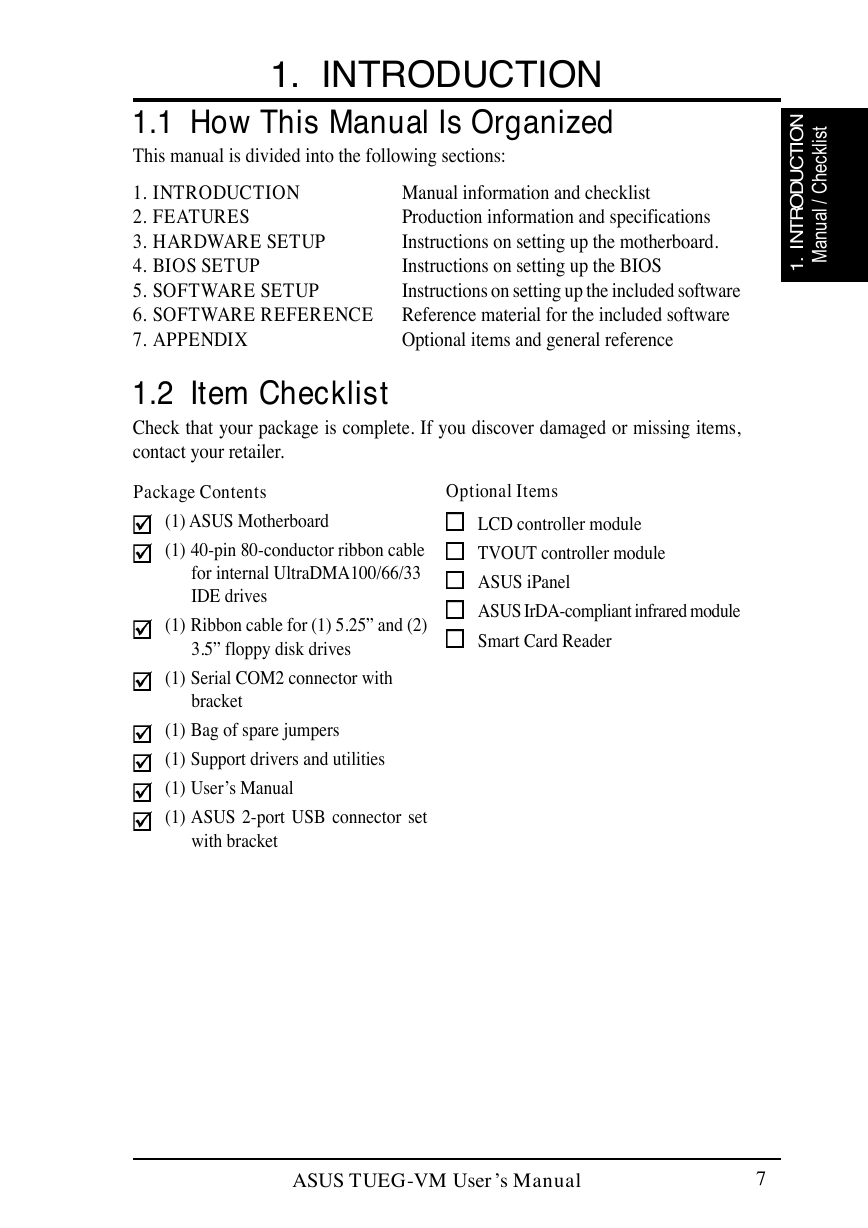

I N O T C U D O R T N I . 1 t s i l k c e h C / l a u n a M 1. INTRODUCTION 1.1 How This Manual Is Organized This manual is divided into the following sections: 1. INTRODUCTION 2. FEATURES 3. HARDWARE SETUP 4. BIOS SETUP 5. SOFTWARE SETUP 6. SOFTWARE REFERENCE 7. APPENDIX Manual information and checklist Production information and specifications Instructions on setting up the motherboard. Instructions on setting up the BIOS Instructions on setting up the included software Reference material for the included software Optional items and general reference 1.2 Item Checklist Check that your package is complete. If you discover damaged or missing items, contact your retailer. Package Contents Optional Items LCD controller module TVOUT controller module ASUS iPanel ASUS IrDA-compliant infrared module Smart Card Reader (1) ASUS Motherboard (1) 40-pin 80-conductor ribbon cable for internal UltraDMA100/66/33 IDE drives (1) Ribbon cable for (1) 5.25” and (2) 3.5” floppy disk drives (1) Serial COM2 connector with bracket (1) Bag of spare jumpers (1) Support drivers and utilities (1) User’s Manual (1) ASUS 2-port USB connector set with bracket ASUS TUEG-VM User’s Manual 7

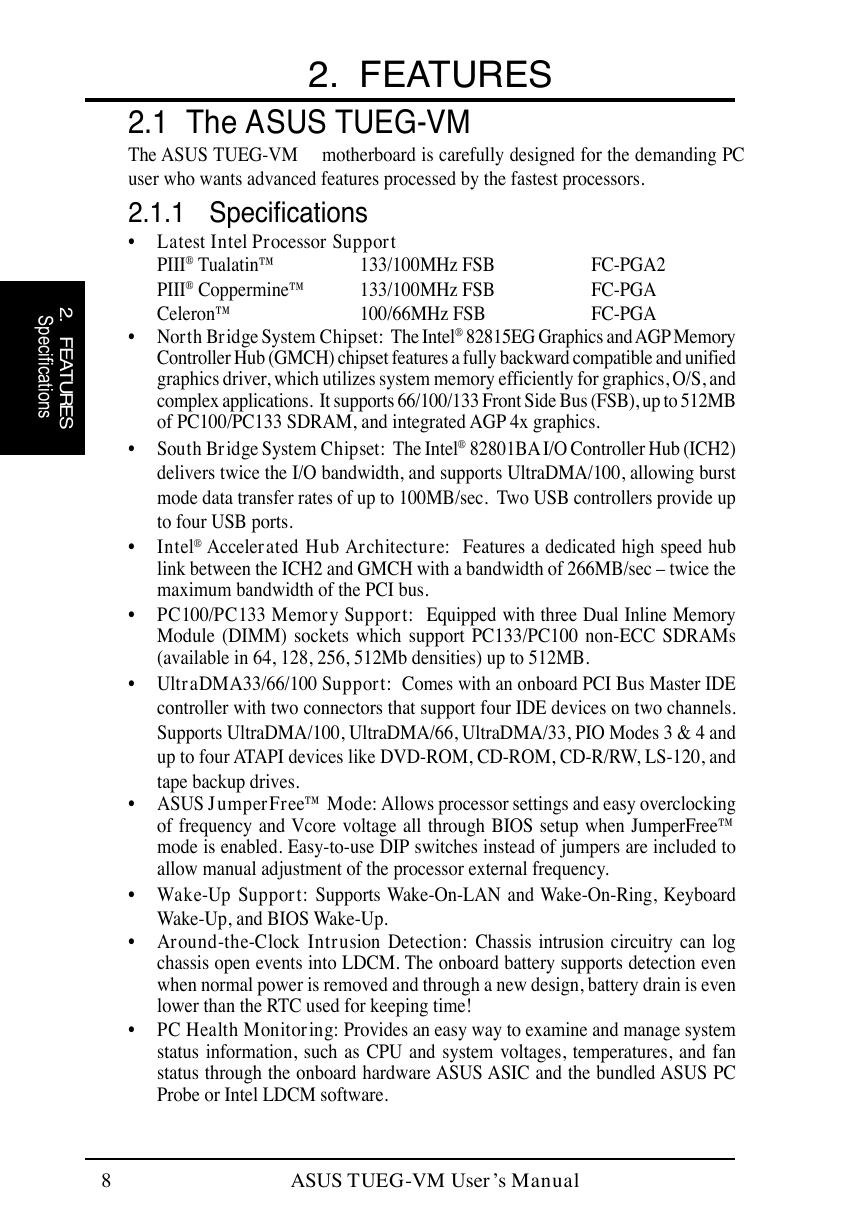

2 . S p e c i f i c a t i o n s F E A T U R E S 2. FEATURES 2.1 The ASUS TUEG-VM The ASUS TUEG-VM motherboard is carefully designed for the demanding PC user who wants advanced features processed by the fastest processors. 2.1.1 Specifications • Latest Intel Processor Support PIII® Tualatin™ PIII® Coppermine™ Celeron™ 133/100MHz FSB 133/100MHz FSB 100/66MHz FSB FC-PGA2 FC-PGA FC-PGA • • North Bridge System Chipset: The Intel® 82815EG Graphics and AGP Memory Controller Hub (GMCH) chipset features a fully backward compatible and unified graphics driver, which utilizes system memory efficiently for graphics, O/S, and complex applications. It supports 66/100/133 Front Side Bus (FSB), up to 512MB of PC100/PC133 SDRAM, and integrated AGP 4x graphics. South Bridge System Chipset: The Intel® 82801BA I/O Controller Hub (ICH2) delivers twice the I/O bandwidth, and supports UltraDMA/100, allowing burst mode data transfer rates of up to 100MB/sec. Two USB controllers provide up to four USB ports. Intel® Accelerated Hub Architecture: Features a dedicated high speed hub link between the ICH2 and GMCH with a bandwidth of 266MB/sec – twice the maximum bandwidth of the PCI bus. • • PC100/PC133 Memory Support: Equipped with three Dual Inline Memory Module (DIMM) sockets which support PC133/PC100 non-ECC SDRAMs (available in 64, 128, 256, 512Mb densities) up to 512MB. • UltraDMA33/66/100 Support: Comes with an onboard PCI Bus Master IDE controller with two connectors that support four IDE devices on two channels. Supports UltraDMA/100, UltraDMA/66, UltraDMA/33, PIO Modes 3 & 4 and up to four ATAPI devices like DVD-ROM, CD-ROM, CD-R/RW, LS-120, and tape backup drives. • ASUS JumperFree™ Mode: Allows processor settings and easy overclocking of frequency and Vcore voltage all through BIOS setup when JumperFree™ mode is enabled. Easy-to-use DIP switches instead of jumpers are included to allow manual adjustment of the processor external frequency. • Wake-Up Support: Supports Wake-On-LAN and Wake-On-Ring, Keyboard Wake-Up, and BIOS Wake-Up. • Around-the-Clock Intrusion Detection: Chassis intrusion circuitry can log chassis open events into LDCM. The onboard battery supports detection even when normal power is removed and through a new design, battery drain is even lower than the RTC used for keeping time! • PC Health Monitoring: Provides an easy way to examine and manage system status information, such as CPU and system voltages, temperatures, and fan status through the onboard hardware ASUS ASIC and the bundled ASUS PC Probe or Intel LDCM software. 8 ASUS TUEG-VM User’s Manual
