    R TUSI-M Socket 370 microATX Motherboard USER’S MANUAL
    USER'S NOTICE No part of this manual, including the products and software described in it, may be repro- duced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”). ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PAR- TICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDEN- TAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSI- NESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. Products and corporate names appearing in this manual may or may not be registered trade- marks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. • SiS is a trademark of Silicon Integrated Corporation. • Intel, Celeron, LANDesk, and Pentium are trademarks of Intel Corporation. • IBM and OS/2 are registered trademarks of International Business Machines. • Symbios is a registered trademark of Symbios Logic Corporation. • Windows and MS-DOS are registered trademarks of Microsoft Corporation. • Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated. The product name and revision number are both printed on the product itself. Manual revi- sions are released for each product design represented by the digit before and after the period of the manual revision number. Manual updates are represented by the third digit in the manual revision number. For previous or updated manuals, BIOS, drivers, or product release information, contact ASUS at http://www.asus.com.tw or through any of the means indicated on the following page. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FUR- NISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COM- MITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUD- ING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Copyright © 2001 ASUSTeK COMPUTER INC. All Rights Reserved. ASUS TUSI-M Product Name: Manual Revision: 1.00 E894B Release Date: October 2001 2 ASUS TUSI-M User’s Manual
    ASUS CONTACT INFORMATION ASUSTeK COMPUTER INC. (Asia-Pacific) Marketing Address: Telephone: Fax: Email: 150 Li-Te Road, Peitou, Taipei, Taiwan 112 +886-2-2894-3447 +886-2-2894-3449 info@asus.com.tw Technical Support Tel (English): +886-2-2894-3447 ext. 706 Tel (Chinese): +886-2-2894-3447 ext. 111 Fax: Email: Newsgroup: WWW: FTP: +886-2-2890-7698 tsd@asus.com.tw news2.asus.com.tw www.asus.com.tw ftp.asus.com.tw/pub/ASUS ASUS COMPUTER INTERNATIONAL (America) Marketing Address: 6737 Mowry Avenue, Mowry Business Center, Building 2 Newark, CA 94560, USA +1-510-608-4555 info-usa@asus.com.tw Fax: Email: Technical Support Fax: BBS: Email: WWW: FTP: +1-510-608-4555 +1-510-739-3774 tsd-usa@asus.com.tw www.asus.com ftp.asus.com.tw/pub/ASUS ASUS COMPUTER GmbH (Europe) Marketing Address: Telephone: Fax: Email: Harkort Str. 25, 40880 Ratingen, BRD, Germany 49-2102-445011 49-2102-442066 sales@asuscom.de Technical Support Hotline: BBS: Email: WWW: FTP: 49-2102-499712 49-2102-448690 tsd@asuscom.de www.asuscom.de ftp.asuscom.de/pub/ASUSCOM ASUS TUSI-M User’s Manual 3

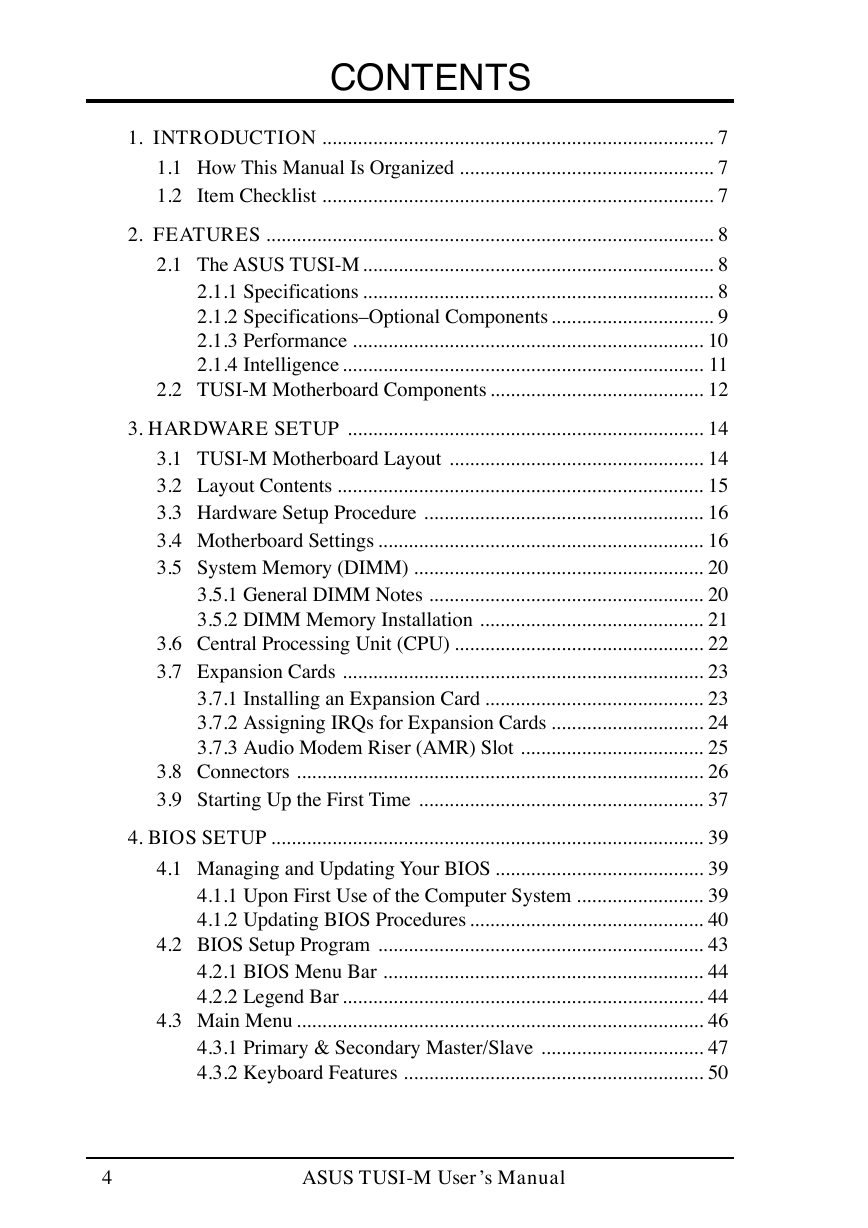

    CONTENTS 1. INTRODUCTION ............................................................................. 7 1.1 How This Manual Is Organized .................................................. 7 1.2 Item Checklist ............................................................................. 7 2. FEATURES ........................................................................................ 8 2.1 The ASUS TUSI-M ..................................................................... 8 2.1.1 Specifications ..................................................................... 8 2.1.2 Specifications–Optional Components ................................ 9 2.1.3 Performance ..................................................................... 10 2.1.4 Intelligence ....................................................................... 11 2.2 TUSI-M Motherboard Components .......................................... 12 3. HARDWARE SETUP ...................................................................... 14 3.1 TUSI-M Motherboard Layout .................................................. 14 3.2 Layout Contents ........................................................................ 15 3.3 Hardware Setup Procedure ....................................................... 16 3.4 Motherboard Settings ................................................................ 16 3.5 System Memory (DIMM) ......................................................... 20 3.5.1 General DIMM Notes ...................................................... 20 3.5.2 DIMM Memory Installation ............................................ 21 3.6 Central Processing Unit (CPU) ................................................. 22 3.7 Expansion Cards ....................................................................... 23 3.7.1 Installing an Expansion Card ........................................... 23 3.7.2 Assigning IRQs for Expansion Cards .............................. 24 3.7.3 Audio Modem Riser (AMR) Slot .................................... 25 3.8 Connectors ................................................................................ 26 3.9 Starting Up the First Time ........................................................ 37 4. BIOS SETUP ..................................................................................... 39 4.1 Managing and Updating Your BIOS ......................................... 39 4.1.1 Upon First Use of the Computer System ......................... 39 4.1.2 Updating BIOS Procedures .............................................. 40 4.2 BIOS Setup Program ................................................................ 43 4.2.1 BIOS Menu Bar ............................................................... 44 4.2.2 Legend Bar ....................................................................... 44 4.3 Main Menu ................................................................................ 46 4.3.1 Primary & Secondary Master/Slave ................................ 47 4.3.2 Keyboard Features ........................................................... 50 4 ASUS TUSI-M User’s Manual

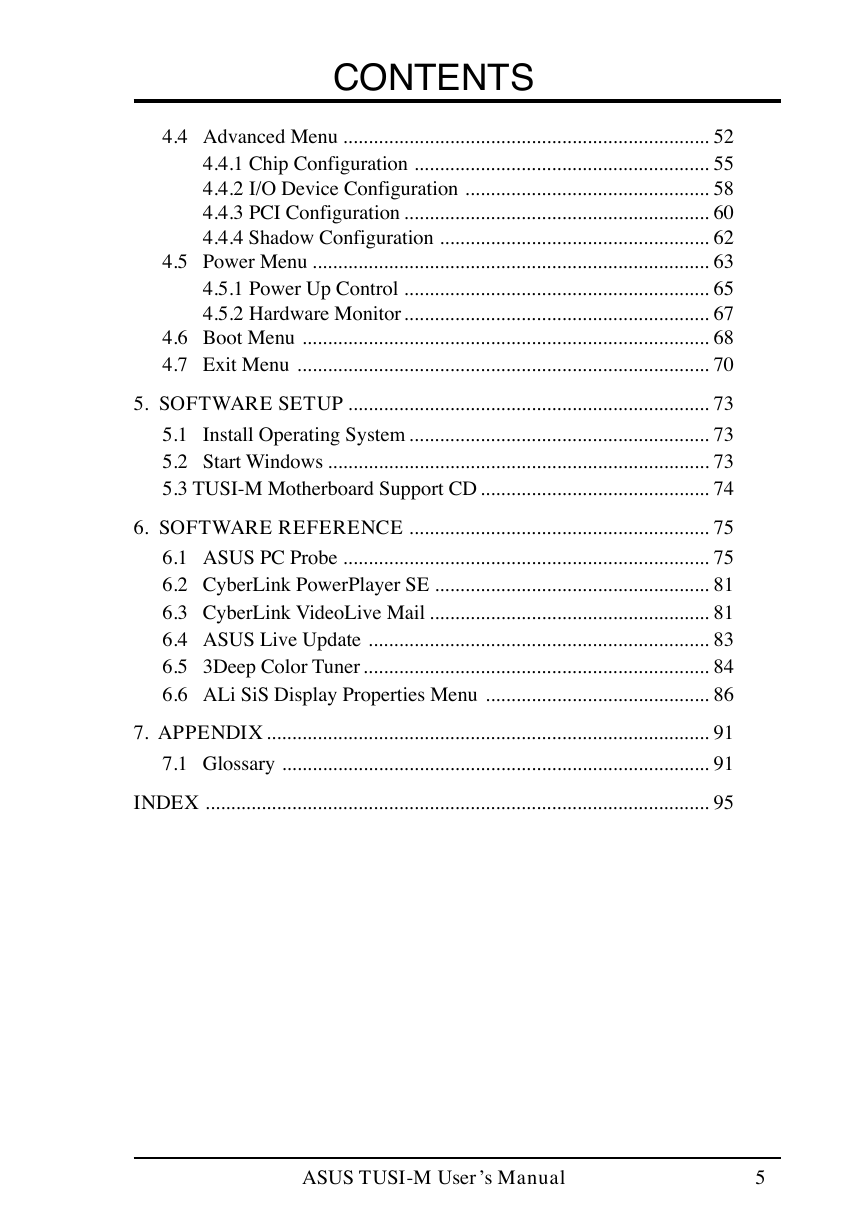

    CONTENTS 4.4 Advanced Menu ........................................................................ 52 4.4.1 Chip Configuration .......................................................... 55 4.4.2 I/O Device Configuration ................................................ 58 4.4.3 PCI Configuration ............................................................ 60 4.4.4 Shadow Configuration ..................................................... 62 4.5 Power Menu .............................................................................. 63 4.5.1 Power Up Control ............................................................ 65 4.5.2 Hardware Monitor............................................................ 67 4.6 Boot Menu ................................................................................ 68 4.7 Exit Menu ................................................................................. 70 5. SOFTWARE SETUP ....................................................................... 73 5.1 Install Operating System ........................................................... 73 5.2 Start Windows ........................................................................... 73 5.3 TUSI-M Motherboard Support CD ............................................. 74 6. SOFTWARE REFERENCE ........................................................... 75 6.1 ASUS PC Probe ........................................................................ 75 6.2 CyberLink PowerPlayer SE ...................................................... 81 6.3 CyberLink VideoLive Mail ....................................................... 81 6.4 ASUS Live Update ................................................................... 83 6.5 3Deep Color Tuner .................................................................... 84 6.6 ALi SiS Display Properties Menu ............................................ 86 7. APPENDIX ....................................................................................... 91 7.1 Glossary .................................................................................... 91 INDEX ................................................................................................... 95 ASUS TUSI-M User’s Manual 5

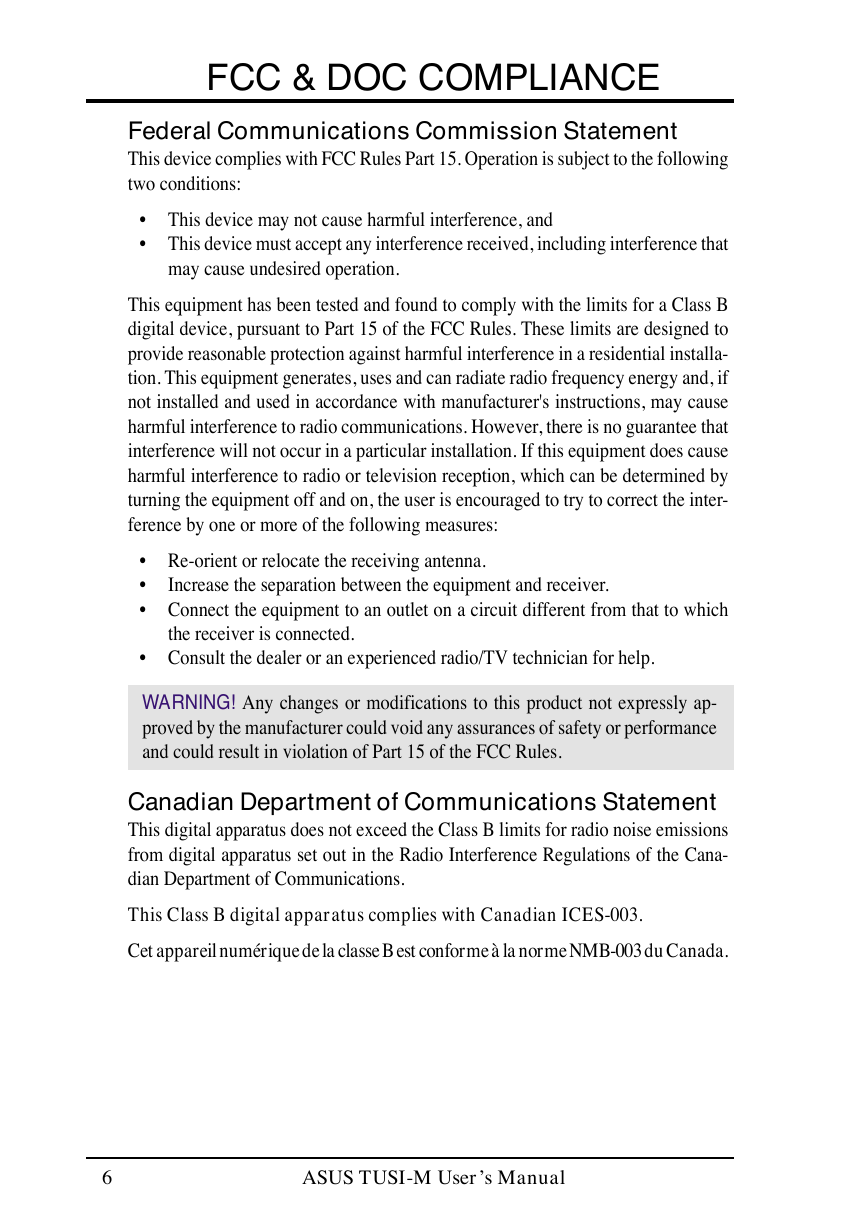

    FCC & DOC COMPLIANCE Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the inter- ference by one or more of the following measures: • Re-orient or relocate the receiving antenna. • • Connect the equipment to an outlet on a circuit different from that to which Increase the separation between the equipment and receiver. the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. WARNING! Any changes or modifications to this product not expressly ap- proved by the manufacturer could void any assurances of safety or performance and could result in violation of Part 15 of the FCC Rules. Canadian Department of Communications Statement This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Cana- dian Department of Communications. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. 6 ASUS TUSI-M User’s Manual

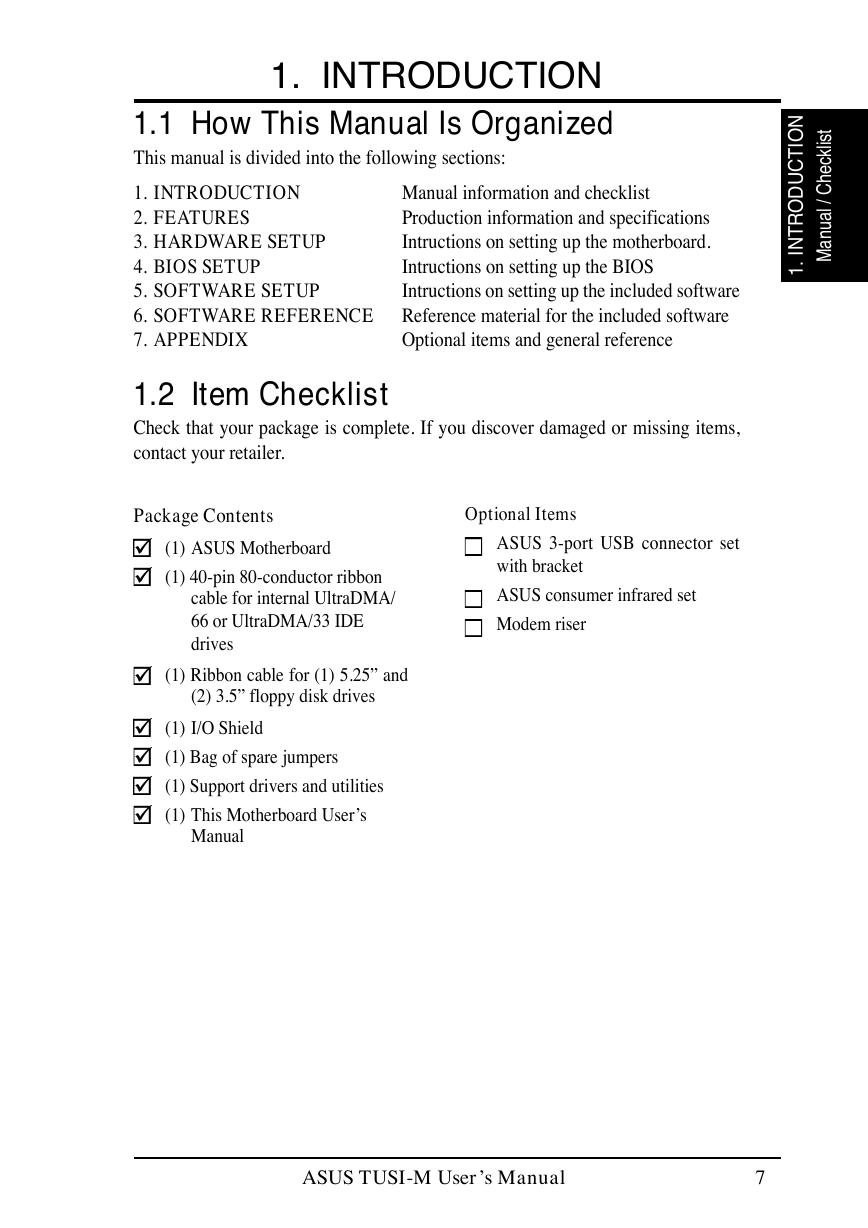

    t s i l k c e h C / l a u n a M I N O T C U D O R T N I . 1 1. INTRODUCTION 1.1 How This Manual Is Organized This manual is divided into the following sections: 1. INTRODUCTION 2. FEATURES 3. HARDWARE SETUP 4. BIOS SETUP 5. SOFTWARE SETUP 6. SOFTWARE REFERENCE 7. APPENDIX Manual information and checklist Production information and specifications Intructions on setting up the motherboard. Intructions on setting up the BIOS Intructions on setting up the included software Reference material for the included software Optional items and general reference 1.2 Item Checklist Check that your package is complete. If you discover damaged or missing items, contact your retailer. Package Contents Optional Items ASUS 3-port USB connector set with bracket ASUS consumer infrared set Modem riser (1) ASUS Motherboard (1) 40-pin 80-conductor ribbon cable for internal UltraDMA/ 66 or UltraDMA/33 IDE drives (1) Ribbon cable for (1) 5.25” and (2) 3.5” floppy disk drives (1) I/O Shield (1) Bag of spare jumpers (1) Support drivers and utilities (1) This Motherboard User’s Manual ASUS TUSI-M User’s Manual 7

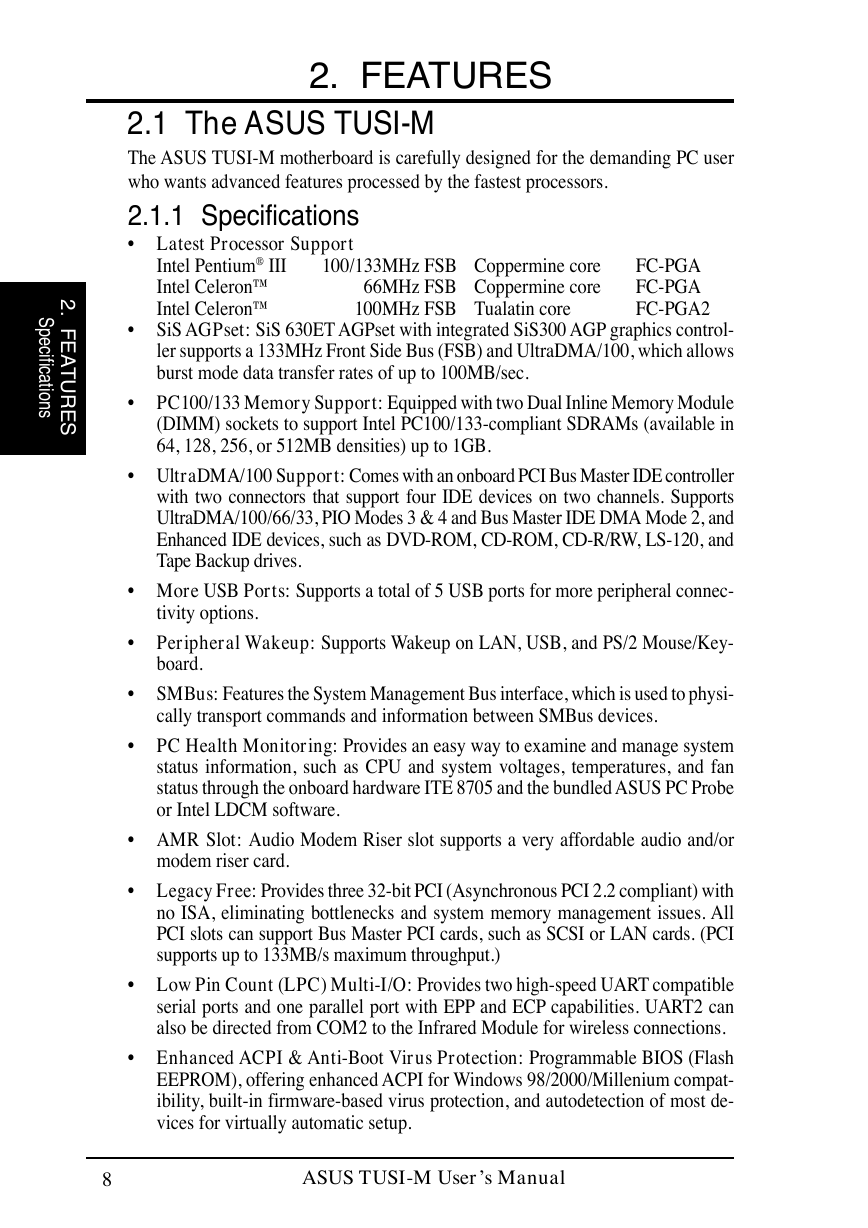

    2. FEATURES 2.1 The ASUS TUSI-M The ASUS TUSI-M motherboard is carefully designed for the demanding PC user who wants advanced features processed by the fastest processors. 2.1.1 Specifications • Latest Processor Support 100/133MHz FSB Coppermine core 66MHz FSB Coppermine core 100MHz FSB Tualatin core Intel Pentium® III Intel Celeron™ Intel Celeron™ SiS AGPset: SiS 630ET AGPset with integrated SiS300 AGP graphics control- ler supports a 133MHz Front Side Bus (FSB) and UltraDMA/100, which allows burst mode data transfer rates of up to 100MB/sec. PC100/133 Memory Support: Equipped with two Dual Inline Memory Module (DIMM) sockets to support Intel PC100/133-compliant SDRAMs (available in 64, 128, 256, or 512MB densities) up to 1GB. FC-PGA FC-PGA FC-PGA2 S p e c i f i c a t i o n s 2 . F E A T U R E S • • • UltraDMA/100 Support: Comes with an onboard PCI Bus Master IDE controller with two connectors that support four IDE devices on two channels. Supports UltraDMA/100/66/33, PIO Modes 3 & 4 and Bus Master IDE DMA Mode 2, and Enhanced IDE devices, such as DVD-ROM, CD-ROM, CD-R/RW, LS-120, and Tape Backup drives. • More USB Ports: Supports a total of 5 USB ports for more peripheral connec- • • • tivity options. Peripheral Wakeup: Supports Wakeup on LAN, USB, and PS/2 Mouse/Key- board. SMBus: Features the System Management Bus interface, which is used to physi- cally transport commands and information between SMBus devices. PC Health Monitoring: Provides an easy way to examine and manage system status information, such as CPU and system voltages, temperatures, and fan status through the onboard hardware ITE 8705 and the bundled ASUS PC Probe or Intel LDCM software. • AMR Slot: Audio Modem Riser slot supports a very affordable audio and/or modem riser card. • Legacy Free: Provides three 32-bit PCI (Asynchronous PCI 2.2 compliant) with no ISA, eliminating bottlenecks and system memory management issues. All PCI slots can support Bus Master PCI cards, such as SCSI or LAN cards. (PCI supports up to 133MB/s maximum throughput.) • Low Pin Count (LPC) Multi-I/O: Provides two high-speed UART compatible serial ports and one parallel port with EPP and ECP capabilities. UART2 can also be directed from COM2 to the Infrared Module for wireless connections. • Enhanced ACPI & Anti-Boot Virus Protection: Programmable BIOS (Flash EEPROM), offering enhanced ACPI for Windows 98/2000/Millenium compat- ibility, built-in firmware-based virus protection, and autodetection of most de- vices for virtually automatic setup. 8 ASUS TUSI-M User’s Manual
