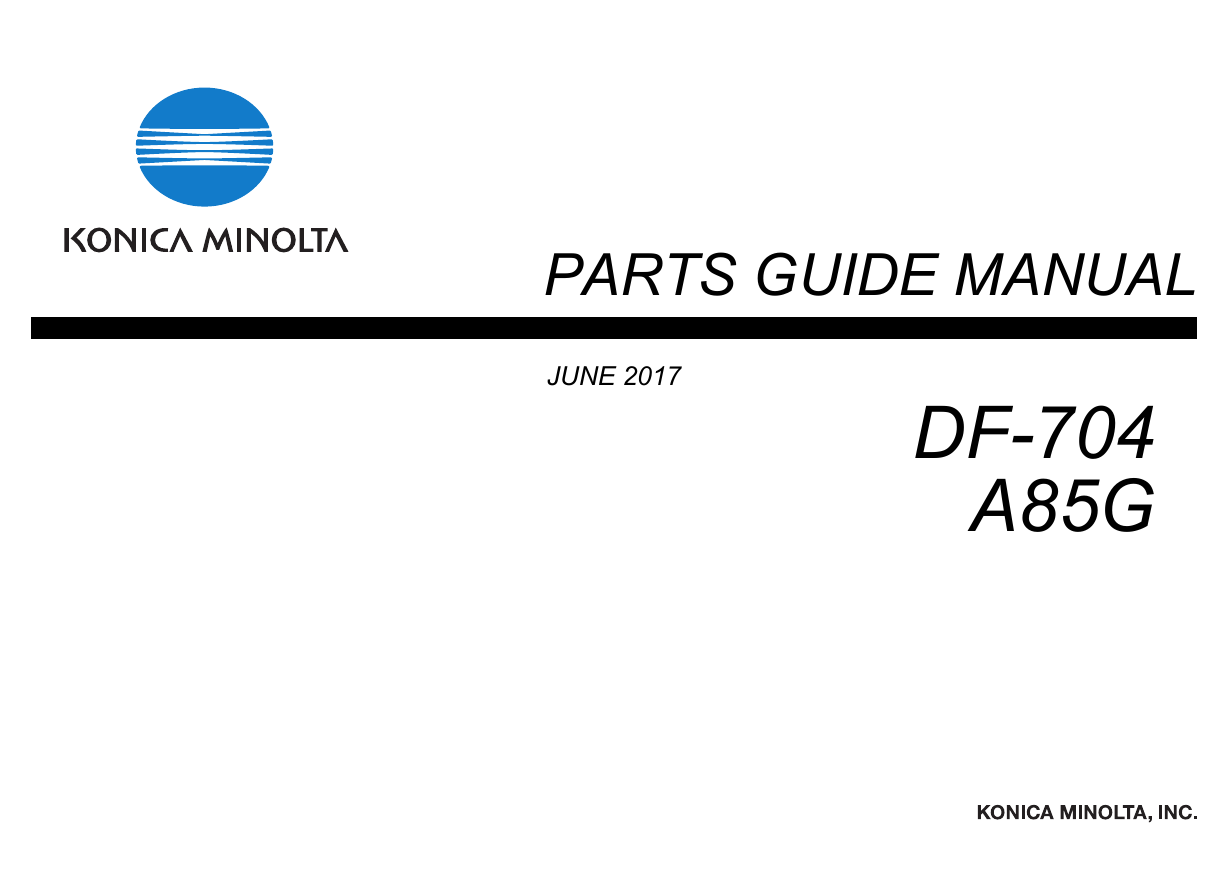

PARTS GUIDE MANUAL JUNE 2017 DF-704 A85G

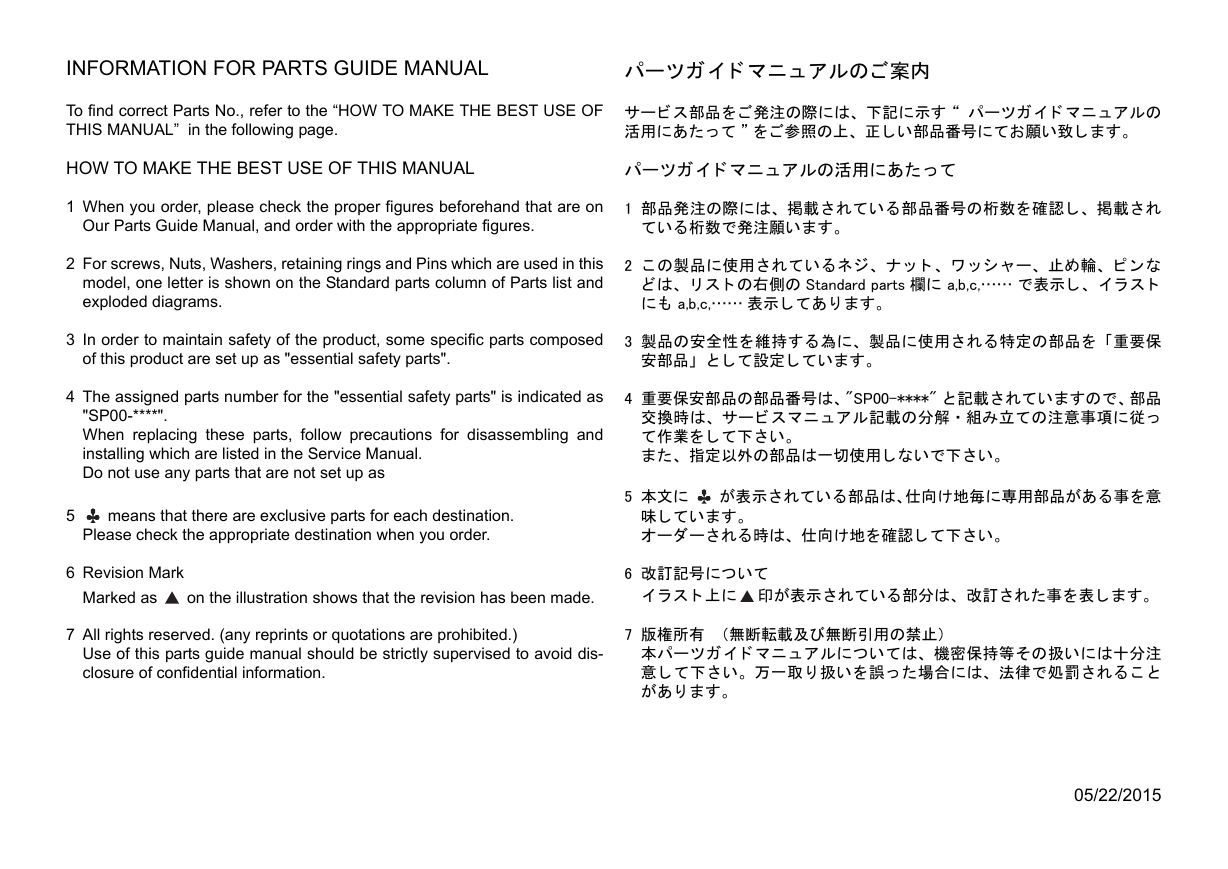

INFORMATION FOR PARTS GUIDE MANUAL パーツガイドマニュアルのご案内 To find correct Parts No., refer to the “HOW TO MAKE THE BEST USE OF THIS MANUAL” in the following page. サービス部品をご発注の際には、下記に示す “ パーツガイドマニュアルの活用にあたって ” をご参照の上、正しい部品番号にてお願い致します。 HOW TO MAKE THE BEST USE OF THIS MANUAL パーツガイドマニュアルの活用にあたって 1 When you order, please check the proper figures beforehand that are on Our Parts Guide Manual, and order with the appropriate figures. 1 部品発注の際には、掲載されている部品番号の桁数を確認し、掲載されている桁数で発注願います。 2 For screws, Nuts, Washers, retaining rings and Pins which are used in this model, one letter is shown on the Standard parts column of Parts list and exploded diagrams. 2 この製品に使用されているネジ、ナット、ワッシャー、止め輪、ピンなどは、リストの右側の Standard parts 欄に a,b,c,…… で表示し、イラストにも a,b,c,…… 表示してあります。 3 In order to maintain safety of the product, some specific parts composed of this product are set up as "essential safety parts". 3 製品の安全性を維持する為に、製品に使用される特定の部品を「重要保安部品」として設定しています。 4 The assigned parts number for the "essential safety parts" is indicated as "SP00-****". When replacing these parts, follow precautions for disassembling and installing which are listed in the Service Manual. Do not use any parts that are not set up as 4 重要保安部品の部品番号は、"SP00-****" と記載されていますので、部品交換時は、サービスマニュアル記載の分解・組み立ての注意事項に従って作業をして下さい。また、指定以外の部品は一切使用しないで下さい。 5 means that there are exclusive parts for each destination. Please check the appropriate destination when you order. 5 本文にが表示されている部品は、仕向け地毎に専用部品がある事を意味しています。オーダーされる時は、仕向け地を確認して下さい。 6 Revision Mark 6 改訂記号について Marked as on the illustration shows that the revision has been made. イラスト上に印が表示されている部分は、改訂された事を表します。 7 All rights reserved. (any reprints or quotations are prohibited.) Use of this parts guide manual should be strictly supervised to avoid dis- closure of confidential information. 7 版権所有　（無断転載及び無断引用の禁止）本パーツガイドマニュアルについては、機密保持等その扱いには十分注意して下さい。万一取り扱いを誤った場合には、法律で処罰されることがあります。 05/22/2015

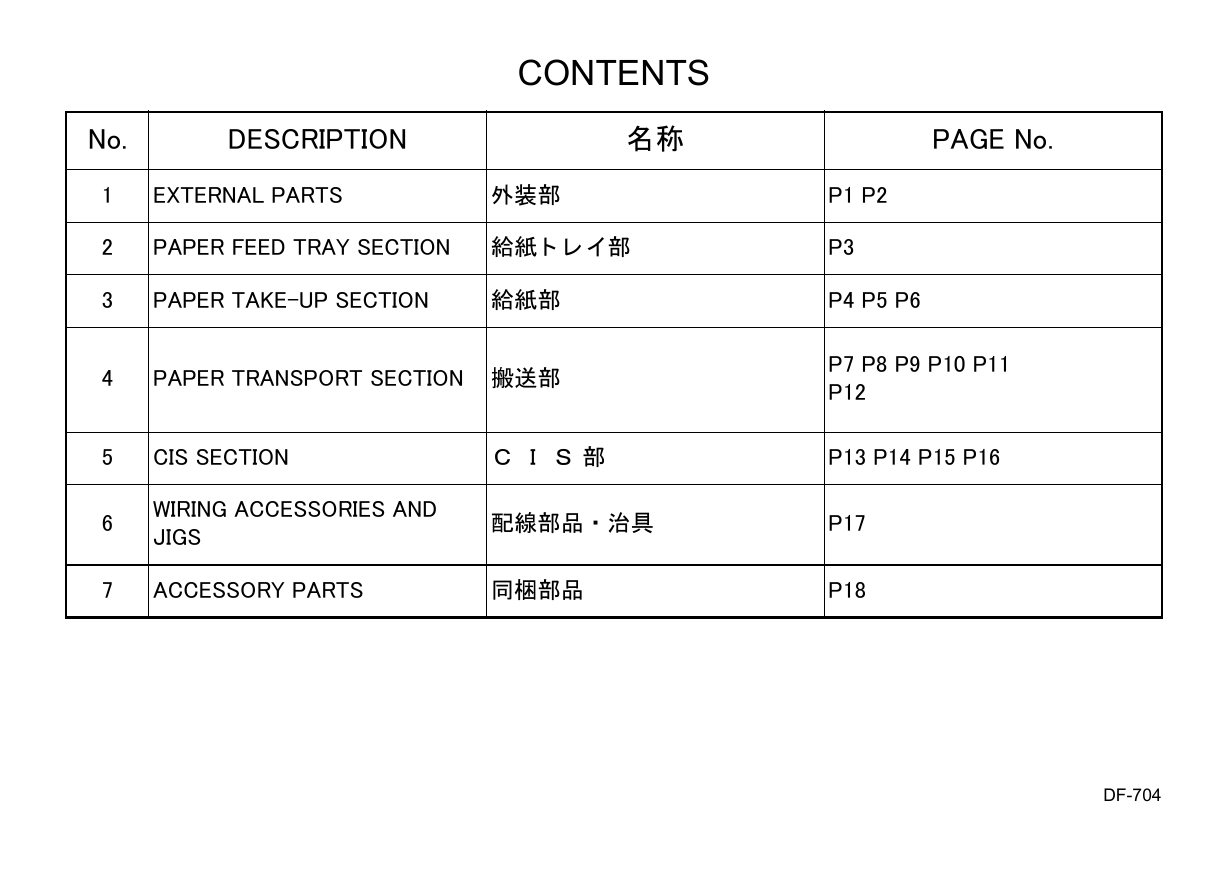

CONTENTS No. DESCRIPTION 名称 PAGE No. 1 2 3 4 5 6 7 EXTERNAL PARTS 外装部 PAPER FEED TRAY SECTION 給紙トレイ部 PAPER TAKE-UP SECTION 給紙部 PAPER TRANSPORT SECTION 搬送部 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 CIS SECTION ＣＩＳ部 P13 P14 P15 P16 WIRING ACCESSORIES AND JIGS 配線部品・治具 ACCESSORY PARTS 同梱部品 P17 P18 DF-704

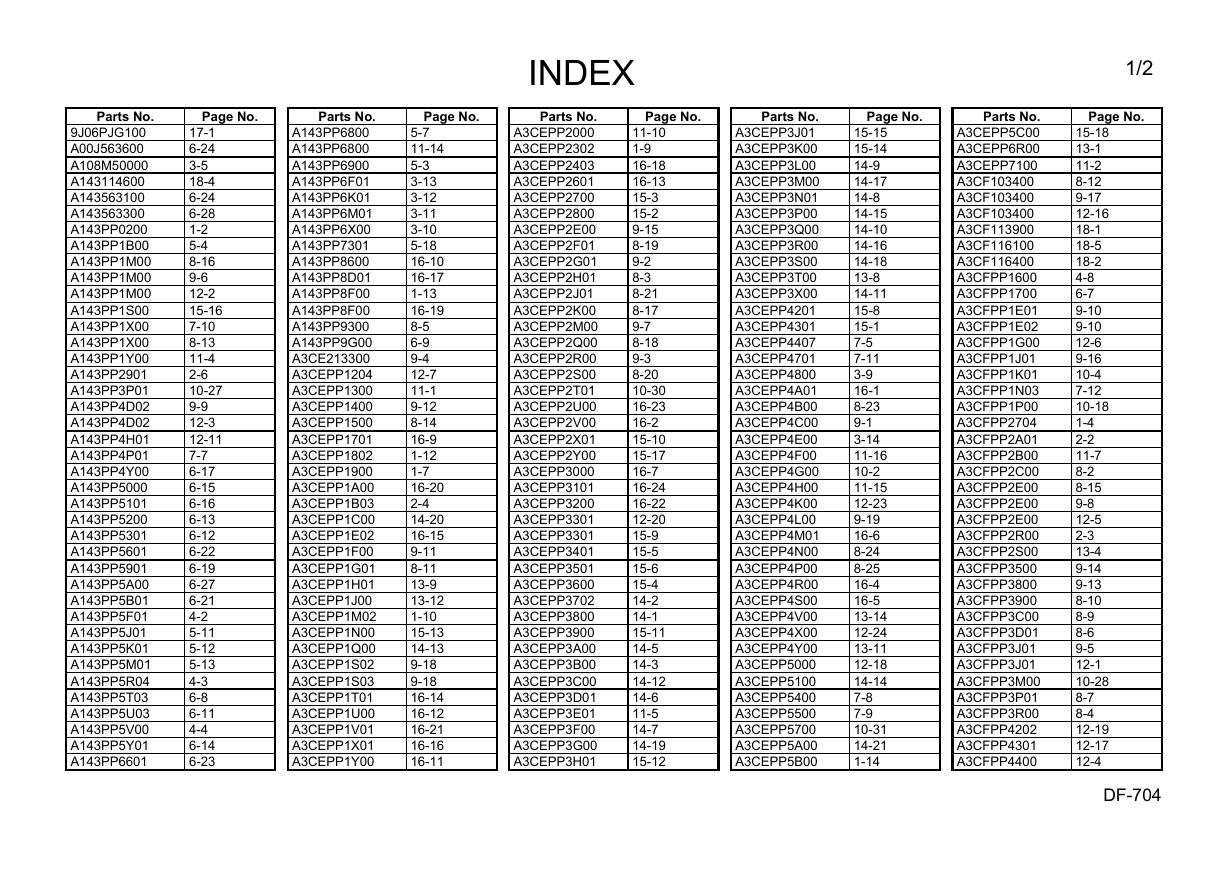

Parts No. 9J06PJG100 A00J563600 A108M50000 A143114600 A143563100 A143563300 A143PP0200 A143PP1B00 A143PP1M00 A143PP1M00 A143PP1M00 A143PP1S00 A143PP1X00 A143PP1X00 A143PP1Y00 A143PP2901 A143PP3P01 A143PP4D02 A143PP4D02 A143PP4H01 A143PP4P01 A143PP4Y00 A143PP5000 A143PP5101 A143PP5200 A143PP5301 A143PP5601 A143PP5901 A143PP5A00 A143PP5B01 A143PP5F01 A143PP5J01 A143PP5K01 A143PP5M01 A143PP5R04 A143PP5T03 A143PP5U03 A143PP5V00 A143PP5Y01 A143PP6601 Page No. 17-1 6-24 3-5 18-4 6-24 6-28 1-2 5-4 8-16 9-6 12-2 15-16 7-10 8-13 11-4 2-6 10-27 9-9 12-3 12-11 7-7 6-17 6-15 6-16 6-13 6-12 6-22 6-19 6-27 6-21 4-2 5-11 5-12 5-13 4-3 6-8 6-11 4-4 6-14 6-23 Parts No. A143PP6800 A143PP6800 A143PP6900 A143PP6F01 A143PP6K01 A143PP6M01 A143PP6X00 A143PP7301 A143PP8600 A143PP8D01 A143PP8F00 A143PP8F00 A143PP9300 A143PP9G00 A3CE213300 A3CEPP1204 A3CEPP1300 A3CEPP1400 A3CEPP1500 A3CEPP1701 A3CEPP1802 A3CEPP1900 A3CEPP1A00 A3CEPP1B03 A3CEPP1C00 A3CEPP1E02 A3CEPP1F00 A3CEPP1G01 A3CEPP1H01 A3CEPP1J00 A3CEPP1M02 A3CEPP1N00 A3CEPP1Q00 A3CEPP1S02 A3CEPP1S03 A3CEPP1T01 A3CEPP1U00 A3CEPP1V01 A3CEPP1X01 A3CEPP1Y00 Page No. 5-7 11-14 5-3 3-13 3-12 3-11 3-10 5-18 16-10 16-17 1-13 16-19 8-5 6-9 9-4 12-7 11-1 9-12 8-14 16-9 1-12 1-7 16-20 2-4 14-20 16-15 9-11 8-11 13-9 13-12 1-10 15-13 14-13 9-18 9-18 16-14 16-12 16-21 16-16 16-11 INDEX Parts No. A3CEPP2000 A3CEPP2302 A3CEPP2403 A3CEPP2601 A3CEPP2700 A3CEPP2800 A3CEPP2E00 A3CEPP2F01 A3CEPP2G01 A3CEPP2H01 A3CEPP2J01 A3CEPP2K00 A3CEPP2M00 A3CEPP2Q00 A3CEPP2R00 A3CEPP2S00 A3CEPP2T01 A3CEPP2U00 A3CEPP2V00 A3CEPP2X01 A3CEPP2Y00 A3CEPP3000 A3CEPP3101 A3CEPP3200 A3CEPP3301 A3CEPP3301 A3CEPP3401 A3CEPP3501 A3CEPP3600 A3CEPP3702 A3CEPP3800 A3CEPP3900 A3CEPP3A00 A3CEPP3B00 A3CEPP3C00 A3CEPP3D01 A3CEPP3E01 A3CEPP3F00 A3CEPP3G00 A3CEPP3H01 Page No. 11-10 1-9 16-18 16-13 15-3 15-2 9-15 8-19 9-2 8-3 8-21 8-17 9-7 8-18 9-3 8-20 10-30 16-23 16-2 15-10 15-17 16-7 16-24 16-22 12-20 15-9 15-5 15-6 15-4 14-2 14-1 15-11 14-5 14-3 14-12 14-6 11-5 14-7 14-19 15-12 Parts No. A3CEPP3J01 A3CEPP3K00 A3CEPP3L00 A3CEPP3M00 A3CEPP3N01 A3CEPP3P00 A3CEPP3Q00 A3CEPP3R00 A3CEPP3S00 A3CEPP3T00 A3CEPP3X00 A3CEPP4201 A3CEPP4301 A3CEPP4407 A3CEPP4701 A3CEPP4800 A3CEPP4A01 A3CEPP4B00 A3CEPP4C00 A3CEPP4E00 A3CEPP4F00 A3CEPP4G00 A3CEPP4H00 A3CEPP4K00 A3CEPP4L00 A3CEPP4M01 A3CEPP4N00 A3CEPP4P00 A3CEPP4R00 A3CEPP4S00 A3CEPP4V00 A3CEPP4X00 A3CEPP4Y00 A3CEPP5000 A3CEPP5100 A3CEPP5400 A3CEPP5500 A3CEPP5700 A3CEPP5A00 A3CEPP5B00 Page No. 15-15 15-14 14-9 14-17 14-8 14-15 14-10 14-16 14-18 13-8 14-11 15-8 15-1 7-5 7-11 3-9 16-1 8-23 9-1 3-14 11-16 10-2 11-15 12-23 9-19 16-6 8-24 8-25 16-4 16-5 13-14 12-24 13-11 12-18 14-14 7-8 7-9 10-31 14-21 1-14 Parts No. A3CEPP5C00 A3CEPP6R00 A3CEPP7100 A3CF103400 A3CF103400 A3CF103400 A3CF113900 A3CF116100 A3CF116400 A3CFPP1600 A3CFPP1700 A3CFPP1E01 A3CFPP1E02 A3CFPP1G00 A3CFPP1J01 A3CFPP1K01 A3CFPP1N03 A3CFPP1P00 A3CFPP2704 A3CFPP2A01 A3CFPP2B00 A3CFPP2C00 A3CFPP2E00 A3CFPP2E00 A3CFPP2E00 A3CFPP2R00 A3CFPP2S00 A3CFPP3500 A3CFPP3800 A3CFPP3900 A3CFPP3C00 A3CFPP3D01 A3CFPP3J01 A3CFPP3J01 A3CFPP3M00 A3CFPP3P01 A3CFPP3R00 A3CFPP4202 A3CFPP4301 A3CFPP4400 1/2 Page No. 15-18 13-1 11-2 8-12 9-17 12-16 18-1 18-5 18-2 4-8 6-7 9-10 9-10 12-6 9-16 10-4 7-12 10-18 1-4 2-2 11-7 8-2 8-15 9-8 12-5 2-3 13-4 9-14 9-13 8-10 8-9 8-6 9-5 12-1 10-28 8-7 8-4 12-19 12-17 12-4 DF-704

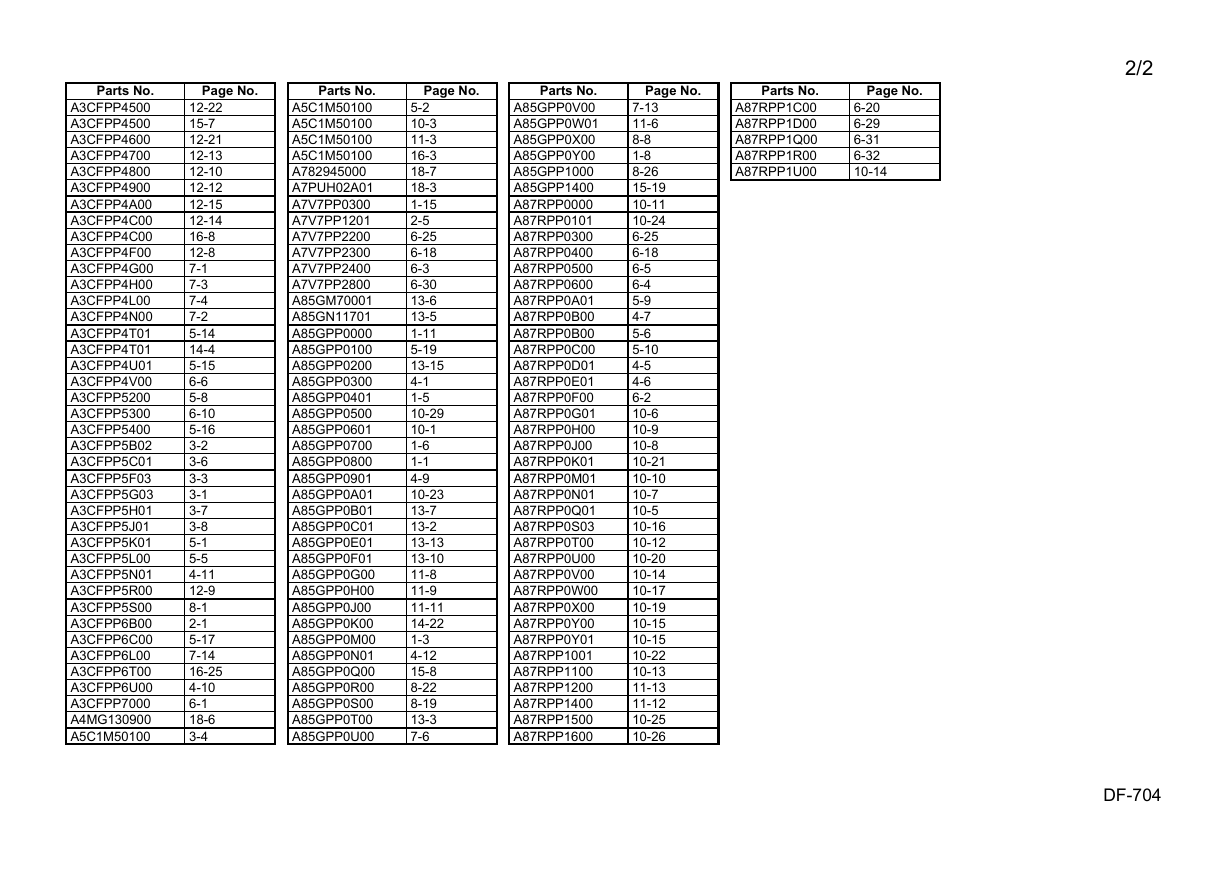

Parts No. A3CFPP4500 A3CFPP4500 A3CFPP4600 A3CFPP4700 A3CFPP4800 A3CFPP4900 A3CFPP4A00 A3CFPP4C00 A3CFPP4C00 A3CFPP4F00 A3CFPP4G00 A3CFPP4H00 A3CFPP4L00 A3CFPP4N00 A3CFPP4T01 A3CFPP4T01 A3CFPP4U01 A3CFPP4V00 A3CFPP5200 A3CFPP5300 A3CFPP5400 A3CFPP5B02 A3CFPP5C01 A3CFPP5F03 A3CFPP5G03 A3CFPP5H01 A3CFPP5J01 A3CFPP5K01 A3CFPP5L00 A3CFPP5N01 A3CFPP5R00 A3CFPP5S00 A3CFPP6B00 A3CFPP6C00 A3CFPP6L00 A3CFPP6T00 A3CFPP6U00 A3CFPP7000 A4MG130900 A5C1M50100 Page No. 12-22 15-7 12-21 12-13 12-10 12-12 12-15 12-14 16-8 12-8 7-1 7-3 7-4 7-2 5-14 14-4 5-15 6-6 5-8 6-10 5-16 3-2 3-6 3-3 3-1 3-7 3-8 5-1 5-5 4-11 12-9 8-1 2-1 5-17 7-14 16-25 4-10 6-1 18-6 3-4 Parts No. A5C1M50100 A5C1M50100 A5C1M50100 A5C1M50100 A782945000 A7PUH02A01 A7V7PP0300 A7V7PP1201 A7V7PP2200 A7V7PP2300 A7V7PP2400 A7V7PP2800 A85GM70001 A85GN11701 A85GPP0000 A85GPP0100 A85GPP0200 A85GPP0300 A85GPP0401 A85GPP0500 A85GPP0601 A85GPP0700 A85GPP0800 A85GPP0901 A85GPP0A01 A85GPP0B01 A85GPP0C01 A85GPP0E01 A85GPP0F01 A85GPP0G00 A85GPP0H00 A85GPP0J00 A85GPP0K00 A85GPP0M00 A85GPP0N01 A85GPP0Q00 A85GPP0R00 A85GPP0S00 A85GPP0T00 A85GPP0U00 Page No. 5-2 10-3 11-3 16-3 18-7 18-3 1-15 2-5 6-25 6-18 6-3 6-30 13-6 13-5 1-11 5-19 13-15 4-1 1-5 10-29 10-1 1-6 1-1 4-9 10-23 13-7 13-2 13-13 13-10 11-8 11-9 11-11 14-22 1-3 4-12 15-8 8-22 8-19 13-3 7-6 Parts No. A85GPP0V00 A85GPP0W01 A85GPP0X00 A85GPP0Y00 A85GPP1000 A85GPP1400 A87RPP0000 A87RPP0101 A87RPP0300 A87RPP0400 A87RPP0500 A87RPP0600 A87RPP0A01 A87RPP0B00 A87RPP0B00 A87RPP0C00 A87RPP0D01 A87RPP0E01 A87RPP0F00 A87RPP0G01 A87RPP0H00 A87RPP0J00 A87RPP0K01 A87RPP0M01 A87RPP0N01 A87RPP0Q01 A87RPP0S03 A87RPP0T00 A87RPP0U00 A87RPP0V00 A87RPP0W00 A87RPP0X00 A87RPP0Y00 A87RPP0Y01 A87RPP1001 A87RPP1100 A87RPP1200 A87RPP1400 A87RPP1500 A87RPP1600 Page No. 7-13 11-6 8-8 1-8 8-26 15-19 10-11 10-24 6-25 6-18 6-5 6-4 5-9 4-7 5-6 5-10 4-5 4-6 6-2 10-6 10-9 10-8 10-21 10-10 10-7 10-5 10-16 10-12 10-20 10-14 10-17 10-19 10-15 10-15 10-22 10-13 11-13 11-12 10-25 10-26 Parts No. A87RPP1C00 A87RPP1D00 A87RPP1Q00 A87RPP1R00 A87RPP1U00 Page No. 6-20 6-29 6-31 6-32 10-14 2/2 DF-704

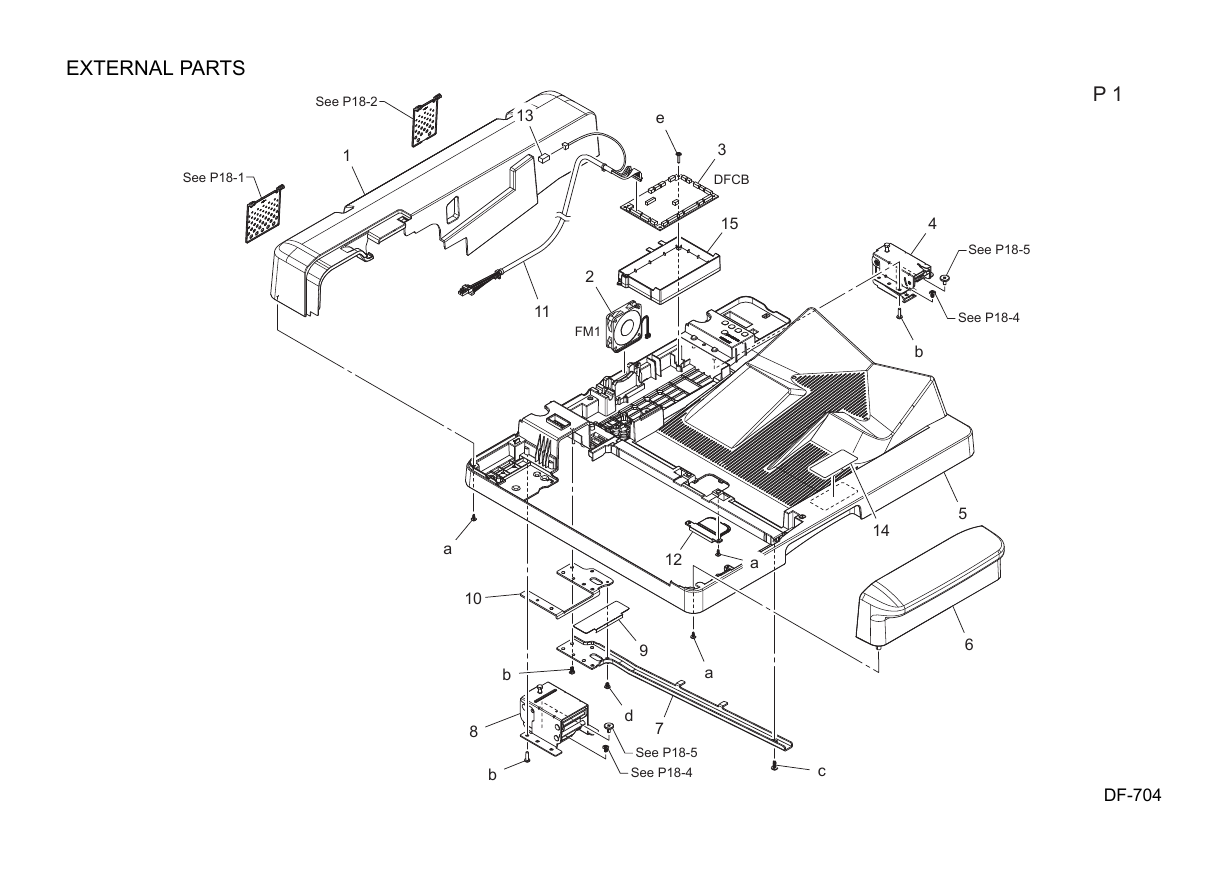

EXTERNAL PARTS See P18-2 1 See P18-1 13 e 3 DFCB 15 2 FM1 11 P 1 4 b See P18-5 See P18-4 5 6 c DF-704 12 a 14 a 10 b 8 b 9 a d 7 See P18-5 See P18-4

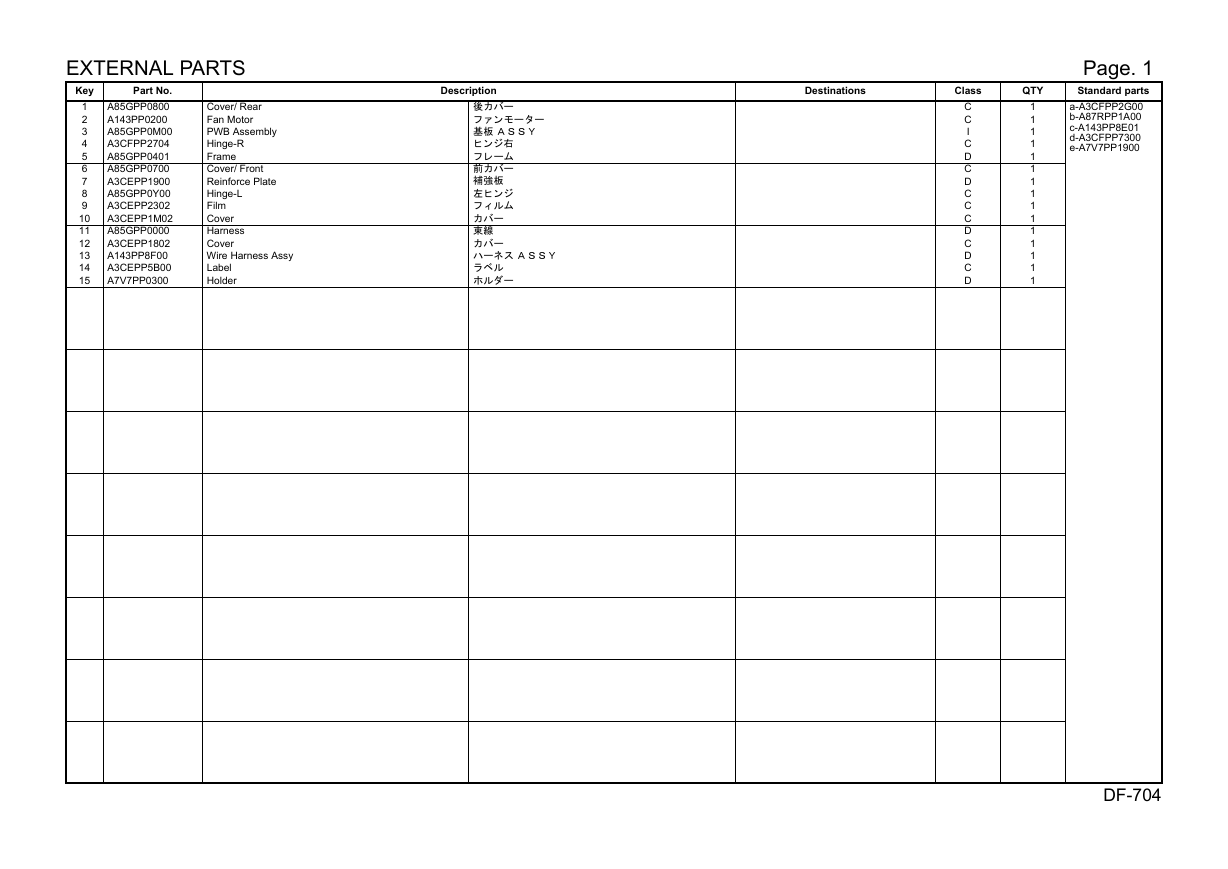

EXTERNAL PARTS Key 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 Part No. A85GPP0800 A143PP0200 A85GPP0M00 A3CFPP2704 A85GPP0401 A85GPP0700 A3CEPP1900 A85GPP0Y00 A3CEPP2302 A3CEPP1M02 A85GPP0000 A3CEPP1802 A143PP8F00 A3CEPP5B00 A7V7PP0300 Cover/ Rear Fan Motor PWB Assembly Hinge-R Frame Cover/ Front Reinforce Plate Hinge-L Film Cover Harness Cover Wire Harness Assy Label Holder Description Destinations Class QTY 後カバーファンモーター基板ＡＳＳＹヒンジ右フレーム前カバー補強板左ヒンジフィルムカバー束線カバーハーネスＡＳＳＹラベルホルダー C C I C D C D C C C D C D C D 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 Page. 1 Standard parts a-A3CFPP2G00 b-A87RPP1A00 c-A143PP8E01 d-A3CFPP7300 e-A7V7PP1900 DF-704

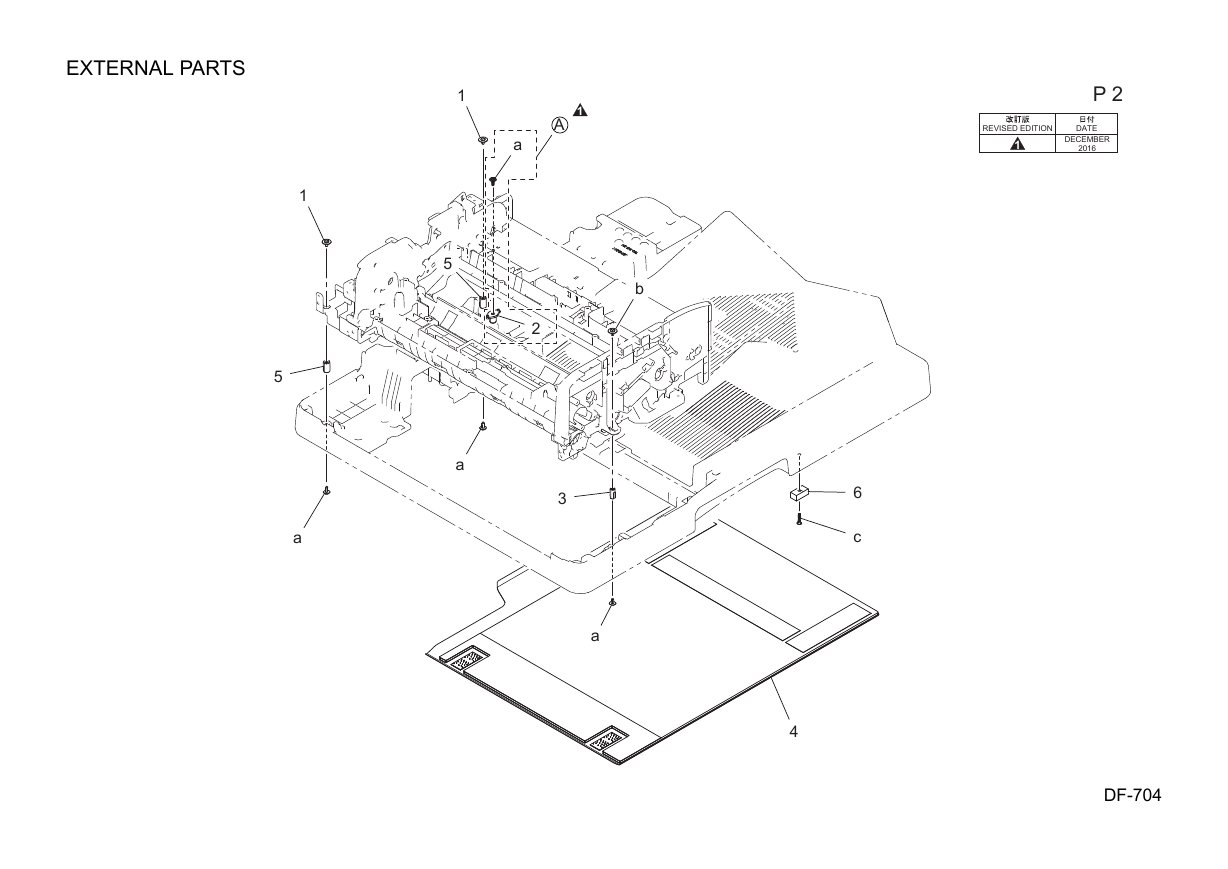

EXTERNAL PARTS 1 5 a 5 1 a 1 A a b 2 3 a P 2 REVISED EDITION DATE 1 DECEMBER 2016 6 c 4 DF-704
