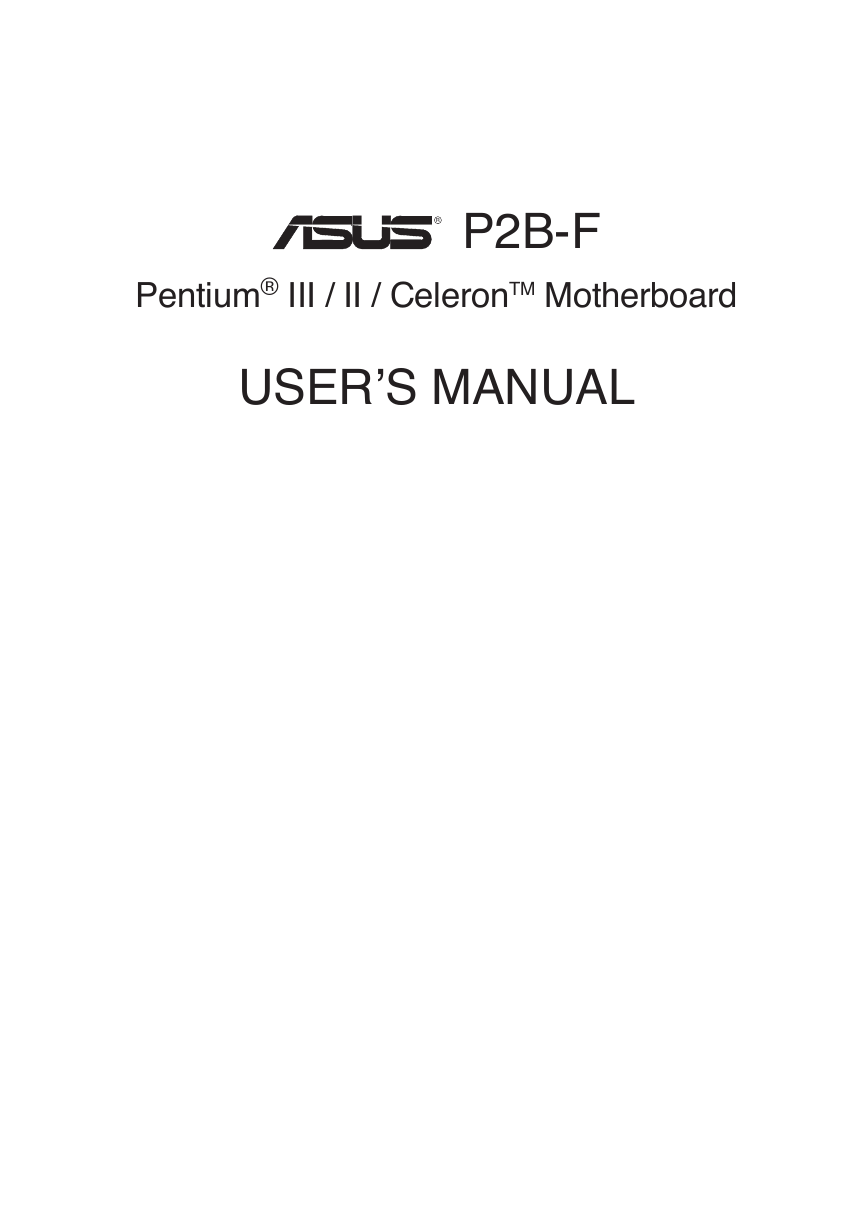

R P2B-F Pentium® III / II / CeleronTM Motherboard USER’S MANUAL

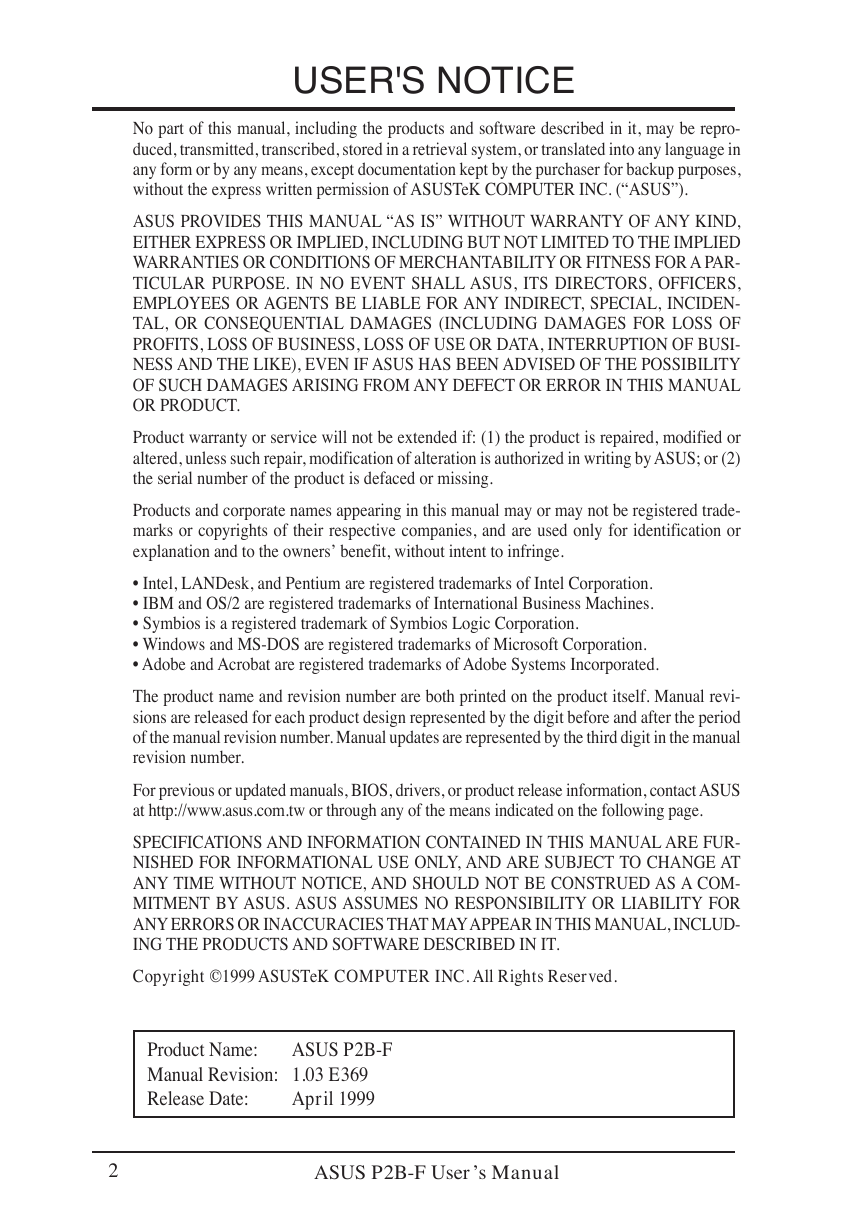

USER'S NOTICE No part of this manual, including the products and software described in it, may be repro- duced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”). ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PAR- TICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDEN- TAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSI- NESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. Products and corporate names appearing in this manual may or may not be registered trade- marks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. • Intel, LANDesk, and Pentium are registered trademarks of Intel Corporation. • IBM and OS/2 are registered trademarks of International Business Machines. • Symbios is a registered trademark of Symbios Logic Corporation. • Windows and MS-DOS are registered trademarks of Microsoft Corporation. • Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated. The product name and revision number are both printed on the product itself. Manual revi- sions are released for each product design represented by the digit before and after the period of the manual revision number. Manual updates are represented by the third digit in the manual revision number. For previous or updated manuals, BIOS, drivers, or product release information, contact ASUS at http://www.asus.com.tw or through any of the means indicated on the following page. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FUR- NISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COM- MITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUD- ING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Copyright ©1999 ASUSTeK COMPUTER INC. All Rights Reserved. ASUS P2B-F Product Name: Manual Revision: 1.03 E369 April 1999 Release Date: 2 ASUS P2B-F User’s Manual

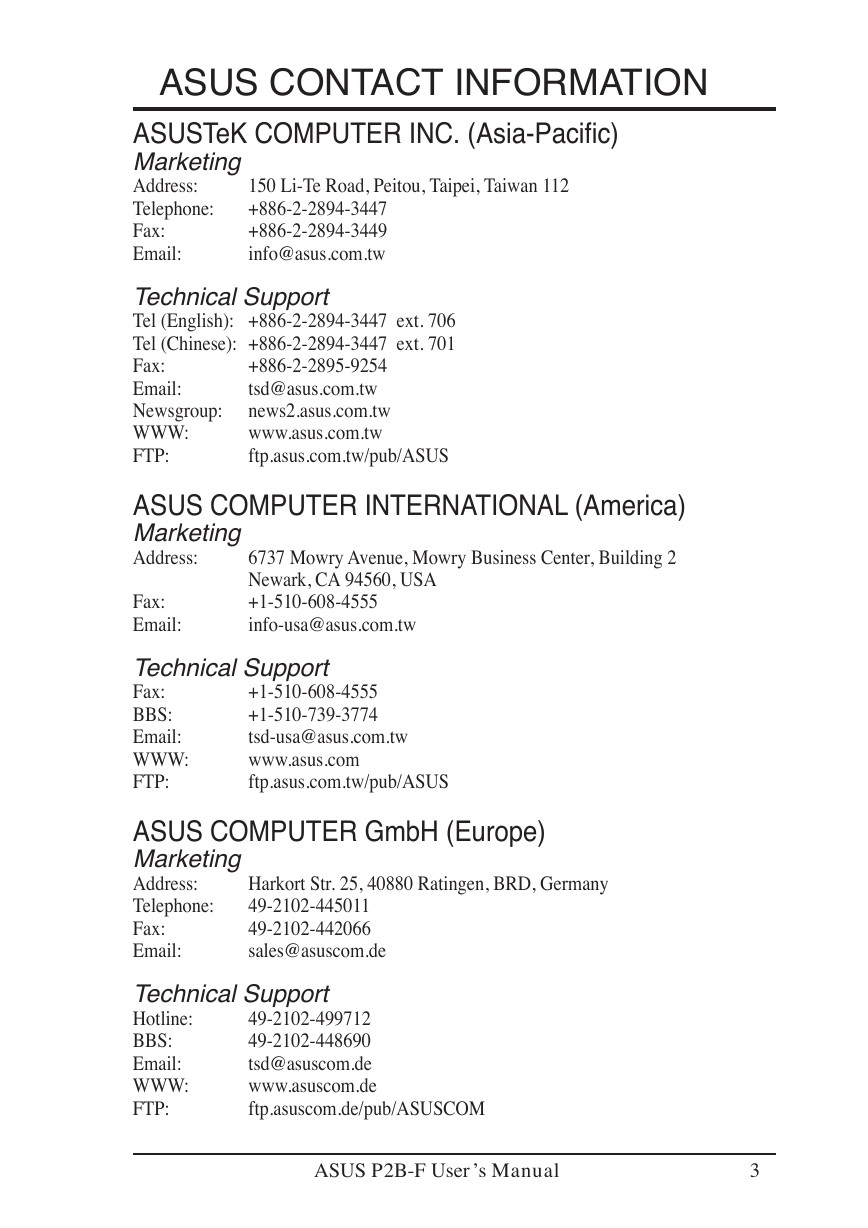

ASUS CONTACT INFORMATION ASUSTeK COMPUTER INC. (Asia-Pacific) Marketing Address: Telephone: Fax: Email: 150 Li-Te Road, Peitou, Taipei, Taiwan 112 +886-2-2894-3447 +886-2-2894-3449 info@asus.com.tw Technical Support Tel (English): +886-2-2894-3447 ext. 706 Tel (Chinese): +886-2-2894-3447 ext. 701 Fax: Email: Newsgroup: WWW: FTP: +886-2-2895-9254 tsd@asus.com.tw news2.asus.com.tw www.asus.com.tw ftp.asus.com.tw/pub/ASUS ASUS COMPUTER INTERNATIONAL (America) Marketing Address: 6737 Mowry Avenue, Mowry Business Center, Building 2 Newark, CA 94560, USA +1-510-608-4555 info-usa@asus.com.tw Fax: Email: Technical Support Fax: BBS: Email: WWW: FTP: +1-510-608-4555 +1-510-739-3774 tsd-usa@asus.com.tw www.asus.com ftp.asus.com.tw/pub/ASUS ASUS COMPUTER GmbH (Europe) Marketing Address: Telephone: Fax: Email: Harkort Str. 25, 40880 Ratingen, BRD, Germany 49-2102-445011 49-2102-442066 sales@asuscom.de Technical Support Hotline: BBS: Email: WWW: FTP: 49-2102-499712 49-2102-448690 tsd@asuscom.de www.asuscom.de ftp.asuscom.de/pub/ASUSCOM ASUS P2B-F User’s Manual 3

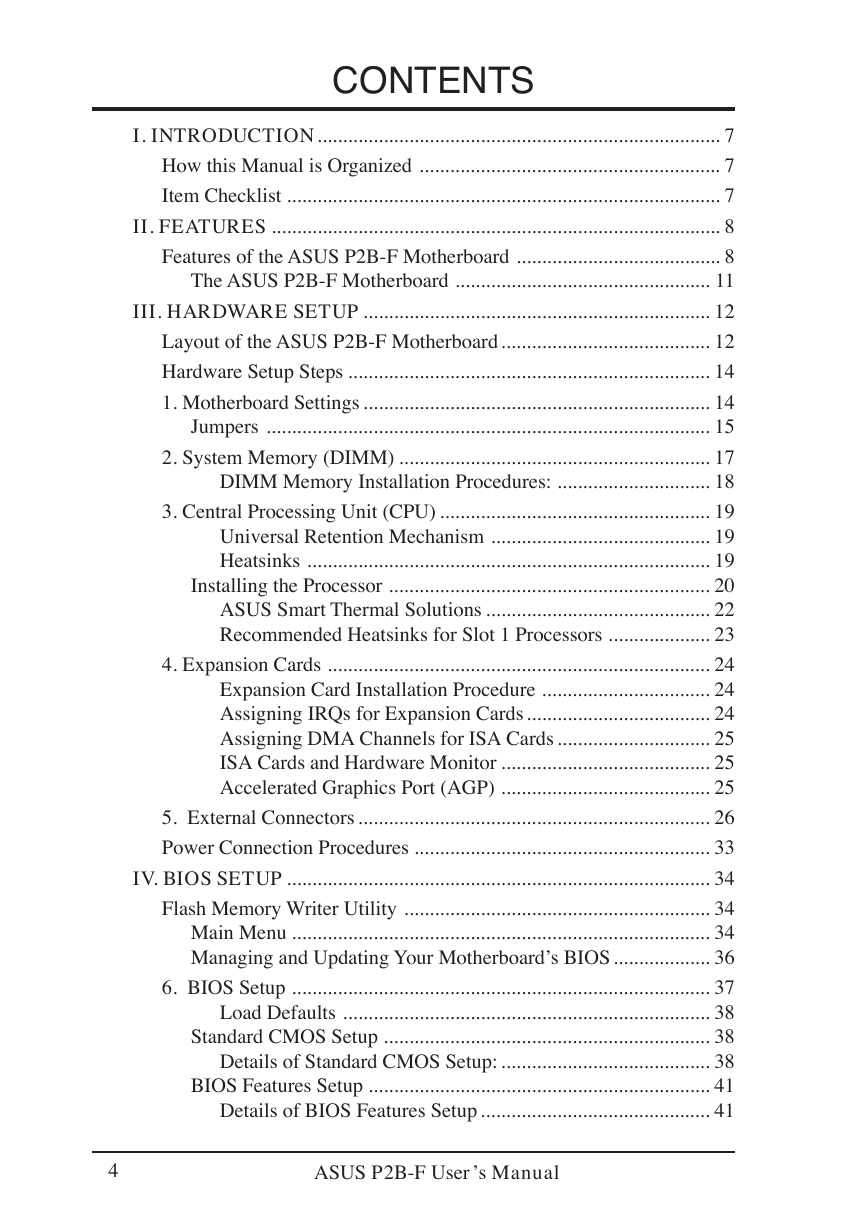

CONTENTS I. INTRODUCTION............................................................................... 7 How this Manual is Organized ........................................................... 7 Item Checklist ..................................................................................... 7 II. FEATURES ........................................................................................ 8 Features of the ASUS P2B-F Motherboard ........................................ 8 The ASUS P2B-F Motherboard .................................................. 11 III. HARDWARE SETUP .................................................................... 12 Layout of the ASUS P2B-F Motherboard......................................... 12 Hardware Setup Steps ....................................................................... 14 1. Motherboard Settings .................................................................... 14 Jumpers ....................................................................................... 15 2. System Memory (DIMM) ............................................................. 17 DIMM Memory Installation Procedures: .............................. 18 3. Central Processing Unit (CPU) ..................................................... 19 Universal Retention Mechanism ........................................... 19 Heatsinks ............................................................................... 19 Installing the Processor ............................................................... 20 ASUS Smart Thermal Solutions ............................................ 22 Recommended Heatsinks for Slot 1 Processors .................... 23 4. Expansion Cards ........................................................................... 24 Expansion Card Installation Procedure ................................. 24 Assigning IRQs for Expansion Cards.................................... 24 Assigning DMA Channels for ISA Cards .............................. 25 ISA Cards and Hardware Monitor ......................................... 25 Accelerated Graphics Port (AGP) ......................................... 25 5. External Connectors ..................................................................... 26 Power Connection Procedures .......................................................... 33 IV. BIOS SETUP ................................................................................... 34 Flash Memory Writer Utility ............................................................ 34 Main Menu .................................................................................. 34 Managing and Updating Your Motherboard’s BIOS ................... 36 6. BIOS Setup .................................................................................. 37 Load Defaults ........................................................................ 38 Standard CMOS Setup ................................................................ 38 Details of Standard CMOS Setup: ......................................... 38 BIOS Features Setup ................................................................... 41 Details of BIOS Features Setup ............................................. 41 4 ASUS P2B-F User’s Manual

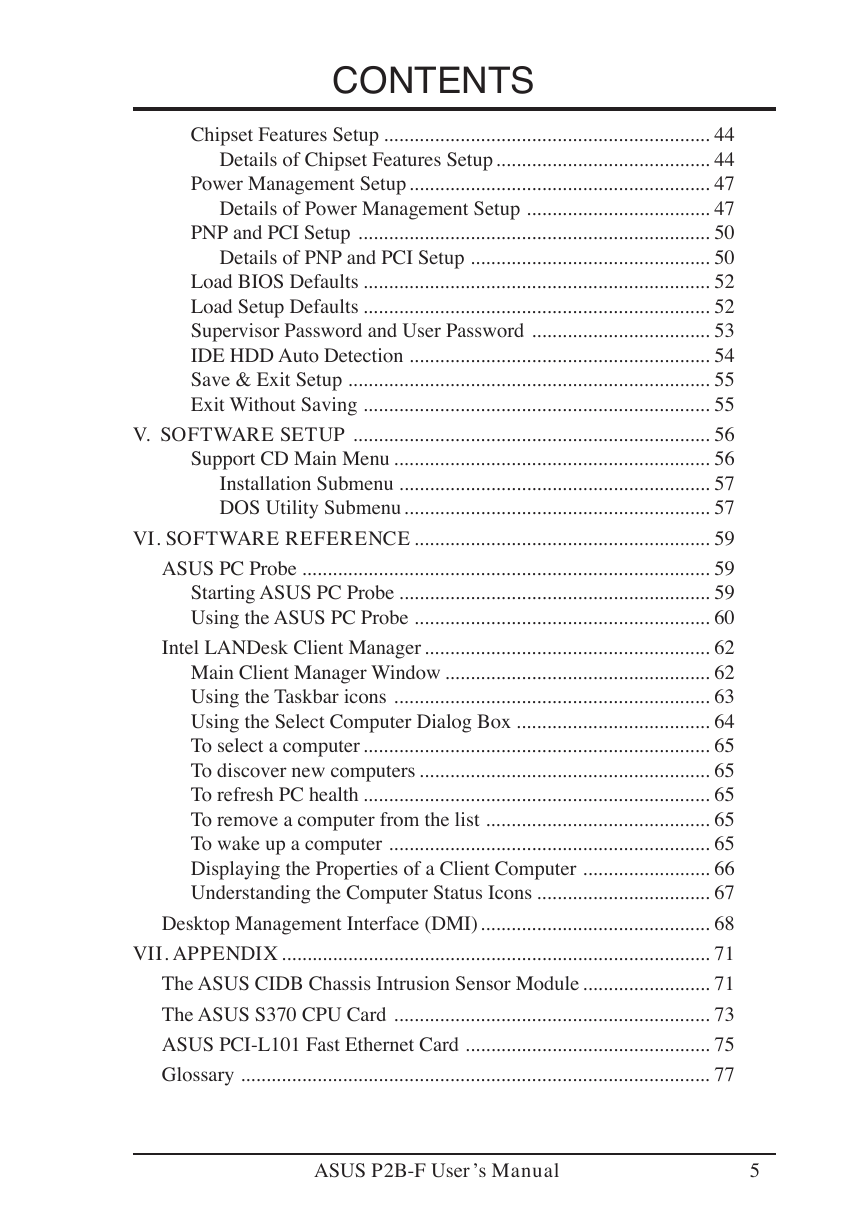

CONTENTS Chipset Features Setup ................................................................ 44 Details of Chipset Features Setup.......................................... 44 Power Management Setup........................................................... 47 Details of Power Management Setup .................................... 47 PNP and PCI Setup ..................................................................... 50 Details of PNP and PCI Setup ............................................... 50 Load BIOS Defaults .................................................................... 52 Load Setup Defaults .................................................................... 52 Supervisor Password and User Password ................................... 53 IDE HDD Auto Detection ........................................................... 54 Save & Exit Setup ....................................................................... 55 Exit Without Saving .................................................................... 55 V. SOFTWARE SETUP ...................................................................... 56 Support CD Main Menu .............................................................. 56 Installation Submenu ............................................................. 57 DOS Utility Submenu............................................................ 57 VI. SOFTWARE REFERENCE.......................................................... 59 ASUS PC Probe ................................................................................ 59 Starting ASUS PC Probe ............................................................. 59 Using the ASUS PC Probe .......................................................... 60 Intel LANDesk Client Manager ........................................................ 62 Main Client Manager Window .................................................... 62 Using the Taskbar icons .............................................................. 63 Using the Select Computer Dialog Box ...................................... 64 To select a computer .................................................................... 65 To discover new computers ......................................................... 65 To refresh PC health .................................................................... 65 To remove a computer from the list ............................................ 65 To wake up a computer ............................................................... 65 Displaying the Properties of a Client Computer ......................... 66 Understanding the Computer Status Icons .................................. 67 Desktop Management Interface (DMI)............................................. 68 VII. APPENDIX .................................................................................... 71 The ASUS CIDB Chassis Intrusion Sensor Module ......................... 71 The ASUS S370 CPU Card .............................................................. 73 ASUS PCI-L101 Fast Ethernet Card ................................................ 75 Glossary ............................................................................................ 77 ASUS P2B-F User’s Manual 5

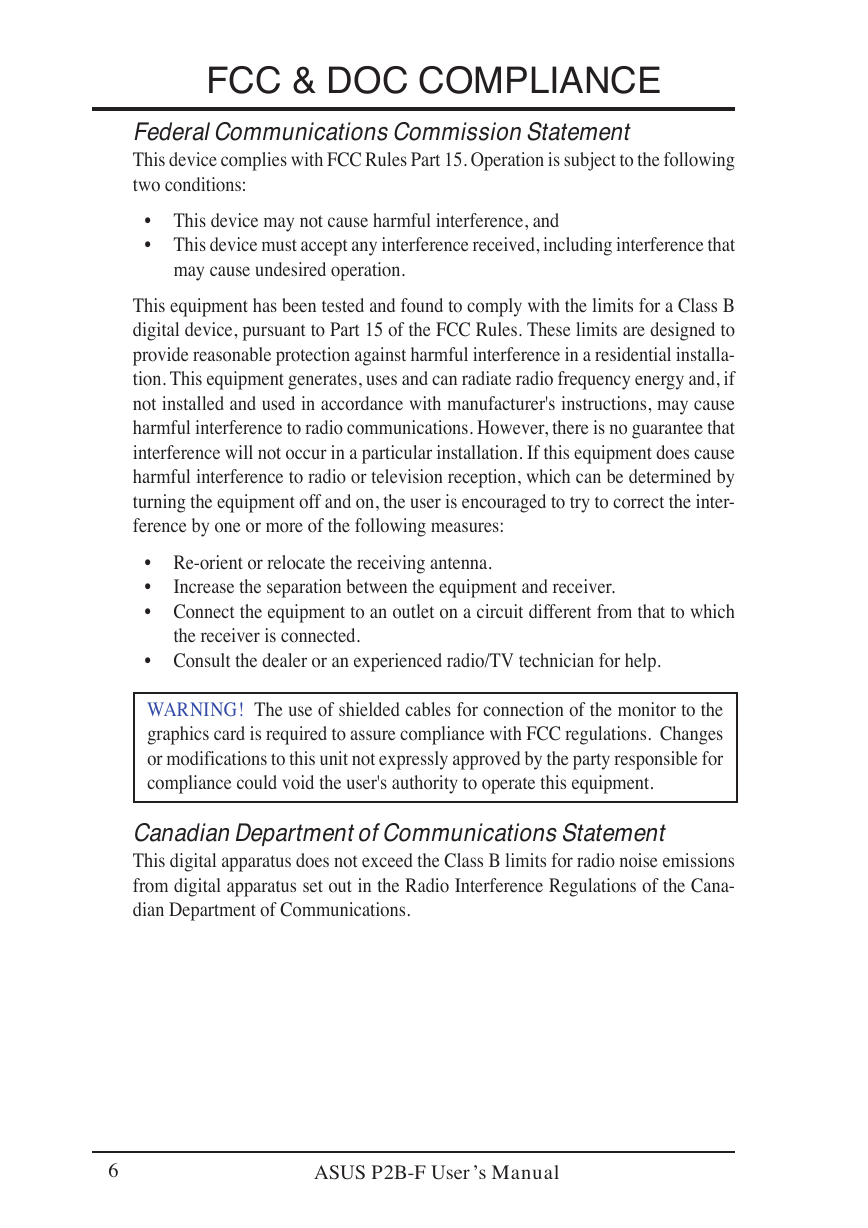

FCC & DOC COMPLIANCE Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the inter- ference by one or more of the following measures: • Re-orient or relocate the receiving antenna. • • Connect the equipment to an outlet on a circuit different from that to which Increase the separation between the equipment and receiver. the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. WARNING! The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Canadian Department of Communications Statement This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Cana- dian Department of Communications. 6 ASUS P2B-F User’s Manual

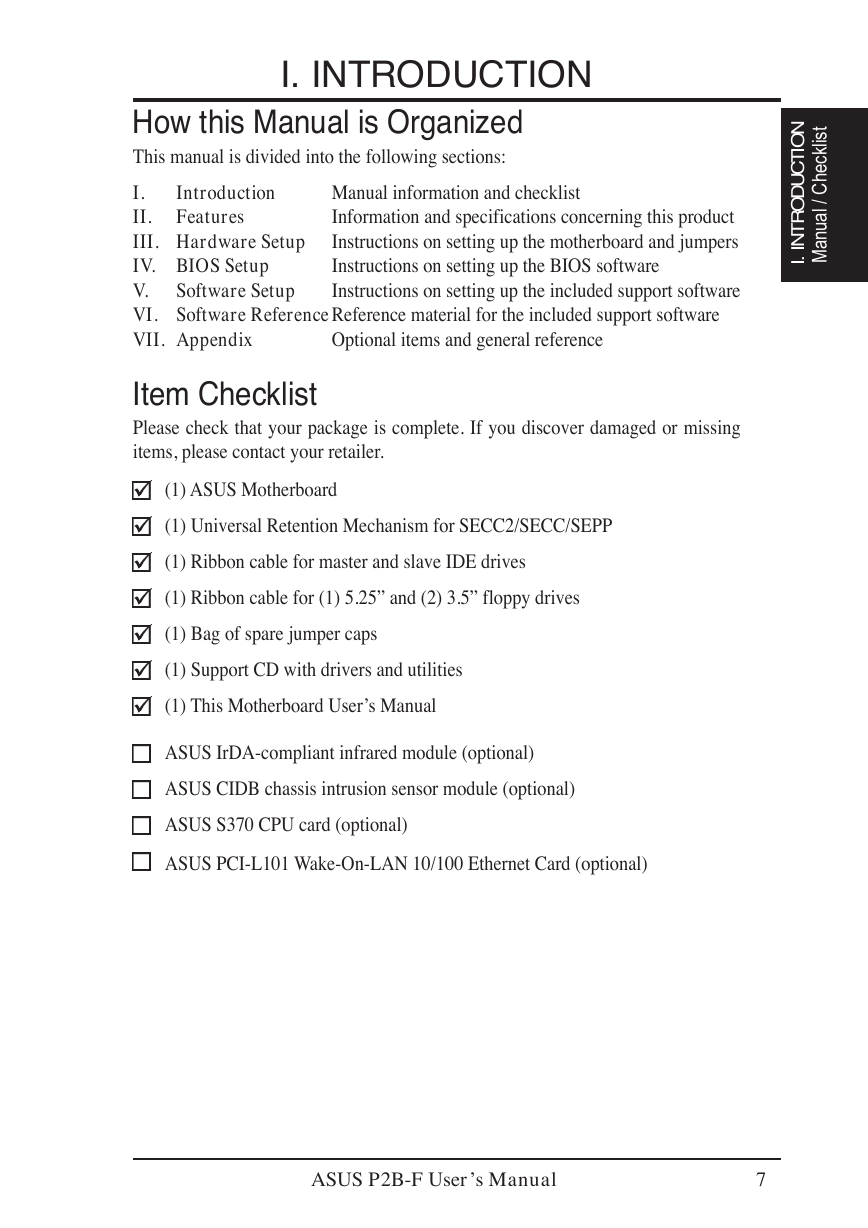

I N O T C U D O R T N I . I t s i l k c e h C / l a u n a M I. INTRODUCTION How this Manual is Organized This manual is divided into the following sections: Introduction Features I. II. III. Hardware Setup IV. BIOS Setup V. VI. Software Reference Reference material for the included support software VII. Appendix Manual information and checklist Information and specifications concerning this product Instructions on setting up the motherboard and jumpers Instructions on setting up the BIOS software Instructions on setting up the included support software Optional items and general reference Software Setup Item Checklist Please check that your package is complete. If you discover damaged or missing items, please contact your retailer. (1) ASUS Motherboard (1) Universal Retention Mechanism for SECC2/SECC/SEPP (1) Ribbon cable for master and slave IDE drives (1) Ribbon cable for (1) 5.25” and (2) 3.5” floppy drives (1) Bag of spare jumper caps (1) Support CD with drivers and utilities (1) This Motherboard User’s Manual ASUS IrDA-compliant infrared module (optional) ASUS CIDB chassis intrusion sensor module (optional) ASUS S370 CPU card (optional) ASUS PCI-L101 Wake-On-LAN 10/100 Ethernet Card (optional) ASUS P2B-F User’s Manual 7

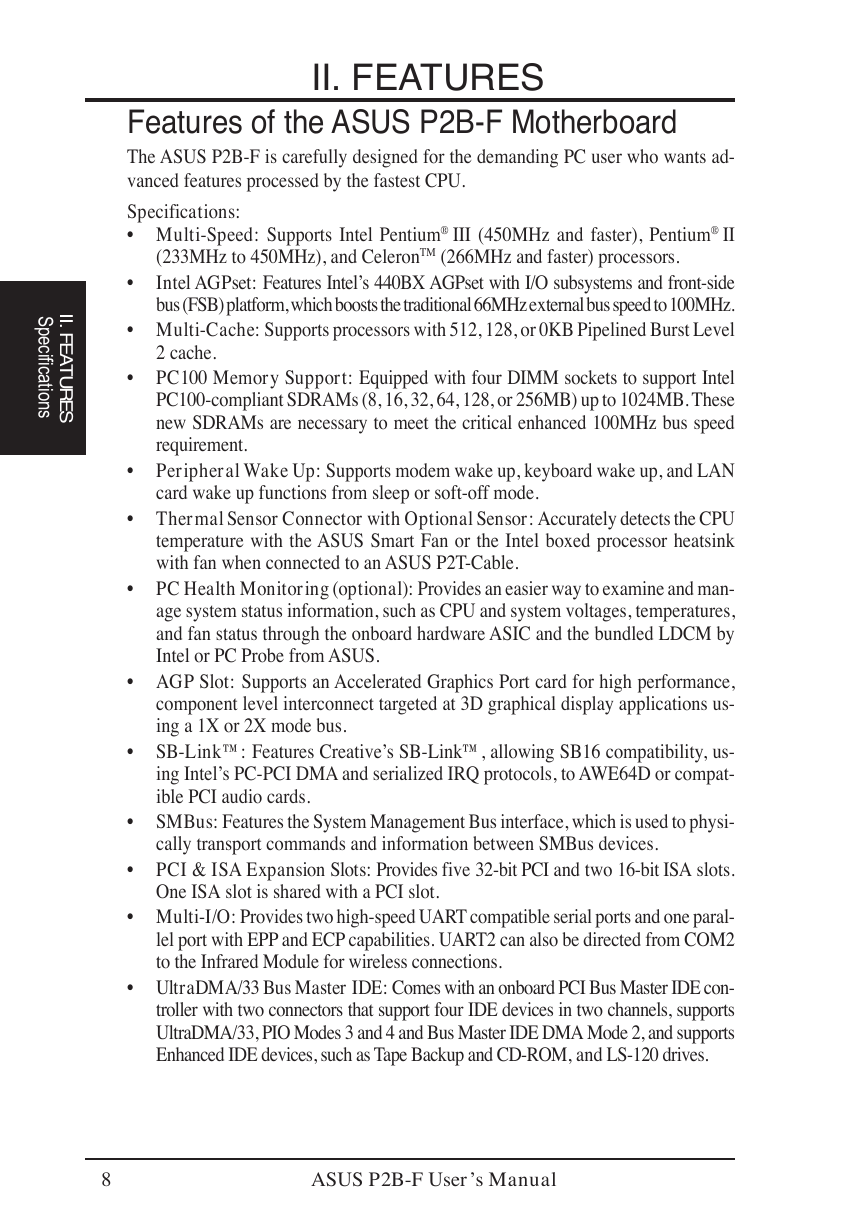

S p e c i f i c a t i o n s I I . F E A T U R E S II. FEATURES Features of the ASUS P2B-F Motherboard The ASUS P2B-F is carefully designed for the demanding PC user who wants ad- vanced features processed by the fastest CPU. Specifications: • Multi-Speed: Supports Intel Pentium® III (450MHz and faster), Pentium® II (233MHz to 450MHz), and CeleronTM (266MHz and faster) processors. Intel AGPset: Features Intel’s 440BX AGPset with I/O subsystems and front-side bus (FSB) platform, which boosts the traditional 66MHz external bus speed to 100MHz. • Multi-Cache: Supports processors with 512, 128, or 0KB Pipelined Burst Level • • • 2 cache. PC100 Memory Support: Equipped with four DIMM sockets to support Intel PC100-compliant SDRAMs (8, 16, 32, 64, 128, or 256MB) up to 1024MB. These new SDRAMs are necessary to meet the critical enhanced 100MHz bus speed requirement. Peripheral Wake Up: Supports modem wake up, keyboard wake up, and LAN card wake up functions from sleep or soft-off mode. • Thermal Sensor Connector with Optional Sensor: Accurately detects the CPU temperature with the ASUS Smart Fan or the Intel boxed processor heatsink with fan when connected to an ASUS P2T-Cable. PC Health Monitoring (optional): Provides an easier way to examine and man- age system status information, such as CPU and system voltages, temperatures, and fan status through the onboard hardware ASIC and the bundled LDCM by Intel or PC Probe from ASUS. • • • AGP Slot: Supports an Accelerated Graphics Port card for high performance, component level interconnect targeted at 3D graphical display applications us- ing a 1X or 2X mode bus. SB-Link™: Features Creative’s SB-Link™, allowing SB16 compatibility, us- ing Intel’s PC-PCI DMA and serialized IRQ protocols, to AWE64D or compat- ible PCI audio cards. SMBus: Features the System Management Bus interface, which is used to physi- cally transport commands and information between SMBus devices. PCI & ISA Expansion Slots: Provides five 32-bit PCI and two 16-bit ISA slots. One ISA slot is shared with a PCI slot. • • • Multi-I/O: Provides two high-speed UART compatible serial ports and one paral- lel port with EPP and ECP capabilities. UART2 can also be directed from COM2 to the Infrared Module for wireless connections. • UltraDMA/33 Bus Master IDE: Comes with an onboard PCI Bus Master IDE con- troller with two connectors that support four IDE devices in two channels, supports UltraDMA/33, PIO Modes 3 and 4 and Bus Master IDE DMA Mode 2, and supports Enhanced IDE devices, such as Tape Backup and CD-ROM, and LS-120 drives. 8 ASUS P2B-F User’s Manual
