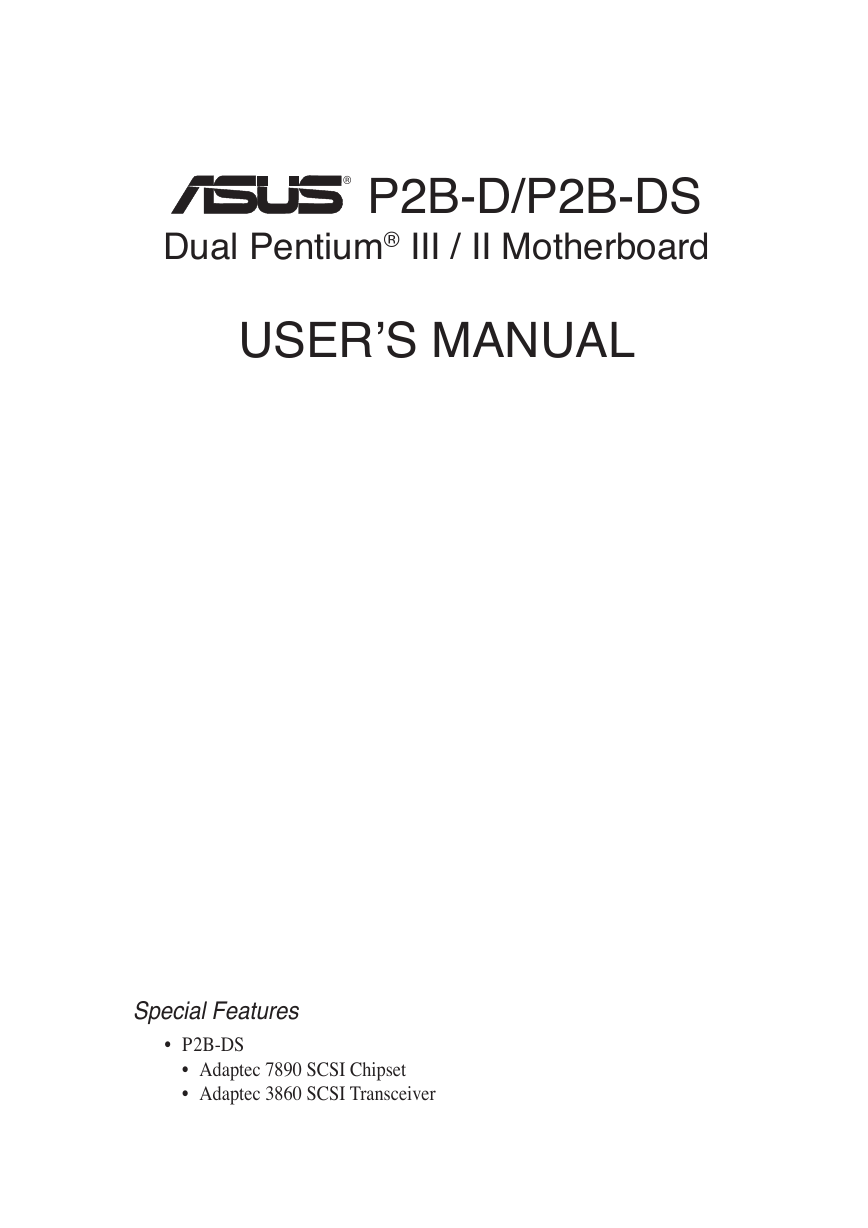

® P2B-D/P2B-DS Dual Pentium® III / II Motherboard USER’S MANUAL Special Features • P2B-DS • Adaptec 7890 SCSI Chipset • Adaptec 3860 SCSI Transceiver

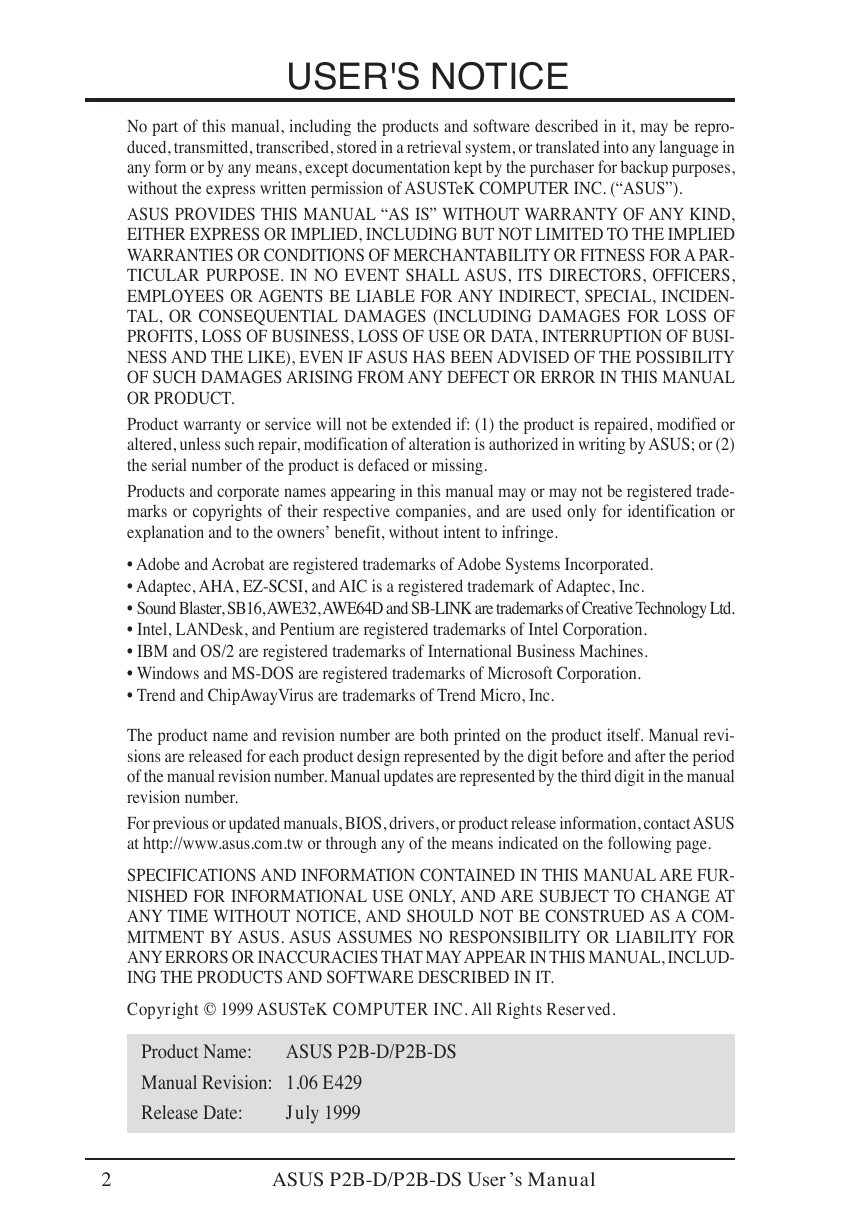

USER'S NOTICE No part of this manual, including the products and software described in it, may be repro- duced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”). ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PAR- TICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDEN- TAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSI- NESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT. Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. Products and corporate names appearing in this manual may or may not be registered trade- marks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. • Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated. • Adaptec, AHA, EZ-SCSI, and AIC is a registered trademark of Adaptec, Inc. • Sound Blaster, SB16, AWE32, AWE64D and SB-LINK are trademarks of Creative Technology Ltd. • Intel, LANDesk, and Pentium are registered trademarks of Intel Corporation. • IBM and OS/2 are registered trademarks of International Business Machines. • Windows and MS-DOS are registered trademarks of Microsoft Corporation. • Trend and ChipAwayVirus are trademarks of Trend Micro, Inc. The product name and revision number are both printed on the product itself. Manual revi- sions are released for each product design represented by the digit before and after the period of the manual revision number. Manual updates are represented by the third digit in the manual revision number. For previous or updated manuals, BIOS, drivers, or product release information, contact ASUS at http://www.asus.com.tw or through any of the means indicated on the following page. SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FUR- NISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COM- MITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUD- ING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Copyright © 1999 ASUSTeK COMPUTER INC. All Rights Reserved. ASUS P2B-D/P2B-DS Product Name: Manual Revision: 1.06 E429 July 1999 Release Date: 2 ASUS P2B-D/P2B-DS User’s Manual

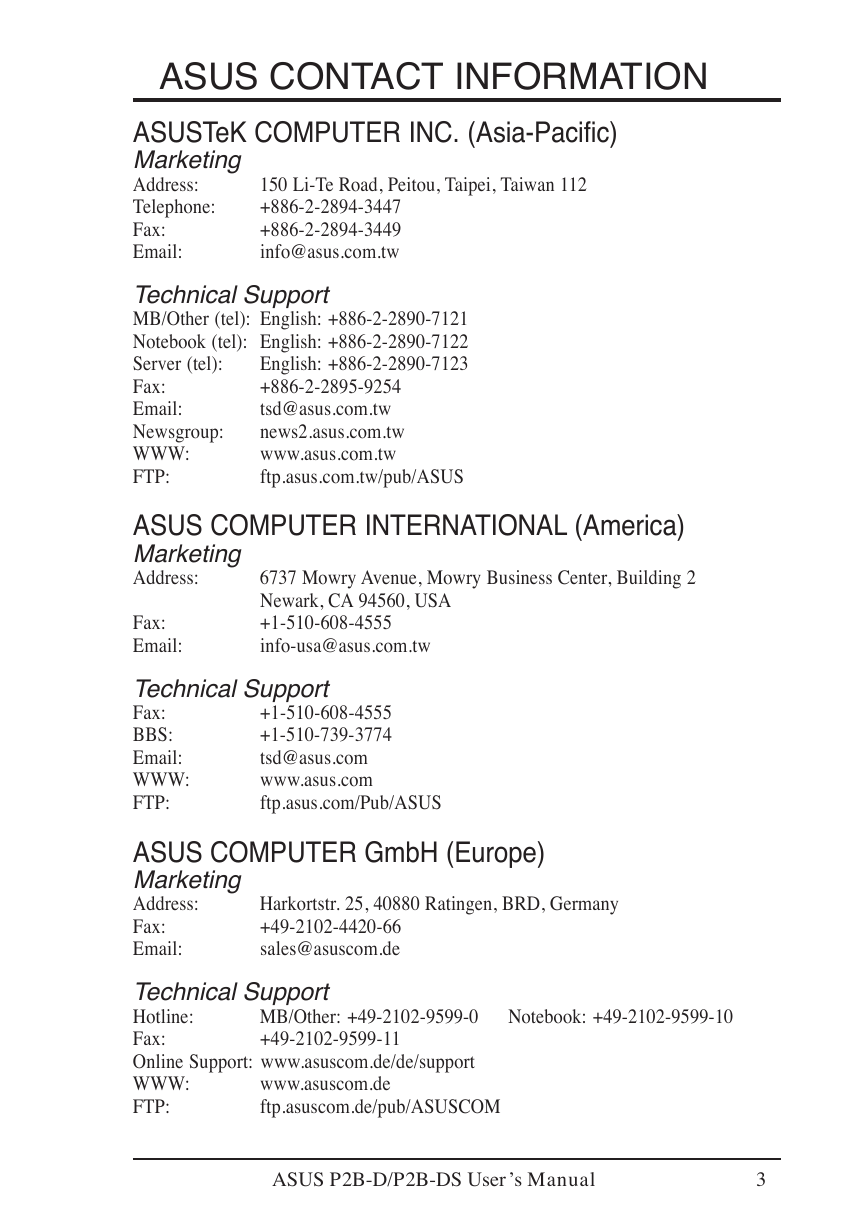

ASUS CONTACT INFORMATION ASUSTeK COMPUTER INC. (Asia-Pacific) Marketing Address: Telephone: Fax: Email: 150 Li-Te Road, Peitou, Taipei, Taiwan 112 +886-2-2894-3447 +886-2-2894-3449 info@asus.com.tw Technical Support MB/Other (tel): English: +886-2-2890-7121 Notebook (tel): English: +886-2-2890-7122 English: +886-2-2890-7123 Server (tel): +886-2-2895-9254 Fax: Email: tsd@asus.com.tw news2.asus.com.tw Newsgroup: www.asus.com.tw WWW: FTP: ftp.asus.com.tw/pub/ASUS ASUS COMPUTER INTERNATIONAL (America) Marketing Address: 6737 Mowry Avenue, Mowry Business Center, Building 2 Newark, CA 94560, USA +1-510-608-4555 info-usa@asus.com.tw Fax: Email: Technical Support Fax: BBS: Email: WWW: FTP: +1-510-608-4555 +1-510-739-3774 tsd@asus.com www.asus.com ftp.asus.com/Pub/ASUS ASUS COMPUTER GmbH (Europe) Marketing Address: Fax: Email: Harkortstr. 25, 40880 Ratingen, BRD, Germany +49-2102-4420-66 sales@asuscom.de Technical Support Hotline: Fax: Online Support: www.asuscom.de/de/support WWW: FTP: MB/Other: +49-2102-9599-0 +49-2102-9599-11 www.asuscom.de ftp.asuscom.de/pub/ASUSCOM Notebook: +49-2102-9599-10 ASUS P2B-D/P2B-DS User’s Manual 3

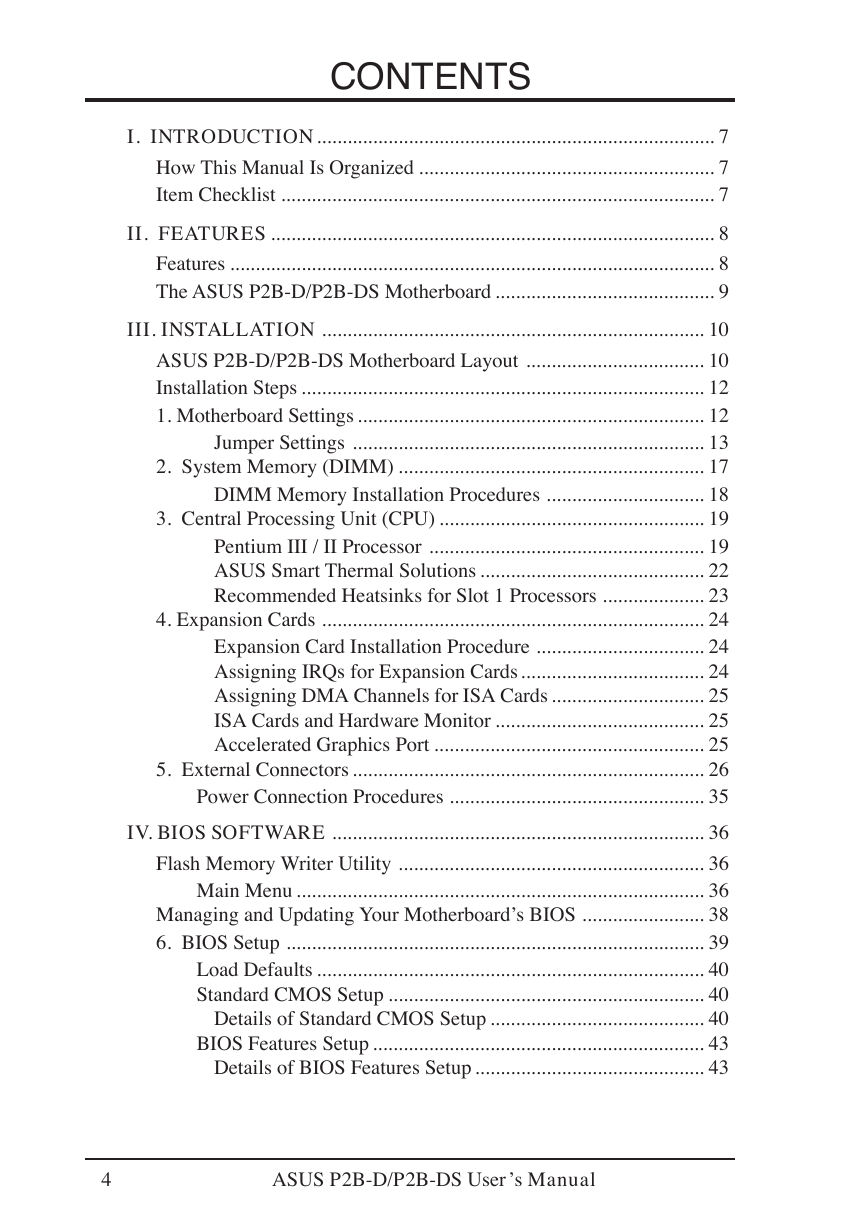

CONTENTS I. INTRODUCTION .............................................................................. 7 How This Manual Is Organized .......................................................... 7 Item Checklist ..................................................................................... 7 II. FEATURES ....................................................................................... 8 Features ............................................................................................... 8 The ASUS P2B-D/P2B-DS Motherboard ........................................... 9 III. INSTALLATION ........................................................................... 10 ASUS P2B-D/P2B-DS Motherboard Layout ................................... 10 Installation Steps ............................................................................... 12 1. Motherboard Settings .................................................................... 12 Jumper Settings ..................................................................... 13 2. System Memory (DIMM) ............................................................ 17 DIMM Memory Installation Procedures ............................... 18 3. Central Processing Unit (CPU) .................................................... 19 Pentium III / II Processor ...................................................... 19 ASUS Smart Thermal Solutions ............................................ 22 Recommended Heatsinks for Slot 1 Processors .................... 23 4. Expansion Cards ........................................................................... 24 Expansion Card Installation Procedure ................................. 24 Assigning IRQs for Expansion Cards.................................... 24 Assigning DMA Channels for ISA Cards .............................. 25 ISA Cards and Hardware Monitor ......................................... 25 Accelerated Graphics Port ..................................................... 25 5. External Connectors ..................................................................... 26 Power Connection Procedures .................................................. 35 IV. BIOS SOFTWARE ......................................................................... 36 Flash Memory Writer Utility ............................................................ 36 Main Menu ................................................................................ 36 Managing and Updating Your Motherboard’s BIOS ........................ 38 6. BIOS Setup .................................................................................. 39 Load Defaults ............................................................................ 40 Standard CMOS Setup .............................................................. 40 Details of Standard CMOS Setup .......................................... 40 BIOS Features Setup ................................................................. 43 Details of BIOS Features Setup ............................................. 43 4 ASUS P2B-D/P2B-DS User’s Manual

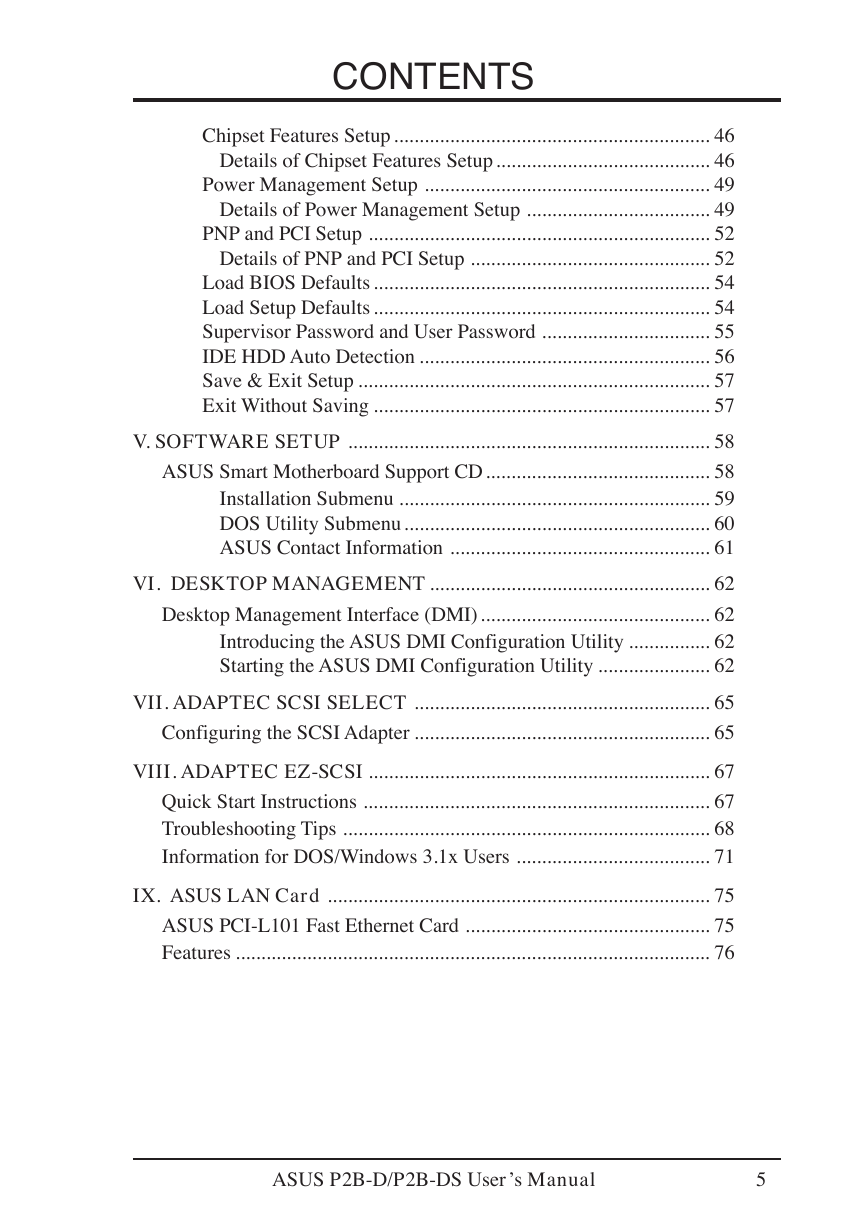

CONTENTS Chipset Features Setup .............................................................. 46 Details of Chipset Features Setup .......................................... 46 Power Management Setup ........................................................ 49 Details of Power Management Setup .................................... 49 PNP and PCI Setup ................................................................... 52 Details of PNP and PCI Setup ............................................... 52 Load BIOS Defaults .................................................................. 54 Load Setup Defaults .................................................................. 54 Supervisor Password and User Password ................................. 55 IDE HDD Auto Detection ......................................................... 56 Save & Exit Setup ..................................................................... 57 Exit Without Saving .................................................................. 57 V. SOFTWARE SETUP ....................................................................... 58 ASUS Smart Motherboard Support CD............................................ 58 Installation Submenu ............................................................. 59 DOS Utility Submenu............................................................ 60 ASUS Contact Information ................................................... 61 VI. DESKTOP MANAGEMENT ....................................................... 62 Desktop Management Interface (DMI)............................................. 62 Introducing the ASUS DMI Configuration Utility ................ 62 Starting the ASUS DMI Configuration Utility ...................... 62 VII. ADAPTEC SCSI SELECT .......................................................... 65 Configuring the SCSI Adapter .......................................................... 65 VIII. ADAPTEC EZ-SCSI ................................................................... 67 Quick Start Instructions .................................................................... 67 Troubleshooting Tips ........................................................................ 68 Information for DOS/Windows 3.1x Users ...................................... 71 IX. ASUS LAN Card ........................................................................... 75 ASUS PCI-L101 Fast Ethernet Card ................................................ 75 Features ............................................................................................. 76 ASUS P2B-D/P2B-DS User’s Manual 5

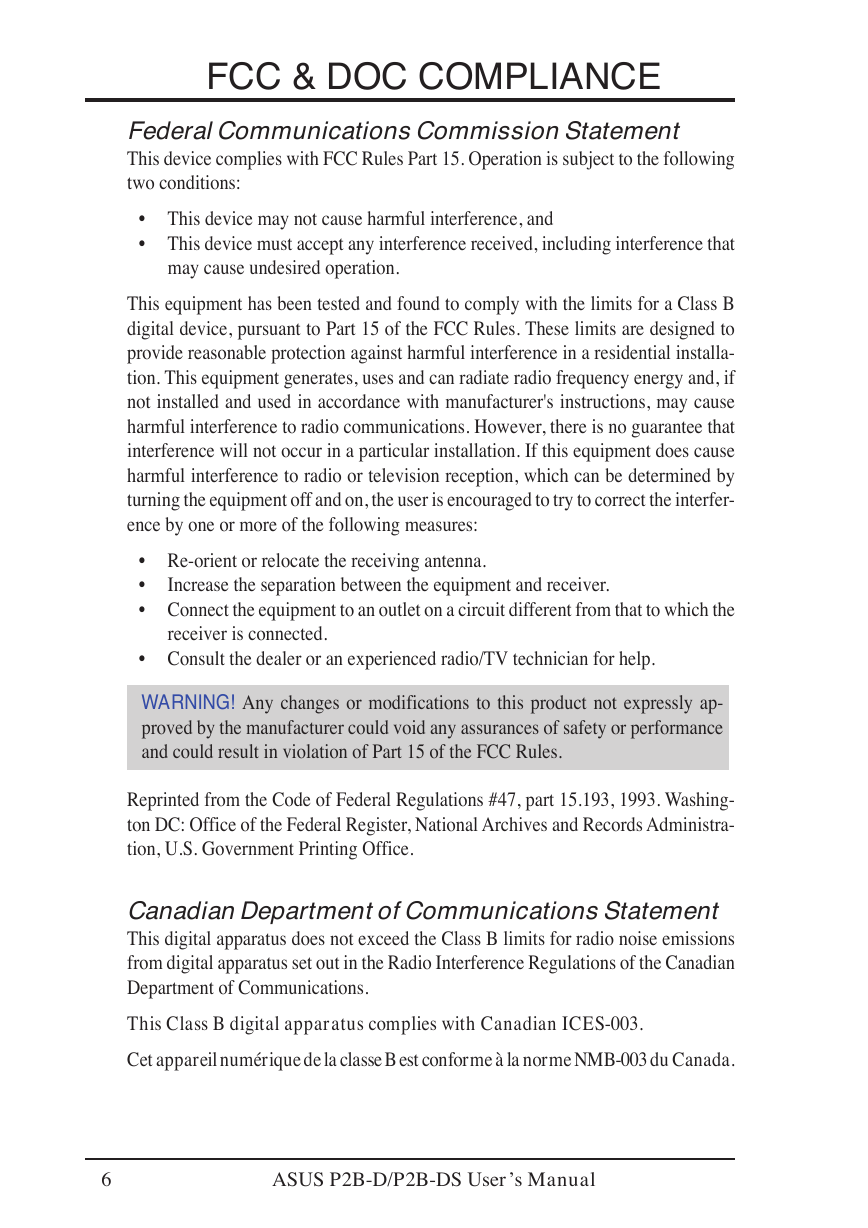

FCC & DOC COMPLIANCE Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interfer- ence by one or more of the following measures: • Re-orient or relocate the receiving antenna. • • Connect the equipment to an outlet on a circuit different from that to which the Increase the separation between the equipment and receiver. receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. WARNING! Any changes or modifications to this product not expressly ap- proved by the manufacturer could void any assurances of safety or performance and could result in violation of Part 15 of the FCC Rules. Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washing- ton DC: Office of the Federal Register, National Archives and Records Administra- tion, U.S. Government Printing Office. Canadian Department of Communications Statement This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. 6 ASUS P2B-D/P2B-DS User’s Manual

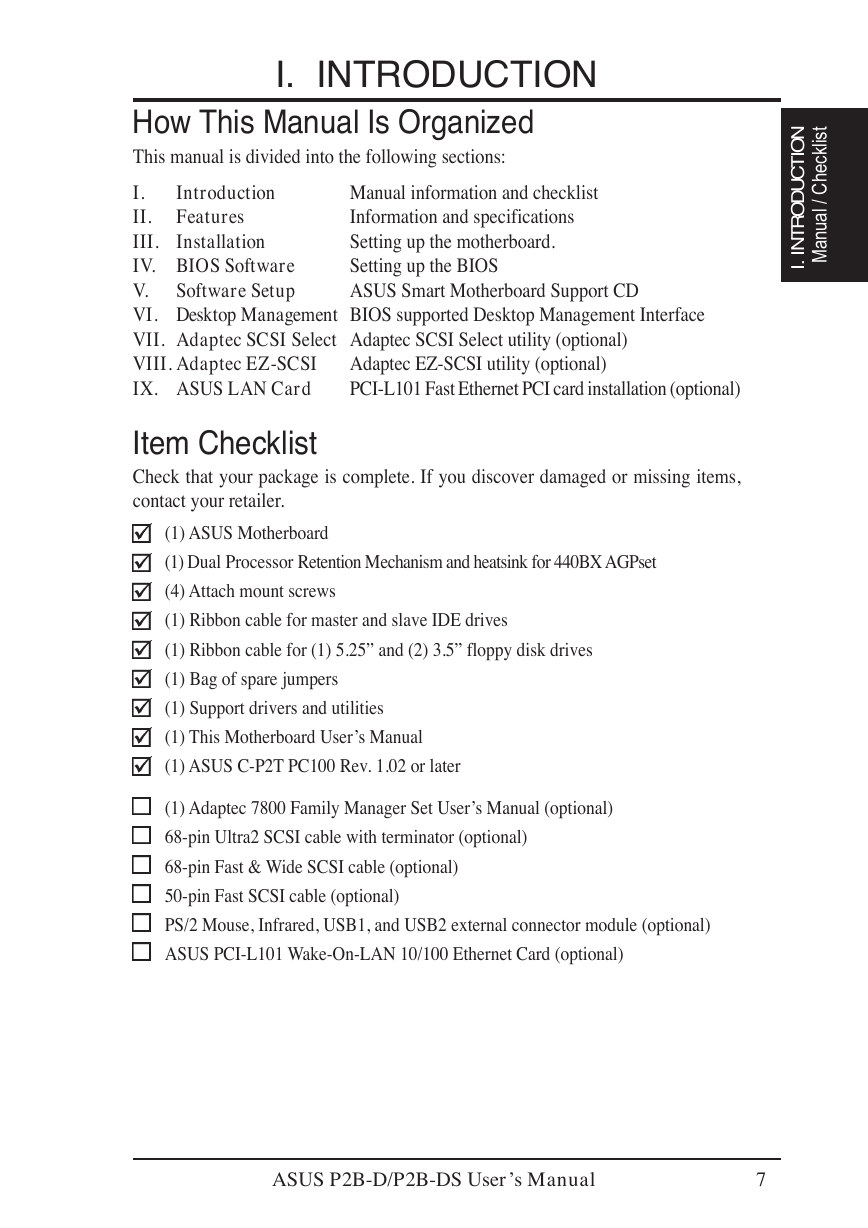

t s i l I N O T C U D O R T N I . I k c e h C / l a u n a M I. INTRODUCTION How This Manual Is Organized This manual is divided into the following sections: Introduction Features Installation Manual information and checklist Information and specifications Setting up the motherboard. Setting up the BIOS ASUS Smart Motherboard Support CD I. II. III. IV. BIOS Software V. Software Setup VI. Desktop Management BIOS supported Desktop Management Interface VII. Adaptec SCSI Select Adaptec SCSI Select utility (optional) VIII. Adaptec EZ-SCSI IX. ASUS LAN Card Adaptec EZ-SCSI utility (optional) PCI-L101 Fast Ethernet PCI card installation (optional) Item Checklist Check that your package is complete. If you discover damaged or missing items, contact your retailer. (1) ASUS Motherboard (1) Dual Processor Retention Mechanism and heatsink for 440BX AGPset (4) Attach mount screws (1) Ribbon cable for master and slave IDE drives (1) Ribbon cable for (1) 5.25” and (2) 3.5” floppy disk drives (1) Bag of spare jumpers (1) Support drivers and utilities (1) This Motherboard User’s Manual (1) ASUS C-P2T PC100 Rev. 1.02 or later (1) Adaptec 7800 Family Manager Set User’s Manual (optional) 68-pin Ultra2 SCSI cable with terminator (optional) 68-pin Fast & Wide SCSI cable (optional) 50-pin Fast SCSI cable (optional) PS/2 Mouse, Infrared, USB1, and USB2 external connector module (optional) ASUS PCI-L101 Wake-On-LAN 10/100 Ethernet Card (optional) ASUS P2B-D/P2B-DS User’s Manual 7

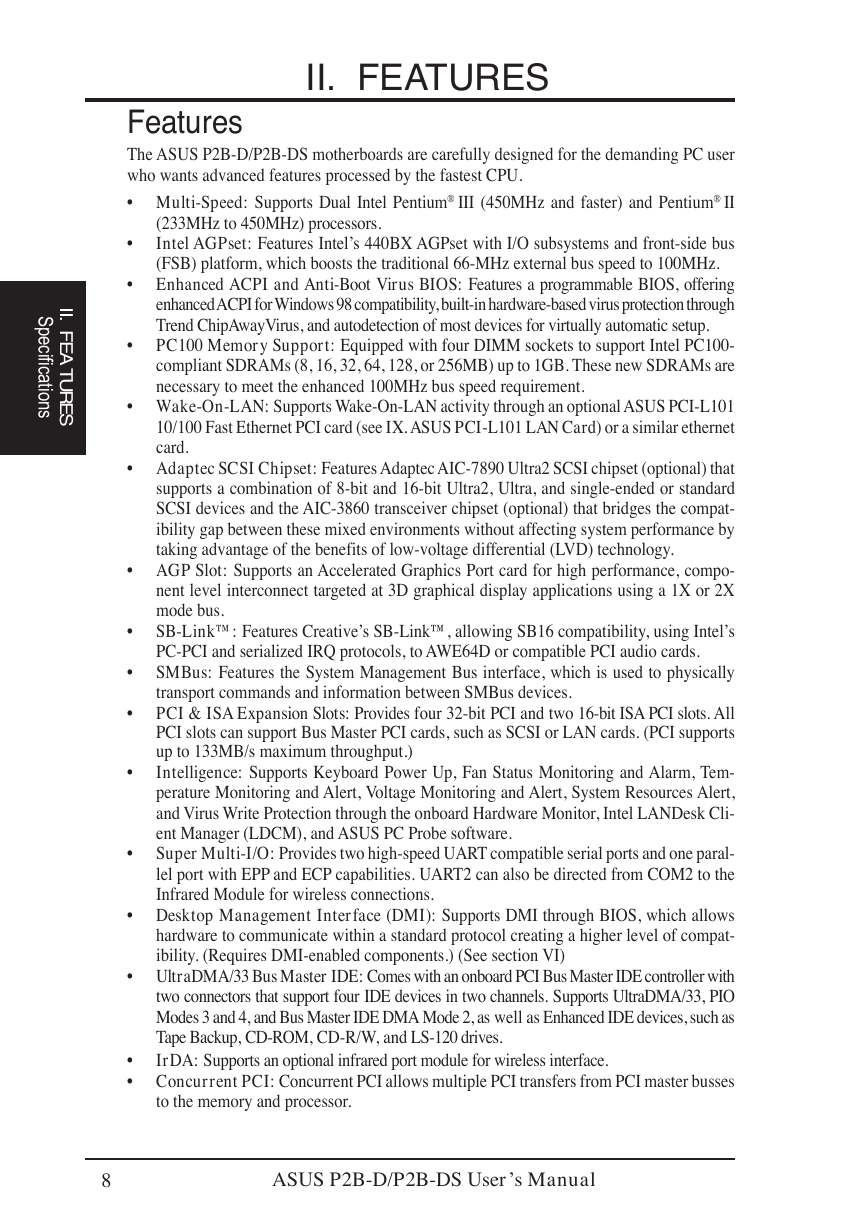

S p e c i f i c a t i o n s I I . F E A T U R E S II. FEATURES Features The ASUS P2B-D/P2B-DS motherboards are carefully designed for the demanding PC user who wants advanced features processed by the fastest CPU. • Multi-Speed: Supports Dual Intel Pentium® III (450MHz and faster) and Pentium® II • • • • • (233MHz to 450MHz) processors. Intel AGPset: Features Intel’s 440BX AGPset with I/O subsystems and front-side bus (FSB) platform, which boosts the traditional 66-MHz external bus speed to 100MHz. Enhanced ACPI and Anti-Boot Virus BIOS: Features a programmable BIOS, offering enhanced ACPI for Windows 98 compatibility, built-in hardware-based virus protection through Trend ChipAwayVirus, and autodetection of most devices for virtually automatic setup. PC100 Memory Support: Equipped with four DIMM sockets to support Intel PC100- compliant SDRAMs (8, 16, 32, 64, 128, or 256MB) up to 1GB. These new SDRAMs are necessary to meet the enhanced 100MHz bus speed requirement. • • • Wake-On-LAN: Supports Wake-On-LAN activity through an optional ASUS PCI-L101 10/100 Fast Ethernet PCI card (see IX. ASUS PCI-L101 LAN Card) or a similar ethernet card. • Adaptec SCSI Chipset: Features Adaptec AIC-7890 Ultra2 SCSI chipset (optional) that supports a combination of 8-bit and 16-bit Ultra2, Ultra, and single-ended or standard SCSI devices and the AIC-3860 transceiver chipset (optional) that bridges the compat- ibility gap between these mixed environments without affecting system performance by taking advantage of the benefits of low-voltage differential (LVD) technology. • AGP Slot: Supports an Accelerated Graphics Port card for high performance, compo- nent level interconnect targeted at 3D graphical display applications using a 1X or 2X mode bus. SB-Link™: Features Creative’s SB-Link™, allowing SB16 compatibility, using Intel’s PC-PCI and serialized IRQ protocols, to AWE64D or compatible PCI audio cards. SMBus: Features the System Management Bus interface, which is used to physically transport commands and information between SMBus devices. PCI & ISA Expansion Slots: Provides four 32-bit PCI and two 16-bit ISA PCI slots. All PCI slots can support Bus Master PCI cards, such as SCSI or LAN cards. (PCI supports up to 133MB/s maximum throughput.) Intelligence: Supports Keyboard Power Up, Fan Status Monitoring and Alarm, Tem- perature Monitoring and Alert, Voltage Monitoring and Alert, System Resources Alert, and Virus Write Protection through the onboard Hardware Monitor, Intel LANDesk Cli- ent Manager (LDCM), and ASUS PC Probe software. Super Multi-I/O: Provides two high-speed UART compatible serial ports and one paral- lel port with EPP and ECP capabilities. UART2 can also be directed from COM2 to the Infrared Module for wireless connections. • Desktop Management Interface (DMI): Supports DMI through BIOS, which allows hardware to communicate within a standard protocol creating a higher level of compat- ibility. (Requires DMI-enabled components.) (See section VI) • UltraDMA/33 Bus Master IDE: Comes with an onboard PCI Bus Master IDE controller with two connectors that support four IDE devices in two channels. Supports UltraDMA/33, PIO Modes 3 and 4, and Bus Master IDE DMA Mode 2, as well as Enhanced IDE devices, such as Tape Backup, CD-ROM, CD-R/W, and LS-120 drives. IrDA: Supports an optional infrared port module for wireless interface. • • Concurrent PCI: Concurrent PCI allows multiple PCI transfers from PCI master busses • to the memory and processor. 8 ASUS P2B-D/P2B-DS User’s Manual
