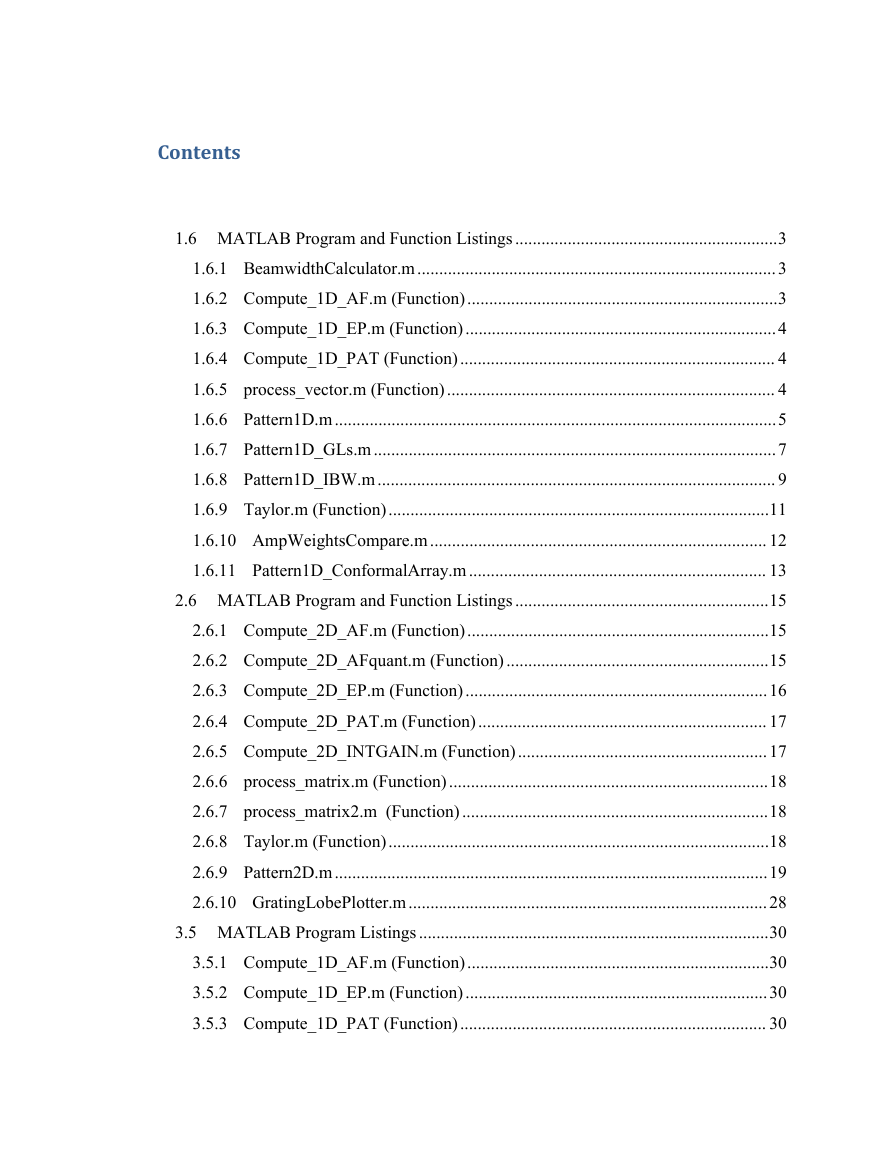

Contents
1.4 MATLAB Program and Function Listings............................................................3
1.5....................................................................................................................................3
1.6 MATLAB Program and Function Listings............................................................3
1.6.1 BeamwidthCalculator.m..................................................................................3
1.6.2 Compute_1D_AF.m (Function).......................................................................3
1.6.3 Compute_1D_EP.m (Function).......................................................................4
1.6.4 Compute_1D_PAT (Function)........................................................................ 4
1.6.5 process_vector.m (Function)........................................................................... 4
1.6.6 Pattern1D.m.....................................................................................................5
1.6.7 Pattern1D_GLs.m............................................................................................7
1.6.8 Pattern1D_IBW.m........................................................................................... 9
1.6.9 Taylor.m (Function).......................................................................................11
1.6.10 AmpWeightsCompare.m............................................................................. 12
1.6.11 Pattern1D_ConformalArray.m.................................................................... 13
2.6 MATLAB Program and Function Listings..........................................................15
2.6.1 Compute_2D_AF.m (Function).....................................................................15
2.6.2 Compute_2D_AFquant.m (Function)............................................................15
2.6.3 Compute_2D_EP.m (Function).....................................................................16
2.6.4 Compute_2D_PAT.m (Function).................................................................. 17
2.6.5 Compute_2D_INTGAIN.m (Function).........................................................17
2.6.6 process_matrix.m (Function).........................................................................18
2.6.7 process_matrix2.m (Function)......................................................................18
2.6.8 Taylor.m (Function).......................................................................................18
2.6.9 Pattern2D.m...................................................................................................19
2.6.10 GratingLobePlotter.m..................................................................................28
3.5 MATLAB Program Listings................................................................................30
3.5.1 Compute_1D_AF.m (Function).....................................................................30
3.5.2 Compute_1D_EP.m (Function).....................................................................30
3.5.3 Compute_1D_PAT (Function)...................................................................... 30
3.5.4 process_vector.m (Function)......................................................................... 31
3.5.5 Taylor.m (Function).......................................................................................31
3.5.6 Subarray1D.m................................................................................................32
3.5.7 Subarray1D_DBF.m......................................................................................35
3.5.8 Subarray1D_Overlapped.m........................................................................... 38
4.4 MATLAB Program and Function Listings..........................................................43
4.4.1 simpleCostFunction.m...................................................................................43
4.4.2 simpleGA_AmpTaperEx.m...........................................................................44
4.4.3 simpleGA_FlattopEx.m.................................................................................49
4.4.4 simpleGA_PhaseOnlyEx.m...........................................................................54
4.4.5 simplePS_AmpTaperEx.m............................................................................ 59
4.4.6 simplePS_FlattopEx.m.................................................................................. 63
4.4.7 simplePS_PhaseOnlyEx.m............................................................................ 67
5.6 MATLAB Program Listings................................................................................72
5.6.1 defineOrbit.m.................................................................................................72
5.6.2 defineEarth.m................................................................................................ 75
5.6.3 makeEllipse.m............................................................................................... 75
5.6.4 defineESA.m..................................................................................................76
5.6.5 los2ecef.m......................................................................................................77
5.6.6 computeHorizon.m........................................................................................ 77
5.6.7 computeFOV.m............................................................................................. 78
5.6.8 main_example1.m..........................................................................................80
5.6.9 main_example2.m..........................................................................................81
5.6.10 main_example3.m........................................................................................82
6.6 MATLAB Program Listings................................................................................86
6.6.1 Reliability Code.............................................................................................86
1.4 MATLAB Program and Function Listings
1.5
1.6 MATLAB Program and Function Listings
This section contains a listing of all MATLAB programs and functions used in this
chapter.
1.6.1 BeamwidthCalculator.m
%% This Code Plots Beamwidth vs. Frequency and Scan Angle
% Arik D. Brown
%% Input Parameters
BW.k=0.886;%Beamwidth Factor (radians)
BW.f_vec=[1 5 10 15];%Frequency in GHZ
BW.lambda_vec=0.3./BW.f_vec;%meters
BW.L=1;%Aperture Length in meters
BW.thetao_vec=0:5:60;%Degrees
%% Calculate Beamwidths
[BW.lambda_mat BW.thetao_mat]=meshgrid(BW.lambda_vec,BW.thetao_vec);
BW.mat_rad=BW.k*BW.lambda_mat./(BW.L*cosd(BW.thetao_mat));
BW.mat_deg=BW.mat_rad*180/pi;
%% Plot
figure(1),clf
plot(BW.thetao_mat,BW.mat_deg,'linewidth',2)
grid
set(gca,'fontsize',16,'fontweight','b')
xlabel('Scan Angle (Degrees)','fontsize',16,'fontweight','b')
ylabel('Beamwidth (degrees)','fontsize',16,'fontweight','b')
legend('1 GHz','5 GHz','10 GHz','15 GHz')
1.6.2 Compute_1D_AF.m (Function)
%% Function to Compute 1D AF
% Arik D. Brown
function [AF, AF_mag, AF_dB, AF_dBnorm] =...
Compute_1D_AF(wgts,nelems,d_in,f_GHz,fo_GHz,u,uo)
lambda=11.803/f_GHz;%wavelength(in)
lambdao=11.803/fo_GHz;%wavelength at tune freq(in)
k=2*pi/lambda;%rad/in
ko=2*pi/lambdao;%rad/in
AF=zeros(1,length(u));
for ii=1:nelems
AF = AF+wgts(ii)*exp(1j*(ii-(nelems+1)/2)*d_in*(k*u-ko*uo));
end
[AF_mag AF_dB AF_dBnorm] = process_vector(AF);
1.6.3 Compute_1D_EP.m (Function)
%% Function to Compute 1D EP
% Arik D. Brown
function [EP, EP_mag, EP_dB, EP_dBnorm] =...
Compute_1D_EP(theta_deg,EF)
EP=zeros(size(theta_deg));
EP=(cosd(theta_deg).^(EF/2));%Volts
[EP_mag, EP_dB, EP_dBnorm] = process_vector(EP);
1.6.4 Compute_1D_PAT (Function)
%% Function to Compute 1D PAT
% Arik D. Brown
function [PAT, PAT_mag, PAT_dB, PAT_dBnorm] =...
Compute_1D_PAT(EP,AF)
PAT=zeros(size(AF));
PAT=EP.*AF;
[PAT_mag PAT_dB PAT_dBnorm] =...
process_vector(PAT);
1.6.5 process_vector.m (Function)
function[vectormag,vectordB,vectordBnorm] = process_vector(vector)
vectormag=abs(vector);
vectordB=20*log10(vectormag+eps);
vectordBnorm=20*log10((vectormag+eps)/max(vectormag));
1.6.6 Pattern1D.m
% 1D Pattern Code
% Computes Element Pattern (EP), Array Factor(AF)and array pattern (EP*AF)
% Arik D. Brown
clear all
%% Input Parameters
%ESA Parameters
%ESA opearating at tune freq
array_params.f=10;%Operating Frequency in GHz
array_params.fo=10;%Tune Frequency in GHz of the Phase Shifter,
array_params.nelem=30;%Number of Elements
array_params.d=0.5*(11.803/array_params.fo);%Element Spacing in Inches
array_params.EF=1.35;%EF
array_params.wgtflag=1;%0 = Uniform, 1 = Taylor Weighting
%$$$$These Parameters Only Used if array_params.wgtflag=1;
array_params.taylor.nbar=5;
array_params.taylor.SLL=30;%dB value
%Theta Angle Parameters
theta_angle.numpts=721;%Number of angle pts
theta_angle.min=-90;%degrees
theta_angle.max=90;%degrees
theta_angle.scan=0;%degrees
plotcommand.EP=0;%Plot EP if = 1
plotcommand.AF=0;%Plot EP if = 1
plotcommand.PAT=1;%Plot PAT if = 1
plotcommand.ALL=0;%Plot All patterns overlaid if = 1
%% Compute Patterns
if array_params.wgtflag==0
array_params.amp_wgts=ones(array_params.nelem,1);
else
array_params.amp_wgts=Taylor(array_params.nelem,array_params.taylor.SLL,...
array_params.taylor.nbar);
end
theta_angle.vec=linspace(theta_angle.min,theta_angle.max,...
theta_angle.numpts);%degrees
theta_angle.uvec=sind(theta_angle.vec);
theta_angle.uo=sind(theta_angle.scan);
%Initialize Element Pattern, Array Factor and Pattern
array.size=size(theta_angle.vec);
array.EP=zeros(array.size);%EP
array.AF=zeros(array.size);%AF
array.PAT=zeros(array.size);
%% Compute Patterns
%Compute AF1
[array.AF, array.AF_mag, array.AF_dB, array.AF_dBnorm]=...
Compute_1D_AF(array_params.amp_wgts,array_params.nelem,...
array_params.d,array_params.f,array_params.fo,...
theta_angle.uvec,theta_angle.uo);
%Compute EP
[array.EP, array.EP_mag, array.EP_dB, array.EP_dBnorm]=...
Compute_1D_EP(theta_angle.vec,array_params.EF);
%Compute PAT
[array.PAT, array.PAT_mag, array.PAT_dB, array.PAT_dBnorm] =...
Compute_1D_PAT(array.EP,array.AF);
%% Plotting
if plotcommand.EP == 1
%Plot EP in dB, Normalized
figure,clf
set(gcf,'DefaultLineLineWidth',2.5)
plot(theta_angle.vec,array.EP_dBnorm,'--','color',[0 0 0]),hold
grid
axis([-90 90 -50 0])
set(gca,'FontSize',16,'FontWeight','bold')
title(['Element Pattern'])
xlabel('\theta (degrees)'),ylabel('dB')
end
if plotcommand.AF == 1
%Plot PAT in dB, Normalized
figure,clf
set(gcf,'DefaultLineLineWidth',2.5)
plot(theta_angle.vec,array.AF_dBnorm,'color',[0 .7 0])
grid
axis([-90 90 -50 0])
set(gca,'FontSize',16,'FontWeight','bold')
title(['Linear ',num2str(array_params.nelem),' Element Array Array Factor'])
xlabel('\theta (degrees)'),ylabel('dB')
end
if plotcommand.PAT == 1
%Plot PAT in dB, Normalized
figure,clf
set(gcf,'DefaultLineLineWidth',2.5)
plot(theta_angle.vec,array.PAT_dBnorm+array.EP_dBnorm,'color',[0 0 1]),hold
grid
axis([-90 90 -50 0])
set(gca,'FontSize',16,'FontWeight','bold')
title(['Linear ',num2str(array_params.nelem),' Element Array Pattern'])
xlabel('\theta (degrees)'),ylabel('dB')
end
if plotcommand.ALL == 1
%Plot ALL in dB, Normalized
figure,clf
set(gcf,'DefaultLineLineWidth',2.5)
plot(theta_angle.vec,array.EP_dBnorm,'--','color',[0 0 0]),hold
plot(theta_angle.vec,array.AF_dBnorm,'color',[0 .7 0])
plot(theta_angle.vec,array.PAT_dBnorm+array.EP_dBnorm,'b-')
grid
axis([-90 90 -50 0])
% axis([50 70 -20 0])
set(gca,'FontSize',16,'FontWeight','bold')
title(['Linear ',num2str(array_params.nelem),' Element Array'])
xlabel('\theta (degrees)'),ylabel('dB')
legend('EP','AF','PAT = EP * AF')
end
1.6.7 Pattern1D_GLs.m
% 1D Pattern Code
% Computes Patterns for Different Element Spacing to Illustrate Grating
% Lobes
% Arik D. Brown
clear all
%% Input Parameters
%ESA Parameters
%ESA opearating at tune freq
array_params.f=10;%Operating Frequency in GHz
array_params.fo=10;%Tune Frequency in GHz of the Phase Shifter,
array_params.nelem=30;%Number of Elements
array_params.d1=0.5*(11.803/array_params.fo);%Element Spacing in Inches
array_params.d2=1*(11.803/array_params.fo);%Element Spacing in Inches
array_params.d3=2*(11.803/array_params.fo);%Element Spacing in Inches
array_params.EF=1.35;%EF
array_params.amp_wgts=ones(array_params.nelem,1);
%Theta Angle Parameters
theta_angle.numpts=721;%Number of angle pts
theta_angle.min=-90;%degrees
theta_angle.max=90;%degrees
theta_angle.scan=0;%degrees
%% Compute Patterns
theta_angle.vec=linspace(theta_angle.min,theta_angle.max,...
theta_angle.numpts);%degrees
theta_angle.uvec=sind(theta_angle.vec);
theta_angle.uo=sind(theta_angle.scan);
%Initialize Element Pattern, Array Factor and Pattern
array.size=size(theta_angle.vec);
array.EP=zeros(array.size);%EP
array.AF1=zeros(array.size);%AF1
array.AF2=zeros(array.size);%AF2
array.AF3=zeros(array.size);%AF3
array.PAT1=zeros(array.size);%Pattern 1
array.PAT2=zeros(array.size);%Pattern 2
array.PAT3=zeros(array.size);%Pattern 3
%% Compute Patterns
%Compute AF1
[array.AF1, array.AF1_mag, array.AF1_dB, array.AF1_dBnorm]=...
Compute_1D_AF(array_params.amp_wgts,array_params.nelem,...
array_params.d1,array_params.f,array_params.fo,...
theta_angle.uvec,theta_angle.uo);
%Compute AF2
[array.AF2, array.AF2_mag, array.AF2_dB, array.AF2_dBnorm]=...
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
