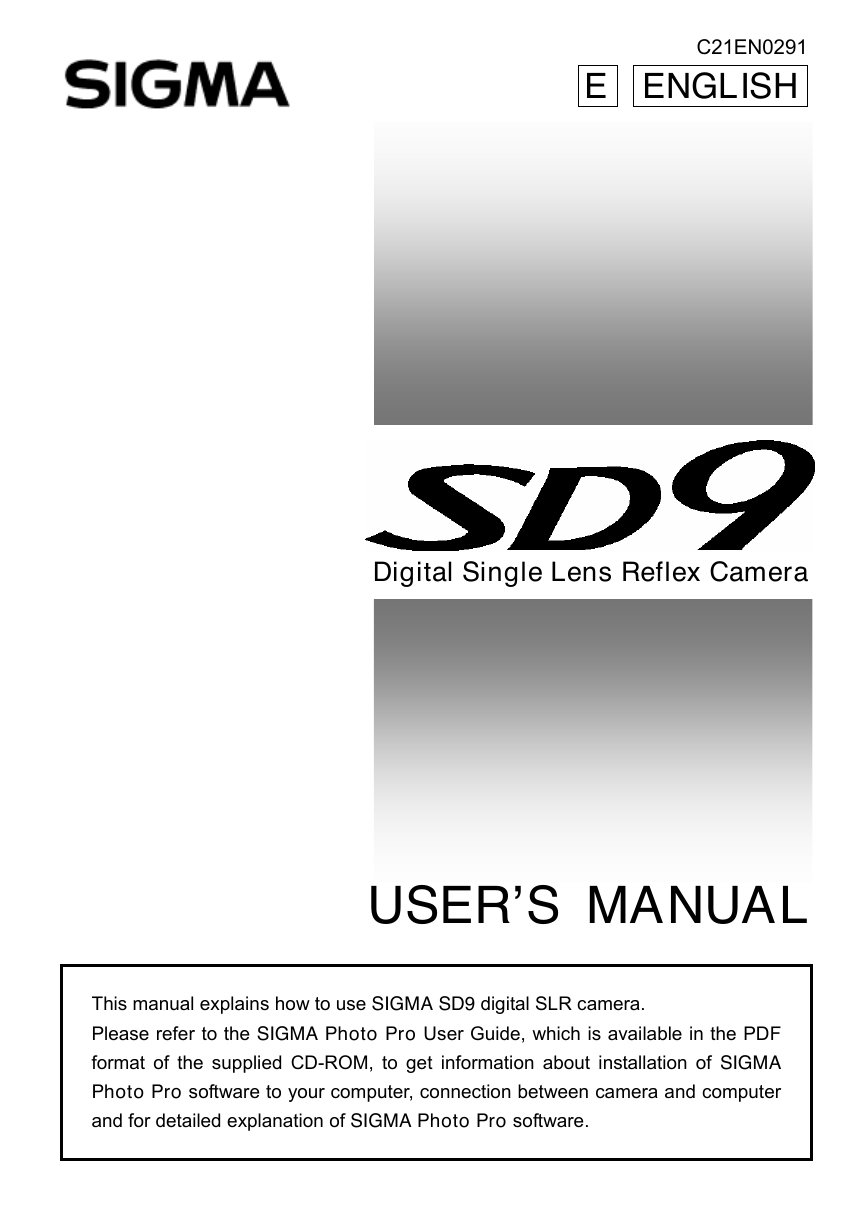

C21EN0291 E ENGLISH Digital Single Lens Reflex Camera USER’S MANUAL This manual explains how to use SIGMA SD9 digital SLR camera. Please refer to the SIGMA Photo Pro User Guide, which is available in the PDF format of the supplied CD-ROM, to get information about installation of SIGMA Photo Pro software to your computer, connection between camera and computer and for detailed explanation of SIGMA Photo Pro software.

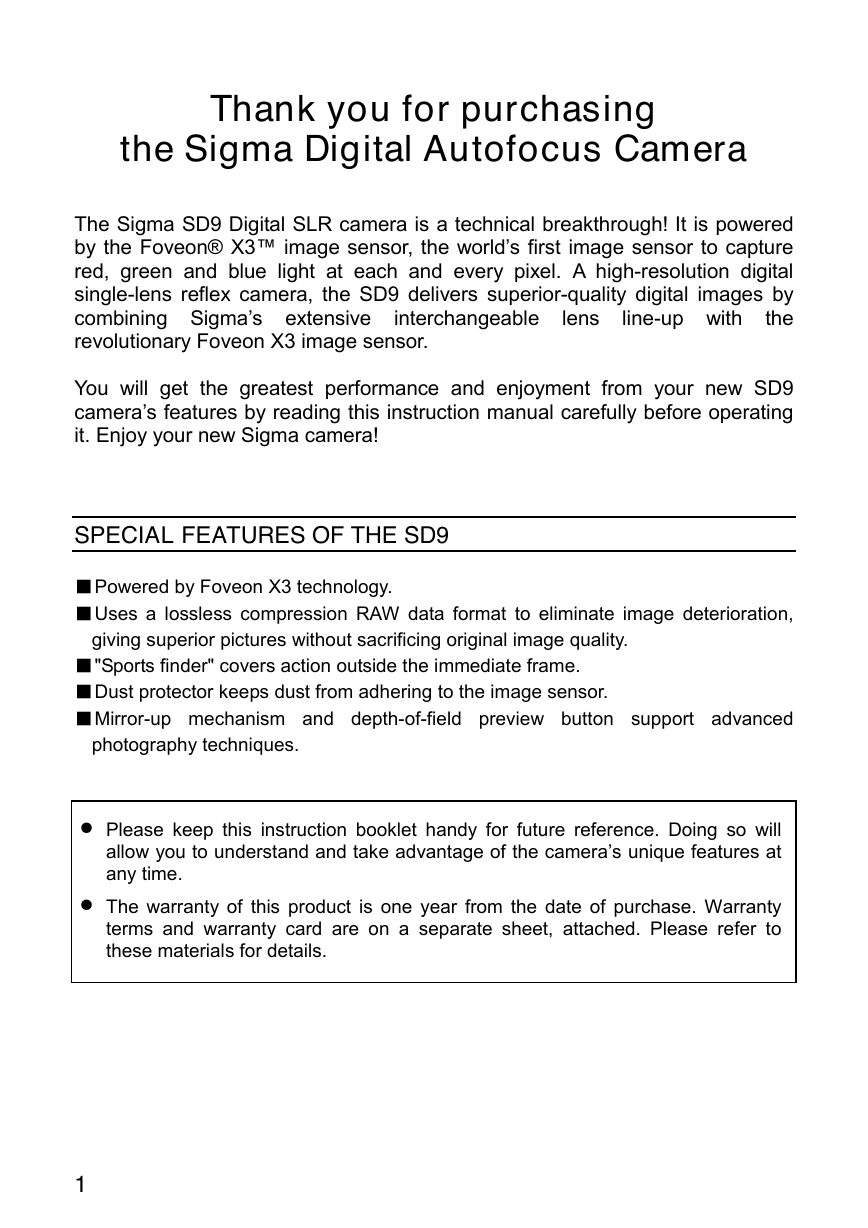

Thank you for purchasing lens line-up with the Sigma Digital Autofocus Camera The Sigma SD9 Digital SLR camera is a technical breakthrough! It is powered by the Foveon® X3™ image sensor, the world’s first image sensor to capture red, green and blue light at each and every pixel. A high-resolution digital single-lens reflex camera, the SD9 delivers superior-quality digital images by combining Sigma’s extensive the revolutionary Foveon X3 image sensor. You will get the greatest performance and enjoyment from your new SD9 camera’s features by reading this instruction manual carefully before operating it. Enjoy your new Sigma camera! SPECIAL FEATURES OF THE SD9 interchangeable ■ Powered by Foveon X3 technology. ■ Uses a lossless compression RAW data format to eliminate image deterioration, giving superior pictures without sacrificing original image quality. ■ "Sports finder" covers action outside the immediate frame. ■ Dust protector keeps dust from adhering to the image sensor. ■ Mirror-up mechanism and depth-of-field preview button support advanced photography techniques. · Please keep this instruction booklet handy for future reference. Doing so will allow you to understand and take advantage of the camera’s unique features at any time. · The warranty of this product is one year from the date of purchase. Warranty terms and warranty card are on a separate sheet, attached. Please refer to these materials for details. 1

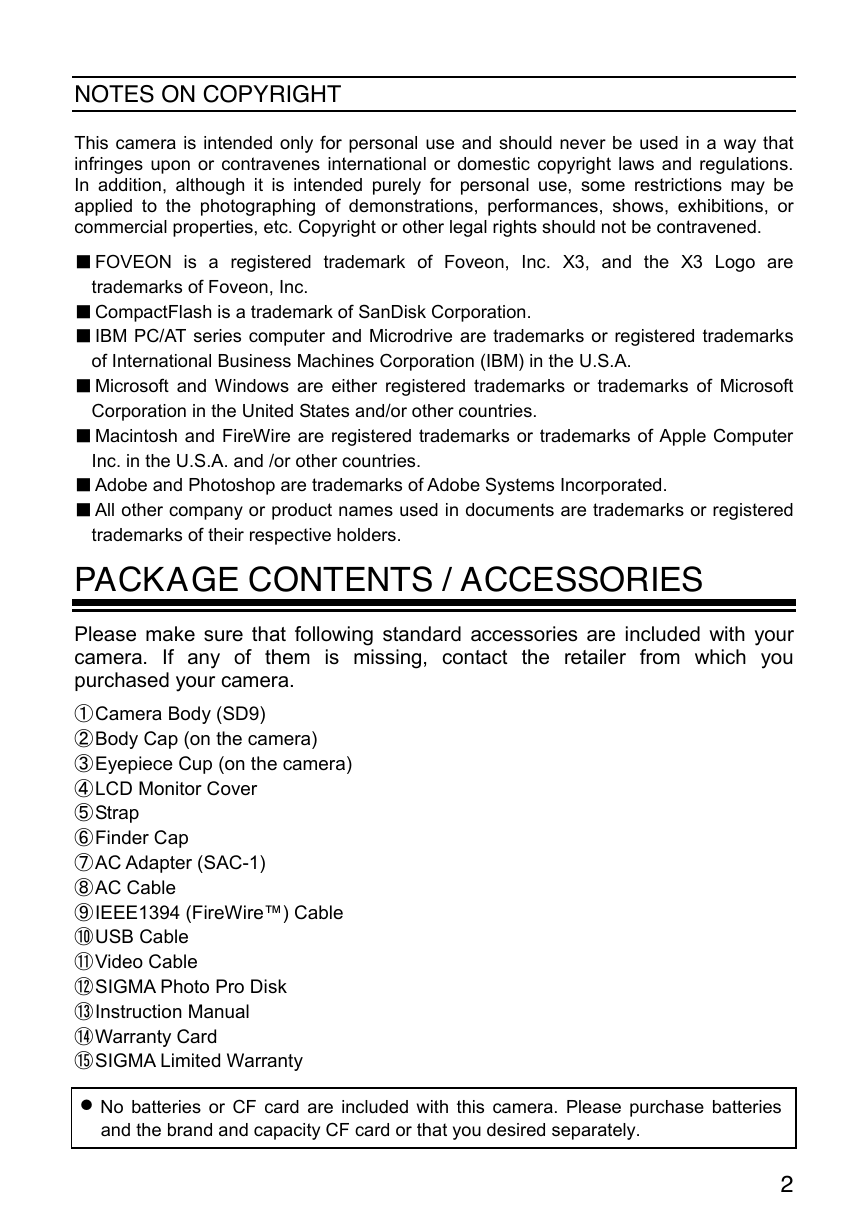

NOTES ON COPYRIGHT This camera is intended only for personal use and should never be used in a way that infringes upon or contravenes international or domestic copyright laws and regulations. In addition, although it is intended purely for personal use, some restrictions may be applied to the photographing of demonstrations, performances, shows, exhibitions, or commercial properties, etc. Copyright or other legal rights should not be contravened. ■ FOVEON is a registered trademark of Foveon, Inc. X3, and the X3 Logo are trademarks of Foveon, Inc. ■ CompactFlash is a trademark of SanDisk Corporation. ■ IBM PC/AT series computer and Microdrive are trademarks or registered trademarks of International Business Machines Corporation (IBM) in the U.S.A. ■ Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. ■ Macintosh and FireWire are registered trademarks or trademarks of Apple Computer Inc. in the U.S.A. and /or other countries. ■ Adobe and Photoshop are trademarks of Adobe Systems Incorporated. ■ All other company or product names used in documents are trademarks or registered trademarks of their respective holders. PACKAGE CONTENTS / ACCESSORIES Please make sure that following standard accessories are included with your camera. If any of them is missing, contact the retailer from which you urchased your camera. p ① Camera Body (SD9) ② Body Cap (on the camera) ③ Eyepiece Cup (on the camera) ④ LCD Monitor Cover ⑤ Strap ⑥ Finder Cap ⑦ AC Adapter (SAC-1) ⑧ AC Cable ⑨ IEEE1394 (FireWire™) Cable ⑩ USB Cable ⑪ Video Cable ⑫ SIGMA Photo Pro Disk ⑬ Instruction Manual ⑭ Warranty Card ⑮ SIGMA Limited Warranty · No batteries or CF card are included with this camera. Please purchase batteries and the brand and capacity CF card or that you desired separately. 2

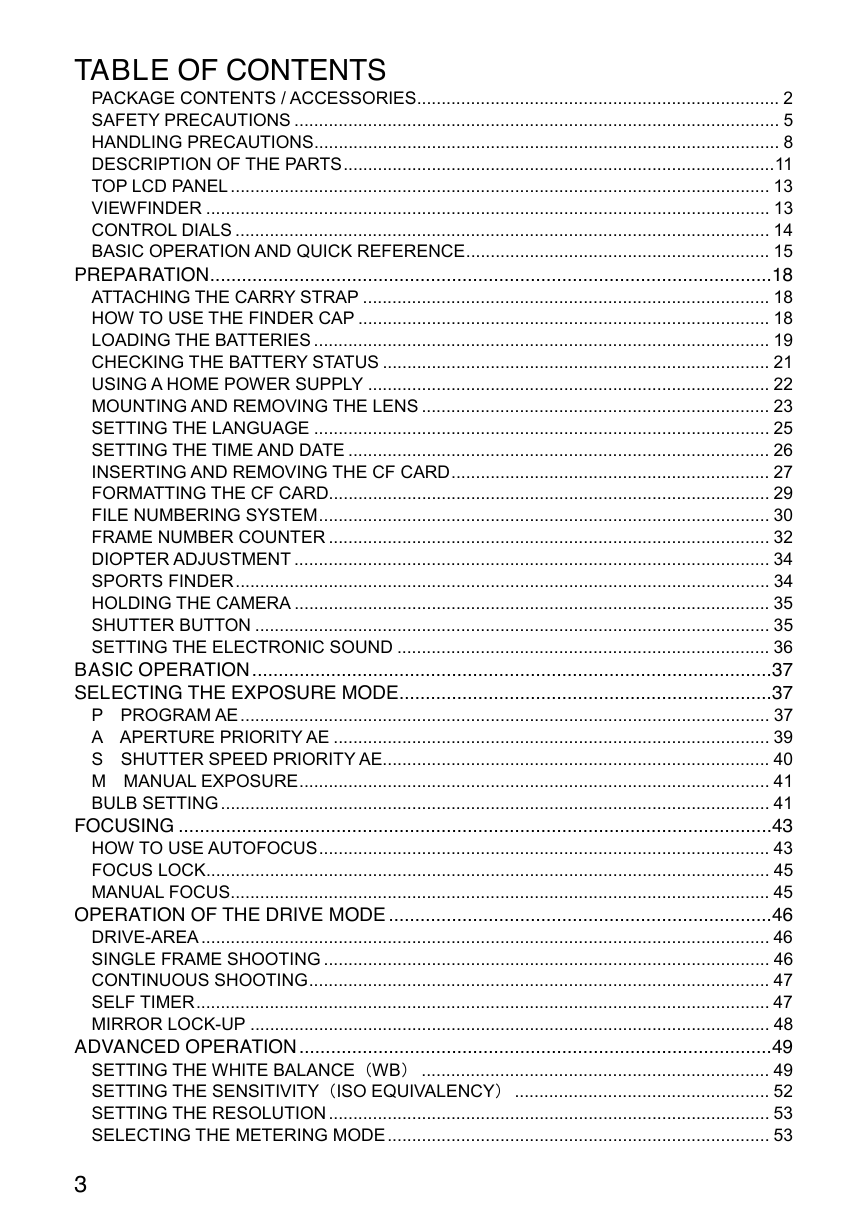

TABLE OF CONTENTS PACKAGE CONTENTS / ACCESSORIES.......................................................................... 2 SAFETY PRECAUTIONS ................................................................................................... 5 HANDLING PRECAUTIONS............................................................................................... 8 DESCRIPTION OF THE PARTS........................................................................................11 TOP LCD PANEL.............................................................................................................. 13 VIEWFINDER ................................................................................................................... 13 CONTROL DIALS ............................................................................................................. 14 BASIC OPERATION AND QUICK REFERENCE.............................................................. 15 PREPARATION...........................................................................................................18 ATTACHING THE CARRY STRAP ................................................................................... 18 HOW TO USE THE FINDER CAP .................................................................................... 18 LOADING THE BATTERIES ............................................................................................. 19 CHECKING THE BATTERY STATUS ............................................................................... 21 USING A HOME POWER SUPPLY .................................................................................. 22 MOUNTING AND REMOVING THE LENS ....................................................................... 23 SETTING THE LANGUAGE ............................................................................................. 25 SETTING THE TIME AND DATE ...................................................................................... 26 INSERTING AND REMOVING THE CF CARD................................................................. 27 FORMATTING THE CF CARD.......................................................................................... 29 FILE NUMBERING SYSTEM............................................................................................ 30 FRAME NUMBER COUNTER .......................................................................................... 32 DIOPTER ADJUSTMENT ................................................................................................. 34 SPORTS FINDER............................................................................................................. 34 HOLDING THE CAMERA ................................................................................................. 35 SHUTTER BUTTON ......................................................................................................... 35 SETTING THE ELECTRONIC SOUND ............................................................................ 36 BASIC OPERATION...................................................................................................37 SELECTING THE EXPOSURE MODE.......................................................................37 P PROGRAM AE............................................................................................................ 37 A APERTURE PRIORITY AE ......................................................................................... 39 S SHUTTER SPEED PRIORITY AE............................................................................... 40 M MANUAL EXPOSURE................................................................................................ 41 BULB SETTING................................................................................................................ 41 FOCUSING .................................................................................................................43 HOW TO USE AUTOFOCUS............................................................................................ 43 FOCUS LOCK................................................................................................................... 45 MANUAL FOCUS.............................................................................................................. 45 OPERATION OF THE DRIVE MODE .........................................................................46 DRIVE-AREA.................................................................................................................... 46 SINGLE FRAME SHOOTING ........................................................................................... 46 CONTINUOUS SHOOTING.............................................................................................. 47 SELF TIMER..................................................................................................................... 47 MIRROR LOCK-UP .......................................................................................................... 48 ADVANCED OPERATION..........................................................................................49 SETTING THE WHITE BALANCE（WB） ....................................................................... 49 SETTING THE SENSITIVITY（ISO EQUIVALENCY） .................................................... 52 SETTING THE RESOLUTION.......................................................................................... 53 SELECTING THE METERING MODE.............................................................................. 53 3

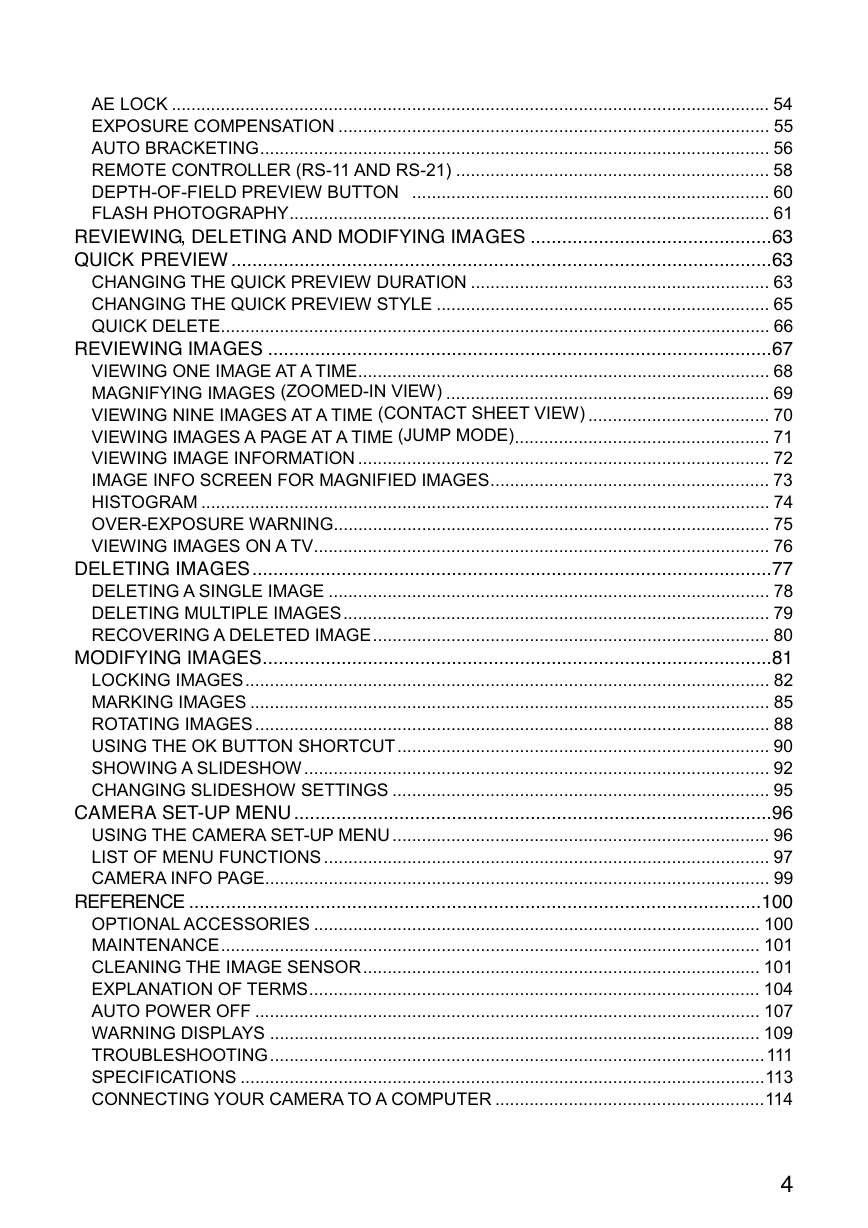

AE LOCK .......................................................................................................................... 54 EXPOSURE COMPENSATION ........................................................................................ 55 AUTO BRACKETING........................................................................................................ 56 REMOTE CONTROLLER (RS-11 AND RS-21) ................................................................ 58 DEPTH-OF-FIELD PREVIEW BUTTON ......................................................................... 60 FLASH PHOTOGRAPHY.................................................................................................. 61 REVIEWING, DELETING AND MODIFYING IMAGES ..............................................63 QUICK PREVIEW .......................................................................................................63 CHANGING THE QUICK PREVIEW DURATION ............................................................. 63 CHANGING THE QUICK PREVIEW STYLE .................................................................... 65 QUICK DELETE................................................................................................................ 66 REVIEWING IMAGES ................................................................................................67 VIEWING ONE IMAGE AT A TIME.................................................................................... 68 MAGNIFYING IMAGES (ZOOMED-IN VIEW) .................................................................. 69 VIEWING NINE IMAGES AT A TIME (CONTACT SHEET VIEW) ..................................... 70 VIEWING IMAGES A PAGE AT A TIME (JUMP MODE).................................................... 71 VIEWING IMAGE INFORMATION .................................................................................... 72 IMAGE INFO SCREEN FOR MAGNIFIED IMAGES......................................................... 73 HISTOGRAM .................................................................................................................... 74 OVER-EXPOSURE WARNING......................................................................................... 75 VIEWING IMAGES ON A TV............................................................................................. 76 DELETING IMAGES...................................................................................................77 DELETING A SINGLE IMAGE .......................................................................................... 78 DELETING MULTIPLE IMAGES....................................................................................... 79 RECOVERING A DELETED IMAGE................................................................................. 80 MODIFYING IMAGES.................................................................................................81 LOCKING IMAGES........................................................................................................... 82 MARKING IMAGES .......................................................................................................... 85 ROTATING IMAGES......................................................................................................... 88 USING THE OK BUTTON SHORTCUT............................................................................ 90 SHOWING A SLIDESHOW ............................................................................................... 92 CHANGING SLIDESHOW SETTINGS ............................................................................. 95 CAMERA SET-UP MENU ...........................................................................................96 USING THE CAMERA SET-UP MENU............................................................................. 96 LIST OF MENU FUNCTIONS........................................................................................... 97 CAMERA INFO PAGE....................................................................................................... 99 REFERENCE .............................................................................................................100 OPTIONAL ACCESSORIES ........................................................................................... 100 MAINTENANCE.............................................................................................................. 101 CLEANING THE IMAGE SENSOR................................................................................. 101 EXPLANATION OF TERMS............................................................................................ 104 AUTO POWER OFF ....................................................................................................... 107 WARNING DISPLAYS .................................................................................................... 109 TROUBLESHOOTING.....................................................................................................111 SPECIFICATIONS ...........................................................................................................113 CONNECTING YOUR CAMERA TO A COMPUTER .......................................................114 4

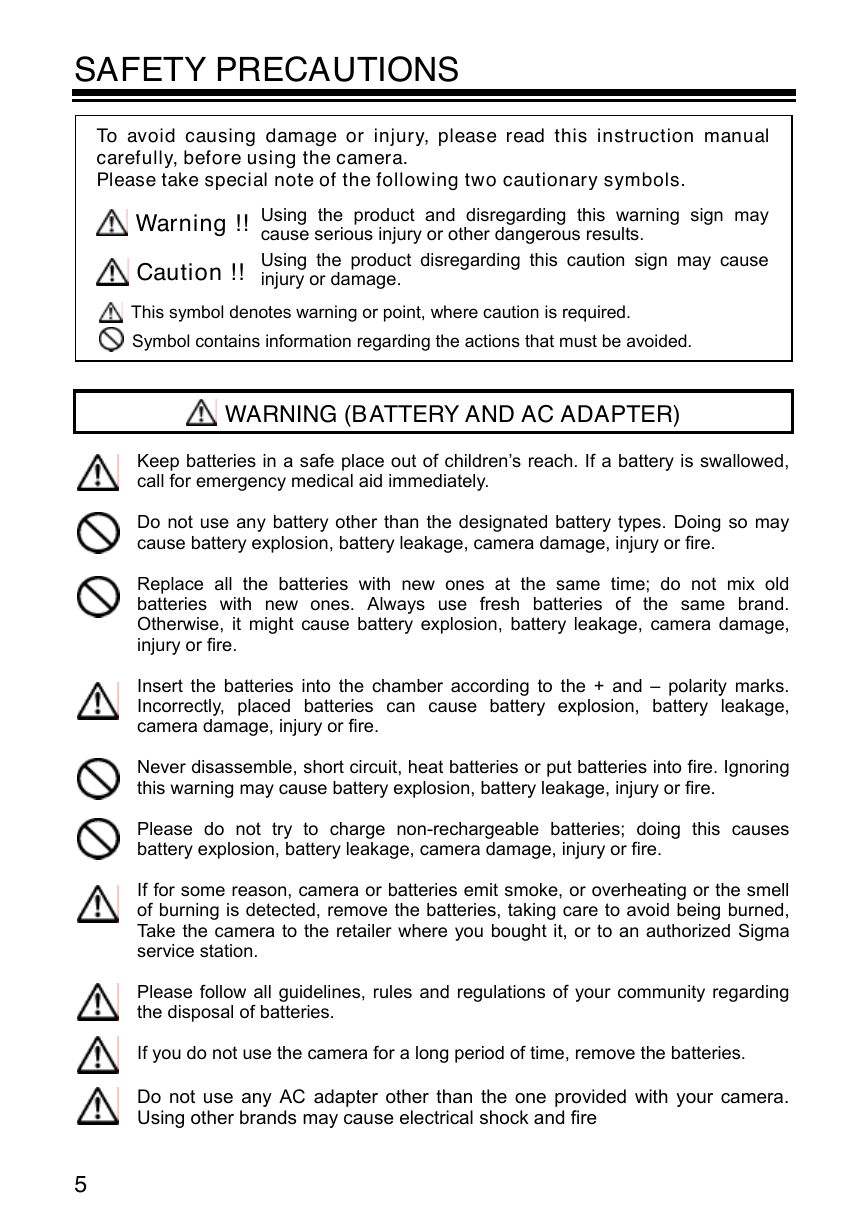

SAFETY PRECAUTIONS To avoid causing damage or injury, please read this instruction manual carefully, before using the camera. Please take special note of the following two cautionary symbols. Using the product and disregarding this warning sign may ause serious injury or other dangerous results. c Using the product disregarding this caution sign may cause injury or damage. Warning !! Caution !! This symbol denotes warning or point, where caution is required. Symbol contains information regarding the actions that must be avoided. WARNING (BATTERY AND AC ADAPTER) Keep batteries in a safe place out of children’s reach. If a battery is swallowed, call for emergency medical aid immediately. Do not use any battery other than the designated battery types. Doing so may cause battery explosion, battery leakage, camera damage, injury or fire. Replace all the batteries with new ones at the same time; do not mix old batteries with new ones. Always use fresh batteries of the same brand. Otherwise, it might cause battery explosion, battery leakage, camera damage, injury or fire. Insert the batteries into the chamber according to the + and – polarity marks. Incorrectly, placed batteries can cause battery explosion, battery leakage, camera damage, injury or fire. Never disassemble, short circuit, heat batteries or put batteries into fire. Ignoring this warning may cause battery explosion, battery leakage, injury or fire. Please do not try to charge non-rechargeable batteries; doing this causes battery explosion, battery leakage, camera damage, injury or fire. If for some reason, camera or batteries emit smoke, or overheating or the smell of burning is detected, remove the batteries, taking care to avoid being burned, Take the camera to the retailer where you bought it, or to an authorized Sigma service station. Please follow all guidelines, rules and regulations of your community regarding the disposal of batteries. If you do not use the camera for a long period of time, remove the batteries. Do not use any AC adapter other than the one provided with your camera. Using other brands may cause electrical shock and fire 5

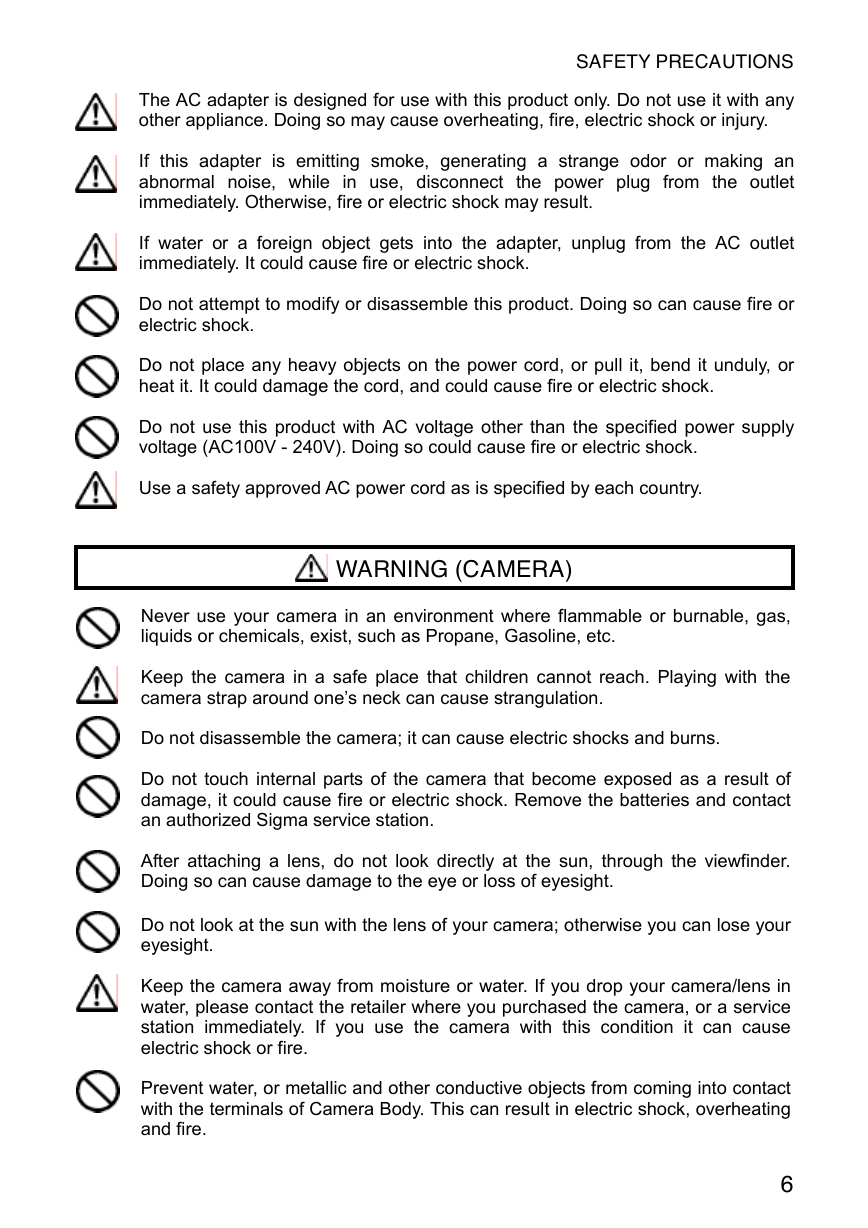

SAFETY PRECAUTIONS The AC adapter is designed for use with this product only. Do not use it with any other appliance. Doing so may cause overheating, fire, electric shock or injury. If this adapter is emitting smoke, generating a strange odor or making an abnormal noise, while in use, disconnect the power plug from the outlet immediately. Otherwise, fire or electric shock may result. If water or a foreign object gets into the adapter, unplug from the AC outlet immediately. It could cause fire or electric shock. Do not attempt to modify or disassemble this product. Doing so can cause fire or electric shock. Do not place any heavy objects on the power cord, or pull it, bend it unduly, or heat it. It could damage the cord, and could cause fire or electric shock. Do not use this product with AC voltage other than the specified power supply voltage (AC100V - 240V). Doing so could cause fire or electric shock. Use a safety approved AC power cord as is specified by each country. WARNING (CAMERA) Never use your camera in an environment where flammable or burnable, gas, liquids or chemicals, exist, such as Propane, Gasoline, etc. Keep the camera in a safe place that children cannot reach. Playing with the camera strap around one’s neck can cause strangulation. Do not disassemble the camera; it can cause electric shocks and burns. Do not touch internal parts of the camera that become exposed as a result of damage, it could cause fire or electric shock. Remove the batteries and contact an authorized Sigma service station. After attaching a lens, do not look directly at the sun, through the viewfinder. Doing so can cause damage to the eye or loss of eyesight. Do not look at the sun with the lens of your camera; otherwise you can lose your eyesight. Keep the camera away from moisture or water. If you drop your camera/lens in water, please contact the retailer where you purchased the camera, or a service station immediately. If you use the camera with this condition it can cause electric shock or fire. Prevent water, or metallic and other conductive objects from coming into contact with the terminals of Camera Body. This can result in electric shock, overheating and fire. 6

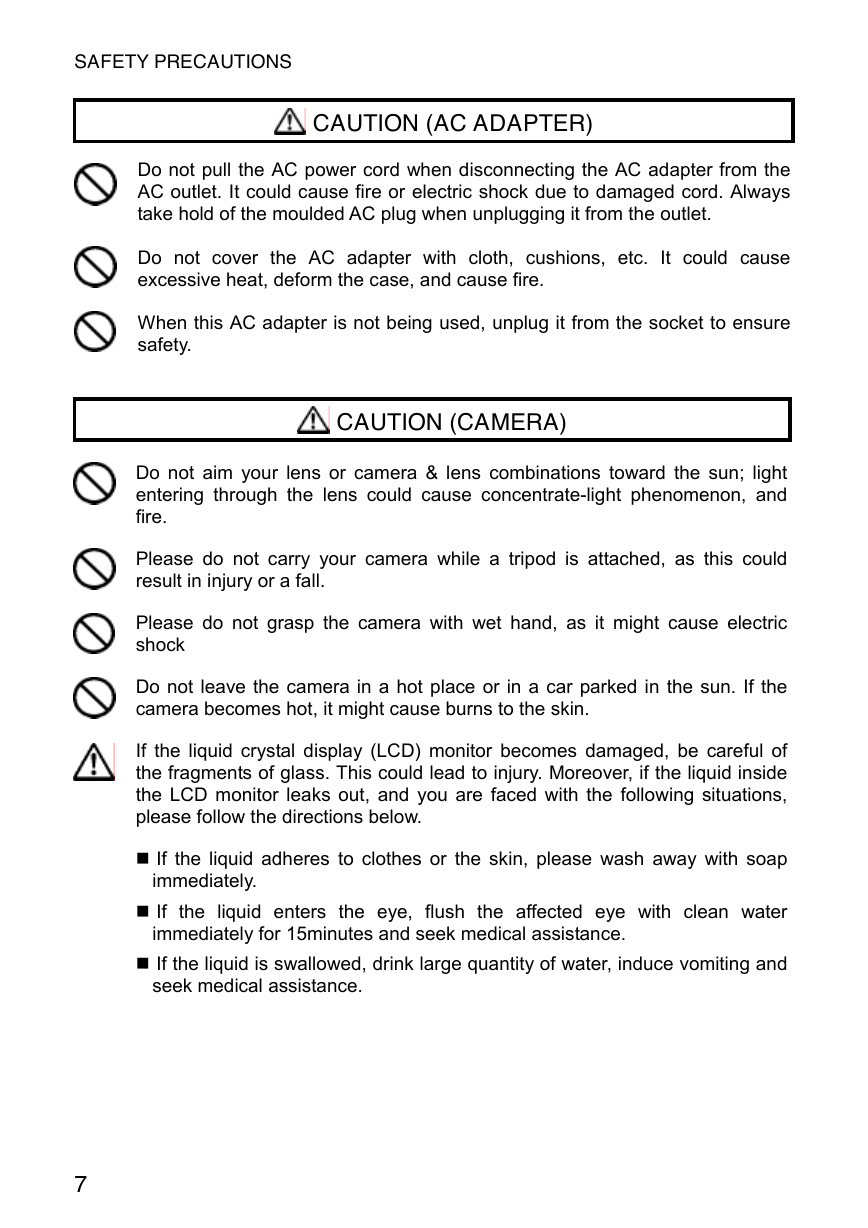

SAFETY PRECAUTIONS CAUTION (AC ADAPTER) Do not pull the AC power cord when disconnecting the AC adapter from the AC outlet. It could cause fire or electric shock due to damaged cord. Always take hold of the moulded AC plug when unplugging it from the outlet. Do not cover the AC adapter with cloth, cushions, etc. It could cause excessive heat, deform the case, and cause fire. When this AC adapter is not being used, unplug it from the socket to ensure safety. CAUTION (CAMERA) Do not aim your lens or camera & lens combinations toward the sun; light entering through the lens could cause concentrate-light phenomenon, and fire. Please do not carry your camera while a tripod is attached, as this could result in injury or a fall. Please do not grasp the camera with wet hand, as it might cause electric shock Do not leave the camera in a hot place or in a car parked in the sun. If the camera becomes hot, it might cause burns to the skin. If the liquid crystal display (LCD) monitor becomes damaged, be careful of the fragments of glass. This could lead to injury. Moreover, if the liquid inside the LCD monitor leaks out, and you are faced with the following situations, please follow the directions below. n If the liquid adheres to clothes or the skin, please wash away with soap n If the liquid enters the eye, flush the affected eye with clean water n If the liquid is swallowed, drink large quantity of water, induce vomiting and immediately for 15minutes and seek medical assistance. immediately. seek medical assistance. 7
