INSTRUCTION MANUAL Digital Movie Camera VPC-CA65EX VPC-CA65GX Important note This manual explains how to safely operate the VPC-CA65EX and VPC-CA65GX. Any information regarding only one of these products will be labeled as such. Please read these instructions carefully before using the camera. Make sure to read and understand the separate booklet “SAFETY MANUAL”. Keep this manual in a safe place for later reference.

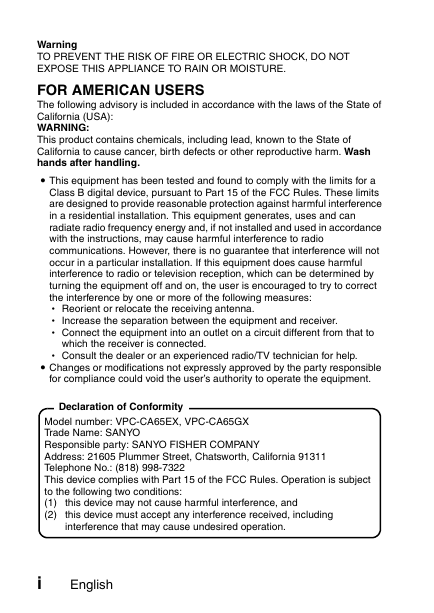

Warning TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. FOR AMERICAN USERS The following advisory is included in accordance with the laws of the State of California (USA): WARNING: This product contains chemicals, including lead, known to the State of California to cause cancer, birth defects or other reproductive harm. Wash hands after handling. i This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: h Reorient or relocate the receiving antenna. h Increase the separation between the equipment and receiver. h Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. h Consult the dealer or an experienced radio/TV technician for help. i Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Declaration of Conformity Model number: VPC-CA65EX, VPC-CA65GX Trade Name: SANYO Responsible party: SANYO FISHER COMPANY Address: 21605 Plummer Street, Chatsworth, California 91311 Telephone No.: (818) 998-7322 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. i English

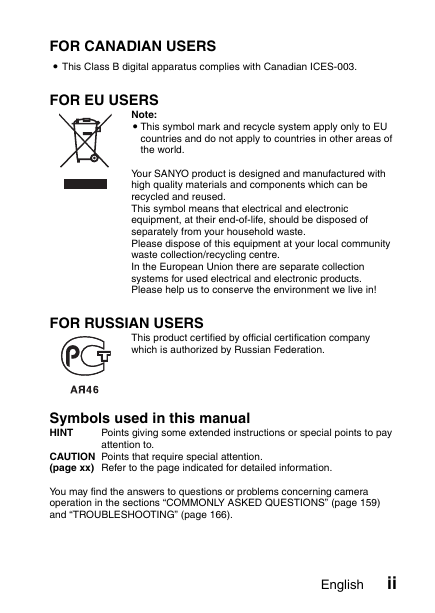

FOR CANADIAN USERS i This Class B digital apparatus complies with Canadian ICES-003. FOR EU USERS Note: iThis symbol mark and recycle system apply only to EU countries and do not apply to countries in other areas of the world. Your SANYO product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste. Please dispose of this equipment at your local community waste collection/recycling centre. In the European Union there are separate collection systems for used electrical and electronic products. Please help us to conserve the environment we live in! FOR RUSSIAN USERS This product certified by official certification company which is authorized by Russian Federation. Symbols used in this manual HINT Points giving some extended instructions or special points to pay attention to. CAUTION Points that require special attention. (page xx) Refer to the page indicated for detailed information. You may find the answers to questions or problems concerning camera operation in the sections “COMMONLY ASKED QUESTIONS” (page 159) and “TROUBLESHOOTING” (page 166). English ii

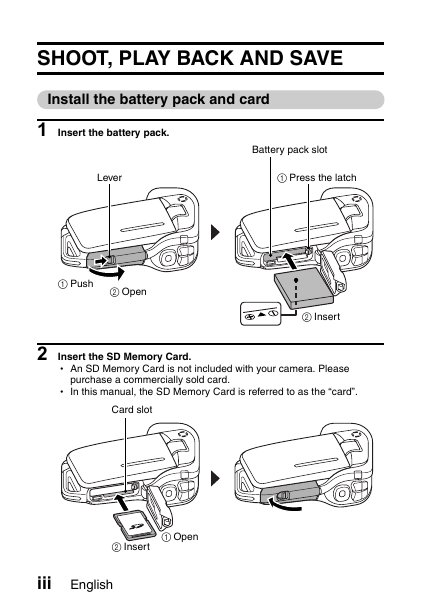

SHOOT, PLAY BACK AND SAVE Install the battery pack and card 1 Insert the battery pack. Battery pack slot Lever 1 Press the latch 1 Push 2 Open 2 Insert h An SD Memory Card is not included with your camera. Please purchase a commercially sold card. h In this manual, the SD Memory Card is referred to as the “card”. 2 Insert the SD Memory Card. Card slot 1 Open 2 Insert iii English

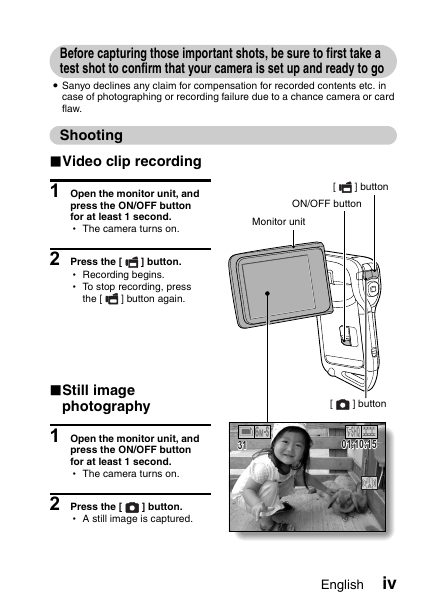

Before capturing those important shots, be sure to first take a test shot to confirm that your camera is set up and ready to go i Sanyo declines any claim for compensation for recorded contents etc. in case of photographing or recording failure due to a chance camera or card flaw. Shooting kVideo clip recording 1 Open the monitor unit, and press the ON/OFF button for at least 1 second. h The camera turns on. [ ] button ON/OFF button Monitor unit 2 Press the [ ] button. h Recording begins. h To stop recording, press the [ ] button again. kStill image photography 1 Open the monitor unit, and press the ON/OFF button for at least 1 second. h The camera turns on. 2 Press the [ h A still image is captured. ] button. [ ] button 3131 01:10:15 01:10:15 English iv

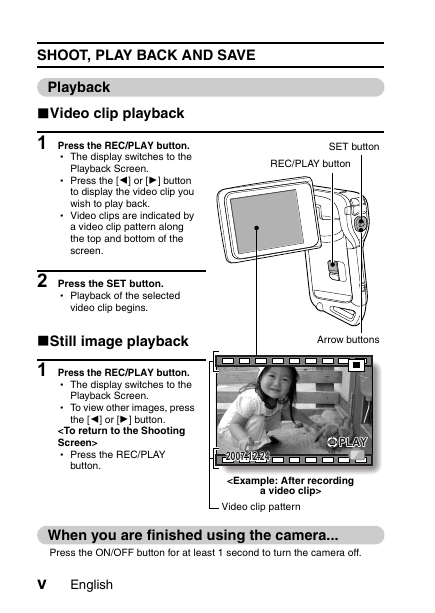

SHOOT, PLAY BACK AND SAVE Playback kVideo clip playback 1 Press the REC/PLAY button. h Press the [G] or [H] button h The display switches to the Playback Screen. to display the video clip you wish to play back. h Video clips are indicated by a video clip pattern along the top and bottom of the screen. 2 Press the SET button. h Playback of the selected video clip begins. kStill image playback 1 Press the REC/PLAY button. h The display switches to the Playback Screen. h To view other images, press the [G] or [H] button. h Press the REC/PLAY button. SET button REC/PLAY button Arrow buttons 2007.12.24 2007.12.24 PLAYPLAY Video clip pattern When you are finished using the camera... Press the ON/OFF button for at least 1 second to turn the camera off. v English

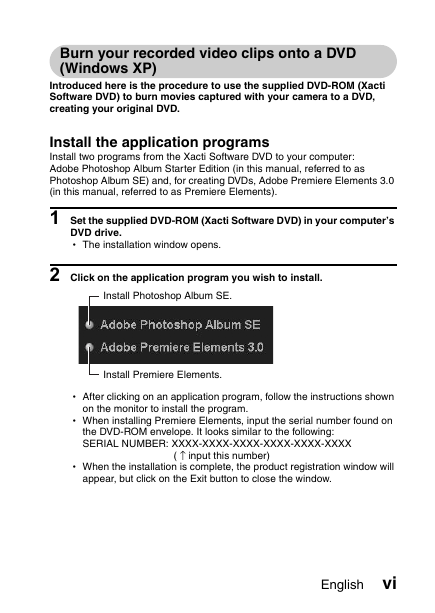

Burn your recorded video clips onto a DVD (Windows XP) Introduced here is the procedure to use the supplied DVD-ROM (Xacti Software DVD) to burn movies captured with your camera to a DVD, creating your original DVD. Install the application programs Install two programs from the Xacti Software DVD to your computer: Adobe Photoshop Album Starter Edition (in this manual, referred to as Photoshop Album SE) and, for creating DVDs, Adobe Premiere Elements 3.0 (in this manual, referred to as Premiere Elements). 1 Set the supplied DVD-ROM (Xacti Software DVD) in your computer’s DVD drive. h The installation window opens. 2 Click on the application program you wish to install. Install Photoshop Album SE. Install Premiere Elements. h After clicking on an application program, follow the instructions shown on the monitor to install the program. h When installing Premiere Elements, input the serial number found on the DVD-ROM envelope. It looks similar to the following: SERIAL NUMBER: XXXX-XXXX-XXXX-XXXX-XXXX-XXXX ( ↑ input this number) h When the installation is complete, the product registration window will appear, but click on the Exit button to close the window. English vi

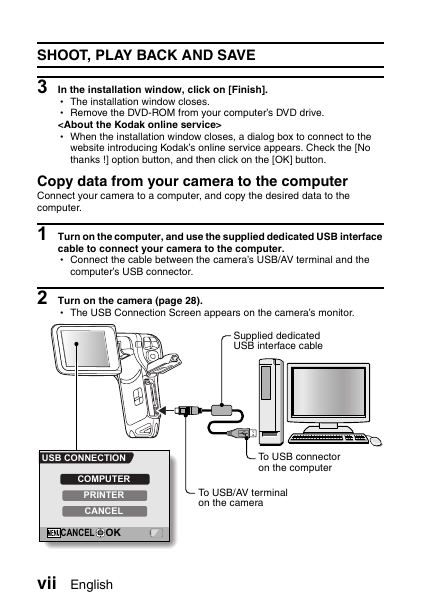

SHOOT, PLAY BACK AND SAVE 3 In the installation window, click on [Finish]. h The installation window closes. h Remove the DVD-ROM from your computer’s DVD drive. h When the installation window closes, a dialog box to connect to the website introducing Kodak’s online service appears. Check the [No thanks !] option button, and then click on the [OK] button. Copy data from your camera to the computer Connect your camera to a computer, and copy the desired data to the computer. 1 Turn on the computer, and use the supplied dedicated USB interface cable to connect your camera to the computer. h Connect the cable between the camera’s USB/AV terminal and the computer’s USB connector. 2 Turn on the camera (page 28). h The USB Connection Screen appears on the camera’s monitor. Supplied dedicated USB interface cable To USB connector on the computer To USB/AV terminal on the camera USB CONNECTION COMPUTER PRINTER CANCEL CANCEL OK vii English
