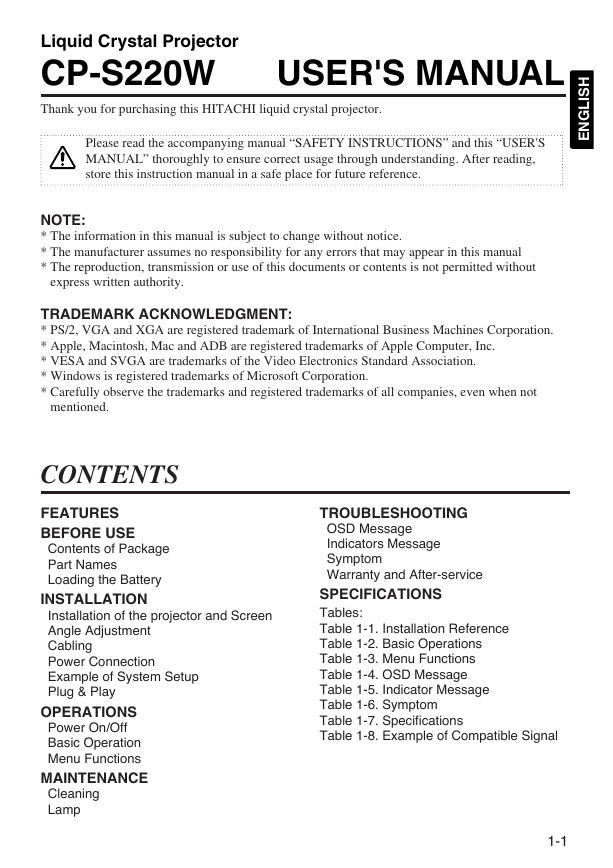

Liquid Crystal Projector CP-S220W USER'S MANUAL Thank you for purchasing this HITACHI liquid crystal projector. Please read the accompanying manual “SAFETY INSTRUCTIONS” and this “USER'S MANUAL” thoroughly to ensure correct usage through understanding. After reading, store this instruction manual in a safe place for future reference. I H S L G N E NOTE: * The information in this manual is subject to change without notice. * The manufacturer assumes no responsibility for any errors that may appear in this manual * The reproduction, transmission or use of this documents or contents is not permitted without express written authority. TRADEMARK ACKNOWLEDGMENT: * PS/2, VGA and XGA are registered trademark of International Business Machines Corporation. * Apple, Macintosh, Mac and ADB are registered trademarks of Apple Computer, Inc. * VESA and SVGA are trademarks of the Video Electronics Standard Association. * Windows is registered trademarks of Microsoft Corporation. * Carefully observe the trademarks and registered trademarks of all companies, even when not mentioned. CONTENTS FEATURES BEFORE USE Contents of Package Part Names Loading the Battery INSTALLATION Installation of the projector and Screen Angle Adjustment Cabling Power Connection Example of System Setup Plug & Play OPERATIONS Power On/Off Basic Operation Menu Functions MAINTENANCE Cleaning Lamp TROUBLESHOOTING OSD Message Indicators Message Symptom Warranty and After-service SPECIFICATIONS Tables: Table 1-1. Installation Reference Table 1-2. Basic Operations Table 1-3. Menu Functions Table 1-4. OSD Message Table 1-5. Indicator Message Table 1-6. Symptom Table 1-7. Specifications Table 1-8. Example of Compatible Signal 1-1

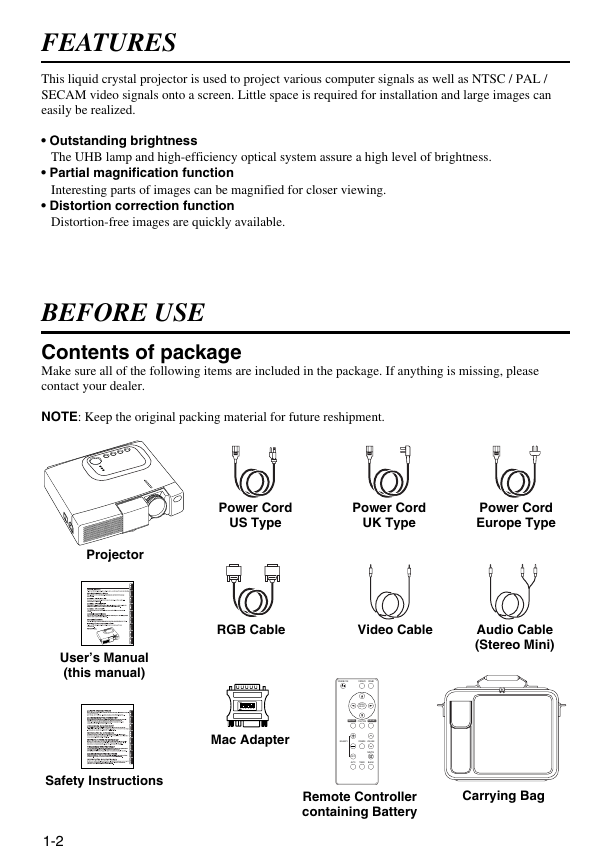

FEATURES This liquid crystal projector is used to project various computer signals as well as NTSC / PAL / SECAM video signals onto a screen. Little space is required for installation and large images can easily be realized. • Outstanding brightness The UHB lamp and high-efficiency optical system assure a high level of brightness. • Partial magnification function Interesting parts of images can be magnified for closer viewing. • Distortion correction function Distortion-free images are quickly available. BEFORE USE Contents of package Make sure all of the following items are included in the package. If anything is missing, please contact your dealer. NOTE: Keep the original packing material for future reshipment. Power Cord US Type Power Cord UK Type Power Cord Europe Type RGB Cable Video Cable Audio Cable (Stereo Mini) Mac Adapter STANDBY/ON VIDEO RGB MENU SELECT MENU POSITION RESET MAGNIFY FREEZE VOLUME MUTE OFF AUTO TIMER BLANK Remote Controller containing Battery Carrying Bag Projector User’s Manual (this manual) Safety Instructions 1-2

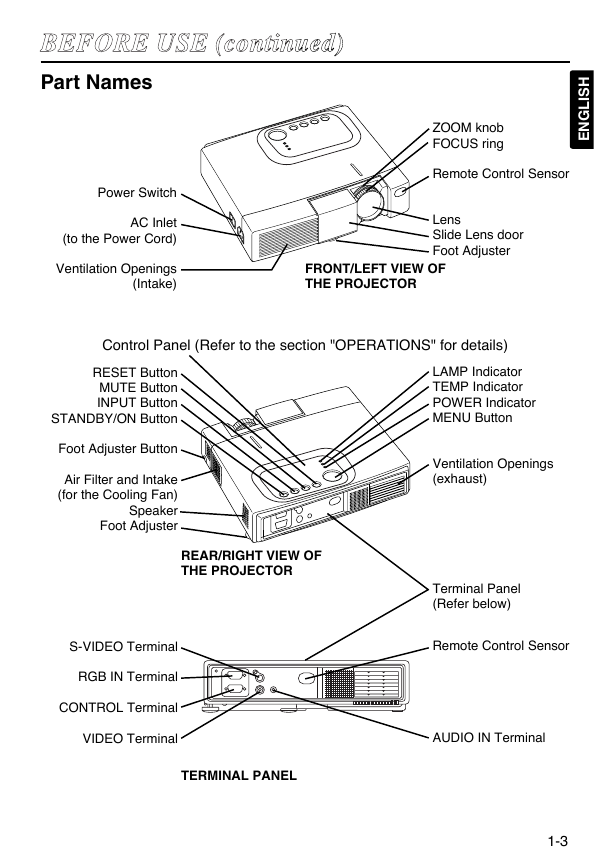

BBEEFFOORREE UUSSEE ((ccoonnttiinnuueedd)) Part Names I H S L G N E ZOOM knob FOCUS ring Remote Control Sensor Lens Slide Lens door Foot Adjuster Power Switch AC Inlet (to the Power Cord) Ventilation Openings (Intake) FRONT/LEFT VIEW OF THE PROJECTOR Control Panel (Refer to the section "OPERATIONS" for details) RESET Button MUTE Button INPUT Button STANDBY/ON Button Foot Adjuster Button Air Filter and Intake (for the Cooling Fan) Speaker Foot Adjuster S-VIDEO Terminal RGB IN Terminal CONTROL Terminal VIDEO Terminal REAR/RIGHT VIEW OF THE PROJECTOR TERMINAL PANEL LAMP Indicator TEMP Indicator POWER Indicator MENU Button Ventilation Openings (exhaust) Terminal Panel (Refer below) Remote Control Sensor AUDIO IN Terminal 1-3

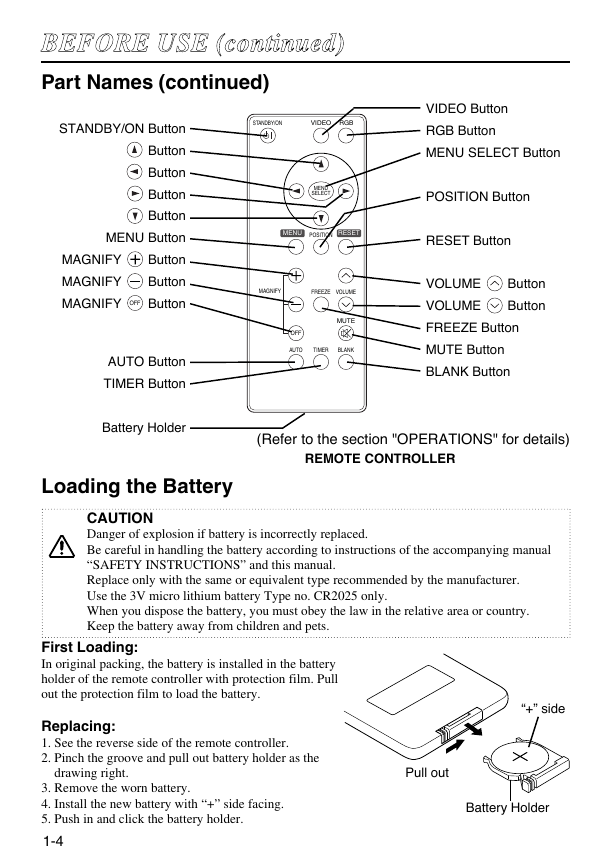

BBEEFFOORREE UUSSEE ((ccoonnttiinnuueedd)) Part Names (continued) STANDBY/ON Button Button Button Button Button MENU Button Button Button Button MAGNIFY MAGNIFY MAGNIFY OFF AUTO Button TIMER Button Battery Holder Loading the Battery STANDBY/ON VIDEO RGB VIDEO Button RGB Button MENU SELECT Button MENU SELECT POSITION Button MENU POSITION RESET RESET Button MAGNIFY FREEZE VOLUME MUTE OFF AUTO TIMER BLANK Button Button VOLUME VOLUME FREEZE Button MUTE Button BLANK Button (Refer to the section "OPERATIONS" for details) REMOTE CONTROLLER CAUTION Danger of explosion if battery is incorrectly replaced. Be careful in handling the battery according to instructions of the accompanying manual “SAFETY INSTRUCTIONS” and this manual. Replace only with the same or equivalent type recommended by the manufacturer. Use the 3V micro lithium battery Type no. CR2025 only. When you dispose the battery, you must obey the law in the relative area or country. Keep the battery away from children and pets. First Loading: In original packing, the battery is installed in the battery holder of the remote controller with protection film. Pull out the protection film to load the battery. Replacing: 1. See the reverse side of the remote controller. 2. Pinch the groove and pull out battery holder as the drawing right. 3. Remove the worn battery. 4. Install the new battery with “+” side facing. 5. Push in and click the battery holder. 1-4 “+” side Pull out Battery Holder

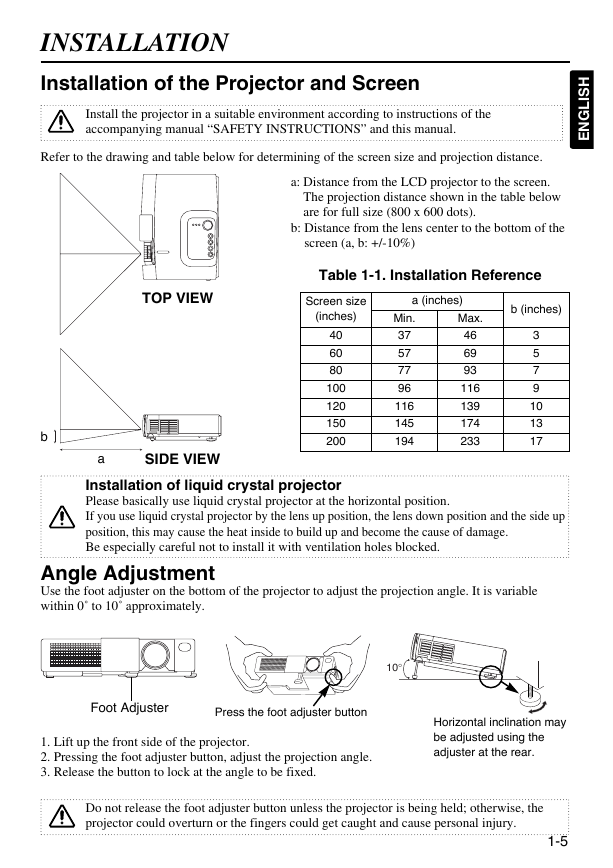

INSTALLATION Installation of the Projector and Screen Install the projector in a suitable environment according to instructions of the accompanying manual “SAFETY INSTRUCTIONS” and this manual. Refer to the drawing and table below for determining of the screen size and projection distance. I H S L G N E a: Distance from the LCD projector to the screen. The projection distance shown in the table below are for full size (800 x 600 dots). b: Distance from the lens center to the bottom of the screen (a, b: +/-10%) Table 1-1. Installation Reference TOP VIEW Screen size (inches) 40 60 80 100 120 150 200 b a SIDE VIEW a (inches) Min. 37 57 77 96 116 145 194 Max. 46 69 93 116 139 174 233 b (inches) 3 5 7 9 10 13 17 Installation of liquid crystal projector Please basically use liquid crystal projector at the horizontal position. If you use liquid crystal projector by the lens up position, the lens down position and the side up position, this may cause the heat inside to build up and become the cause of damage. Be especially careful not to install it with ventilation holes blocked. Angle Adjustment Use the foot adjuster on the bottom of the projector to adjust the projection angle. It is variable within 0˚ to 10˚ approximately. 10° Foot Adjuster Press the foot adjuster button 1. Lift up the front side of the projector. 2. Pressing the foot adjuster button, adjust the projection angle. 3. Release the button to lock at the angle to be fixed. Horizontal inclination may be adjusted using the adjuster at the rear. Do not release the foot adjuster button unless the projector is being held; otherwise, the projector could overturn or the fingers could get caught and cause personal injury. 1-5

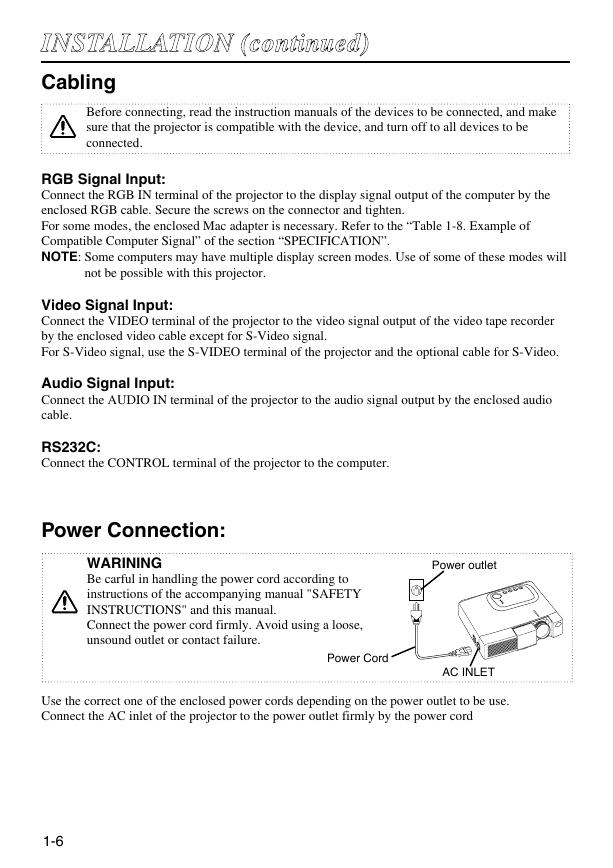

IINNSSTTAALLLLAATTIIOONN ((ccoonnttiinnuueedd)) Cabling Before connecting, read the instruction manuals of the devices to be connected, and make sure that the projector is compatible with the device, and turn off to all devices to be connected. RGB Signal Input: Connect the RGB IN terminal of the projector to the display signal output of the computer by the enclosed RGB cable. Secure the screws on the connector and tighten. For some modes, the enclosed Mac adapter is necessary. Refer to the “Table 1-8. Example of Compatible Computer Signal” of the section “SPECIFICATION”. NOTE: Some computers may have multiple display screen modes. Use of some of these modes will not be possible with this projector. Video Signal Input: Connect the VIDEO terminal of the projector to the video signal output of the video tape recorder by the enclosed video cable except for S-Video signal. For S-Video signal, use the S-VIDEO terminal of the projector and the optional cable for S-Video. Audio Signal Input: Connect the AUDIO IN terminal of the projector to the audio signal output by the enclosed audio cable. RS232C: Connect the CONTROL terminal of the projector to the computer. Power Connection: WARINING Be carful in handling the power cord according to instructions of the accompanying manual "SAFETY INSTRUCTIONS" and this manual. Connect the power cord firmly. Avoid using a loose, unsound outlet or contact failure. Power outlet Power Cord AC INLET Use the correct one of the enclosed power cords depending on the power outlet to be use. Connect the AC inlet of the projector to the power outlet firmly by the power cord 1-6

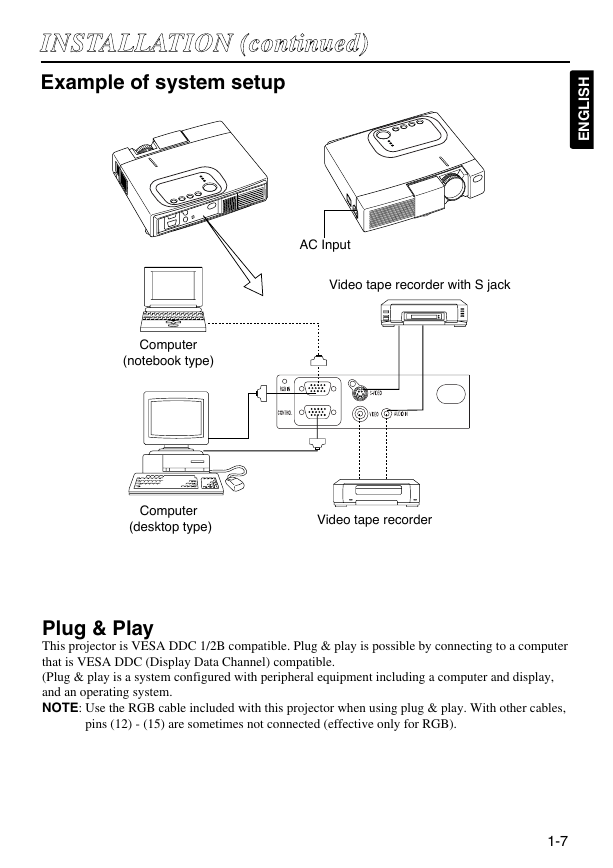

IINNSSTTAALLLLAATTIIOONN ((ccoonnttiinnuueedd)) Example of system setup I H S L G N E AC Input Video tape recorder with S jack Computer (notebook type) Computer (desktop type) Video tape recorder Plug & Play This projector is VESA DDC 1/2B compatible. Plug & play is possible by connecting to a computer that is VESA DDC (Display Data Channel) compatible. (Plug & play is a system configured with peripheral equipment including a computer and display, and an operating system. NOTE: Use the RGB cable included with this projector when using plug & play. With other cables, pins (12) - (15) are sometimes not connected (effective only for RGB). 1-7

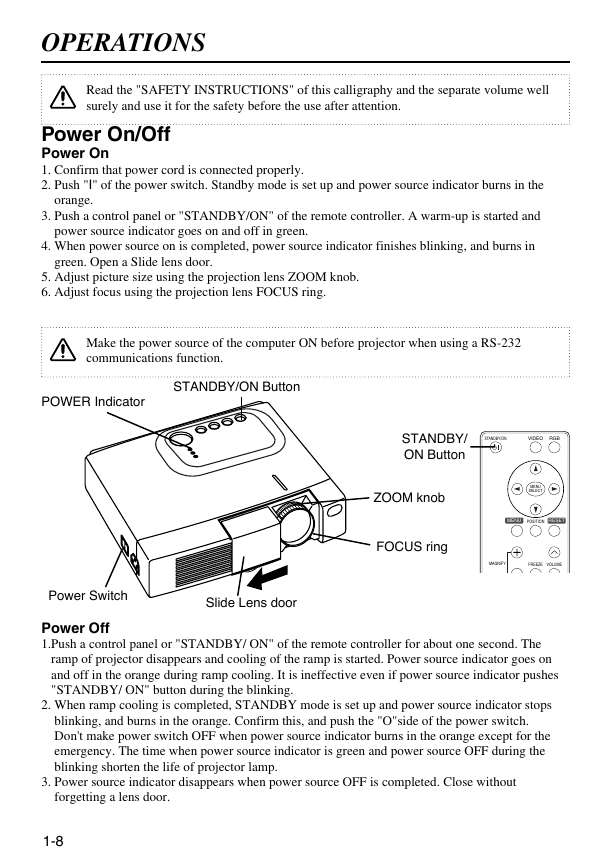

OPERATIONS Read the "SAFETY INSTRUCTIONS" of this calligraphy and the separate volume well surely and use it for the safety before the use after attention. Power On/Off Power On 1. Confirm that power cord is connected properly. 2. Push "I" of the power switch. Standby mode is set up and power source indicator burns in the orange. 3. Push a control panel or "STANDBY/ON" of the remote controller. A warm-up is started and power source indicator goes on and off in green. 4. When power source on is completed, power source indicator finishes blinking, and burns in green. Open a Slide lens door. 5. Adjust picture size using the projection lens ZOOM knob. 6. Adjust focus using the projection lens FOCUS ring. Make the power source of the computer ON before projector when using a RS-232 communications function. POWER Indicator STANDBY/ON Button STANDBY/ ON Button STANDBY/ON VIDEO RGB ZOOM knob FOCUS ring MENU SELECT MENU POSITION RESET MAGNIFY FREEZE VOLUME Power Switch Slide Lens door Power Off 1.Push a control panel or "STANDBY/ ON" of the remote controller for about one second. The ramp of projector disappears and cooling of the ramp is started. Power source indicator goes on and off in the orange during ramp cooling. It is ineffective even if power source indicator pushes "STANDBY/ ON" button during the blinking. 2. When ramp cooling is completed, STANDBY mode is set up and power source indicator stops blinking, and burns in the orange. Confirm this, and push the "O"side of the power switch. Don't make power switch OFF when power source indicator burns in the orange except for the emergency. The time when power source indicator is green and power source OFF during the blinking shorten the life of projector lamp. 3. Power source indicator disappears when power source OFF is completed. Close without forgetting a lens door. 1-8
