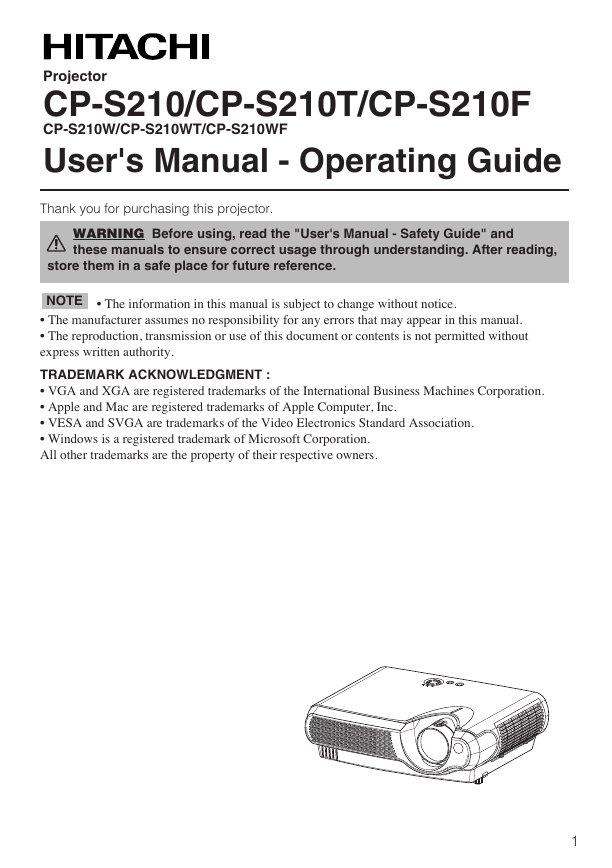

Projector CP-S210W/CP-S210WT/CP-S210WF CP-S210/CP-S210T/CP-S210F User's Manual - Operating Guide Thank you for purchasing this projector. WARNING Before using, read the "User's Manual - Safety Guide" and these manuals to ensure correct usage through understanding. After reading, store them in a safe place for future reference. • The information in this manual is subject to change without notice. NOTE • The manufacturer assumes no responsibility for any errors that may appear in this manual. • The reproduction, transmission or use of this document or contents is not permitted without express written authority. TRADEMARK ACKNOWLEDGMENT : • VGA and XGA are registered trademarks of the International Business Machines Corporation. • Apple and Mac are registered trademarks of Apple Computer, Inc. • VESA and SVGA are trademarks of the Video Electronics Standard Association. • Windows is a registered trademark of Microsoft Corporation. All other trademarks are the property of their respective owners. 1

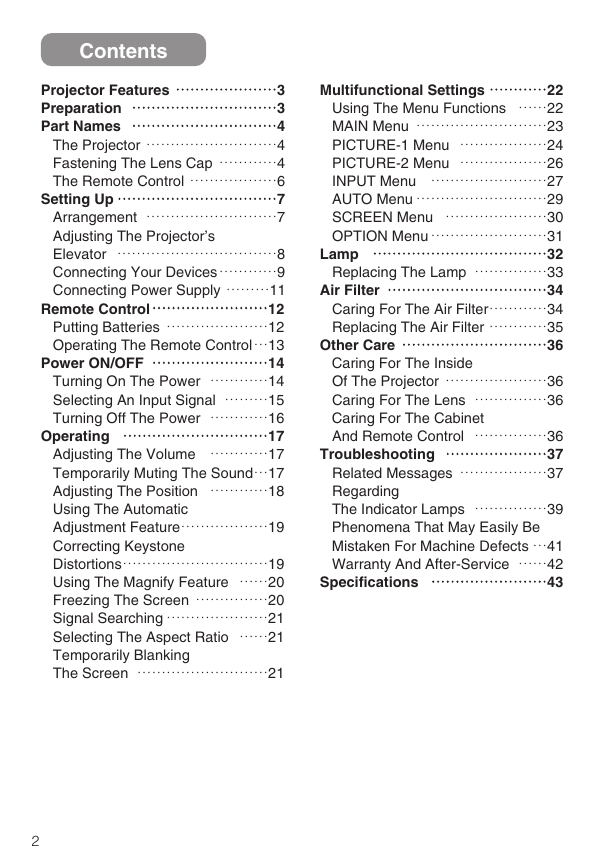

Multifunctional Settings ……………………22 Using The Menu Functions ……22 MAIN Menu ………………………23 PICTURE-1 Menu ………………24 PICTURE-2 Menu ………………26 INPUT Menu ……………………27 AUTO Menu ………………………29 SCREEN Menu …………………30 OPTION Menu ……………………31 Lamp ………………………………………………………………32 Replacing The Lamp ……………33 Air Filter …………………………………………………………34 Caring For The Air Filter…………34 Replacing The Air Filter …………35 Other Care ……………………………………………………36 Caring For The Inside Of The Projector …………………36 Caring For The Lens ……………36 Caring For The Cabinet And Remote Control ……………36 Troubleshooting ……………………………………37 Related Messages ………………37 Regarding The Indicator Lamps ……………39 Phenomena That May Easily Be Mistaken For Machine Defects …41 Warranty And After-Service ……42 Specifications …………………………………………43 Contents Projector Features ……………………………………3 Preparation ……………………………………………………3 Part Names ……………………………………………………4 The Projector ………………………4 Fastening The Lens Cap …………4 The Remote Control ………………6 Setting Up …………………………………………………………7 Arrangement ………………………7 Adjusting The Projector’s Elevator ……………………………8 Connecting Your Devices…………9 Connecting Power Supply ………11 Remote Control…………………………………………12 Putting Batteries …………………12 Operating The Remote Control…13 Power ON/OFF …………………………………………14 Turning On The Power …………14 Selecting An Input Signal ………15 Turning Off The Power …………16 Operating ……………………………………………………17 Adjusting The Volume …………17 Temporarily Muting The Sound…17 Adjusting The Position …………18 Using The Automatic Adjustment Feature………………19 Correcting Keystone Distortions…………………………19 Using The Magnify Feature ……20 Freezing The Screen ……………20 Signal Searching …………………21 Selecting The Aspect Ratio ……21 Temporarily Blanking The Screen ………………………21 2

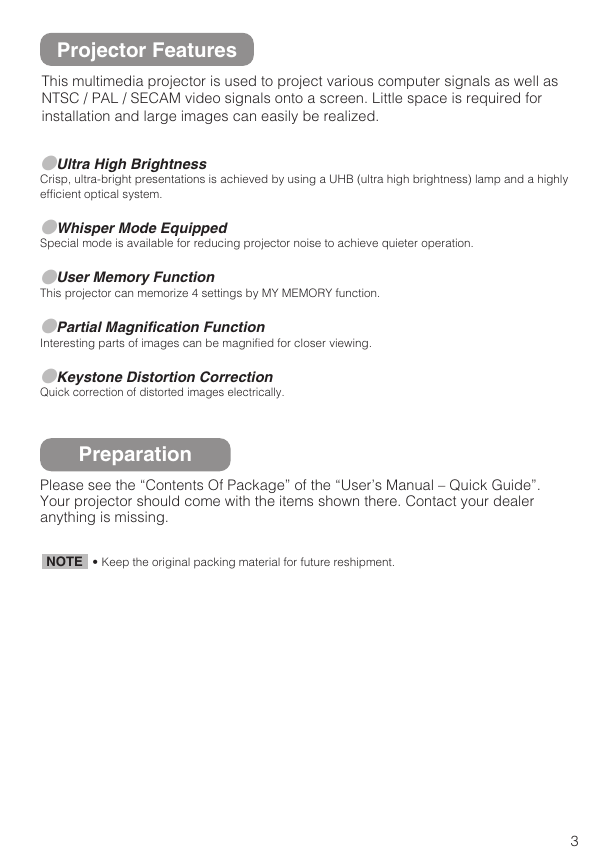

Projector Features This multimedia projector is used to project various computer signals as well as NTSC / PAL / SECAM video signals onto a screen. Little space is required for installation and large images can easily be realized. GUltra High Brightness Crisp, ultra-bright presentations is achieved by using a UHB (ultra high brightness) lamp and a highly efficient optical system. GWhisper Mode Equipped Special mode is available for reducing projector noise to achieve quieter operation. GUser Memory Function This projector can memorize 4 settings by MY MEMORY function. GPartial Magnification Function Interesting parts of images can be magnified for closer viewing. GKeystone Distortion Correction Quick correction of distorted images electrically. Preparation Please see the “Contents Of Package” of the “User’s Manual – Quick Guide”. Your projector should come with the items shown there. Contact your dealer anything is missing. NOTE • Keep the original packing material for future reshipment. 3

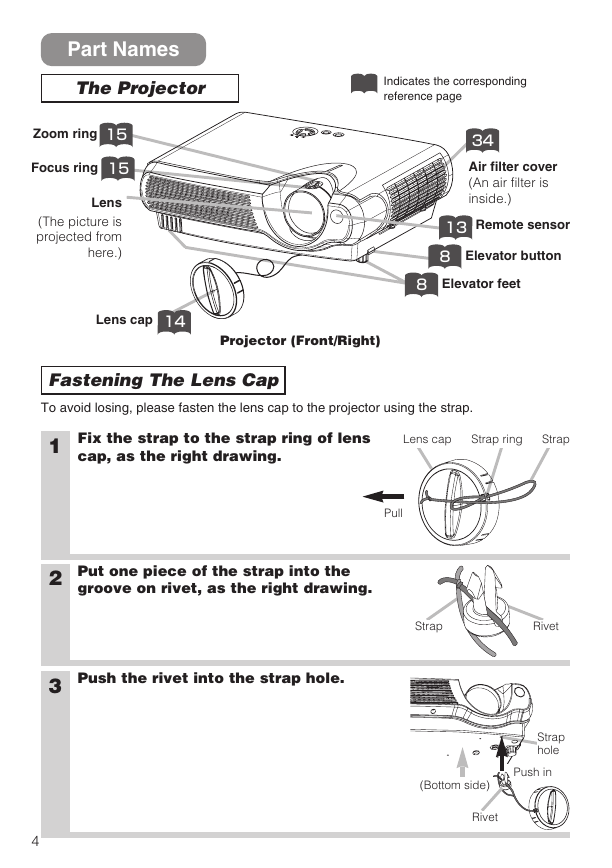

Part Names The Projector Zoom ring 15 Focus ring 15 Lens (The picture is projected from here.) Indicates the corresponding reference page 34 Air filter cover (An air filter is inside.) 13 Remote sensor 8 Elevator button 8 Elevator feet Lens cap 14 Projector (Front/Right) Fastening The Lens Cap To avoid losing, please fasten the lens cap to the projector using the strap. 1 Fix the strap to the strap ring of lens cap, as the right drawing. Lens cap Strap ring Strap Pull 2 Put one piece of the strap into the groove on rivet, as the right drawing. 3 Push the rivet into the strap hole. 4 Strap Rivet Strap hole Push in (Bottom side) Rivet

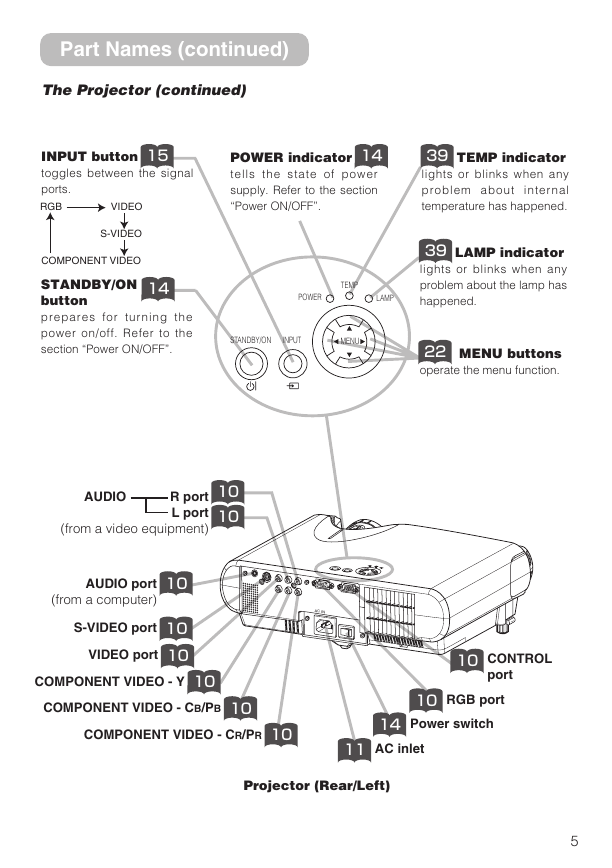

Part Names (continued) The Projector (continued) 15 INPUT button toggles between the signal ports. RGB VIDEO S-VIDEO COMPONENT VIDEO 14 STANDBY/ON button prepares for turning the power on/off. Refer to the section “Power ON/OFF”. 14 POWER indicator tells the state of power supply. Refer to the section “Power ON/OFF”. 39 TEMP indicator lights or blinks when any problem about internal temperature has happened. TEMP POWER LAMP STANDBY/ON INPUT MENU 39 LAMP indicator lights or blinks when any problem about the lamp has happened. 22 MENU buttons operate the menu function. AUDIO R port L port (from a video equipment) 10 10 AUDIO port (from a computer) 10 S-VIDEO port 10 VIDEO port 10 COMPONENT VIDEO - Y 10 COMPONENT VIDEO - CB/PB 10 COMPONENT VIDEO - CR/PR 10 AC IN 11 10 CONTROL port RGB port 10 Power switch 14 AC inlet Projector (Rear/Left) 5

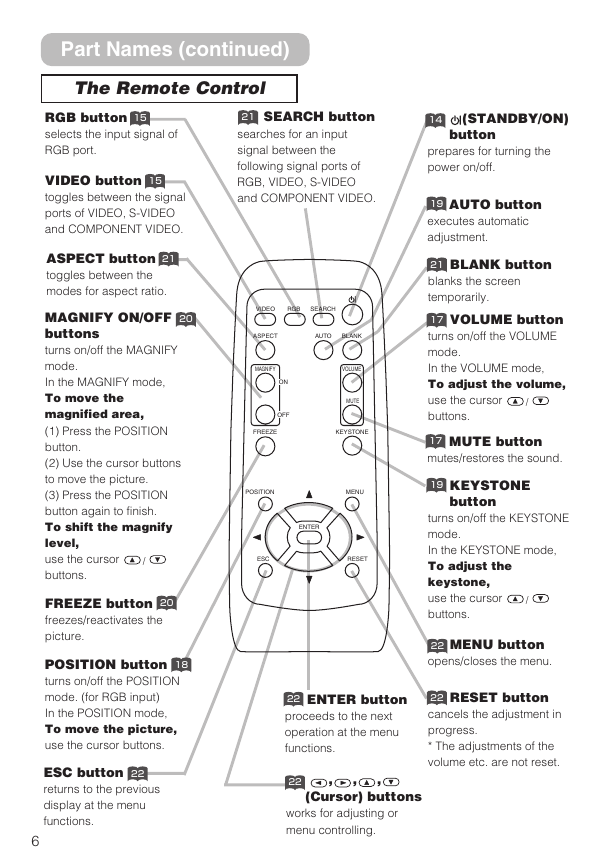

Part Names (continued) The Remote Control RGB button selects the input signal of RGB port. 15 15 VIDEO button toggles between the signal ports of VIDEO, S-VIDEO and COMPONENT VIDEO. ASPECT button toggles between the modes for aspect ratio. 21 20 MAGNIFY ON/OFF buttons turns on/off the MAGNIFY mode. In the MAGNIFY mode, To move the magnified area, (1) Press the POSITION button. (2) Use the cursor buttons to move the picture. (3) Press the POSITION button again to finish. To shift the magnify level, use the cursor buttons. / SEARCH button 21 searches for an input signal between the following signal ports of RGB, VIDEO, S-VIDEO and COMPONENT VIDEO. VIDEO RGB SEARCH ASPECT AUTO BLANK MAGNIFY VOLUME ON OFF MUTE FREEZE KEYSTONE POSITION MENU ENTER ESC RESET FREEZE button freezes/reactivates the picture. 20 18 POSITION button turns on/off the POSITION mode. (for RGB input) In the POSITION mode, To move the picture, use the cursor buttons. 22 ESC button returns to the previous display at the menu functions. 6 ENTER button 22 proceeds to the next operation at the menu functions. 22 , , , (Cursor) buttons works for adjusting or menu controlling. 14 (STANDBY/ON) button prepares for turning the power on/off. AUTO button 19 executes automatic adjustment. BLANK button 21 blanks the screen temporarily. VOLUME button 17 turns on/off the VOLUME mode. In the VOLUME mode, To adjust the volume, use the cursor buttons. / MUTE button 17 mutes/restores the sound. 19 KEYSTONE button turns on/off the KEYSTONE mode. In the KEYSTONE mode, To adjust the keystone, use the cursor buttons. / MENU button 22 opens/closes the menu. RESET button 22 cancels the adjustment in progress. * The adjustments of the volume etc. are not reset.

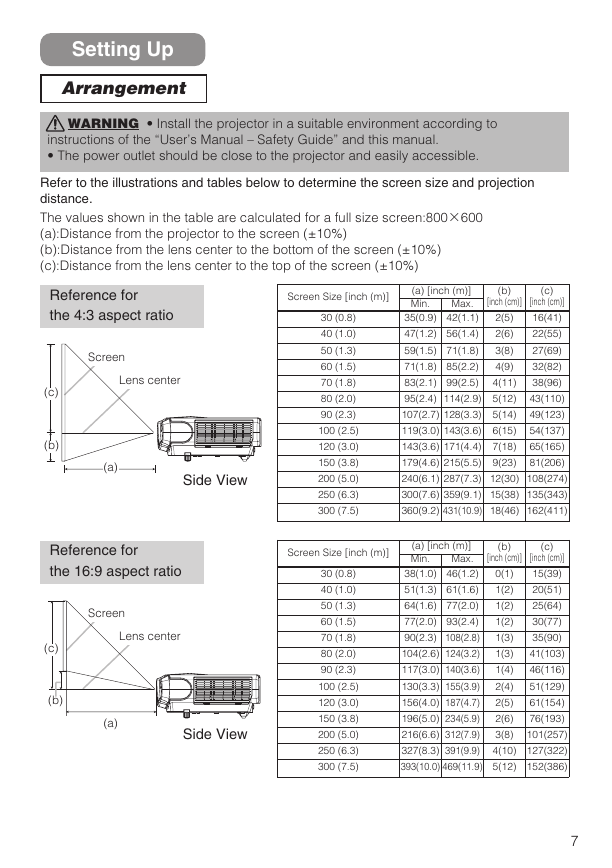

Setting Up Arrangement WARNING • Install the projector in a suitable environment according to instructions of the “User’s Manual – Safety Guide” and this manual. • The power outlet should be close to the projector and easily accessible. Refer to the illustrations and tables below to determine the screen size and projection distance. The values shown in the table are calculated for a full size screen:800×600 (a):Distance from the projector to the screen (±10%) (b):Distance from the lens center to the bottom of the screen (±10%) (c):Distance from the lens center to the top of the screen (±10%) Reference for the 4:3 aspect ratio Screen Lens center (c) (b) (a) Side View Reference for the 16:9 aspect ratio Screen Lens center (c) (b) (a) Side View Screen Size [inch (m)] 30 (0.8) 40 (1.0) 50 (1.3) 60 (1.5) 70 (1.8) 80 (2.0) 90 (2.3) 100 (2.5) 120 (3.0) 150 (3.8) 200 (5.0) 250 (6.3) 300 (7.5) Screen Size [inch (m)] 30 (0.8) 40 (1.0) 50 (1.3) 60 (1.5) 70 (1.8) 80 (2.0) 90 (2.3) 100 (2.5) 120 (3.0) 150 (3.8) 200 (5.0) 250 (6.3) 300 (7.5) (c) (b) [inch (cm)] (a) [inch (m)] [inch (cm)] Min. Max. 16(41) 2(5) 35(0.9) 42(1.1) 22(55) 2(6) 47(1.2) 56(1.4) 27(69) 3(8) 59(1.5) 71(1.8) 32(82) 4(9) 71(1.8) 85(2.2) 38(96) 83(2.1) 99(2.5) 4(11) 43(110) 95(2.4) 114(2.9) 5(12) 49(123) 107(2.7) 128(3.3) 5(14) 54(137) 119(3.0) 143(3.6) 6(15) 65(165) 143(3.6) 171(4.4) 7(18) 179(4.6) 215(5.5) 9(23) 81(206) 240(6.1) 287(7.3) 12(30) 108(274) 300(7.6) 359(9.1) 15(38) 135(343) 360(9.2) 431(10.9) 18(46) 162(411) (c) (b) [inch (cm)] (a) [inch (m)] [inch (cm)] Min. Max. 15(39) 0(1) 38(1.0) 46(1.2) 20(51) 1(2) 51(1.3) 61(1.6) 25(64) 1(2) 64(1.6) 77(2.0) 30(77) 1(2) 77(2.0) 93(2.4) 35(90) 1(3) 90(2.3) 108(2.8) 41(103) 1(3) 104(2.6) 124(3.2) 46(116) 1(4) 117(3.0) 140(3.6) 51(129) 2(4) 130(3.3) 155(3.9) 61(154) 2(5) 156(4.0) 187(4.7) 76(193) 2(6) 196(5.0) 234(5.9) 3(8) 101(257) 216(6.6) 312(7.9) 327(8.3) 391(9.9) 4(10) 127(322) 393(10.0) 469(11.9) 5(12) 152(386) 7

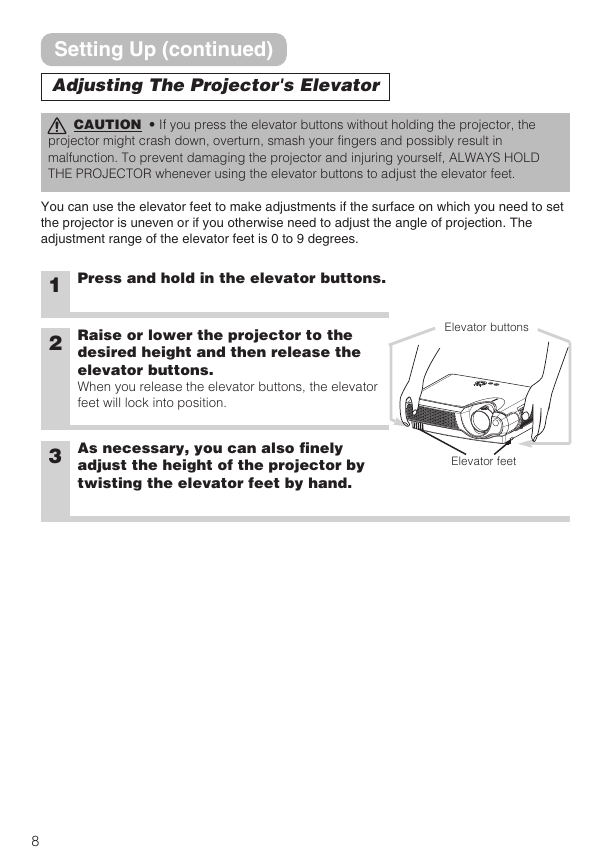

Setting Up (continued) Adjusting The Projector's Elevator CAUTION • If you press the elevator buttons without holding the projector, the projector might crash down, overturn, smash your fingers and possibly result in malfunction. To prevent damaging the projector and injuring yourself, ALWAYS HOLD THE PROJECTOR whenever using the elevator buttons to adjust the elevator feet. You can use the elevator feet to make adjustments if the surface on which you need to set the projector is uneven or if you otherwise need to adjust the angle of projection. The adjustment range of the elevator feet is 0 to 9 degrees. 1 Press and hold in the elevator buttons. 2 Raise or lower the projector to the desired height and then release the elevator buttons. When you release the elevator buttons, the elevator feet will lock into position. Elevator buttons 3 As necessary, you can also finely adjust the height of the projector by twisting the elevator feet by hand. Elevator feet 8
