Liquid Crystal Projector CP-X980W/X985W USER'S MANUAL Please read this user's manual thoroughly to ensure correct usage through understanding. BEDIENUNGSANLEITUNG Bitte lessen Sie diese Bedienungsanleitung zugunsten der korrekten Bedienung aufmerksam. MANUEL D'UTILISATION Nous vous recommandons de lire attentivement ce manuel pour bien assimiler le fonctionnement de l'appareil. MANUALE D'ISTRUZIONI Vi preghiamo voler leggere attentamente il manuale d'sitruzioni in modo tale da poter comprendere quanto riportato ai fini di un corretto utilizzo del proiettore. MANUAL DE USUARIO Lea cuidadosamente este manual del usuario para poder utilizar corretamente el producto. GEBRUIKSAANWIJZNG Lees voor het qebruik alstublieft deze handleiding aandachtig door, om volledig profijt te hebben van de uitgebreide mogelijkheden. BRUKERHÅNDBOK Vennligst les denne bruksanvisningen grundig for å være garantert driftssikker bruk. INSTRUÇÕES DO PROPRIETÁRIO Para assegurar o uso correto do equipamento, por favor leia atentamente este manual do usuário. TECHNICAL REGULATORY NOTICES I H S L G N E H C S T U E D I S A Ç N A R F O N A L A T I I L O Ñ A P S E S D N A L R E D E N K S R O N S Ê G T R O P I L A C N H C E T

Liquid Crystal Projector USER'S MANUAL USER'S MANUAL Thank you for purchasing this liquid crystal projector. WARNING • Please read the accompanying manual “SAFETY INSTRUCTIONS” and this “USER'S MANUAL” thoroughly to ensure correct usage through understanding. After reading, store this instruction manual in a safe place for future reference. • The information in this manual is subject to change without notice. NOTE • The manufacturer assumes no responsibility for any errors that may appear in this manual • The reproduction, transmission or use of this document or contents is not permitted without express written authority. TRADEMARK ACKNOWLEDGMENT : PS/2, VGA and XGA are registered trademarks of International Business Machines Corporation. Apple, Mac and ADB are registered trademarks of Apple Computer, Inc. VESA and SVGA are trademarks of the Video Electronics Standard Association. Windows is a registered trademark of Microsoft Corporation. Carefully observe the trademarks and registered trademarks of all companies, even when not mentioned. I H S L G N E CONTENTS CONTENTS Page FEATURES .......................................2 BEFORE USE ...................................2 Contents of Package ..............................2 Part Names.............................................3 Loading the Batteries..............................5 INSTALLATION ................................6 Installation of the Projector and Screen........6 Angle Adjustment ...................................6 Cabling ...................................................7 Power Connection ..................................8 Example of System Setup ......................8 Plug & Play .............................................8 OPERATIONS...................................9 Power On ...................................................9 Power Off ................................................9 Basic Operation ....................................10 Setup Menu ..........................................12 Input Menu............................................13 Image Menu..........................................14 Options Menu .......................................15 No Signal Menu ....................................16 MAINTENANCE ..............................17 Lamp.....................................................17 Air Filter ................................................19 Other Maintenance...............................19 Page TROUBLESHOOTING ....................20 OSD Message ......................................20 Indicators Message ..............................21 Symptom ..............................................22 SPECIFICATIONS...........................23 WARRANTY AND AFTER-SERVICE......24 ....................................................................................... TABLES Table 1. Installation Reference.................6 Table 2. Cabling .......................................7 Table 3. Basic Operations ......................10 Table 4. Setup Menu ..............................12 Table 5. Input Menu................................13 Table 6. Image Menu..............................14 Table 7. Options Menu ...........................15 Table 8. No Signal Menu........................16 Table 9. OSD Message ..........................20 Table 10. Indicator Message ..................21 Table 11. Symptom ................................22 Table 12. Specifications .........................23 ....................................................................................... For "TECHNICAL" and "REGULATORY NOTICE", see the end of this manual. ENGLISH-1

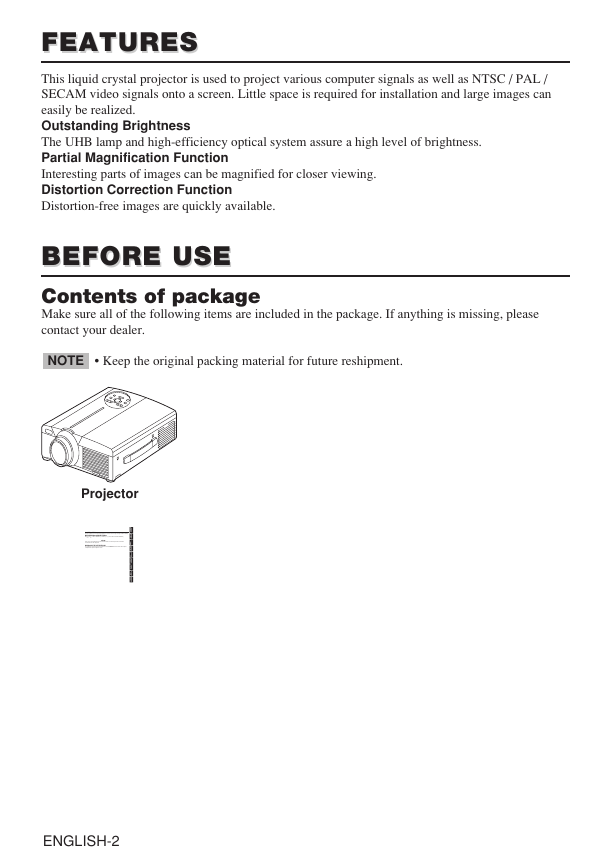

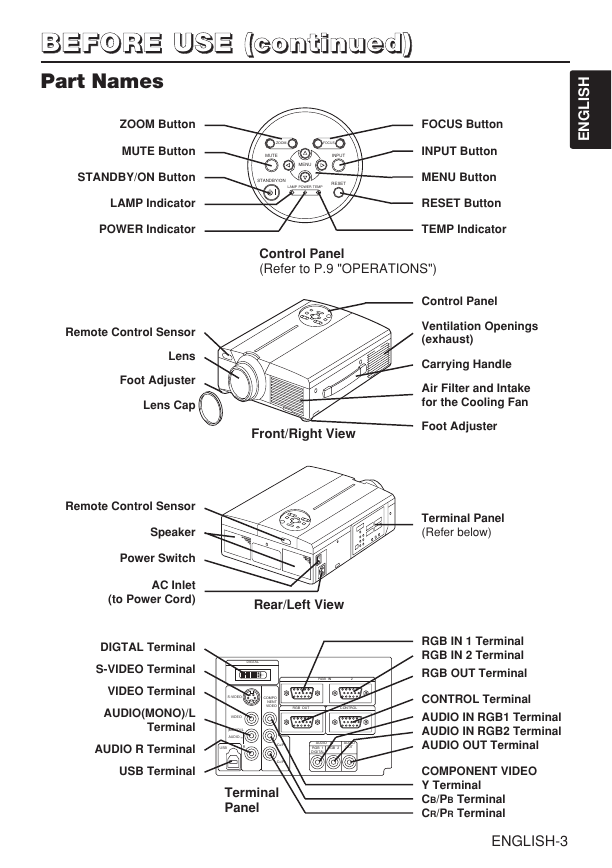

BBBBEEEEFFFFOOOORRRREEEE UUUUSSSSEEEE ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd)))) Part Names ZOOM Button MUTE Button STANDBY/ON Button LAMP Indicator POWER Indicator ZOOM FOCUS MUTE INPUT MENU STANDBY/ON LAMP POWER TEMP RESET FOCUS Button INPUT Button MENU Button RESET Button TEMP Indicator Control Panel (Refer to P.9 "OPERATIONS") I H S L G N E Remote Control Sensor Lens Foot Adjuster Lens Cap Remote Control Sensor Speaker Power Switch AC Inlet (to Power Cord) DIGTAL Terminal S-VIDEO Terminal VIDEO Terminal AUDIO(MONO)/L Terminal AUDIO R Terminal USB Terminal Front/Right View Rear/Left View DIGTAL S-VIDEO VIDEO (MONO)/L AUDIO USB R RGB IN 2 COMPO NENT VIDEO RGB OUT CONTROL AUDIO IN RGB 1 DIGITAL RGB 2 AUDIO OUT CB/PB CR/PR Terminal Panel Control Panel Ventilation Openings (exhaust) Carrying Handle Air Filter and Intake for the Cooling Fan Foot Adjuster Terminal Panel (Refer below) RGB IN 1 Terminal RGB IN 2 Terminal RGB OUT Terminal CONTROL Terminal AUDIO IN RGB1 Terminal AUDIO IN RGB2 Terminal AUDIO OUT Terminal COMPONENT VIDEO Y Terminal CB/PB Terminal CR/PR Terminal ENGLISH-3

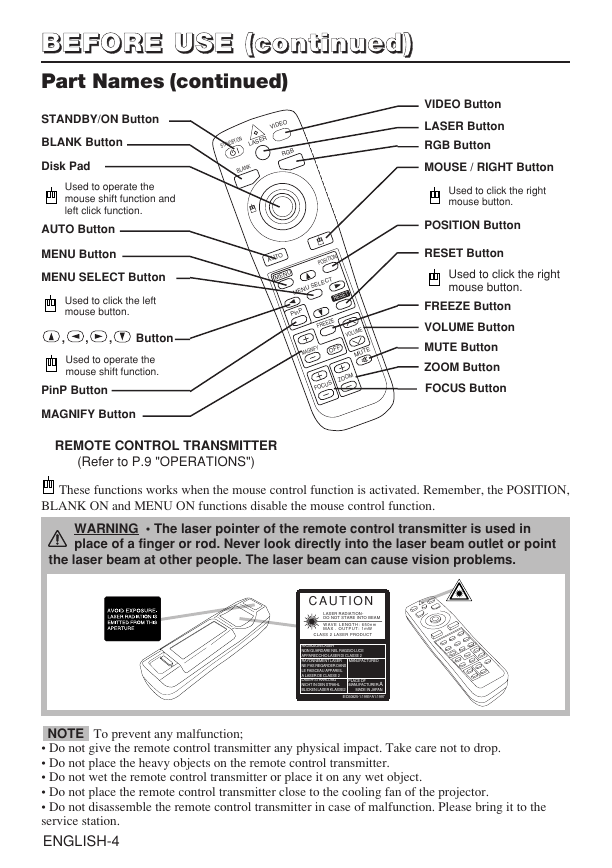

BBBBEEEEFFFFOOOORRRREEEE UUUUSSSSEEEE ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd)))) Part Names (continued) STANDBY/ON Button BLANK Button Disk Pad Used to operate the mouse shift function and left click function. AUTO Button MENU Button MENU SELECT Button Used to click the left mouse button. , , , Button Used to operate the mouse shift function. PinP Button MAGNIFY Button V I D E O R G B L A S E R Y / O B D N A T S B N L K N A A U T O M E N U N S I T I O O P M E N U S E L E C T T E S E R P i n P E Z E E R F E M U L O V Y N I F G A M F O F M U T E Z O O M F O C U S VIDEO Button LASER Button RGB Button MOUSE / RIGHT Button Used to click the right mouse button. POSITION Button RESET Button Used to click the right mouse button. FREEZE Button VOLUME Button MUTE Button ZOOM Button FOCUS Button REMOTE CONTROL TRANSMITTER (Refer to P.9 "OPERATIONS") These functions works when the mouse control function is activated. Remember, the POSITION, BLANK ON and MENU ON functions disable the mouse control function. WARNING • The laser pointer of the remote control transmitter is used in place of a finger or rod. Never look directly into the laser beam outlet or point the laser beam at other people. The laser beam can cause vision problems. C A U T I O N LASER RADIATION- DO NOT STARE INTO BEAM W A V E L E N G T H : 6 5 0 n m M A X . O U T P U T : 1 m W CLASS 2 LASER PRODUCT RADIAZIONI LASER NON GUARDARE NEL RAGGIO LUCE APPARECCHIO LASER DI CLASSE 2 RAYONNEMENT LASER NE PAS REGARDER DANS LE FAISCEAU APPAREIL A LASER DE CLASSE 2 LASER-STRAHLUNG NICHT IN DEN STRAHL BLICKEN LASER KLASSE2 MANUFACTURED PLACE OF MANUFACTURER:A MADE IN JAPAN IEC60825-1:1993+A1:1997 To prevent any malfunction; NOTE • Do not give the remote control transmitter any physical impact. Take care not to drop. • Do not place the heavy objects on the remote control transmitter. • Do not wet the remote control transmitter or place it on any wet object. • Do not place the remote control transmitter close to the cooling fan of the projector. • Do not disassemble the remote control transmitter in case of malfunction. Please bring it to the service station. ENGLISH-4

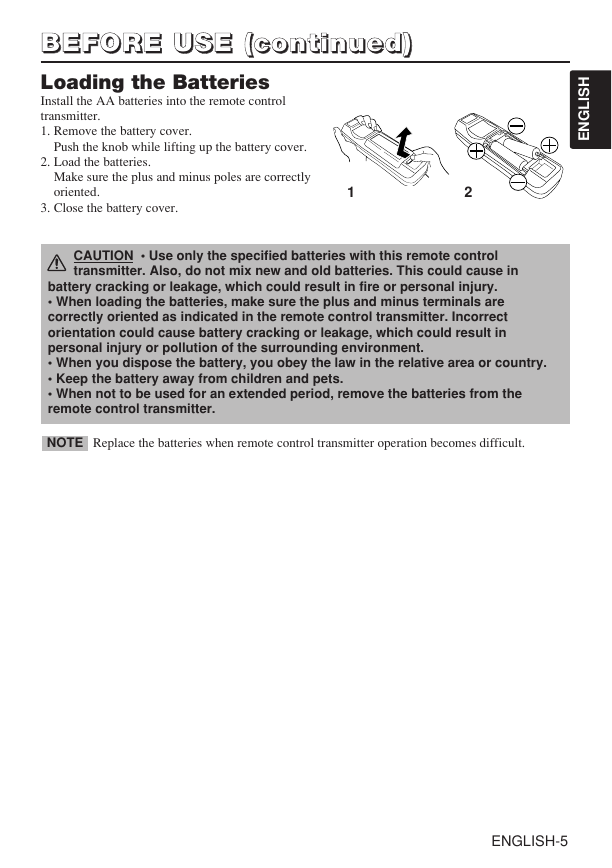

BBBBEEEEFFFFOOOORRRREEEE UUUUSSSSEEEE ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd)))) Loading the Batteries Install the AA batteries into the remote control transmitter. 1. Remove the battery cover. Push the knob while lifting up the battery cover. 2. Load the batteries. Make sure the plus and minus poles are correctly oriented. 1 3. Close the battery cover. 2 I H S L G N E CAUTION • Use only the specified batteries with this remote control transmitter. Also, do not mix new and old batteries. This could cause in battery cracking or leakage, which could result in fire or personal injury. • When loading the batteries, make sure the plus and minus terminals are correctly oriented as indicated in the remote control transmitter. Incorrect orientation could cause battery cracking or leakage, which could result in personal injury or pollution of the surrounding environment. • When you dispose the battery, you obey the law in the relative area or country. • Keep the battery away from children and pets. • When not to be used for an extended period, remove the batteries from the remote control transmitter. NOTE Replace the batteries when remote control transmitter operation becomes difficult. ENGLISH-5

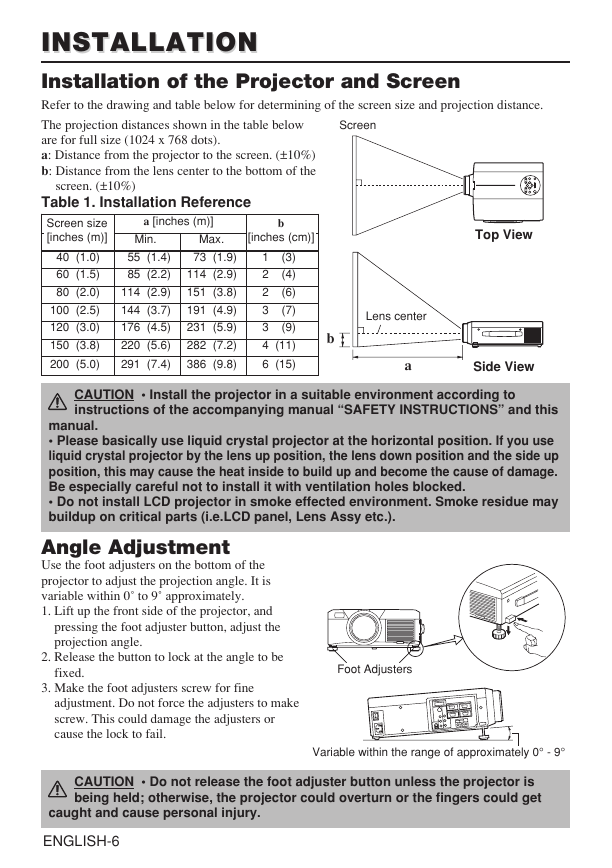

INSTALLATION INSTALLATION Installation of the Projector and Screen Refer to the drawing and table below for determining of the screen size and projection distance. The projection distances shown in the table below are for full size (1024 x 768 dots). a: Distance from the projector to the screen. (±10%) b: Distance from the lens center to the bottom of the Screen screen. (±10%) Table 1. Installation Reference Screen size [inches (m)] a [inches (m)] Min. b [inches (cm)] 40 (1.0) 60 (1.5) 80 (2.0) 100 (2.5) 120 (3.0) 150 (3.8) 200 (5.0) 55 (1.4) 85 (2.2) 114 (2.9) 144 (3.7) 176 (4.5) 220 (5.6) 291 (7.4) Max. 73 (1.9) 114 (2.9) 151 (3.8) 191 (4.9) 231 (5.9) 282 (7.2) 386 (9.8) Top View 1 (3) 2 (4) 2 (6) 3 (7) 3 (9) 4 (11) 6 (15) Lens center b a Side View CAUTION • Install the projector in a suitable environment according to instructions of the accompanying manual “SAFETY INSTRUCTIONS” and this manual. • Please basically use liquid crystal projector at the horizontal position. If you use liquid crystal projector by the lens up position, the lens down position and the side up position, this may cause the heat inside to build up and become the cause of damage. Be especially careful not to install it with ventilation holes blocked. • Do not install LCD projector in smoke effected environment. Smoke residue may buildup on critical parts (i.e.LCD panel, Lens Assy etc.). Angle Adjustment Use the foot adjusters on the bottom of the projector to adjust the projection angle. It is variable within 0˚ to 9˚ approximately. 1. Lift up the front side of the projector, and pressing the foot adjuster button, adjust the projection angle. 2. Release the button to lock at the angle to be fixed. 3. Make the foot adjusters screw for fine adjustment. Do not force the adjusters to make screw. This could damage the adjusters or cause the lock to fail. Foot Adjusters Variable within the range of approximately 0° - 9° CAUTION • Do not release the foot adjuster button unless the projector is being held; otherwise, the projector could overturn or the fingers could get caught and cause personal injury. ENGLISH-6

IIIINNNNSSSSTTTTAAAALLLLLLLLAAAATTTTIIIIOOOONNNN ((((ccccoooonnnnttttiiiinnnnuuuueeeedddd)))) Cabling Refer to the table below for connecting each terminal of the projector to each device. Table 2. Cabling Function Terminal Cable I H S L G N E Analog RGB input Analog RGB output Digital RGB input Audio input (from the computer) PS/2 mouse control ADB mouse control Serial mouse control RGB IN 1 RGB IN 2 RGB OUT DIGITAL AUDIO IN [RGB 1] / [DIGITAL] (interlocked with RGB IN 1 or DIGITAL) AUDIO IN [RGB 2] (interlocked with RGB IN 2) CONTROL RS-232C communication USB mouse control USB S-video input Video input Component video input Audio input (from video equipment) S-VIDEO VIDEO COMPONENT VIDEO Y COMPONENT VIDEO CB/PB COMPONENT VIDEO CR/PR AUDIO (MONO)/L AUDIO R Accessory RGB cable or optional RGB cable with D-sub 15-pin shrink jack and inch thread screws Optional digital RGB cable with inch thread screws Optional audio cable with stereo mini jack Accessory PS/2 mouse cable Optional ADB mouse cable Optional Serial mouse cable Optional RS-232C cable Optional USB cable Optional S-video cable with mini DIN 4-pin jack Accessory video/audio cable Accessory component video cable Accessory video/audio cable or optional audio cable with RCA jack Audio output AUDIO OUT Optional audio cable with stereo mini jack CAUTION • Incorrect connecting could result in fire or electrical shock. Please read this manual and the separate “SAFETY INSTRUCTIONS”. • Before connecting, turn off to all devices to be connected, except for the USB cable. • The cables (Power cord, RGB cable and other cables) may have to be used with the core set to the projector side. Use the cables which are included with the projector or specified. • Before connecting, read instruction manuals of the devices to be connected, and make sure that the NOTE projector is compatible with the device. • Secure the screws on the connectors and tighten. • For some RGB input modes, the accessory Mac adapter is necessary. • To select the digital RGB input, the comuter may need some settings. See the manuals of the computer for details. • Some computers may have multiple display screen modes. Use of some of these modes will not be possible with this projector. • Refer to the “TECNICAL” section for the pin assign of connectors and RS-232C communication data. • When the DIGITAL terminal is used, the RGB OUT terminal may not function. ENGLISH-7
