三菱投影机-FD630U说明书.pdf
WARNING:
CAUTION:
NOTE:
Contents
Important safeguards
WARNING:

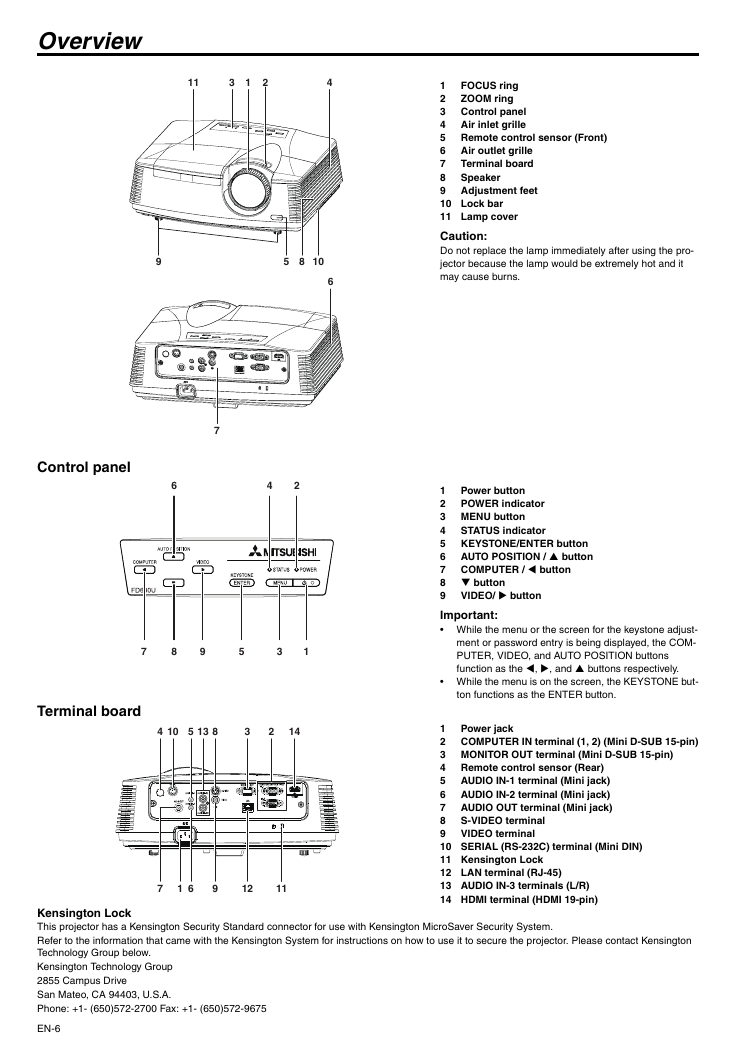

Overview
Control panel
Terminal board

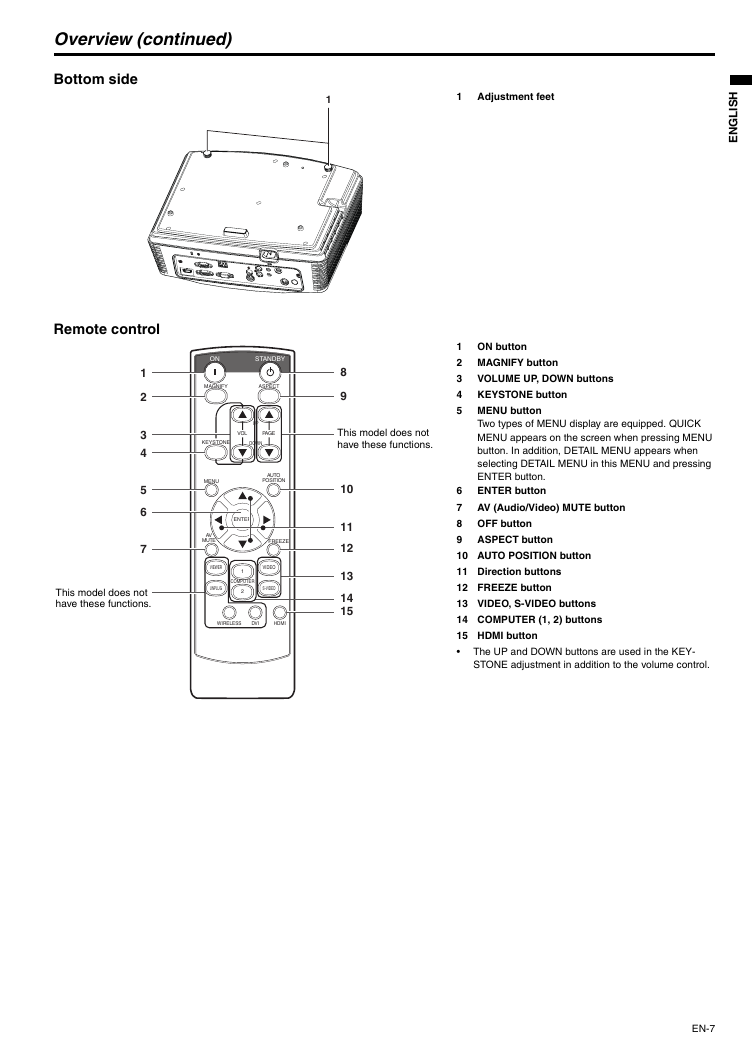

Bottom side
Remote control
Remote control

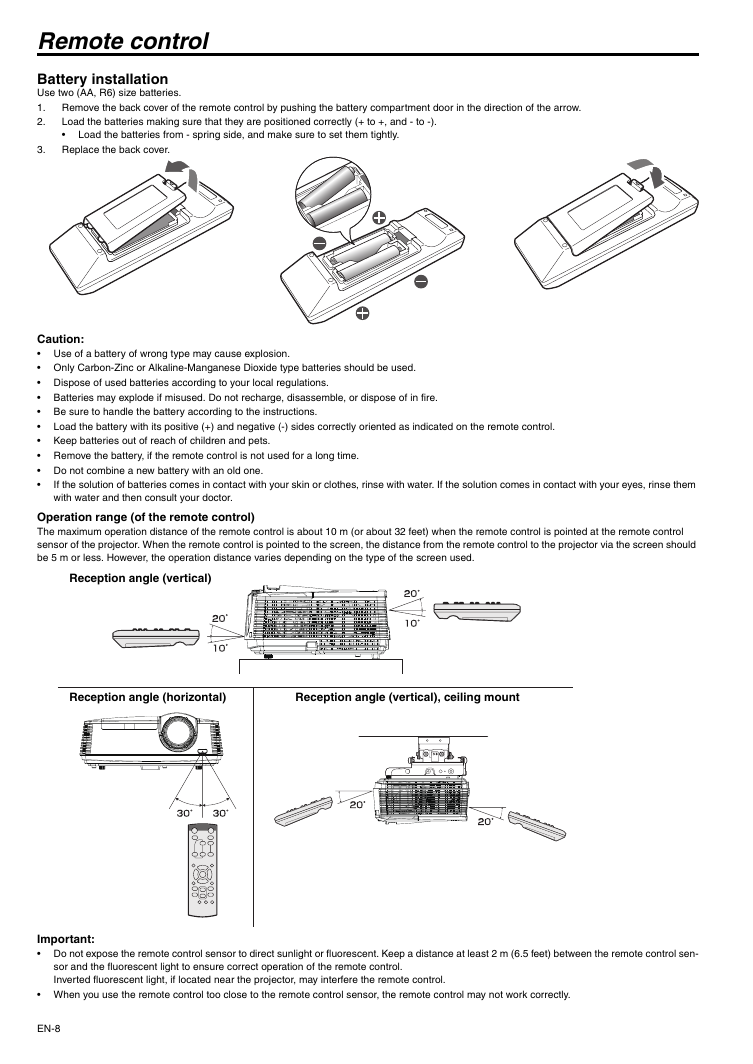

Battery installation
Installation
Layout of the projector
Front projection, ceiling mounting
Ceiling Mount Installation
Rear projection
Basic connections
Projector + AV device
Projector + DVD player or HDTV decoder
Connection (for video equipment having an HDMI terminal)
Projector + Computer
Preparation
Preparation for projection
Adjustment of the projection angle
Using the adjustment feet (front)
Basic operation
Power-on
Power-off
Instant Shut Down
AUTO POSITION button
Volume from the speaker
AV mute
Setting the aspect ratio
How to change the settings:
Wall Screen
When connecting to a laptop computer:
Menu operation
QUICK MENU
QUICK MENU Basic operation
Menu Options
DETAIL MENU
Basic operation
Menu Options
Image adjustment
Adjusting projected images
CONTRAST
BRIGHTNESS
COLOR
TINT
Color Enhancer
GAMMA mode
BrilliantColorTM
RGB-COLOR
RGB-TINT
How to adjust the computer image
How to adjust the image supplied from the computer using the menu:
Simple method to adjust the image position
LPF (Progressive filter)
Network settings
Setting Projector Name
Network Password Settings
IP Settings
Setting or Clearing DHCP
IP Address Settings
Subnet Mask Settings
Default Gateway Settings
Setting or Clearing PJLink Certification
Initialization of Network Settings
Advanced features
Setting of the image displayed during startup or muting
Split
Freeze
Password function
Magnify
Supervising and controlling by computer
PJLinkTM supported commands
An example of connecting the projector to peripherals
Using the LAN Control Utility User Manual
Lamp replacement
Interval of lamp replacement
Troubleshooting
No image appears on the screen.
Images are not displayed correctly.
Others
If the following problem occurs after the lamp is replaced, check the following first.
Maintenance
Indicators
Normal condition
Abnormal condition
Specifications
Connectors
Dimensional drawings (unit : mm)
What’s included in the box
EN

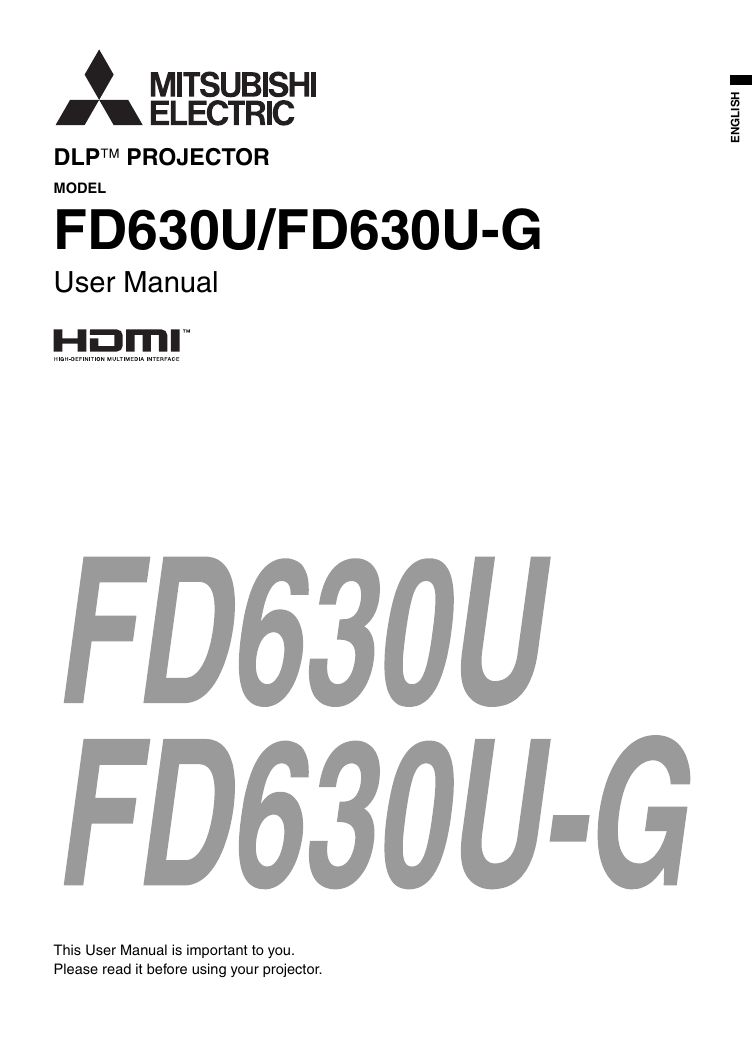

DLP PROJECTOR
MODEL
FD630U/FD630U-G
User Manual
I
H
S
L
G
N
E
This User Manual is important to you.
Please read it before using your projector.

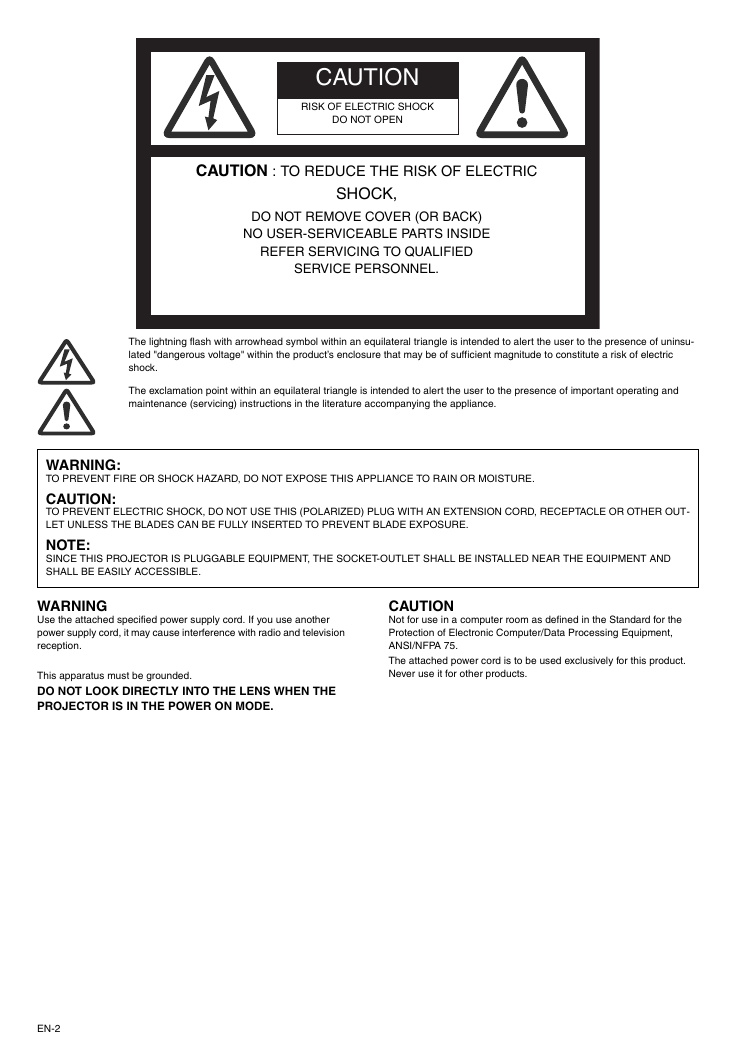

CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC
SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsu-
lated "dangerous voltage" within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric
shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION:
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUT-
LET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
NOTE:
SINCE THIS PROJECTOR IS PLUGGABLE EQUIPMENT, THE SOCKET-OUTLET SHALL BE INSTALLED NEAR THE EQUIPMENT AND
SHALL BE EASILY ACCESSIBLE.
WARNING
Use the attached specified power supply cord. If you use another
power supply cord, it may cause interference with radio and television
reception.
This apparatus must be grounded.
DO NOT LOOK DIRECTLY INTO THE LENS WHEN THE
PROJECTOR IS IN THE POWER ON MODE.
CAUTION
Not for use in a computer room as defined in the Standard for the
Protection of Electronic Computer/Data Processing Equipment,
ANSI/NFPA 75.
The attached power cord is to be used exclusively for this product.
Never use it for other products.
EN-2

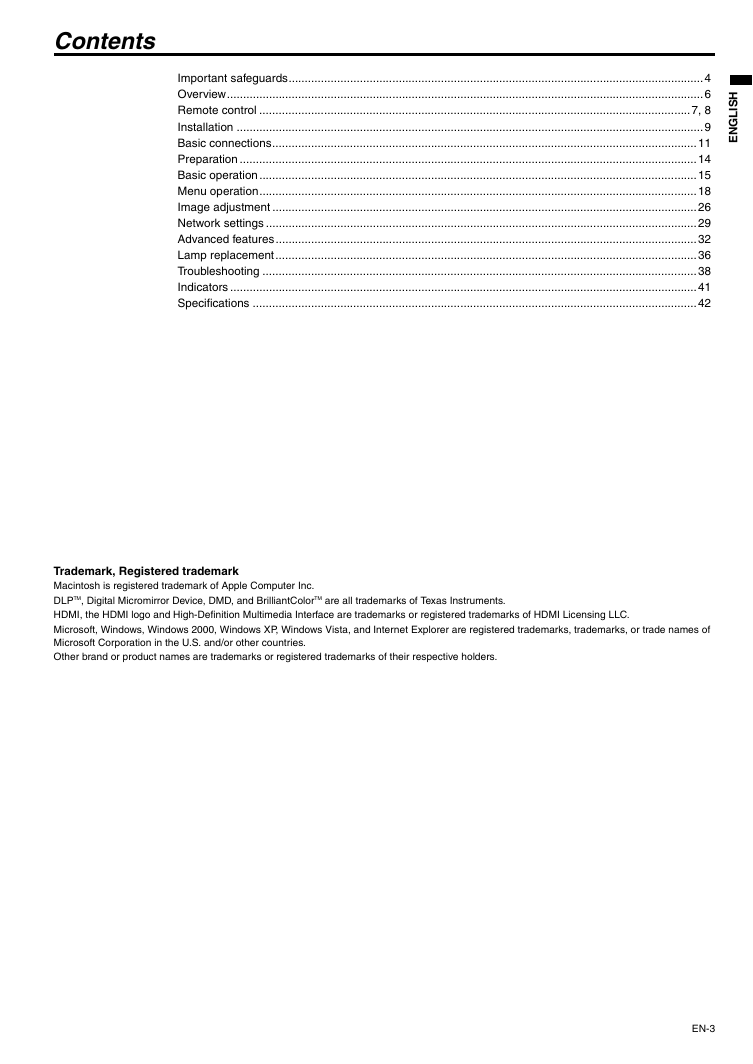

Contents
Important safeguards................................................................................................................................4
Overview...................................................................................................................................................6
Remote control .....................................................................................................................................7, 8
Installation ................................................................................................................................................9
Basic connections...................................................................................................................................11
Preparation .............................................................................................................................................14
Basic operation.......................................................................................................................................15
Menu operation.......................................................................................................................................18
Image adjustment ...................................................................................................................................26
Network settings .....................................................................................................................................29
Advanced features..................................................................................................................................32
Lamp replacement..................................................................................................................................36
Troubleshooting ......................................................................................................................................38
Indicators ................................................................................................................................................41
Specifications .........................................................................................................................................42
I
H
S
L
G
N
E
Trademark, Registered trademark
Macintosh is registered trademark of Apple Computer Inc.
DLPTM, Digital Micromirror Device, DMD, and BrilliantColorTM are all trademarks of Texas Instruments.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
Microsoft, Windows, Windows 2000, Windows XP, Windows Vista, and Internet Explorer are registered trademarks, trademarks, or trade names of
Microsoft Corporation in the U.S. and/or other countries.
Other brand or product names are trademarks or registered trademarks of their respective holders.
EN-3
12. Overloading
Do not overload wall outlets and extension cords as this can
result in a fire or electric shock.
13. Objects and liquids
Never push objects of any kind through openings of this projec-
tor as they may touch dangerous voltage points or short-out
parts that could result in a fire or electric shock. Never spill liquid
of any kind on the projector.
14. Servicing
Do not attempt to service this projector yourself. Refer all servic-
ing to qualified service personnel.
15. Damage requiring service
Unplug this projector from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
(a)
(b)
If the power-supply cord or plug is damaged.
If liquid has been spilled, or objects have fallen into the pro-
jector.
If the projector does not operate normally after you follow
the operating instructions. Adjust only those controls that
are covered by the operating instructions. An improper
adjustment of other controls may result in damage and may
often require extensive work by a qualified technician to
restore the projector to its normal operation.
If the projector has been exposed to rain or water.
If the projector has been dropped or the cabinet has been
damaged.
If the projector exhibits a distinct change in performance -
this indicates a need for service.
(c)
(d)
(e)
(f)
16. Replacement parts
When replacement parts are required, be sure that the service
technician has used replacement parts specified by the manu-
facturer or parts having the same characteristics as the original
part. Unauthorized substitutions may result in fire, electric shock
or other hazards.
17. Safety check
Upon completion of any service or repair to this projector, ask
the service technician to perform safety checks determining that
the projector is in a safe operating condition.

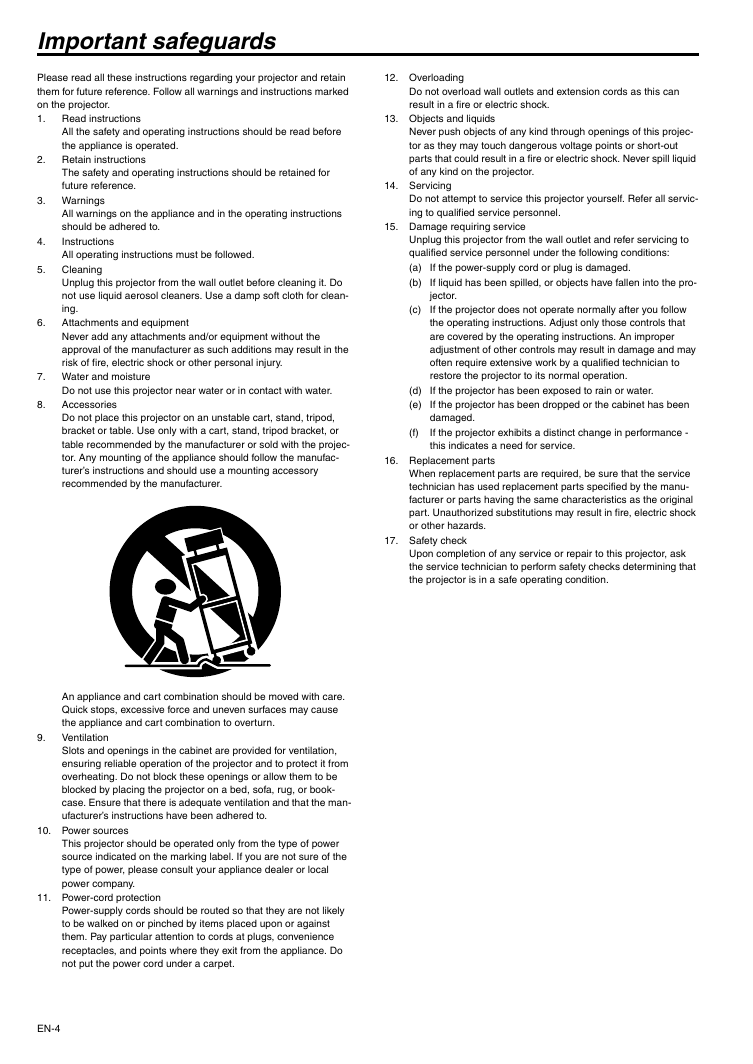

Important safeguards
Please read all these instructions regarding your projector and retain
them for future reference. Follow all warnings and instructions marked
on the projector.
1.
Read instructions
All the safety and operating instructions should be read before
the appliance is operated.
Retain instructions
The safety and operating instructions should be retained for
future reference.
2.
3. Warnings
4.
5.
6.
All warnings on the appliance and in the operating instructions
should be adhered to.
Instructions
All operating instructions must be followed.
Cleaning
Unplug this projector from the wall outlet before cleaning it. Do
not use liquid aerosol cleaners. Use a damp soft cloth for clean-
ing.
Attachments and equipment
Never add any attachments and/or equipment without the
approval of the manufacturer as such additions may result in the
risk of fire, electric shock or other personal injury.
7. Water and moisture
8.
Do not use this projector near water or in contact with water.
Accessories
Do not place this projector on an unstable cart, stand, tripod,
bracket or table. Use only with a cart, stand, tripod bracket, or
table recommended by the manufacturer or sold with the projec-
tor. Any mounting of the appliance should follow the manufac-
turer’s instructions and should use a mounting accessory
recommended by the manufacturer.
9.
An appliance and cart combination should be moved with care.
Quick stops, excessive force and uneven surfaces may cause
the appliance and cart combination to overturn.
Ventilation
Slots and openings in the cabinet are provided for ventilation,
ensuring reliable operation of the projector and to protect it from
overheating. Do not block these openings or allow them to be
blocked by placing the projector on a bed, sofa, rug, or book-
case. Ensure that there is adequate ventilation and that the man-
ufacturer’s instructions have been adhered to.
10. Power sources
This projector should be operated only from the type of power
source indicated on the marking label. If you are not sure of the
type of power, please consult your appliance dealer or local
power company.
11. Power-cord protection
Power-supply cords should be routed so that they are not likely
to be walked on or pinched by items placed upon or against
them. Pay particular attention to cords at plugs, convenience
receptacles, and points where they exit from the appliance. Do
not put the power cord under a carpet.
EN-4

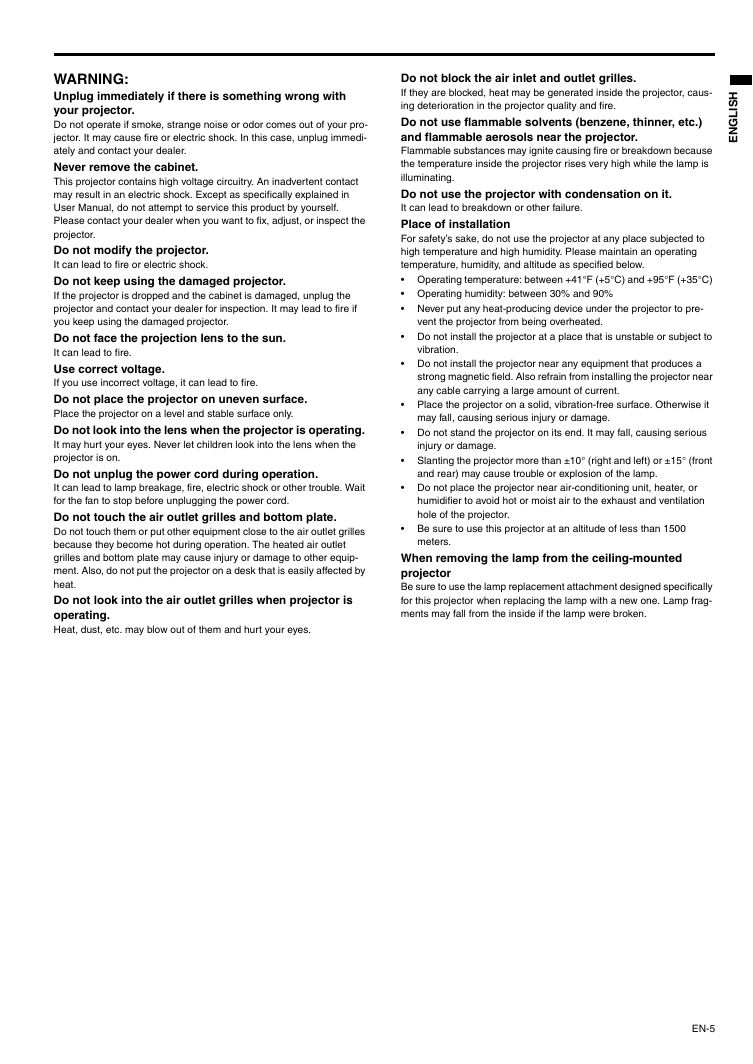

WARNING:
Unplug immediately if there is something wrong with
your projector.
Do not operate if smoke, strange noise or odor comes out of your pro-
jector. It may cause fire or electric shock. In this case, unplug immedi-
ately and contact your dealer.
Never remove the cabinet.
This projector contains high voltage circuitry. An inadvertent contact
may result in an electric shock. Except as specifically explained in
User Manual, do not attempt to service this product by yourself.
Please contact your dealer when you want to fix, adjust, or inspect the
projector.
Do not modify the projector.
It can lead to fire or electric shock.
Do not keep using the damaged projector.
If the projector is dropped and the cabinet is damaged, unplug the
projector and contact your dealer for inspection. It may lead to fire if
you keep using the damaged projector.
Do not face the projection lens to the sun.
It can lead to fire.
Use correct voltage.
If you use incorrect voltage, it can lead to fire.
Do not place the projector on uneven surface.
Place the projector on a level and stable surface only.
Do not look into the lens when the projector is operating.
It may hurt your eyes. Never let children look into the lens when the
projector is on.
Do not unplug the power cord during operation.
It can lead to lamp breakage, fire, electric shock or other trouble. Wait
for the fan to stop before unplugging the power cord.
Do not touch the air outlet grilles and bottom plate.
Do not touch them or put other equipment close to the air outlet grilles
because they become hot during operation. The heated air outlet
grilles and bottom plate may cause injury or damage to other equip-
ment. Also, do not put the projector on a desk that is easily affected by
heat.
Do not look into the air outlet grilles when projector is
operating.
Heat, dust, etc. may blow out of them and hurt your eyes.
I
H
S
L
G
N
E
Do not block the air inlet and outlet grilles.
If they are blocked, heat may be generated inside the projector, caus-
ing deterioration in the projector quality and fire.
Do not use flammable solvents (benzene, thinner, etc.)
and flammable aerosols near the projector.
Flammable substances may ignite causing fire or breakdown because
the temperature inside the projector rises very high while the lamp is
illuminating.
Do not use the projector with condensation on it.
It can lead to breakdown or other failure.
Place of installation
For safety’s sake, do not use the projector at any place subjected to
high temperature and high humidity. Please maintain an operating
temperature, humidity, and altitude as specified below.
Operating temperature: between +41°F (+5°C) and +95°F (+35°C)
Operating humidity: between 30% and 90%
Never put any heat-producing device under the projector to pre-
vent the projector from being overheated.
Do not install the projector at a place that is unstable or subject to
vibration.
Do not install the projector near any equipment that produces a
strong magnetic field. Also refrain from installing the projector near
any cable carrying a large amount of current.
Place the projector on a solid, vibration-free surface. Otherwise it
may fall, causing serious injury or damage.
Do not stand the projector on its end. It may fall, causing serious
injury or damage.
Slanting the projector more than ±10° (right and left) or ±15° (front
and rear) may cause trouble or explosion of the lamp.
Do not place the projector near air-conditioning unit, heater, or
humidifier to avoid hot or moist air to the exhaust and ventilation
hole of the projector.
Be sure to use this projector at an altitude of less than 1500
meters.
When removing the lamp from the ceiling-mounted
projector
Be sure to use the lamp replacement attachment designed specifically
for this projector when replacing the lamp with a new one. Lamp frag-
ments may fall from the inside if the lamp were broken.
EN-5
Overview
11
3
1 2
4
9
85
10
6
FOCUS ring
ZOOM ring
Control panel
Air inlet grille
Remote control sensor (Front)
Air outlet grille
Terminal board
Speaker
Adjustment feet
1
2
3
4
5
6
7
8
9
10 Lock bar
11 Lamp cover
Caution:
Do not replace the lamp immediately after using the pro-
jector because the lamp would be extremely hot and it
may cause burns.
7
Control panel
6
4
2
7
8
9
5
3
1
Terminal board
4
10
5
13
8
3
2
14
7
1 6
9
12
11
Power button
POWER indicator
VIDEO/ button
STATUS indicator
KEYSTONE/ENTER button
AUTO POSITION / button
COMPUTER / button
1
2
3 MENU button
4
5
6
7
8 button
9
Important:
While the menu or the screen for the keystone adjust-
ment or password entry is being displayed, the COM-
PUTER, VIDEO, and AUTO POSITION buttons
function as the , , and buttons respectively.
While the menu is on the screen, the KEYSTONE but-
ton functions as the ENTER button.
Power jack
COMPUTER IN terminal (1, 2) (Mini D-SUB 15-pin)
Remote control sensor (Rear)
AUDIO IN-1 terminal (Mini jack)
AUDIO IN-2 terminal (Mini jack)
AUDIO OUT terminal (Mini jack)
S-VIDEO terminal
VIDEO terminal
1
2
3 MONITOR OUT terminal (Mini D-SUB 15-pin)
4
5
6
7
8
9
10 SERIAL (RS-232C) terminal (Mini DIN)
11 Kensington Lock
12 LAN terminal (RJ-45)
13 AUDIO IN-3 terminals (L/R)
14 HDMI terminal (HDMI 19-pin)
Kensington Lock
This projector has a Kensington Security Standard connector for use with Kensington MicroSaver Security System.
Refer to the information that came with the Kensington System for instructions on how to use it to secure the projector. Please contact Kensington
Technology Group below.
Kensington Technology Group
2855 Campus Drive
San Mateo, CA 94403, U.S.A.
Phone: +1- (650)572-2700 Fax: +1- (650)572-9675
EN-6
Overview (continued)
Bottom side
1
1
Adjustment feet
I
H
S
L
G
N
E
Remote control
1
2
3
4
5
6
7
This model does not
have these functions.
ON
STANDBY
MAGNIFY
ASPECT
UP
VOL
PAGE
KEYSTONE
DOWN
MENU
AUTO
POSITION
ENTER
AV
MUTE
FREEZE
VIEWER
UNPLUG
1
COMPUTER
2
VIDEO
S-VIDEO
WIRELESS
DVI
HDMI
8
9
This model does not
have these functions.
10
11
12
13
14
15
1 ON button
2 MAGNIFY button
3
4
5 MENU button
VOLUME UP, DOWN buttons
KEYSTONE button
Two types of MENU display are equipped. QUICK
MENU appears on the screen when pressing MENU
button. In addition, DETAIL MENU appears when
selecting DETAIL MENU in this MENU and pressing
ENTER button.
ENTER button
AV (Audio/Video) MUTE button
ASPECT button
6
7
8 OFF button
9
10 AUTO POSITION button
11 Direction buttons
12 FREEZE button
13 VIDEO, S-VIDEO buttons
14 COMPUTER (1, 2) buttons
15 HDMI button
The UP and DOWN buttons are used in the KEY-
STONE adjustment in addition to the volume control.
EN-7
Remote control
Battery installation
Use two (AA, R6) size batteries.
1.
2.
3.
Remove the back cover of the remote control by pushing the battery compartment door in the direction of the arrow.
Load the batteries making sure that they are positioned correctly (+ to +, and - to -).
Replace the back cover.
Load the batteries from - spring side, and make sure to set them tightly.
Caution:
Use of a battery of wrong type may cause explosion.
Only Carbon-Zinc or Alkaline-Manganese Dioxide type batteries should be used.
Dispose of used batteries according to your local regulations.
Batteries may explode if misused. Do not recharge, disassemble, or dispose of in fire.
Be sure to handle the battery according to the instructions.
Keep batteries out of reach of children and pets.
Remove the battery, if the remote control is not used for a long time.
Do not combine a new battery with an old one.
Load the battery with its positive (+) and negative (-) sides correctly oriented as indicated on the remote control.
If the solution of batteries comes in contact with your skin or clothes, rinse with water. If the solution comes in contact with your eyes, rinse them
with water and then consult your doctor.
Operation range (of the remote control)
The maximum operation distance of the remote control is about 10 m (or about 32 feet) when the remote control is pointed at the remote control
sensor of the projector. When the remote control is pointed to the screen, the distance from the remote control to the projector via the screen should
be 5 m or less. However, the operation distance varies depending on the type of the screen used.
Reception angle (vertical)
Reception angle (horizontal)
Reception angle (vertical), ceiling mount
Important:
Do not expose the remote control sensor to direct sunlight or fluorescent. Keep a distance at least 2 m (6.5 feet) between the remote control sen-
sor and the fluorescent light to ensure correct operation of the remote control.
Inverted fluorescent light, if located near the projector, may interfere the remote control.
When you use the remote control too close to the remote control sensor, the remote control may not work correctly.
EN-8
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
