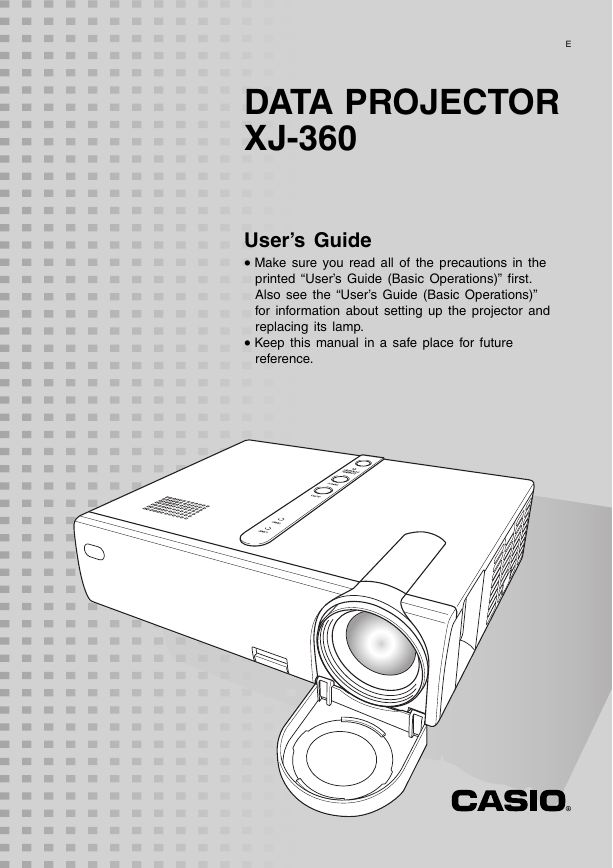

E DATA PROJECTOR XJ-360 User’s Guide • Make sure you read all of the precautions in the printed “User’s Guide (Basic Operations)” first. Also see the “User’s Guide (Basic Operations)” for information about setting up the projector and replacing its lamp. • Keep this manual in a safe place for future reference.

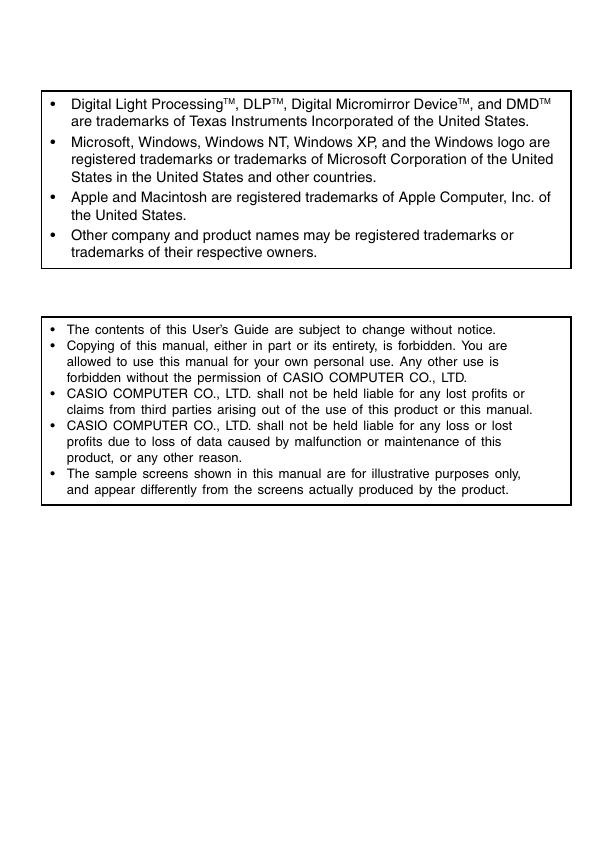

Digital Light ProcessingTM, DLPTM, Digital Micromirror DeviceTM, and DMDTM are trademarks of Texas Instruments Incorporated of the United States. Microsoft, Windows, Windows NT, Windows XP, and the Windows logo are registered trademarks or trademarks of Microsoft Corporation of the United States in the United States and other countries. Apple and Macintosh are registered trademarks of Apple Computer, Inc. of the United States. Other company and product names may be registered trademarks or trademarks of their respective owners. The contents of this User’s Guide are subject to change without notice. Copying of this manual, either in part or its entirety, is forbidden. You are allowed to use this manual for your own personal use. Any other use is forbidden without the permission of CASIO COMPUTER CO., LTD. CASIO COMPUTER CO., LTD. shall not be held liable for any lost profits or claims from third parties arising out of the use of this product or this manual. CASIO COMPUTER CO., LTD. shall not be held liable for any loss or lost profits due to loss of data caused by malfunction or maintenance of this product, or any other reason. The sample screens shown in this manual are for illustrative purposes only, and appear differently from the screens actually produced by the product.

Contents Projection Operations ....................................................................4 Projecting onto a Screen................................................................................... 4 Keystone Correction (KEYSTONE)................................................................... 8 Using Color Mode (COLOR MODE) ............................................................... 11 Adjusting the Volume Level (VOL +/–)............................................................ 12 Muting the Image and Audio (MUTE).............................................................. 12 Enlarging the Projected Image (D-ZOOM +/–)................................................ 13 Freezing the Projected Image (FREEZE) ....................................................... 14 Displaying the Pointer ..................................................................................... 14 Using the Setup Menu ..................................................................16 Setup Menu Overview..................................................................................... 16 Setup Menu Screen Operations...................................................................... 19 Setup Menu Reference ................................................................................... 27 Image Adjustment ...................................................................................................... 27 Signal Settings ........................................................................................................... 30 Screen Settings.......................................................................................................... 31 Detailed Settings........................................................................................................ 35 Operational Info ......................................................................................................... 46 Appendix........................................................................................48 Remote Controller Signal Range .................................................................... 48 Projection Distance and Screen Size.............................................................. 49 Connecting to a Component Video Output Device ......................................... 50 Full-screen Display of an RGB Image............................................................. 51 Password Feature ........................................................................................... 52 Cleaning the Projector..................................................................................... 53 Reattaching the Lens Cover............................................................................ 54 Projector Troubleshooting ............................................................................... 56 Supported Signals........................................................................................... 58 3

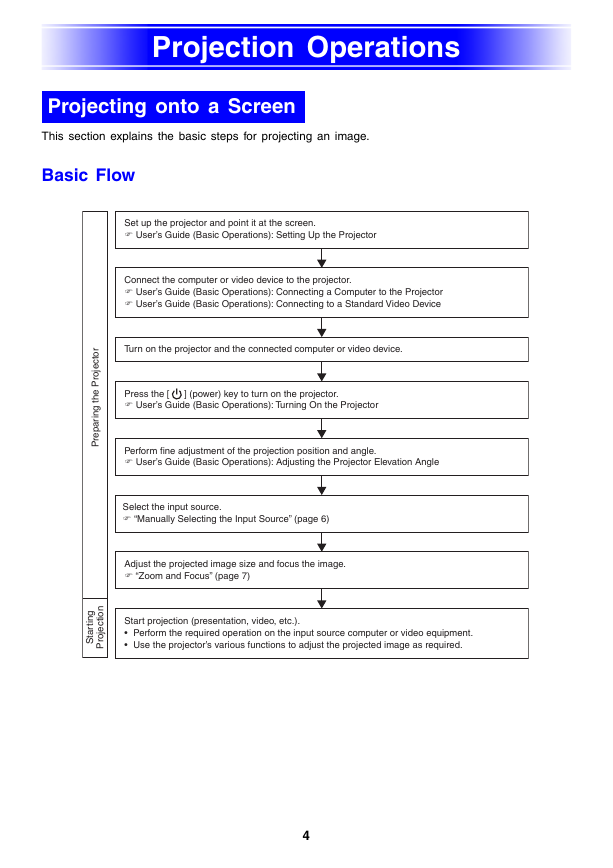

Projection Operations Projection Operations Projecting onto a Screen This section explains the basic steps for projecting an image. Basic Flow Set up the projector and point it at the screen. User’s Guide (Basic Operations): Setting Up the Projector Connect the computer or video device to the projector. User’s Guide (Basic Operations): Connecting a Computer to the Projector User’s Guide (Basic Operations): Connecting to a Standard Video Device j r o t c e o r P e h t g n i r a p e r P Turn on the projector and the connected computer or video device. Press the [ ] (power) key to turn on the projector. User’s Guide (Basic Operations): Turning On the Projector Perform fine adjustment of the projection position and angle. User’s Guide (Basic Operations): Adjusting the Projector Elevation Angle g n i t r a S t n o i t c e o r P j Select the input source. “Manually Selecting the Input Source” (page 6) Adjust the projected image size and focus the image. “Zoom and Focus” (page 7) Start projection (presentation, video, etc.). Perform the required operation on the input source computer or video equipment. Use the projector’s various functions to adjust the projected image as required. 4

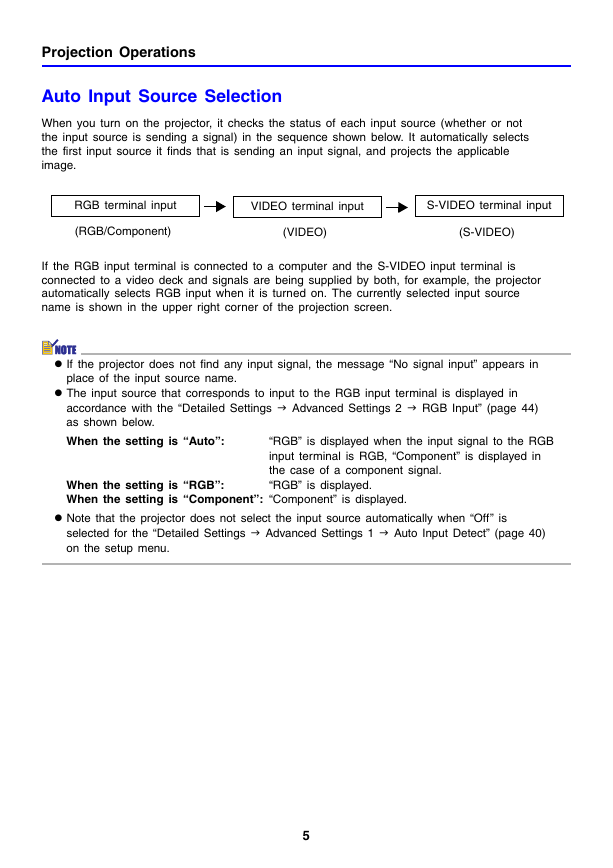

Projection Operations Auto Input Source Selection When you turn on the projector, it checks the status of each input source (whether or not the input source is sending a signal) in the sequence shown below. It automatically selects the first input source it finds that is sending an input signal, and projects the applicable image. RGB terminal input VIDEO terminal input S-VIDEO terminal input (RGB/Component) (VIDEO) (S-VIDEO) If the RGB input terminal is connected to a computer and the S-VIDEO input terminal is connected to a video deck and signals are being supplied by both, for example, the projector automatically selects RGB input when it is turned on. The currently selected input source name is shown in the upper right corner of the projection screen. If the projector does not find any input signal, the message “No signal input” appears in place of the input source name. The input source that corresponds to input to the RGB input terminal is displayed in accordance with the “Detailed Settings Advanced Settings 2 RGB Input” (page 44) as shown below. When the setting is “Auto”: “RGB” is displayed when the input signal to the RGB input terminal is RGB, “Component” is displayed in the case of a component signal. “RGB” is displayed. When the setting is “RGB”: When the setting is “Component”: “Component” is displayed. Note that the projector does not select the input source automatically when “Off” is selected for the “Detailed Settings Advanced Settings 1 Auto Input Detect” (page 40) on the setup menu. 5

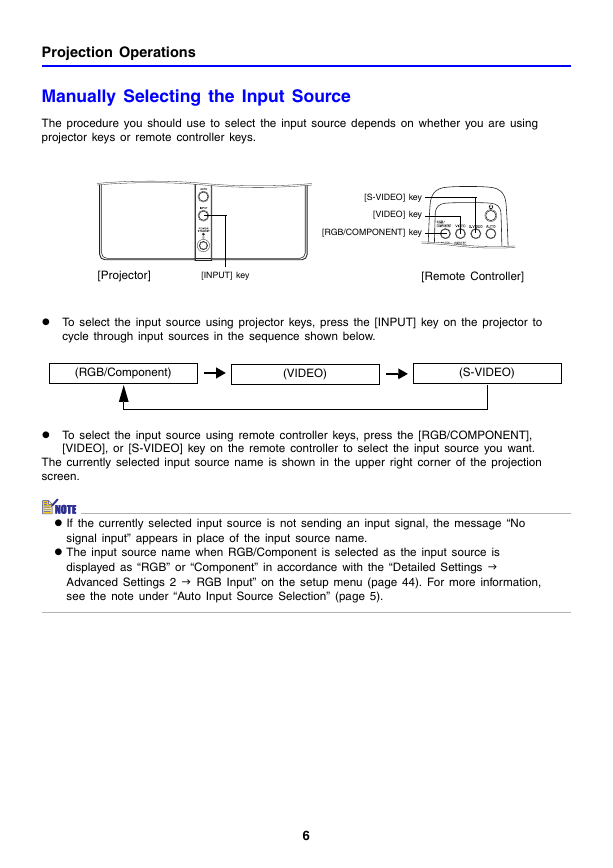

Projection Operations Manually Selecting the Input Source The procedure you should use to select the input source depends on whether you are using projector keys or remote controller keys. [S-VIDEO] key [VIDEO] key [RGB/COMPONENT] key [Projector] [INPUT] key [Remote Controller] To select the input source using projector keys, press the [INPUT] key on the projector to cycle through input sources in the sequence shown below. (RGB/Component) (VIDEO) (S-VIDEO) To select the input source using remote controller keys, press the [RGB/COMPONENT], [VIDEO], or [S-VIDEO] key on the remote controller to select the input source you want. The currently selected input source name is shown in the upper right corner of the projection screen. If the currently selected input source is not sending an input signal, the message “No signal input” appears in place of the input source name. The input source name when RGB/Component is selected as the input source is displayed as “RGB” or “Component” in accordance with the “Detailed Settings Advanced Settings 2 RGB Input” on the setup menu (page 44). For more information, see the note under “Auto Input Source Selection” (page 5). 6

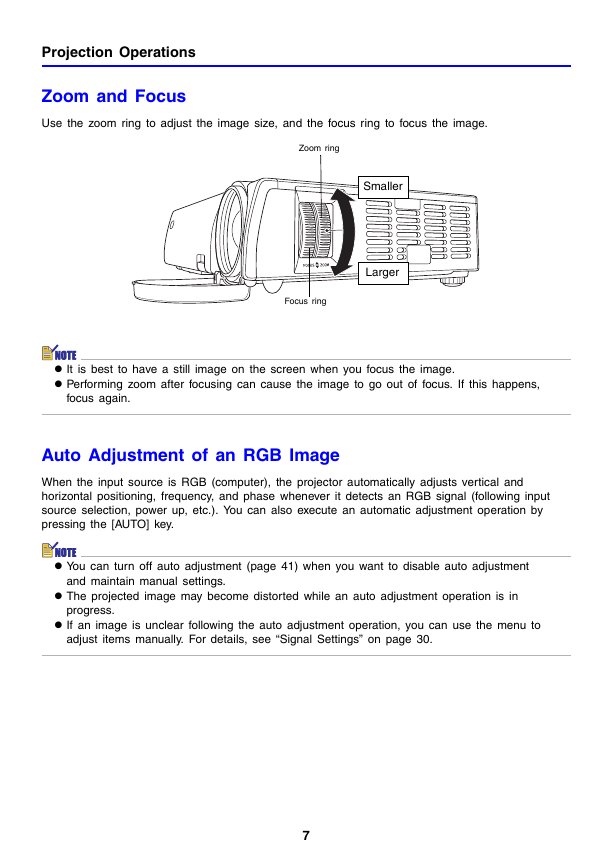

Projection Operations Zoom and Focus Use the zoom ring to adjust the image size, and the focus ring to focus the image. Zoom ring Focus ring Smaller Larger It is best to have a still image on the screen when you focus the image. Performing zoom after focusing can cause the image to go out of focus. If this happens, focus again. Auto Adjustment of an RGB Image When the input source is RGB (computer), the projector automatically adjusts vertical and horizontal positioning, frequency, and phase whenever it detects an RGB signal (following input source selection, power up, etc.). You can also execute an automatic adjustment operation by pressing the [AUTO] key. You can turn off auto adjustment (page 41) when you want to disable auto adjustment and maintain manual settings. The projected image may become distorted while an auto adjustment operation is in progress. If an image is unclear following the auto adjustment operation, you can use the menu to adjust items manually. For details, see “Signal Settings” on page 30. 7

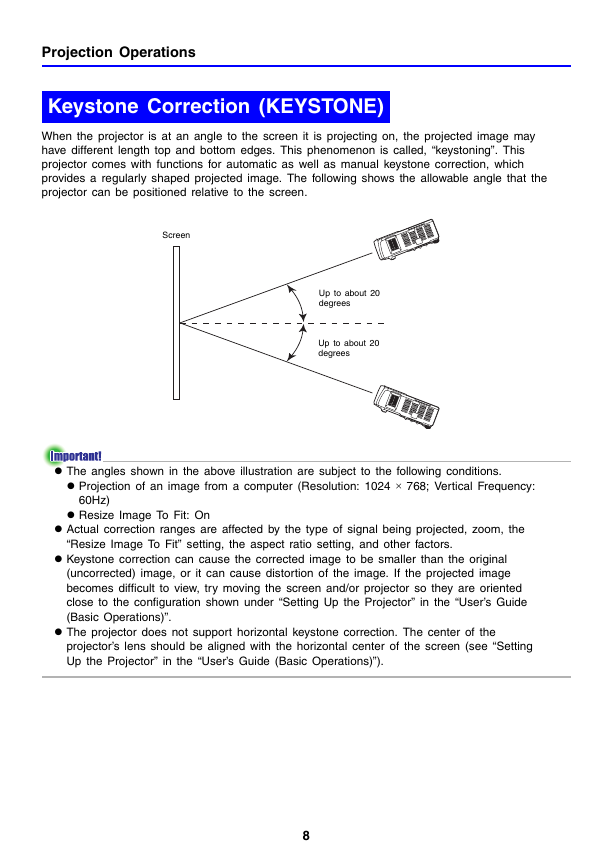

Projection Operations Keystone Correction (KEYSTONE) When the projector is at an angle to the screen it is projecting on, the projected image may have different length top and bottom edges. This phenomenon is called, “keystoning”. This projector comes with functions for automatic as well as manual keystone correction, which provides a regularly shaped projected image. The following shows the allowable angle that the projector can be positioned relative to the screen. Screen Up to about 20 degrees Up to about 20 degrees The angles shown in the above illustration are subject to the following conditions. Projection of an image from a computer (Resolution: 1024 × 768; Vertical Frequency: 60Hz) Resize Image To Fit: On Actual correction ranges are affected by the type of signal being projected, zoom, the “Resize Image To Fit” setting, the aspect ratio setting, and other factors. Keystone correction can cause the corrected image to be smaller than the original (uncorrected) image, or it can cause distortion of the image. If the projected image becomes difficult to view, try moving the screen and/or projector so they are oriented close to the configuration shown under “Setting Up the Projector” in the “User’s Guide (Basic Operations)”. The projector does not support horizontal keystone correction. The center of the projector’s lens should be aligned with the horizontal center of the screen (see “Setting Up the Projector” in the “User’s Guide (Basic Operations)”). 8
