RioVolt SP250™ User Guide

About the User Guide

Navigating and printing the RioVolt SP250 User Guide

Acrobat Toolbar icons

Introduction

Package Contents

System Requirements (For included software only)

PC (Minimum System Requirements)

Mac

System Recommendations

Safety Information

WARNING

CAUTION

Class 1 Laser

Product Care

Getting Started

Battery Door

Headphones Port

Release Latch

Using Your RioVolt SP250

The Display

Menus and Buttons

CD-FM

MODE

PROG

+10/EQ

NAVI/MENU

VOLUME + & -

The Joypad Controls:

The Hold Switch

The Setup Menu

General

Display

Timer

Control

Mode

User EQ

Using the FM Tuner

Creating Presets

Recalling Presets

The Remote Control

Remote Control Buttons

VOLUME / CD-FM / MODE Click Wheel

HOLD Switch

PLAY/PAUSE Button

STOP Button

FASTFORWARD / REWIND/ NAVI/MENU Click Wheel

How to Upgrade Your RioVolt SP250:

Troubleshooting

Problem: The RioVolt SP250 gives a No Disk error message when spinning up.

Troubleshooting measures:

Problem: Why is it that when I play a CD with both CD Audio and MP3/ WMA files I can only play th...

Troubleshooting measures:

Problem: Why am I not able to get the display to remain lit when using the player in the dark?

Troubleshooting measures:

Problem: I am unable to power up the RioVolt. This happens when using new batteries or the AC pow...

Troubleshooting measures:

Problem: When the player is left unattended and in a 'stop' or 'pause' state, often when I return...

Troubleshooting measures:

Problem: The skip protection for CD Audio does not seem to last for 40 - 160 seconds, is this a p...

Troubleshooting measures:

Problem: During playback of MP3/WMA music CDs, the CD appears to stop, is something wrong?

Troubleshooting measures:

Problem: The RioVolt is working with batteries, but when I plug in the AC adapter it does not wor...

Troubleshooting measures:

Problem: I am hearing some 'popping' or 'skipping' in some MP3/WMA tracks, it is always in the sa...

Troubleshooting measures:

Problem: I cannot get the Program function to work on the player. It always tries to set an A-B l...

Troubleshooting measures:

Problem: My Macintosh software application is telling me it has expired, what do I do?

Troubleshooting measures:

Frequently Asked Questions

What type of CDs can I play with the RioVolt?

Can I mix CD Audio with MP3 and/or WMA files?

Can I put both MP3 and WMA files on the same CD?

What is the maximum number of songs I can put on a single CD?

After creating a CD using DirectCD the RioVolt will not read it properly.

Will the RioVolt play Variable Bitrate (VBR) files?

Where is the battery indicator on my RioVolt?

How much playtime can I get from 2 AA batteries?

What kind of skip protection is there on the Riovolt?

The CD seems to stop during playback, is this normal?

How do I encode, "rip", the songs from my CDs so I can listen to them on my RioVolt?

Where can I find digital music files on the Internet?

How do I burn my own CDs?

What are ID3 tags and how can I use this feature?

What is CDText support?

Do I have to use the remote control when I use the headphones?

Can I use any set of headphones with the remote control?

RioVolt SP250 Specifications

Battery Lifetime (based on the alkaline battery)

One Year Limited Warranty

Our warranty to you:

How to obtain service under this warranty:

Product failures not covered by this warranty:

Limits of liability:

Regulatory Information

Federal Communications Commission (FCC)

Glossary

AAC

Bitrate, file compression

Bitrate denotes the average number of bits that one second of audio data will consume. The size o...

Codec

DRM, security

Encode, “Rip” (a CD)

ID3 Tag

MP3

WMA

Contacting Customer Care

Rio Product Support

With every Rio product you receive the following support services:

New Product Support

About the User Guide Return to Pg.1 Page 1 RioVolt SP250™ User Guide About the User Guide The RioVolt SP250 User Guide includes the following sections: Introduction Getting Started Using Your RioVolt SP250 The Display Menus and Buttons The Remote Control The FM Tuner Troubleshooting & Frequently Asked Questions (FAQs) RioVolt SP250 Specifications Warranty & Regulatory Information Glossary Contacting Customer Care Navigating and printing the RioVolt SP250 User Guide The online RioVolt SP250 User Guide is in Adobe Acrobat (.PDF) file format. NOTE: We strongly recommend that you use Adobe Acrobat Reader version 4.0 — available on the CD-ROM — to view and print the RioVolt SP250 User Guide. Click links (blue underlined text) to jump to another location in the document or to a location on the World Wide Web. Acrobat Toolbar icons Click the Show/Hide Navigation Pane icon in the Acrobat toolbar to show the Navigation Pane Window and bookmarks in the left column. Bookmarks are links to the contents of the User Guide. Click any bookmark in the list to jump to the page in the User Guide that contains the topic. Click the Print icon in the Acrobat toolbar to print the User Guide. The size of the User Guide is optimized for printing.

Copyright and trademark Return to Pg.1 Page 2 Copyright and trademark © 2001 SONICblue Incorporated. All Rights Reserved. SONICblue Incorporated does not assume any responsibility for errors or omissions in this document or make any commitment to update the information contained herein. Rio® is a registered trademark of RioPort, Inc. in the United States and/or other countries and is used under license. RealNetworks, RealAudio, RealPlayer, WebActive, and the RN logo are registered trademarks of RealNetworks, Inc. This product is iTunes ready. iTunes is provided by Apple Computer, Inc. Copyright ©2001 Apple Computer, Inc. All rights reserved. iTunes is a trademark of Apple Computer, Inc. Mac and the Mac logo are trademarks of Apple Computer, Inc. registered in the United States and other countries. Microsoft, Windows Media and the Windows Logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. All other product names may be trademarks of the companies with which they are associated. First Edition, July, 2001 Product Number 75550177-001

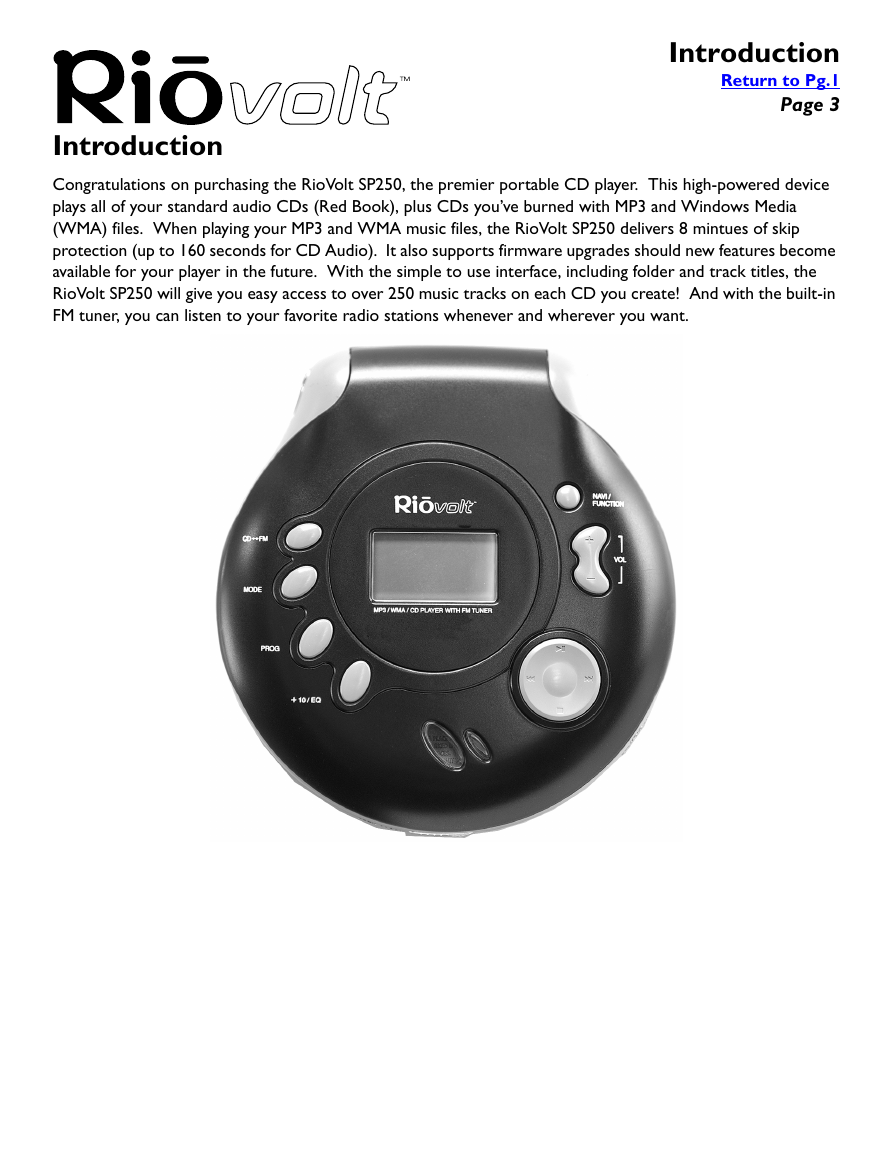

Introduction Return to Pg.1 Page 3 Introduction Congratulations on purchasing the RioVolt SP250, the premier portable CD player. This high-powered device plays all of your standard audio CDs (Red Book), plus CDs you’ve burned with MP3 and Windows Media (WMA) files. When playing your MP3 and WMA music files, the RioVolt SP250 delivers 8 mintues of skip protection (up to 160 seconds for CD Audio). It also supports firmware upgrades should new features become available for your player in the future. With the simple to use interface, including folder and track titles, the RioVolt SP250 will give you easy access to over 250 music tracks on each CD you create! And with the built-in FM tuner, you can listen to your favorite radio stations whenever and wherever you want.

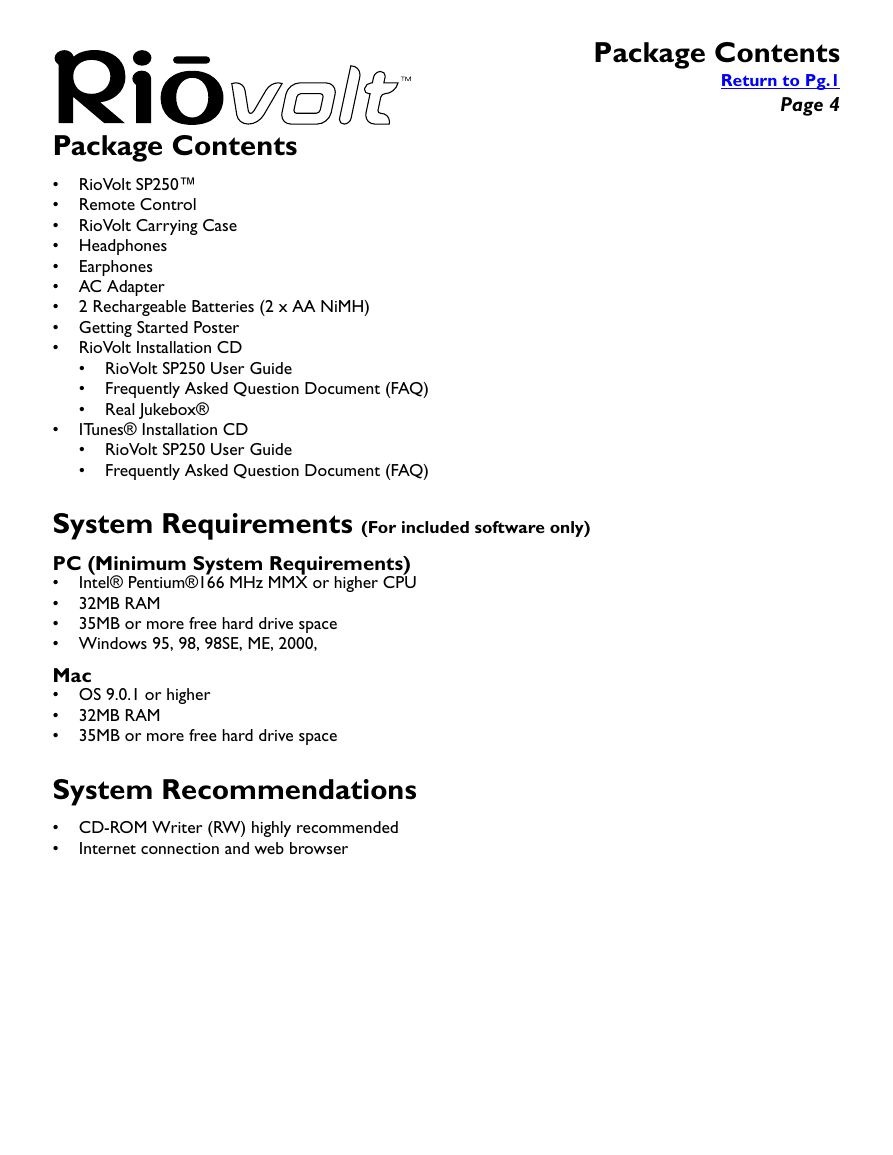

Package Contents Return to Pg.1 Page 4 Package Contents RioVolt SP250™ Remote Control RioVolt Carrying Case Headphones AC Adapter Getting Started Poster RioVolt Installation CD Earphones 2 Rechargeable Batteries (2 x AA NiMH) Frequently Asked Question Document (FAQ) RioVolt SP250 User Guide Real Jukebox® ITunes® Installation CD RioVolt SP250 User Guide Frequently Asked Question Document (FAQ) System Requirements (For included software only) PC (Minimum System Requirements) Intel® Pentium®166 MHz MMX or higher CPU 32MB RAM 35MB or more free hard drive space Windows 95, 98, 98SE, ME, 2000, Mac OS 9.0.1 or higher 32MB RAM 35MB or more free hard drive space System Recommendations CD-ROM Writer (RW) highly recommended Internet connection and web browser

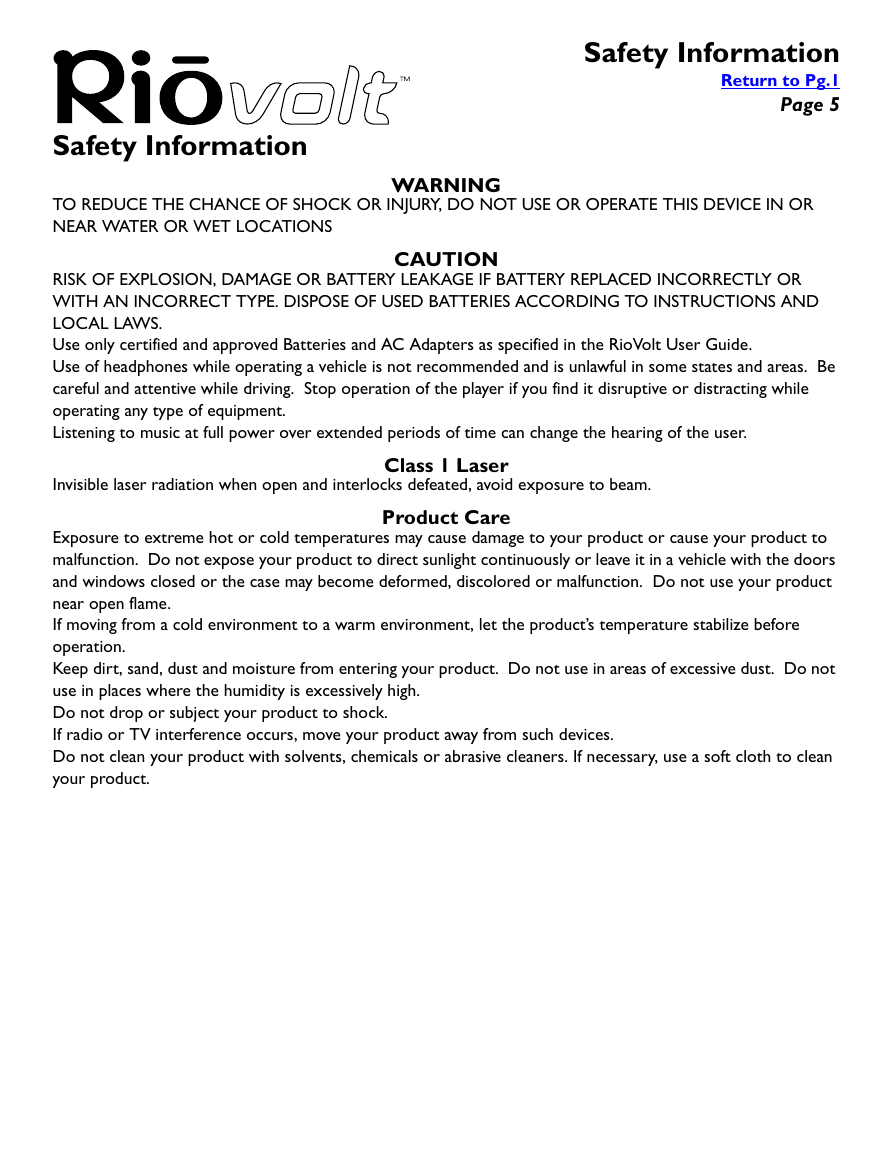

Safety Information Return to Pg.1 Page 5 Safety Information TO REDUCE THE CHANCE OF SHOCK OR INJURY, DO NOT USE OR OPERATE THIS DEVICE IN OR NEAR WATER OR WET LOCATIONS WARNING CAUTION RISK OF EXPLOSION, DAMAGE OR BATTERY LEAKAGE IF BATTERY REPLACED INCORRECTLY OR WITH AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO INSTRUCTIONS AND LOCAL LAWS. Use only certified and approved Batteries and AC Adapters as specified in the RioVolt User Guide. Use of headphones while operating a vehicle is not recommended and is unlawful in some states and areas. Be careful and attentive while driving. Stop operation of the player if you find it disruptive or distracting while operating any type of equipment. Listening to music at full power over extended periods of time can change the hearing of the user. Invisible laser radiation when open and interlocks defeated, avoid exposure to beam. Class 1 Laser Product Care Exposure to extreme hot or cold temperatures may cause damage to your product or cause your product to malfunction. Do not expose your product to direct sunlight continuously or leave it in a vehicle with the doors and windows closed or the case may become deformed, discolored or malfunction. Do not use your product near open flame. If moving from a cold environment to a warm environment, let the product’s temperature stabilize before operation. Keep dirt, sand, dust and moisture from entering your product. Do not use in areas of excessive dust. Do not use in places where the humidity is excessively high. Do not drop or subject your product to shock. If radio or TV interference occurs, move your product away from such devices. Do not clean your product with solvents, chemicals or abrasive cleaners. If necessary, use a soft cloth to clean your product.

Getting Started You will need the following items to start using your new RioVolt: The RioVolt SP250 RioVolt AC Adapter (included) Headphones or earphones (included) or powered speakers (not included) Remote Control (included) 2 Rechargeable Batteries (included)or 2 AA Alkaline Batteries (not included) 1. Unpack the RioVolt SP250 and all of its components. 2. Open the Battery Compartment Door by sliding it away from the RioVolt and insert 2 batteries. 3. Slide the Battery Compartment Door back to its original Getting Started Return to Pg.1 Page 6 Battery Door position to close. 4. Plug the RioVolt AC Adapter into the Power Port on the side of the RioVolt and into a power outlet. NOTE: Let the RioVolt batteries charge up for X hours before playing the RioVolt SP250 without the AC Adapter attached and plugged into a power outlet or insert 2 AA Alkaline batteries (not included). 5. Plug the Headphones Cable into the Headphones Port on the side of the RioVolt. OR To use the Remote Control, plug the Headphones Cable into the Remote Control, and then plug the Remote Control Cable into the Headphones Port on the side of the RioVolt. The Remote Control can then be clipped to your clothing for easy access. NOTE: Another option is to plug a pair of powered speakers into the RioVolt’s Lineout Headphones Port Lineout Port Power Port Port instead of using headphones.

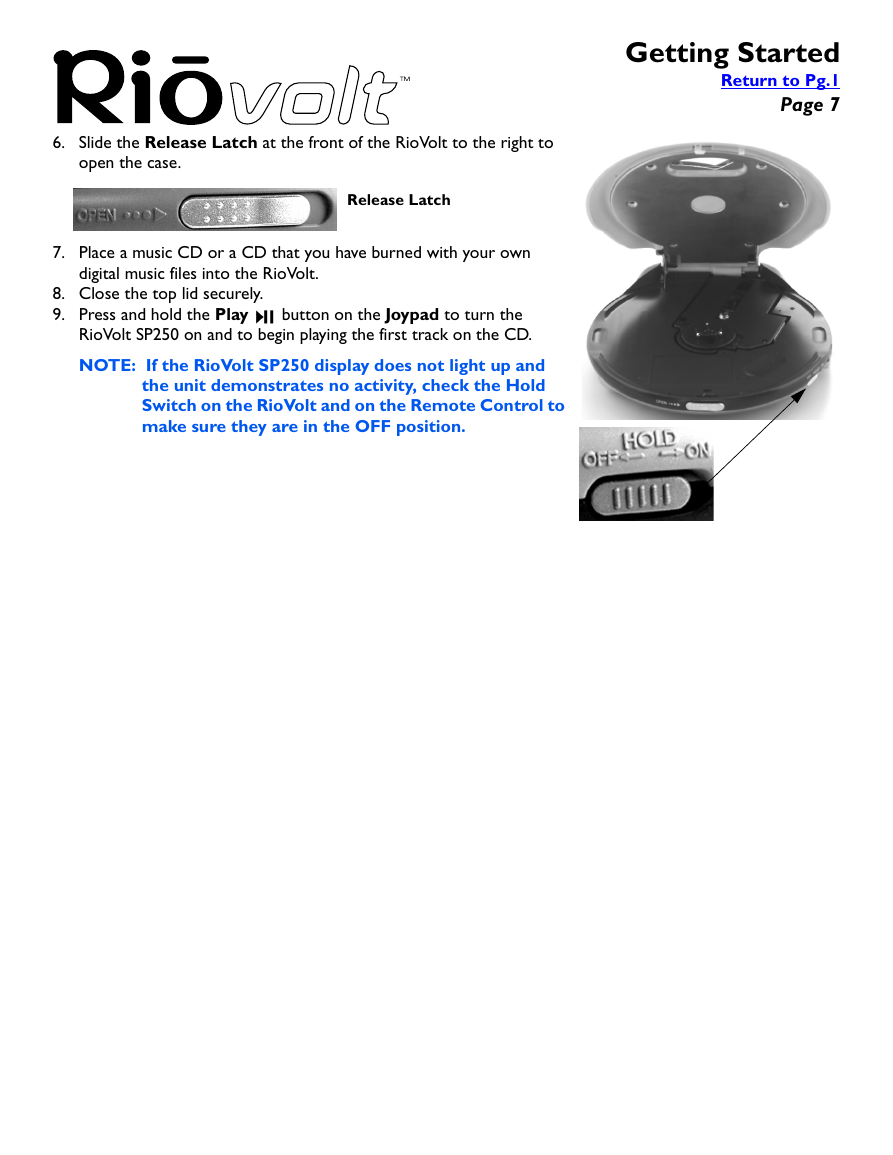

Getting Started Return to Pg.1 Page 7 6. Slide the Release Latch at the front of the RioVolt to the right to open the case. Release Latch 7. Place a music CD or a CD that you have burned with your own digital music files into the RioVolt. 8. Close the top lid securely. 9. Press and hold the Play button on the Joypad to turn the RioVolt SP250 on and to begin playing the first track on the CD. NOTE: If the RioVolt SP250 display does not light up and the unit demonstrates no activity, check the Hold Switch on the RioVolt and on the Remote Control to make sure they are in the OFF position.

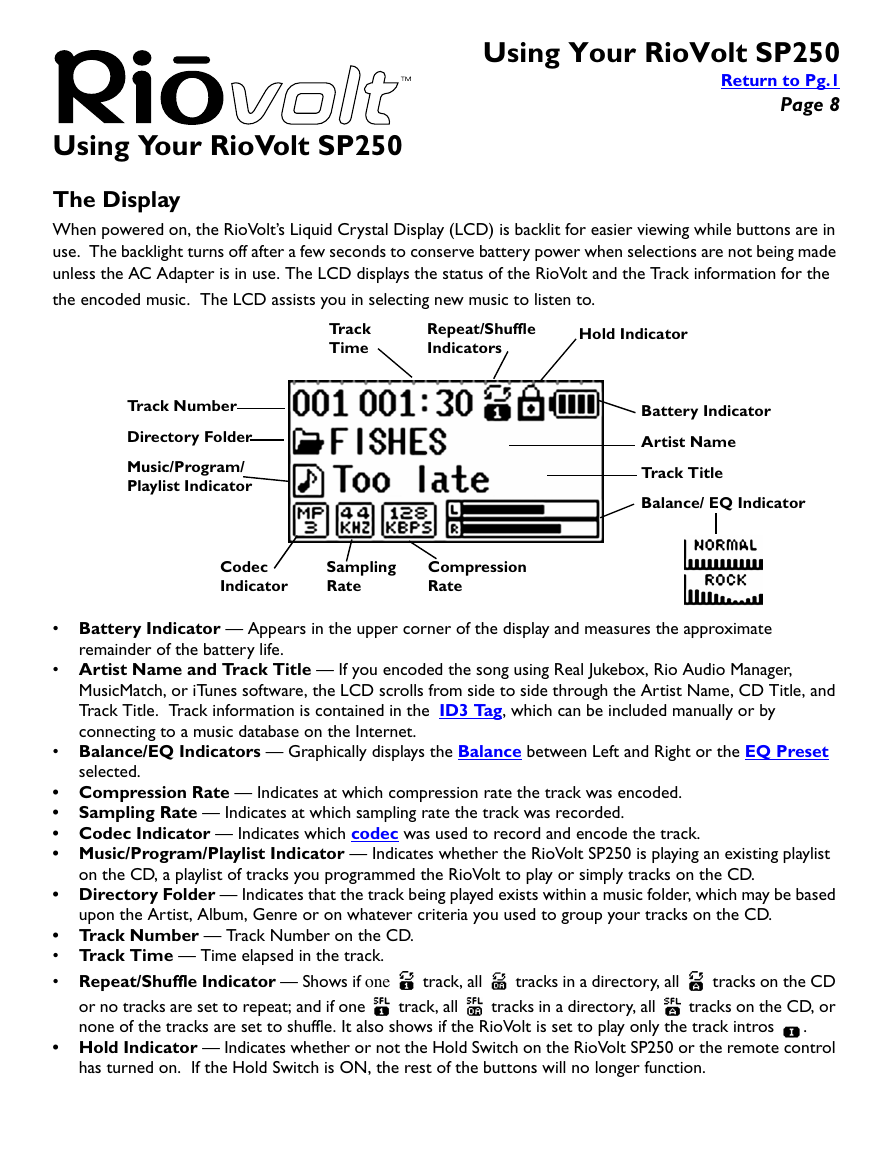

Using Your RioVolt SP250 Return to Pg.1 Page 8 Using Your RioVolt SP250 The Display When powered on, the RioVolt’s Liquid Crystal Display (LCD) is backlit for easier viewing while buttons are in use. The backlight turns off after a few seconds to conserve battery power when selections are not being made unless the AC Adapter is in use. The LCD displays the status of the RioVolt and the Track information for the the encoded music. The LCD assists you in selecting new music to listen to. Track Time Repeat/Shuffle Indicators Hold Indicator Track Number Directory Folder Music/Program/ Playlist Indicator Battery Indicator Artist Name Track Title Balance/ EQ Indicator Codec Indicator Sampling Rate Compression Rate Battery Indicator — Appears in the upper corner of the display and measures the approximate remainder of the battery life. Artist Name and Track Title — If you encoded the song using Real Jukebox, Rio Audio Manager, MusicMatch, or iTunes software, the LCD scrolls from side to side through the Artist Name, CD Title, and Track Title. Track information is contained in the ID3 Tag, which can be included manually or by connecting to a music database on the Internet. Balance/EQ Indicators — Graphically displays the Balance between Left and Right or the EQ Preset selected. Compression Rate — Indicates at which compression rate the track was encoded. Sampling Rate — Indicates at which sampling rate the track was recorded. Codec Indicator — Indicates which codec was used to record and encode the track. Music/Program/Playlist Indicator — Indicates whether the RioVolt SP250 is playing an existing playlist on the CD, a playlist of tracks you programmed the RioVolt to play or simply tracks on the CD. Directory Folder — Indicates that the track being played exists within a music folder, which may be based upon the Artist, Album, Genre or on whatever criteria you used to group your tracks on the CD. Track Number — Track Number on the CD. Track Time — Time elapsed in the track. Repeat/Shuffle Indicator — Shows if one or no tracks are set to repeat; and if one none of the tracks are set to shuffle. It also shows if the RioVolt is set to play only the track intros tracks in a directory, all track, all . Hold Indicator — Indicates whether or not the Hold Switch on the RioVolt SP250 or the remote control has turned on. If the Hold Switch is ON, the rest of the buttons will no longer function. track, all tracks in a directory, all tracks on the CD tracks on the CD, or
