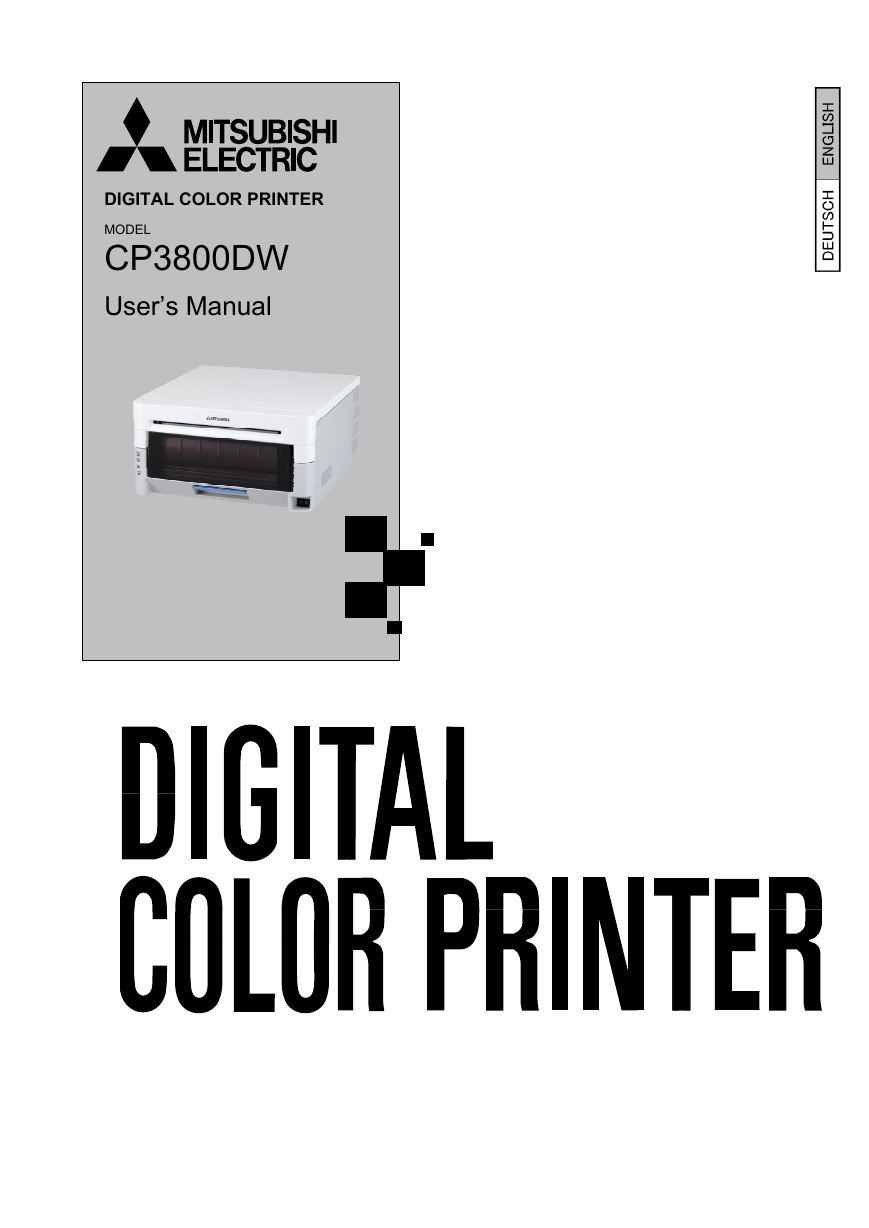

DIGITAL COLOR PRINTER MODEL CP3800DW User’s Manual

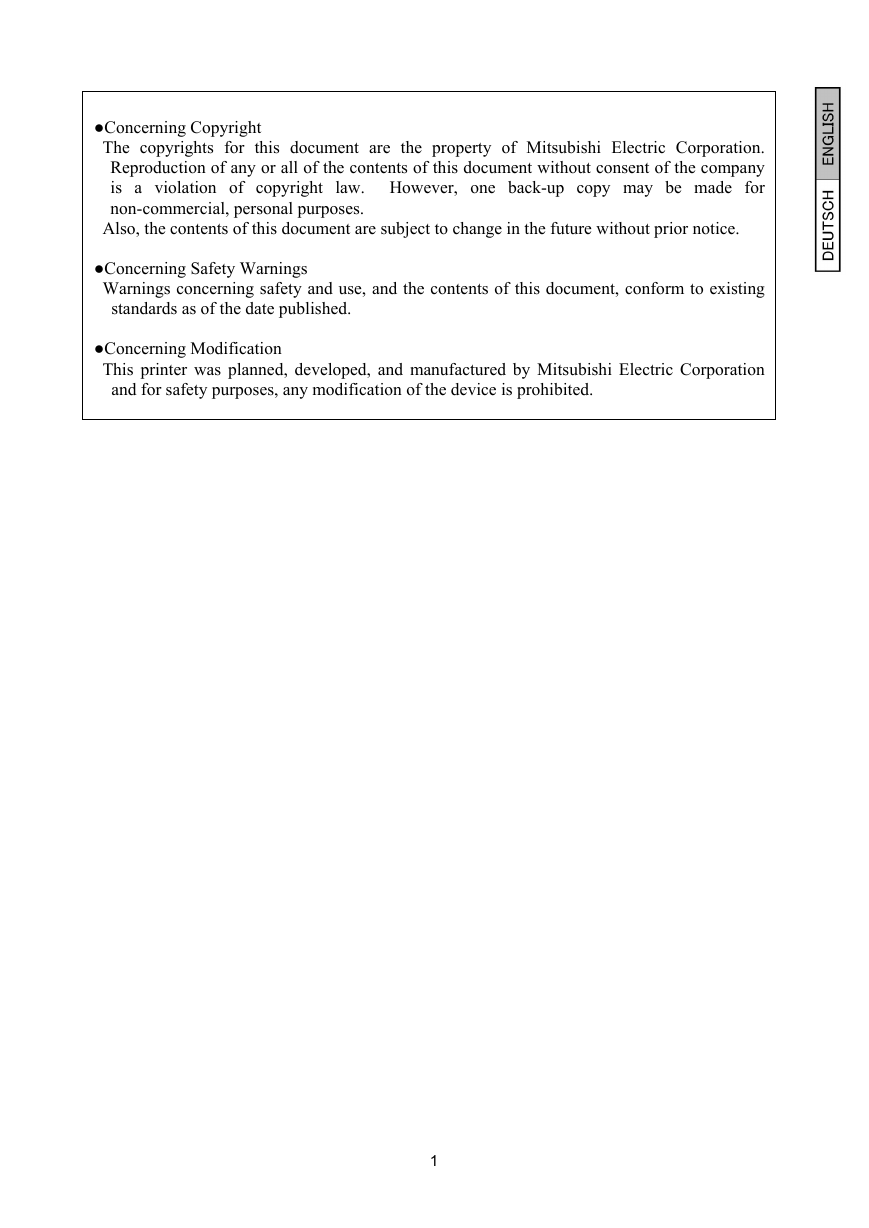

standards as of the date published. and for safety purposes, any modification of the device is prohibited. Also, the contents of this document are subject to change in the future without prior notice. ●Concerning Copyright The copyrights for this document are the property of Mitsubishi Electric Corporation. Reproduction of any or all of the contents of this document without consent of the company is a violation of copyright law. However, one back-up copy may be made for non-commercial, personal purposes. ●Concerning Safety Warnings Warnings concerning safety and use, and the contents of this document, conform to existing ●Concerning Modification This printer was planned, developed, and manufactured by Mitsubishi Electric Corporation 1

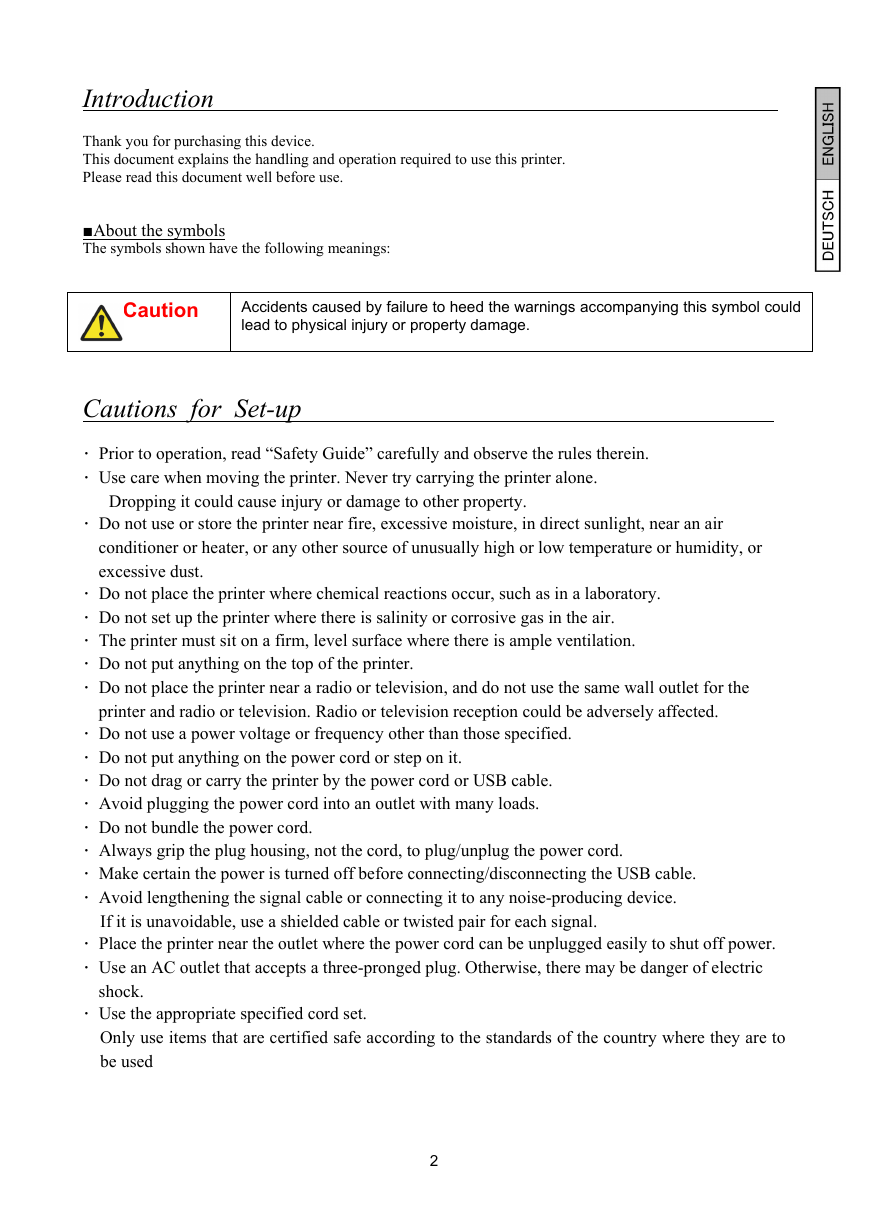

Introduction Thank you for purchasing this device. This document explains the handling and operation required to use this printer. Please read this document well before use. ■About the symbols The symbols shown have the following meanings: Cautions for Set-up ･ Prior to operation, read “Safety Guide” carefully and observe the rules therein. ･ Use care when moving the printer. Never try carrying the printer alone. Accidents caused by failure to heed the warnings accompanying this symbol could lead to physical injury or property damage. Caution Dropping it could cause injury or damage to other property. ･ Do not use or store the printer near fire, excessive moisture, in direct sunlight, near an air conditioner or heater, or any other source of unusually high or low temperature or humidity, or excessive dust. ･ Do not place the printer where chemical reactions occur, such as in a laboratory. ･ Do not set up the printer where there is salinity or corrosive gas in the air. ･ The printer must sit on a firm, level surface where there is ample ventilation. ･ Do not put anything on the top of the printer. ･ Do not place the printer near a radio or television, and do not use the same wall outlet for the printer and radio or television. Radio or television reception could be adversely affected. ･ Do not use a power voltage or frequency other than those specified. ･ Do not put anything on the power cord or step on it. ･ Do not drag or carry the printer by the power cord or USB cable. ･ Avoid plugging the power cord into an outlet with many loads. ･ Do not bundle the power cord. ･ Always grip the plug housing, not the cord, to plug/unplug the power cord. ･ Make certain the power is turned off before connecting/disconnecting the USB cable. ･ Avoid lengthening the signal cable or connecting it to any noise-producing device. If it is unavoidable, use a shielded cable or twisted pair for each signal. ･ Place the printer near the outlet where the power cord can be unplugged easily to shut off power. ･ Use an AC outlet that accepts a three-pronged plug. Otherwise, there may be danger of electric shock. ･ Use the appropriate specified cord set. Only use items that are certified safe according to the standards of the country where they are to be used 2

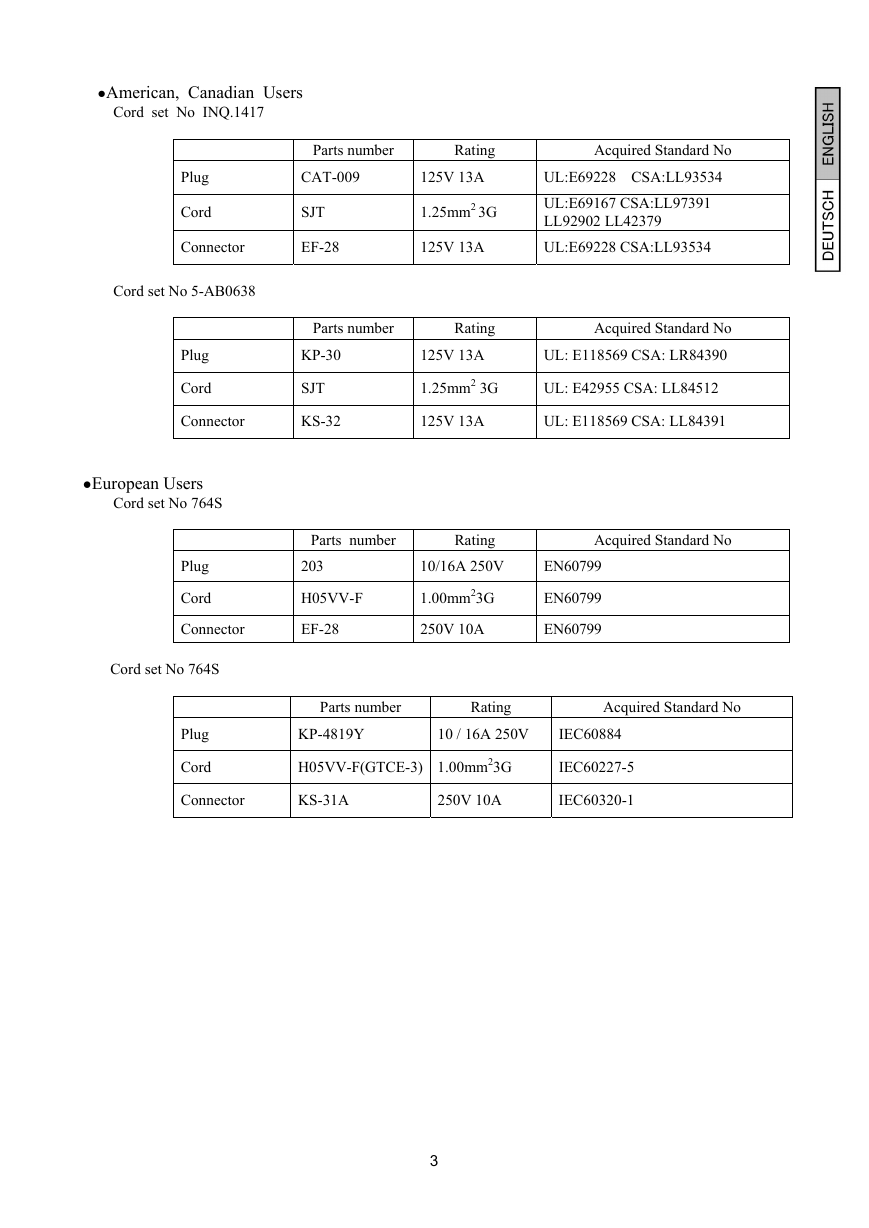

●American, Canadian Users Cord set No INQ.1417 Parts number Rating Plug Cord Connector CAT-009 125V 13A SJT EF-28 1.25mm2 3G 125V 13A Acquired Standard No UL:E69228 CSA:LL93534 UL:E69167 CSA:LL97391 LL92902 LL42379 UL:E69228 CSA:LL93534 Cord set No 5-AB0638 Parts number Rating Plug Cord KP-30 SJT 125V 13A 1.25mm2 3G Acquired Standard No UL: E118569 CSA: LR84390 UL: E42955 CSA: LL84512 Connector KS-32 125V 13A UL: E118569 CSA: LL84391 ●European Users Cord set No 764S Plug Cord Parts number 203 H05VV-F Connector EF-28 Rating 10/16A 250V 1.00mm23G 250V 10A Acquired Standard No EN60799 EN60799 EN60799 Cord set No 764S Parts number Rating Acquired Standard No Plug Cord KP-4819Y 10 / 16A 250V IEC60884 H05VV-F(GTCE-3) 1.00mm23G IEC60227-5 Connector KS-31A 250V 10A IEC60320-1 3

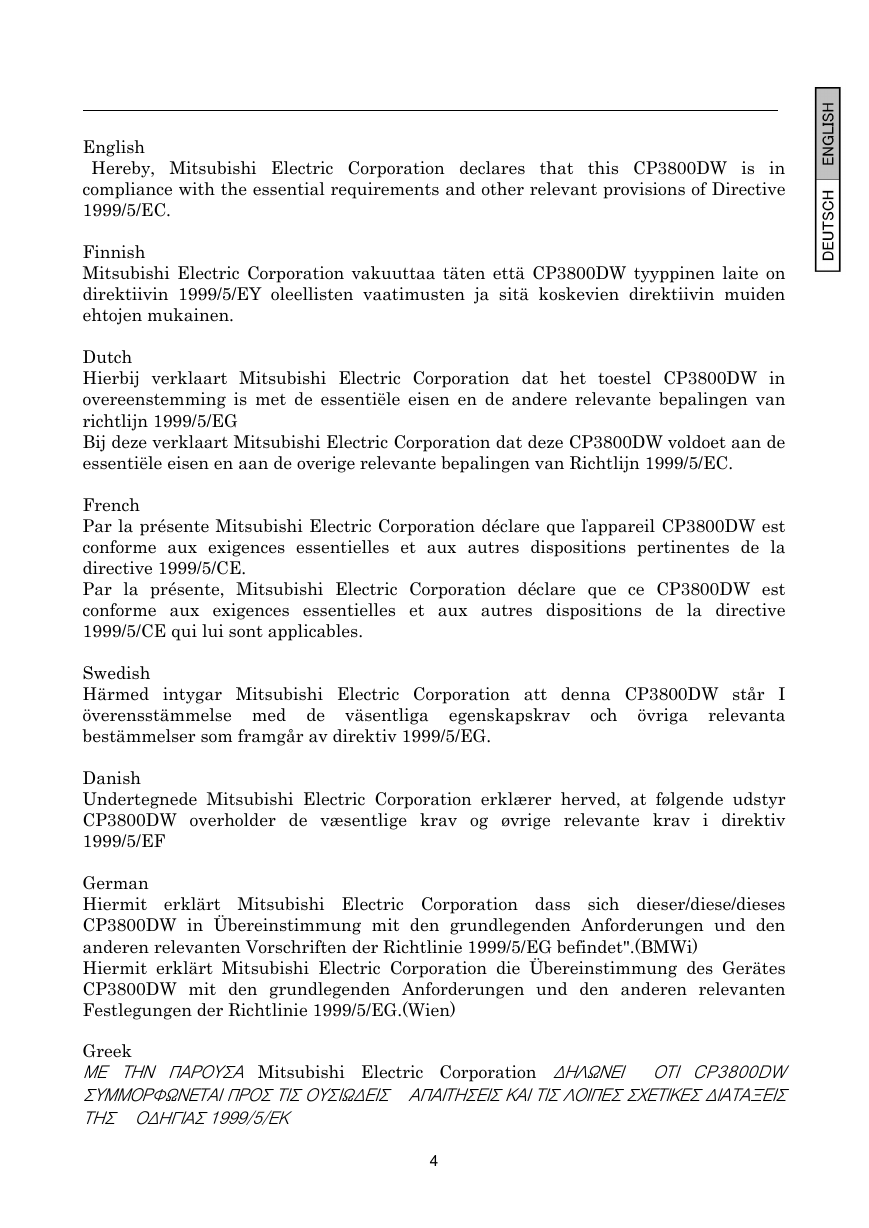

English Hereby, Mitsubishi Electric Corporation declares that this CP3800DW is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Finnish Mitsubishi Electric Corporation vakuuttaa täten että CP3800DW tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen. Dutch Hierbij verklaart Mitsubishi Electric Corporation dat het toestel CP3800DW in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG Bij deze verklaart Mitsubishi Electric Corporation dat deze CP3800DW voldoet aan de essentiële eisen en aan de overige relevante bepalingen van Richtlijn 1999/5/EC. French Par la présente Mitsubishi Electric Corporation déclare que ľappareil CP3800DW est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. Par la présente, Mitsubishi Electric Corporation déclare que ce CP3800DW est conforme aux exigences essentielles et aux autres dispositions de la directive 1999/5/CE qui lui sont applicables. Swedish Härmed intygar Mitsubishi Electric Corporation att denna CP3800DW står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG. Danish Undertegnede Mitsubishi Electric Corporation erklærer herved, at følgende udstyr CP3800DW overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF German Hiermit erklärt Mitsubishi Electric Corporation dass sich dieser/diese/dieses CP3800DW in Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet".(BMWi) Hiermit erklärt Mitsubishi Electric Corporation die Übereinstimmung des Gerätes CP3800DW mit den grundlegenden Anforderungen und den anderen relevanten Festlegungen der Richtlinie 1999/5/EG.(Wien) Greek ME THN ΠAPOYΣA Mitsubishi Electric Corporation ΔHΛΩNEI OTI CP3800DW ΣYMMOPΦΩNETAI ΠPOΣ TIΣ OYΣIΩΔEIΣ AΠAITHΣEIΣ KAI TIΣ ΛOIΠEΣ ΣXETIKEΣ ΔIATAΞEIΣ THΣ OΔΗΓIΑΣ 1999/5/EK 4

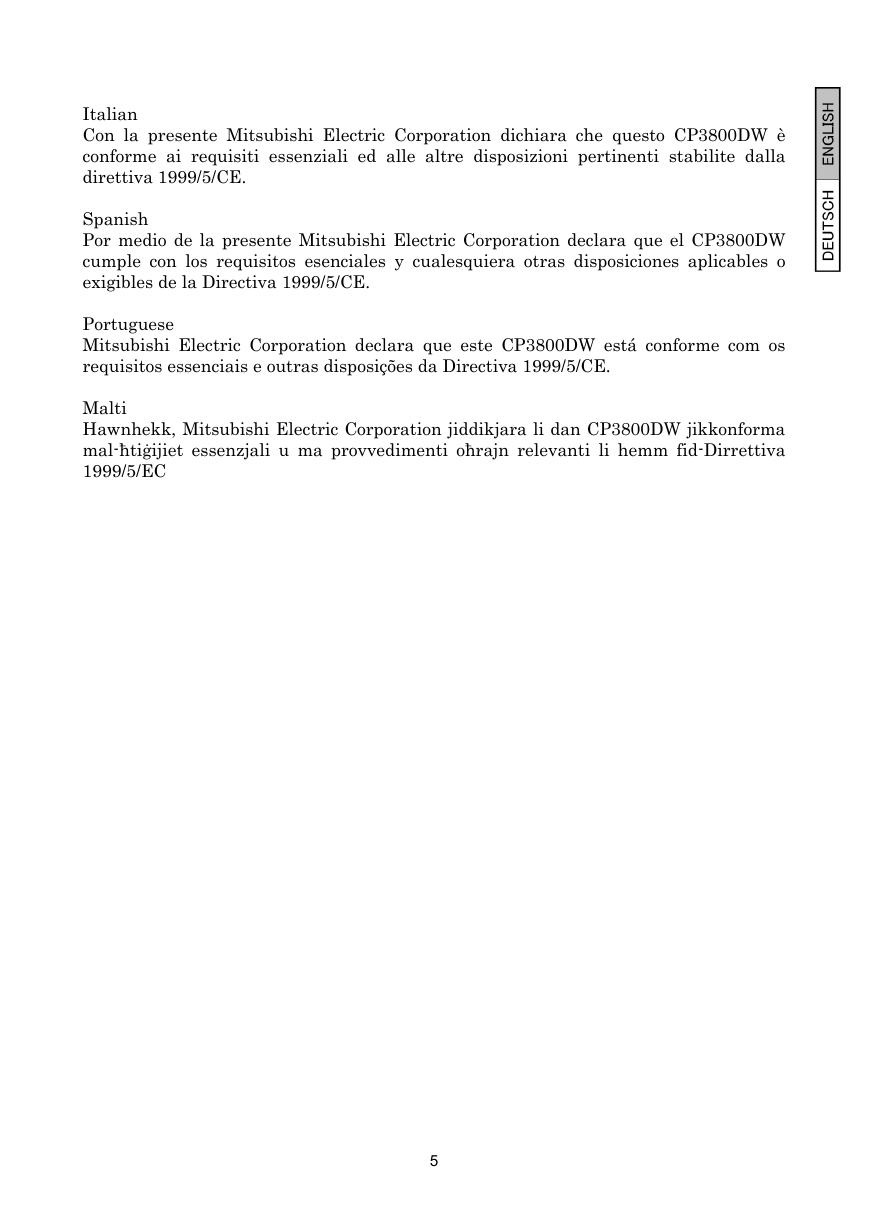

Italian Con la presente Mitsubishi Electric Corporation dichiara che questo CP3800DW è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Spanish Por medio de la presente Mitsubishi Electric Corporation declara que el CP3800DW cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Portuguese Mitsubishi Electric Corporation declara que este CP3800DW está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE. Malti Hawnhekk, Mitsubishi Electric Corporation jiddikjara li dan CP3800DW jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC 5

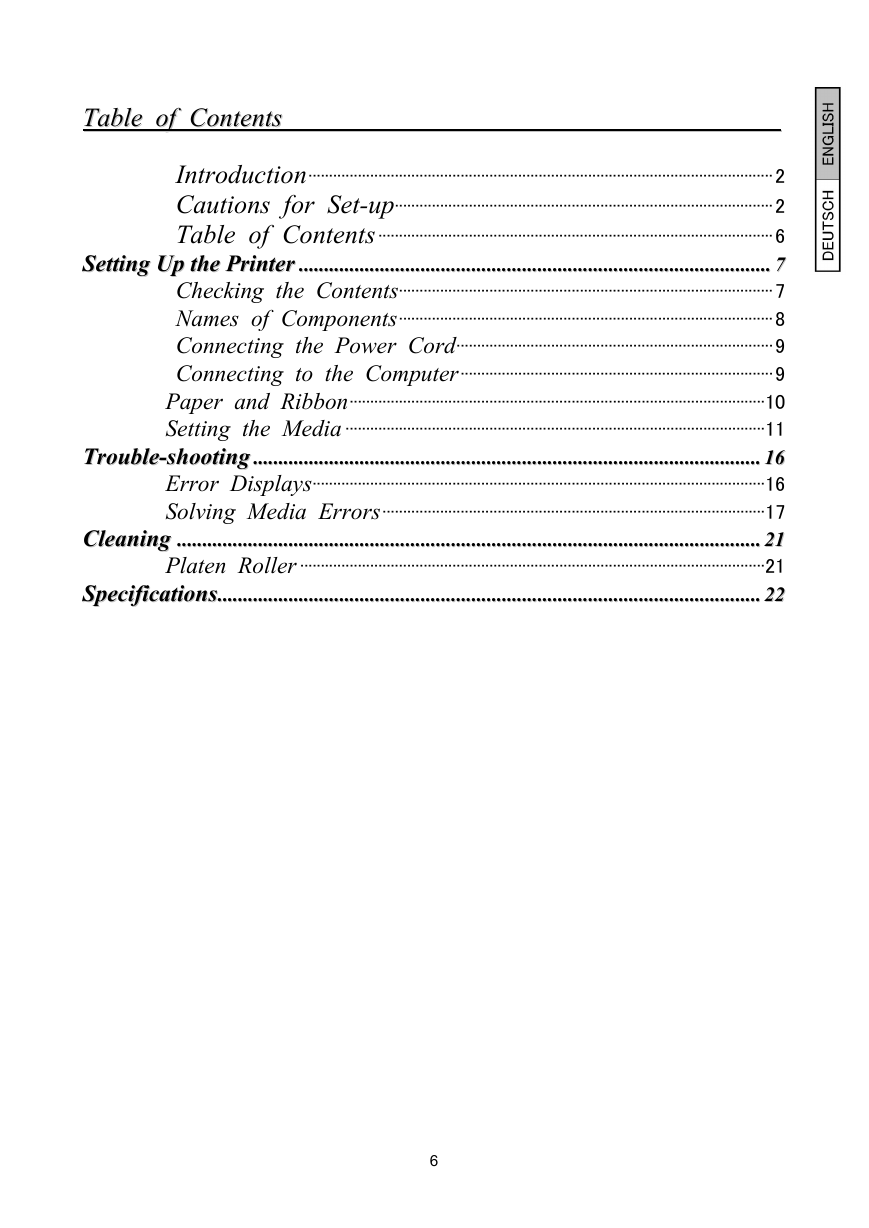

Table of Contents Table of Contents Introduction················································································································· 2 Cautions for Set-up···························································································· 2 Table of Contents ································································································ 6 Setting Up the Printer ............................................................................................. 7 Setting Up the Printer ............................................................................................. 7 Checking the Contents··························································································· 7 Names of Components··························································································· 8 Connecting the Power Cord············································································· 9 Connecting to the Computer ············································································ 9 Paper and Ribbon·····································································································10 Setting the Media ······································································································11 Trouble-shooting .................................................................................................... 16 Trouble-shooting .................................................................................................... 16 Error Displays··············································································································16 Solving Media Errors·····························································································17 Cleaning ................................................................................................................... 21 Cleaning ................................................................................................................... 21 Platen Roller ·················································································································21 Specifications........................................................................................................... 22 Specifications........................................................................................................... 22 6

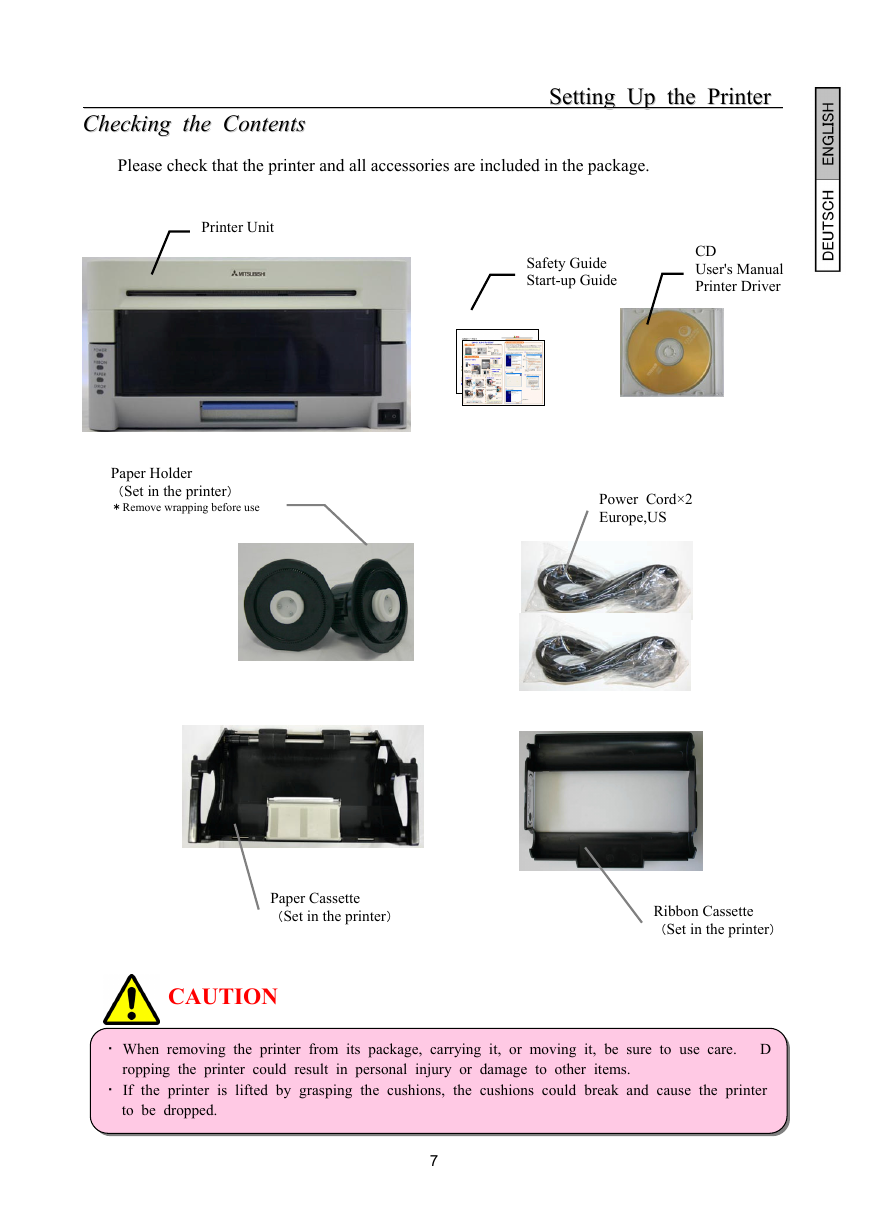

Setting Up the Printer Setting Up the Printer CChheecckkiinngg tthhee CCoonntteennttss Please check that the printer and all accessories are included in the package. Printer Unit Safety Guide Start-up Guide CD User's Manual Printer Driver Paper Holder （Set in the printer）＊Remove wrapping before use Power Cord×2 Europe,US Paper Cassette （Set in the printer） Ribbon Cassette （Set in the printer） CAUTION ･ When removing the printer from its package, carrying it, or moving it, be sure to use care. D ropping the printer could result in personal injury or damage to other items. ･ If the printer is lifted by grasping the cushions, the cushions could break and cause the printer to be dropped. 7
