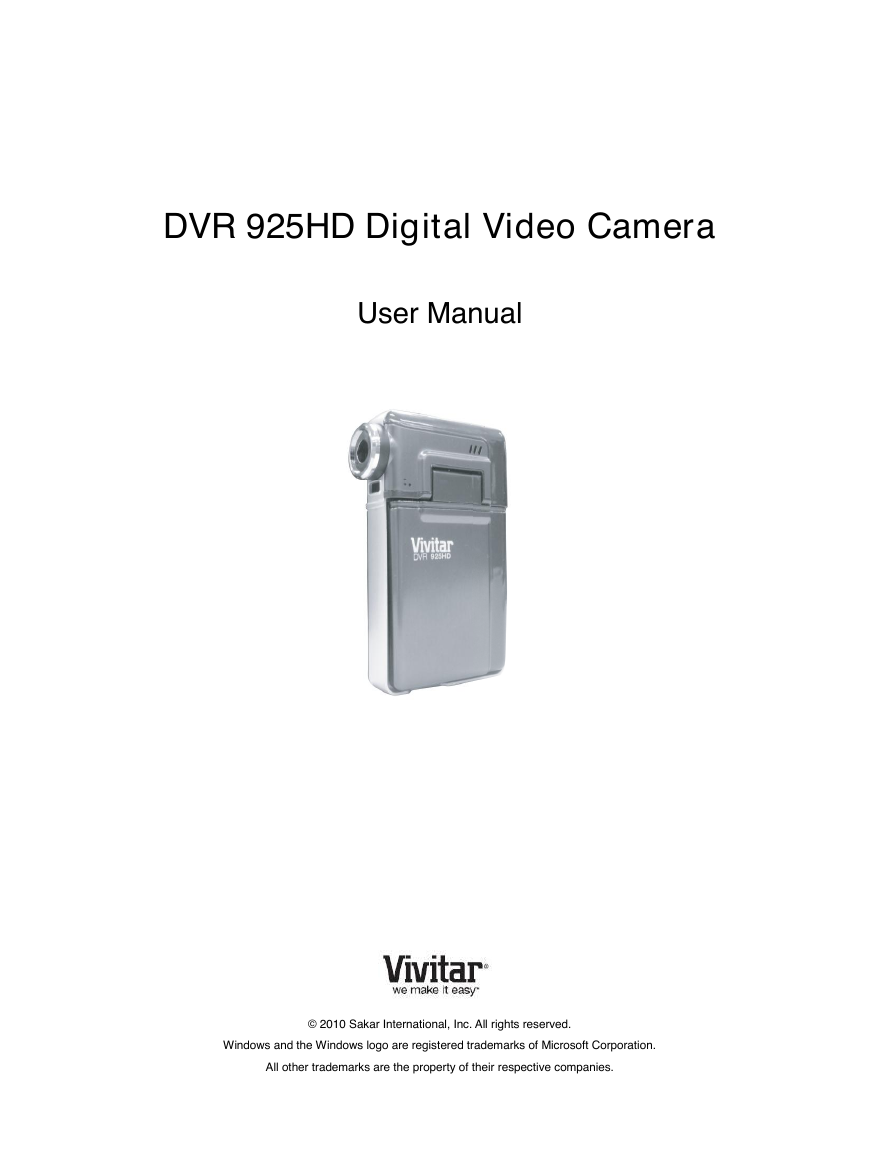

DVR 925HD Digital Video Camera User Manual © 2010 Sakar International, Inc. All rights reserved. Windows and the Windows logo are registered trademarks of Microsoft Corporation. All other trademarks are the property of their respective companies.

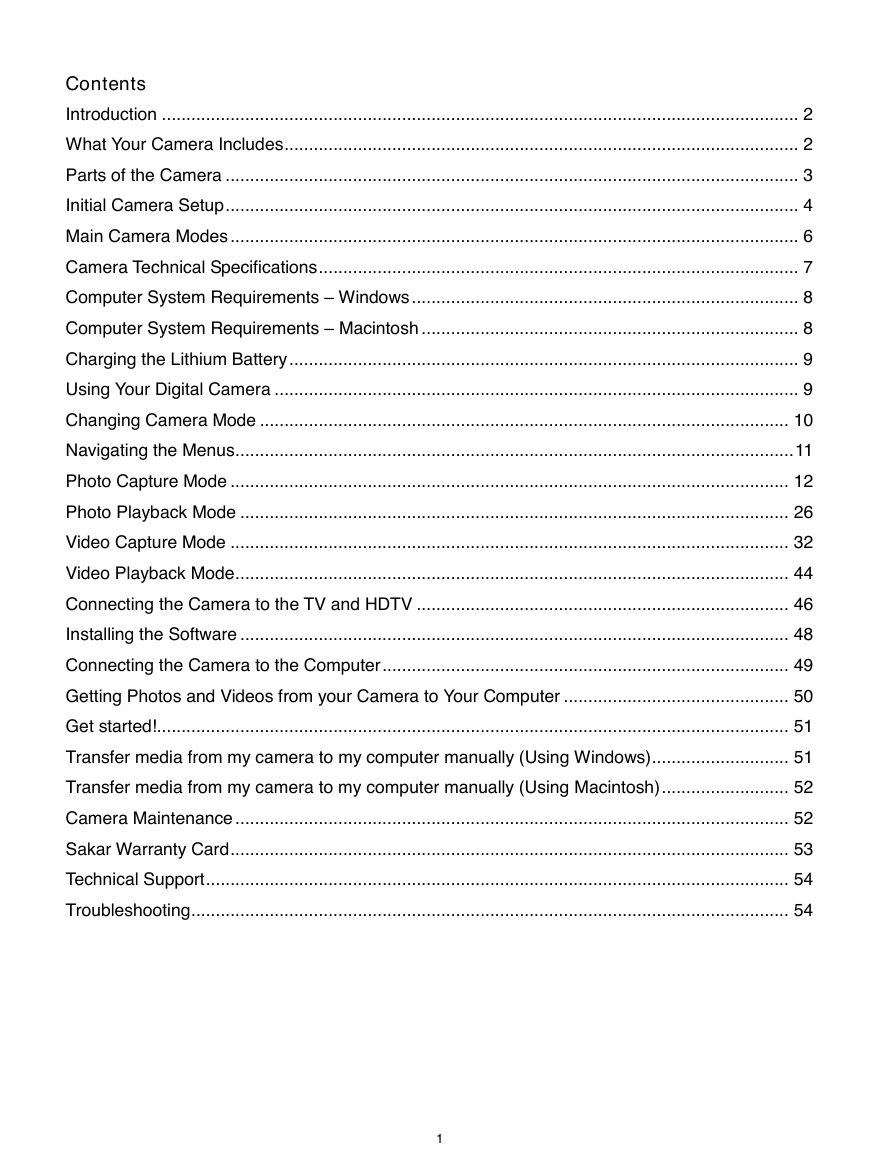

Contents Introduction .................................................................................................................................. 2 What Your Camera Includes ......................................................................................................... 2 Parts of the Camera ..................................................................................................................... 3 Initial Camera Setup ..................................................................................................................... 4 Main Camera Modes .................................................................................................................... 6 Camera Technical Specifications .................................................................................................. 7 Computer System Requirements – Windows ............................................................................... 8 Computer System Requirements – Macintosh ............................................................................. 8 Charging the Lithium Battery ........................................................................................................ 9 Using Your Digital Camera ........................................................................................................... 9 Changing Camera Mode ............................................................................................................ 10 Navigating the Menus .................................................................................................................. 11 Photo Capture Mode .................................................................................................................. 12 Photo Playback Mode ................................................................................................................ 26 Video Capture Mode .................................................................................................................. 32 Video Playback Mode ................................................................................................................. 44 Connecting the Camera to the TV and HDTV ............................................................................ 46 Installing the Software ................................................................................................................ 48 Connecting the Camera to the Computer ................................................................................... 49 Getting Photos and Videos from your Camera to Your Computer .............................................. 50 Get started!................................................................................................................................. 51 Transfer media from my camera to my computer manually (Using Windows) ............................ 51 Transfer media from my camera to my computer manually (Using Macintosh) .......................... 52 Camera Maintenance ................................................................................................................. 52 Sakar Warranty Card .................................................................................................................. 53 Technical Support ....................................................................................................................... 54 Troubleshooting .......................................................................................................................... 54 1

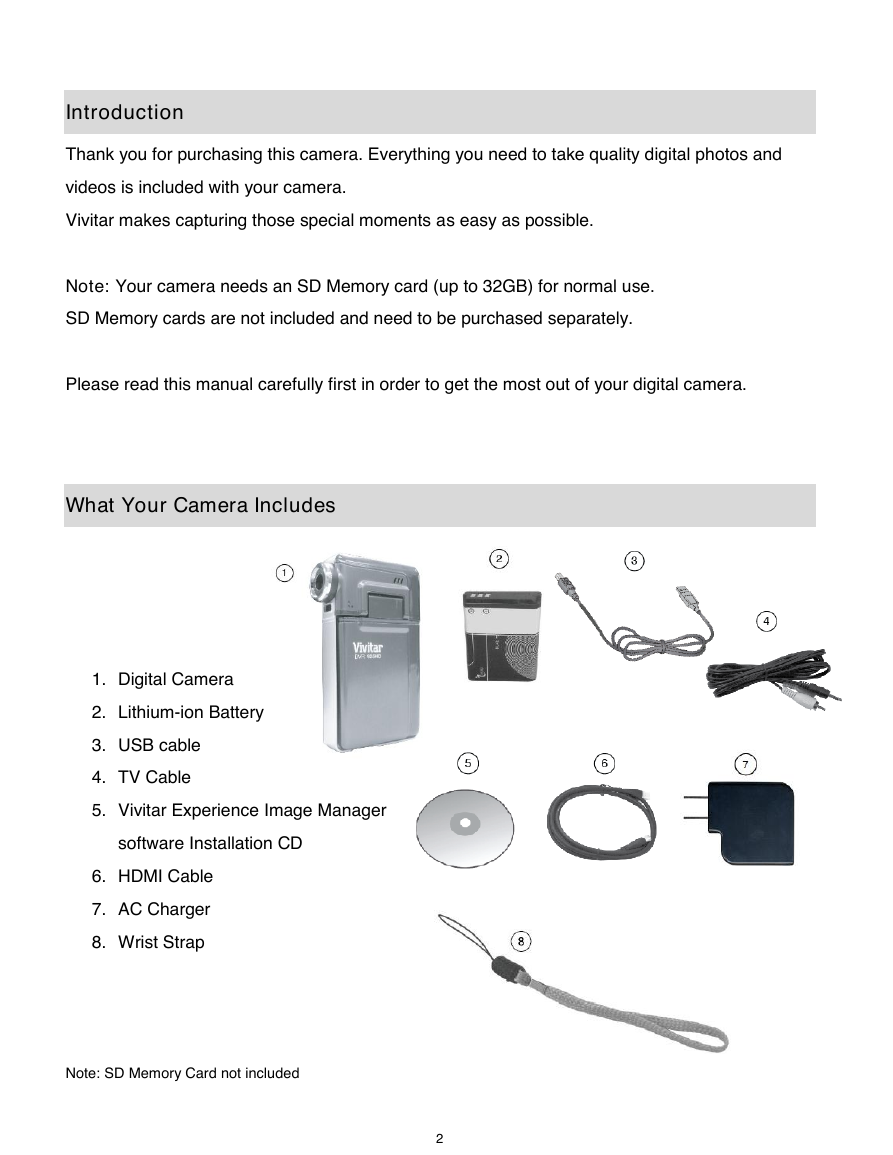

Introduction Thank you for purchasing this camera. Everything you need to take quality digital photos and videos is included with your camera. Vivitar makes capturing those special moments as easy as possible. Note: Your camera needs an SD Memory card (up to 32GB) for normal use. SD Memory cards are not included and need to be purchased separately. Please read this manual carefully first in order to get the most out of your digital camera. What Your Camera Includes 1. Digital Camera 2. Lithium-ion Battery 3. USB cable 4. TV Cable 5. Vivitar Experience Image Manager software Installation CD 6. HDMI Cable 7. AC Charger 8. Wrist Strap Note: SD Memory Card not included 2

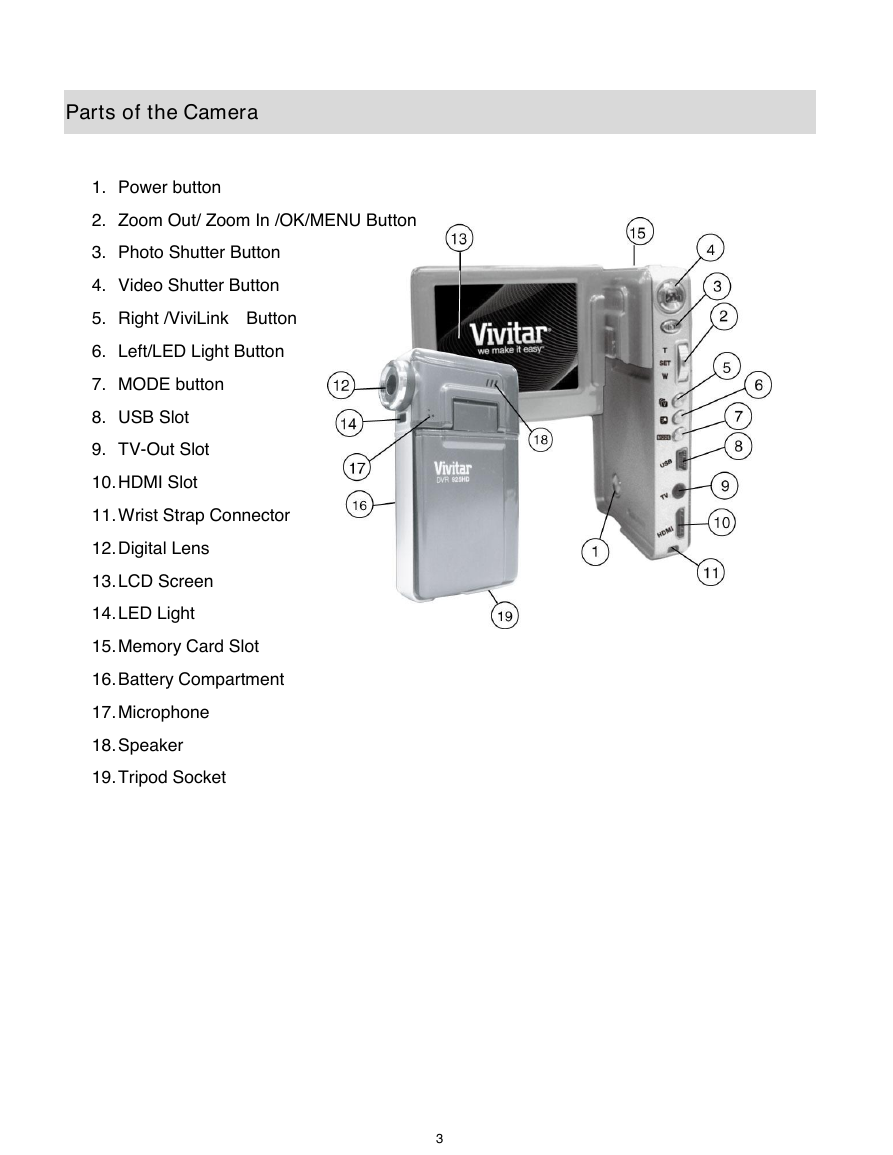

Parts of the Camera 1. Power button 2. Zoom Out/ Zoom In /OK/MENU Button 3. Photo Shutter Button 4. Video Shutter Button 5. Right /ViviLink Button 6. Left/LED Light Button 7. MODE button 8. USB Slot 9. TV-Out Slot 10. HDMI Slot 11. Wrist Strap Connector 12. Digital Lens 13. LCD Screen 14. LED Light 15. Memory Card Slot 16. Battery Compartment 17. Microphone 18. Speaker 19. Tripod Socket 3

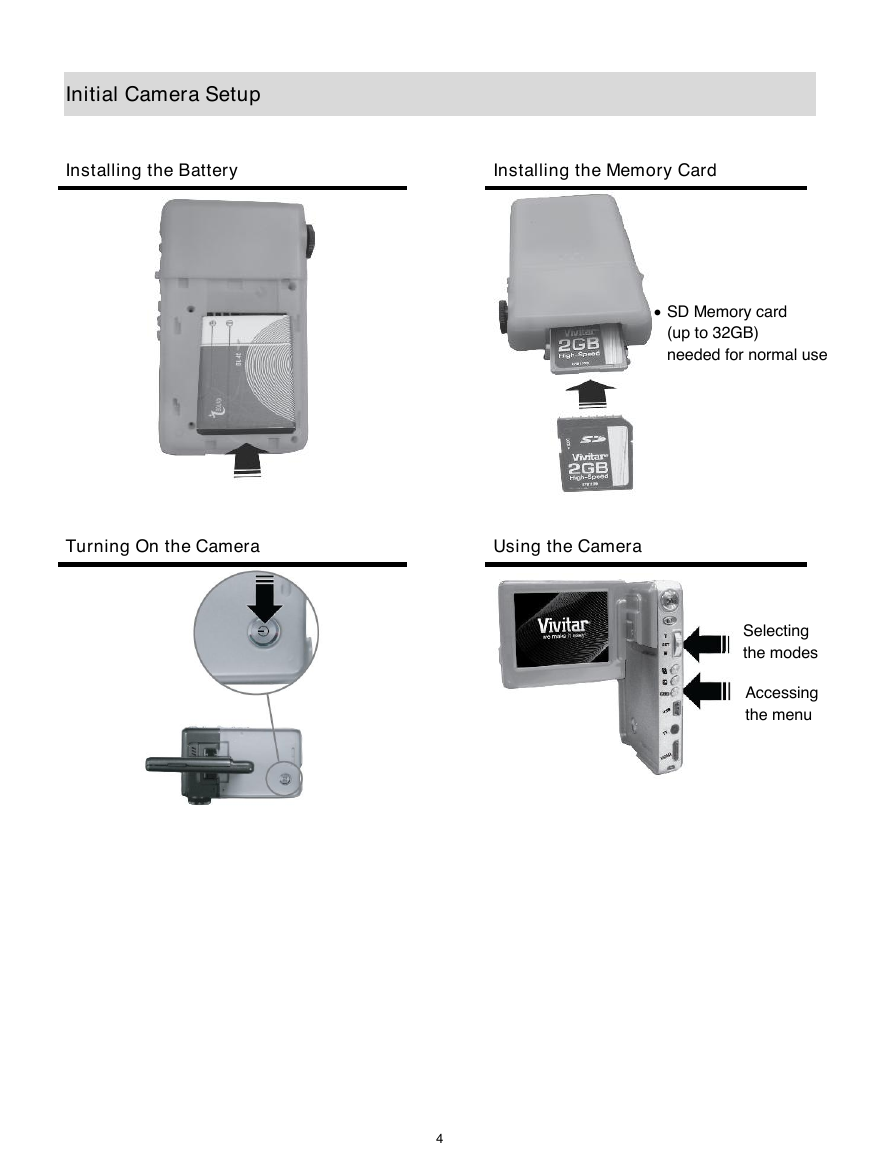

Initial Camera Setup Installing the Battery Installing the Memory Card  SD Memory card (up to 32GB) needed for normal use Turning On the Camera Using the Camera Selecting the modes Accessing the menu 4

When powering the camera ON for the first time you may manually go through and setup some of the features of your camera. Powering the Camera ON 1) Make sure the battery has been inserted properly into your digital camera. First, open the battery compartment on the side of the camera. Insert the battery in accordance with the polarity indicated. Then return and close the battery cover. 2) Make sure an SD card has been inserted into your camera. First, locate the SD card slot on the bottom of the camera. Insert a compatible SD memory card correctly in the direction shown. Then press the memory card until you hear a “Click” sound. 3) Flip and twist the LCD Screen open. NOTE: The the LCD Screen can also be turned facing out so that you can see yourself within the scene you are capturing. 4) Press the POWER button to turn on the camera. Setting the Camera Language To select a language for the camera, press the OK/Menu button. Press the Right/ViviLink Button until the Language menu is viewed. Select the language of your choice and press the OK button to confirm the selection. Setting the Date and Time To set the Date and Time as desired, press the OK/Menu button. Press the Right/ViviLink Button until the Date/Time menu is viewed, then scroll down by pressing down the W/Zoom Out button and select “Date Setup” and press the OK button to confirm the selection and move to the next part of the setup. 5

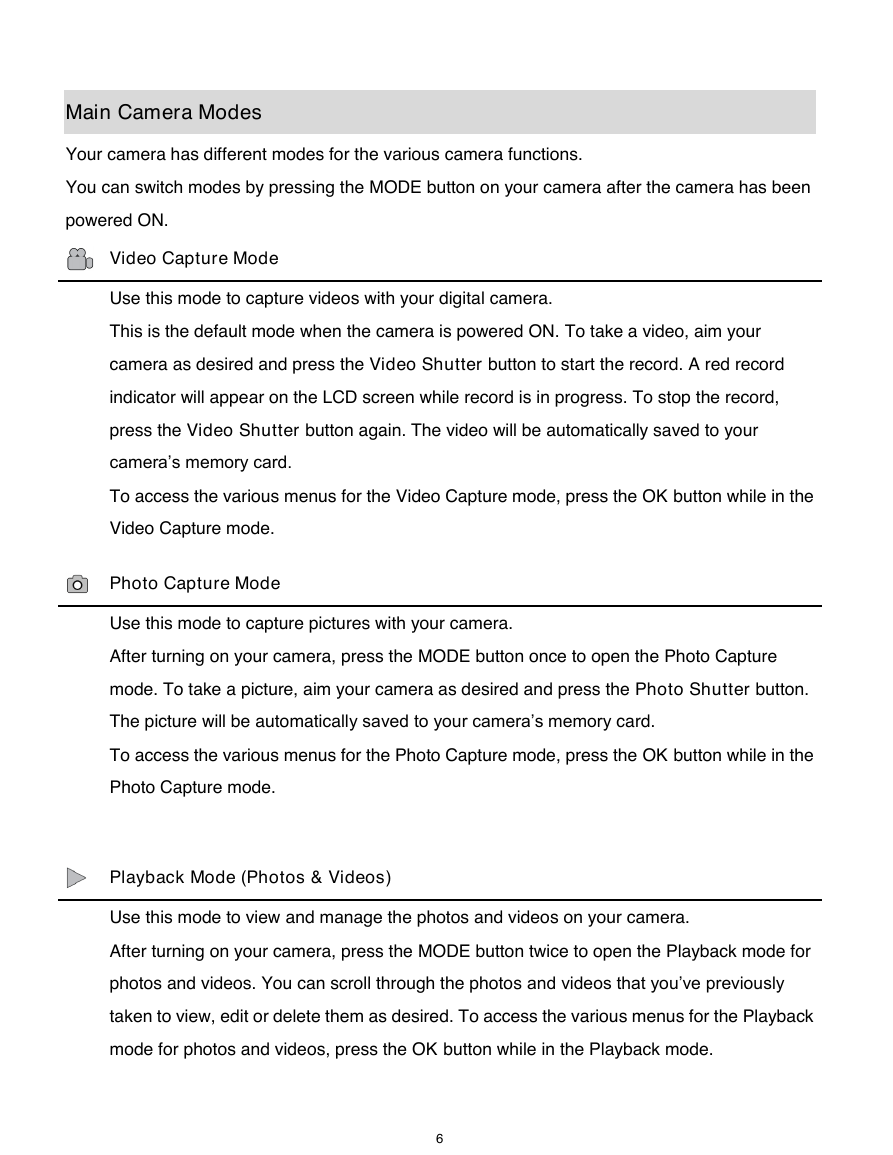

Main Camera Modes Your camera has different modes for the various camera functions. You can switch modes by pressing the MODE button on your camera after the camera has been powered ON. Video Capture Mode Use this mode to capture videos with your digital camera. This is the default mode when the camera is powered ON. To take a video, aim your camera as desired and press the Video Shutter button to start the record. A red record indicator will appear on the LCD screen while record is in progress. To stop the record, press the Video Shutter button again. The video will be automatically saved to your camera‟s memory card. To access the various menus for the Video Capture mode, press the OK button while in the Video Capture mode. Photo Capture Mode Use this mode to capture pictures with your camera. After turning on your camera, press the MODE button once to open the Photo Capture mode. To take a picture, aim your camera as desired and press the Photo Shutter button. The picture will be automatically saved to your camera‟s memory card. To access the various menus for the Photo Capture mode, press the OK button while in the Photo Capture mode. Playback Mode (Photos & Videos) Use this mode to view and manage the photos and videos on your camera. After turning on your camera, press the MODE button twice to open the Playback mode for photos and videos. You can scroll through the photos and videos that you‟ve previously taken to view, edit or delete them as desired. To access the various menus for the Playback mode for photos and videos, press the OK button while in the Playback mode. 6

Camera Technical Specifications Image Sensor Image Resolution Video Resolution File Format Internal Memory External Memory LCD Display Lens Zoom Exposure White Balance ISO Scene CMOS Sensor (8M) 3264x2448, (7M HD) 3648X2048 pixels, (5M) 2592x1944 pixels, (3M) 2048x1536 pixels, (2M) 1600x1200 pixels, (2M HD) 1920x1080 pixels and (VGA) 640x480 pixels 1280x720 (25fps), 640X480pixels (30fps), 320X240pixels (30 fps) JPEG/AVI 1 Test Photo Use Only SD Card (up to 32GB) 2.4 Inch TFT f=7.23mm F2.8, Fix Focus 4X Digital Zoom -3.0EV ~ +3.0EV Auto, Daylight, Cloudy, Incandescent , Fluorescent Auto / 100 / 200 / 400 Auto / Scenery / Portrait / Night Scenery / Night Portrait / High Sensitivity / Sport / Beach / Party Auto/Force/Red Eye/Off 2, 5 or 10 second delay Yes Yes Yes Yes Yes Yes USB 2.0 (HS) Flash Self-Timer Anti-Shake Micrphone Speaker Print Photos Face Detect Smile Capture Interface System Requirements Windows XP and above / Mac OSX 10.5 and above Battery Lithium Battery Working Temperature 0~40 ℃ 7
