Multimedia Projector Projecteur Multimédia Multimedia-Projektor Proyector Multimedia Proiettore Multimediale Owner's Manual/Mode d'emploi/ Bedienungsanleitung/Manual del usuario/ Manuale d'uso MODEL/MODÈLE/MODELO/MODELL/MODELLO PDG-DSU20N/DSU20E/DSU20B

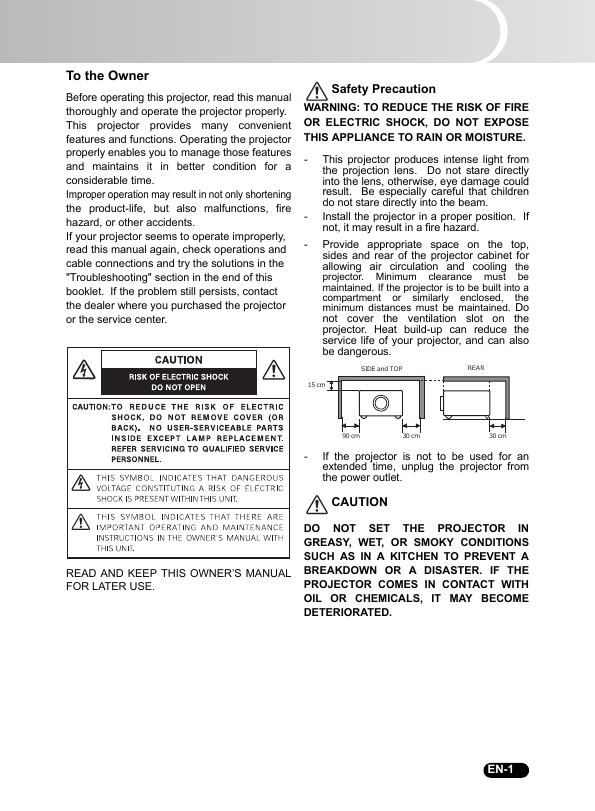

To the Owner Before operating this projector, read this manual thoroughly and operate the projector properly. This projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintains it in better condition for a considerable time. Improper operation may result in not only shortening the product-life, but also malfunctions, fire hazard, or other accidents. If your projector seems to operate improperly, read this manual again, check operations and cable connections and try the solutions in the "Troubleshooting" section in the end of this booklet. If the problem still persists, contact the dealer where you purchased the projector or the service center. READ AND KEEP THIS OWNER’S MANUAL FOR LATER USE. Safety Precaution WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. - This projector produces intense light from the projection lens. Do not stare directly into the lens, otherwise, eye damage could result. Be especially careful that children do not stare directly into the beam. Install the projector in a proper position. If not, it may result in a fire hazard. Provide appropriate space on the top, sides and rear of the projector cabinet for allowing air circulation and cooling the projector. Minimum clearance must be maintained. If the projector is to be built into a compartment or similarly enclosed, the minimum distances must be maintained. Do not cover the projector. Heat build-up can reduce the service life of your projector, and can also be dangerous. the ventilation slot on - - SIDE and TOP REAR 15 cm 90 cm 30 cm 30 cm - If the projector is not to be used for an extended time, unplug the projector from the power outlet. CAUTION DO NOT SET THE PROJECTOR IN GREASY, WET, OR SMOKY CONDITIONS SUCH AS IN A KITCHEN TO PREVENT A BREAKDOWN OR A DISASTER. IF THE PROJECTOR COMES IN CONTACT WITH OIL OR CHEMICALS, IT MAY BECOME DETERIORATED. EN-1

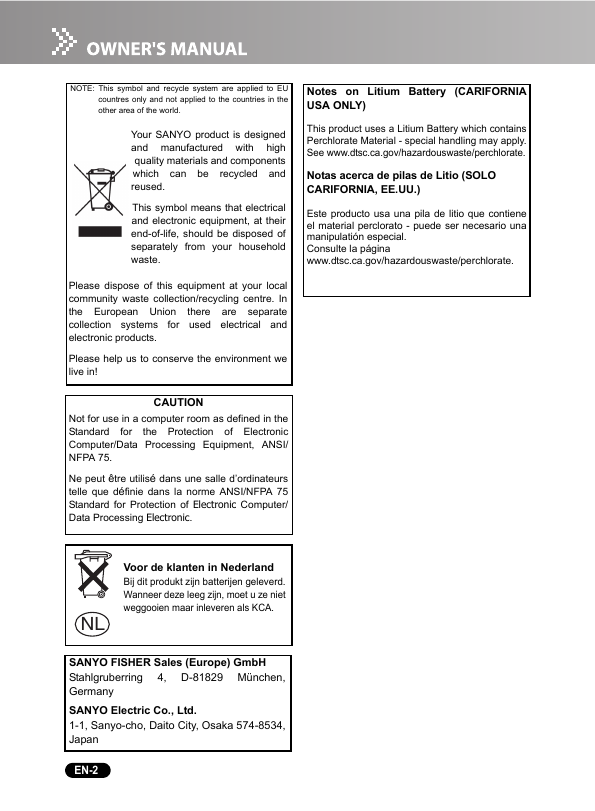

NOTE: This symbol and recycle system are applied to EU countres only and not applied to the countries in the other area of the world. Notes on Litium Battery (CARIFORNIA USA ONLY) Your SANYO product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste. This product uses a Litium Battery which contains Perchlorate Material - special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate. Notas acerca de pilas de Litio (SOLO CARIFORNIA, EE.UU.) Este producto usa una pila de litio que contiene el material perclorato - puede ser necesario una manipulatión especial. Consulte la página www.dtsc.ca.gov/hazardouswaste/perchlorate. Please dispose of this equipment at your local community waste collection/recycling centre. In there are separate the European Union collection systems for used electrical and electronic products. Please help us to conserve the environment we live in! CAUTION for Not for use in a computer room as defined in the Standard the Protection of Electronic Computer/Data Processing Equipment, ANSI/ NFPA 75. Ne peut être utilisé dans une salle d’ordinateurs telle que définie dans la norme ANSI/NFPA 75 Standard for Protection of Electronic Computer/ Data Processing Electronic. Voor de klanten in Nederland Bij dit produkt zijn batterijen geleverd. Wanneer deze leeg zijn, moet u ze niet weggooien maar inleveren als KCA. NL SANYO FISHER Sales (Europe) GmbH Stahlgruberring 4, D-81829 München, Germany SANYO Electric Co., Ltd. 1-1, Sanyo-cho, Daito City, Osaka 574-8534, Japan EN-2

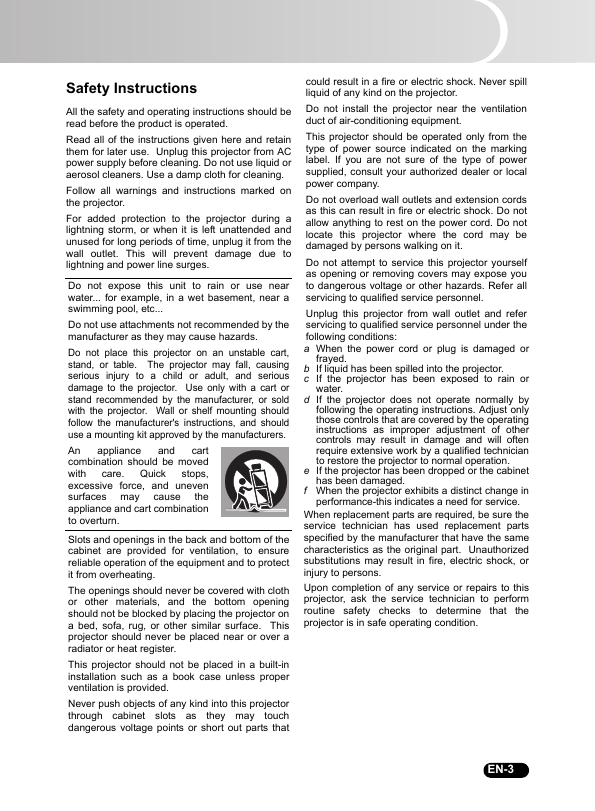

could result in a fire or electric shock. Never spill liquid of any kind on the projector. Do not install the projector near the ventilation duct of air-conditioning equipment. This projector should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied, consult your authorized dealer or local power company. Do not overload wall outlets and extension cords as this can result in fire or electric shock. Do not allow anything to rest on the power cord. Do not locate this projector where the cord may be damaged by persons walking on it. Do not attempt to service this projector yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. Unplug this projector from wall outlet and refer servicing to qualified service personnel under the following conditions: a When the power cord or plug is damaged or b If liquid has been spilled into the projector. c If the projector has been exposed to rain or d If the projector does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the projector to normal operation. e If the projector has been dropped or the cabinet f When the projector exhibits a distinct change in has been damaged. performance-this indicates a need for service. frayed. water. When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or injury to persons. Upon completion of any service or repairs to this projector, ask the service technician to perform routine safety checks to determine that the projector is in safe operating condition. Safety Instructions All the safety and operating instructions should be read before the product is operated. Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. Follow all warnings and instructions marked on the projector. For added protection to the projector during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet. This will prevent damage due to lightning and power line surges. and appliance care. Quick Do not expose this unit to rain or use near water... for example, in a wet basement, near a swimming pool, etc... Do not use attachments not recommended by the manufacturer as they may cause hazards. Do not place this projector on an unstable cart, stand, or table. The projector may fall, causing serious injury to a child or adult, and serious damage to the projector. Use only with a cart or stand recommended by the manufacturer, or sold with the projector. Wall or shelf mounting should follow the manufacturer's instructions, and should use a mounting kit approved by the manufacturers. An cart combination should be moved with stops, excessive force, and uneven surfaces may the appliance and cart combination to overturn. Slots and openings in the back and bottom of the cabinet are provided for ventilation, to ensure reliable operation of the equipment and to protect it from overheating. The openings should never be covered with cloth or other materials, and the bottom opening should not be blocked by placing the projector on a bed, sofa, rug, or other similar surface. This projector should never be placed near or over a radiator or heat register. This projector should not be placed in a built-in installation such as a book case unless proper ventilation is provided. Never push objects of any kind into this projector through cabinet slots as touch dangerous voltage points or short out parts that they may cause EN-3

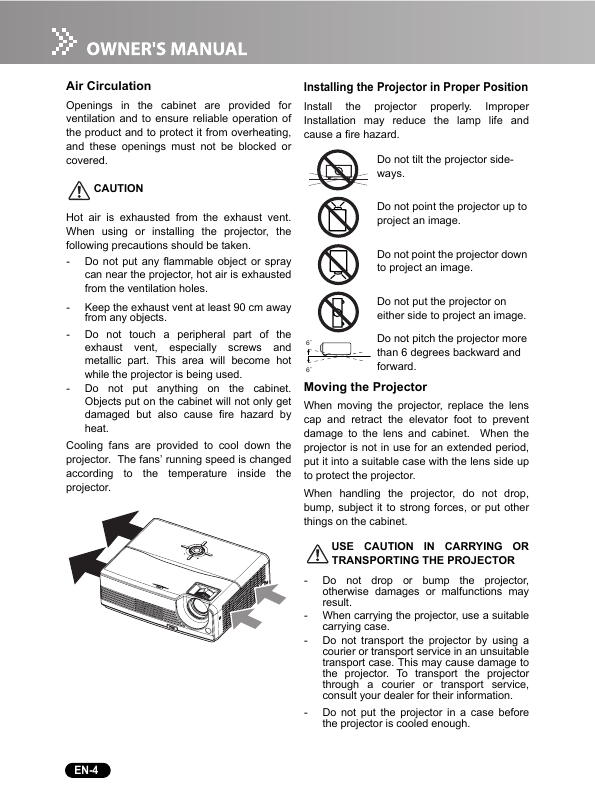

Air Circulation Openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. CAUTION Hot air is exhausted from the exhaust vent. When using or installing the projector, the following precautions should be taken. - Do not put any flammable object or spray can near the projector, hot air is exhausted from the ventilation holes. Keep the exhaust vent at least 90 cm away from any objects. - - Do not touch a peripheral part of the exhaust vent, especially screws and metallic part. This area will become hot while the projector is being used. - Do not put anything on the cabinet. Objects put on the cabinet will not only get damaged but also cause fire hazard by heat. Cooling fans are provided to cool down the projector. The fans’ running speed is changed according the projector. temperature inside to the Installing the Projector in Proper Position Install Improper Installation may reduce the lamp life and cause a fire hazard. the projector properly. Do not tilt the projector side- ways. Do not point the projector up to project an image. Do not point the projector down to project an image. Do not put the projector on either side to project an image. Do not pitch the projector more than 6 degrees backward and forward. 6˚ 6˚ Moving the Projector When moving the projector, replace the lens cap and retract the elevator foot to prevent damage to the lens and cabinet. When the projector is not in use for an extended period, put it into a suitable case with the lens side up to protect the projector. When handling the projector, do not drop, bump, subject it to strong forces, or put other things on the cabinet. USE CAUTION TRANSPORTING THE PROJECTOR IN CARRYING OR - Do not drop or bump the projector, otherwise damages or malfunctions may result. - When carrying the projector, use a suitable carrying case. - Do not transport the projector by using a courier or transport service in an unsuitable transport case. This may cause damage to the projector. To transport the projector through a courier or transport service, consult your dealer for their information. - Do not put the projector in a case before the projector is cooled enough. EN-4

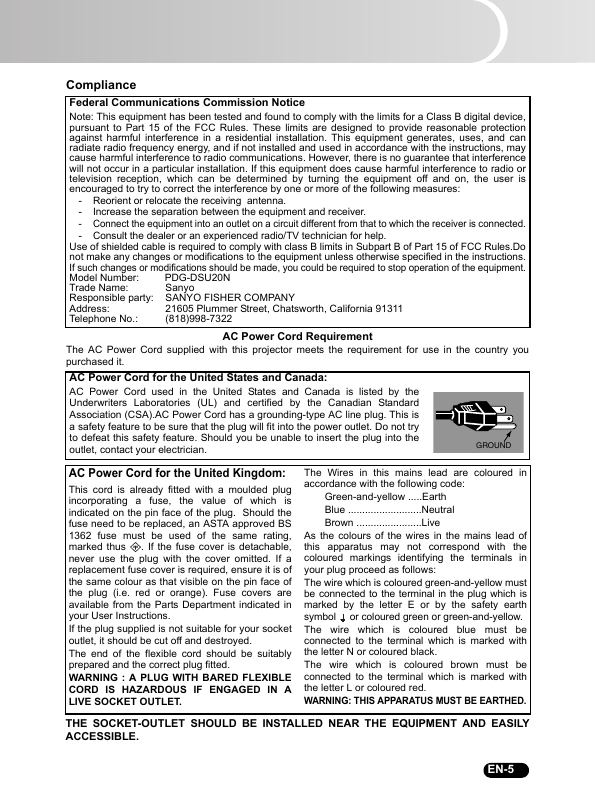

Compliance Federal Communications Commission Notice Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Increase the separation between the equipment and receiver. - Reorient or relocate the receiving antenna. - - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If such changes or modifications should be made, you could be required to stop operation of the equipment. Model Number: Trade Name: Responsible party: SANYO FISHER COMPANY Address: Telephone No.: 21605 Plummer Street, Chatsworth, California 91311 (818)998-7322 PDG-DSU20N Sanyo AC Power Cord Requirement GROUND The Wires in this mains lead are coloured in accordance with the following code: The AC Power Cord supplied with this projector meets the requirement for use in the country you purchased it. AC Power Cord for the United States and Canada: AC Power Cord used in the United States and Canada is listed by the Underwriters Laboratories (UL) and certified by the Canadian Standard Association (CSA).AC Power Cord has a grounding-type AC line plug. This is a safety feature to be sure that the plug will fit into the power outlet. Do not try to defeat this safety feature. Should you be unable to insert the plug into the outlet, contact your electrician. AC Power Cord for the United Kingdom: This cord is already fitted with a moulded plug incorporating a fuse, the value of which is indicated on the pin face of the plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating, marked thus . If the fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse cover is required, ensure it is of the same colour as that visible on the pin face of the plug (i.e. red or orange). Fuse covers are available from the Parts Department indicated in your User Instructions. If the plug supplied is not suitable for your socket outlet, it should be cut off and destroyed. The end of the flexible cord should be suitably prepared and the correct plug fitted. WARNING : A PLUG WITH BARED FLEXIBLE CORD IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET OUTLET. THE SOCKET-OUTLET SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE. As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked by the letter E or by the safety earth or coloured green or green-and-yellow. symbol The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red. WARNING: THIS APPARATUS MUST BE EARTHED. Green-and-yellow .....Earth Blue ..........................Neutral Brown .......................Live ASA EN-5

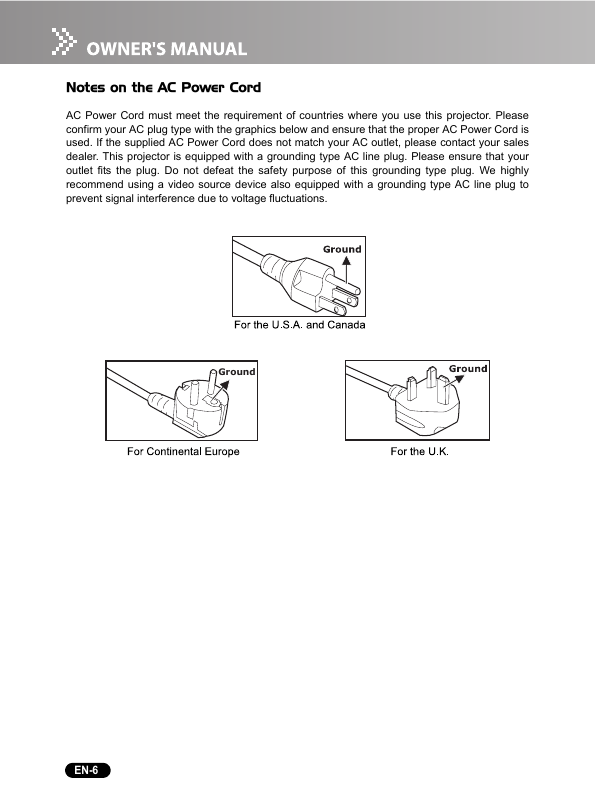

Notes on the AC Power Cord AC Power Cord must meet the requirement of countries where you use this projector. Please confirm your AC plug type with the graphics below and ensure that the proper AC Power Cord is used. If the supplied AC Power Cord does not match your AC outlet, please contact your sales dealer. This projector is equipped with a grounding type AC line plug. Please ensure that your outlet fits the plug. Do not defeat the safety purpose of this grounding type plug. We highly recommend using a video source device also equipped with a grounding type AC line plug to prevent signal interference due to voltage fluctuations. Ground EN-6

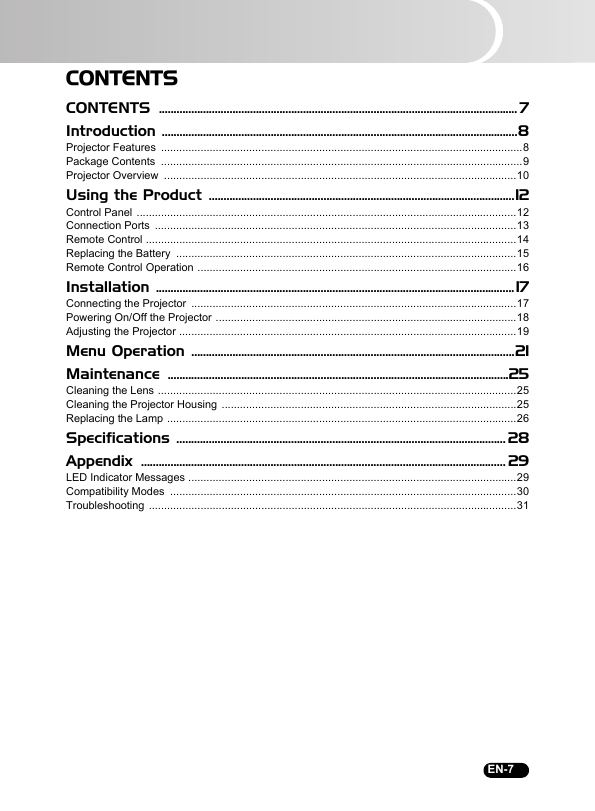

CONTENTS CONTENTS .......................................................................................................................... 7 Introduction .........................................................................................................................8 Projector Features .......................................................................................................................8 Package Contents .......................................................................................................................9 Projector Overview ....................................................................................................................10 Using the Product ........................................................................................................12 Control Panel .............................................................................................................................12 Connection Ports .......................................................................................................................13 Remote Control ..........................................................................................................................14 Replacing the Battery ................................................................................................................15 Remote Control Operation .........................................................................................................16 Installation ..........................................................................................................................17 Connecting the Projector ...........................................................................................................17 Powering On/Off the Projector ...................................................................................................18 Adjusting the Projector ...............................................................................................................19 Menu Operation ..............................................................................................................21 Maintenance ....................................................................................................................25 Cleaning the Lens ......................................................................................................................25 Cleaning the Projector Housing .................................................................................................25 Replacing the Lamp ...................................................................................................................26 Specifications ................................................................................................................ 28 Appendix ............................................................................................................................ 29 LED Indicator Messages ............................................................................................................29 Compatibility Modes ..................................................................................................................30 Troubleshooting .........................................................................................................................31 EN-7
