Back to Index

-----------------------------------------------------

User Manual PP8

Unpacking the Printer

Turning the power ON

Turning the power OFF

Windows 95

Windows 3.1

Windows NT4.0

MS-DOS

Clearing a Paper Misfeed

Solving Print Quality Problems

No output

Forword

CONTENTS

Chapter 1

Features

Printer Parts ans Accessories

Control Panel

Control Panel Button

Chapter 2

Installation Precautions

Selecting a Location for the Printer

Power Source

Space Requirements

Operating Precautions

Operating Environment

Printer

Printer Supplies

Setting-Up

Installing the Face-Down Tray

Installing Tray 1

Connecting the power Cord

Loading Paper

Turning on the Printer

Testing the Printer

Sample Self-Test Page

Connecting to a Computer

Options

Second Paper Cassette Unit

Face-Up Tray

SIMM

Warning

Caution

Chapter 3

Printing Paper

Type

Size

Loading Paper

Loading Paper onto Tray 1

Loading Paper onto Tray 2

Manual Paper Feed

Printing on Envelopes

Chapter 4

Introduction

System Requirements

Installing the PapePro 8 Printer Driver Under Windows 95

Installing the Page Pro 8 Printer Driver

Important

To uninstall the PP8 Printer Driver

Display the PP8 Driver Setup Dialog

Installing the PP8 Printer Driver Under Windows 3.1

To uninstall the PP8 Printer Driver

Displaying the PP8 Driver Setup Dialog

Installing the Printer Driver Under Windows NT4.0

To uninstall the PP8 Printer Driver

Displaying the PP8 Driver Setup Dialog

Using the Minolta PP8 Printer Driver Under Windows

Using the PP8 Driver Setup Dialog

Using the PP8 Enhanced Driver Setup Dialog

DOS Printing Utilities

Using the Printer Control Panel

Printer Control Panel Screens

Using the Status Display

Installation from a Floppy Diskette

Chapter 5

Introduction

Starting Up the Status Display

To start up the Status Display under Windows 95

To start up the Status Display under Windows 3.1

Using the Status Display

To expand the size of Status Display

To turn Popup Error Messages On and Off

To specify popup message conditions

Starting Up the Control Panel

To start up the Control Panel under Windows 95

To start up the Control Panel under Windows 3.1

Using the Control Panel

Common Buttons

Paper

Printer Setting

Test Print

Counter

Configuration

Chapter 6

Replacing the Toner Cartridge

To reset the Toner Cartridge

To reset the counter of Toneer Cartridge

Replacing the Drum Cartridge

To replace the Drum Cartridge

To reset the Counter of the Drum Cartridge

Cleaning the Printer

Chapter 7

Clearing a Paper Misfeed

Paper Output Misfeed (Face-down tray)

Paper Output Misfeed (Face-up Tray)

Paper Input (from Tray 1)

Paper Input Misfeed (from Manual Feed Tray)

Paper Input Misfeed (from Second Paper Cassette Unit)

Inside the Printer

Print Quality Problems

Blank Pages

Black Pages

Printout too light

Printout too dark

Blurred bachground

Uneven print density

Irregularities

White ot black line

Toner smudges

No output

Chapter 8

PapgePro8 Printer

Second Paper Cassette Unit (Option)

Interface Connector and Cable

SIMM (Option)

Appendix A

Glossary

Appendix B

Index

PP8.book Page 1 Wednesday, June 23, 1999 3:29 PM Contents Step 1 Unpacking the Printer ..................... 2 Reference 1 Printer Parts..................................... 4 Reference 2 Control Panel ................................... 5 Step 2 Step 3 Step 4 Step 5 Step 6 Step 7 Attaching the Face-Down Tray and Tray 1......................................... 6 Loading Paper ................................. 7 Connecting the Power Cord ........... 8 Turning the Power On/Off ............... 8 Printing a Test Page ........................ 9 Connecting the Printer to the Computer (Local Connection) ...... 10 Step 8 Installing the Printer Driver .......... 11 Reference 3 Troubleshooting ............................ 13

PP8.book Page 2 Wednesday, June 23, 1999 3:29 PM Unpacking the Printer Step 1 Before operating your printer, read the Set-Up Instructions carefully from cover to cover. Use this guide for reference. 1 2 3 4 1. Face-down tray 2. Printer 3. Tray 1 4. Accessories User Kit including: • Quick Guide • User’s Manual • CD-ROM Power cord 1. Take the items and accessories shown above out of the carton. 2. Remove the plastic bag and peel off the shipping tape from the printer. Peeling off the shipping tapes from the printer 2

PP8.book Page 3 Wednesday, June 23, 1999 3:29 PM 3. Pull out the cushion from the paper feed inlet. Step 1 Peeling off the shipping tapes from the printer 4. Pull out the cushion from the manual feed inlet. 3

PP8.book Page 4 Wednesday, June 23, 1999 3:29 PM Printer Parts Reference 1 Face-up tray (option) Face-down tray Control panel Paper size guide Manual feed tray Tray cover Tray 2 cover (option) Tray 2 (500-sheet second cassette) (option) Paper size guide Tray 1 Paper support Second paper cassette unit (option) Top cover release button Power switch Face-up/face- down selection switch Toner cartridge Drum cartridge Power cord socket Parallel interface connector Note • The face-up tray, second paper cassette unit (with Tray 2) and SIMM are all avail- able options for your printer. For more information, please refer to the User’s Man- ual. 4

PP8.book Page 5 Wednesday, June 23, 1999 3:29 PM Control Panel Reference 2 The control panel has three indicator lights and one button. READY indicator (green) PAPER indicator (amber) ERROR indicator (red) Panel button Printer is online (ready). • Receiving data via parallel interface. • Printing the test page. Printer is off. Printer is standing by waiting for man- ual paper feed. (Blinking slowly) Power save mode. • Out of paper. Load more paper to con- tinue printing. • Paper misfeed. Clear to continue printing. Paper misfeed. Clear the paper misfeed and con- tinue printing. Cover open. Close the cover. Print job is too com- plex. 5

PP8.book Page 6 Wednesday, June 23, 1999 3:29 PM Attaching the Face-Down Tray and Tray 1 Step 2 1. Insert the 3 tabs of the face-down tray into the catch holes located along the top of the printer unit. Set the hooks that are located on both sides of the tray into the coordinating holes of the printer unit as shown in the illustration. 2. Using the left and right slots in the printer as guides, gently push Tray 1 until it cannot be inserted any further. 3. Attach the cover onto Tray 1.

PP8.book Page 7 Wednesday, June 23, 1999 3:29 PM Loading Paper Step 3 1. Remove the cover from Tray 1. 2. Open the paper size guides. 3. Place several pages of paper in Tray 1 and adjust the paper size guides. 4. Replace the tray cover. 7

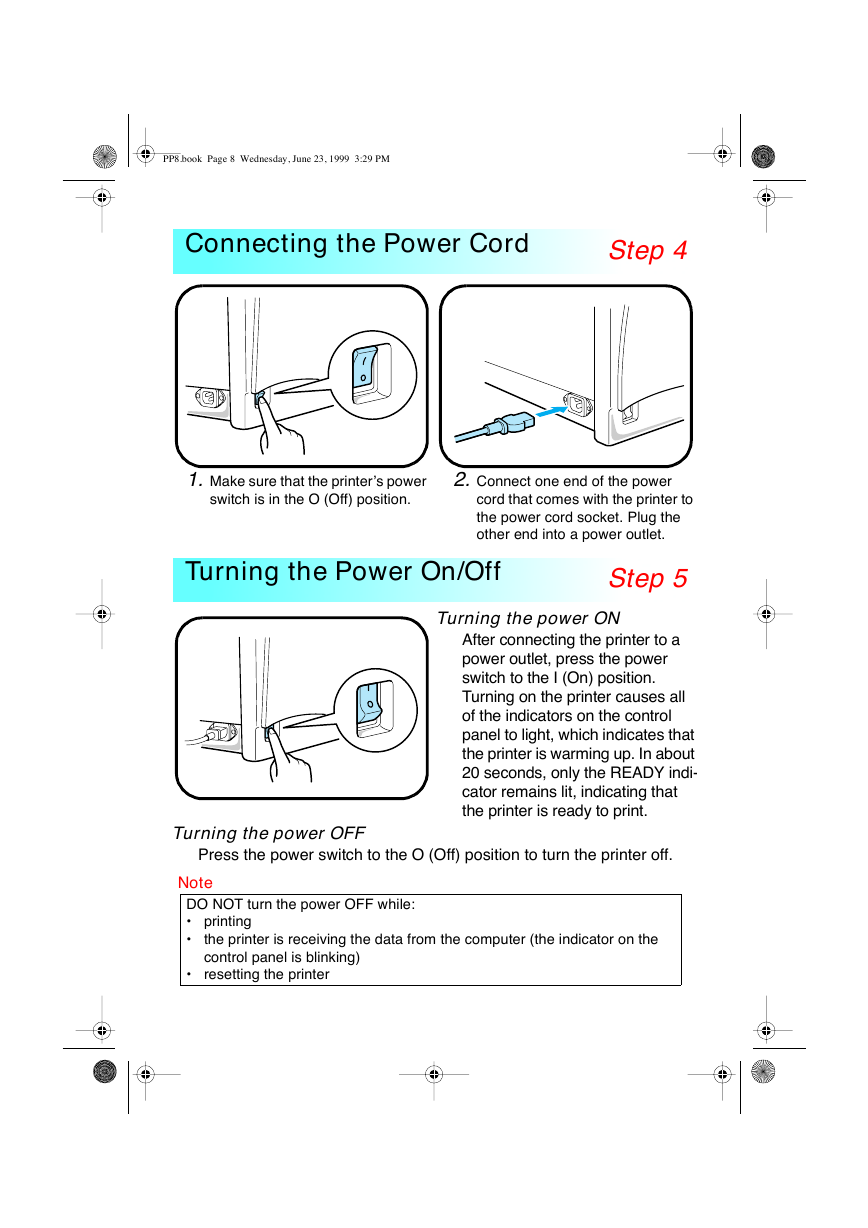

PP8.book Page 8 Wednesday, June 23, 1999 3:29 PM Connecting the Power Cord Step 4 1. Make sure that the printer’s power switch is in the O (Off) position. 2. Connect one end of the power cord that comes with the printer to the power cord socket. Plug the other end into a power outlet. Turning the Power On/Off Step 5 Turning the power ON After connecting the printer to a power outlet, press the power switch to the I (On) position. Turning on the printer causes all of the indicators on the control panel to light, which indicates that the printer is warming up. In about 20 seconds, only the READY indi- cator remains lit, indicating that the printer is ready to print. Turning the power OFF Press the power switch to the O (Off) position to turn the printer off. Note DO NOT turn the power OFF while: • printing • the printer is receiving the data from the computer (the indicator on the control panel is blinking) resetting the printer •
