from among so many makes of cameras on We are highly gratified that you have selected the MAMIYA the C330 market. Before using the camera, please read these instruc- tions very carefully, and learn the correct method of han- dling the MAMIYA C330, you can make the most of the splendid op- portunities this fine camera offers for many years to come. By becoming completely familiarized with it. This MAMIYA C330, an exceptionally high-grade camera, was designed by emphasizing further improvements on the popular MAMIYA C series. Retaining the many features of the MAMIYA C series cameras which have won highest praise the world over as unique twin-lens reflex cameras (2 1/4 in. square format) with interchangeable lenses, especially stressed was minimiz- ing size and weight plus handling ease. from professional photographers Final results reveal this MAMIYA C330, an for professional photographers, ideal camera is also a wise choice for the many advanced amateurs who wish to take advantage of in enlargements which only a large-format camera truly makes possible. that fine details The MAMIYA C330 accepts all interchangeable lenses of the current Mamiya C series as well as all of the accessories except the single-exposure attachment. In addition, various new accessories have been designed for this model. With the wide selection of all these inter- changeable lenses and accessories, you can further widen your scope of photography by making the unlimited versatility the MAMIYA C33O offers. the most of 1 CONTENTS page Read These Instructions Before Using Your 2 MAMIYA C330 . . . . . . . . . . . . . ............................... Nomenclature of Operating Parts . . . . . . . . . . . . . . . . . 5 Opening and Closing the Back Cover . . . . . . . . . . . . . . . 7 8 Before Loading Film ....................................... 9 Loading Film ................................................... 11 Handling the Focusing Hood ........................... 13 Changing the focusing hood ........................ 13 ..................... Changing the focusing screen 14 Before Taking Pictures .................................... 14 14 14 Setting the parallax correcting dial ............... Correcting parallax ....................................... .............................. Compensating exposure Indicating film speed and type on respective windows.. ................................................. 15 Distance S c a l e ................................................ 16 17 Taking Pictures ............................................. 18 Shutter Operations ......................................... 18 Using the multiple exposure selector ............ 18 Locking the shutter button ........................... When no film is loaded in the camera ......... 19 2 0 2 1 2 3 2 3 2 4 3 2 3 4 41 Photographing by Flash Unit ........................... Changing Lenses ............................................. Changing the Back Cover.. ............................... Tripod Socket ................................................ ................................................... Accessories Lens Specifications Table.. ............................... Depth of Field Table.. ..................................... System chart f o r MAMIYA C330 .....................

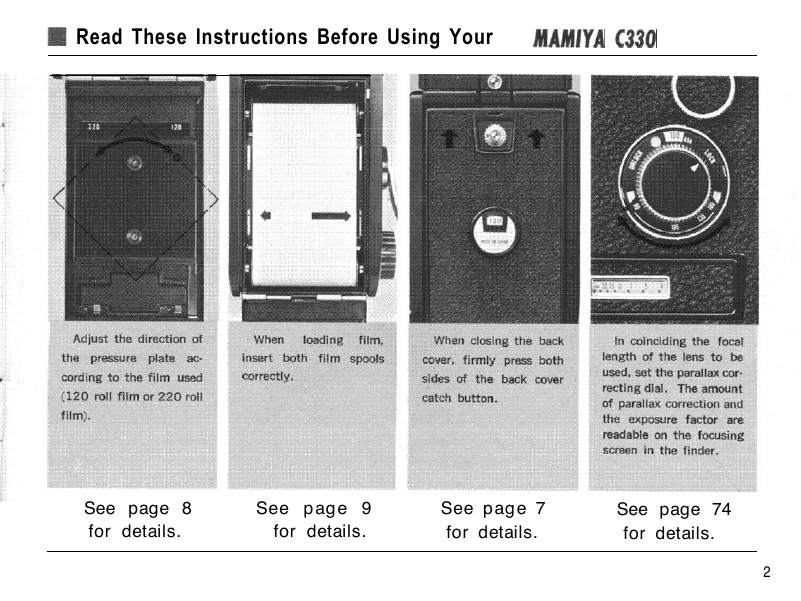

Read These lnstructions Before Using Your C330 C330 See page 8 for details. See page 9 for details. See page 7 for details. See page 74 for details. 2

Read These lnstructions Before Using Your MAMIYA C330 (cont.) any of the conditions de- 1. When lens change 2 . When shutter re- 3 . When multiple ex- When this camera is under lease lock button is posure button is set set on the letter “L”. on “SINGLE,” and . . . ’ scribed as follows, the shutter release button cannot be de- pressed. In this case, abso- LOCK". lutelv do not use force. knob is set on “UN- A red warning signal is visible on the focusing screen. (1) When film is not loaded indicates (exposure counter “0”). 3

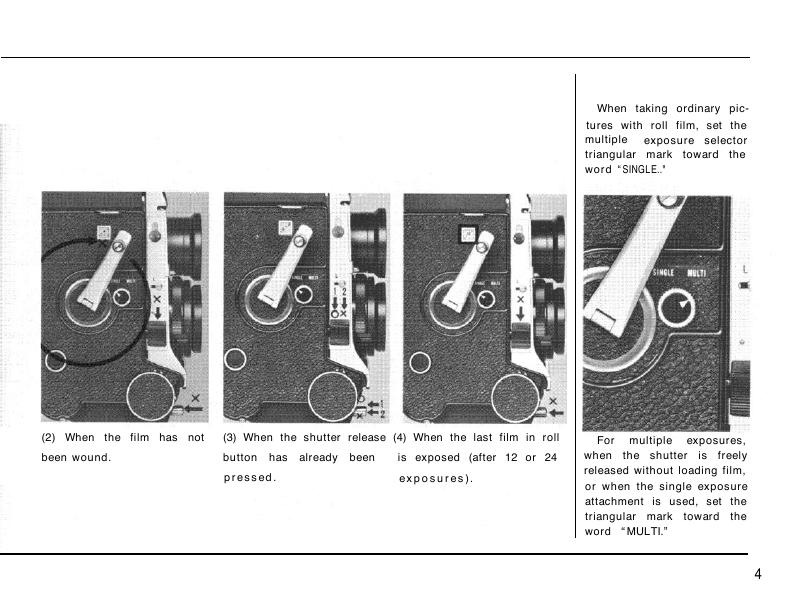

When taking ordinary pic- tures with roll film, set the multiple exposure selector triangular mark toward the word “SINGLE.." For multiple exposures, when the shutter is freely released without loading film, or when the single exposure attachment is used, set the triangular mark toward the word “MULTI.” 4 (2) When the film has not (3) When the shutter release (4) When the last film in roll been wound. button has already been pressed. exposures). is exposed (after 12 or 24

Nomenclature of Operating Parts 1. Magnifying glass 2. Strap eyelet 3. Exposure counter 4. Shutter release lock button 5. Multiple exposure selector 6. Film wind crank 7. Shutter release button (upper) Focusing knob Sportsfinder frame (for 65mm lens) 10. Sportsfinder frame (for 80mm lens) --@ 11. Sportsfinder mask stud 12. Sportsfinder flap --@ 13. Synchroflash terminal

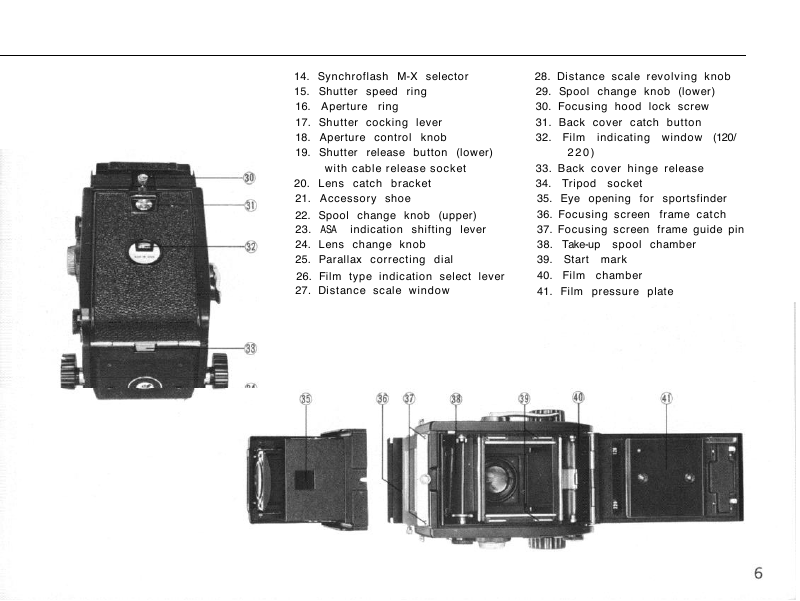

14. Synchroflash M-X selector 15. Shutter speed ring 16. Aperture ring 17. Shutter cocking lever 18. Aperture control knob 19. Shutter release button (lower) with cable release socket 20. Lens catch bracket 21. Accessory shoe 22. Spool change knob (upper) 23. ASA indication shifting lever 24. Lens change knob 25. Parallax correcting dial 26. Film type indication select lever 27. Distance scale window 28. Distance scale revolving knob 29. Spool change knob (lower) 30. Focusing hood lock screw 31. Back cover catch button 32. Film 2 2 0 ) indicating window (120/ 33. Back cover hinge release 34. Tripod socket 35. Eye opening for sportsfinder 36. Focusing screen frame catch 37. Focusing screen frame guide pin 38. Take-up spool chamber 39. Start mark 40. Film chamber 41. Film pressure plate

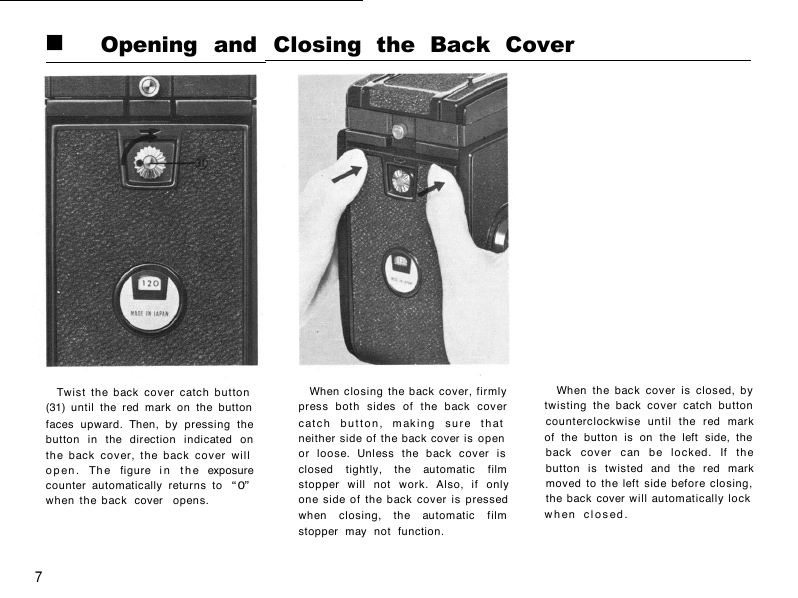

n Opening and Closing the Back Cover Twist the back cover catch button (31) until the red mark on the button faces upward. Then, by pressing the button in the direction indicated on the back cover, the back cover will open. The figure in the exposure counter automatically returns to “0” when the back cover opens. 7 When closing the back cover, firmly press both sides of the back cover catch button, making sure that neither side of the back cover is open or loose. Unless the back cover is closed film stopper will not work. Also, if only one side of the back cover is pressed when closing, film stopper may not function. the automatic tightly, the automatic When the back cover is closed, by twisting the back cover catch button counterclockwise until the red mark of the button is on the left side, the back cover can be locked. If the button is twisted and the red mark moved to the left side before closing, the back cover will automatically lock when closed.
